Using Fourier Transform Infrared spectroscopy to produce high-resolution centennial records of past high-intensity fires from organic-rich sediment deposits

Study area

The Blue Mountains are located 50–100 km west of Sydney in New South Wales (NSW), Australia, accounting for approximately 25% of the Greater Blue Mountains World Heritage Area (Fig. 1) (Cunningham 1984; Chapple et al. 2011; Tasker and Hammill 2011). The underlying geology is predominantly composed of sandstones with some shale lenses (Cunningham 1984; Dragovich and Morris 2002). Temperate Highland Peat Swamps on Sandstone (THPSS), or upland swamps, are a unique feature of the Blue Mountains and are typically situated at the headwaters of low-order streams (Chalson and Martin 2009; Cowley et al. 2016; Fryirs et al. 2021). These upland swamps are generally low-energy environments but are highly erodible in the event of a disturbance, such as a bushfire (Chalson and Martin 2009; Fryirs et al. 2021). Dry sclerophyll forests dominated by Eucalyptus species are prevalent throughout much of the Blue Mountains; these vegetation communities are both fire-prone and fire-promoting due to the volatility of the oils within their leaves, increasing the susceptibility of the area to bushfires (Cunningham 1984; Bradstock et al. 2010; Aryal et al. 2018). The fire regime of the Blue Mountains traditionally consisted of frequent, low-intensity fires in the form of cultural burning by Aboriginal communities, or ignition from lightning strikes (Cunningham 1984). However, since British colonisation, this has shifted to high-intensity fire events with occasional prescribed burns (Dragovich and Morris 2002; Black et al. 2006). The topography of the Blue Mountains reduces accessibility to bushland and restricts control efforts of major bushfire events (Cunningham 1984), increasing the importance of more accurate predictive models for fire management.

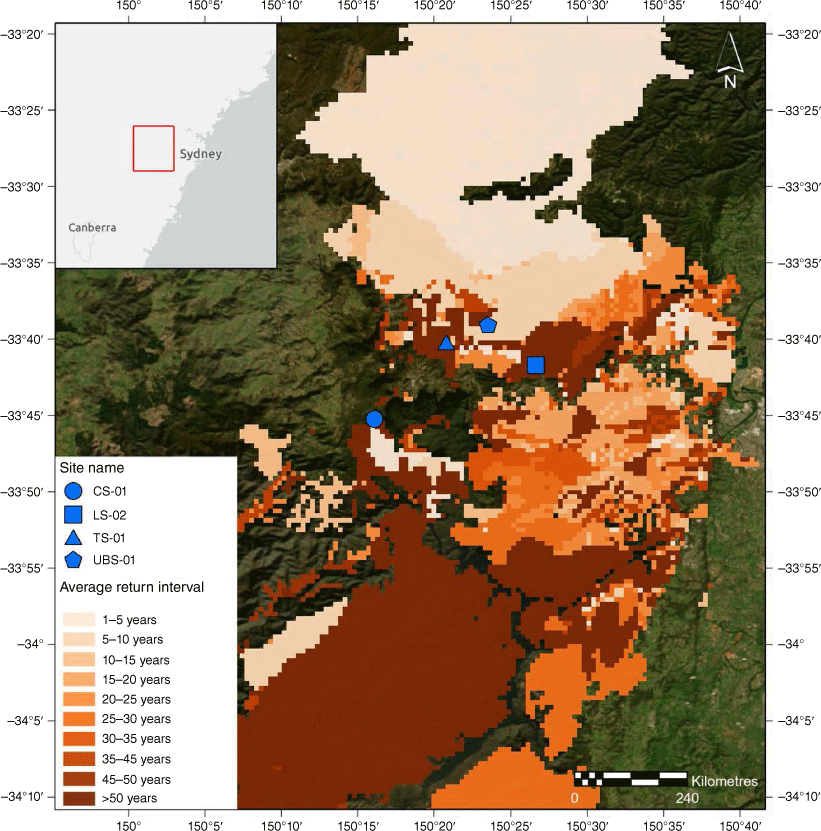

Fig. 1.

Average fire return interval map for the Blue Mountains, New South Wales, Australia, identifying the sites analysed as Corral Swamp (CS-01, blue circle), Long Swamp (LS-02, blue square), Timmy’s Swamp (TS-01, blue triangle), and Urella Brook Swamp (UBS-01, blue pentagon). Unshaded areas have not been burnt during the period from 1957 to 2020. Data adapted from NPWS (unpubl. data) and State Government of NSW and Department of Planning and Environment 2010. Satellite Image derived from: Esri, Maxar, GeoEye, Earthstar Geographics, CNES/Airbus DS, USDA, USGS, AeroGRID, IGN, and the GIS User Community Esri, HERE, Garmin, OpenStreetMap contributors, and the GIS User Community.

This study analyses sediments collected from four upland swamps in the Upper Blue Mountains: (1) Corral Swamp (CS-01); (2) Long Swamp (LS-02); (3) Timmy’s Swamp (TS-01); and (4) Urella Brook Swamp (UBS-01) (Fig. 1). Each site has experienced a different recent fire history and fire return interval (Table 1), and were selected to determine how fire characteristics have changed from 1957 to 2020. Fire history was determined using remote sensing data and digitised fire line maps (Hammill et al. 2013; National Parks and Wildlife Service, unpubl. data).

Sample collection

In the field, sampling sites were selected to avoid creek lines and channels, which ensured that a more continuous record was collected. While the surface of the swamps is largely treeless, dominated by heath vegetation, the dry sclerophyll forest on the hillslope is likely the predominant source of bushfire-derived sediment. Based on this, the distance from the sampling site to the tree line was also determined. An approximately 25 cm deep monolith was collected at each site. Half of the bulk monolith was subsampled at 1-cm intervals for analysis.

Elemental analysis

Elemental analysis of carbon (C) and nitrogen (N) was conducted at the Wollongong Isotope Geochronology Laboratory (WIGL) using an Elementar Vario Macro Cube Element Analyser. A total of 50 mg of each sample was ground to a fine, even powder for analysis. Three phenylalanine standards of different masses were analysed at the start of the sequence to formulate a calibration curve. Two blanks were also analysed prior to the phenylalanine standards and one blank before the samples. A repeat was analysed every four samples (n = 14), and a phenylalanine standard every 10–15 samples to account for drift. Carbon and N concentrations are reported in weight percent (wt%).

Potassium bromide pressed disc (KBr) – FTIR spectroscopy

All samples were analysed for FTIR spectroscopy by KBr pressed discs at Comenius University using a Nicolet 6700 FTIR spectrometer and OMNIC 8 software (Thermo Fisher Scientific). Approximately 1 g of the bulk sediment of each sample was ground to a fine, homogeneous powder using a zirconium oxide mill and then dried at 60°C for 24 h. A total of 2 mg of each sample was combined with 200 mg of KBr and pressed into a pellet. Measurements were conducted in transmission mode across the 4000–400 cm⁻¹ range. Spectral bands form at specific wavenumbers when exposed to infrared light that can be reliably attributed to particular functional groups (Smidt et al. 2005; Beć et al. 2020). A total of 128 scans were averaged for each sample at a resolution of 2 cm⁻¹, and the results were reported in absorbance values. The averaged spectra were baseline corrected in Python 3.8 using the ‘arPLS’ method (Baek et al. 2015) in the ‘RamPy’ package (Le Losq 2018). The baseline-corrected spectra were analysed for changes in peak height and peak area ratios, determined by taking the area under the curve for the bands of interest. A peak was considered as a ratio value >10, which is more than two standard deviations (s.d.) from the mean.

Age–depth model determination

Three charcoal samples were selected from the top, middle, and bottom of the LS-02, TS-01 and UBS-01 sites for radiocarbon dating, with additional samples collected for the CS-01 site over a 100-cm D-section core. In addition, plant macrofossils, typically seeds isolated during wet sieving, were dated for CS-01 (12–13 and 23–24 cm), LS-02 (2–3 and 10–11 cm), TS-01 (10–11 cm), and UBS-01 (2–3 cm). Accelerator Mass Spectrometry (AMS) was performed at the Chronos ¹⁴Carbon-Cycle facility, University of New South Wales (UNSW). Charcoal samples were prepared using an acid-base-acid treatment at 80°C with 1 M HCl and 0.2 M NaOH, as described by Turney et al. (2021). No pre-treatment was applied to the seed samples due to their small size and fragility; therefore, each sample was rinsed with Milli-Q water and graphitised for analysis. Due to the absence of a chemical pre-treatment, the ages for these seed samples likely represent a minimum age. A Bayesian model employing Markov Chain Monte Carlo (MCMC) simulations was then formulated using OxCal ver. 4.4 with the P_sequence deposition model and charcoal outlier model (Bronk Ramsey 2009). The charcoal outlier model was also applied to seed ages to account for their minimum age. The combine function was used when a seed and charcoal date were determined for the same depth (Bronk Ramsey 2009). The year of sampling at 0 cm was input into the model as an additional upper constraint. The ‘SHCal 20’ and ‘Bomb 21 SH12’ calibration curves were used to generate a calendar age–depth model (Hogg et al. 2020; Hua et al. 2021).

Radiocarbon age–depth models

Seven radiocarbon ages between 0 and 100 cm were used in the final age–depth model for CS-01 (see Supplementary Table S1), giving a sedimentation rate that is in line with that observed in swamps in the Blue Mountains previously (e.g. Fryirs et al. 2014; Freidman and Fryirs 2015). The known fire history for this site identifies only the 2019–2020 bushfires. The LS-02 site uses a calendar year determined by individually calibrating the 2–3 cm seed date (Fig. S1b). Two ages were used in the final model for TS-01 (Table S1), and these ages are constrained by the bomb peak (Fig. S1c). Finally, four radiocarbon ages were determined for the UBS-01 site, with the combine function applied to the 2–3 cm charcoal and seed ages. The UBS-01 site has the oldest ages at the base of the monolith compared to any of the other sites and therefore has the slowest sedimentation rate. The age uncertainties for each sampling interval at this site are also the largest (Fig. S2g, h). For further details on the age–depth models see the Supplementary material.

Corral swamp

In the top 25 cm of the CS-01 sediment profile, the C content decreases slightly with increasing depth, ranging from 6.6 wt% (14–15 cm) to 25.8 wt% (4–5 cm). There are no obvious peaks (Fig. 2c). Nitrogen content shows no apparent trend with increasing depth and is consistently low, ranging from 0.55 (14–15 cm) to 1.1 wt% (4–5 cm). No clear peaks are present in N content (Fig. 2d). The C/N ratio shows a general decreasing trend with increasing depth. Peaks are evident at 0–1 and 2–3 cm, and the C/N ratio ranges from 11.9 (14–15 cm) to 33.3 (2–3 cm) (Fig. 2e).

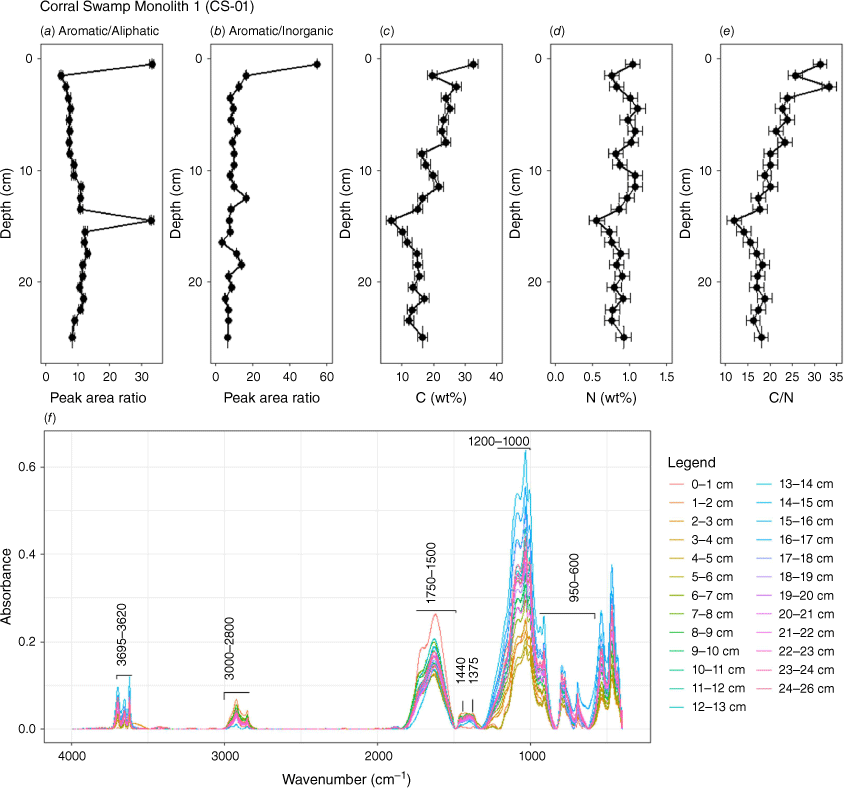

Fig. 2.

Peak area ratios for (a) aromatic/aliphatic (A_{(1750–1500 cm⁻¹)}/(A_{(3000–2800 cm⁻¹)}) and (b) aromatic/inorganic (A_{(1750–1500 cm⁻¹)}/A_{(750–600 cm⁻¹)}) peak intensities with relation to depth. (c) and (d) are the C and N content, respectively (reported in wt%), and (e) the C/N ratio (unitless). (f) The complete FTIR spectra from 4000 to 400 cm⁻¹ for the CS-01 site. Labelled ranges denote key bands referenced in the text.

Various bands within the FTIR spectra highlight changes with depth. The CS-01 site shows the highest kaolinite O–H stretching absorbance at 3620–3695 cm⁻¹ (Zanelli et al. 2006; Yusiharni and Gilkes 2012) than any of the other sites (Fig. 2f). This is with the exception of the sample at 0–1 cm, where the absorbance is at baseline. Peak absorption in the bands associated with inorganic bonds at 600–950 cm⁻¹ (metal O–H bending) (Schroeder 2002) is lower than for the other sites. The quartz doublet at 797 and 779 cm⁻¹ (Dlapa et al. 2013; Aldeias et al. 2016) shows slight variation between samples and relatively low absorbance. All samples show high peak absorption in the band at 1200–1000 cm⁻¹, which can be ascribed to both Si–O stretching of silicates, including clays, or C–O stretching predominantly from polysaccharides (Schroeder 2002; Krull et al. 2004; Nguyen et al. 2008; Hong et al. 2019) and absorbance is highly variable between samples. Generally, samples in the CS-01 site have the highest absorbance in the band associated with lignin products at ~1440 cm⁻¹ (aromatic C=C stretching, C–H bending of methyl and methylene groups) and 1375 cm⁻¹ (O–H bending of phenols, C–H bending of methyl group) (Artz et al. 2008; Keiluweit et al. 2010) than any of the other sites. Only the sample at 0–1 cm is at baseline, and the 14–15 cm sample shows a small reduction in peak height compared with the remaining samples. A small variation between samples is apparent in the broad band of aromatic C=C stretching at 1750–1500 cm⁻¹ accompanied by a shoulder at 1715–1740 cm⁻¹ due to C=O stretching of carbonyl groups in carboxylic acids, aldehydes, ketones, and esters (Mecozzi and Pietrantonio 2006). At 0–1 cm, aromatic C=C absorbance is higher than the remaining samples in this band. Aliphatic C–H stretching absorbance band at 3000–2800 cm⁻¹ (Dlapa et al. 2013; Mastrolonardo et al. 2015a; Cortizas et al. 2021) is also comparable between samples. The aromatic/aliphatic (A_{(1750–1500 cm⁻¹)}/(A_{(3000–2800 cm⁻¹)}) ratio displays peaks at 0–1 cm and 14–15 cm depth (Fig. 2a). Conversely, the aromatic/inorganic (A_{(1750–1500 cm⁻¹)}/A_{(750–600 cm⁻¹)}) peak area ratio shows peaks at 0–1 and 12–13 cm depth (Fig. 2b).

Long Swamp

Carbon content of the LS-02 profile ranges from 10.8 wt% (18–19 cm) to 39.4 wt% (10–11 cm). The C content shows minimal variation until ~14–15 cm depth, where there is a decrease (Fig. 3c). Nitrogen content ranges from 0.45 wt% (18–19 cm) to 1.7 wt% (12–13 cm). Nitrogen content shows minimal variation above 14–15 cm, below which there is a decrease, with negative excursions evident at 14–15 and 18–19 cm depth (Fig. 3d). The C/N ratio displays no obvious trends with depth and varies over a range of 17.2 (19–20 cm) to 28.5 (7–8 cm). Peaks are evident at 4–5, 7–8 and 18–19 cm depth (Fig. 3e).

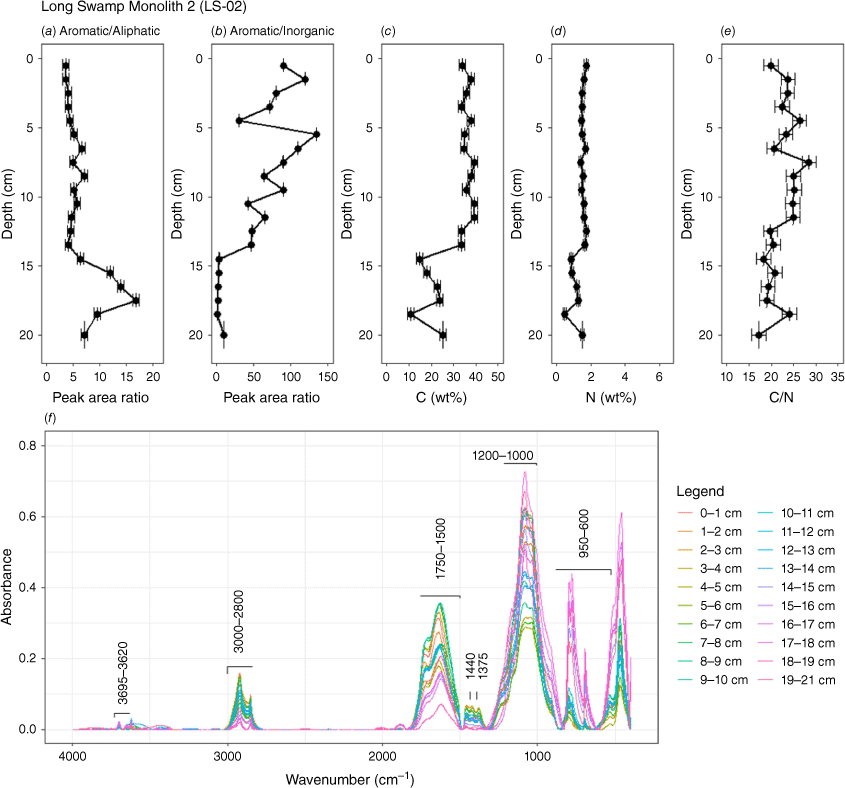

Fig. 3.

(a) The aromatic/aliphatic (A_{(1750–1500 cm⁻¹)}/(A_{(3000–2800 cm⁻¹)}) peak area ratio and (b) the aromatic/inorganic (A_{(1750–1500 cm⁻¹)}/A_{(750–600 cm⁻¹)}) ratio, (c) and (d) are the C and N content, respectively (reported in wt%), and (e) the C/N ratio (unitless). (f) The complete spectra from 4000 to 400 cm⁻¹ for the LS-02 site. Labelled ranges denote key bands referenced in the text.

The LS-02 profile shows a high variability between samples in the bands associated with organic and inorganic bonds (Fig. 3f). Low peak absorbance is evident across all samples in the band at 3620–3695 cm⁻¹ associated with O–H stretching of kaolinite. Samples at 14–21 cm have a higher absorbance in the bands at 600–950 cm⁻¹ (associated with metal O–H bending) and within the quartz doublet at 797 and 779 cm⁻¹. These samples show much lower peak height in bands associated with aromatic C=C absorbance at 1750–1500 cm⁻¹, aliphatic C–H stretching at 3000–2800 cm⁻¹, and lignin products. Conversely, samples at 0–13 cm show a lower peak height for inorganic bonds and for the quartz doublet (797 and 779 cm⁻¹). However, absorbance associated with aromatic C=C absorbance at 1750–1500 cm⁻¹, aliphatic C–H stretching at 3000–2800 cm⁻¹, and bands ascribed to lignin products at 1440 and 1375 cm⁻¹ are higher for these depths. Aliphatic C–H stretching shows the highest peak height of any other site. All samples display varying peak shapes and heights in the band from 1200 to 1000 cm⁻¹, ascribed to both Si–O bonds of clay and C–O bonds of polysaccharides. The aromatic/aliphatic ratio shows only one prominent peak at 17–18 cm (Fig. 3a). The aromatic/inorganic ratio, however, displays peaks at 1–2, 5–6, 9–10 and 11–12 cm (Fig. 3b)

Timmy’s Swamp

The C content ranges from 2.8 wt% (11–12 cm) to 17 wt% (0–1 cm), displaying a general decreasing trend with increasing depth. Peaks are apparent at 0–1 and 3–4 cm depth (Fig. 4c). N content shows minimal variation between samples, ranging from 0.15 wt% (13–14 cm) to 0.55 wt% (0–1 cm) and a decreasing trend with increasing depth. (Fig. 4d). The C/N ratio decreases slightly with increasing depth, with values ranging from 13.9 (18–19 cm) to 29.9 cm (0–1 cm). Possible peaks are observed at 0–1, 2–4, 8–9, and 13–14 cm (Fig. 4e).

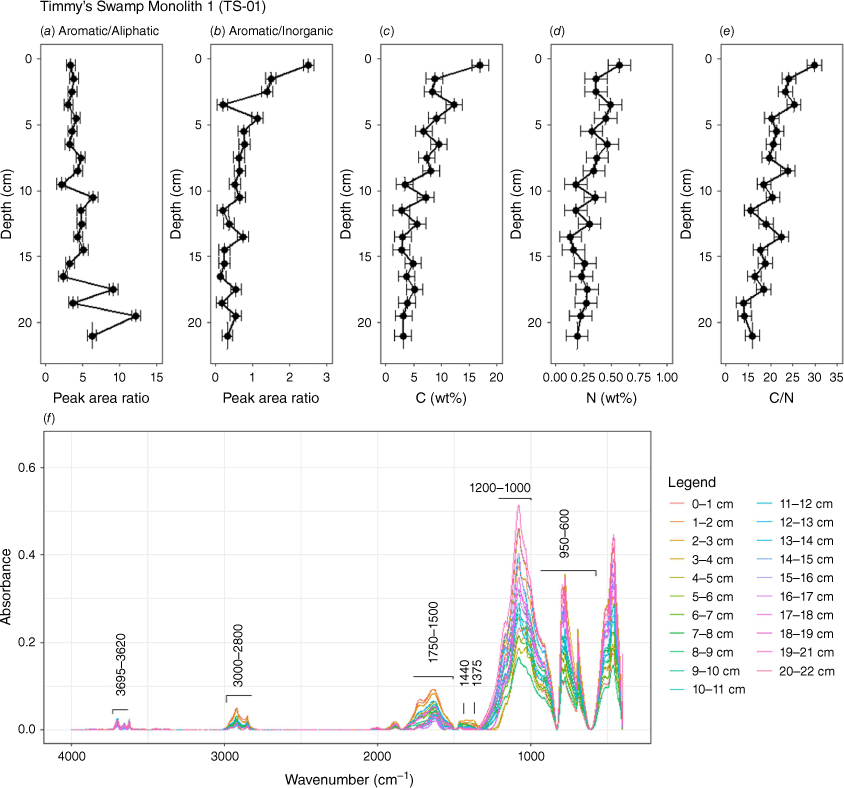

Fig. 4.

Peak area ratios for (a) aromatic/aliphatic (A_{(1750–1500 cm⁻¹)}/(A_{(3000–2800 cm⁻¹)}) and (b) aromatic/inorganic (A_{(1750–1500 cm⁻¹)}/A_{(750–600 cm⁻¹)}) peak intensities with relation to depth, (c) and (d) are the C and N content, respectively (reported in wt%), and (e) the C/N ratio (unitless). (f) The complete FTIR spectra from 4000 to 400 cm⁻¹ for the TS-01 site. Labelled ranges denote key bands referenced in the text.

Various organic and inorganic bands show changes in peak height with depth at the TS-01 site (Fig. 4f). All samples show minimal absorption at 3620–3695 cm⁻¹. Inorganic bonds in the bands from 600 to 950 cm⁻¹ (metal O–H bending) and from 700 to 1200 cm⁻¹ (Si–O and Al–O stretching) show high peak absorption for most samples; however, it is highly variable. The quartz doublet at 797 and 779 cm⁻¹ varies between samples but is particularly high between 3–4 and 18–22 cm. The peak shape and height in the band between 1200 and 1000 cm⁻¹ (C–O groups of polysaccharides and Si–O bonds of clays) varies between samples. Few depths show higher than background in the band at ~1440 and 1375 cm⁻¹, associated with the lignin products. The top 3 cm have the highest absorbance in the band at 3000–2800 cm⁻¹ associated with aliphatic C–H stretching bonds, but all samples have low peak heights within this band, suggesting lower organic matter content. Aromatic C=C absorbance at 1750–1500 cm⁻¹ is also low compared with the other sites analysed. The aromatic/aliphatic peak area ratio shows a general decreasing trend with increasing depth and only two peaks at 17–18 and 19–20 cm (Fig. 4a). The aromatic/inorganic peak area ratio shows a general decreasing trend with increasing depth. Whilst the peak area is highest at the surface, this does not constitute a peak compared to the other sites analysed (Fig. 4b).

Urella Brook Swamp

The C content ranges from 5.85 wt% (14–15 cm) to 40.65 wt% (1–2 cm), following a general decreasing trend with increasing depth. Peaks are evident at 1–2, 8–9 and 19–20 cm (Fig. 5c). The N content has a much smaller range over much of the profile, ranging from 0.4 wt% (12–13 cm) to 1.25 wt% (2–3 cm) (Fig. 5d). The C/N ratio ranges from 14.6 (16–17 cm) to 35.5 (1–2 cm) and is relatively constant with depth, highlighting peaks at 1–2, 3–4, 8–9, 12–13, and 18–19 cm (Fig. 5e).

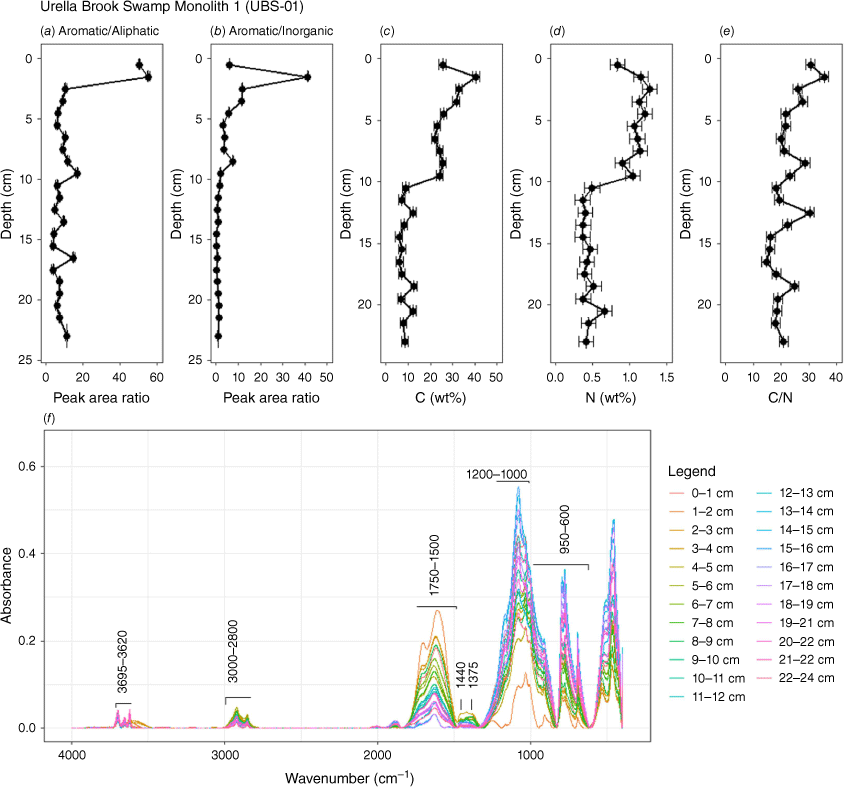

Fig. 5.

Peak area ratios for (a) aromatic/aliphatic (A_{(1750–1500 cm⁻¹)}/(A_{(3000–2800 cm⁻¹)}) and (b) aromatic/inorganic (A_{(1750–1500 cm⁻¹)}/A_{(750–600 cm⁻¹)}) peak intensities with relation to depth, (c) and (d) are the C and N content (reported in wt%), respectively, and (e) the C/N ratio (unitless). (f) The complete FTIR spectra from 4000 to 400 cm⁻¹ for the UBS-01 site.

Bands associated with organic and inorganic bonds show changes in peak height across the spectra for each sample (Fig. 5f). All samples show low peak height at 3620–3695 cm⁻¹ associated with O–H stretching of kaolinite. The top 10 cm have the lowest peak absorbance at the doublet at 797 and 779 cm⁻¹ associated with quartz. The band at 1200–1000 cm⁻¹ shows a range of peak heights and shapes. The 1–2 cm depth sample has the lowest peak height within this region. Peak absorption in the region from 600 to 950 cm⁻¹, highlights large variation between samples. At 1–2 cm, absorption is particularly low. The band at 700–1200 cm⁻¹ also shows large variation between samples. The bands at ~1440 cm⁻¹ and 1375 cm⁻¹ show an increase in absorbance for some samples, whilst others remain close to background. Aliphatic C–H stretching bonds at 3000–2800 cm⁻¹ are relatively low and comparable across all samples. Aromatic C=C bonds at 1750–1500 cm⁻¹ show a larger range, with 1–2 cm depth having the highest peak height and 14–15 cm depth with the lowest. The peak area ratio of aromatic/aliphatic shows peaks at 0–2, 9–10 and 16–17 cm (Fig. 5a), whilst the aromatic/inorganic ratio displays peaks at 1–2 and 8–9 cm (Fig. 5b).

Sedimentation rate

The sedimentation rate over the four sites varies from 0.05 cm/year (Urella Brook Swamp) to 0.341 cm/year (Timmy’s Swamp) (Fig. S2). Existing studies have also shown variable sedimentation rates for similar environments (Fryirs et al. 2014; Freidman and Fryirs 2015; Mooney et al. 2021). It has been hypothesised that this variation in sedimentation rate reflects catchment stability, whereby a slower sedimentation rate is associated with greater stability and faster sedimentation with instability (Fryirs et al. 2014). Vegetation cover, air temperature, rainfall, and fire frequency and intensity affect erosion rates and subsequent catchment stability (Fryirs et al. 2014; Mooney et al. 2021). Additionally, the sedimentation rate tends to decrease exponentially with increasing depth from the surface due to compression. Previous studies have typically dated samples below 20 cm depth; therefore, the ages determined across all four sites are relatively young, and although further comparison is challenging, these results demonstrate that over the past century, sediments have accumulated in THPSS at a rate varying between ~5 and 34 cm/100 years.

Fire occurrence in the sediment record

Based on the radiocarbon-based chronology of the sediment deposits studied and assuming no lag between a fire event and its record in the sediment deposits, we expect fire events to be recorded at the depths in Table 2. After a fire event, organic and inorganic material is transported to the swamp, possibly during a post-fire rainfall event. This may create layers associated with the fire event represented by a change in the chemical composition compared to the sediments that have not been affected by fires.

Carbon and nitrogen abundance

Despite previous studies suggesting an increase in N content in fire-affected sediments due to increased erosion of soils, combusted leaf litter and ash enriched in nutrients, including N post-fire (Thomas et al. 1999; Lane et al. 2008), there appears to be no significant increase in N content in layers hypothesised to record fires (Fig. S3b, e, h, k).

Whilst there is a small increase in C content for the uppermost fire layer in the CS-01 and UBS-01 sites, no significant correlation exists between C content and fire occurrence at the other sites (Fig. S3a, d, g, j). This agrees with the results reported by Alexis et al. (2007) and Martín et al. (2012), who found a similar, limited response to fire events. Fire in nutrient-limited landscapes, such as the Blue Mountains, is believed to release nutrients (Raison et al. 1985; Orians and Milewski 2007). Therefore, it is surprising that there is no consistent change in C content with fire.

The C/N ratio typically decreases within increasing depth due to increased decomposition (Krull et al. 2004); however, many studies have shown a variable response to fire (e.g. Fernández et al. 1997; Santín et al. 2008; Martín et al. 2012; Sazawa et al. 2018). In this study, there are no consistent trends with layers hypothesised to record known fire events and the C/N ratio for any of the four sites (Fig. S3c, f, i, l). For additional discussion of the C and N abundances, see the Supplementary material.

FTIR spectra

Aliphatic C–H bonds occur at 2920 cm⁻¹ (asymmetric stretching vibrations) and 2860 cm⁻¹ (symmetric stretching vibrations). Previous studies have combined these two bands, allocating the range from 3000 to 2800 cm⁻¹ to aliphatic bonds (Guo and Bustin 1998; Ellerbrock et al. 2005; Lammers et al. 2009). Aliphatic bonds are typically attributed to fats, plant waxes, lignin, etc. (Guénon et al. 2013; Wu et al. 2020) and have been shown to decrease with depth due to increasing humification (Artz et al. 2008). Aliphatic compounds are the first to be decomposed at elevated temperatures during a fire event (Abakumov et al. 2018). Decomposition of aliphatic bonds typically occurs at temperatures >250°C or with prolonged heating duration, resulting in a relative increase in aromatic peak contributions through Diels–Alder type reactions, which are more resistant to higher temperatures and decomposition (Guo and Bustin 1998; Rausa et al. 1999; Araya et al. 2017). The aromatic/aliphatic peak area ratio of sediment deposits could thus identify past events where organic compounds experienced higher intensity fire conditions, including higher temperatures and/or longer heating duration. There can be some contributions from O–H bending vibrations of water between phyllosilicate layers (Madejová 2003). However, there is a strong positive correlation between C content and the peak area of aromatic absorption, suggesting aromatic C is more dominant in this band (Fig. S4). Therefore, we assume that sediments with higher aromatic/aliphatic ratio values record past fire events. Bradstock et al (2010) and Collins 2014 have correlated fire severity with estimated fire fire intensity in the broader Sydney Basin with underlying sandstone geology, therefore, the high intensity fires recorded by the FTIR spectra are likely canopy consuming events. Applying the radiocarbon-based age–depth model to the CS-01 site identifies peaks in the aromatic/aliphatic ratio at the surface and at 14–15 cm (1887 (+66/−170) CE) (Fig. 6a). Both peaks show a similar value. The 2019–2020 bushfire is the only known fire recorded for this site and likely corresponds with the peak at the surface. The Blue Mountains experienced bushfires in 1888–1889, 1895–1896, 1904–1905, 1908–1909, 1911–1912, and 1915–1916 CE (Cunningham 1984) that are within the age-model error. Therefore, the deeper peak in the aromatic/aliphatic ratio could correspond to one of these events.

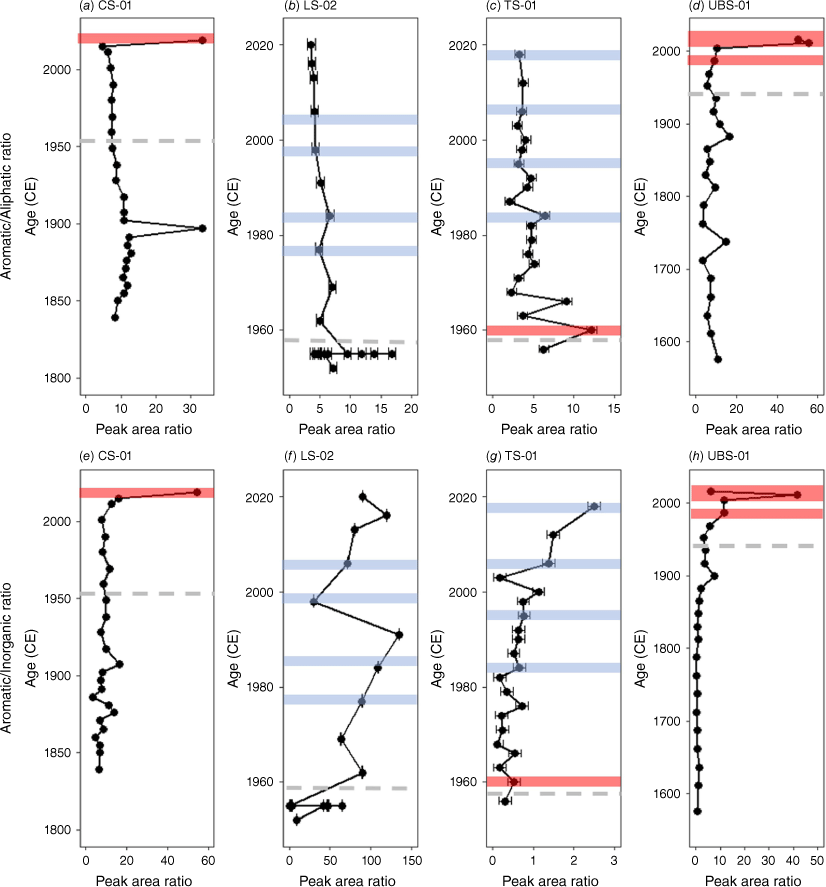

Fig. 6.

(a–d) The aromatic/aliphatic ratio with relation to the age–depth model for CS-01, LS-02, TS-01 and UBS-01, respectively. (e–h) The aromatic/inorganic ratio for CS-01, LS-02, TS-01 and UBS-01, respectively. Red shading, known fire events correlated with peaks in the respective ratios; blue shading, other known fire events expected in the record. Where applicable, the grey dotted line indicates the extent of the known fire record. Age uncertainties are in Fig. S1b, d, f, h.

For the LS-02 site, there is one peak at 17–18 cm (1955 (+5/–2) CE), which is older than the extent of the known fire history for this site (Fig. 6b). The known fire history identifies four more recent fires in 1977–1978, 1982–1983, 1993–1994, and 2002–2003, which are not associated with aromatic/aliphatic ratios >10 in the sediment deposit. Ryan et al. (2023) found that charcoal layers in sediments of small-order creek beds were ~700 years old at approximately 20 cm depth and hypothesised that the charcoal was being stored on the hillslope for many years before deposition. Therefore, it is possible that this peak represents a high-intensity fire in the 1950s, and fire products from more recent events have not yet been mobilised by rainfall from the hillslope to the swamp sequence yet. Since the 1950s, the Blue Mountains have experienced the Millennium drought (1997–2009), which recorded the lowest 13-year rainfall total in the instrumental record (Timbal and Fawcett 2013) and was followed by consecutive positive Indian Ocean Dipoles (IOD) and El Niño events in 2018 and 2019 (Wang and Cai 2020). If the sediments were stabilised by vegetation regrowth before a major rainfall event, this could have caused a lag between the fire and the fire-related sediments reaching the swamp deposit.

Only one peak was identified in the TS-01 profile corresponding with 1960 ± 7 CE in the age–depth model (Fig. 6c). This peak is within error of the 1957–1958 fire. Similar to LS-02, this suggests that sediments corresponding to the 1982–1983, 1993–1994, 2002–2003, and 2019–2020 fires have not yet been deposited in the sediment record at this site. The UBS-01 site has the longest record of the four sites and displays peaks in the aromatic/aliphatic ratio associated with dates of 2017 (+2/−10) CE, 2011 (+3/−31) CE, 1882 (+84/−101) CE and 1737 (+157/−121) CE from the model (Fig. 6d). Since this site has the longest record over similar depths to the remaining three sites, the resolution is coarser, and peaks are therefore attributed to major fire events. The peaks at 2017 (+2/−10) CE and 2011 (+3/−31) CE have ratios of ~50 and ~55, respectively, which are more than three times greater than the peaks at 1882 (+84/−101) CE and 1737 (+157/−121) CE. These increases in aromatic/aliphatic ratio, possibly associated with the 2017 (+2/−10) CE and 2011 (+3/−31) CE fires, suggest that their intensity could have been greater than the fires hypothesised to have occurred in the 18th and 19th centuries. The age range for this peak at 0–2 cm is between 1980 and 2019 CE. Owing to this uncertainty, it is not possible to confidently attribute this peak to a known fire event.

The aromatic/inorganic peak area ratio can provide information on the organic matter content of samples (A_{(1750–1500cm⁻¹)}/A_{(750–600cm⁻¹)}). The band at 750–600 cm⁻¹ is ascribed to Si–O bending vibrations (Farmer 1974; Hahn et al. 2018) and does not undergo dehydroxylation at the temperatures reached during a bushfire. Whilst the CS-01 site shows peaks of similar magnitude relating to the 2019–2020 and 1887 (+66/−170) CE fire events, this is not replicated in the aromatic/inorganic ratio (Fig. 6e), with only the peak at the surface correlating with the 2019–2020 fire present. Similarly, the peak at the surface of the UBS-01 site is prominent and in agreement with the aromatic/aliphatic ratio, whilst the second peak is slightly offset to 1907 (+47/−94) CE (1887 (+66/−170) CE for the aromatic/aliphatic ratio); however, this is still within the uncertainty of the age–depth model (Fig. 6h). Unlike the aromatic/aliphatic ratio, there are no peaks in the aromatic/inorganic ratio at 14–15 cm depth. This suggests that inorganic material is more dominant in this sediment.

Unlike the other sites, the TS-01 site has a much lower aromatic/inorganic peak area ratio across all samples (Fig. 6g). The peak intensity for all organic bands in the TS-01 site is also lower than that of any other sites, indicating an overall lower organic matter content. The aromatic/inorganic peak area ratio is the highest at the surface and decreases with increasing depth, which is expected considering it is hypothesised to represent the organic matter content. Peat-dominated environments typically have a high water-holding capacity due to the low bulk density and high pore volume of organic matter (Huat et al. 2011). The TS-01 site has the lowest moisture content of the four sites, possibly explaining this reduction in organic matter content.

At the LS-02 site, the aromatic/inorganic ratio does not show peaks at the same depths as the aromatic/aliphatic ratio (Fig. 6b, f). Peaks are found at depths not ascribed to a known fire event, possibly due to the higher organic content of the majority of this monolith. There is a greater than tenfold increase in inorganic peak intensity at 14–19 cm depth, meaning that any change in aromatic peak absorbance has little effect on the aromatic/inorganic ratio. This peak in inorganic intensity is also accompanied by an increase in the sedimentation rate (Fig. S1c). Catchment instability can cause a significant increase in the accumulation rate of swamps, specifically inorganic compounds (Fryirs et al. 2014; Mooney et al. 2021). This instability can result from various disturbances, particularly fire and large-scale rainfall events (Fryirs et al. 2014; Mooney et al. 2021). Peaks in the aromatic/inorganic ratio are ascribed to 2016 (+4/−3) CE, 1984 (+7/−3) CE, and 1962 (+8/−2) CE. There is a significant decrease in the aromatic/inorganic ratio at 17–18 cm (1955 (+5/−2) CE), which was associated with a peak in the aromatic/aliphatic ratio. During this period, the World War II drought (1939–45) (Freund et al. 2017) could have increased the instability of the catchment and the subsequent increase in inorganic materials in the sediment.

Kaolinite can be attributed to peaks at 3700–3600 cm⁻¹ assigned to O–H stretching vibrations (Berna et al. 2007; Yusiharni and Gilkes 2012; Cortizas et al. 2021). Samples from the TS-01, LS-02 and UBS-01 sites all have very low peak absorption in this band (Figs. 3f, 4f, 5f). Samples from CS-01 show a higher peak absorption (Fig. 2f); however, the sample at 0–1 cm, attributed to the 2019–2020 bushfire, displays no peak at 3700–3600 cm⁻¹. One hypothesis for this is the transformation of kaolinite at high temperatures. Dehydroxylation weakens the O–H stretching band at 400°C and destroys it at 530°C (de Santana et al. 2006; Berna et al. 2007). Whilst the destruction of the structure of other clay minerals, such as smectite and illite, occurs gradually, the loss of structural water from kaolinite is more abrupt (Berna et al. 2007). This tends to form a broad band centred at ~3450 cm⁻¹, typical of metakaolinite, suggesting that temperatures could have been greater than 530°C during this fire. There is no obvious decrease in peak height for identified fire layers at any other site. Alternatively, there may be a delay in kaolinite deposition at the surface of the profile. Organic matter may be lost by the volatilisation and convective processes of the fire, whilst inorganic matter is more commonly transported by channel erosion and increased runoff (Shakesby and Doerr 2006). However, this seems less likely given that major rainfall events occurred in short succession following the 2019–2020 bushfires, providing an opportunity for the erosion of kaolinite.

Clay content can also be reflected in the peaks at 1100–1000 cm⁻¹. Si–O stretching vibrations create peaks in this range (Haberhauer et al. 1998; Krull et al. 2004). However, it is important to note that polysaccharides are also visible in this region, with C–O groups attributed to the band at 1036 cm⁻¹ (Haberhauer et al. 1998; Krull et al. 2004; Nguyen et al. 2008). This band represents a range of peak absorption between the four sites. Given that organic matter predominates within these swamps, absorption relating to polysaccharides is likely to contribute more to this band; however, Si–O absorption of clays cannot be ruled out.

The Si–O peaks attributed to quartz are absorbed across several bands. The most prominent is the doublet at 778 and 798 cm⁻¹ associated with SiO₄ symmetric stretching; however, Si–O–Si bending transitions are also absorbed at 698 cm⁻¹ and antisymmetric SiO₄ stretching to 1084 cm⁻¹ (Dlapa et al. 2013; Aldeias et al. 2016; Hahn et al. 2018). There is a large variation in quartz absorption across all sites. CS-01 has the lowest peak absorption across all samples. TS-01 and UBS-01 show no significant trend with depth. However, LS-02 highlights a significant increase in quartz absorption at 14–21 cm. This suggests a possible in-wash event, depositing coarser-grained material at these depths.

Peaks attributed to organic materials can also reflect the temperature and characteristics of the fire. The structural units of lignin may be responsible for the observed bands at 1440 cm⁻¹ (aromatic C=C stretching) and 1375 cm⁻¹ (O–H bending of phenols) (Keiluweit et al. 2010). Lignin begins to break down at temperatures of 160–300°C (Keiluweit et al. 2010; Dorez et al. 2014; Mastrolonardo et al. 2015b; El Atfy et al. 2017). Heating to these relatively low temperatures alters the distribution of phenols, but the majority of the structure will remain unaltered (Mastrolonardo et al. 2015b). Above 500°C, the degree of condensation is increased, and lignin is destroyed at around 900°C (Keiluweit et al. 2010; El Atfy et al. 2017). While the TS-01 and UBS-01 sites show no significant trend, the LS-02 site shows a lower peak height in the band ascribed to lignin for samples with higher inorganic absorption. CS-01 shows relatively similar peak height across all samples, except those affected by fire. There is a slight decrease in peak height associated with the 1887 (+66/–170) CE fire layer, but the sediments associated with the 2019–2020 fire show no absorption in this band at all, suggesting that the temperature of the 2019–20 fires could have been in excess of 900°C in the catchment area of the sediment core. Alternatively, this reduction in peak height may have resulted from a longer heating duration during the 2019–2020 bushfire. Longer heating durations increase the temperature of the surface soils and bark, allowing increased heat transfer compared to a faster-moving fire (Aldeias et al. 2016), thus resulting in a similar change observed in the FTIR spectra.
