Establishing microbial baselines to identify indicators of coral reef health

Microorganisms make a significant contribution to reef ecosystem health and resilience via their critical role in mediating nutrient transformations, their interactions with macro-organisms and their provision of chemical cues that underpin the recruitment of diverse reef taxa. However, environmental changes often cause compositional and functional shifts in microbial communities that can have flow-on consequences for microbial-mediated processes. These microbial alterations may impact the health of specific host organisms and can have repercussions for the functioning of entire coral ecosystems. Assessing changes in reef microbial communities should therefore provide an early indicator of ecosystem impacts and would underpin the development of diagnostic tools that could help forecast shifts in coral reef health under different environmental states. Monitoring, management and active restoration efforts have recently intensified and diversified in response to global declines in coral reef health. Here we propose that regular monitoring of coral reef microorganisms could provide a rapid and sensitive platform for identifying declining ecosystem health that can complement existing management frameworks. By summarising the most common threats to coral reefs, with a particular focus on the Great Barrier Reef, and elaborating on the role of microbes in coral reef health and ecosystem stability, we highlight the diagnostic applicability of microbes in reef management programs. Fundamental to this objective is the establishment of microbial baselines for Australia’s coral reefs.

Coral reefs represent one of the most diverse ecosystems on the planet, providing home for an estimated 25% of all known marine species¹. Each year Australia’s iconic Great Barrier Reef (GBR) attracts millions of tourists from all over the world and provides $6.4 billion dollars to the Australian economy². However, reefs globally are facing unprecedented pressures³. During the past three decades, the GBR has also been severely impacted by the combined effects of climate change, crown of thorns starfish outbreaks, coral disease, overfishing and declining water quality^3–5. Back-to-back bleaching events were experienced in 2016 and 2017 on the GBR, resulting in over 80% mortality of corals in some regions and an estimated loss of 29% of corals across the GBR system^3,6. In addition to global pressures related to climate change, coral reefs are also affected at local scales⁷. For example, the GBR is locally affected by the run-off from 35 river basins, draining an area of over 424 000 km^2 8. Intensified agricultural land use in the GBR catchment area has caused an increase of sediments, nutrients and pesticides associated with terrestrial runoff, resulting in a significant decline in water quality, which poses ongoing chronic and periodic acute threats to the health of the GBR⁹.

Coral reef monitoring and management initiatives are well-established in Australia. For example, since the early 1980s the Australian Institute of Marine Science (AIMS) has assessed the health of Australia’s coral reefs via its Long-Term Monitoring Program (LTMP). The Great Barrier Reef Marine Park Authority (GBRMPA) has managed the GBR area for over 40 years under the Great Barrier Reef Marine Park Act 1975. In 2015, the Australian and Queensland governments released the Reef 2050 Long-Term Sustainability Plan, outlining concrete measures to manage and protect the GBR over the next three decades. However, despite the focus on coral reef monitoring and management initiatives across all levels of government and strong community engagement in many areas, the coral reefs surrounding much of the Australian coastline, like other parts of the world, have demonstrated concerning declines in recent years^3,5. One aspect that is poorly understood yet fundamental to coral reef functioning and ecosystem resilience is the contribution of microorganisms. Here we highlight that incorporating microbial based monitoring approaches into coral reef management initiatives will increase our understanding of reef ecosystem health and inform potential options for increasing reef resilience (Figure 1).

Figure 1. Implemented management strategies under Australia’s Reef 2050 Long-Term Sustainability Plan are guided by an integrated monitoring approach including 1) large scale aerial surveys, 2) mooring systems and weather stations that provide data on surface (e.g. wind, precipitation, barometric pressure, temperature) and subsurface conditions (e.g. temperature, conductivity, chlorophyll fluorescence, turbidity, oxygen, light transmission and photosynthetically active radiation), 3) assessment of coral cover, coral recruitment, coral community composition and coral–macroalgae ratios on a reef, 4) comprehensive water quality assessments and screening for pesticide concentrations and 5) near surface concentration measurements of chlorophyll a and total suspended solids based on remote sensing technologies. Currently, this integrated monitoring framework lacks a microbial approach and hence, excludes a considerable part of the coral reef biodiversity.

Microorganisms play an essential role in coral reef ecosystem processes and form diverse symbiotic relationships with benthos-dominating macro-organisms such as corals, sponges and algae^10–12 (Figure 2). The functional role of microbes in coral reefs include biochemical cycling of nutrients, degradation and remineralisation, host nutrition, vitamin synthesis, production of secondary metabolites and host defence via the production of antimicrobial peptides^10,11. Microbes often form specific and stable associations with their host species¹³ and can assist them to acclimate to the prevailing environmental conditions^14,15.

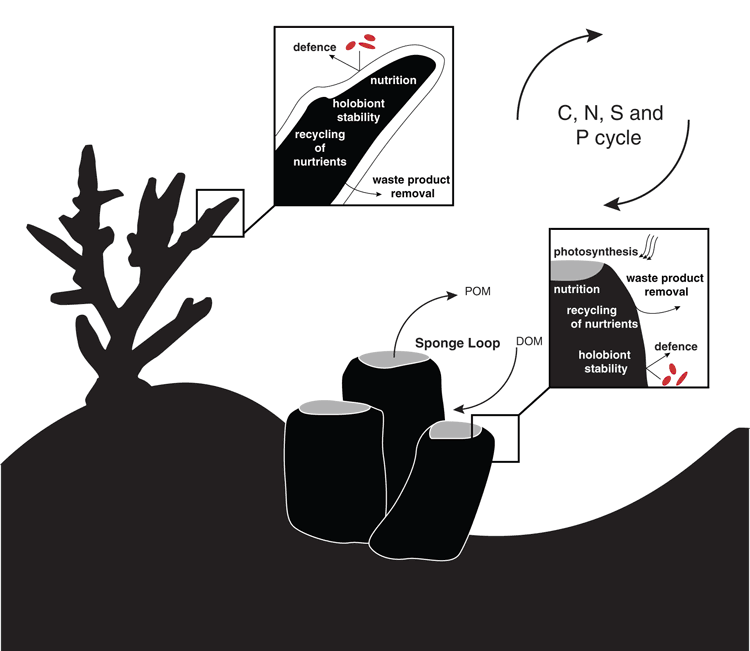

Figure 2. Simplified overview of microbial functions in a coral reef ecosystem. Microbes play a fundamental role in all major biogeochemical cycles (Carbon, Nitrogen, Sulfur and Phosphorus) in the coral reef ecosystem and contribute to their host’s nutrition, waste product removal, pathogen defence and holobiont stability.

Environmental variations, such as seasonal run-off or anthropogenic-induced fluctuations in water quality are known to alter the composition and function of the reef microbiome^16,17. Numerous studies have shown a clear shift in microbial community composition and function in coral reef waters and associated with dominant benthic life forms (such as corals) as the health of the ecosystem declines^18,19 (Figure 3). However, despite the recognised influence microbes have on coral reef health^10,20, a holistic understanding of their dynamics in coral reef ecosystems remains elusive²¹. Establishing microbial baselines that characterise the temporal and spatial microbial dynamics in coral reefs is urgently needed to underpin rapid and sensitive assessments of declining reef health and make predictions about the consequences of future environmental changes^10,22.

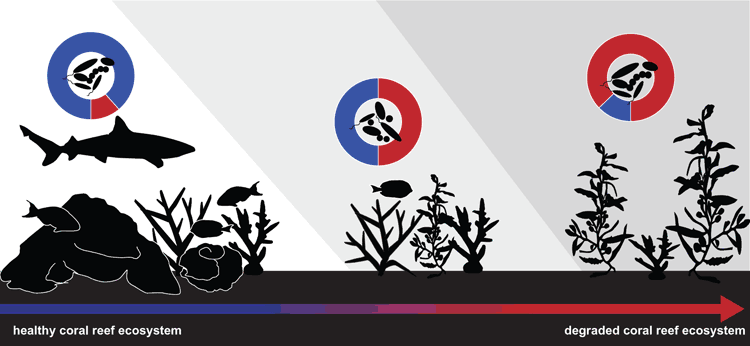

Figure 3. Coral reef ecosystems are increasingly affected by the intensification of environmental pressures emerging from land-use changes, overfishing, crown-of-thorns starfish outbreaks, coral diseases and climate change. Degradation of coral reefs and a shift from coral to macroalgae dominated benthic communities (from left to right) has been observed globally. As the health of the coral reef ecosystem changes, microorganisms rapidly respond. The microbiome of healthy reefs is dominated by beneficial and symbiotic microbes (blue), but as ecosystem health declines the microbiome shifts to an unbeneficial community, dominated by pathogens and opportunists (red).

Recent advances in next generation sequencing technologies combined with an increased recognition of the crucial ecosystem roles played by microorganisms, has resulted in a heightened commitment to understand spatial and temporal microbial dynamics in Australian ecosystems. For example, the BASE project (Biomes of Australian Soil Environments) is the first Australian soil microbial diversity database, providing amplicon sequencing data alongside contextual data for more than 900 sites across Australia²³. Another example is the Australian Marine Microbial Biodiversity Initiative (AMMBI), which was the first standardised microbial ocean observatory program undertaken at a continental scale. AMMBI aims to provide long-term microbial sequencing data from seven different pelagic sites around Australia, providing important baseline data on microbial composition and function in Australian off-shore waters. This is linked to extensive physicochemical and oceanography data derived from the Integrated Marine Observing System (IMOS) reference stations (www.imos.org.au), allowing both hindcasting and forecasting of microbial responses to environmental conditions. Recently the Marine Microbes (MM) project (www.bioplatforms.com/marine-microbes/) was established as part of the larger AMMBI initiative to sample microbial communities associated with corals, sponges, seaweeds, seagrasses, seawater and sediment from benthic sites across Australia, including sampling locations in the GBR, Perth and Sydney. The MM project aims to provide the first holistic microbial baseline for coral reefs in Australia.

Indicator organisms are used to effectively monitor habitat conditions and environmental changes²⁴. Biological indicators are a well-established monitoring tool for estuarine and freshwater ecosystems^25,26 and also find application in coral reef ecosystems²⁷. In the context of public health, microorganisms are extensively used as indicators to monitor drinking water supplies and the quality of recreational waters in order to prevent gastrointestinal illnesses^28,29. Furthermore, recent advances in human microbiome research have led to an increase of microbial based diagnostic and therapeutic approaches³⁰. Despite the emerging predictive power of the microbiome in human disease diagnostics^30,31, the use of microorganisms as sensitive indicators of environmental stress in coral reef ecosystems or as predictive markers for water quality in marine systems has remained relatively unexplored^10,22. Microbialisation scores are among the few attempts to monitor coral reef ecosystem declines based on the metabolic rates of microbial communities and reef-associated fishes³². Incorporating microbial monitoring tools into current coral reef health assessment programs will confer significant advantages as microbes are known to rapidly respond to changes in their environment, allowing for early diagnosis of changing water conditions and host physiological states.

Despite many potential advantages, microbial systems for monitoring coral reefs are still very much in their infancy and considerable additional research and validation would be required before microbial based monitoring approaches could be applied. Additional technical considerations that remain to be addressed include: (1) How frequently should sampling occur? (2) How and what should be sampled (e.g. seawater, sediment, microbiomes of benthic organisms such as corals or seaweed)? (3) What types of samples and analyses would be necessary (e.g. community profiling, targeted screening for particular microbial indicator taxa and/or functions)? and (4) How to minimise costs and increase efficiency of a microbial based monitoring system to ensure real-time assessment of reef health?

The important role of microbes in coral reef ecosystem functioning and their contribution to the resistance and resilience of coral reefs has become widely accepted^20,22. However, although Australia is at the forefront of coral reef studies and coral reef monitoring operations, to date, microbes have not been considered in large-scale monitoring approaches. The past few years have seen increased interest in understanding microbial dynamics in Australia’s ecosystems, which has led to holistic sampling efforts to establish the first microbial baselines for soils and marine environments. We argue that the establishment and ongoing assessment of such microbial baselines will be crucial to understanding microbial dynamics in response to broad ranging anthropogenic impacts. The inclusion of microbial monitoring approaches alongside our current coral reef monitoring framework will improve our ability to rapidly detect changes occurring in Australian coral reefs resulting in improved protection and management of these ecologically and economically unique ecosystems.
