Monophyly and phylogenetic origin of the gall crab family Cryptochiridae (Decapoda : Brachyura)

Additional keywords: 16S mtDNA, coral-associated organisms, evolutionary origin, superfamily.

Gall crabs (Cryptochiridae) are obligate symbionts of living scleractinian corals, residing in galls, tunnels or pits in the coral skeleton. The family consists of 21 genera and 49 species (Ng et al. 2008; Davie 2014) and is recorded from both shallow and deeper waters down to 512 m (Kropp and Manning 1987; Kropp 1990). The first known gall crab species was described by Stimpson (1859), who named the species Hapalocarcinus marsupialis and referred to it as ‘a remarkable new form of Brachyurous Crustacean’. Stimpson did not assign H. marsupialis to a crab family, but remarked that – in the series – it would probably fit between Pinnotheres and Hymenosoma, which belong to the Pinnotheridae De Haan, 1833 and the Hymenosomatidae MacLeay, 1838, respectively. Heller (1861) described a second gall crab species, Cryptochirus coralliodytes, and commented on its similarities with Ranina and Notopus (Raninidae De Haan, 1839). A. Milne-Edwards (1862) described yet another species, Lithoscaptus paradoxus, mentioning that this new species did not fit in any of the known crab families. Paulʹson (1875) subsequently erected the subfamily Cryptochirinae within the Pinnotheridae to accommodate the gall crabs, which Richters (1880) elevated to family level. A more complete overview of the history of the family Cryptochiridae Paulʹson, 1875, can be found in Kropp and Manning (1985).

Close phylogenetic affinities between the Cryptochiridae and Grapsidae s.str. (cf. Schubart et al. 2002) were proposed by Wetzer et al. (2009). The authors recommended dropping the superfamily Cryptochiroidea (see Ng et al. 2008) and suggested considering Cryptochiridae as just one of many separate ‘grapsoid’ families. The zoeal features of Cryptochiridae present numerous traits that are unique within the Brachyura (Tudge et al. 2014 and references therein). Based on the larval development, a close relationship between grapsids and cryptochirids had been proposed by Fize (1956), who regarded cryptochirids as a transitional group between Grapsidae s.l. and Calappidae. Fize and Serène (1957) deviated from this placement and argued that Cryptochiridae has closest affinities with Pinnotheridae, based on the morphology of the female abdomen. When considering the larval morphology (based on Troglocarcinus corallicola Verrill 1908), cryptochirids also appear closely related to Pinnotheridae, with close affinities to Hymenosomatidae and Leucosiidae (Scotto and Gore 1981). Utinomi (1944) had previously considered the zoea of Hapalocarcinus and Cryptochirus to belong to the so-called Grapsizoea (including genera of the Cancridae, Grapsidae, Xanthidae and some Oxyrhyncha) and dismissed suggestions of a close affinity of Cryptochiridae with Pinnotheridae. Affinities with several other crab families (Hymenosomatidae, Leucosiidae, Pinnotheridae, Palicidae and Retroplumidae) were discussed by Kropp (1988), who suggested monophyly of the Cryptochiridae based on a series of unique morphological characters (gastric mill, lateral lobe of the antennule, lack of mandibular palp). Guinot et al. (2013), based on several morphological structures, also concluded that the cryptochirids form a monophyletic group. The spermatozoa of C. coralliodytes and H. marsupialis were studied by Jamieson and Tudge (2000) and share a striking synapomorphy that is unique for the family Cryptochiridae (Tudge et al. 2014). Tudge et al. (2014) also compared the sperm ultrastructure and operculum of Cryptochiridae to those of species belonging to the Majoidea and the Hymenosomatidae. The sperm ultrastructure proves to be somewhat equivocal with regard to placement of the cryptochirids in Thoracotremata or Heterotremata. The morphology of the female reproductive system was studied by Vehof et al. (in press) who showed that the Cryptochiridae share characteristics with the thoracotreme families Varunidae, Ocypodidae and Pinnotheridae. The cryptochirid reproductive system is nevertheless remarkable in having ovaries that are expanded into the abdomen ( = pleon), which is exceptional among Brachyura and has only been known from pinnotherids so far (Becker et al. 2011).

In the most recent treatments of the Brachyura (Ng et al. 2008; De Grave et al. 2009; Ahyong et al. 2011; Tsang et al. 2014), the Cryptochiridae is classified in the superfamily Cryptochiroidea, and placed in the subsection Thoracotremata. The main argument to place Cryptochiridae in the Thoracotremata is the sternal location of male gonopores (Guinot 1977). This is in agreement with Scotto and Gore (1981), who regarded adults of the Atlantic species Troglocarcinus corallicola as exhibiting an advanced thoracotreme state. The Cryptochiridae have alternatively also been considered Heterotremata (e.g. Guinot and Richer de Forges 1997; Guinot and Bouchard 1998), advanced Heterotremata (Martin and Davis 2001) or a ‘basal heterotreme eubrachyuran superfamily’ (Guinot et al. 2013). Indeed, in the first paper employing molecular data to clarify the position of the gall crabs within other brachyurans, its placement in the subsection Thoracotremata was confirmed (Wetzer et al. 2009).

The monophyly and phylogeny of the Cryptochiridae among the Thoracotremata were re-evaluated by using 16S mtDNA data for 10 gall crab species belonging to nine genera. We reused almost the entire dataset from Wetzer et al. (2009), but expanded it by adding 10 gall crab sequences, and 24 additional sequences from thoracotreme crab species and families not included in the previous study. We used this enlarged dataset for analysis of the position of the Cryptochiridae within the Thoracotremata and to test Wetzer et al.’s result that Hapalocarcinus marsupialis evolved from within the family Grapsidae.

Wetzer et al. (2009) used two 16S mtDNA sequences of Hapalocarcinus marsupialis, combined with 49 GenBank sequences of thoracotreme species and four heterotreme species as outgroup to evaluate the relationships between Cryptochiridae and other Brachyura. To re-evaluate the position of the Cryptochiridae, we added nine additional species belonging to eight cryptochirid genera (see Fig. 1). We based our identifications on Fize and Serène (1957), Kropp (1989, 1990) and van der Meij (2012). We included one additional sequence of H. marsupialis for comparison with the material of Wetzer et al. (2009).

Fig. 1.  The cryptochirid taxa used in this study: (1) Hapalocarcinus marsupialis; (2) Utinomiella dimorpha; (3) Opecarcinus lobifrons; (4) Fungicola utinomi; (5) Dacryomaia sp.; (6) Fungicola fagei; (7) Fizesereneia sp.; (8) Lithoscaptus tri; (9) Pseudocryptochirus viridis. No picture is available for Cryptochirus coralliodytes. Not to scale.

An enlarged dataset encompassing a minimum of two species of all known thoracotreme families was used as a more complete dataset for research on the phylogenetic position of the gall crabs. Type genera and species were included whenever the corresponding data were available in GenBank. The full list of GenBank sequences and species authorities can be found in Table 1.

Table 1.  GenBank sequences used in molecular analyses (taxonomic authorities based on Ng et al. 2008)
* = sequences used in this study, but not included in Wetzer et al. (2009)

The following changes and additions were made in comparison to the dataset of Wetzer et al. (2009):

1. The Old World freshwater crabs used by Wetzer et al. (2009), Sartoriana spinigera (Gecarcinucidae) and Geothelphusa pingtung (Potamidae), were moved to the ingroup together with additional freshwater crabs from other continents, while Crossotonotus spinipes (Crossotonotidae) and Palicus caronii (Palicidae) were kept as outgroups. This was done in consequence to the newest brachyuran phylogeny by Tsang et al. (2014), which shows that Old World freshwater crabs of the superfamily Potamoidea (see Klaus et al. 2009) are placed at the base of the Heterotremata which in turn are the sister group to all Thoracotremata. This implies that the Potamoidea are phylogenetically closer to Thoracotremata than most other Heterotremata are to Thoracotremata. Furthermore we wanted to root the tree in a comparable way to previous phylogenies of the Thoracotremata (Schubart et al. 2000, 2002, 2006).

2. Sesarma windsor (Sesarmidae) was deleted from the dataset as it is a close sister species of S. meridies (see Schubart and Koller 2005) and does not contribute to the phylogenetic diversity, whereas Sesarmoides longipes (Sesarmidae) was removed, as it is a very basal sesarmid that often clusters weakly (see Schubart et al. 2002) and will be dealt with separately. Instead, the type species of the family, Sesarma reticulatum, was added, as well as the Asian sesarmid representative Chiromantes haematocheir.

3. Hemigrapsus oregonensis (Varunidae) was removed from the dataset, as it is not a typical representative of the genus, and will probably be placed in a separate genus after revision.

In addition to these changes, we noticed that GenBank no. AB002125 (Wetzer et al. 2009: table 2) does not correspond to Scopimera globosa (De Haan, 1835), but to S. bitympana (Dotillidae). We used the latter in our analyses. Taxon selection for the enlarged dataset was also tested with species belonging to heterotreme families, but in all preliminary analyses the cryptochirids consistently nested in the Thoracotremata, similar to the results of Wetzer et al. (2009). Furthermore, several potential outgroups were tested.

The gall crabs, with the exception of Cryptochirus coralliodytes, were collected in Indonesia (Raja Ampat, Papua; Ternate, Halmahera) and Malaysia (Semporna, E Sabah) by the first author from 2007 to 2010. Corals were searched for galls and pits, and subsequently split with hammer and chisel. The gall crabs were preserved in 80% ethanol, after being photographed with a digital SLR camera equipped with a 50 mm macro-lens. The material is deposited in the collections of Naturalis in Leiden, The Netherlands (formerly Rijksmuseum van Natuurlijke Historie, collection coded as RMNH.Crus.D). The specimen of C. coralliodytes (made available by Dr Danièle Guinot) was collected in New Caledonia, more material of the same series is in the collections of the Muséum national d’Histoire naturelle (Paris).

DNA was isolated from muscle tissue of the fifth pereiopod, using the Qiagen DNeasy^® Kit according to the manufacturer’s protocol for animal tissue. Maceration took place overnight for ~18 h. The final elution step was performed with 100 μL elution buffer. PCR was carried out with standard conditions (2.5 μL PCR buffer, 0.5 μL DNTPs, 1.0 μL of primers 16L2 and 16H10 (Schubart 2009), 0.3 μL Taq, 18.7 μL MilliQ and 1.0 μL DNA template). Thermal cycling was performed as follows: initial denaturation at 95°C for five minutes, followed by 39 cycles of 95°C for five seconds, 47°C for one minute, and 72°C for one minute and finalised by 10 min at 72°C. Sequences were assembled and edited in Sequencer 4.10.1.

The alignment was constructed with Clustal X (Larkin et al. 2007) and minimally modified by hand. It includes 82 sequences consisting of 589 basepairs, of which 374 are variable and 319 are parsimony informative. A model selection analysis was carried out to select the best-fit model based on the Akaike Information Criterion (AIC) in jModelTest 2.1.1 (Darriba et al. 2012), which rendered TrN+I+G as the best model. A Bayesian phylogeny was estimated with MrBayes 3.1.2 (Ronquist and Huelsenbeck 2003) using the next most complex GTR+I+G model. Four Markov-Monte-Carlo chains were run for 3 000 000 generations with a sample tree saved every 1000 generations (outgroup Palicus caronii). The split frequency of the likelihood scores was 0.01042. The burnin was set to discard the first 25% of the sampled trees. The consensus tree, constructed using the ‘sumt’ option in MrBayes, was visualised using FigTree 1.3.1. (Rambaut 2009).

The topology of Fig. 2 is derived from the Bayesian inference 50% majority rule consensus of the trees remaining after the burnin, with high support values in the basal part as well as in the distal phylogenetic branches. The outgroup is separated by a long branch, whereas the freshwater crabs from four families form a sister clade to the highly supported monophyletic Thoracotremata. Within the Thoracotremata, four major clades can be distinguished. The cryptochirid taxa included in the analyses form a monophyletic clade with a long branch length compared to the other clades. Within this highly supported clade, Utinomiella dimorpha, Pseudocryptochirus viridis and Opecarcinus lobifrons hold a basal position with respect to the remaining gall crabs. Our specimen of H. marsupialis differs from the specimens used in Wetzer et al. (2009) by 15–17 basepairs (bp) out of 533 bp. Nevertheless, Hapalocarcinus marsupialis is for now regarded a single species, but may well be a complex of species (see also Castro 2011).

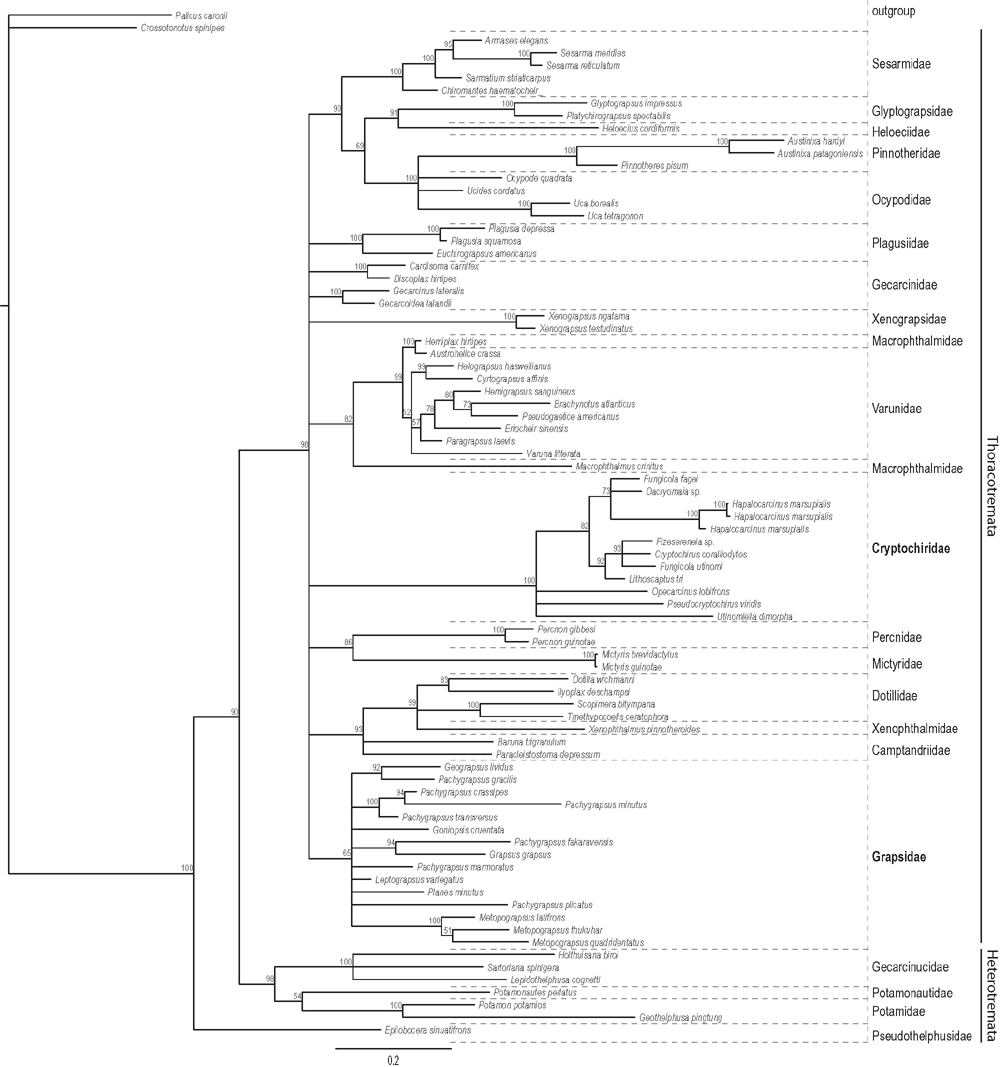

Fig. 2.  Phylogenetic placement of the Cryptochiridae within the Thoracotremata, based on 16S mtDNA sequences of 82 taxa (including outgroups). This tree is rooted with Palicus caronii. Topology derived from Bayesian inference 50% majority rule, significance values are posterior probabilities.

A second clade contains Glyptograpsidae, Heloeciidae, Pinnotheridae, Ocypodidae and Sesarmidae. Ocypodidae and Pinnotheridae together form a paraphyletic clade. The single representative of the Heloeciidae appears as a sister group of the Glyptograpsidae. All Sesarmidae taxa form a monophyletic clade. A third clade is formed by the Macrophthalmidae and Varunidae. The Macrophthalmidae are polyphyletic, while the Varunidae are paraphyletic because of non-reciprocal monophyly (overlapping taxa) between these two families. Lastly, Grapsidae form the fourth monophyletic clade. The genus Pachygrapsus is paraphyletic, and the genus Metopograpsus clusters basally compared to the other grapsids. In addition to these major clades, several monophyletic families can be discerned based on our taxon sampling: the Mictyridae, Percnidae, Plagusiidae and Xenograpsidae. The Xenophthalmidae (represented by only one species) are included in the Dotillidae, which is a sister group of the Camptandriidae. The Gecarcinidae do not cluster together.

The present molecular phylogeny, including 16S mtDNA of ten cryptochirid species belonging to nine genera, showed that Cryptochiridae form a highly supported monophyletic clade within the Thoracotremata with an unquestionable posterior probability of 100%. Within the Cryptochiridae, representatives of Utinomiella, Pseudocryptochirus and Opecarcinus cluster basally to the other included genera. These remaining genera form one clade, with three possible subclades. Hapalocarcinus clusters weakly with Fungicola fagei and Dacryomaia sp., but with a long branch. Our results are largely in agreement with Van der Meij and Reijnen (2014), who, based on 16S and COI mtDNA, retrieved Utinomiella as the basal genus to all other cryptochirids. They also found Pseudocryptochirus forming a well supported clade with Neotroglocarcinus, and Opecarcinus forming a highly supported clade with Pseudohapalocarcinus. In their study, the remaining six genera (seven species) formed a fourth clade, with Hapalocarcinus weakly clustering as a sister clade. The position of Hapalocarcinus within the Cryptochiridae therefore remains unclear to some degree.

According to our phylogeny, gall crabs should not be considered ‘highly modified Grapsidae’ (see Wetzer et al. 2009), but an independent lineage deserving its current family rank. The conclusion that gall crabs are highly modified grapsids was based on low bootstrap (53%) and posterior probability (58%) values supporting the inclusion of H. marsupialis in the Grapsidae. Here we show that the conclusions of Wetzer et al. (2009) would have been different if there was better cryptochirid sampling. This may also be the case in the recent study by Tsang et al. (2014), where again only one cryptochirid taxon was used for a multi-gene phylogenetic analysis. In this case, Dacryomaia sp. is found in an unsupported sister taxon relationship with the family Xenograpsidae. It shows that conclusions on the phylogenetic position of (non-monotypic) families or other higher taxa, may be premature if based on a single species, especially when representatives are chosen that are not the type species of a genus, and when no information is available on the monophyly of the respective taxa.

Our results, and the ones by Tsang et al. (2014), do confirm the conclusion by Wetzer et al. (2009) that the Cryptochiridae belong to the Thoracotremata. In our analysis cryptochirids are consistently nested with thoracotreme crabs, when different heterotreme species were added to the dataset or used as outgroups. Yet, no clear affinities with a particular thoracotreme family could be identified. Thoracotreme crabs inhabit a wide diversity of habitats. Paulay and Starmer (2011) postulated that Thoracotremata evolved in ‘safe places’, such as intertidal, non-marine, deep water and endo-symbiotic habitats. Several thoracotreme families consist mainly of intertidal or shore crabs (e.g. Grapsidae, Sesarmidae, some Varunidae) occurring in different habitats, with some of them being specialised mangrove and mudflat dwellers (Camptandriidae, most Sesarmidae and Ocypodidae, with the exception of Ocypode, which specialises on sandy shores) or freshwater-dependent crabs (Glyptograpsidae and some Varunidae) (Schubart et al. 2002). Xenograpsidae with the genus Xenograpsus are specialised on hydrothermal vents (Ng et al. 2007) and many Sesarmidae and Gecarcinidae have invaded repeatedly terrestrial and/or freshwater habitats (Schubart et al. 2000). Only the Pinnotheridae have a similar lifestyle to the Cryptochiridae, by living in a permanent symbiosis with bivalves and ascidians (Becker et al. 2011). Survival and diversification of thoracotreme crabs might therefore be related to their adaptability to new environments (Paulay and Starmer 2011).

The branch support at the family/genus level is high for most clades. One of the largest clades is formed by the Glyptograpsidae, Heloeciidae, Ocypodidae, Pinnotheridae and Sesarmidae. A possible phylogenetic relationship between the Glyptograpsidae and Sesarmidae (see Schubart et al. 2000; Wetzer et al. 2009) or Glyptograpsidae and Ocypodidae (see Schubart and Cuesta 2010) had previously been proposed based on the same gene (in addition to histone H3 in Schubart and Cuesta 2010). However, a close affinity between these families was not confirmed by the study of Palacios-Theil et al. (2009). There is ongoing debate about the phylogenetic affinities of the genus Ucides (e.g. Ng et al. 2008; Schubart and Cuesta 2010). In our analyses, the relationship of U. cordatus with regards to the ocypodid genera Ocypode and Uca and the Pinnotheridae is not resolved. A study on the morphology of the female reproductive system shows that the overall anatomy of U. cordatus is similar to other ocypodids (Castilho-Westphal et al. 2013). For now, we therefore continue to recognise Ucides as a genus within the Ocypodidae (see also Schubart and Cuesta 2010) and not in its own family as suggested by Ng et al. (2008).

The Grapsidae form a monophyletic family. The separate clustering of the genus Metopograpsus within the Grapsidae has been shown before (e.g. Kitaura et al. 2002; Wetzer et al. 2009). In Schubart et al. (2006) and Schubart (2011), Metopograpsus holds a basal position within the Grapsidae in analyses carried out with the same molecular marker. The genus Pachygrapsus appears to be polyphyletic in this study, confirming results from Schubart (2011).

Kitaura et al. (2002) and Schubart et al. (2006) proposed that the Macrophthalmidae and Varunidae are sister groups, but with low confidence values. Our phylogeny shows a closer relationship between selected Macrophthalmidae and Varunidae, with high support levels. The species Hemiplax hirtipes clusters with the Varunidae (see also Kitaura et al. 2010; McLay et al. 2010). If H. hirtipes would be included in the Varunidae, then this family could again be considered monophyletic (see previous work by Schubart et al. 2002), based on the included taxa. The Mictyridae appears related to the Percnidae (but with very long branches), which is a new and unexpected hypothesis considering the large phylogenetic distance between these two families in the trees of Schubart et al. (2006) and Wetzer et al. (2009). In their study on the Plagusiidae and Percnidae, Schubart and Cuesta (2010) did not include species belonging to the Mictyridae; there the genus Percnon holds a basal position to other thoracotreme families. In our tree, the Thoracotremata form a polytomy and thus no basal lineage can be postulated.

In Wetzer et al. (2009), the Camptandriidae are polyphyletic: Paracleistostoma depressum clusters as a sister group to the Mictyridae and the Pinnotheridae, whereas Baruna triganulum clusters with the Dotillidae. In our results both species form a clade with the Dotillidae. The species Xenophthalmus pinnotheroides stands together with the Dotillidae. Based on molecular data and larval morphology, Palacios-Theil et al. (2009) also suggest a close relationship of Xenophthalmus pinnotheroides with the family Dotillidae. Ng et al. (2008) already discussed the strange position of the Xenophthalmidae and found that it resembles the Dotillidae, but some characters argue against lumping them into the family. Hence they followed Serène and Umali (1972), and treated it as a good family. As the Xenophthalmidae and the Heloeciidae are represented by single species in this study, no overall conclusions about their position in the Thoracotremata should be drawn.

Overall, several phylogenetic relationships (Heloeciidae–Glyptograpsidae, Varunidae–Macrophthalmidae, Pinnotheridae–Ocypodidae) argue against the classical and current (Ng et al. 2008) superfamily concept within the Thoracotremata. Therefore, Schubart et al. (2006) suggested to refrain from this superfamily concept and treat the constituent families separately until a clearer picture of phylogenetic relationships within the Thoracotremata has been reached. The unsuitability of the current superfamilies has been re-confirmed by Schubart and Cuesta (2010) and Tsang et al. (2014). Here again we argue against it and would hence propose to refrain from using the superfamily Cryptochiroidea (see Ng et al. 2008), until the evolutionary origin of Cryptochiridae (and taxonomic classification reflecting it) is better understood.

In summary, the Cryptochiridae is a highly enigmatic family, for which the closest relatives so far remain unknown. The present study is based on a single gene fragment, and additional support needs to be obtained from independent molecular markers. Further studies on the evolution of Cryptochiridae within the Thoracotremata should for that reason be based on multiple markers, to obtain more insight in their unusual biology and life history.
