Host–pathogen interactions in relation to management of light leaf spot disease (caused by Pyrenopeziza brassicae) on Brassica species

Additional keywords: crop losses, extracellular pathogens, pathogen population variation, QTL mapping, R-gene-mediated resistance.

Plant pathogens account for substantial yield losses worldwide (Savary et al. 2012). It has been estimated that pre-harvest pathogens cause yield losses of 9–15% in crop production each year. The losses can be a much greater percentage of yield for certain crops (Teng et al. 1984; Oerke 2006). Therefore, crop protection plays a key role in maintaining agricultural production with the increasing demand for food due to population growth (Savary et al. 2012). Successful management of plant diseases depends on reliable identification of the pathogens and their dispersal mechanisms, correct evaluation of the disease severity and yield loss, and knowledge about pathogenicity determinants (Strange and Scott 2005). Knowledge about host–pathogen interactions can be exploited to decrease yield losses by minimising pathogen inoculum (cultural practices), targeted inhibition of pathogen growth (chemical control, fungicide applications) and utilising the genetic composition of the host (breeding for cultivar resistance).

Light leaf spot disease, caused by Pyrenopeziza brassicae Sutton and Rawlinson (anamorph Cylindrosporium concentricum Grev.), is an economically damaging disease of Brassica species and the major fungal disease threat to oilseed rape (B. napus L.) in the United Kingdom. Several severe epidemics have been reported in winter oilseed rape in the UK since the first major epidemic recorded in 1974 (Simons and Skidmore 1988). Severe epidemics have affected oilseed rape production in northern continental Europe. In France, the disease was first reported in 1978 and there were severe epidemics in the 1980s and 2000s (Pilet et al. 1998; Karolewski et al. 2006). In Germany, occurrence of light leaf spot was widespread in the late 1980s (Pilet et al. 1998) and incidence on oilseed rape has increased recently (C. A. Klöppel, unpubl. data). Light leaf spot also occurs in Poland, with severe damage during mild winters (Karolewski 1999; Koike et al. 2007). Pyrenopeziza brassicae is also prevalent on brassicas in the wet, cool climate of New Zealand, with severe outbreaks of light leaf spot reported on vegetable brassicas (Cheah et al. 1980; Vegetables New Zealand 2016).

In the UK, light leaf spot was considered the predominant disease of brassicas in Scotland and northern England, where the disease is favoured by the wet, cool climate (Figueroa et al. 1995). Disease severity has varied greatly between cropping seasons and different geographic regions (Fitt et al. 1998b; Karolewski et al. 2006). According to recent data from winter oilseed rape pest and disease surveys partly funded by the Department for Environment, Food and Rural Affairs (Defra) (CropMonitor 2016), the severity of epidemics has increased progressively across the UK, accompanied by increased yield losses. Light leaf spot has now replaced phoma stem canker (caused by two closely related pathogen species, Leptosphaeria maculans (Desm.) Ces. & de Not. and L. biglobosa Shoemaker & Brun) as the main disease on winter oilseed rape in the UK. In England, annual yield losses were estimated to range from ~£18M to 160M between 2005 and 2014. This frequent, widespread occurrence has made light leaf spot a high priority for oilseed rape cropping areas in the UK. Light leaf spot is also one of the major diseases affecting vegetable brassicas, including Brussels sprouts (B. oleracea var. gemmifera) and cabbages (B. oleracea var. capitata). Losses of Brussels sprouts due to light leaf spot are estimated at ~10% (~£2.8M, with the value of the crop estimated at £28.1M in 2015) per annum in the UK (Defra 2016).

Fungicide applications are becoming less effective in controlling light leaf spot in the UK, and reduced sensitivity to azole fungicides has been reported in P. brassicae populations (Carter et al. 2014). Host resistance can serve as an effective disease management strategy, provided sufficient diversity is present within commercial cultivars (Boys et al. 2007, 2012) and variation of P. brassicae populations is considered. Study of genes responsible for resistance against P. brassicae can greatly improve understanding of this pathosystem and help to identify new sources of resistance. There have been studies on identification and characterisation of resistance genes operating against P. brassicae and more progress can be expected since the Brassica genome sequences have become available.

In this review, we evaluate current knowledge of light leaf spot disease, identify knowledge gaps and explore future prospects for sustainable management of this disease. We discuss what is known about B. napus–P. brassicae interactions, the importance of studying the host range and population variation of P. brassicae, and the potential for identification and characterisation of genes for resistance against P. brassicae, in the light of advances in Brassica genomics and bioinformatics.

Light leaf spot epidemics are usually initiated by airborne ascospores of P. brassicae, which are forcibly released from apothecia (cup-shaped fruiting bodies) produced on diseased plant stem, pod or leaf debris (Fig. 1a) (Gilles et al. 2001a, 2001c). In Europe, epidemics on winter oilseed rape crops are generally initiated in the autumn by ascospores produced on debris from previous crops. However, ascospores produced on crop debris at other times may be important in initiating epidemics on crops of vegetable brassicas or secondary epidemics on oilseed rape (McCartney and Lacey 1990; Gilles et al. 2000, 2001c; Karolewski et al. 2012). These airborne ascospores may be sampled by volumetric spore samplers as a means of forecasting risk of severe light leaf spot epidemics. Since they are difficult to identify microscopically in spore samples, use of species-specific quantitative PCR provides a more reliable method for measuring airborne inoculum concentrations (West et al. 2008; Karolewski et al. 2012).

Fig. 1.  Symptoms of light leaf spot caused by Pyrenopeziza brassicae: (a) apothecia of P. brassicae on a Brussels sprout leaf; (b) scanning electron micrograph of leaf section from Brassica napus cv. Apex (susceptible), showing abundant P. brassicae subcuticular hyphal growth on a leaf vein and surrounding tissue; (c) B. napus leaf with light leaf spot lesions showing discoloration of affected leaf areas and formation of acervuli; (d) B. napus leaf showing distortion at tip due to infection by P. brassicae; (e) susceptible cultivar showing stunting due to light leaf spot (right) next to a less affected cultivar (left) with normal crop height in Scotland; (f) B. napus stems with extensive light leaf spot symptoms; (g) light leaf spot on B. napus stem; (h) light leaf spot on B. napus pods showing formation of acervuli; (i) light leaf spot on white cabbage B. oleracea convar. capitata var. alba; (j) red cabbage B. oleracea convar. capitata var. rubra; (k) Romanesco broccoli B. oleracea convar. botrytis var. botrytis; and (l) Brussels sprouts B. oleracea var. gemmifera (described symptoms are marked with arrow heads).

When P. brassicae ascospores land on leaves of susceptible Brassica crops, they germinate and directly penetrate the cuticle, aided by cutinases (Ashby 1997). They then colonise the subcuticular niche, where extensive hyphal networks can be observed microscopically (Fig. 1b), although there are few visual symptoms on leaves of crops during this endophytic, apoplastic phase in the epidemic cycle (Rawlinson et al. 1978b; Boys et al. 2007, 2012). Early infections during autumn and winter can kill seedlings, decrease plant vigour and increase susceptibility to frost damage (Fitt et al. 1998b). When sufficient subcuticular biomass has accumulated, P. brassicae produces asexual conidia in acervuli (pustules; Fig. 1c), often arranged in circles, from which the anamorph is named (Cylindrosporium concentricum). These asexual conidia are dispersed by water (rain-splash) and they serve as secondary inoculum for spread of this polycyclic disease (Fitt et al. 1998b; Gilles et al. 2000, 2001c). Initially, patches of light leaf spot may be observed in crops but patches may merge as epidemics increase (Evans et al. 2003). Since the pathogen interferes with the plant hormone system, frequent symptoms include leaf distortion (Fig. 1d), stunting, and green island formation (Ashby 1997).

Light leaf spot epidemics are favoured by wet weather, which encourages production and dispersal of conidia; therefore, the disease is particularly severe on oilseed rape crops in Scotland and northern England (Fitt et al. 1998b; Gilles et al. 2000), where stunting of susceptible cultivars, with considerable yield losses, may be observed (Fig. 1e). The pathogen may be spread up crop canopies of oilseed rape not only by splash-dispersed conidia but also by new generations of ascospores produced on affected crop debris and through infection of meristematic tissues that are then carried upwards as crop stems extend (McCartney and Lacey 1990; Gilles et al. 2001c). Lesions develop on oilseed rape stems (Fig. 1f, g); although they are generally superficial and do not affect yield, affected stems provide an important source of inoculum for initiating epidemics during the following cropping season. When light leaf spot spreads onto pods (Fig. 1h), pods mature and shatter early, leading to yield loss. In vegetable brassicas such as cabbage, broccoli and Brussels sprouts, apart from yield losses caused by infection early in the cropping season, blemishes caused by infection later in the season (Fig. 1i–l) reduce the marketability of the produce.

It was predicted that, with climate change and increasing temperature, the severity of light leaf spot epidemics on oilseed rape crops may lessen by the 2050s in the UK (Evans et al. 2010; Fitt et al. 2011) and Germany (Siebold and von Tiedemann 2012). However, during the past decade, there has been a considerable increase in the severity of light leaf spot epidemics in northern Europe, perhaps due to changes in P. brassicae populations to render ineffective some sources of Brassica resistance (AHDB Cereals and Oilseeds 2016) and some previously effective fungicides (Carter et al. 2014).

Pyrenopeziza brassicae is a haploid, heterothallic (sexual reproduction occurs only between strains of the opposite mating type) fungus classified within the class Leotiomycetes (inoperculate discomycetes) in the phylum Ascomycota. Ascomata of P. brassicae were first identified on culture media (Hickman et al. 1955) followed by the first report of their occurrence under natural conditions (Staunton and Kavanagh 1966), and later described as the teleomorph of C. concentricum (Rawlinson et al. 1978b; Mycobank undated). Great variation in morphology is shown between different P. brassicae isolates.

Phytopathogenic fungi have adopted several mechanisms to invade and utilise the host for their growth and development. These include hydrolytic enzymes and secreted peptides, including effectors and toxins (Rohe et al. 1995; Laugé and De Wit 1998; Brunner et al. 2013). The involvement of cutinases in P. brassicae infection has been studied and cutinolytic activity of the pathogen was suggested to assist penetration (Davies et al. 2000). The asymptomatic growth phase of the pathogen starts with the formation of a hypomycelium, followed by proliferation of fungal hyphae to produce mycelial plates within the subcuticular space (Rawlinson et al. 1978b). Prior to and during this stage, two-way communication occurs between the pathogen and the host plant in which the pathogen attempts to utilise the host metabolism for its growth and reproduction, whereas the host may defend itself against the pathogen after recognition of pathogen signals (Boys et al. 2007). It has been shown that extracellular cutinases (Pbc1) (Li et al. 2003), extracellular proteases (Psp1) (Batish et al. 2003) and cytokinins (Ashby 1997) are key pathogenicity determinants involved during the penetration and subcuticular growth of the pathogen.

Determination of the genetic structure of plant pathogen populations is crucial for the development of strategies to improve disease management and deployment of resistance. The population structure of P. brassicae was studied by Majer et al. (1998), who found considerable genetic variation by using AFLP markers. The occurrence of genetic variation (subpopulation diversity, H_S) within a geographic region suggests that there is frequent sexual reproduction of the pathogen. Natural formation of P. brassicae apothecia is common in oilseed rape crops (Lacey et al. 1987; Gilles et al. 2001b). Being heterothallic, P. brassicae has two mating types originally described by Ilott et al. (1984) and designated MAT 1-1 and MAT 1-2, according to the nomenclature of Yoder et al. (1986) (Courtice and Ingram 1987). MAT 1-1 and MAT 1-2 were later referred to as MAT-2 and MAT-1, respectively (Singh and Ashby 1998, 1999). According to reviews of ascomycete mating-type gene nomenclature, the two idiomorphs of the single mating-type locus, MAT1, were designated MAT 1-1, consisting of an open reading frame (ORF) encoding a protein with an α-box motif, and MAT 1-2, consisting of a single ORF encoding a protein with an high mobility group (HMG) motif (Turgeon and Yoder 2000; Pöggeler 2001). Pathogens such as P. brassicae with a mixed reproduction system have a high potential to evolve through recombination of alleles during the sexual stage and to fix newly combined alleles in the population by asexual reproduction (McDonald and Linde 2002). Consequently, the pathogen may rapidly overcome host major resistance (R) genes in a few years after resistance is deployed at a large scale, and frequency of virulent alleles may increase with asexual cycles of the pathogen. Therefore, P. brassicae poses an increasing risk to oilseed rape and other Brassica species.

The dispersal of the pathogen by wind and rain-splash is the main mechanism for gene flow, which allows the exchange of alleles between populations (Barrett et al. 2008). Pathogens with the ability to spread their inoculum over long distances (e.g. wind-borne spores) tend to have increased gene flow, resulting in homogeneous population structures. Although ascospores of P. brassicae are wind-dispersed, Majer et al. (1998) calculated a moderate F_st (differentiation among subpopulations) value that suggested the absence of long-distance movement. This implies that the pathogen is likely to form subpopulations between geographical regions of the UK (Majer et al. 1998). However, the cropping area of oilseed rape in the UK has increased by almost ~200 000 ha since 1998 and it can be argued that availability of suitable host plants has led to a decrease in diversity among pathogen populations due to selection for specific races (Barrett et al. 2008). With the increase in oilseed rape production, problems with light leaf spot have increased throughout the UK, whereas it was previously considered a major problem only in Scotland. According to Majer et al. (1998), there was no difference in the populations of P. brassicae between Scotland and England, perhaps because there had been spread of the pathogen from Scotland southwards. However, that study was based on neutral DNA (AFLP) markers, which may not fully represent pathogen variations associated with pathogenicity determinants. In addition, pathogen populations change over time. Therefore, there may still be differences between populations in terms of virulence and gene-for-gene interactions between pathogen strains and host cultivars. The UK AHDB Cereals and Oilseeds levy board recommends use of different cultivars for the north region v. the east–west region of the UK (AHDB Cereals and Oilseeds 2016).

Light leaf spot also occurs on different types of B. oleracea and other related Brassica species or subspecies. These include Brussels sprouts (B. oleracea var. gemmifera), cabbage (B. oleracea var. capitata), cauliflower (B. oleracea var. botrytis), broccoli (B. oleracea var. italica), kale (B. oleracea var. acephala), turnip (B. rapa ssp. rapa), swede (B. rapa ssp. rapifera), Chinese cabbage (B. rapa ssp. pekinensis) and black mustard (B. nigra) (Maddock and Ingram 1981; Simons and Skidmore 1988; Boys 2009; Karolewski 2010). Spread of light leaf spot between different Brassica host species has been suggested (Wafford et al. 1986) but there has been little work on this. Pyrenopeziza brassicae isolates originating from Brussels sprouts and cauliflower were able to cross-infect oilseed rape, Brussels sprouts and cauliflower (Maddock et al. 1981). No significant differences were observed in virulence of isolates between different host species. Simons and Skidmore (1988) also reported the cross-infectivity of P. brassicae isolates that originated from oilseed rape, white cabbage or Brussels sprouts. These findings are supported by recent studies on cross-infectivity of P. brassicae between different Brassica host species; for example, isolates from oilseed rape can cause light leaf spot on cabbage or Brussels sprouts and vice versa (C. A. Klöppel, unpubl. data). Nevertheless, reported studies included a limited number of isolates, and more research is needed to investigate differences in P. brassicae virulence towards the host of origin and related species. The availability of different host species in a geographical region can increase the genetic diversity of a pathogen population (Woolhouse et al. 2001). Areas with both vegetable Brassica and oilseed rape production may have greater P. brassicae population diversity and thus a greater risk of severe epidemics than other areas.

The centre of origin of P. brassicae has not yet been identified but this finding would help to identify new sources of resistance because the host and pathogen may have co-evolved there for a long period of time (McDonald 2015). Oilseed rape production has increased greatly in the UK and problems with light leaf spot have increased in the last decade; therefore, new studies of the P. brassicae population structure are warranted.

Control of light leaf spot is difficult to achieve. Plant debris from harvested Brassica crops that is infested with light leaf spot acts as a source of inoculum for newly emerging crops (Gilles et al. 2001b). Plant debris remaining after harvest can be ploughed under to reduce the initial inoculum of the pathogen. However, farmers are now using minimum tillage regimes to minimise production costs, and intensification of agriculture has led to shorter crop rotations. Figueroa et al. (1994) observed a substantial increase in severity of light leaf spot in oilseed rape crops when oilseed rape was grown in two successive cropping seasons. Delaying the sowing date of the oilseed rape crop by up to 14 days can decrease incidence and severity of light leaf spot because the majority of ascospores may have already been released, but this may cause problems with phoma stem canker (causal agents Leptosphaeria maculans and L. biglobosa) (Welham et al. 2004). Cultivation practices can reduce disease severity but do not control epidemics sufficiently well when used alone.

Yield losses due to light leaf spot can be decreased by the use of fungicides. The timing of fungicide applications is crucial for effective disease control (Fitt et al. 1998a). A suggested fungicide regime included three spray applications against light leaf spot during the cropping season in the UK (Fitt et al. 1998a). The crop should receive the first fungicide application during the symptomless phase of pathogen growth in autumn, followed by a second spray in late winter that decreases the secondary spread of the pathogen (Fitt et al. 1998a). A third spray in spring post-flowering should control the pod infections that can lead to pod shatter but it is rarely necessary and may increase losses through mechanical damage from equipment. The autumn spray is very important to substantially decrease light leaf spot incidence (Figueroa et al. 1994; Gilles et al. 2000), but accurate timing of the first spray is very difficult because the farmer is not able to see the disease in the crop at that time. Therefore, forecasting schemes have been developed to support farmers in their spray decisions (Gilles et al. 2000; Welham et al. 2004; Rothamsted Research 2016). In autumn, this forecasting scheme predicts light leaf spot severity in the next spring on the basis of observed deviation from 30-year mean summer temperature together with 30-year mean regional rainfall and CropMonitor survey data for pod disease incidence at the end of the previous cropping season. The risk prediction is updated in spring for the final forecast to allow for the deviation of observed winter rainfall from the 30-year mean (Welham et al. 2004).

Nevertheless, despite accurate timing, fungicide applications may still be ineffective because of reduced sensitivity of P. brassicae strains to certain fungicide groups. Reduced sensitivity to methyl benzimidazole carbamate (MBC) and azole fungicides, including imidazoles and triazoles, has been reported (Carter et al. 2013, 2014). Reduced sensitivity in P. brassicae isolates to MBCs was conferred by a single major gene with three different alleles at this locus (target β-tubulin locus) resulting in sensitivity, moderate insensitivity or insensitivity. The P. brassicae populations selected in this study (Scotland and England) showed no variation in the frequency of resistance alleles (Carter et al. 2014). When effectiveness of host-resistance activators and primers such as acibenzolar-S-methyl, cis-jasmonate and β-aminobutyric acid was compared with that of triazole fungicides for controlling light leaf spot on winter oilseed rape, primers and resistance activators gave better control than fungicide treatments at some stages of the crop growth (Oxley and Walters 2012). Ineffective fungicide control strategies make it necessary to improve understanding of the pathogen population and the host resistance against P. brassicae.

The use of resistant cultivars is usually the most efficient, cost-effective and environmentally friendly strategy for controlling crop diseases. Farmers in the UK have the opportunity to choose cultivars from the AHDB Cereals & Oilseeds recommended list, which includes information about different crop traits such as average seed yield, agronomic traits, seed quality and score for resistance against P. brassicae (AHDB Cereals and Oilseeds 2016). Disease-resistance ratings are given on a scale from 1 to 9, with the higher numbers indicating better resistance. No currently recommended cultivar (2016–17 cropping season) has a resistance score >7 for light leaf spot. Moreover, there is a limited understanding of the genetic resistance mechanisms operating in different commercial oilseed rape cultivars, and the information is largely unknown to growers. Therefore, it is likely that cultivars with a similar type of resistance may be grown in the same area for a long period, exerting a strong selection on the local pathogen populations. Ultimately, this can lead to a breakdown of host resistance. Resistance breakdown of some cultivars with good resistance ratings has been reported, from which recent light leaf spot epidemics resulted. Often, this phenomenon is associated with major gene-mediated resistance (McDonald and Linde 2002). There is a need for a better understanding of the mechanisms of resistance against P. brassicae to inform the search for novel sources of resistance in oilseed rape and other Brassicas, where cultivar resistance against P. brassicae has been poorly documented.

Analysis of infection and colonisation stages of pathogen life cycles is useful to identify possible resistance mechanisms operating in the host against that particular pathogen. The potential mechanisms of B. napus resistance in relation to the P. brassicae life cycle have been reviewed by Boys et al. (2007). Subcuticular colonisation by the pathogen during its asymptomatic growth phase can be a key trigger for host resistance, which may operate to delay the accumulation of pathogen biomass and prevent production of asexual spores (Boys et al. 2007, 2012). There have been several studies on the operation of both major-gene-mediated and quantitative resistance against P. brassicae in B. napus (Table 1). A resistant phenotype associated with the formation of black necrotic flecking on leaves of infected plants (Fig. 2) has been described and the locus for resistance has subsequently been mapped (Bradburne et al. 1999; Boys et al. 2012). However, host resistance against P. brassicae may not always be associated with this phenotype (Bradburne et al. 1999). Major-gene-mediated resistance described in these studies appears to limit subcuticular colonisation and/or the asexual sporulation of P. brassicae, but with no effect on subsequent sexual sporulation of the pathogen (Boys et al. 2007, 2012). Further characterisation of the genetic basis of the resistance loci identified can provide useful information to search for new sources of resistance.

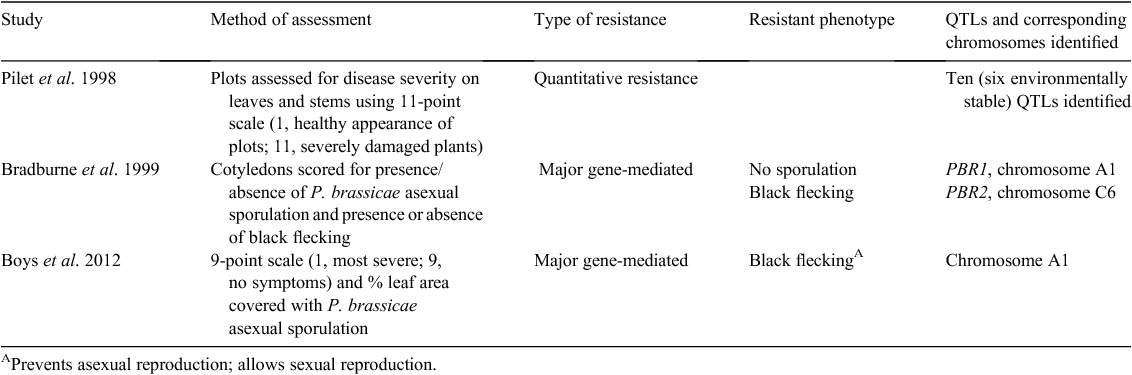

Table 1.  Research on identification and mapping of resistance against Pyrenopeziza brassicae in doubled-haploid populations of oilseed rape

Fig. 2.  Black necrotic flecking (K) on Brassica napus cv. Imola, which has a major gene for resistance against Pyrenopeziza brassicae: (a) along the leaf veins at 23 days post-inoculation (leaves were spray-inoculated with a mixture of P. brassicae populations collected from diseased oilseed rape leaves from winter oilseed rape crops); (b) on the leaf lamina at 28 days after point-inoculation with a suspension of P. brassicae conidia (Boys 2009).

Involvement of gene-for-gene interactions between P. brassicae and B. oleracea was reported by Simons and Skidmore (1988). Their experiment on F₁ hybrid lines of cabbage and Brussels sprouts showed differential interactions with P. brassicae isolates tested. In addition to cultivar-specific resistance, pre-existing structural host defence mechanisms such as cuticle thickness and composition may provide resistance. Increased susceptibility to P. brassicae has been reported after application of herbicides such as dalapon (2,2-dichloroproponoc acid) that alter the epicuticular wax structure (Rawlinson et al. 1978a). Plant tolerance and disease escape can also play an important part in minimising yield loss by restricting pathogen penetration and the amount of inoculum. For example, delayed senescence in oilseed rape leaves can reduce the ascospore inoculum for new infections later in the cropping season (Boys et al. 2007).

Different components of resistance may contribute differently in minimising yield losses (Boys et al. 2007). R-gene-mediated resistance is favoured by most plant breeders, because it can completely prevent the disease. Moreover, the selection of such resistance is much more straightforward than selection for quantitative resistance, because of its Mendelian inheritance. Nevertheless, the durability of R-gene-mediated resistance can be short, because the selection exerted on the pathogen population selects for virulent pathogen races. Therefore, it is important to consider genetic variation in P. brassicae populations to detect the presence of effector genes. Pyramiding several R genes in elite cultivars can provide better resistance because it requires several mutations in the pathogen genome to overcome host resistance (McDonald and Linde 2002). Nevertheless, this does not eliminate the risk of selection for virulent pathogen races over time. Rotation of cultivars that contain different R genes or growing them together as multilines decreases the rate of selection for virulent alleles (McDonald and Linde 2002). Addition of R-gene-mediated resistance into a quantitative resistance background could enable cultivar resistance to last longer (Brun et al. 2010).

Successful disease management strategies require a thorough understanding of the underpinning molecular mechanisms and the genetic basis of host–pathogen interactions (Burdon et al. 2016). Rapid expansion of genomic approaches has enabled significant improvements in control of crop diseases. Improved efficiency and cost-effectiveness of next generation sequencing (NGS) technologies have allowed whole-genome sequences of numerous crop and pathogen species to be generated. Increasing availability of Brassica genomic information offers new possibilities for the identification of host resistance and new opportunities to provide molecular tools to assist in breeding for disease resistance.

The genomes of five Brassica species have been sequenced. The first Brassica genome sequence was obtained from B. rapa (Wang et al. 2011). Genome sequences of B. oleracea (Liu et al. 2014) and B. napus (Chalhoub et al. 2014) followed; B. napus is an allotetraploid species that contains A and C sub-genomes from its ancestors, B. rapa and B. oleracea, respectively. Recently, the genomes of allotetraploid B. juncea and its B genome progenitor B. nigra were sequenced (Yang et al. 2016). The implications of genome-enabled technologies for the breeding of crops have been reviewed (Snowdon and Iniguez Luy 2012). Single-nucleotide polymorphism (SNP) markers and transcriptome sequencing (mRNA-Seq) have been used for genome-wide association studies (GWAS) to identify individual genes that contribute to important agronomic traits (Harper et al. 2012). Since then, a Brassica 60k SNP array has been used in combination with large association panels by several research teams to analyse the genetic basis of traits, including resistance against pathogens (Li et al. 2014; Hatzig et al. 2015; Wu et al. 2016). Resequencing of 52 diverse natural and synthetic B. napus accessions has resulted in identification of >4 million SNPs, which are being exploited for breeding using primary and secondary gene pools (Schmutzer et al. 2015).

Transcriptome sequencing has been used to analyse the interaction between B. napus and L. maculans (Lowe et al. 2014; Haddadi et al. 2016); both studies have used susceptible cultivars to determine pathogen and host gene expression. Such studies are useful to determine potential pathogenicity (e.g. effector) and resistance genes. Transcriptome analysis can provide valuable information related to quantitative resistance of the host against particular pathogens (Joshi et al. 2016; Wu et al. 2016).

Pyrenopeziza brassicae is an apoplastic fungal pathogen; R-gene-mediated resistance against it is likely to involve receptor-like proteins (RLP), which contribute to recognition of pathogen effectors that are secreted into the extracellular environment of the host (effector-triggered defence, ETD) (Stotz et al. 2014). This resistance is different from that involving R genes operating against appressorium-forming, cell-penetrating fungal pathogens that cause diseases such as rusts and mildews, which recognise pathogen effectors that are delivered into the cytoplasm of the host cell (effector-triggered immunity, ETI) (Jones and Dangl 2006). The different categories of R genes have recently been reviewed (Sekhwal et al. 2015). R-gene-specific sequence information has recently been exploited for resistance gene enrichment and sequencing (RenSeq) to identify previously unknown R genes (Jupe et al. 2013). Such approaches, in combination with advanced genome information, hold the promise of rapidly identifying the genetic basis of several resistance traits, including major resistance quantitative trait loci operating against P. brassicae.

In contrast to Brassica genomic information, little information is available about the P. brassicae genome. Research on P. brassicae–B. napus interactions provides a framework to understand its pathogenicity; however, the number of factors so far known to be involved in defence signalling pathways is limited. There are substantial improvements in efficiency of DNA-sequencing technologies. Whole-genome sequencing of pathogens allows for genome-wide analysis of pathogenicity-related genes (Klosterman et al. 2016). Comparative genomics approaches can be applied between related pathogen species to improve understanding of the pathogenicity in poorly understood pathosystems. Several phytopathogenic fungi are evolutionarily related to P. brassicae (Table 2). Sequence information for the internal transcribed spacer (ITS) region provided evidence for a close phylogenetic relationship between Rhynchosporium commune (formerly known as R. secalis) and two Leotiomycete genera, Pyrenopeziza and Oculimacula (formerly Tapesia) (Goodwin 2002).

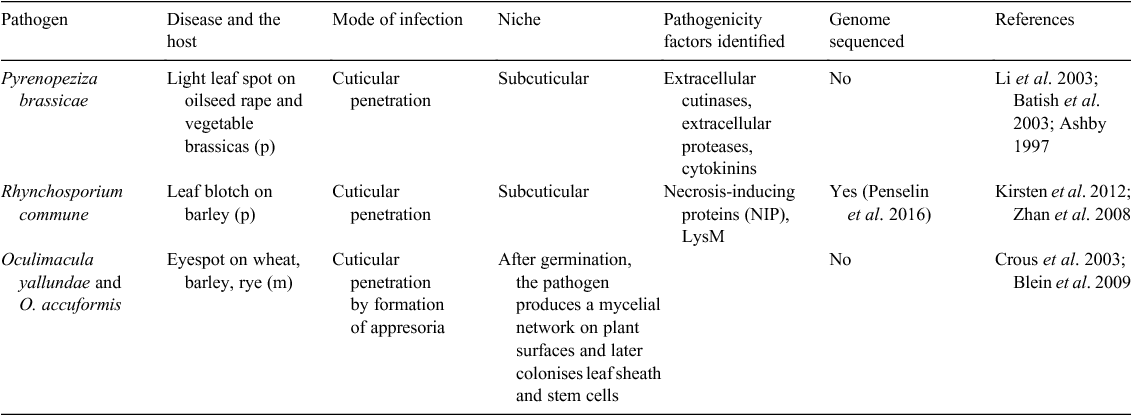

Table 2.  Phytopathogenic fungi evolutionarily related to Pyrenopeziza brassicae
Leotiomycete pathogen genera Pyrenopeziza, Rhynchosporium and Oculimacula were considered to have a close phylogenetic relationship based on sequence information for the internal transcribed spacer (ITS) region (Goodwin 2002). Main host species are listed; diseases are categorised as polycyclic (p) or monocyclic (m)

The genome of R. commune has been sequenced (Penselin et al. 2016). Seven proteins with at least one LysM domain, which are mostly found in secreted LysM effectors of fungi, have been identified in the Rhynchosporium genome. LysM-domain-containing effector proteins prevent the activation of pathogen associated molecular pattern (PAMP)-triggered immunity by sequestering chitin oligosaccharides. The close phylogenetic relationship between R. commune and P. brassicae can be exploited to identify whether pathogenicity-related genes of P. brassicae and R. commune LysM-domain-containing proteins are good candidate effectors for P. brassicae infection. Moreover, ~330 cell-wall-degrading enzymes (CWDEs) have been identified in the R. commune genome, and considering their putative substrates, ~64% of these were identified to target host cell walls. Gene expression data have been analysed for the necrosis-inducing protein (NIP) and small, secreted effector proteins (Penselin et al. 2016). This information can be incorporated into gene expression analysis to identify candidate effector genes. Whole-genome sequencing and re-sequencing of allelic variants can be used as an effective tool for studying pathogen population variation by identifying molecular markers such as microsatellites and SNPs.

Understanding of the molecular genetic mechanisms underpinning the B. napus–P. brassicae interactions is essential for developing effective, durable disease-management strategies. Although light leaf epidemiology is well understood, substantial gaps remain in understanding of the operation of Brassica resistance and P. brassicae pathogenicity. With recent advances in Brassica genomics and understanding of the genetic basis of resistance against extracellular pathogens (i.e. B. napus resistance against Leptosphaeria maculans) (Larkan et al. 2013, 2015), rapid improvement in identifying novel sources of resistance against P. brassicae can be expected. Resistance genes mapped in previous studies can be further examined to characterise the genetic basis of resistance and they can be cloned. This information can be utilised to search for similar genes and to produce molecular markers to facilitate marker-assisted selection (MAS) in oilseed rape breeding programs (Collard et al. 2005). However, to achieve effective disease control through deployment of cultivar resistance, considerable improvements in understanding of P. brassicae genomics are also needed. Differences in cultivar resistance between different regions in the UK indicate the presence of pathogen population variation, and this can also put pressure on breeding programs. It is important to study this variation by using molecular markers related to pathogenicity. This information will then need to be considered when recommending cultivars for different regions to sustain the available sources of resistance against P. brassicae.
