Petrophysical and geochemical interpretations of well logs from the pre-Carboniferous succession in Barnicarndy 1, Canning Basin, Western Australia

Keywords: Canning Basin, elastic property, fluid inclusions, geochemical interpretation, Geological Survey of Western Australia, Geoscience Australia, hydrocarbon potential, mineral composition, neural network, organic and inorganic chemical composition, permeability, petrophysical interpretation, Pilbara, porosity, pre-Carboniferous, Barnicarndy 1, well log.

The Canning Basin is an intracratonic basin in Western Australia and occupies about 640 000 km², of which 530 000 km² are onshore. It has a maximum sediment thickness of over 15 000 m, from Early Ordovician to Early Cretaceous, in the two main NW-trending depocentres. The basin was initiated in the early Paleozoic as a NW-oriented intracratonic rift, and was later influenced by mid-Devonian–Carboniferous extension, mid-Carboniferous shortening and early Permian thermal sag (Kennard et al. 1994; Zhan and Mory 2013).

The Barnicarndy Graben (previously Waukarlycarly Embayment) lies in the eastern part of the Pilbara Mining District within the Shire of East Pilbara (Fig. 1) (Bagas et al. 2009; Alavi 2013). As part of Geoscience Australia’s (GA) Exploring for the Future (EFTF) program, Barnicarndy 1 (previously Waukarlycarly 1) was drilled as a stratigraphic well at the southern part of the Barnicarndy Graben in the southwest Canning Basin in collaboration with the Geological Survey of Western Australia (GSWA). The wellsite is about 214 km east of Marble Bar and 51 km W-NW of the Telfer gold mine (Normore and Rapaic 2020; Normore and Zhan 2020) (Fig. 1). The drilling was a follow-up project to the 872 km Kidson seismic survey (18GA–KB1) to provide stratigraphic data for a poorly understood tectonic component of the southern Canning Basin (Carr et al. 2020).

Fig. 1.  Location of the Barnicarndy 1 well alongside the Kidson seismic line (18GA-KB1, red line) in the Barnicarndy Graben of the southwest Canning Basin (Normore and Rapaic 2020).

Barnicarndy 1 was drilled to a total depth of 2680.53 mRT, penetrating a thin Cenozoic succession overlying Permian–Carboniferous fluvial clastics and glacial diamictites (Grant Group, Backhouse 2020; Normore et al. 2021 in preparation). Below the unconformity at the base of the Grant Group, a thick (1730 m) succession of pre-Carboniferous clastic rocks is present. Drilling was terminated in low-grade Neoproterozoic metasediments (Carr et al. 2020). Besides the cuttings collected from the surface to 580 mRT, three stages of continuous coring were carried out to total depth. Both core and cuttings were analysed using the GSWA HyLogger-3 (GSWA 2020a, 2020b). A series of laboratory tests were conducted on radioactive, petrophysical, geomechanical, fluid inclusion, organic and inorganic geochemical properties organised by GSWA and GA (FIT 2020; Forbes et al. 2020; Grosjean et al. 2020; Jarrett et al. 2020; Ranasinghe and Crosdale 2020; Core Lab 2020a, 2020b; Edwards et al. 2021). Well logging data were acquired by Wireline Services Group (WSG) to a depth of 1602.8 mRT and by Weatherford Logging to a depth of 2679.29 mRT. Walker Petrophysics Pty Ltd (2020) collected the raw log data and provided data pre-processing and interpretation on the shale fraction, total porosity, dynamic elastic properties, formation water resistivity and mineral compositions with five mineral components. Geothermal gradient was assessed as 28 °C/km at Barnicarndy 1, while the surface temperature was assumed to be 25 °C (Walker Petrophysics Pty Ltd 2020). Well data and the basic well completion report are available through the Western Australian Petroleum and Geothermal Information Management System (WAPIMS) provided by the Government of Western Australia (GSWA 2020c; Normore and Rapaic 2020).

In this study, the conventional petrophysical interpretation focuses on the effective porosity, water saturation and elastic properties. Permeability, organic geochemical properties and mineral compositions were interpreted using artificial neural network (ANN) technology. All of the petrophysical interpretations were conducted utilising Schlumberger’s Techlog platform (Schlumberger 1991; Wang et al. 2021). The interpretations were focused on the depth range of 855–2585 mRT, which is beneath the base of the Grant Group and above the Neoproterozoic basement.

Within the depth range of 855–2585 mRT (Fig. 2), two orders of lithological intervals were defined on the basis of vertical distribution patterns from chemostatigraphic packages (Forbes et al. 2020); well logs (Wang et al. 2021), mineral assemblages from HyLogger thermal infrared (TIR) (GSWA 2020b); responses of hydrocarbon, acetic acid and total response from fluid inclusion stratigraphy (FIS) testing results (FIT 2020); chemical compositions from inductively coupled plasma (ICP) testing results (Forbes et al. 2020); and mineral assemblages from X-ray diffraction (XRD) and scanning electron microscopy (SEM) analysis results (Core Lab 2020b; Edwards et al. 2021). The ICP tests included both the optical emission spectrometry (ICP-OES) and mass spectrometry (ICP-MS) (Forbes et al. 2020). Laboratory testing results, core lithology and well logs demonstrate the lithofacies variations and good correlations with each other.

Fig. 2.  Definition of internal zones based on lithological sequences, well logs, chemostratigraphy and mineral assemblages in Barnicarndy 1. Column 1: measured depth (MD); Column 2: chemostratigraphic packages; Column 3: gamma ray (GR), compressional slowness (DT) and bulk density (RHOB); Column 4: lithological descriptions of cores (LithID); Column 5: HyLogger thermal infrared results (TIR); Column 6: responses of methane (CH4), ethane (C2H6), benzene, acetic acid and total from fluid inclusion results; Column 7: Inductively coupled plasma (ICP) testing results; Column 8: X-ray diffraction (XRD) results; Columns 9–10: two orders of lithological zones (Table 1).

At the first order (Zone_EFTFIntS), three major zones are defined: an Upper Sandstone, a Middle Interval and a Lower Sandstone (Fig. 2 and Table 1). From oldest to youngest, the Lower Sandstone mainly contains greyish orange to dark red/brown, fine to very fine sandstone with greyish orange, very fine to very coarse sandstone beds. As well as clastic rocks, thin pale green to dark red/brown ash beds or tuffaceous matter are also observed in the core. The Lower Sandstone corresponds with Package 2 of Forbes et al. (2020), which is defined based on chemostratigraphy and contains fluid inclusions with high hydrocarbon peaks (FIT 2020). The Middle Interval is dominated by thick claystone with a small portion of siltstone/sandstone and minor dolomite/limestone beds. The claystones are variably dolomitic, calcareous and silty. This zone corresponds with Packages 3–6 of Forbes et al. (2020) and is identified as an Ordovician succession by Normore et al. (2021). The lithofacies variations are identified on well logs, in the mineral components from HyLogger TIR, and from chemical and mineral compositions (Fig. 2). The Upper Sandstone is characterised by quartz sandstone with minor claystone beds, and its lower part corresponds to Package 7 (P_7, Forbes et al. 2020). The Upper Sandstone is present below the unconformity at the base of Grant Group and is regarded as a lower Paleozoic succession, although the age of this zone is undetermined due to a lack of biostratigraphic and geochronological data (Normore et al. 2021).

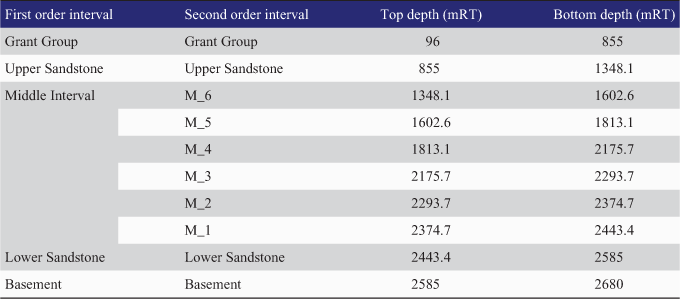

Table 1.  Lithological zones in the pre-Carboniferous succession in Barnicarndy 1

The first order Middle Interval is further divided into six second order zones (Zone_EFTFInt), as shown in Fig. 2. These are defined on variations in lithofacies and mineral assemblages and are, from oldest to youngest, M_1 to M_6 (Fig. 2). M_1 contains mainly dark grey claystone with evidence for fossilised burrows. M_2 contains various lithofacies types, including fine to very fine sandstone, siltstone and claystone, and claystone beds that are slightly to moderately dolomitic and silty. M_1 and M_2 occur over a similar depth ranges as Package 3 and 4 of Forbes et al. (2020). M_3 consists of dark grey to greyish black, slightly to moderately calcareous claystone with thin beds of grey limestone. Fossil fragments are observed in the argillaceous limestone beds. M_4 and M_5 are composed of dark grey to greyish black, variably calcareous claystone with thin beds of limestone, although M_5 is less calcareous than M_4. Fossilised burrows with slightly calcareous silts and very fine quartz fillings are observed in M_4. M_6 contains mainly claystone and siltstone beds, including brownish grey bioturbated siltstone and fine to very fine sandstone beds. The claystone is locally highly bioturbated, silty, slightly dolomitic and slightly to moderately calcareous. M_3 to M_5 are within Package 5, and M_6 corresponds to Package 6 of Forbes et al. (2020).

Logged bulk density (RHOB, g/cm³) was plotted against neutron porosity (NPHI, m³/m³) and these data are presented in Fig. 3. Data points from the Upper and Lower sandstones are mainly distributed along the sandstone polyline, whereas data from the Middle Interval are scattered across all three polylines. This implies that most claystone and siltstone/sandstone are likely to be either calcareous or dolomitic. These data provide the basis for an interpretation of effective porosity (Schlumberger 1991; Wang et al. 2021). The resultant interpreted effective porosity (POR and PHIE_ND) is presented alongside the laboratory measured effective porosity (Jarrett et al. 2020; Core Lab 2020a) in Fig. 4. A strong correlation is observed between the interpreted porosity and the laboratory measured porosity (R² = 0.844), implying good agreement between these datasets. Table 2 lists the averages of interval effective porosity (PHIE_ND) and claystone porosity (PHIE_NDsh).

Fig. 3.  Crossplot of bulk density (RHOB, g/cm³) and neutron porosity (NPHI, m³/m³) from Weatherford logs in Barnicarndy 1. The polylines are from Weatherford compact neutron porosity-density chart (CM 6–10 compact log, Weatherford 2007), including sandstone polyline (orange), limestone polyline (blue) and dolomite polyline (purple).

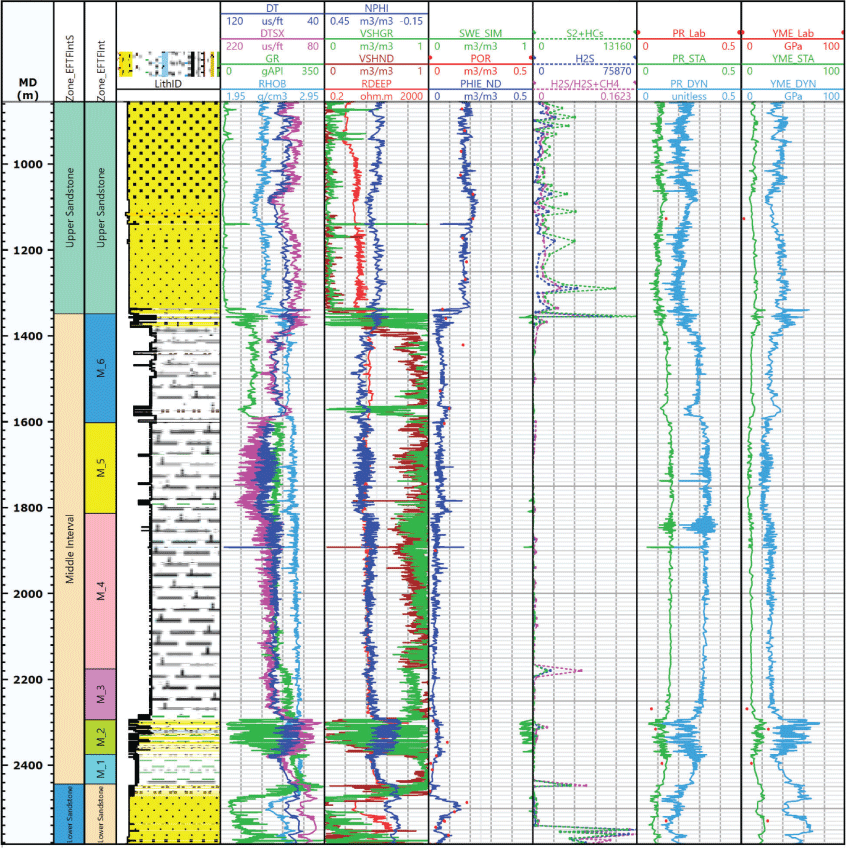

Fig. 4.  Well logs and interpretation results of porosity, water saturation and elastic properties in Barnicarndy 1. Column 1: measured depth (MD); Columns 2–3: two orders of intervals (Zone_EFTFIntS and Zone_EFTFInt); Column 4: lithological descriptions of cores (LithID, same legend as in Fig. 2); Column 5: gamma ray (GR), compressional and shear slowness (DT and DTSX) and bulk density (RHOB); Column 6: limestone neutron porosity (NPHI), deep resistivity (RDEEP) and shale fractions from gamma ray and neutron-density crossplot (VSHGR and VSHND); Column 7: laboratory measured and interpreted porosity (POR and PHIE_ND) and interpreted water saturation (SWE_SIM); Column 8: carbon disulfide plus hydrocarbons (S₂ + HCs), hydrogen sulfide (H₂S) and the ratio of hydrogen sulfide over the sum of hydrogen sulfide and methane (H₂S/H₂S + CH₄); Column 9: dynamic, laboratory measured and converted static Poisson’s ratio (PR_Lab, PR_DYN and PR_STA); Column 10: dynamic, laboratory measured and converted static Young’s modulus (YME_Lab, YME_DYN and YME_STA).

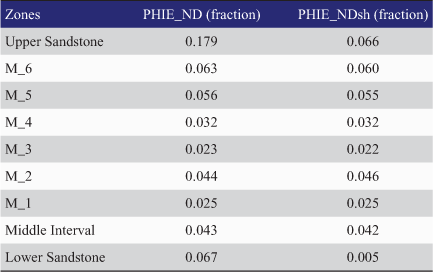

Table 2.  Averages of interval effective porosity (PHIE_ND) and claystone porosity (PHIE_NDsh) in the pre-Carboniferous succession in Barnicarndy 1

The average effective porosity of sandstones (shale fraction from neutron-density crossplot (VSHND) < 0.5) in the Upper Sandstone, Middle Interval and Lower Sandstone are 17.9%, 5.7% and 6.75%, respectively. The average reservoir porosities (VSHND < 0.5 and PHIE_ND > 0.1) of the Upper Sandstone and Lower Sandstone are 18% and 12.7%, respectively, and the average porosity of claystone (VSHND > 0.5) is 4.17% in the Middle Interval. The average claystone porosity in various internal zones of the Middle Interval ranges from 2.2% to 6%. The ratios of reservoir/gross thickness in the Upper Sandstone and Lower Sandstone are 0.991 and 0.243, respectively.

In the FIS results (Fig. 4), sulfur species, including carbon disulfide plus hydrocarbons (S₂ + HCs), hydrogen sulfide (H₂S) and the ratio of hydrogen sulfide over the sum of hydrogen sulfide and methane (H₂S/H₂S + CH₄), are sporadically present in the Upper Sandstone, at 2447.4 mRT and over the depth range of 2550.3–2580.3 mRT. The presence of sulfur species is generally associated with water-bearing, porous reservoir rocks and the water saturation in the Upper Sandstone is 1.0 (fraction). In this study, effective water saturation interpretation was conducted in the Middle Interval and Lower Sandstone. The Simandoux equation was used to compute effective water saturation (Schlumberger 1991; Wang et al. 2021) using the formation water resistivity of 0.03 ohmm, tortuosity factor of 1.0, cementation exponent of 2.4 and saturation exponent of 2.0 from Pickett plotting (Walker Petrophysics Pty Ltd 2020). Water saturation was less than 1.0 (fraction) with the average of 0.97 (fraction) in the low porosity sandstone/siltstone beds in M_2 and equal to 1.0 (fraction) in other zones (Column 8, Fig. 4).

Three potential reservoir/seal pairs from Barnicarndy 1 core were selected for measuring the static elastic properties in the laboratory, providing the averages of Poisson’s ratio and Young’s modulus as 0.1133 (fraction) and 13.3 GPa, respectively (Jarrett et al. 2020). Dynamic elastic properties, including Poisson’s ratio (fraction) and Young’s modulus (GPa), were calculated from bulk density (RHOB, g/cm³), compressional and shear wave slowness (DT and DTSX, μs/ft) (Fig. 4) (Schlumberger 1991; Wang et al. 2021). These data, when compared, provided a static/dynamic ratio of 0.4929 for Poisson’s ratio and 0.3475 for Young’s modulus. These ratios where used to convert calculated dynamic elastic properties to interpreted static properties, providing a continuous static curve for Poisson’s ratio and Young’s modulus (Fig. 4). Average values for the interpreted elastic properties in sandstones and claystones are provided in Table 3.

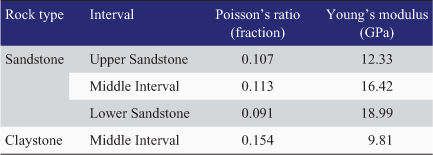

Table 3.  Averages of the interpreted static Poisson’s ratio and Young’s modulus in Barnicarndy 1

Laboratory measured, dynamic and converted static Poisson’s ratio (PR_Lab, PR_DYN and PR_STA, fraction) are presented in Column 9 (Fig. 4). Laboratory measured, dynamic and converted static Young’s modulus (YME_Lab, YME_DYN and YME_STA, GPa) are shown in Column 10 (Fig. 4).

ANN has been used to solve a wide variety of tasks (Hect-Nielsen 1990; Kalogirou 2000). In the petroleum domain, ANN has been applied in estimating hard data, such as laboratory measurements, from secondary (or soft) data, like seismic, well logs and conceptual geological data (Wong et al. 1995; Huang et al. 2001; Ouadfeul and Aliouane 2015). An example of a popular architecture of the three-layer perceptron in the Techlog platform (Wang et al. 2021) is provided in Fig. 5, including input, hidden and output layers. In this study, the input parameters include a series of selected well logs and one single output parameter.

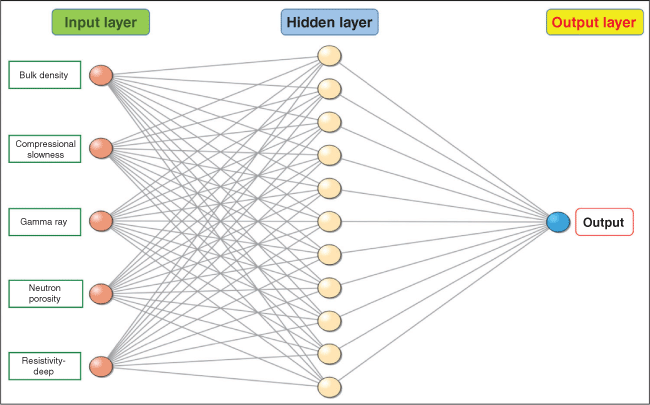

Fig. 5.  Three-layer neural network architecture with multiple inputs and one output.

The input of each neuron in hidden and output layers is a linear combination of neuron outputs in the former layer. By comparing to targets (laboratory measurements), the root mean square error (RMSE) can be written as:

Where (d_o – x_o) denotes the difference between the modelled output and input target and N is the number of traning patterns. The error backpropagation technique was applied to optimise the weights during the neural net learning process (Hopfield 1985; Wong et al. 1995; Wang et al. 2021).

To avoid overlearning or overfitting, a validation patterns set was used to define the stopping epoch or cycle. The optimal stopping point or cycle is determined when the learning error of the training set stops decreasing significantly and the validation error reaches the lowest point. The neural network training with validation set may not learn all underlying relationships between input and output parameters since not all data is involved. Training with all training patterns are applied, particularly when there are not many training patterns. The stopping cycle is determined where error stops decreasing significantly. Generally, error tolerance and interactive interpretation need to be set by comparing the approximations with training targets on error changes, lithofacies variations, etc. (Wong et al. 1995).

Total organic carbon (TOC) content indicates the richness of organic matter in sedimentary rocks. The TOC content can be correlated with conventional well log data, such as radioactive logs, porosity logs and resistivity logs (Schmoker 1981; Schmoker and Hester 1983; Passey et al. 1990; Herron 1991; Passey et al. 2010; Yan et al. 2014). However, those methods are based on empirical, linear and simple non-linear regressions and largely rely on the quality of log data. The relationships between TOC content and well logs can be complex and non-linear in different sedimentary basins (Wong et al. 1995; Ouadfeul and Aliouane 2015). The ANN learning was employed to learn these relationships and approximate TOC content from well logs in this study.

In total, 199 samples from Barnicarndy 1 were analysed on a Rock-Eval 6 instrument (Grosjean et al. 2020), which provided TOC content (wt %) and pyrolysis products from the cracking of organic matter (S2, mg HC/g rock: Behar et al. 2001). Due to the existence of pyrite, hematite, tuffaceous matter (ash beds) and uncertainties in well log data, it is difficult to estimate TOC content directly from gamma ray, density and porosity with resistivity logs. ANN technology was then used for geochemical property interpretation.

Training patterns for the 199 samples were constructed with one output parameter (TOC or S2) and five input parameters, including bulk density (RHOB, g/cm³), compressional wave slowness (DT, μs/ft), gamma ray (GR, gAPI), limestone neutron porosity (NPHI, m³/m³) and deep resistivity (RDEEP, Ω m). For the validation purpose, randomly selected 170 training patterns were set as training patterns, while the remaining 29 patterns were set as validation patterns.

Laboratory measured and neural network approximations of TOC content (wt %) and S2 (mg HC/g rock) are presented in Fig. 6, Columns 7 and 8, respectively. The correlation coefficients (R) between the neural network estimated and laboratory measured TOC content and S2 are 0.8746 and 0.8367, respectively. Table 4 lists the averaged and maximum neural network interpreted TOC content (TOCsh and TOCshmax, wt %) and S2 of claystone (S2sh and S2shmax, mg HC/g rock) in different intervals. The average TOC content and S2 are 0.17 wt% and 0.047 mg HC/g rock in the Middle Interval (Table 4).

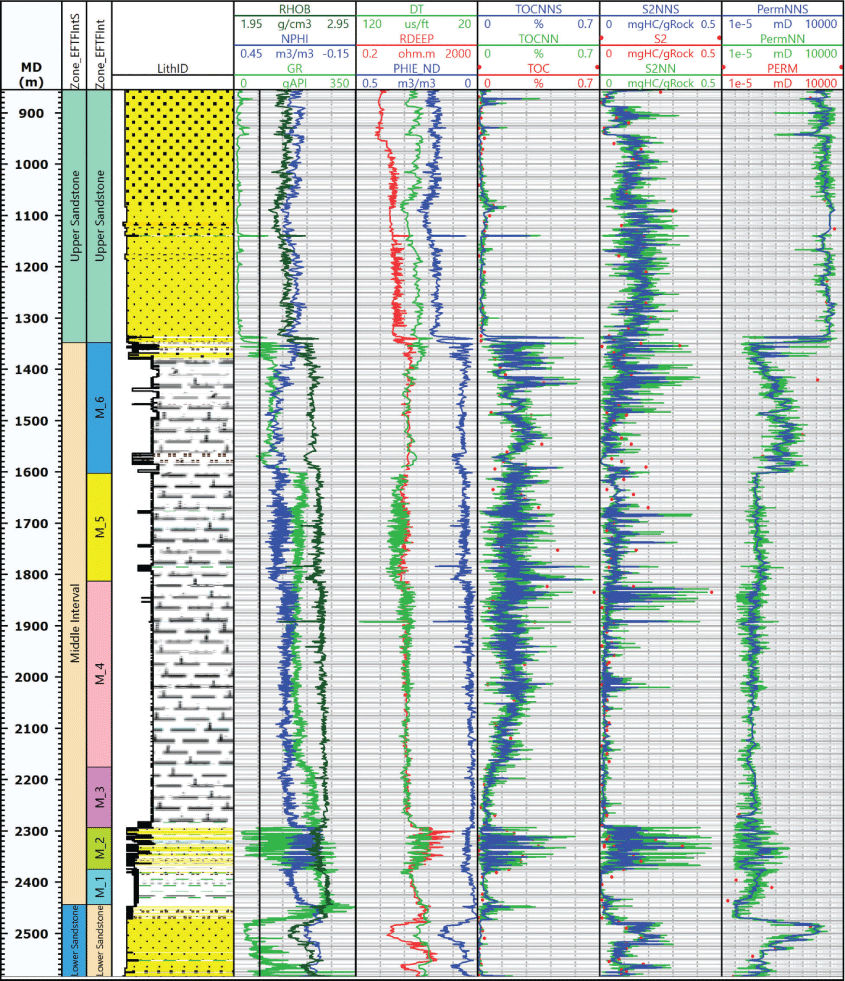

Fig. 6.  Neural network interpretation results of TOC content, S2 and permeability. Column 1: measured depth (MD); Columns 2–3: two orders of zones (Zone_EFTFIntS and Zone_EFTFInt); Column 4: lithological descriptions of cores (LithID); Column 5: gamma ray (GR), limestone neutron porosity (NPHI) and bulk density (RHOB); Column 6: compressional slowness (DT), deep resistivity (RDEEP) and interpreted effective porosity (PHIE_ND); Column 7: laboratory measured, interpreted TOC content (TOC and TOCNN) and its smoothed result (TOCNNS); Column 8: laboratory measured, interpreted S2 (S2 and S2NN) and its smoothed result (S2NNS); Column 9: laboratory measured, interpreted permeability (PERM and PermNN) and its smoothed result (PermNNS).

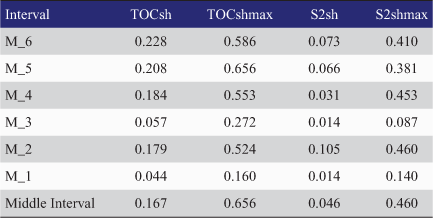

Table 4.  Average and maximum neural network interpreted TOC content (wt %) and S2 (mg HC/g rock) of claystone (TOCsh, TOCshmax, S2sh and S2shmax) in the Middle Interval in Barnicarndy 1

In total, 38 permeability testing results (Jarrett et al. 2020; Core Lab 2020a) were used to construct 38 neural network training patterns, which had six input parameters, including bulk density (RHOB, g/cm³), compressional wave slowness (DT, μs/ft), gamma ray (GR, gAPI), limestone neutron porosity (NPHI, m³/m³), deep resistivity (RDEEP, Ω m) and effective porosity (PHIE_ND, m³/m³) as well as one output parameter, permeability, for neural network training (Wong et al. 1995; Wang et al. 2021). Column 9 in Fig. 6 presents the laboratory measured, neural network estimated permeability and its smoothed result.

Table 5 lists the correlation coefficients (R) between the neural network estimated and laboratory measured permeability in Barnicarndy 1. The correlation coefficient in the high-permeability sandstone unit is higher than that from the low-permeability Middle Interval (Table 5), which shows difficulty in approximating permeability from well logs for claystone.

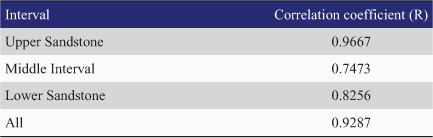

Table 5.  Correlation coefficients (R) between the neural network estimated and laboratory measured permeability in Barnicarndy 1

Table 6 presents the geometrical mean and maximum permeability of sandstone (VSHND < 0.5) of three major intervals and claystone in the Middle Interval. The geometric mean claystone permeability of different internal zones ranges from 0.002 to 0.122 mD.

Table 6.  Geometrical mean and maximum permeability (mD) of sandstone of the three major intervals and claystone in the Middle Interval

XRD tests were conducted on 101 samples from Barnicarndy 1, including 47 rotary sidewall core samples tested in Core Lab together with SEM analysis (Core Lab 2020b) and 54 core samples tested by Bureau Veritas (Edwards et al. 2021). The test results from Core Lab (2020b) include the weight percentages of quartz, anhydrite, potassium-feldspar (K-feldspar), plagioclase, calcite, dolomite/Fe-dolomite, hematite, pyrite, siderite, fluorapatite, sylvite, halite, TotalClay, illite/smectite, chlorite/smectite, illite and mica (includes biotite), kaolinite, chlorite, and percentages of smectite in illite/smectite and chlorite/smectite mixtures. The major mineral compositions include quartz, feldspar, carbonate, clay minerals, pyrite and hematite. In the Bureau Veritas data, the quantitative XRD testing using the X’Pert HighScore Plus search/match software provided the weight percentages of various mineral groups (Edwards et al. 2021), including chlorite, mica, kaolinite-serpentine, K-feldspar, plagioclase, hematite, pyrite, calcite and dolomite groups. The chlorite group includes chlorite, smectite, aerinite and vermiculite, and the mica group includes biotite, muscovite and illite. After a brief reorganisation, testing results from both sources show that there are mainly 10 types of mineral groups presented in the Barnicarndy 1 samples, including quartz, K-feldspar, plagioclase, calcite, dolomite, mica, chlorite, kaolinite, pyrite and hematite. The simplified assemblage includes quartz, feldspar (K-feldspar and plagioclase included), carbonate (calcite and dolomite included), TotalClay (mica, chlorite and kaolinite included), pyrite and hematite.

A linear system of equations has traditionally been used to estimate mineral compositions (Schlumberger 1991; Walker Petrophysics 2020), which offers a coarse guide to understand rock compositions. However, the linear system solvers require a set of good quality log curves and not too many minerals to solve, otherwise the problem would be mathematically undetermined. Besides the uncertainties in well logs, due to the complexity on mineral compositions, particularly in the Middle Interval, it is difficult to describe the mineral assemblage using conventional multi-mineral interpretations by solving a set of linear equations.

Neural network technology provides a different way to approximate mineral compositions from well logs by learning distribution patterns of both input and output parameters, which are related to the interior linear or non-linear relationships. In this study, the input parameters included gamma ray (GR, gAPI), bulk density (RHOB, g/cm³), compressional slowness (DT, μs/ft), limestone neutron porosity (NPHI, fraction) and deep resistivity (RDEEP, Ω m). The outputs of neural network included the weight percentages of various mineral compositions. In total, 99 training patterns were constructed for neural network learning. For the purpose of validation, 91 testing results were used for training, while 10 testing results were used as a validation set.

Fig. 7 presents the laboratory measured, neural network estimated and smoothed interpretations for the simplified mineral assemblage (Columns 5–6) and for detailed mineral assemblage (Columns 7–8) in Barnicarndy 1. Compared to the vertical distribution patterns of laboratory testing results, the neural network estimated mineral compositions have learned effectively the vertical distribution patterns inside the laboratory measurements, well logs and lithological sequences. Neural network interpretation results present continuous information on the variations of lithofacies and mineral compositions.

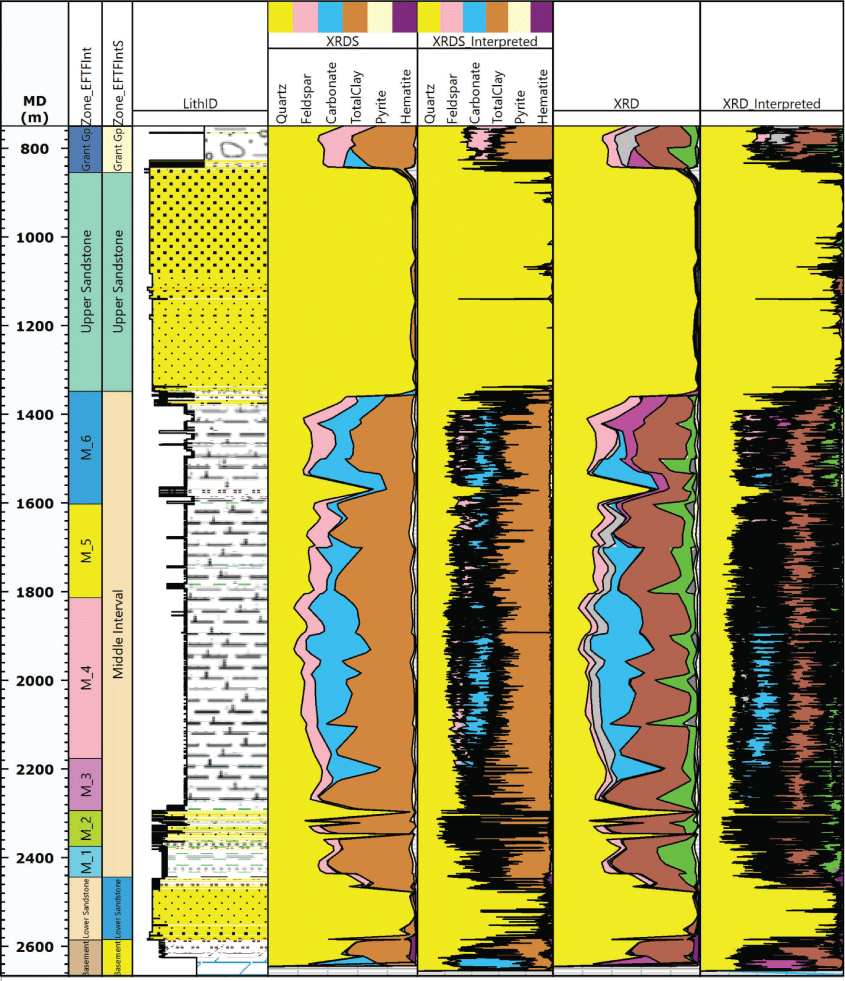

Fig. 7.  Mineral composition interpretations through neural network learning. Neural network interpretation results of TOC content, S2 and permeability. Column 1: measured depth (MD); Columns 2–3: two orders of zones (Zone_EFTFInt and Zone_EFTFIntS); Column 4: lithological descriptions of cores (LithID, same legend as in Fig. 2); Column 5: laboratory measured simplified mineral assemblage (XRDS); Column 6: neural network interpreted simplified mineral assemblage (XRDS_Interpreted); Column 7: laboratory measured mineral assemblage (XRD, same legend as in Fig. 2); Column 8: neural network interpreted mineral assemblage (XRD_Interpreted).

Table 7 lists the averages of the neural network interpreted mineral compositions and assemblages from various intervals in Barnicarndy 1.

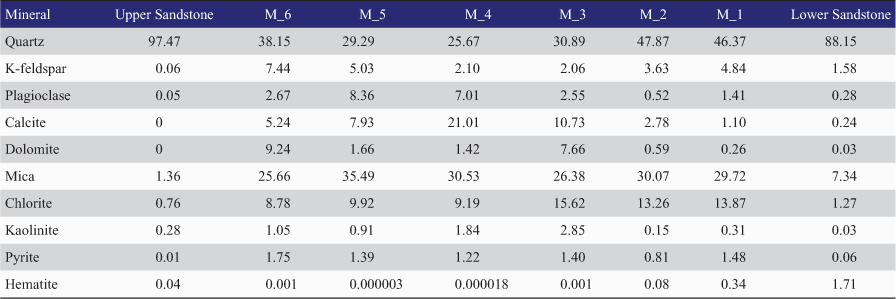

Table 7.  Averages of the interpreted mineral compositions (wt %) in Barnicarndy 1

Table 8 provides the averages of the interpreted mineral compositions and geomechanical interpretations of the claystone from the entire Middle Interval in Barnicarndy 1. Table 9 lists some correlation coefficients (R) between TOC content of claystone and the petrophysical and geomechanical properties in the entire Middle Interval in Barnicarndy 1. The integrated interpretations on claystones in the Middle Interval are summarised in the following:

1. The high values of TOC and S2 appear in M_4, M_5 and M_6 zones where the claystone mainly contains a certain amount of carbonate minerals (calcareous or dolomitic claystone) (Tables 4 and 8). TOC content has positive correlation with porosity, permeability and carbonate contents (Tables 2, 4, 6 and 9).

2. Young’s modulus and Poisson’s ratio have good correlations with the contents of key minerals, including quartz, carbonates and TotalClay (Table 8). The evaluation on elastic properties and mineral assemblages provides inputs for further rock brittleness analysis (Jarvie et al. 2007; Rickman 2008; Gray et al. 2012).

3. TOC content seems to be positively correlated with Poisson’s ratio and negatively correlated to Young’s modulus in claystone in the Middle Interval (Tables 8 and 9).

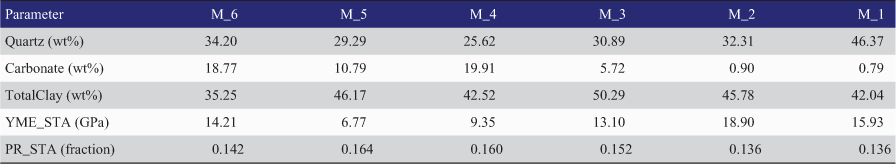

Table 8.  Averages of interpreted mineral compositions and geomechanical properties of claystone for the entire Middle Interval

Table 9.  Correlation coefficients (R) between the TOC content of claystone and petrophysical and geomechanical properties in the Middle Interval in Barnicarndy 1

In the absence of vitrinite in Ordovician samples, 11 samples from the depth range of 1354.8–2244.08 mRT were examined to obtain graptolite reflectance (Ranasinghe and Crosdale 2020). The mean maximum graptolite reflectance ranges from 0.83% to 2%, and was converted to vitrinite reflectance using the model proposed in Luo et al. (2020) as:

where GRomax is the mean of the maximum graptolite reflectance (%) and EqVRo is the calculated equivalent vitrinite reflectance (%). The calculated equivalent vitrinite reflectance (EqVRo, %) ranges from 0.93% to 1.54%.

The Mesozoic section has either been eroded or not deposited within the Barnicarndy Graben (Whitaker et al. 2010; Alavi 2013). 1D petroleum systems modelling at Barnicarndy 1 possibly indicates that up to 3000 m of uplift and erosion occurred in association with the late Triassic to early Jurassic Fitzroy Transpression (MacFarlane et al. 2021), which may account for an inconsistency of the calculated vitrinite reflectance with the present-day temperature derived from geothermal gradient and surface temperature (Walker Petrophysics Pty Ltd 2020). Burial prior to the uplifting event pushed the Middle Interval and Lower Sandstone into the oil-wet gas window (Tissot and Welte 1984; Ghori 2013; MacFarlane et al. 2021).

Fluid inclusions are small volumes of palaeo-fluids trapped in minerals, which provide information about geological processes (Figs 2 and 4). The inclusions can include trapped gases, liquids or multi-phase (Randive et al. 2014). FIS results over the depths of interest are summarised by FIT (2020) as follows:

1. Mostly dry gas responses were obtained over the depth range of 827–1381 mRT with a single wet gas spectrum at 1111.1 mRT. Trace liquid/range alkanes co-vary with methane for the most part, suggesting natural hydrocarbons in the system. Sulfur species are sporadically present.

2. In thin sections, rare white-fluorescent, upper-gravity petroleum inclusions were found at 1069.8 mRT (Fig. 8). Rare mixed (oil and brine) petroleum inclusions were noted at 910.9 mRT, 1111.1 mRT (Fig. 8) and 1179.6 mRT. Rare yellow-fluorescent, moderate-gravity petroleum inclusions were recorded at 1111.1 mRT. Low inclusion abundance suggests petroleum migration through the Upper Sandstone.

3. Appreciable amount of immature oil-prone kerogen was found at 1354.9 mRT.

4. The depth range of 1411.3–2679.1 mRT exhibits mostly sub-anomalous FIS responses, with dry gas spectra at 2312.1 mRT, 2331.8 mRT, 2447.4 mRT, 2478–2530.1 mRT and 2550.3–2580.3 mRT. The highest methane and liquid hydrocarbon responses are recorded at 2550.3–2580.3 mRT. Anomalous benzene is recorded at 2180.1 mRT, 2550.3 mRT, 2560.7 mRT, and anomalous acetic acid is noted at 2550.3 mRT. Sulfur species, such as hydrogen sulfide (H₂S), are notable at 2447.4 mRT and 2550.3–2580.3 mRT, suggesting potential for water-bearing porous reservoir rocks.

Fig. 8.  Photomicrographs of petroleum inclusions found at (a) 1069.8 mRT and (b) 1111.1 mRT in Barnicarndy 1 (FIT 2020).

Considering the laboratory measured and interpreted TOC content, thermal maturity and fluid inclusion analysis results, the organic matter in the Middle Interval and Lower Sandstone has entered the oil-wet gas window. Hydrocarbon inclusions indicate that hydrocarbon generation and migration have occurred elsewhere in the depocentre of Barnicarndy Graben, although TOC content is low at Barnicarndy 1.

Conventional methods and ANN modelling have been used to interpret the petrophysical, geomechanical and organic geochemical properties, and mineral compositions from well logs in the pre-Carboniferous succession in Barnicarndy 1. The main results and conclusions of this study are listed as follows:

1. The depth range of 855–2585 mRT was divided into three major intervals as: Upper Sandstone (855–1348.1 mRT), Middle Interval (1348.1–2443.4 mRT) and Lower Sandstone (2443.4–2585 mRT), considering lithology, well logs, chemostratigraphy, XRD, fluid inclusion tests, HyLogger data, etc. The Middle Interval comprises claystone with minor siltstone/sandstone and is divided into six internal zones based on lithofacies variations.

2. Average sandstone porosities of the Upper Sandstone and Lower Sandstone are 17.9% and 6.75%. Average reservoir porosities of the Upper Sandstone and Lower Sandstone are 18% and 12.7%, and average claystone porosity is 4.17% in the Middle Interval. The ratios of reservoir/gross thickness in the Upper Sandstone and Lower Sandstone are 0.991 and 0.243.

3. The geometric means of reservoir permeability of the Upper Sandstone and Lower Sandstone are 464.5 mD and 10 mD. The geometric mean of claystone permeability in the Middle Interval is 0.006 mD.

4. Average TOC content and S2 of claystone in the Middle Interval are 0.17 wt% and 0.047 mg HC/g Rock. TOC content has a positive correlation with porosity, permeability and carbonate content in the Middle Interval.

5. Average Poisson’s ratio and Young’s modulus of claystone in the Middle Interval are 0.154 and 9.81 GPa. Young’s modulus and Poisson’s ratio are well correlated with the contents of key minerals, including quartz, carbonates and TotalClay. The evaluations on elastic properties and mineral assemblages provide inputs for further rock brittleness analysis.

6. Hydrocarbon generation and migration have occurred elsewhere in the Barnicarndy Graben even though TOC content is low at Barnicarndy 1.

The authors declare no conflicts of interest.

As part of Geoscience Australia’s Exploring for the Future program, this study was conducted in collaboration with and co-funded by the Government of Western Australia’s Exploration Incentive Scheme.
