Pluto 4D—Australia’s first 4D over a gas field is an outstanding success

Keywords: gas expansion, history matching, Pluto gas field, reservoir monitoring, rock physics, water ingress, 4D feasibility, 4D interpretation.

The Pluto and Xena gas fields are located on the North West Shelf of Australia, ~190 km north-west of Karratha and the West Australian coastline, within the WA-34-L production licence (Fig. 1). This region contains several other major gas fields, including Wheatstone (Palmer et al. 2005), Iago, Jansz/Io (Jenkins et al. 2003), Julimar/Brunello, Urania and Dionysus.

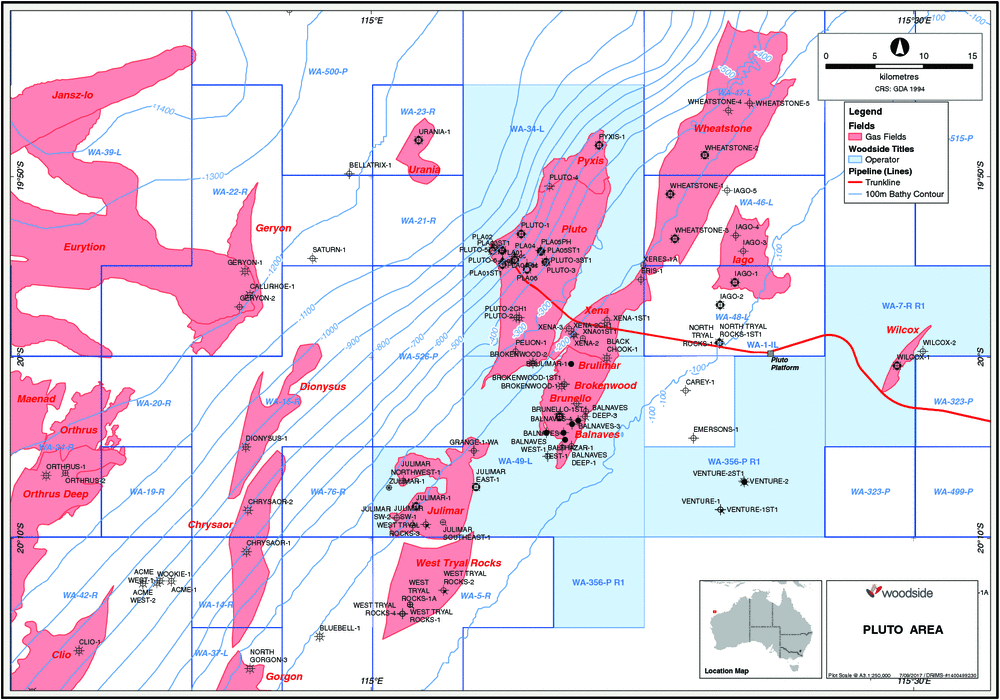

Fig. 1.  Location map showing WA-34-L, the Pluto field and other hydrocarbon accumulations in the Carnarvon Basin.

The Pluto and Xena fields are situated in water depths of 200 to 1000 m beneath the continental slope. The water depth map and associated dip map (Fig. 2) shows the outline of the Pluto field and the complex water bottom topography, comprising large seabed canyons trending north-west and steep scarps running along slope above the field. The presence of this complex topography and steep dips in the overburden have made repeatability of the 4D survey difficult, and we believe has potentially degraded parts of the 4D data (discussed later).

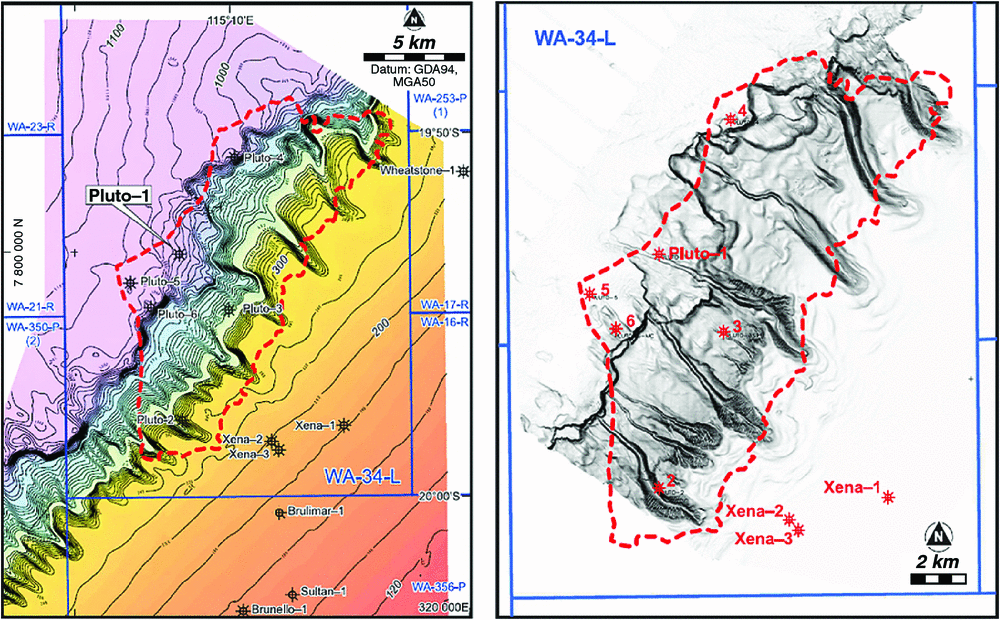

Fig. 2.  Water bottom depth map (left) showing location of the Pluto field beneath the continental slope (contour interval is 20 m). The right figure is a dip map of the water bottom acquired using an automated underwater vehicle (AUV). This shows in detail the seabed channels and scarps on the continental slope (after Tilbury et al. 2009).

Since the publication of the original Pluto field paper in APPEA 2009 (Tilbury et al. 2009), Woodside has generated a new sequence stratigraphic framework for the North West Shelf of Australia. This new, more regionally consistent nomenclature has been published in various papers, including Adamson et al. (2013), and Marshall and Lang (2013).

The new nomenclature for the Triassic Mungaroo and Brigadier formations is shown in Fig. 3. Note the Pluto and Xena fields extend from the TR26.5 MFS (H.Balmei shale, which forms the base regional seal to the fields) to approximately TR36.1 TS in the Brigadier unit.

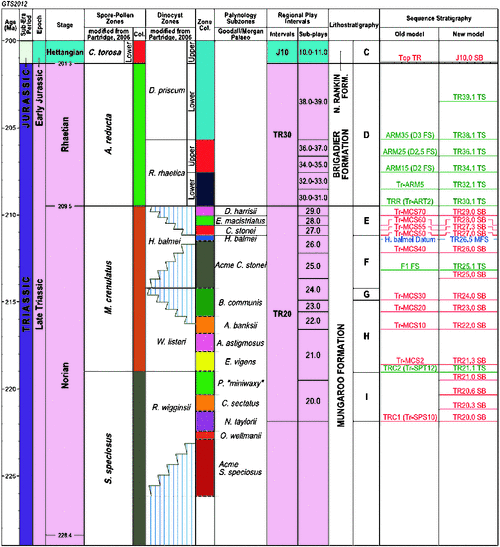

Fig. 3.  Woodside’s new Triassic chronostratigraphy nomenclature (after Adamson et al. 2013). Note the Pluto field extends from the TR26.5 (H.Balmei shale) to TR36.1 TS.

The Pluto field (Fig. 4) is a tilted fault block bounded on the west and north by major bounding faults and sealed by overlying regionally extensive shales. The Triassic reservoir sequence dips gently to the east and subcrops against the regional Jurassic Unconformity (Fig. 5).

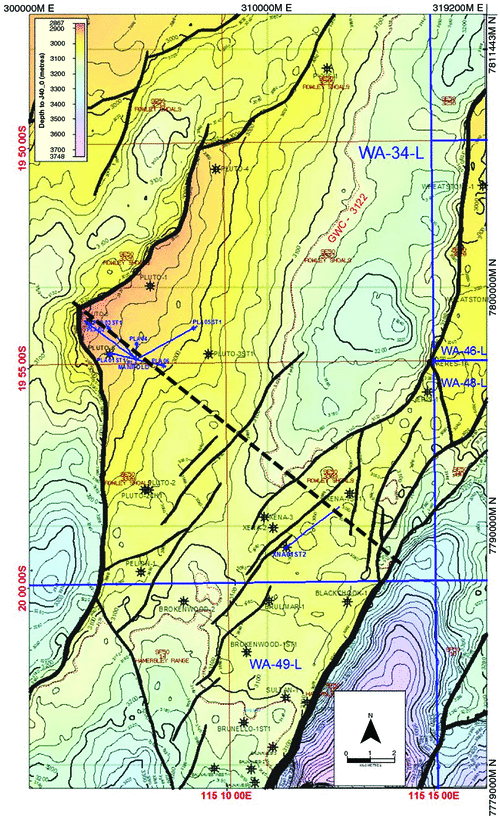

Fig. 4.  J40.0 SB (JOMU – regional unconformity) depth map over the Pluto and Xena fields (contour interval is 20 m – red tones shallow structures, blue tones deep structure). The J40.0 horizon provides the top container for the Pluto/Xena reservoirs.

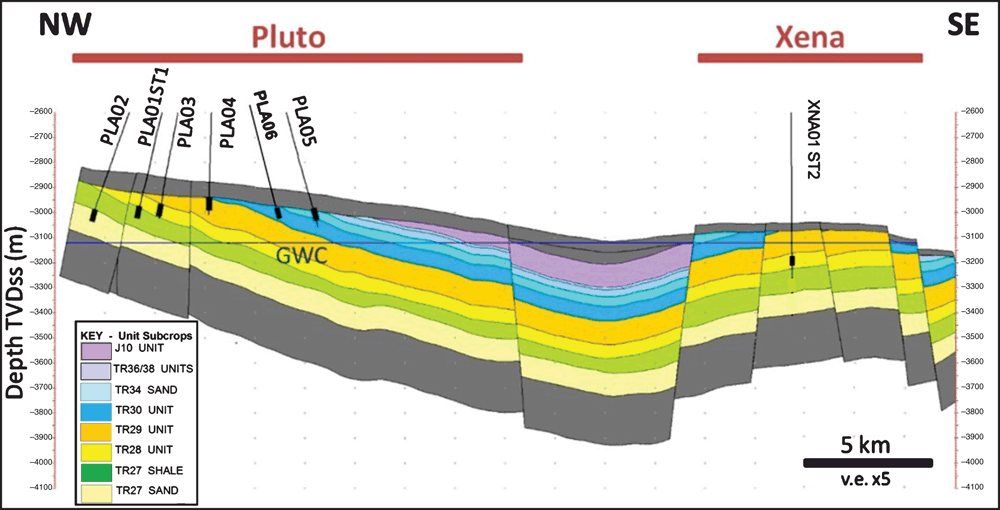

Fig. 5.  Geological cross-section across the Pluto and Xena fields. Location of cross-section is shown in Fig. 4. The section shows the main reservoir sequences in the fields and shows the completion interval for each of the development wells.

The Pluto field was discovered in 2005 when the Pluto-1 well encountered a gross gas column of around 209 m in Triassic sands of the Mungaroo Formation and Oxfordian sands, sealed by Cretaceous shales of the Forestier and Muderong formations (Tilbury et al. 2009). Petrophysical analyses of the conventional wireline dataset confirmed an average net porosity of 28% and average gas saturation (Sg) of 93% for the Mungaroo Formation (TR28 sands). A production test proved the high deliverability of the Mungaroo (TR28 sands) with the test producing 46.5 MMscf/d.

Since the discovery, the Pluto field has been appraised by a further five wells (Pluto-2 to -6), and the adjacent Xena field, discovered in September, 2006 has also been appraised (Xena-1 to -3). In total, since the Pluto final investment decision, two Woodside exploration wells, Pelion-1 and Eris-1, six development wells on Pluto, and one on Xena have been drilled. Five wells (Brulimar-1, Brunello-1, Brokenwood-1 and -2 and Black Chook-1) drilled in the adjacent acreage by Apache, before it was sold to Woodside, have provided additional information on the Pluto and Xena fields.

A composite type log of the Pluto field is shown in Fig. 6. This shows the thick amalgamated fluvial multi-valley sands of the Mungaroo (TR27 and TR28 sequences) and the high net-to-gross units of the Brigadier (TR34 sands), which were expected (from prior modelling) to display detectable 4D responses due to the production from the field.

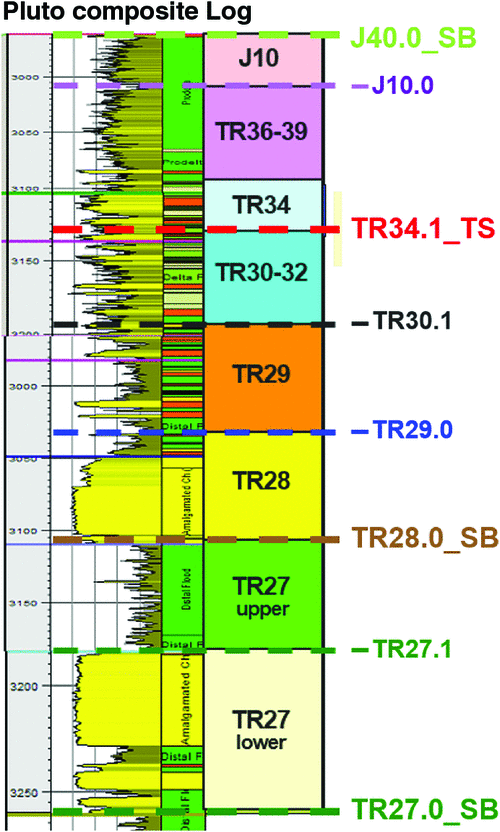

Fig. 6.  Pluto composite log showing that the Triassic reservoir is composed of thick amalgamated fluvial multi-valley sands of the Mungaroo Formation (TR27 and TR28 sands) and the coastal plain sediments (tidal bars and channels, estuarine beach deposits) of the more tidally influenced Brigadier Formation (TR30 and TR34 sands). The main interpreted horizons are also shown.

Pluto field has been on production since April 2012 (Xena since July 2015) with an annualised loaded liquid natural gas production rate equivalent to 4.7 mtpa (100% project). Currently the Pluto field has six subsea development wells drilled from a single Pluto manifold/drill centre, and Xena has a single subsea well drilled from the Xena manifold.

The Pluto wells each target a different reservoir unit from TR27 to TR34 (Fig. 7) to facilitate effective reservoir drainage. The Xena well is completed in the TR28 sands. All wells have targeted seismically defined sands.

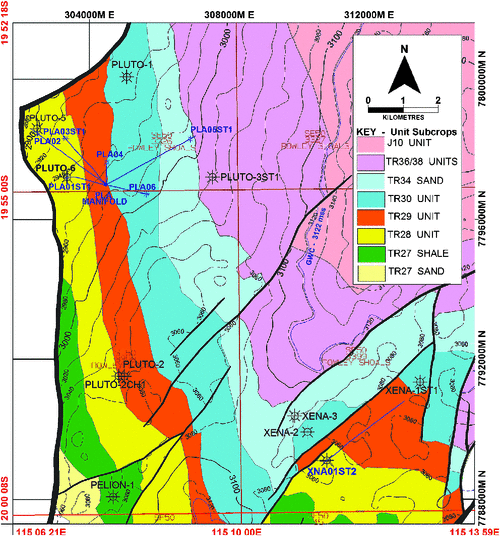

Fig. 7.  J40.0 SB subcrop map showing the extent of the subcropping reservoir units across the Pluto and Xena fields. Note in particular the Pluto and Xena development wells (well paths shown in blue).

A 4D feasibility study is typically undertaken well ahead of any planning to determine whether a seismic monitoring program is likely to be successful. It consists of a series of rock physics studies that measure the change in physical (elastic) properties of the reservoir in response to production changes (pressure and saturation). The magnitude of expected changes in these reservoir parameters are compared against an expected level of noise (or normalised root mean square (NRMS)) for the area as a function of acquisition repeatability accuracy and overburden complexity. If this comparison is favourable, the optimal timing and frequency of the monitor surveys can also be estimated.

The first step in building the rock models for a 4D feasibility study consisted of sending several core samples, representative of the range of porosities and net-to-gross observed in all appraisal wells, to the laboratory so elastic properties could be measured using ultrasonic measurements. In this particular case, core samples were kept at confining pressures equivalent to the ones measured at reservoir depth and the pore pressure was gradually reduced to simulate the production method employed in the Pluto field (depletion drive). Then, at regular intervals, compressional and shear velocities were measured, and once all data is collected, a model of the relative change in elastic properties as a function of pressure was built. Additionally, a model can be built using fluid-substitution techniques calibrated to well response to determine the relative change in elastic properties as a result of aquifer drive. The combination of these two models constitutes a petroelastic model, which serves as a basis for a series of simulations.

The first feasibility studies were conducted using log data to which the petroelastic model was applied using saturation and pressure ranges expected from production rates. A large number of realisations were then overlain by the amount of coloured random noise representative of an average NRMS expected for the area as a function of acquisition repeatability, metocean conditions and overburden complexity. This initial study indicated that a decrease of 60% in Sg should be detectable for the high permeability reservoir observed in the area. The pressure signal change (due to modelled production) was expected to be at least 600 psi before a detectable seismic response could be observed above noise levels. As both production effects show the same manifestation on the 4D seismic data (that is seismic response ‘hardening’ with decreasing reservoir pressure and decreasing Sg), it was anticipated that there would be a maximum time for the first monitor survey to be acquired before both signals convolved together, hampering and rendering the interpretation of the 4D changes impossible.

The initial 4D feasibility study was undertaken in 2009 to establish the benefit and optimum timing of 4D seismic for the Pluto field that could be incorporated into the Pluto reservoir management plan. These models were derived from static models with poor reservoir connection into the aquifer. They essentially resulted in depletion drive only, and consequently, pressure changes were the dominant 4D responses expected in the seismic data.

Revised static modelling in 2013 increased the reservoir continuity into the aquifer and triggered a second round of 4D modelling. This second round of modelling used updated reservoir models of a P50 reference model and its P90 equivalent. Using times based on development sequence milestones, time steps selected for the study were 2015 (Xena startup), 2018, 2022 and 2025.

The 2013 reservoir models showed larger changes in Sg compared with the previous models assessed in 2009. The later study concluded that the seismic response associated with such change could be recognised after only a few years of production (for both P90 and P50 cases) and above expected random noise levels for the area.

The synthetic seismic response differences for the P50 dynamic model are shown in Figs 8 and 9 without any model property background to emphasise the actual response differences. The synthetic seismic difference for 2015–2011 (Fig. 8) shows that the large saturation response at the gas water contact (GWC) level is easily discernible from the lower pressure depletion responses in the overlying reservoirs. Note, however, this is noise-free modelled data, which adds significantly to the interpretability.

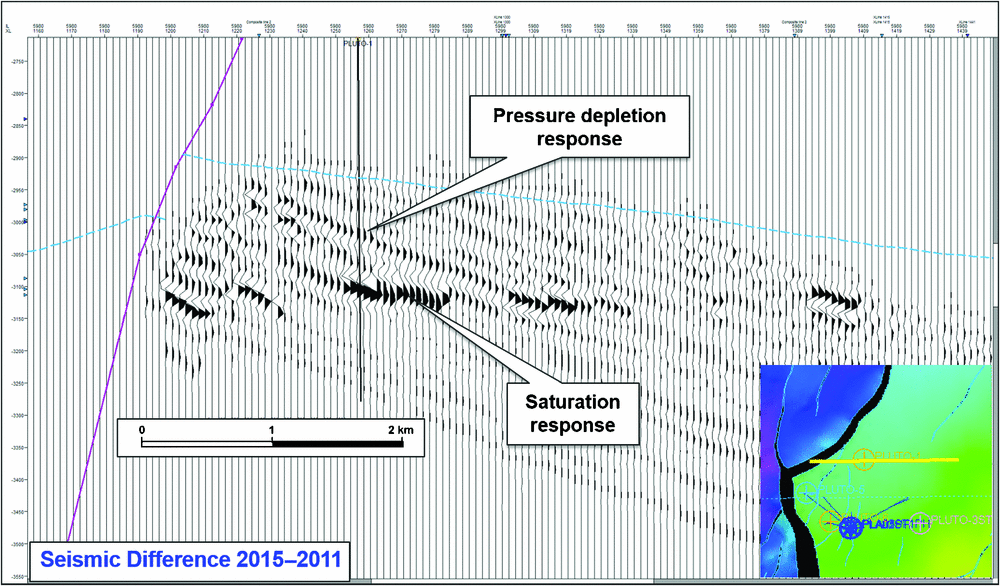

Fig. 8.  Synthetic 4D seismic response at Pluto –1 at 2015 (P50 model). Note that the pressure depletion and saturation responses are easily distinguishable.

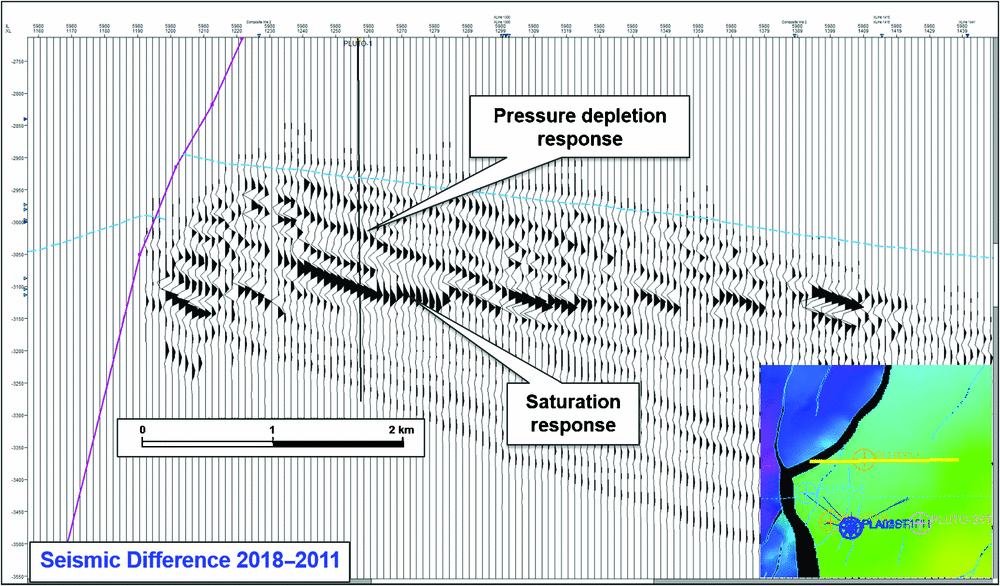

Fig. 9.  Synthetic 4D seismic response at Pluto –1 at 2018 (P50 model). Note it is increasingly difficult to separate pressure depletion and saturation responses.

The synthetic seismic difference for 2018–2011 (Fig. 9) shows a large saturation response at the GWC level, but the larger pressure depletion responses in the overlying reservoirs makes the differentiation between saturation and pressure depletion more difficult. Again, however, this is noise-free modelled data, which adds significantly to the interpretability.

In order to gauge our ability to interpret water ingress, the study also investigated whether a saturation response could be seen above expected noise levels for a proposed 4D survey. In general, 20% NRMS is a reasonable noise level to expect for a dedicated monitor survey. As a comparison, Woodside’s Enfield 4D recorded noise levels at around 15% NRMS, although that figure was higher in areas of complex overburden, such as sea floor channels, which are also present in the Pluto field.

A panel of synthetic 4D responses with varying random background noise levels is shown in Fig. 10. At around 20% NRMS, the main saturation responses can still be seen above the background random noise. At 40% NRMS, which is a possibility in areas of complex overburden, the background noise is similar to the expected saturation response and is probably at or above the detection limit for the saturation signal, and hence, interpretation would be extremely difficult or impossible.

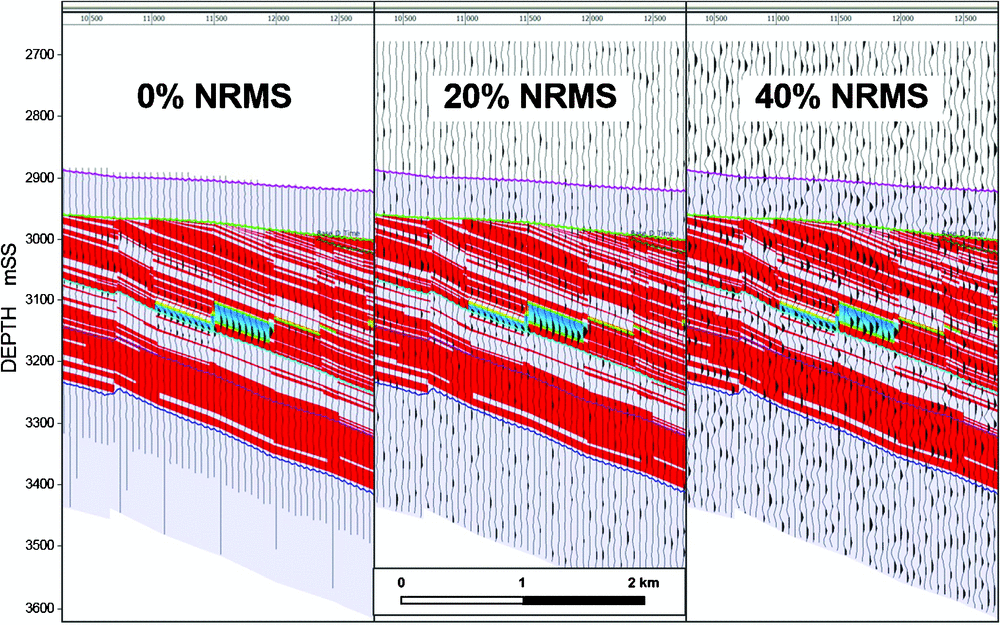

Fig. 10.  Synthetic 4D seismic response at Pluto at 2015 (P50 model) for varying background noise levels (left panel: noise free; middle panel: 20% normalised root mean square (NRMS); and right panel: 40% NRMS). Note that with increasing background noise levels, interpretation of saturation responses becomes increasingly difficult.

The 4D feasibility studies over Pluto showed that it was feasible to monitor water encroachment into the thick sand packages of the Mungaroo TR27 and TR28 sands and potentially the high net-to-gross units within the Brigadier (TR34 sands). Noise levels on the 4D survey had to be kept as low as possible to allow confident detection and interpretation of the 4D responses. Further, to be able to confidently interpret the 4D changes, the monitor surveys had to be run before pressure depletion reached ~800 psi, at which time the modelled seismic response differences for pressure depletion and saturation changes become approximately similar and therefore indistinguishable from one another. At expected rates of production, the 4D monitor surveys need to be run after approximately three to four years of production.

Further modelling was carried out in early 2015 to more accurately model the actual and expected production offtakes, as the field had now been on production for almost three years.

The 4D modelled seismic differences, together with Sg and pressure differences, were generated for time steps 2015 and 2017 (P50 models only). For interpretation purposes, the seismic differences were displayed as relative acoustic impedance (AI) sections rather than reflectivity to constrain the 4D differences to a single loop.

The modelled seismic difference, together with Sg and pressure difference volumes, for the dip line through PLA02, PLA03ST1 and PLA05 is shown in Fig. 11. Strong (hardening) responses, interpreted as water ingress and seen on the saturation property (Fig. 11 top panel), are obvious at the GWC level. Also note there is little or no response in the younger Brigadier units, as PLA05 is now shut-in and very little gas has been produced from these units.

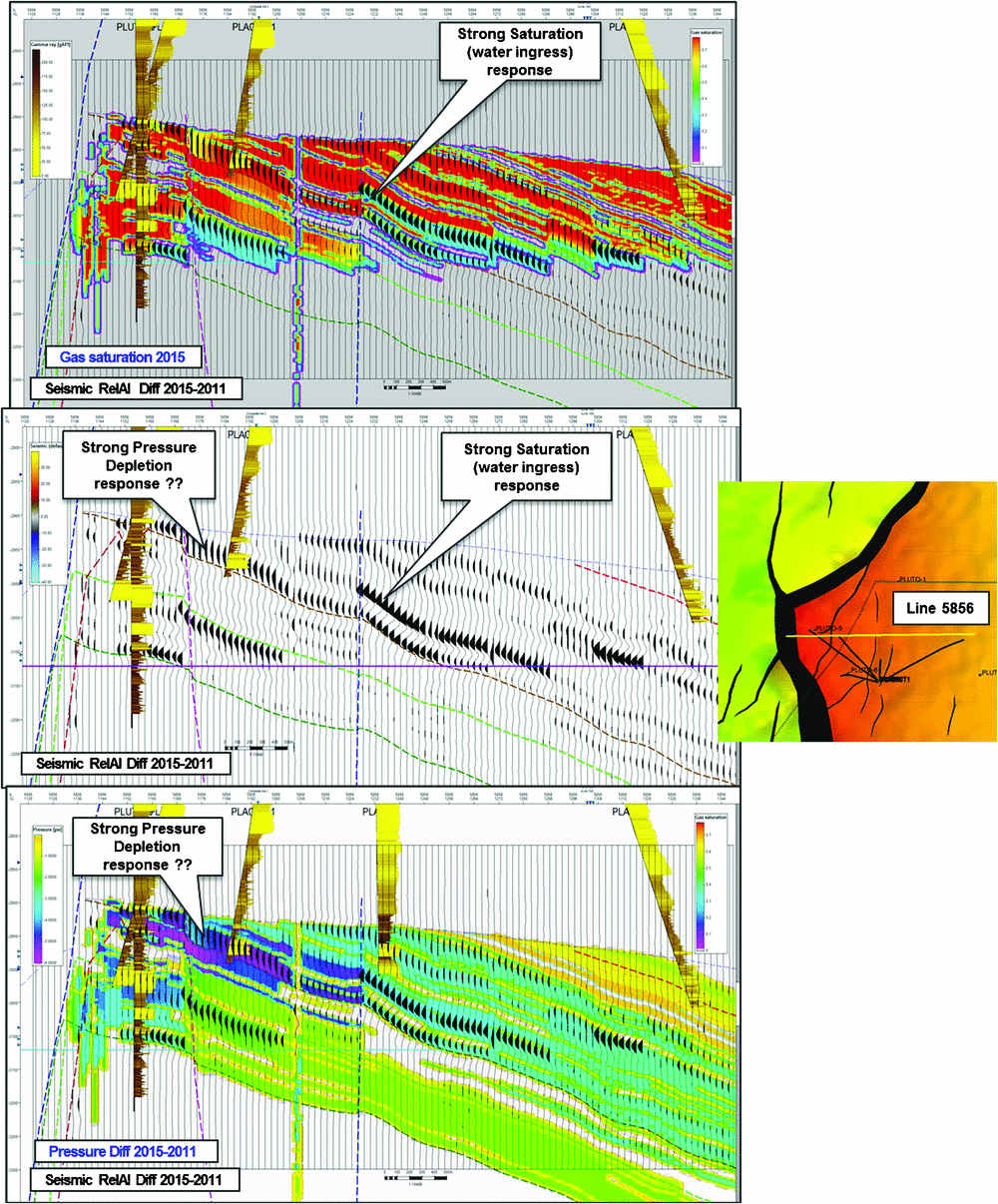

Fig. 11.  Synthetic 4D seismic response across the crest of the Pluto field at 2015 (P50 model). The top panel is gas saturation (Sg) with gas in red tones, water in blue tones, and the wiggle overlay is the seismic 4D difference. The central panel is the seismic 4D difference displayed in relative acoustic impedance (AI). The bottom panel is the pressure difference, with yellow/red tones representing low values, blue tones representing high values, and the wiggle overlay is the seismic 4D difference.

The pressure difference property (Fig. 11 bottom panel) predicted strong depletion in the TR28 sands and underlying TR27.3 valley due to the high cumulative production from the associated wells. This strong depletion gives rise to a strong pressure depletion response, which is approaching the same magnitude as the saturation response, and hence, at this level of depletion, interpretation of the actual 4D results may be difficult.

The Pluto 4D seismic survey was Australia’s first 4D survey acquired over a gas field and has been an outstanding success, despite the prior high technical risk of not being able to detect 4D differences above the background noise. 4D surveys over gas fields are not common, and only a handful have been published worldwide. The all-pervasive pressure depletion response in gas fields makes depletion drive fields almost impossible to interpret. Only gas fields with measurable saturation responses (i.e. water ingress) have a reasonable chance of success in terms of generating an interpretable 4D signal. The Pluto field falls in this latter category.

The Pluto 3DHD and 4D surveys were acquired by PGS using the PGS Apollo vessel between 18 November 2015 and 5 February 2016 (PGS 2016). The surveys were acquired using dual sources and 12 7050 m streamers (geostreamer configuration), each separated by 100 m. The surveys were processed by CGG to pre-stack depth migration (PreSDM), and data was delivered in August (Pluto 3DHD) and October 2016 (Pluto 4D) and used for reservoir management, infill well planning and reserves estimation.

The proposed 4D survey required the close repeatability (with the 2004 Pluto 3D used as a base survey) to achieve the objective of seeing the dynamic changes in the reservoir. The objective of the proposed 3DHD survey was to obtain the best 3D resolution possible to drive improved definition of structural and stratigraphic architecture. These conflicting objectives were solved by acquiring two surveys: the new high-resolution Pluto 3DHD survey (Fig. 12) and the Pluto 4D survey (shot to mirror the Pluto 3D survey also shown in Fig. 12).

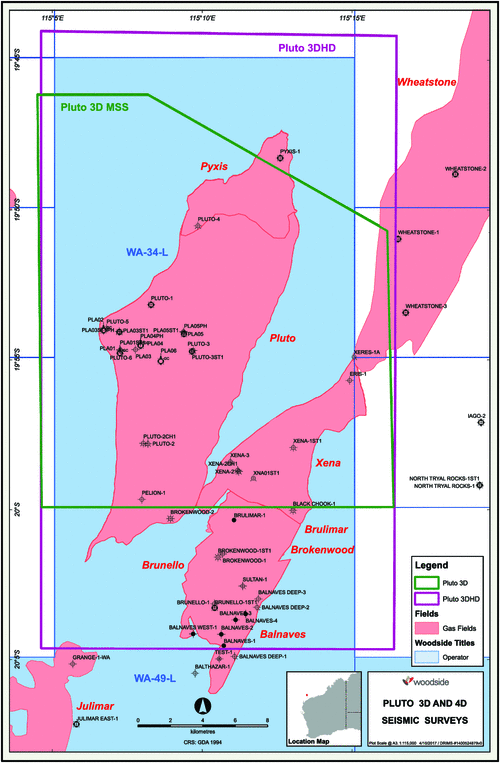

Fig. 12.  Pluto 3DHD and 4D surveys data extent over the Pluto and Xena fields. The magenta outline is the new Pluto 3DHD high-resolution broadband 3D, and the green outline is the extent of the original Pluto 3D (used as the baseline survey).

Of note was the use of steerable sources to assist with repeatability and towing the streamers deep (20 m) to minimise noise. A discussion on the acquisition and the detailed pre-survey planning is given in Fitzpatrick and Pemberton (2017). The acquisition report (PGS 2016) will be available once the seismic data is released by the National Offshore Petroleum Titles Administrator (NOPTA).

Considerable effort and several iterations of processing were required, especially for the 4D survey, to provide an excellent product for interpretation. For the 4D data, the original 2005 Pluto 3D data was used as the baseline survey and processed concurrently with the new Pluto 4D survey to provide the 4D time-lapse results. The new data had to be ‘dumbed down’ to match the original survey; for example, data from the long cables had to be truncated at 4600 m. The success of the 4D processing can be attributed to the attention to detail and the significant interaction from Woodside geoscientists (both processors and interpreters) and CGG personnel to ensure an excellent 4D product.

Details of the Pluto 4D PreSDM processing sequence are outlined in the final processing reports (CGG 2016) and will be available from NOPTA once the seismic data is released.

The new broadband processing significantly improved the seismic data quality with consequent improvement in the resolution of faults and reservoir sequence continuity (Fig. 13).

Fig. 13.  Comparison of Pluto 3DHD (broadband) and the Pluto 3D 2007 (time). Note that the broadband has less noise, improved continuity and better velocity model (after Fitzpatrick and Pemberton 2017).

The new PreSDM data has been inverted to AI and ‘fluid’ volumes, which better characterised the internal stratigraphy and delineation of the gas sands over the fields. In particular, apart from the better resolution within the gas leg due to the broadband data, the new inversion is much more definitive, especially within the aquifer.

The Pluto 4D data was acquired between November 2015 and February 2016. For modelling and history matching, the survey was taken on 1 January 2016. At the time of the Pluto 4D, the Pluto field had been on production for three years and nine months and produced approximately 1 Tcf of gas.

The most obvious result from the Pluto 4D has been the confirmation of strong (hardening) responses, interpreted as water ingress, in the thick Mungaroo sands at GWC level, similar to those modelled in the 4D feasibility studies.

Hardening responses on the 4D difference volumes are seen in all reservoir sequences in the Triassic from the TR27 to the TR32 units and range from strong (obvious) to weak (possible). The following discussion of 4D results presents a range of examples to show the varying responses across the field and their potential implications.

The TR27.3 valley is a major sand valley extending north-west across the Pluto field in an otherwise shale prone unit. The appraisal well Pluto-6 targeted this valley initially to prove that the seismic inversion fluid volume could be used for development well placement (Tilbury et al. 2009). The well encountered the valley (as predicted) and contained 45 m of gas-filled amalgamated channel sands of the Mungaroo Formation.

A seismic PreSDM fluid line along the TR27.3 valley is shown in Fig. 14. The yellow/red tones are low fluid values (low AI, low Vp/Vs) and are interpreted as gas sands above the GWC. Blue tones are high fluid values interpreted as shales. The valley appears as a zone of strong yellow/red tones reflecting the thick amalgamated channel sands. The PLA01ST1 is completed in the TR27.3 valley and has been on production since 2012.

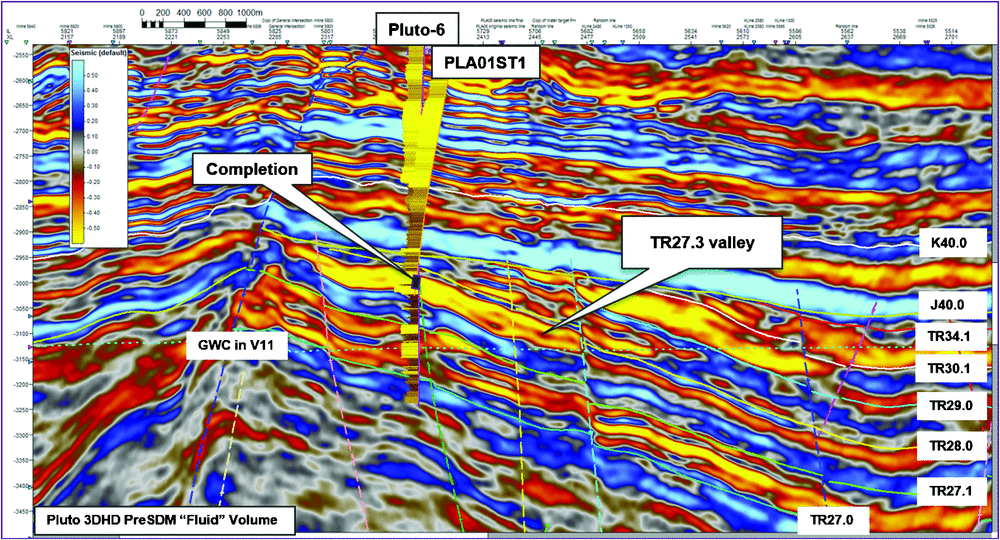

Fig. 14.  Seismic pre-stack depth migration (PreSDM) fluid line along the TR27.3 valley. Yellow/red tones are low fluid values (low AI, low Vp/Vs) interpreted as gas sands above GWC. Blue tones are high fluid values interpreted as shales. PLA01ST1 is completed in the TR27.3 valley and has been on production since 2012. The line of section is shown in Fig. 16.

The 4D difference results for the TR27.3 valley are shown in section (Fig. 15) and map opacity slab (Fig. 16). The seismic 4D PreSDM difference line along the TR27.3 valley shows that the thick sands of the TR27.3 valley reservoir unit exhibit an obvious very strong (hardening) response, interpreted as water ingress, extending from the GWC up the valley towards the producing well PLA01ST1 (Fig. 15).

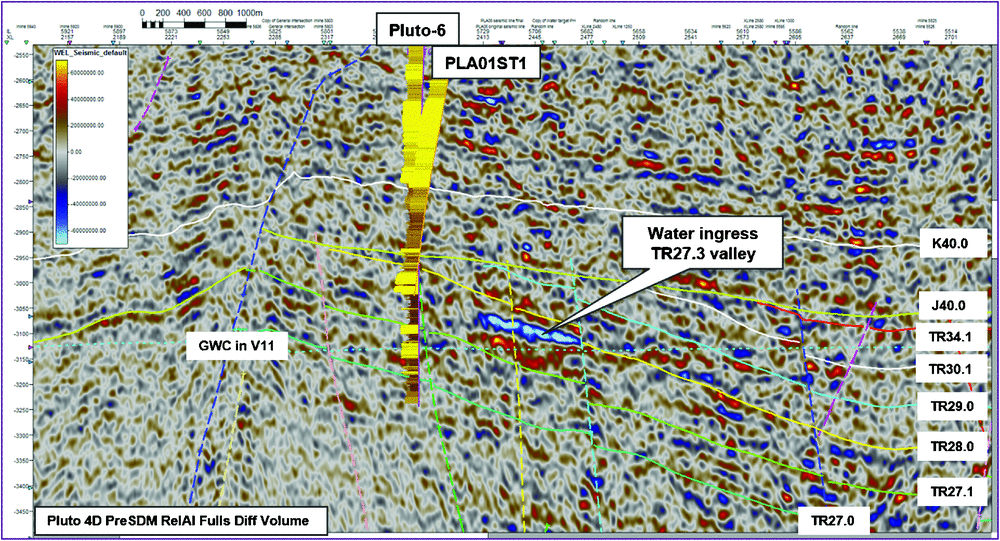

Fig. 15.  Seismic 4D PreSDM difference line along the TR27.3 valley. The 4D difference (hardening – blue tones) shows water ingress into the TR27.3 valley extending up from the GWC towards the PLA01ST1 producing well. The line of section is shown in Fig. 16.

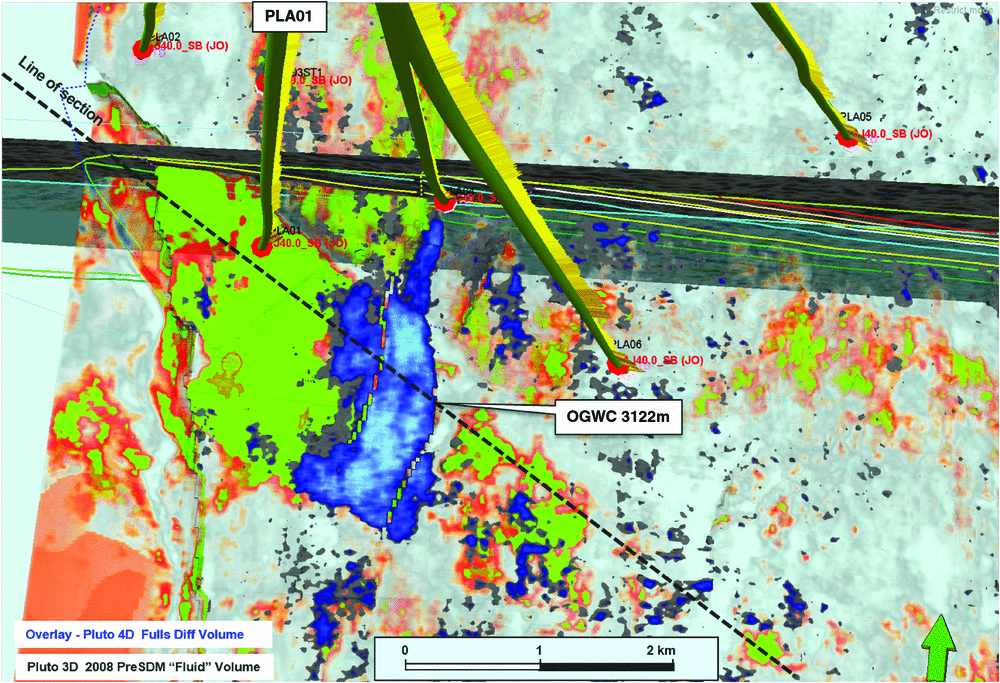

Fig. 16.  Opacity slab combination display of the 4D difference (hardening – blue tones) overlying the normal 3D fluid volume display, highlighting the TR27.3 valley (sands – red/green tones). The 4D difference (hardening – blue tones) shows water ingress into the TR27.3 valley extending from the GWC upwards into the valley towards the producing well.

A 3D opacity view (Fig. 16) shows a striking example of water ingress. Fig. 16 shows the 4D difference (hardening) in blue tones overlain on a fluid volume slice with the TR27.3 valley highlighted in green/red tones. The strong 4D difference anomaly extends up into the valley from the GWC towards the producing well PLA01ST1. Note, in particular the striking correlation with the valley structure and the two small faults that cut the valley.

The TR27 sands are a major sand package at the base of the Pluto field reservoir sequence. These thick amalgamated channel sands (almost sheet-like) are present in all Pluto and Xena wells. In Pluto, the TR27 gas sands are trapped behind the major western bounding fault and have been appraised by the Pluto-5 and Pluto-6 wells.

A seismic PreSDM fluid line across the TR27 sands at the crest of the field is shown in Fig. 17. Again, the yellow/red tones are interpreted as gas sands above the GWC, and the blue tones are interpreted as shales. In particular, note the strong GWC response on this fluid volume, even though the true sand thickness extends unchanged into the aquifer.

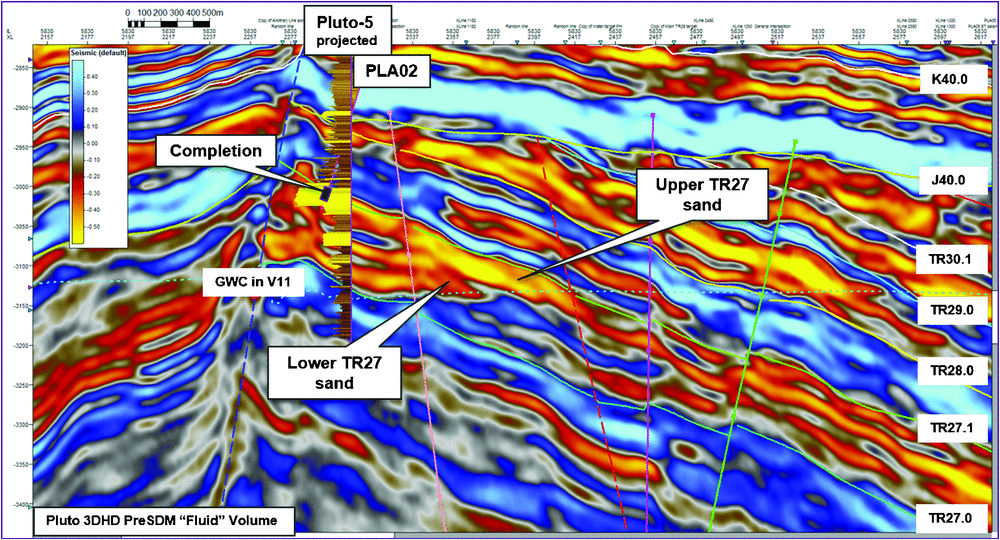

Fig. 17.  Seismic PreSDM fluid line across the TR27 sands. Yellow/red tones are low fluid values (low AI, low Vp/Vs) interpreted as gas sands above GWC. Blue tones are high fluid values interpreted as shales. PLA02 is completed in the TR27 upper sand and has been on production since 2012. The line of section is shown in Fig. 19.

The PLA02 development well is completed in the upper TR27 sand and has been on production since 2012. Although it was expected that this well would drain all of the TR27 sand, there was a downside risk that the intervening shale (as seen in the Pluto-5 gamma log shown in Fig. 17) could act as a barrier and only the upper sand would be drained. The Pluto 4D did resolve this downside risk, as it shows that the two sands within the TR27 (lower) unit are both being produced, even though the completion in PLA02 is only in the upper sand (Fig. 17).

The seismic 4D PreSDM difference line across the TR27 sands is shown in Fig. 18 with the TR27 sequence highlighted. The 4D difference (hardening – blue tones) clearly shows water ingress into the TR27 upper and lower sands and confirms that the producing well PLA02 is accessing the full TR27 sand unit.

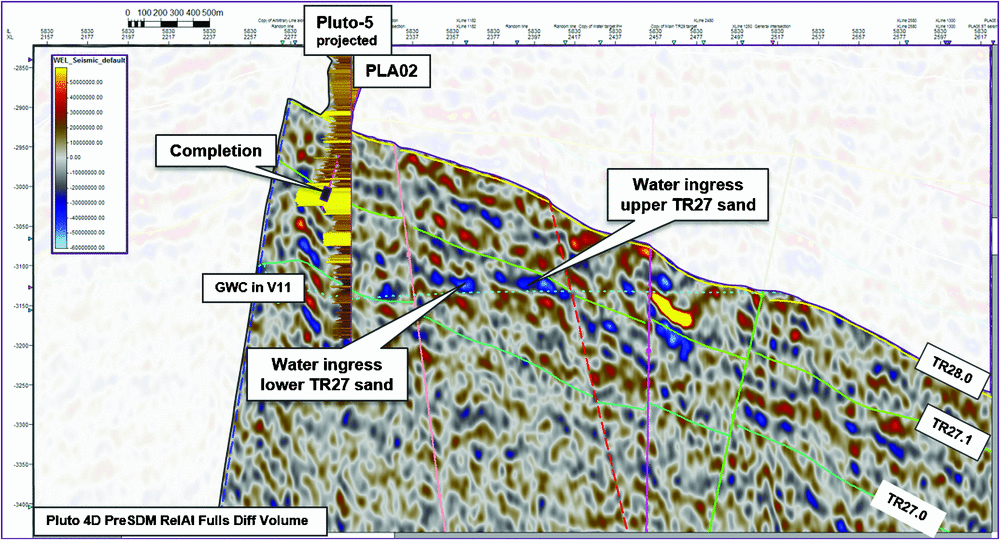

Fig. 18.  Seismic 4D PreSDM difference line across the TR27 sands. The 4D difference (hardening – blue tones) shows water ingress into the TR27 upper and lower sands and confirms that the producing well PLA02 is accessing the full TR27 sand unit. The line of section is shown in Fig. 19.

Opacity slabs for both the sands in the TR27 sequence are shown in Fig. 19. These opacity slabs show the water ingress extending up from the GWC (shown in figure as white dashed lines) towards the producing PLA02 well. Note the water ingress is tending to follow the fault traces as the water moves up-dip.

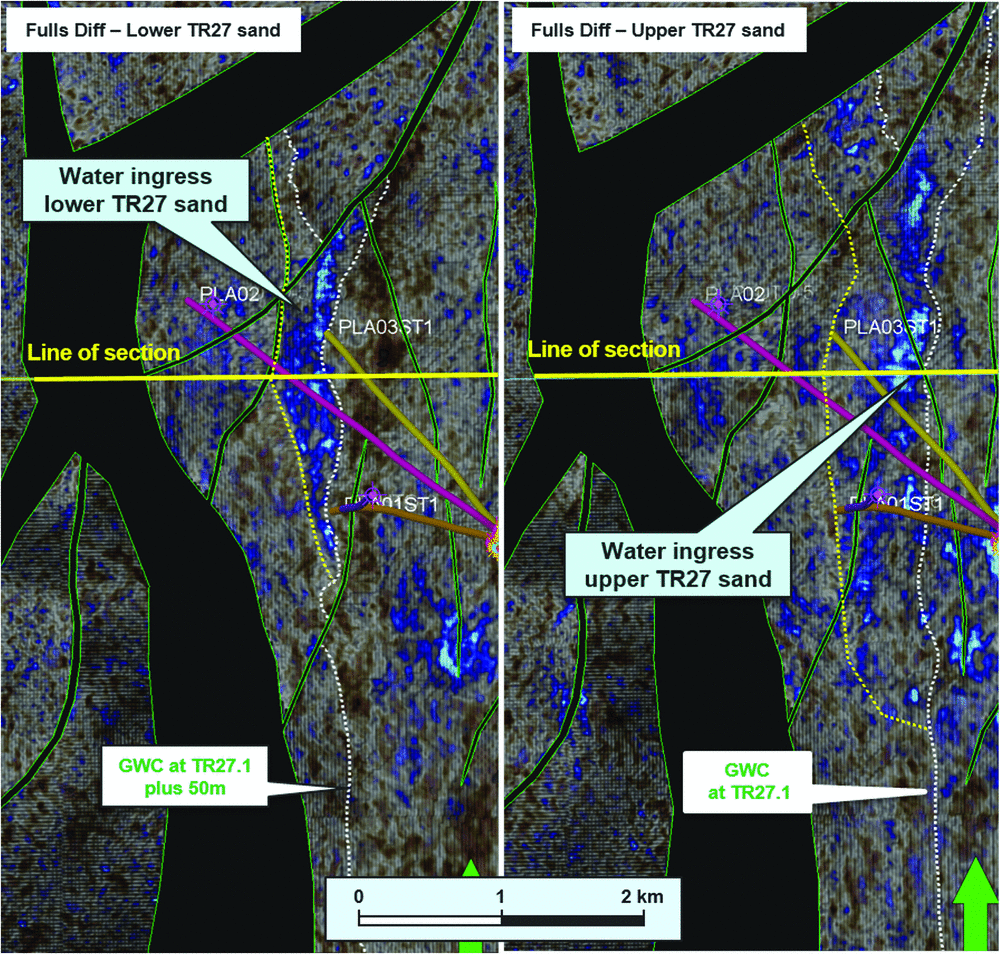

Fig. 19.  Seismic 4D PreSDM difference opacity slices showing 4D differences in the TR27 sequence. The most significant result is that both sands are being swept together. Note that the hardening in blue tones is interpreted as water ingress.

The water ingress is reasonably defined in the north (closest to the wells and also outside the main seabed canyon area). Towards the south, the 4D response is nebulous and it is not known if this is due to either the possibility of an unswept area or more likely that the data quality of the baseline survey (from 2004) is poor beneath the strong submarine canyons where we know the seismic data is compromised.

The Pluto 4D data has been used to generate potential water ingress polygons in all the Mungaroo sequences from the TR27 sands to the TR32 sands. The Brigadier units (TR34) and the Xena area (Mungaroo and Brigadier) had insufficient production to show any discernible 4D differences relating to water ingress. The 4D signal varied significantly across the survey (presumably related to the poorer 2004 Baseline survey especially under the main scarp and seabed canyons) so several areas were not as definitive as those shown in the Mungaroo examples above. However, they did show 4D responses in places, and these have been identified for use in the dynamic reservoir modelling.

An example of potential water ingress for the TR30.1 sands is shown in Fig. 20. The poorly expressed 4D hardening can be seen in the seismic line just above the interpreted TR30.1 horizon. The corresponding opacity horizon slice/slab shows a moderately defined hardening anomaly (interpreted as water ingress), extending upwards from the GWC. The hardening response is at a similar level to the background noise (as apparent in the seismic difference section of Fig. 20), and it is only its consistency on the opacity slice that indicates that it is most likely a real response. The anomaly is best expressed in the northern part of the field and becomes more nebulous/not present in the south. The anomaly is very consistent with the interpreted GWC in the north, but is poorly consistent in the south (which may indicate potential problems with the depth conversion in this area).

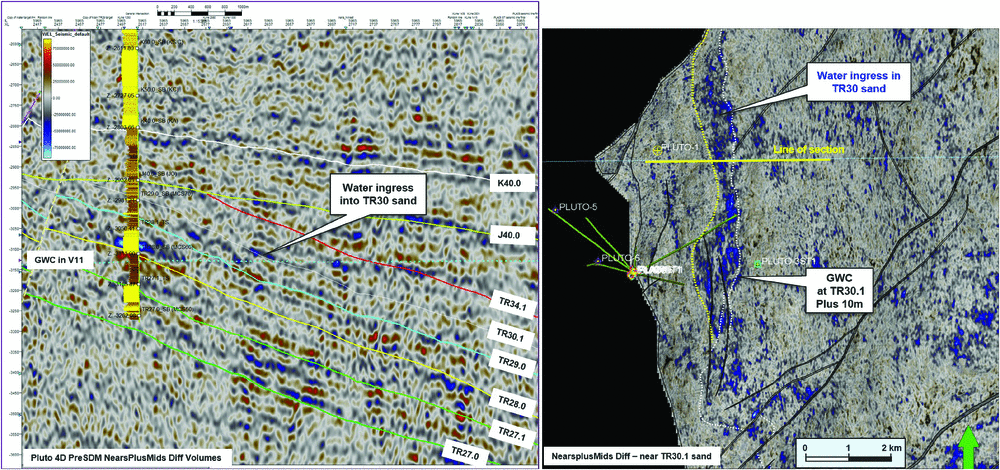

Fig. 20.  Seismic 4D PreSDM difference line (left) and opacity slice 20 m thick (right) showing 4D differences in the TR30 sequence. The most significant result is that the strongest water ingress is in the northern area down-dip from the development wells. Note that the hardening in blue tones is interpreted as water ingress.

One of the most unexpected results from the Pluto 4D has been the strong ‘softening’ responses seen just below the GWC and interpreted to be gas expansion into the aquifer. Gas expansion is not widespread, but where present is shown as a very strong softening response near the contact, which is readily discernible on the 4D difference data.

Seismic 4D difference line 5620 (Fig. 21) shows a strong softening event (yellow/red tones) just beneath the GWC, which is interpreted to be gas expansion into the aquifer.

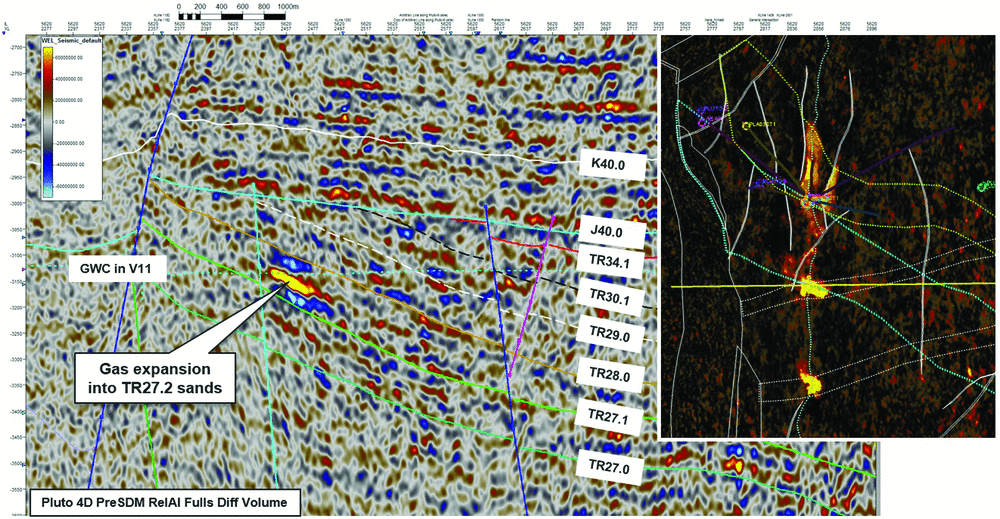

Fig. 21.  Seismic 4D PreSDM difference line 5620 shows a strong softening event (yellow/red tones) just beneath the GWC, which is interpreted to be gas expansion into the aquifer.

The gas expansion (strong softening) in the TR27.2 valleys/channels is better expressed in the horizon slices (i.e. parallel to stratigraphy). Three individual expansion ‘bubbles’ are apparent in the left panel of Fig. 22 and appear as small elongate features coincident with channels/valleys interpreted on the Pluto 3DHD inversion volumes. In the right panel of Fig. 22, a second horizon slice, approximately 20 m higher in the section, shows the strong hardening response interpreted as water ingress up the TR27.3 valley discussed previously.

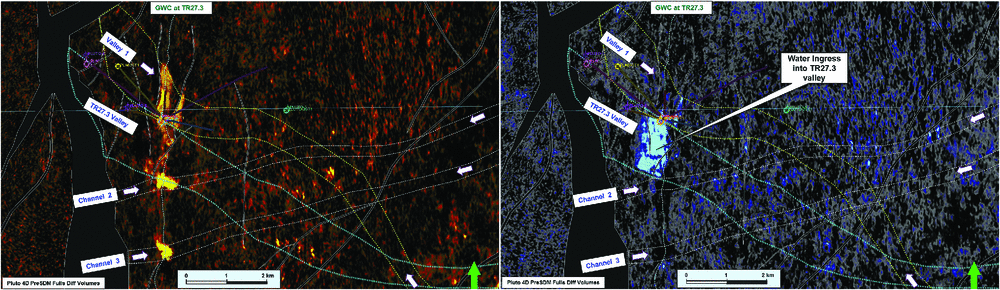

Fig. 22.  Seismic 4D difference (softening – yellow tones) showing gas expansion into the aquifer along TR27.2 channels/valleys (left), and the seismic 4D difference (hardening – blue tones) showing water ingress into the overlying TR27.3 valley (right). Note that the horizon opacity slabs are 10 and 20 m thick along structure (i.e. parallel to stratigraphy).

The geological features (channels and valleys) can be seen in the horizon opacity slabs from the Pluto 3DHD PreSDM relative AI dataset shown in Fig. 23. The left panel is at the same level as the gas expansion panel above and shows several poorly expressed channels (labelled 2 and 3), which correlate well with the expansion bubbles. As these features are poorly expressed, they are interpreted to be thin (approximately 10 m). Valley 1 is poorly expressed at this level, but at a deeper level Valley 1 is expressed as strong as Valley 2 (shown on the right panel which is 20 m higher). The right panel is at the level of the main TR27.3 valley and shows this major valley extending to the south-east into the aquifer.

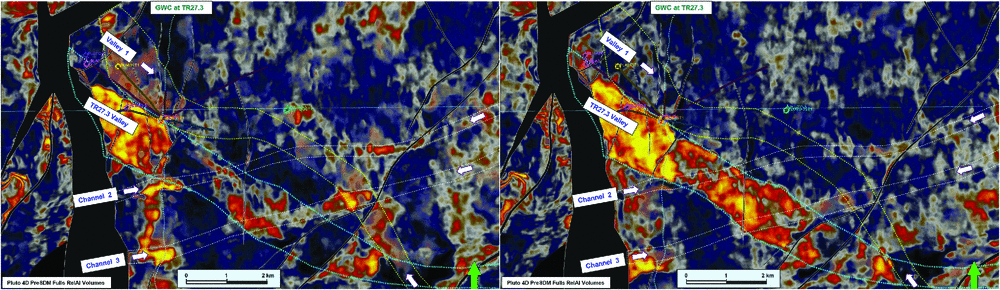

Fig. 23.  Pluto 3DHD relative AI opacity slabs equivalent to sections in Fig. 22 showing the TR27.2 channels/valleys (left) and the overlying TR27.3 major valley (right).

Combining the gas expansion and water ingress figures into one figure (Fig. 24) it can be seen that the interleaving channels and valleys form a network that is interpreted to be connected in the aquifer. The production from PLA01ST1 has resulted in both the water ingress in the TR27.3 valley, and through the connections in the aquifer, a u-tube effect causing gas expansion in the small channels/valleys, which then provide additional energy to the system.

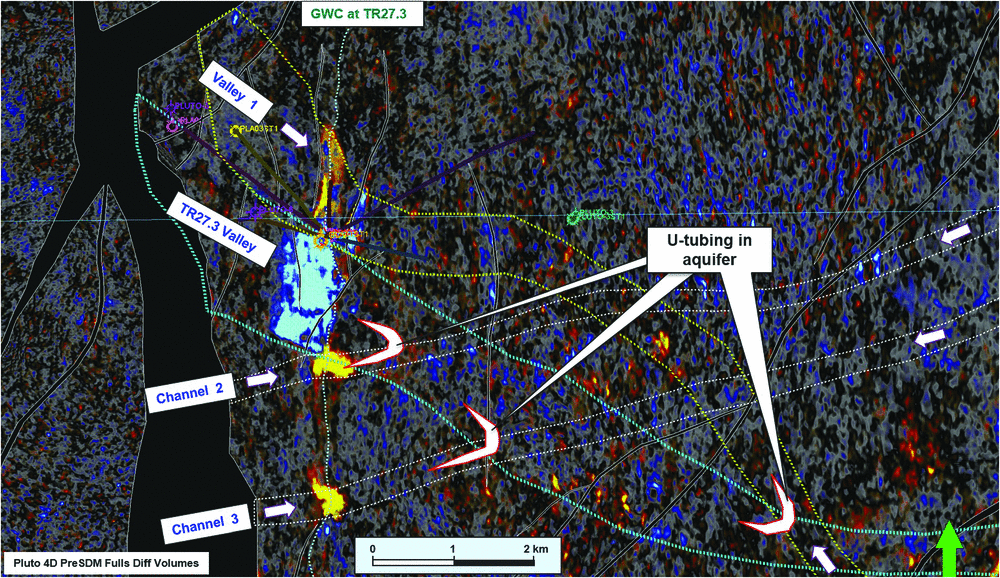

Fig. 24.  Combined opacity slabs of Fig. 22 showing the gas expansion in the TR27.2 channels/valleys and the water ingress in the overlying TR27.3 major valley. The interpreted valleys/channels provide connection in the aquifer and hence additional energy is supplied via a u-tube effect.

The Pluto 4D Reservoir Monitoring Project, the first in Australia over a gas field, has been an outstanding success amongst a small number of similar projects worldwide.

The following 4D responses are seen in all reservoir sequences in the Triassic from the TR27 to the TR32 units currently being produced in the Pluto field:

• Hardening responses interpreted as water ingress range from strong (obvious) to weak (possible), but all are consistent with the geology and extend upwards from the GWC.

• Softening responses interpreted as gas expansion into the aquifer, and although not widespread, occur in several areas and highlight connectivity of gas reservoirs through the aquifer.

The Pluto 4D results/insights have provided an excellent, additional layer of control for the history matching of the field. The water ingress polygons have been used to assist with reservoir connectivity/plumbing and the resultant water movement into the field. They have resulted in a better understanding of the reservoir connection to the aquifer and help define overall aquifer connectivity. In addition, the water ingress polygons improve the history match quality of each dynamic model.

The authors declare no conflicts of interest.
