Pesticide extraction from soil into runoff under a rainfall simulator

Keywords: enrichment ratios, herbicides, insecticides, partition coefficients, pesticide runoff, rainfall simulator, runoff risk, soil concentrations.

Runoff estimation is an important aspect of the environmental fate of pesticides (Wauchope 1992). However, the pesticide runoff literature presents a seemingly random collection of concentrations, and some form of framework is needed to help understand pesticide runoff. Most studies involve only a few pesticides, so it is difficult to know if responses are due pesticide properties or the study conditions. Hornsby et al. (1996) list properties of 343 active ingredients; however, many more compounds and metabolites exist. Pesticide runoff is the outcome of a series of processes, which may be affected by pesticide properties, namely application→dissipation→leaching→partitioning→runoff extraction→sediment deposition and dillution, operating on plant canopy, crop residues and soil. Because of dissipation, runoff timing after application is important. Runoff concentrations are usually greatest in the first event after application and decline through time (e.g. Glenn and Angle 1987; Isennsee and Sadeghi 1993).

Wauchope and Leonard (1980) found ‘edge-of-field’ maximum pesticide concentrations in runoff were related to application rate, time after application and an ‘availability index’. The availability index was had classes for pesticide formulation (electrical conductivity, wettable powders, granules, etc.), solubility, and placement (foliage, soil surface or incorporated), and ranged over an order of magnitude. The model showed the importance of application rate (confirmed by Fillols et al. (2020)) and time after application (dissipation). So as a minimum, a model for pesticide runoff should consider the application rate and dissipation rate.

What predictive performance can we expect from pesticide runoff models? Singh and Jones (2002) found that the PRZM model could predict pesticide runoff within an order of magnitude of measured data, with better agreement for larger events. With improved hydrologic calibration, agreement was within a factor of 3. Young and Fry (2019) found pesticide runoff could be modelled within a factor of two at the high-end of the runoff measurements where the most influential high mass-load events occurred, after optimisation of model parameters. Connolly et al. (2001) used the GLEAMS model to predict pesticide runoff loads using parameters from the literature and optimisation and could model pesticide runoff loads to within a factor of two of the measured data.

Leonard et al. (1979), Spencer et al. (1985) and Baker (1980) found strong relationships between pesticide concentrations in surface soil and in runoff. This paper focuses on this relationship and how different pesticides behave. These data are contrasted with data from catchments and rainfall simulator plots the literature in Silburn (2003). The objective is to determine the relationship between pesticide concentrations in soil and the resulting concentrations in runoff when rainfall is applied using a rainfall simulator, thereby starting to define more general relationships of this type.

During rainfall, chemicals are leached downwards depending on the partitioning coefficient, reducing surface soil concentrations. Then, extraction into runoff occurs, in water and sediment. The amount of chemical available for leaching and extraction depends on the soil concentration in the ‘runoff-mixing layer’. Runoff concentrations are highly related to soil concentrations for pesticides (Leonard et al. 1979; Baker 1980; Spencer et al. 1985) and soluble phosphorous (P) (Sharpley et al. 1982). Soluble chemical extraction into runoff is greatest at the surface and decreases exponentially with depth, with some extraction from 20 mm (Ahuja and Lehman 1983). Solute and sediment-bound extraction exhibit similar responses to rainfall intensity and energy, cover, infiltration and slope etc. (Ahuja 1986, 1990). Thus, there is a positive correlation between solute and sediment extraction (Sharpley 1985). For suspended sediment, measured concentrations of strongly sorbed chemicals are generally 1–10 times the soil concentrations (Leonard et al. 1979; Willis et al. 1983) because of size-selective erosion (enrichment). Also, the chemical distribution with depth in the soil is important but is generally unknown.

Concentrations of weakly sorbed chemical in the mixing-layer decrease exponentially during rain (Baker 1980). Truman et al. (1998) confirmed this for pesticides. When leaching is restricted, dilution of the surface concentration into runoff occurs. Runoff concentrations are one to two orders of magnitude greater than where leaching is unrestricted (Ahuja and Lehman 1983). Snyder and Woolhiser (1985) observed significant exfiltration on sloping flumes (‘interflow’), which increased removal of dye in runoff. Where leaching was restricted by less permeable subsoil, dissolved chemicals in runoff are contributed by interflow and surface extraction. Barnett et al. (1972) found runoff concentrations were highest for nutrients (e.g. nitrogen, potassium, chlorine) for interflow rather than overland flow. However, Edwards et al. (1980) observed lower glyphosate runoff concentrations from interflow than overland flow, due to adsorption. Thus, chemicals need to be weakly sorbed to be transported in leaching and interflow.

Pesticide event runoff concentrations (C_RO μg L⁻¹) are related to soil concentrations (Leonard et al. 1979):

where is soil concentration (mg kg⁻¹), SC is sediment concentration¹ (kg L⁻¹), E is extraction coefficient, and P1 is fitted coefficient.

Leonard et al. (1979) conceptualised E as an ‘extraction coefficient’ for weakly sorbed pesticides and as an ‘enrichment factor’ for sorbed pesticides. Exponent P1 represents non-linearity and is slightly less than 1.0 for sorbed pesticides: 0.83 Leonard et al. (1979), indicating a changing sediment composition with time. P1 is slightly greater than 1.0 for poorly sorbed pesticides: 1.2 Leonard et al. (1979) and 1.03 Baker (1980), reflecting changing extraction efficiency and pesticide distribution in surface soil with time. Assuming linearity (P1 = 1), runoff extraction ratio is . ‘Maximum potential runoff concentration‘ is where runoff has a concentration equal to the pesticide mass in the soil divided by rainfall volume, defining the upper bound for runoff extraction. For 50 mm of rain, the maximum runoff extraction ratio is 300 for 0–10 mm soil and 30 for 0–2 mm soil (bulk density 1500 kg m⁻³).

Pesticide soil concentrations (0–25 mm) before rain and runoff concentrations from rainfall simulator plots at three sites were used. At one site (Gatton), a range of times after application and cultural treatments (e.g. range of cover, plot sizes and slopes, rainfall intensity and spray formulation, were studied. As treatments other than cover and time after pesticide application made no difference to runoff concentrations, at later studies (Emerald and Jondaryan), only time after applications (both) and a range of cover (Emerald) were studied. Also, prior wheel traffic was included as a treatment at Emerald and Jondaryan as it occurs in all cotton fields, and has a large effect on runoff and pesticide losses. Sites, rainfall simulator, pesticide application and analysis methods are described by Silburn (2003) and Silburn et al. (2002, 2013). Pesticides with a wide range of properties were studied.

Rainfall simulator studies were run at sites in Fig. 1 and Table 1:

1. Gatton, University of Queensland, on an alluvial levee (27°32.173′S, 152°20.052′E). Soil has a dark clay loam to light clay (crusting or cloddy) surface, Black Dermosol (Isbell 2002) used for cropping.

2. Emerald irrigated cotton farm west of Emerald, Queensland (23°31.6′S, 148°9.3′E), on a Black Vertosol (Isbell 2002), strongly self-mulching and cracking. Used for irrigated cotton for >20 years.

3. Jondaryan, Queensland (27°25′50″S 151°37′40″E), on the gently undulating alluvial plain of Oakey Creek. Soil is a Haplic self-mulching Black Vertosol (Isbell 2002) used for irrigated cotton and winter cereals.

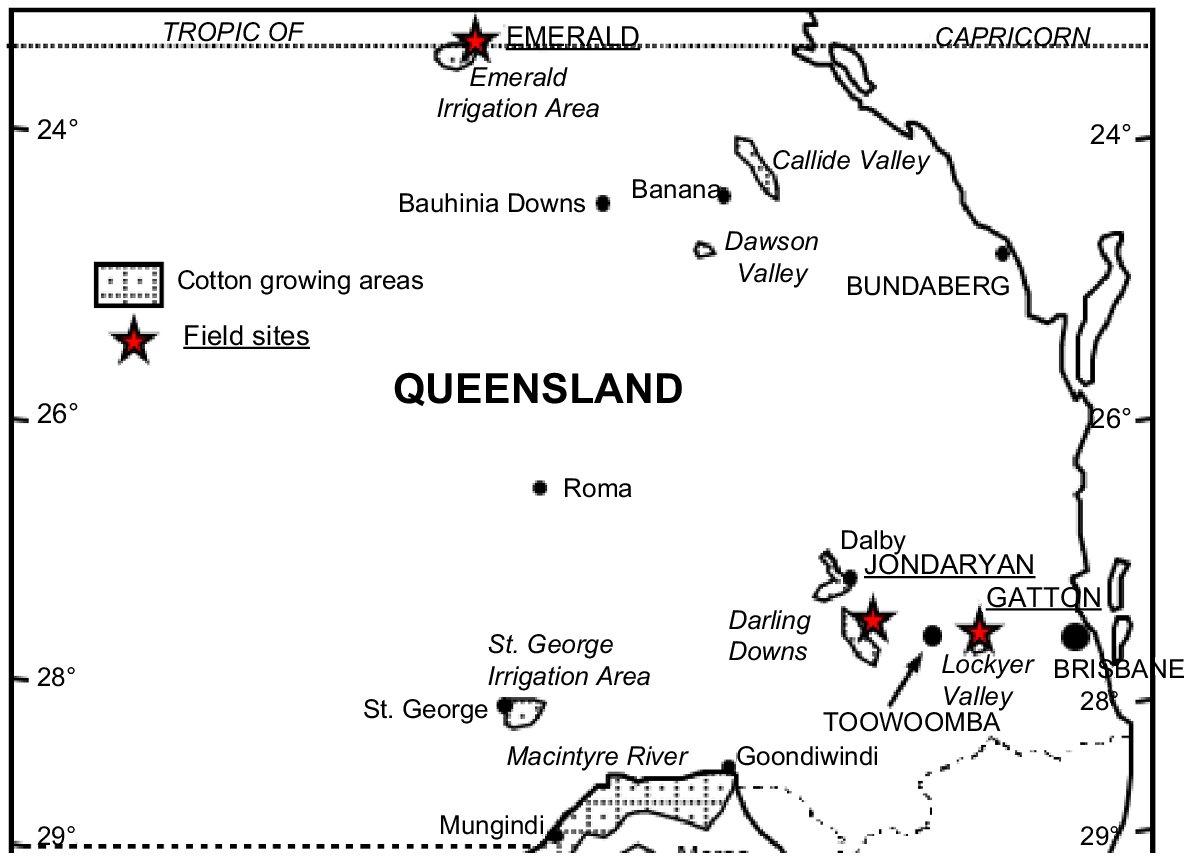

Fig. 1.  Sites and cotton growing areas in Queensland.

Table 1.  Surface soils properties.

Studies were conducted on row-crop layouts with 1 m rows, hills 0.25 m high, linear 50% side-slopes 0.4 m long, except Gatton (0.75 m rows, 50% side-slopes). Furrows are used for irrigation and wheel traffic. Downfield slopes were 0.2–1.5% (Table 2). Studies were conducted early in the cotton season between planting and first irrigation. All sites had low cover (<5%), except where cover was applied. Surface soils (0–50 mm) were loose and at air-dry moisture content; the surface had a strong crust at Jondaryan. There were no cracks, having been pre-irrigated or fallowed. All sites had a few cm of loose soil in the furrow over firm moist subsoil, compacted to varying degrees. Gatton was run in April with no crop and wheel traffic was random. Emerald and Jondaryan had a wheel track and non-wheel track as separate plots under the simulator.

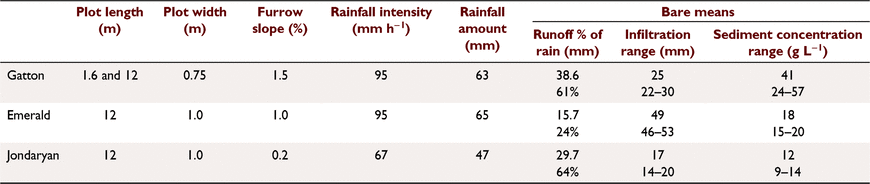

Table 2.  Rainfall simulator plots, storms applied, mean runoff, infiltration, and sediment concentration.

The rainfall simulator, described by Loch et al. (2001), uses 13 in-line oscillating flat fan Veejet 80 100 nozzles spraying downwards, wetting an area 13 m long and 2.5 m wide. Rain was applied for 40 min or more, at 95 mm h⁻¹ (Gatton and Emerald) and 70 mm h⁻¹ (Jondaryan) (Table 2). Intense storms were applied as they cause most soil loss in this environment (Wockner and Freebairn 1991). Plot conditions and hydrology are summarised in Table 2.

Runoff rates and sediment concentrations were measured every 2 min. Flow-weighted mean pesticide concentrations in runoff were measured and averaged for the two plots to be compatible with soil concentrations (0–25 mm), which were averaged for hill and furrow. Pesticide concentrations in water and sediment were calculated from filtered flow-weighted composite samples taken through hydrographs and were used to calculate partition coefficients. A range in soil concentrations was obtained by including a range of times after spraying and banded and blanket sprays, giving four orders of magnitude in soil concentrations. Bulk density was measured after rain and used to convert soil concentrations (mg kg⁻¹) to loads in g of active ingredient per ha (g.a.i. ha⁻¹).

Endosulfan (α-, β-isomers), endosulfan sulfate (toxic breakdown product) (the sum called total endosulfan) and prometryn were studied at all sites. Other pesticides were applied as experimental treatments or were present in soil (Table 3).

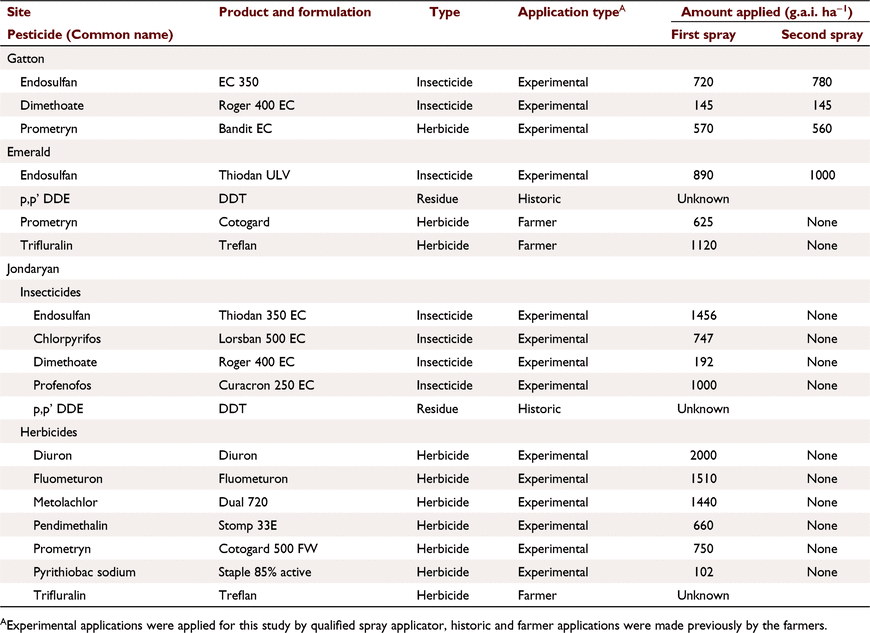

Table 3.  Pesticides studied and amount applied.

The 12 pesticides and their published properties (Table 4) are:

• Dichlorodiphenyldichloroethylene (DDE): low water solubility (0.003 mg L⁻¹) and high K_OC (380 000–880 000 L kg⁻¹),

• Endosulfan, trifluralin, chlorpyrifos and pendimethalin: low solubility (0.3–0.4) and higher K_OC (8000–12 400 L kg⁻¹), and profenofos (Sol 28, K_OC 5000 L kg⁻¹),

• Diuron, prometryn, metolachlor and fluometuron (Solubility in water (mg L⁻¹) (Sol) 33–530): low K_OC (100–480 L kg⁻¹).

• Dimethoate (Sol ~40 000 (mg L⁻¹), K_OC 20 L kg⁻¹) and pyrithiobac sodium (Sol ~700 000 (mg L⁻¹), K_OC 9–21 L kg⁻¹), soluble and weakly sorbed.

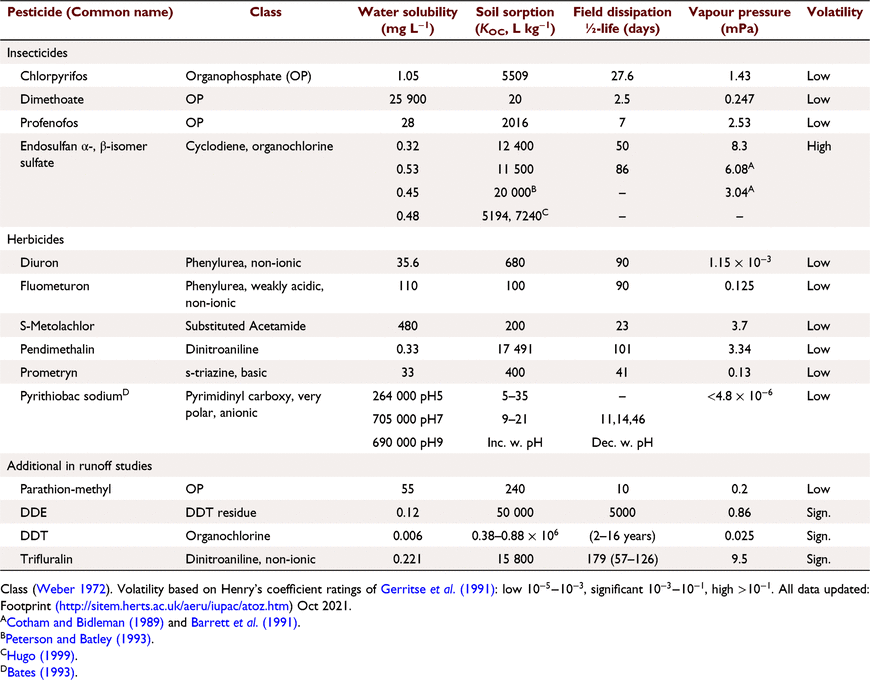

Table 4.  Pesticide properties (Hornsby et al. 1996).

The main treatment was time after spraying (ranging from 2 h to 15 days) with two applications 6 days apart. Endosulfan, prometryn and dimethoate were blanket sprayed on: (1) four pairs of plots (emu^lsified concentration (EC) formulation, bare, 1.6 m long, 1.5% slope, 95 mm h⁻¹ rain) and rain was applied 2 h after the first spray and 2 h, 26 h and 9 days after the second spray; and (2) five pairs of plots of secondary treatments where one variable was altered, with rain 2 h after the first spray: plot length (12 m), slope (0.9%, 4.3%), cover (100%), rain 2 h after two sprays, formulation (ultra-low volume ULV); second storm on 12 m plots, 20 min after the first. There was some variation in runoff (30–41 mm), infiltration (22–28 mm) and sediment concentration (24–57 g L⁻¹). Stubble covered plot gave double the infiltration.

Plots had a range of cover (wheat stubble or cotton trash), with and without wheel traffic. Rain was applied 4–7 days after two endosulfan applications, 17 days after prometryn (banded) and 50 days after trifluralin application. Data were averaged for traffic treatments and pooled as ‘bare’ (bare/cotton trash, cover 0–10%, five pairs of plots) and ‘covered’ treatments (30–50% cover, three pairs of plots). There were no significant differences in pesticide runoff concentrations between treatments within these groups, or due to time after spraying. Data for nutrients (N and P species) in soil and runoff, particularly nitrate (NO₃-N) (Silburn and Hunter 2009), are presented as a tracer of dissolved chemicals.

The focus was to create a range in soil concentrations. Five simulations (pairs of plots) were run: three blanket plots sprayed at 5, 25 and 34 days and two banded plots 2.3 and 34 days before rain. Four insecticides and six herbicides were applied (Table 3). Trifluralin and DDE were present from past applications (>1 year).

Pesticides (Table 3) were applied using hand applicators with EC (high volume 50 L ha⁻¹) or ULV (3–4 L ha⁻¹) emitters, by professional applicators. Rates were confirmed by soil sampling soon after application.

Two types of ‘runoff samples‘ were taken:

1. rainwater daily and runoff (~500 mL) at five times during the hydrograph, analysed for total pesticide concentrations (‘hydrograph’),

2. composite runoff samples during the hydrograph, filtered and analysed for pesticide concentrations in water and sediment phases separately, to determine partitioning. A runoff portion was added to a single bottle, with sampling duration kept constant, providing a flow weighted sample (‘bulked’) (Masters et al. 2013).

Hydrograph and bulked concentrations are compared in Supplementary material A.

‘Soil samples‘ were taken (0–25 mm) from hill and furrow separately, from eight locations on the plot, composited and mixed, using a vertically sided trowel (70 mm wide by 110 mm long) of 25 mm depth. The trowel and sampling container were cleaned with methanol between uses to prevent contamination. At Emerald, ‘crop residues‘ sub-samples were taken from a known area and 0–25 mm soil taken from these areas, so soil samples did not contain pesticides intercepted on crop residues. Crop residue mass per unit area was measured, to convert concentrations (mg kg⁻¹) to loads (g ha⁻¹) and to determine total pesticide load. Pesticide analysis samples were placed in glass jars with Teflon seals, into insulated boxes with ice and sent to the laboratory by air courier at 4°C. Filtering and extraction of water samples commenced within 1 day. Soil and trash samples were stored at −15°C.

Runoff, rainwater, and soil were analysed for the pesticides in Table 4.

For runoff samples, initial phase of analysis was different for hydrograph and bulked samples:

1. Hydrograph samples and rainwater were analysed for total pesticide concentrations. The sediment portion was extracted by refluxing with dichloromethane/acetone (1:1) and added to the water portion and extracted with dichloromethane and hexane.

2. Bulked runoff samples were filtered (0.7-μm glass fibre) and analysed for sediment-sorbed and soluble pesticides separately. The water portion was extracted by shaking with dichloromethane and hexane separately. Sediment was extracted by refluxing with a 1:1 mixture of dichloromethane and acetone, reduced to a small volume, added to 500 mL distilled water, extracted with dichloromethane and hexane.

Runoff samples from Gatton and Emerald were analysed by Pesticides Laboratory, Indooroopilly. Following extraction, pesticides were partitioned into hexane and cleaned up on a Florisil column and determined using gas chromatography (GC) with ECD (electron capture detector), NPD (nitrogen phosphorous detector) and mass spectrophotometry (MS), using a 30 m DB-1 capillary column. Jondaryan water samples, other than pyrithiobac sodium, were analysed by Queensland Health Scientific Services (QHSS), using standard multi-residue GC and HPLC methods (Supplementary material B). Pyrithiobac sodium in soil, water and sediment was analysed by Analchem Bioassay using GC-MS (Bruns and Tauber 1992; Sumpter et al. 1996).

Samples for soil and crop residue were analysed for pesticides (Table 4) as follows: for Emerald and Gatton, by the Pesticides Laboratory, Indooroopilly. Pesticides were extracted with methanol/water (4:1) and partitioned into hexane and cleaned up on a Florisil column and determined using GC with ECD, NPD and MS and a 30 m DB-1 capillary column; for Jondaryan, soil pesticides other than pyrithiobac sodium were analysed by QHSS, using standard multi-residue GC and HPLC methods. Pyrithiobac sodium in soil was analysed by two methods described in Supplementary material C.

Two analyses were used: (1) analysis of variance (ANOVA) using general linear models, was used to determine differences between treatment means; and (2) regression was used to examine how well soil concentrations explained variance and trend in pesticide runoff concentrations, and whether there were differences for pesticides. Mean extraction ratios calculated by ANOVA and regression slope were different, due to different weighting of data. Extraction ratios calculated by regression, with a least squares weighting, are preferred. Regression analysis, with grouping for pesticides, was used to describe effects of slope, infiltration amount, sediment concentration, days since spraying and cover on extraction ratios.

Before pesticide applications, soils contained no detectable residues, except minor amounts of endosulfan sulfate at Emerald.

Pesticide runoff concentrations were closely related to soil concentrations (Fig. 2a), C_RO (μg L⁻¹) = 26.1 (mg kg⁻¹) (R² = 0.937, N = 50, P < 0.001) for bare plots. E_RO was similar (not statistically different, n.s.d.) for endosulfan compounds (Table 5), including sulfate (Fig. 2b). Dimethoate and prometryn had significantly lower runoff extraction (Table 5), with E_RO = 11.4 and 21.7, respectively. Dimethoate extraction was lower in both sediment and water; dimethoate concentrations in the runoff-mixing layer were lower than indicated by soil concentrations due to rapid dissipation (Silburn 2003) and leaching, consistent with dimethoates lower partitioning. However, dimethoate and other organophosphates had high extraction (37) at Jondaryan, even though they also dissipated rapidly. Formulation, plot length, rainfall intensity (95–125 mm h⁻¹), runoff (30–41 mm), infiltration (22–30 mm), sediment concentration (24–57 g L⁻¹), slope (0.9–4.3%) and event number had no significant effect on runoff extraction (Fig. 2).

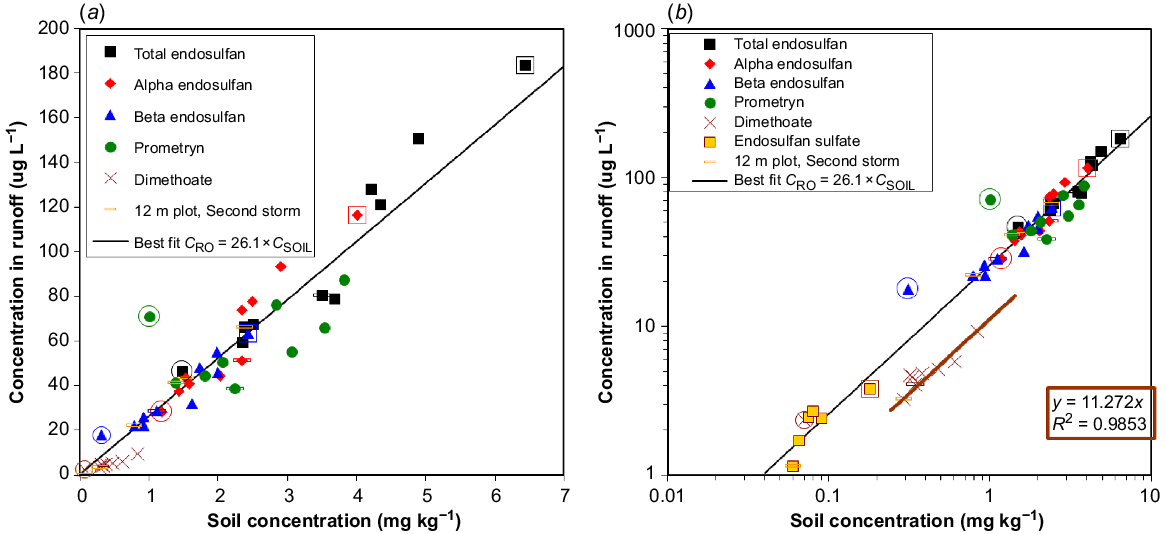

Fig. 2.  Runoff concentrations vs soil concentration (0–25 mm) at Gatton: (a) linear and (b) log-log including endosulfan sulfate. Points enclosed: in a square ULV, others EC; circle covered, others bare. First storm on 12 m plots: dash, others 1.6 m. Second storm 12 m plots: light dash. Best fit equation bare plots C_RO = 26.1 , R² = 0.937, N = 50, P < 0.001. Equation for dimethoate in (b).

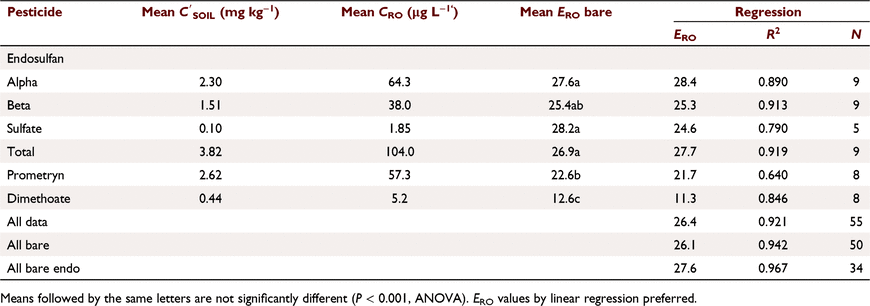

Table 5.  Mean soil concentrations (), runoff (C_RO), and runoff extraction ratio (E_RO), bare plots at Gatton.

E_RO decreased with days since last spray (DSS2) for α-, β- and total endosulfan (ranging from 27 at 2 h to 21 at 9 days) and prometryn (23–18). E_RO was constant for dimethoate and increased for endosulfan sulfate (E_RO = 26.55 + 0.787. DSS2, R² = 0.819, P = 0.008). α-, β- and total endosulfan were similar (n.s.d.): E_RO = 28.1–0.791. DSS2 (R² = 0.87, P < 0.001). Prometryn had a similar slope (n.s.d.) but lower constant due to lower extraction. Reduction in E_RO with time is probably due to changes in the distribution in the soil surface. Increase in E_RO for endosulfan sulfate was due to conversion of α- and β- to sulfate. There was no relationship between E_RO and runoff K_P.

Total runoff concentrations for bare plots were strongly related to soil concentrations before rain (Fig. 3), C_RO = 27.9 (R² = 0.84, P < 0.001) for all endosulfan compounds and prometryn (n.s.d., Table 6) even though prometryn has a much lower K_P and was band sprayed. Similar runoff extraction for prometryn is inconsistent with result for Gatton; a small (though significant) difference for prometryn at Gatton and result here indicates runoff extraction of prometryn is like endosulfan from a practical standpoint.

Fig. 3.  Total runoff concentration for Emerald bare plots vs soil concentration (0–25 mm): (a) linear and (b) log-log. Lines are: (1) all endosulfan and prometryn; (2) DDE; and (3) trifluralin, which had significantly different runoff extraction (Table 6).

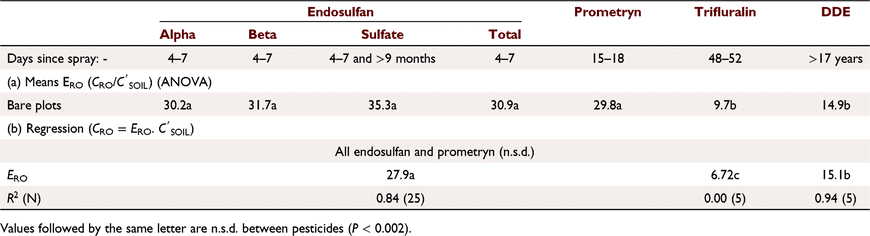

Table 6.  Mean extraction ratios (E_RO) for runoff concentrations at Emerald bare plots: (a) ANOVA and (b) linear regression.

E_RO values were significantly lower for DDE and trifluralin than for endosulfan and prometryn (Table 6, Fig. 3). DDE and trifluralin have are more tightly sorbed and dominantly transported in sediment; DDE K_P = 10 000, 99% in sediment, trifluralin K_P = 720, 92%. DDE and trifluralin concentrations in sediment (mg kg⁻¹) were lower than in 0–25 mm soil, particularly for trifluralin (Table 6). Thus, concentrations were lower in the surface few mm of soil than in 0–25 mm soil. This is probably due to their volatilisation, which is rated as significant (Table 4). In contrast, endosulfan concentrations in sediment were 1–2 times those in 0–25 mm soil and probably had an increased concentration towards the soil surface. Trifluralin had more variable runoff extraction than other (Fig. 3b); regression analysis indicated no relationship between runoff and soil concentrations (Table 6). This may be related to incorporation of trifluralin being haphazard and volatilisation, creating spatial variability in concentration gradients in the soil.

N and P runoff concentrations had a lower relationship to soil concentrations than pesticides (Fig. 4). Oxidised N is comparable as both soil and runoff analysis are NO₃-N. NO₃-N is easily leached and its presence in runoff indicates leached chemicals return to the surface due to ponding on the subsoil (i.e. interflow).

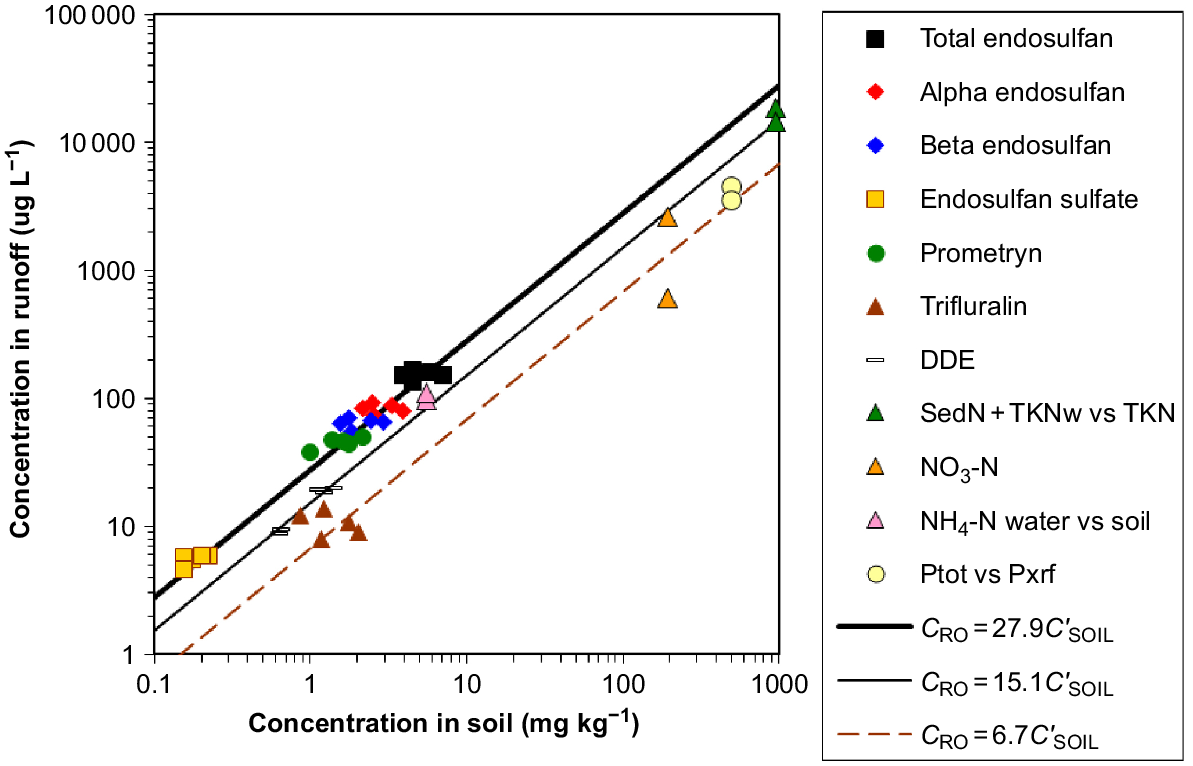

Fig. 4.  Comparison of runoff extraction of N and P with pesticides at Emerald (bare). NO₃-N runoff against soil NO₃-N, sediment-N (Sed-N) plus total dissolved Kjeldahl-N (TKNw) runoff:soil total Kjeldahl-N (TKN), NH₄-N runoff (NH₄-N water):soil NH₄-N, total P runoff (Ptot):soil total P(xrf).

Pesticide runoff concentrations at Jondaryan were highly related to soil concentrations before rain (Fig. 5), C_RO = 30.4 (R² = 0.91, P < 0.001). Soil and runoff concentrations of metolachlor, fluometuron, diuron and prometryn were 1–2 orders of magnitude greater than pyrithiobac sodium (applied ~1/10th lower rate) and trifluralin, but runoff extraction was similar (Fig. 5). Similarly, endosulfan soil and runoff concentrations were considerably greater than dimethoate, chlorpyrifos and profenofos, which dissipated much more rapidly (Silburn 2003), or DDE, but runoff extraction was similar (Fig. 5b).

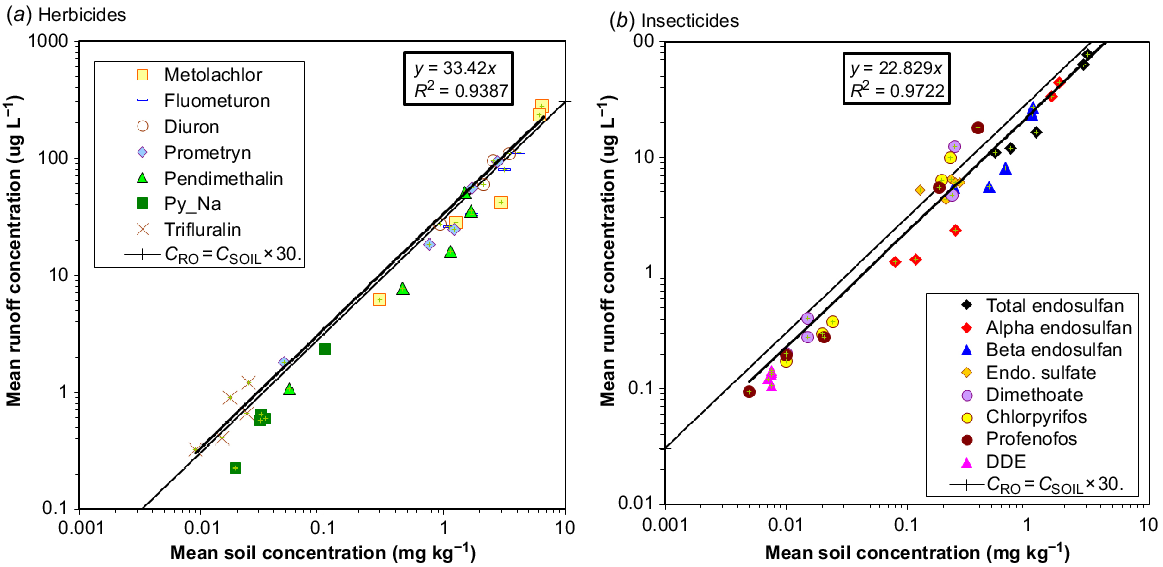

Fig. 5.  Runoff and soil concentrations (0–25 mm) for (a) seven herbicides, and (b) eight insecticides at Jondaryn. Data are means for two plots, 2–34 days after spraying. Regression for all data (C_RO = 30.4 , R² = 0.91) is shown. Py_Na pyrithiobac sodium.

E_RO values were not significantly related to slope, rainfall intensity, runoff amount or sediment concentration. E_RO values decreased with increasing infiltration (R² = 0.294), by 5.9 across the range of infiltration (15–20 mm), due to a similar decrease in water phase extraction (R² = 0.591), with no effect on sediment phase extraction (Table 7). There was no relationship between E_RO and runoff K_P.

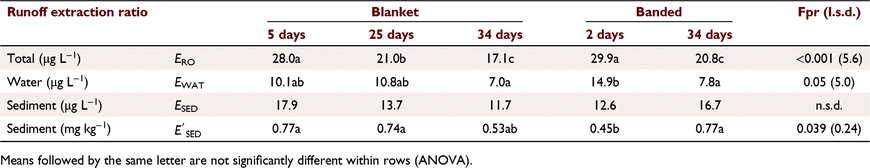

Table 7.  Mean extraction ratios for pesticides for blanket and banded and days since spraying at Jondaryan.

Herbicides had higher runoff extraction (E_RO 31.9) than insecticides (21.7) (R² = 0.927, P < 0.001 for difference in slope). Thus, for a soil concentration of 1 mg kg⁻¹, runoff concentration was 32 for herbicides and 22 μg L⁻¹ for insecticides, not a large practical difference. However, herbicides had significantly different runoff extraction², trifluralin (37.1), diuron (30.6), prometryn (28.6), metolachlor (27.0), and other herbicides (fluometuron, pyrithiobac sodium, pendimethalin) E_RO = 20–22 (like insecticides). Among insecticides, E_RO was higher for OP’s (24–26), endosulfan sulfate (23.1), total endosulfan (19), β-endosulfan (18), DDE (17) and α-endosulfan (16). Again, E_RO did not relate to K_P. Overall, runoff extraction was n.s.d. between pesticides. (see footnote 2).

Runoff extraction was less efficient with greater time since spraying. When pesticides were sorted into groups that were n.s.d. (R² = 0.594, P < 0.001):

Subscripts denote the last two groups had significantly higher constants than the first two groups (P < 0.001). OP values had a significantly greater slope (P = 0.004), consistent with rapid dissipation. Decrease in E_RO with DSS was due to reduced water phase extraction (Table 7). Sediment extraction had no trend with DSS. However, sediment (mg kg⁻¹) was significantly lower at two DSS. Banded and blanket plots had similar runoff extraction (n.s.d., Table 7). Averaging hill and furrow concentrations accounted for band spraying.

Where endosulfan was applied over cover and rain applied 2 h later at Gatton, runoff extraction was like that for bare soil for total, α-, β- and endosulfan sulfate (n.s.d., Fig. 2). Washoff from cover was not a source of these pesticides in runoff. The majority of pesticide washoff from cover occurs in the first 5–15 mm of rainfall (Dang et al. 2016). In contrast, prometryn and dimethoate had higher runoff extraction from cover, indicating washoff from cover contributed; they are less strongly sorbed than endosulfan and may be less sorbed on wheat stubble. Greater infiltration with cover (50 c.f. 22–30 mm for bare plots) did not lead to lower runoff extraction if leaching from the runoff-mixing layer was significant; interflow probably occurred. Even though runoff extraction was similar or increased with cover, runoff concentrations were considerably lower (except prometryn), due to volatilisation from cover.

At Emerald, E_RO values were lower with cover but were only significantly different for endosulfan sulfate and DDE (Table 8). For endosulfan sprayed on cover, a major effect of cover was to reduce soil concentrations presumably by volatilising considerable endosulfan, with runoff concentrations reduced accordingly. This outweighs other effects of cover, but runoff extraction was still 30% lower than from bare soil, due to less sediment transport.

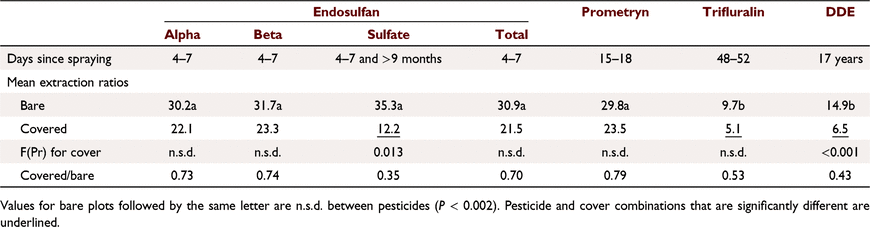

Table 8.  Mean extraction ratios for total runoff concentrations for bare and covered plots and between pesticides using ANOVA at Emerald.

For other pesticides at Emerald, which were in the soil under the cover, response to cover depended on sorption; E_RO was reduced most for more sorbed trifluralin and DDE and least for prometryn (Table 8). Prometryn concentrations were similar between cover treatments in both soil and runoff. Because prometryn was transported mainly in water, effect of cover on sediment loss had little impact. E_RO values were lower for cover for endosulfan sulfate, trifluralin and DDE. For these more strongly sorbed compounds, a large proportion was transported in sediment. Cover explained 61% of the variance in E_RO (P < 0.001), with similar slopes (n.s.d.) and different intercepts (trifluralin < DDE < others). E_RO values were also positively correlated with sediment concentration (R² = 0.68) and negatively correlated with infiltration (R² = 0.57). Sediment concentration and infiltration were closely related to cover (Silburn and Glanville 2002). E_RO response to infiltration is probably spurious, reflecting the cover effect on sediment concentration.

Of factors that were affected by cover, infiltration and sediment transport (Silburn and Glanville 2002), which affect runoff extraction, influence of sediment dominates and runoff extraction varies with sorption. However, infiltration matters for poorly sorbed chemicals; NO₃-N runoff concentrations increased with increasing cover, particularly for wheel tracks due to interflow.

There was a high degree of consistency in runoff extraction for pesticides with a wide range of properties. Runoff concentrations are mainly determined by surface soil concentrations. Runoff extraction in rainfall simulation studies were also consistent with literature data (Silburn 2003; Silburn and Kennedy 2007; Thorburn et al. 2013). However, there are exceptions such as trifluralin and DDE (Emerald) and dimethoate (Gatton), where E_RO values were lower. For dimethoate, this was associated with rapid dissipation and leaching. This did not occur for OP’s at Jondaryan where infiltration was lower, and less leaching occurred. For trifluralin and DDE, it was associated with higher sorption and insufficient sediment transported.

In the introduction, it was noted that models could predict pesticide runoff loads to within a factor of two of the measured data (Connolly et al. 2001; Young and Fry 2019). Here, relationships for measured pesticide runoff concentrations plotted against soil concentrations had R² of 0.94 at Emerald (Fig. 2), 0.92–9.94 at Gatton (Table 5), and 0.94–0.97 at Jondaryan (Fig. 5), or a fit of less than one half of an order of magnitude (albeit with some data that did not fit as described above) over a four order of magnitude range in soil and runoff concentrations. These relationships have also been shown to be strong in other papers in the literature (Leonard et al. 1979; Baker 1980; Spencer et al. 1985; Melland et al. 2016; Silburn et al. 2023). Several papers (Silburn 2003; Silburn and Kennedy 2007; Thorburn et al. 2013) have shown that the relationships in these papers and those presented here are also consistent to within an half an order of magnitude. The strong relationships found here and in the literature are probably due to the small scale of the catchments studied (a few square metres to some hectares). These results reinforce the directness of the relationship between concentrations in soil and those measured in runoff. What differentiates runoff extraction between pesticides?

Different runoff extraction for bare soil occurs if:

1. Pesticides are differentiated by leaching, requiring different sorption and significant infiltration, and that leached pesticides were not returned to runoff in interflow, discussed in the section ‘The role of leaching’.

2. Pesticides are differentiated by sorption, requiring different sorption and low sediment concentrations, wherein poorly sorbed pesticides are extracted into runoff, but strongly sorbed pesticides are absent. With higher sediment concentrations, pesticide concentrations only depend on soil concentration, discussed in the section ‘Why pesticides had similar runoff extraction’.

3. Pesticides have different concentration-depth distributions in the runoff-mixing layer. Recently sprayed pesticides had a higher concentration in the upper few mm of soil compared to the average over the sampled depth, and runoff extraction is greater. Over time, greater dissipation near the surface and downward movement leads to lower concentrations in the surface and lower runoff extraction. Pesticides prone to volatilisation and photolysis also have a lower concentration in the surface.

Concentration reductions in the runoff-mixing layer by leaching can be calculated using the advection equation (Leonard et al. 1987):

where and are soil concentration (mg kg⁻¹) before and after rain (mm) and runoff Q (mm), AWS is available water storage (mm), D is soil depth (mm), K_D is sorption coefficient (L kg⁻¹), BD is bulk density (kg m⁻³), and POR is soil porosity (v v⁻¹).

Leaching effects on soil concentrations (0–25 mm) for various K_D values and pesticides, calculated with Eqn 1, are illustrated in Fig. 6. For infiltration on bare plots at Emerald (49 mm), soil concentrations are barely affected by leaching for pesticides with K_D > 100 (e.g. endosulfan, DDE), even with 100 mm of infiltration. Concentrations are reduced by 10% during 50 mm of infiltration for K_D = 14 (prometryn). With K_D = 1.4 (atrazine, fluometuron), concentration is reduced by 25% with 30 mm of infiltration and 50% with 50 mm. K_D needs to be ~0.2 for soil concentration to halve with 30 mm of infiltration. Thus, K_D < 2 is needed for leaching to significantly reduce the concentration in 0–25 mm soil. Runoff partition coefficients were generally greater than 10 and only <5 for a few pesticides (Silburn 2003) and then only for a few days after spraying.

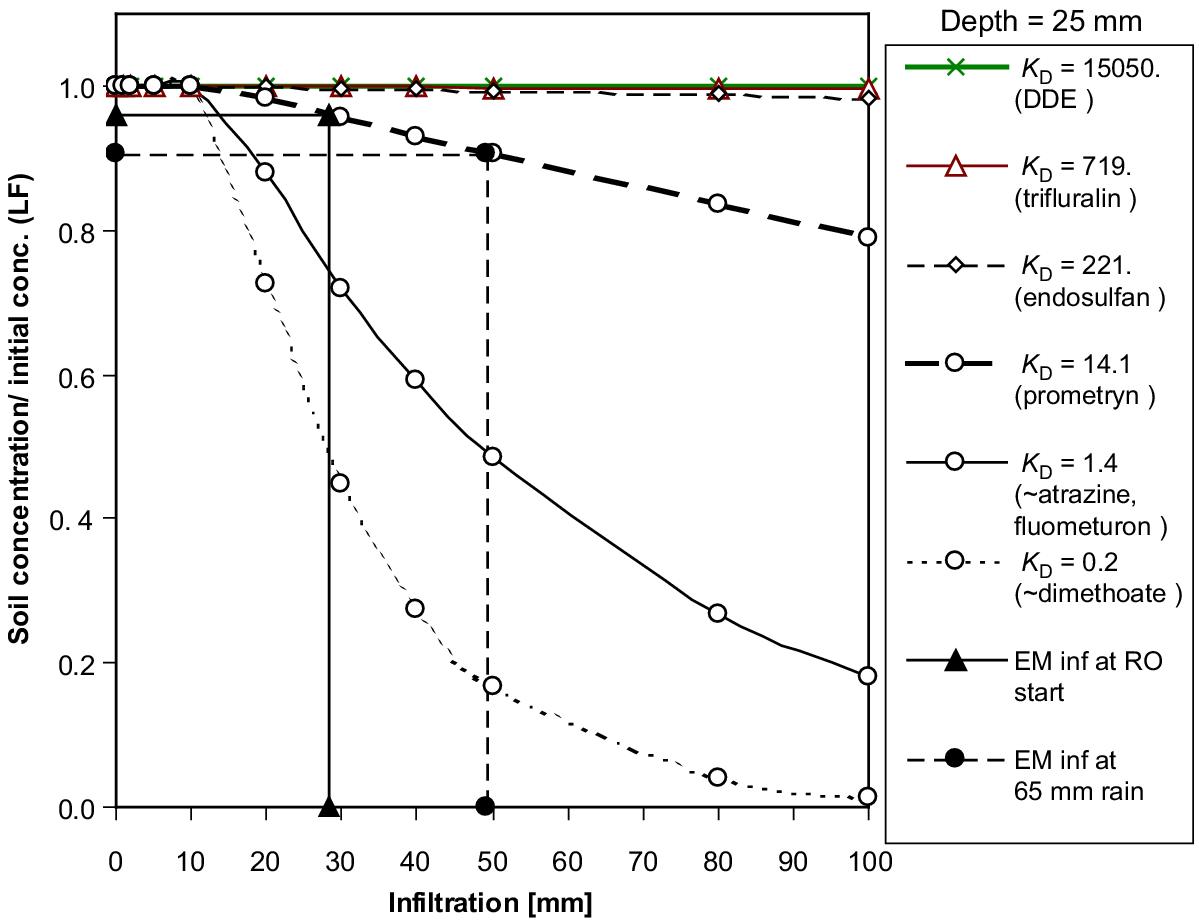

Fig. 6.  Pesticide soil concentration reductions by leaching for various pesticide K_D values (Eqn 1) (bulk density = 1000 kg m², moisture content before rain = 0.086 g g⁻¹).

At other simulator sites, infiltration amounts (17–25 mm) were half those at Emerald (Table 2). Infiltration only exceeded the AWS (0–25 mm soil) at runoff commencement; considerable pesticide was available for runoff mixing. Where infiltration was greatest (65 mm Emerald with cover), NO₃-N runoff indicates interflow occurred (Silburn and Hunter 2009), consistent with greater runoff Br⁻ concentrations where leaching was restricted (Ahuja and Lehman 1983). However, prometryn concentrations (less sorbed) only increased slightly on covered wheel tracks because some prometryn was adsorbed. Thus, it appears that pesticides must be very weakly sorbed to respond like NO₃-N and Br.

A case where leaching did reduce runoff extraction was dimethoate at Gatton where runoff extraction more than halved. Soil concentrations after rain were 5% of concentrations before rain, whereas endosulfan was not affected. In dissipation studies (Silburn 2003), downwards movement into 25–50 mm soil occurred at Jondaryan under natural rainfall for a small proportion of endosulfan and various herbicides. For herbicides, proportion moved down increased with lower sorption. This occurred over weeks with 140 mm rainfall in 62 days. Thus, reduction in runoff concentration by leaching was rarely influential in the simulator studies; infiltration was small and soil sorption too high. However, leaching may be important for dissipation for soluble compounds in the long term, with higher rainfall. Infiltration depth needs to be considerably larger and K_D considerably smaller for leaching to influence runoff concentrations.

Infiltration rates on the black Vertosol at Emerald (31–46 mm h⁻¹ wheel track and 44–54 mm h⁻¹ non-wheel tracks) exceed final infiltration rates (5–35 mm h⁻¹) measured by Loch and Foley (1994). The black Vertosol at Jondaryan had least infiltration, but most cropping soils in the region have similar or lower infiltration. When subsoil is moist, infiltration rate are 10–25 mm h⁻¹ or less (Loch and Foley 1994; Connolly et al. 1997a) because of restricted infiltration through compacted subsoils (Silburn and Connolly 1995). Thus, hydrologic conditions here are typical of large areas of agricultural land after fallowing or pre-irrigation.

Partition coefficients in simulator studies varied over 4–5 orders of magnitude (Silburn 2003). It is intriguing that a fixed proportion of soil concentrations were extracted into runoff. Similarity of runoff extraction ratios across the range of K_P values depends on sediment concentrations being in a certain range. Several factors push runoff extraction towards similarity rather than difference, so long as leaching is restricted. An important factor is that the soil mass and water volume involved in mixing are the same for all pesticides on a plot and between plots and soils. Many factors that increase solute extraction also increase sediment detachment (Ahuja 1986, 1990). Other mitigating factors are:

• As sediment concentration decreases, physical enrichment of sediment increases, so that sediment phase concentrations do not decrease in proportion to sediment concentration. The net effect is to moderate effects of sediment concentration on runoff extraction, except at very low or much higher sediment concentrations, where runoff extraction will become different depending on sorption (see Spencer et al. (1985) in Silburn (2003)). Thus, for Emerald, where cover reduced sediment concentration from 20 to 6 g L⁻¹, E_RO for DDE and trifluralin halved while the E_RO for prometryn was not reduced.

• Pesticides were extracted in both water and sediment phases, except for DDE.

Similar runoff extraction for simulator studies was also because of similar infiltration and erosion. Infiltration was low, due to surface sealing, compacted and moist subsoil. Sites had low slopes (0.2–2%), and similar erosion/deposition operated, although sediment concentration varied from 10 to 60 g L⁻¹. Higher runoff extraction in the literature (E_RO ~ 80–200, Silburn (2003)) were related to greater erosion.

Pesticide runoff concentrations for 12 pesticides from three simulated rainfall studies were compared with their soil concentrations before rain. Total pesticide runoff concentrations were closely related to soil concentrations (0–25 mm) with three exceptions. Dimethoate was leached from the runoff-mixing zone at Gatton, while trifluralin and DDE are tightly sorbed and too little sediment was transported. Otherwise, runoff extraction was similar for pesticides with a wide range of sorption and three soils: runoff concentration (μg L⁻¹) = 28 × soil concentration (mg kg⁻¹). Runoff extraction ratios decreased with time after spraying, presumably due to lower concentrations in the top few mm of soil. Similar runoff extraction between sites was due to: (1) similar infiltration and erosion; (2) interflow and ineffective leaching; and (3) sediment concentrations were high enough to ensure transport of strongly sorbed pesticides. Without significant leaching and with sufficient sediment transport, little differentiation in runoff extraction occurred for pesticides of widely different partitioning. Where hydrologic and erosion differed markedly from conditions studied here, runoff extraction will differ, and pesticides will be differentiated by sorption. Conditions studied occur on much of the grain and irrigated cotton lands on clays in the northern grain and cotton lands in eastern Australia.
