Fluorescence lifetime imaging microscopy (FLIM): a non-traditional approach to study host-microbial symbioses

Keywords: autofluorescence, confocal microscopy, fluorescence lifetime imaging microscopy, label-free detection, microbial ecology, microbial symbiosis, phasor analysis, visualisation.

Our understanding of microbes is largely based on classical phenotypic assays, advanced multi-omics, and optical microscopy methods. The discovery of genetically encoded fluorescent proteins (e.g. green fluorescent proteins), alongside advances in chemical fluorophore synthesis, has enabled exogenous incorporation of fluorescent molecules into a range of microbes, and development of fluorescence microscopy methods to visualise particular species within a complex biological system.¹ However, fluorescence labelling and visualisation of multiple microbial species within a mixed community remains a challenge, because of difficulties in establishing pure cultures² that are required for probe optimisation, and the presence of broad spectrum autofluorescence from different chemicals present in microbial consortia. In this review we explore how fluorescence in situ hybridisation (FISH) coupled with fluorescence lifetime imaging microscopy (FLIM) presents a unique opportunity to circumvent the latter technical hurdle in uncovering the in situ location and identity of bacteria in Symbiodiniaceae.

FISH is a method that was first used to visualise bacteria in 1989³ and it involves the hybridisation of fluorescently labelled oligonucleotides (~20 nucleotides) to the 16S rRNA or 23S rRNA in ribosomes, so that specific bacteria can be detected and their spatial location determined.^1,4 The fluorophores commonly available for FISH exhibit excitation–emission properties that span the visible to near-infrared (NIR) spectrum. However, since this spectral range overlaps with the broad spectrum autofluorescence of samples such as cyanobacteria or algae,⁵ microbial biofilms,⁶ and coral or Symbiodiniaceae cells,⁷ selection of suitable FISH fluorophores to localise bacteria within these environments via conventional epifluorescence or confocal laser scanning microscopy (CLSM) has proven difficult. Nonetheless, there is a strong interest in the use of fluorescence microscopy methods that can distinguish FISH fluorophores from sample autofluorescence. In addition to FISH-based visualisation of microbes, fluorescent dyes have been used to directly count microbes in environmental samples,⁸ study microbial respiration activity using redox dyes,⁹ determine proteins involved in peptidoglycan synthesis using synthetic fluorescently labelled D-amino acids,¹⁰ and evaluate oxidative stress using enzymatically cleavable fluorophores.¹¹

A fluorescence microscopy method that offers the opportunity to distinguish FISH fluorophore emission (and fluorescent dyes more broadly) from sample autofluorescence is fluorescence lifetime imaging microscopy (FLIM). FLIM is a method that measures the fluorescence lifetime of a fluorophore’s emission rather than its fluorescence intensity. The fluorescence lifetime of a fluorophore is defined as the time spent in the excited state upon absorption of a photon, before emitting the photon and returning to the ground state (Fig. 1a). FISH fluorophores typically exhibit a fluorescence lifetime on the order of nanoseconds, depending on their individual chemical structure and molecular environment,¹² and in most cases this time is distinct from the fluorescence lifetimes of autofluorescent chemicals in a host organism, for example, Symbiodiniaceae (Fig. 2a, c). Thus, FLIM offers the capacity to readily detect FISH-labelled microbes within Symbiodiniaceae autofluorescence (Fig. 2b), despite their significant spectral overlap. Additionally, the fluorescence lifetime of holobiont (the collection of a host and its associated microbiome) autofluorescent endogenous chemicals (e.g. metabolic co-enzymes, structural proteins, vitamins, pigments and amino acids) can be determined and analysed to inform on the different molecular environments that host FISH-labelled bacteria. In particular, moieties of chlorophyll a, phycobiliproteins, nicotinamide adenine dinucleotide (phosphate) (NAD(P)H), flavins, aromatic amino acids, porphyrins¹³ all contribute to the fluorescence lifetime recorded throughout a holobiont, and these signals can be used as a label-free record of host and/or symbiont physiology.

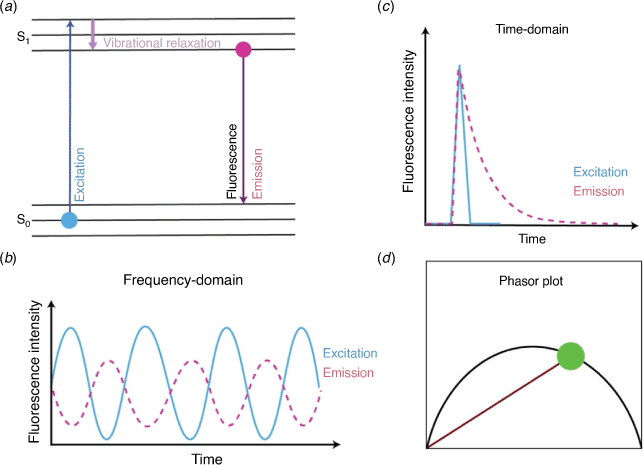

Fig. 1.  (a) Schematic of molecular fluorescence (Jablonski diagram). An electron in the ground state (blue circle) upon absorption of a photon is excited to higher electronic state, where upon vibration relaxation, it emits a fluorescent photon (purple circle) and returns to the ground state. The fluorescence lifetime is the time spent in the excited state. (b) and (c) principle behind measurement of a fluorescent molecule’s lifetime in the time- (b) versus frequency- (c) domain. (d) Graphical representation of the fluorescence lifetime recorded in the time or frequency domain transformed into a phasor within a phasor plot.

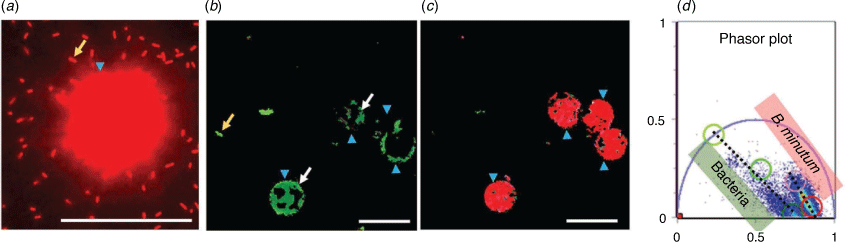

Fig. 2.  Symbiodiniaceae (Breviolum minutum) and associated bacteria. (a) Epifluorescence microscopy image of bacteria (yellow arrow) associated with B. minutum (blue arrowhead). Bacteria were labelled with the EUBmix probe suite targeting the 16S rRNA using FISH and labelled with ATTO 647N. The image was taken at excitation 640 nm and emission 656–806 nm. Any bacteria intracellular in B. minutum are masked by B. minutum autofluorescence (blue arrowhead). (b) Fluorescence lifetime imaging of intra- (white arrows) and extra-cellular (yellow arrow) bacteria (green colour) after FISH with EUBMix probe labelled with DY490 (laser excitation 488 nm, emission 500–550 nm). Four B. minutum cells (no visible autofluorescence) containing intracellular bacteria (green colour) are marked by blue arrowheads. (c) Fluorescence lifetime imaging of B. minutum autofluorescence (same four cells as in (b), blue arrow heads) (laser excitation 488 nm, emission 580–640 nm). Note that DY490 emission maximum is at 551 nm, so bacteria labelled with EUBMix-DY490 would not be visible at these conditions. (b) and (c) are fluorescence lifetime images pseudo-coloured according to the palette defined in the phasor plot (d). In the phasor plot the linear combination of fluorescence lifetimes that underpin DY-490 labelled bacteria green versus B. minutum autofluorescence are defined by a green and pink-red palette (respectively). Scale bar = 10 µm.

FLIM imaging of FISH-labelled bacteria can be achieved using fluorescence (typically CLSM) microscopes and the time- or the frequency-domains (Fig. 1b, c). In the time-domain, the detection of fluorescence is coupled to the excitation source that is pulsed (one or two-photon) and a detection unit that can measure the arrival time of the emitted photons (e.g. via use of time-correlated single photon counting (TCSPC)). The successive photon arrival time within each FLIM image pixel is then represented in the form of a histogram and fitted to an exponential (or multi-exponential) that reports the characteristic fluorescence lifetime.¹² In the frequency-domain, the excitation source is sinusoidally modulated and the detection unit measures the phase delay and change in amplitude that the fluorescent emission undergoes with respect to the excitation source (demodulation). Both time- and frequency-domain data can be transformed into a phasor representation (Fig. 1d) which is a fit free approach for lifetime analysis that facilitates multiple-component analysis within each pixel of a FLIM image.¹¹ A representative phasor plot associated with Symbiodiniaceae and FISH labelled bacteria is shown in Fig. 2d.

So, what does this mean for microbiologists? Although FISH can enable taxonomic affiliation, quantification and localisation of probed microbial communities, distinguishing FISH probe fluorescence from host (e.g. Symbiodiniaceae) autofluorescence can be provided by FLIM (Fig. 2). The in situ determination of physiological and chemical processes requires metabolic probing of cells,⁴ which can be done by FLIM of endogenous metabolites. The lifetime property of fluorophores is influenced by the fluid viscosity, pH, temperature and ion concentration in the fluorophore vicinity, which provides information about fluorophore behaviour and function.¹² This is vital for monitoring cellular heterogeneity and changes in the local microenvironment of microbes. For example, NAD(P)H is an important co-factor in numerous biosynthetic pathways and has a characteristic lifetime signature at 340 nm excitation, 470 nm emission. The autofluorescence lifetime of free (0.4 ns) and enzyme bound NAD(P) (1–5 ns) can be monitored using two-photon excitation in a FLIM setup providing information on the physiological variation among microbial cells.¹⁴

Monitoring the metabolic activity of NAD(P)H is a particularly promising method to study host invasion¹⁵ by beneficial (symbionts) and detrimental microbes (e.g. pathogens). For example, the acquisition of Symbiodiniaceae by coral larvae or early recruits is an important stage in the establishment of symbiosis. The variation in fluorescence lifetimes of endogenous compounds, including NAD(P)H and chlorophyll a, could help to determine physiological fitness of Symbiodiniaceae during its colonisation phase. In corals, climate change and other environmental disturbances are hypothesised to cause oxidative stress due to excessive build-up of reactive oxygen species (ROS), which leads to the separation of Symbiodiniaceae from the host,¹⁶ known as coral bleaching. The autofluorescence of endogenous NAD(P)H has been used for co-localisation and quantification of oxidative stress using two-photon-FLIM.^17,18 Monitoring of enzyme-bound and free NAD(P)H dynamics is particularly important given the hypothesised role of NAD(P)H oxidase in ROS production in corals and Symbiodiniaceae.¹⁹ These approaches could be implemented for visualisation and tracking of spatiotemporal dynamics of ROS to better understand their role in coral bleaching. FLIM could also be used to link bacterial associations (intra-versus extracellular endosymbionts) with Symbiodiniaceae by measuring the in situ heterogeneity during varying physicochemical conditions such as of temperature, pH,¹² and oxygen gradients²⁰ at the single-cell level.²¹

Another procedure that can measure elemental distribution in a sample is nanoscale secondary ion mass spectrometry (NanoSIMS),²² which involves use of stable isotopes and FISH to visualise the incorporation of labelled substrates into single microbes in complex microbial communities. However, FLIM is a non-invasive procedure in comparison to the destructive technique of NanoSIMS.

The study of microbes in a spatially constrained environment using a fabricated microfluidic platform^23,24 combined with FLIM can aid in understanding biogeochemical processes at the microscale level, even in mixed microbial scenarios.

Several labelled and label-free FLIM detection approaches using specific (e.g. FISH) or non-specific fluorophores (e.g. Syto 13, DAPI, Hoechst 33342) and autofluorescent moieties (e.g. NAD(P)H and chlorophyll a) are outlined in Table 1.

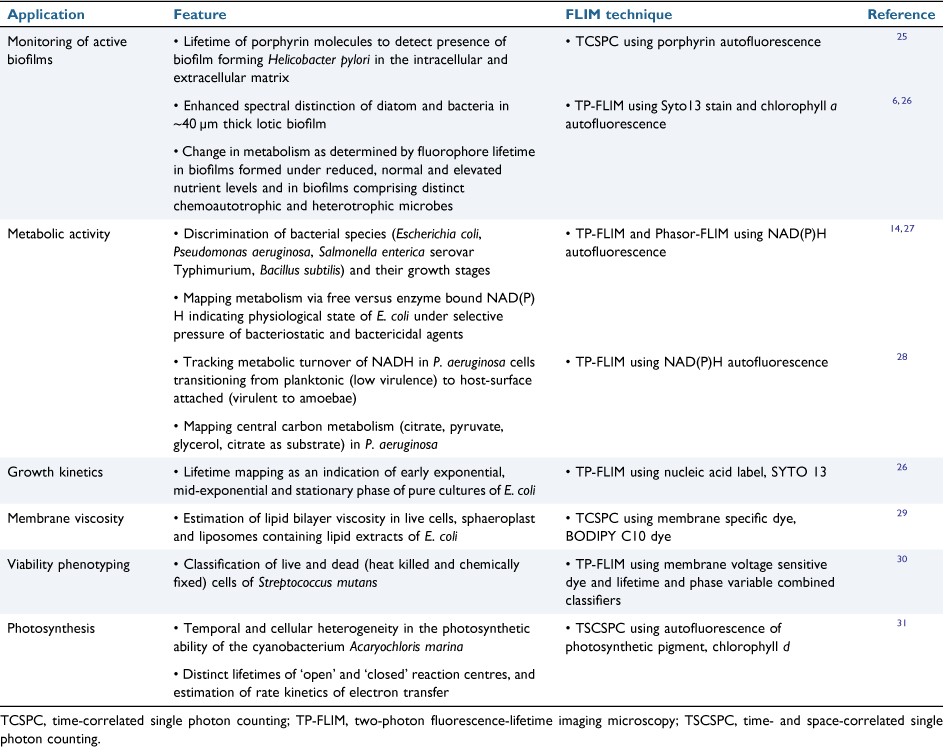

Table 1.  Examples of FLIM approaches to study physiological features of prokaryotes.

Real time FLIM of labelled (via FISH) and label-free (via endogenous autofluoresence) microbes will provide a deeper understanding of the succession of endosymbionts within a host. The success of this prolonged live cell FLIM experiment will depend on the photostability of fluorescent probes and the stability of viable microbial cells. In recent years, advancement has been made in the use of photostable quantum dots (QDs), which are nanoparticles with long fluorescence lifetimes. QDs can be conjugated to FISH probes adding stability and flexibility to conventional FISH and FLIM. Additionally, the linear association between the QD’s fluorescence lifetime and pH could be exploited to monitor intracellular pH in response to cellular disturbances. The study of endogenous metabolic co-enzymes, structural proteins, vitamins, pigments, and amino acids by their autofluorescence via FLIM has been a major experimental approach in the eukaryotic biomedical field but has not yet been widely employed in prokaryotic fields. Endogenous autofluorescent chemicals permit label-free detection of microbial associations, including studying actively dividing cells, in environmental scenarios. We envisage that the quantitative information obtained by phasor-based FLIM analysis of these probes, combined with multivariate tools can help discriminate between symbiont enriched and/or depleted zones in natural ecosystems.

The additional modalities of FLIM such as Förster resonance energy transfer (FRET) that measures differences in the lifetime of a fluorophore arising from either donor and acceptor molecules, will pave the way to understanding physical interactions between symbiont and host cell or between two different microbial cells in consortia. In FRET, the fluorescence emission shift occurs in instances where donors transfer energy (due to physical proximity and interaction) to acceptor fluorophores. The FLIM-FRET technology is a promising means of studying environmental microbial associations (e.g. protein or metabolite translocation between symbiont and host or between two different microbes) and is yet to be explored.
