Vaginal microbial profiling in a preterm birth high-risk cohort using shallow shotgun metagenomics

Preterm birth (PTB), defined by the World Health Organization as all deliveries between 20–37 weeks of completed gestation, is a complex syndrome. The condition is divided into four groups based on gestational age (GA) at of birth: extreme PTB (<28 GA), very PTB (28-32 GA), moderate PTB (32-34 GA) and late PTB (34-37 GA)¹. PTB impacts the lives of 15 million families annually, with an approximate 10% mortality rate in the first month after delivery². Despite advances in neonatal care and improved survival and reduced morbidity, preterm infants are at high risk of developing metabolic disorders and debilitating neurological conditions, such as blindness, deafness, neurodevelopmental delays, and behavioural issues well into adulthood³. A recent meta-analysis of PTB hospitalisation costs in the US, Canada, and The Netherlands reported that the individual healthcare costs for extreme PTB were between $111 152–$576 972 per delivery⁴.

PTB is a syndrome that is both difficult to predict and to prevent⁵. Multiple methods and approaches for PTB prediction have been developed and evaluated, with varying success^6–9. Similarly, preventative treatments are limited and lack the required efficacy, applicability and precision. Women identified as at high risk of PTB (typically due to either a previous PTB and/or a short cervical length defined as <25 mm) typically receive one of two clinically-recommended preventive interventions at the discretion of the treating obstetrician, namely exogenous progesterone (vaginally, orally or intramuscularly) or cervical cerclage surgery¹⁰.

A meta-analysis from 2018 with large high-risk pregnancies cohorts report that vaginal progesterone (VP) use resulted in a pooled relative risk ratio (RR) of 0.29–0.68, while cervical cerclage had a RR of 0.64–0.70¹¹. The effectiveness of VP appears to be particularly robust in high-risk women with short cervical length (<25 mm), as has been recently demonstrated in the EPPPIC meta-analysis¹².

PTB has long been known to be associated with ascending intrauterine infections originating from a dysbiotic (sub-optimal) lower vaginal tract microbiome^5,13,14. In 2–27% of pregnant women, the microbiome composition shifts to an increase in species diversity, leading to a dysbiotic vaginal microbiome associated with a disease state. Several studies have now show that an increase in bacterial diversity is linked to reproductive tract inflammation and increased risk of PTB^15–19. Despite numerous studies investigating the predictive usefulness of vaginal microbiome analysis, the diagnostic utility of this approach remains elusive. In a recent large study of low-risk Australian women, a high-risk microbial profile in the 2nd trimester was identified based on the presence/absence and combinations of known bacterial species¹⁸. Notwithstanding this study’s clinical relevance to PTB management, it is important to point out that this particular work is based on analysis of a selected number of risk-associated bacteria, not the entire microbiome per se.

In 2011, Ravel and colleagues classified the vaginal microbiome of healthy reproductive-age women into five distinct community state types (CST), conditional on the dominance of one of four Lactobacillus spp. or lack thereof. CST-I is dominated by Lactobacillus crispatus, CST-II by Lactobacillus gasseri, CST-III by Lactobacillus iners, CST-IV by diverse anaerobic bacteria resembling the clinically diagnosed condition of bacterial vaginosis (BV), and CST-V by Lactobacillus jensenii²⁰. The robustness of CST classifications has since been confirmed in many human microbiome studies, regardless of ethnicity, geographical location or sequencing methodology²¹.

More recently, the Ravel laboratory developed the tool ‘VALENCIA’ (VAginaL community state typE Nearest CentroId clAssifier), which unbiasedly affirmed the presence of the original broad five CST profiles while defining an additional set of 13 subCST groups²². Importantly, VALENCIA links CST profiles with clinical descriptors across multiple ethnicities, plus provides researchers with the ability to accurately differentiate between known subtypes of CST-IV. The new CST-IV classification now takes into account the presence and abundance of Lactobacillus spp. and the following clinically essential bacteria: Gardnerella vaginalis, Bifidobacterium spp., Atopobium vaginae, Prevotella spp., Enterococcus spp., Streptococcus spp., and Staphylococcus spp.²².

Notably, in the context of the vaginal microbiome, studies have shown that CST-IV and CST-III dominance early in pregnancy increase the risk of PTB^18,23, and it is now believed that microbial diversity assessment and CST profiling may help screen women for PTB risk¹⁷. Despite solid evidence associating PTB with CST sub-optimal profiles, it is worth mentioning that most of the evidence was from studies with a predominantly Caucasian cohort. In African American cohorts, the associated significance was weak or disappeared altogether²⁴.

With the acceptance of ethnicity as a significant confounding factor, we know that vaginal microbiome dysbiosis is a substantial risk factor for uterine ascending infection, which has been causally linked to up to 40% of all preterm births⁵. However, the techniques used to generate microbiome data are often constrained by limited financial and bioinformatic resources, limiting their clinical and/or diagnostic utility. Therefore, employing methods that increase taxonomic resolution at a reasonable cost have the potential to enable CST profiling to be conducted for PTB risk prediction and treatment in high-risk pregnancies, as well as increasing the accuracy and resolution of the data.

Presently, the vaginal microbiome is typically studied via two DNA-based approaches and one RNA-based strategy: metabarcoding (DNA), metagenomics (DNA) and, to a lesser extent, metatranscriptomics (RNA, not discussed further)²⁵. Metabarcoding (also known as metataxonomics or amplicon sequencing) is the most commonly used technique for microbiome analysis, partly due to its simplicity, but primarily because of the low cost (typically <$100 per sample) and well established analysis pipelines (e.g. USEARCH/DADA2). Amplicon sequencing involves the PCR amplification of a small hypervariable region or regions (250–500 bp) of the taxonomically informative 16S rRNA gene expressed in all bacterial species. Typically, microbiome specialists would design primers that can amplify a set of variable regions that allow the taxonomic discrimination and identification of bacterial genera – in some cases to the species level; this is necessary for CST profiling, although bias can be introduced through primer design, the selected 16S rRNA gene region and its coverage²⁵. To eliminate obvious bias, primers may need to be redesigned to increase the species detection within the same taxonomic kingdom, or if separate domains are to be targeted, such as when characterising the prokaryotes, fungi and microeukaryotes communities present in the human vaginal tracts^25,26.

In contrast, metagenomics or shotgun sequencing has significant advantages over amplicon sequencing. It can remove detection bias by sequencing all DNA present in a sample, providing taxonomy to strain-level accuracy. Furthermore, it provides the researcher with the ability to assess metabolic functional potential of the genomes by conducting pathway analysis based on the sequenced genes. Although standard shotgun sequencing has advantages over amplicon sequencing, it carries some critical disadvantages: (1) the amount of DNA required is at least 1 µg; (2) analysis is expensive ($500–$1000 each); and (3) there is a requirement to have access to specialist bioinformatics resources and high-performance computing²⁷.

We have recently completed a pilot study assessing the taxonomic resolution resulting from a recent methodological advance in metagenomic analysis called shallow shotgun metagenomics (SSM)^28,29. In SSM a sample is typically sequenced to a depth <1 million reads, which is an order of magnitude or more lower than the depth expected in a standard metagenomics study (depth between 10 million to 2.5 billion reads)²⁹. The reduction in sequencing depth reduces the cost of SSM to those similar to amplicon sequencing, while retaining broad taxonomic coverage at higher taxonomic resolution with functional genetic information. Hillman and colleagues recently showed that a sequencing depth as low as 100 000 reads can mirror >90% of the alpha diversity and gene functional capacity relative to that mapped by ultra-deep metagenomics²⁸. These attributes make SSM ideal for the study of microbiomes in large, longitudinal cohorts.

SSM also has two important practical limitations. Firstly, if a sample type contains a very high host:microbe DNA ratio, such as found in blood or tissue biopsies, then SSM may not be the method of choice, because the dominance of host DNA will swamp the reads assigned to microbes and low abundance species may be missed. Secondly, there are bioinformatic constraints, as most available tools are not designed to meet the particular requirements of SSM-generated data; this can result in the generation of false positives and negatives. Additionally, the entire metagenomics field is limited by the availability of high-quality genome databases due to the infancy of this field. Thus, rare or non-sequenced organisms are reported as negative or unassigned, potentially losing important taxonomic information and compromising interpretation. Although these points are all important limitations to consider in study design, in some microbiomes such as the skin or the vaginal microbiome (our research area) that contain a higher host DNA but low-to-medium biomass, SSM may still offer significant advantages due to the medical importance of identifying bacteria, fungi, viruses and micro-eukaryotes to species or strain resolution, which is not provided by amplicon sequencing.

In this study, we compared the bacterial taxonomic profile of SSM to standard 16S amplicon sequence in the context of the vaginal microbiota. The comparison was made using two sample sets: (1) a mock vaginal community consisting of six vaginal bacterial species with an even abundance of 16.7% to validate the robustness of the pipeline; and (2) DNA from 22 high vaginal swabs collected from women at high risk of PTB during their first trimester in Perth, Western Australia; the swabs were obtained from the Western Australian Pregnancy Biobank, with informed consent and institutional ethical approval. Our swabs yielded DNA concentrations between 1–40 ng/µL; two samples and the negative controls did not have enough DNA for sequencing, and thus were eliminated from analysis. The host DNA in the remaining 20 samples acquired on average 89% of the MiSeq Illumina sequenced reads, leaving only 2.1 million reads for the analysis of 20 samples (plus a mock community control).

First, we gauged the performance of our methods using the American Type Culture Collection (ATCC) standardized even abundance vaginal bacteria mock community (ATCC MSA-1007 medically relevant species). The sequencing comparison yielded a highly correlative bacterial composition (Figure 1). The data generated by amplicon sequencing (using primers targeting the v4 16S rRNA gene region) vs. SSM showed excellent taxonomic agreement, although there were some minor differences in relative abundance. However, it is worth mentioning that the (515f/806r) v4 primers used here were designed to enable detection of all six species and thus would be expected to amplify them preferentially. Mycoplasma hominis was markedly underrepresented in the Met (metagenomics) group where it represented only 1% of total species, while in the Amp (amplicon) group it was detected at 19% – very similar to the expected 16.7% in the mock community. We attribute this discrepancy in the Met group to the unavoidable stochasticity/compositionality introduced during sequencing, where the abundance of a species can be heavily skewed at random. Additionally, in this study we applied a completely PCR-free library preparation method to avoid amplification bias; however, this approach required a considerable amount (>100–1000 ng total) of starting genomic DNA, more than that provided with the ATCC product (4 ng/µL). This does not offer a full explanation as to why the rest of the species in the mock community were not also detected at lower proportions than expected. We believe the difference is most likely driven by the fundamentally different genome-based reference database and tool used to assign taxonomy in SSM compared to the widely used extensive options available for bacterial amplicon sequencing. Interestingly, other studies comparing the outcome of mock communities and metagenomics also showed that amplicon sequencing seem to provide closer compositional agreement³⁰. Importantly, this artificial situation would be unlikely to be replicated in a real-life analysis of complex, natural bacterial communities.

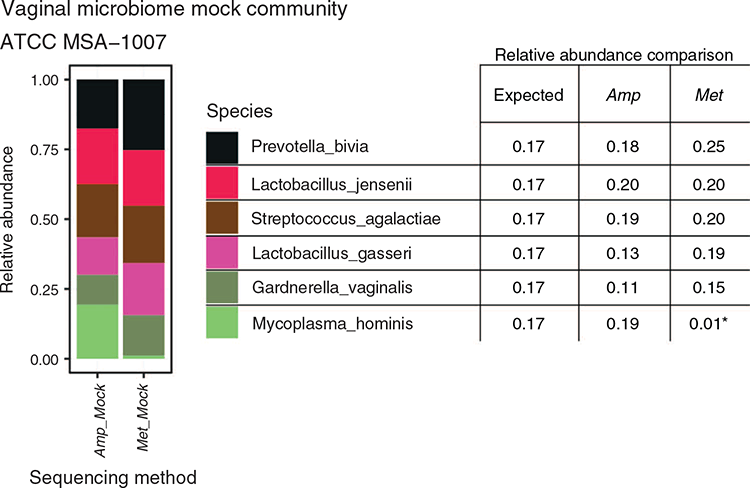

Figure 1.  Mock community bacterial species relative abundance differences between amplicon (Amp) and SSM (Met) sequencing methods. The table on the right corresponds to the relative abundance on a scale from 0–1 (rounded to 2 decimal places).

Although the amplicon method showed considerable agreement on the taxonomic assignments of mock species, the SSM approach when applied to vaginal samples provided a species or strain level taxonomic assignation with high confidence as required for accurate vaginal CST determination. Figure 2 shows the relative abundance of the top 30 species in the 20 vaginal samples according to the two methods. While there was general agreement in the relative abundance of the most common species, several less abundant species were absent in the Amp group (e.g. Neisseria gonorrhoeae). In addition, amplicon sequencing could not resolve the genus Bifidobacterium to species level, while SSM identified the species as B. longum. We also found that L. iners abundance was overrepresented in amplicon sequencing profiles. In contrast, SSM was able to resolve the same samples to either L. jensenii or L. ultunensis dominance. Enrichment of L. iners detection in the Amp group can be explained by preferential primer amplification.

Figure 2.  Shallow shotgun metagenomics (Met) provides greater taxonomic resolution than amplicon sequencing (Amp). The figure shows the aggregated species level taxonomy of all 20 samples for both Met and Amp methods. The bar plot shows the relative species abundance of patient vaginal samples resulting from the two methods. The X-axis shows the comparison groups with a prefix denoting the microbial survey approach used. Y-axis represents the relative abundance of sequencing reads assigned to each species. The legend on the right shows the top 30 bacterial species ordered according to the read abundance. Species with abundance smaller than the top 30 are grouped under ‘Other’.

As shown by amplicon sequencing, taxonomic uncertainty can be problematic to vaginal microbiome profiling, because it can distort the accurate picture of community composition and structure. In our analysis of CST profiles, we identified that these inaccuracies can result in CST-V or CST-IV being wrongly labelled as CST-III. This was evident in the sample from one patient (M65), whose profile was dominated by L. ultunensis as detected by SSM, but designated CST-III by amplicon sequencing (refer to Figure 3).

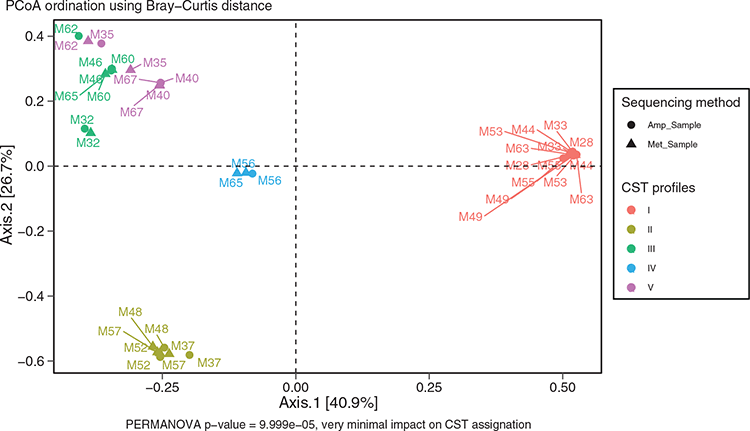

Figure 3.  PCoA ordination plot generated using the Bray-Curtis dissimilarity index. The distance between samples represents the collective bacterial composition difference, which also differentiates the CST profiles of the cohort. Circles represent the Amp group and triangles are the Met samples. Samples are coloured according to the CST type they have been assigned by the respective method and labelled by the participant ID. The samples group into 5 CST clusters (P-value < 0.05) irrespective of sequencing method.

Although the detection of atypical CST types such as those dominated by species L. ultunensis/amylovorus posed a challenge during the allocation of CSTs, the fact that Gardnerella vaginalis seems to co-exist in these atypical communities prompted us to allocate them to CST-IV (mixture of facultative anaerobes with a moderate abundance of G. vaginalis). We took this approach to help in differentiating the atypical group dominant samples from other Lactobacillus dominated CST types commonly associated with vaginal microbial health. Although amplicon sequencing generates considerably lower taxonomic resolution than SSM, we believe it remains helpful as a tool for vaginal microbiome characterisation because it can broadly differentiate between CST types on Lactobacillus spp. dominance. Nonetheless, this comparison highlights the limitations of using amplicon sequencing in accurately distinguishing between closely related CST profiles such as those dominated by the Lactobacillus genus.

In conclusion, our pilot study suggests that shallow shotgun metagenomics is a superior method compared to amplicon sequencing in the context of species-level vaginal microbiome characterisation related to health and disease. Importantly, while standard (deep) metagenomics is cost-prohibitive for large studies, in this pilot study we show that the benefits associated with sequencing all DNA in a sample can be achieved at costs similar to amplicon sequencing. Our study also suggests that the vaginal microbiome data and CST demographics generated by high-resolution shotgun metagenomics may need to be re-examined in the context of microbial health and disease risk. Our follow-up work intends to improve our microbiome data accuracy and confidence by complementing shallow metagenomics laboratory workflow with a site-specific, multi-kingdom reference database combined with alternative bioinformatics algorithms.

The authors declare no conflicts of interest.

This research was funded by grants from Channel 7 Telethon Trust (WA Pregnancy Biobank), Telethon-Perth Children’s Hospital Research Fund and Western Australia Department of Health (WA Human Microbiome Collaborative Centre).
