Combining mitochondrial DNA and morphological data to delineate four new millipede species and provisional assignment to the genus Apeuthes Hoffman & Keeton (Diplopoda : Spirobolida : Pachybolidae : Trigoniulinae)

Keywords: DNA barcoding, Malaysia, mitochondrial DNA, monotypic genera, phylogeny, species delineation, Thailand, Trigoniulinae, Vietnam.

Millipedes (Diplopoda) are a highly diverse group of arthropods with 16 orders, 140 families and more than 14 000 species (Enghoff et al. 2015; MilliBase, https://millibase.org/, accessed 12 June 2021). One large millipede family is the Pachybolidae Cook, 1897 (order Spirobolida Bollman, 1893), which currently contains ~60 genera and more than 280 described species. Yet, by extrapolation from the recent discovery of numerous new pachybolid species in Madagascar (e.g. Wesener and Enghoff 2009; Wesener et al. 2009a, 2009b) and South-east Asia (Pimvichai et al. 2018), it is expected that many more pachybolid species still need to be discovered and described. The present study reports on four new species from Malaysia, Thailand and Vietnam ascribed to the poorly defined pachybolid subfamily Trigoniulinae Attems, 1909 (see Hoffman 1962; Enghoff et al. 2015). The best known species of this group is the cosmopolitan Trigoniulus corallinus (Gervais, 1842), whose genome was recently sequenced (Qu et al. 2020). At least five ‘trigoniuline’ genera have been reported from mainland South-east Asia: Apeuthes Hoffman & Keeton, 1960, Decelus Hoffman & Keeton, 1960, Eucarlia Brölemann, 1913, Leptogoniulus Silvestri, 1897 and Trigoniulus Pocock, 1894. These genera include cylindrical millipedes of ~5–8-cm length with a diameter of ~3.9–5.4 mm. Based on morphology, three of the four new species described in the present study are placed in the genus Apeuthes. However, the fourth new species, while overall being quite similar to the other three, differs markedly in its posterior gonopod. Therefore, its assignment to Apeuthes is less obvious and will need to be verified in the future. In addition to using morphological and DNA sequence data to describe the four new Apeuthes species, this study uses these data to address the status and monophyly of the genus Apeuthes and the subfamily Trigoniulinae.

Specimens were hand collected in the field (for locality data see Table 1) and subsequently kept in a freezer at −20°C for DNA studies. Some specimens were directly preserved in 70% ethanol for morphological studies. Specimens from the following collections were also examined:

1. CUMZ, Museum of Zoology, Chulalongkorn University, Bangkok, Thailand.

2. NHMW, Naturhistorisches Museum, Vienna, Austria.

3. NHMD, Natural History Museum of Denmark, University of Copenhagen, Denmark.

This research was conducted under the approval of the Animal Care and Use regulations (numbers U1-07304-2560 and IACUC-MSU-037/2020) of the Thai government.

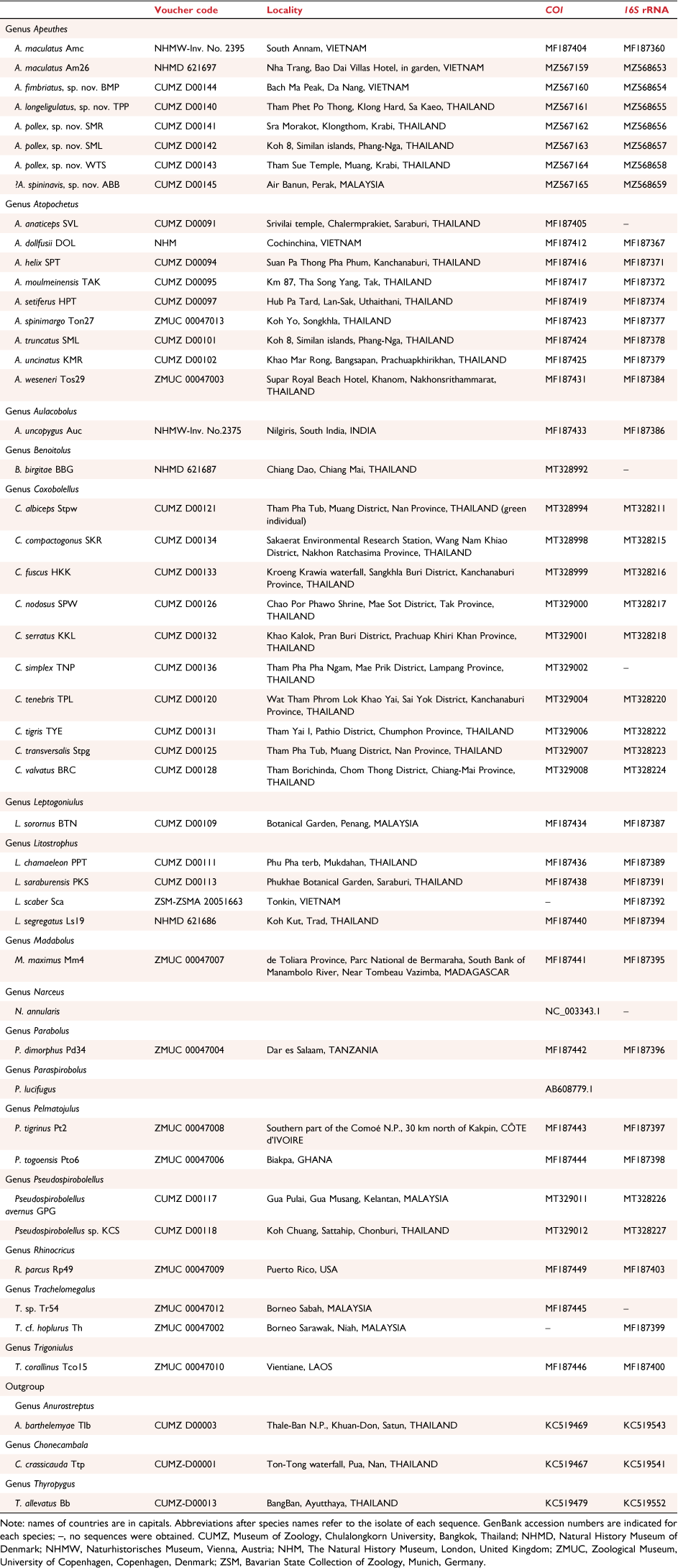

Table 1.  Specimens from which the COI or 16S rRNA gene fragments were used.

Gonopods were photographed with a digital camera manipulated using the program Helicon Remote (ver. 3.1.1.w; HeliconSoft, Kharkiv, Ukraine). Zerene Stacker Pro software was used for image-stacking (Zerene Systems, Richland, WA, USA). Drawings were made using a stereomicroscope and photographs. Samples for scanning electron microscopy (SEM) were air-dried directly from alcohol and sputter-coated for 250 s with gold. SEM micrographs were taken with an environmental scanning electron microscope (ESEM; Quanta 200, FEI, Hillsboro, OR, USA). The identification and classification of the specimens followed Attems (1938), Hoffman and Keeton (1960) and Jeekel (2001). Voucher specimens were deposited in the collection of CUMZ.

Total genomic DNA was extracted from dissected legs using the NucleoSpin Tissue kit (Macherey-Nagel, Düren, Germany) following the manufacturer’s instructions. PCR amplifications and sequencing were done as described by Pimvichai et al. (2020). Seven specimens were sequenced: Apeuthes maculatus (Attems, 1938) Am26; A. fimbriatus, sp. nov. BMP; A. longeligulatus, sp. nov. TPP; A. pollex, sp. nov. SMR; A. pollex, sp. nov. SML; A. pollex, sp. nov. WTS and ?A. spininavis, sp. nov. ABB (specimens, codes and locations are listed in Table 1). The COI fragment was amplified with the primers LCO-1490 and HCO-2198 (Folmer et al. 1994) and the 16S ribosomal RNA (rRNA) fragment was amplified with the primers 16Sar and 16Sbr (Kessing et al. 2004). The COI data included 47 specimens, representing 16 genera and 41 species of ingroup taxa (Table 1). The 16S rRNA data included 43 specimens, i.e. the same specimens as for COI, minus Atopochetus anaticeps Pimvichai, Enghoff, Panha & Backeljau, 2018; Benoitolus birgitae (Hoffman, 1981); Coxobolellus simplex Pimvichai, Enghoff, Panha & Backeljau, 2020; Trachelomegalus sp.; Narceus annularis Rafinesque, 1820 and Paraspirobolus lucifugus (Gervais, 1837), and including Litostrophus scaber (Verhoeff, 1938) and Trachelomegalus cf. hoplurus, representing 13 genera and 37 species of ingroup taxa. The combined COI + 16S rRNA data included 41 specimens representing 12 genera and 35 species of ingroup taxa. Three species of the order Spirostreptida Brandt, 1833, viz Anurostreptus barthelemyae Demange, 1961 (Harpagophoridae Attems, 1909); Chonecambala crassicauda Mauriès & Enghoff, 1990 (Pericambalidae Silvestri, 1909) and Thyropygus allevatus (Karsch, 1881) (Harpagophoridae) were used as outgroup. All new nucleotide sequences have been deposited in GenBank under accession numbers MZ568653–MZ568659 and MZ567159–MZ567165 for the 16S rRNA and COI fragments respectively. Sample data and voucher codes are provided in Table 1.

CodonCode Aligner (ver. 4.0.4, CodonCode Corporation, Centerville, MA, USA) was used to assemble the forward and reverse sequences and to check for errors and ambiguities. The COI and 16S rRNA sequences were checked with the Basic Local Alignment Search Tool (BLAST, National Center for Biotechnology Information, Bethesda, MD, USA) and compared with reference sequences in GenBank. They were aligned using MUSCLE (ver. 3.6, see https://www.drive5.com/muscle/; Edgar 2004). The alignments consisted of 660 bp for COI and 458 bp for 16S rRNA (gaps were excluded by complete deletion). The sequences were checked for ambiguous nucleotide sites, saturation and phylogenetic signal using DAMBE (ver. 5.2.65. see http://dambe.bio.uottawa.ca/DAMBE/dambe.aspx; Xia 2018). MEGA (ver. X, see http://www.megasoftware.net; Kumar et al. 2018) was used to (1) check for stop codons, (2) translate COI protein-coding sequences into amino acids, (3) calculate uncorrected pairwise p-distances among sequences, and (4) evaluate transition/transversion ratios.

Phylogenetic trees were constructed using maximum likelihood (ML) and Bayesian inference (BI). The shape parameter of the gamma distribution, based on 16 rate categories, was estimated using ML analysis. ML trees were inferred with RAxML (ver. 8.2.12, see https://www.phylo.org/index.php/tools/raxmlhpc2_tgb.html; Stamatakis 2014) through the Cyberinfrastructure for Phylogenetic Research (CIPRES) Science Gateway (Miller et al. 2010) using a generalised time reversible (GTR) + gamma (G) substitution model and 1000 bootstrap replicates to assess branch support. The COI sequence alignment was partitioned by 1st, 2nd and 3rd codon position and the concatenated sequence alignment was partitioned by gene fragment and by 1st, 2nd and 3rd codon position for the COI portion of the concatenated alignment. BI trees were constructed with MrBayes (ver. 3.1.2, see http://www.phylo.org/index.php/tools/mrbayes_xsede.html; Huelsenbeck and Ronquist 2001) for COI and 16S rRNA separately, as well as for the combined data. Substitution models were inferred separately for each gene fragment using PartitionFinder 2 on XSEDE (ver. 2.1.1, see http://www.phylo.org/index.php/tools/partitionfinder2_xsede.html; Lanfear et al. 2017) through the CIPRES Science Gateway (Miller et al. 2010). BI trees were run for 2 million generations (heating parameters were 0.05 for COI and 0.07 for 16S rRNA and combined datasets), sampling every 1000 generations. Convergences were confirmed by verifying that the standard deviations of split frequencies were below 0.01. Then the first 1000 trees were discarded as burn-in, so that the final consensus tree was built from the last 3002 trees. Support for nodes was assessed by posterior probabilities.

We consider clades with bootstrap values (BV) of ≥70% to be well supported (Hillis and Bull 1993) and <70% as poorly supported. For BI analyses, we considered clades with posterior probabilities (PP) of ≥0.95 to be well supported (San Mauro and Agorreta 2010) and below as poorly supported.

Putative species were explored by applying these tools to the COI sequence data: Assemble Species by Automatic Partitioning (ASAP) (https://bioinfo.mnhn.fr/abi/public/asap/asapweb.html; Puillandre et al. 2021); the General Mixed Yule Coalescent (GMYC) method (Fujisawa and Barraclough 2013); and the Poisson Tree Process (PTP) (Zhang et al. 2013).

ASAP is a new tool to delineate species based on species partition hypotheses derived from genetic distances between DNA sequences. The data were run with the default settings: split groups below 0.01 probability; keep 10 best scores; use fixed seed value −1; and highlights results between the genetic distances 0.005 and 0.05. COI sequence divergence was estimated with the K80 (Kimura 1980) substitution model.

GMYC requires the input of an ultrametric tree from BEAST (ver. 1.8.2, see http://tree.bio.ed.ac.uk/software/beast/; Drummond et al. 2012). An XML file was made with the BEAUti interface (ver. 1.8.2, see http://www.beast.community/) under a lognormal relaxed (uncorrelated) molecular clock with the GTR substitution model. Putative species were identified using the single and multiple GMYC thresholds using the web interface at https://species.h-its.org/gmyc/.

The PTP species delimitation method was applied to the RAxML COI gene tree using https://species.h-its.org/ptp/ to identify the most likely classification of branches into population and species-level processes, delimiting evolutionarily significant units (Tang et al. 2014).

The nucleotide frequencies in the aligned COI gene fragment (660 bp) were: A, 0.282; C, 0.209; G, 0.160; T, 0.349, with a 36.9% GC content. The uncorrected p-distance between the sequences ranged from 0.03 to 0.26 (Table 2). The nucleotide frequencies in the aligned 16S rRNA gene fragment (458 bp) were: A, 0.324; C, 0.110; G, 0.212; T, 0.354, with a 32.2% GC content. The uncorrected p-distance between the sequences ranged from 0.02 to 0.29 (Table 3). The uncorrected p-distance between the sequences from COI + 16S rRNA dataset (1118 bp) ranged from 0.03 to 0.26.

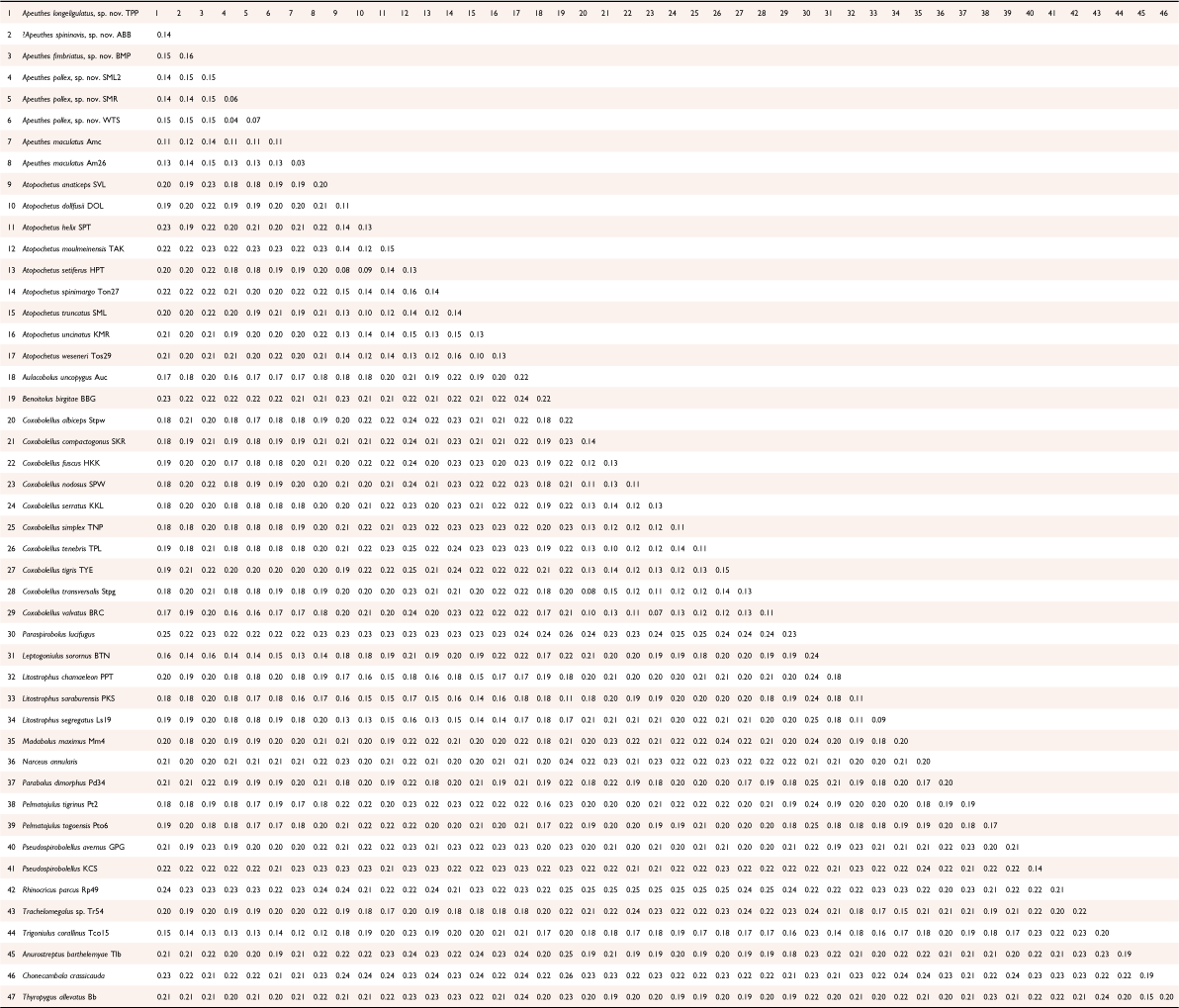

Table 2.  Estimates of cytochrome c oxidase I (COI) sequence divergences (uncorrected p-distances) within and among Trigoniulinae species and related taxa (rounded to two decimal places).

Table 3.  Estimates of 16S ribosomal RNA sequence divergences (uncorrected p-distances) within and among Trigoniulinae species and related taxa (rounded to two decimal places).

The ML and BI trees based on the separate and combined datasets (COI, 16S rRNA and COI + 16S rRNA) were largely congruent with respect to the well-supported branches (by visual inspection of the branching pattern). The combined COI + 16S rRNA tree is used for further discussion (Fig. 1). The separate COI and 16S rRNA trees are presented in Supplementary Fig. S1, S2). PartitionFinder indicated that the best substitution model for BI analysis was GTR+G for all datasets.

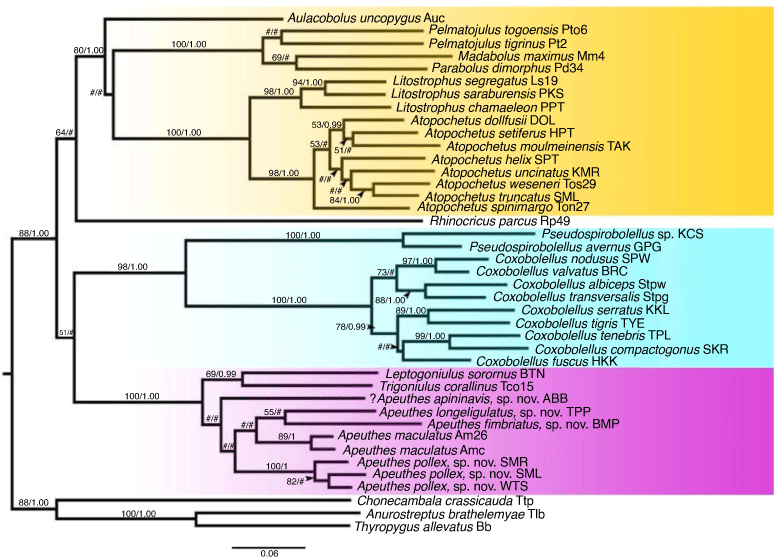

Fig. 1.  Phylogenetic relationships of subfamily Trigoniulinae based on maximum likelihood analysis (ML) and Bayesian Inference (BI) of concatenated cytochrome c oxidase I (COI) + 16S ribosomal RNA alignment (1118 bp). Numbers at nodes indicate branch support based on bootstrapping (ML)/posterior probabilities (BI). Scale bar: 0.06 substitutions per site. The hash (#) indicates branches with <50% ML bootstrap support and <0.95 Bayesian posterior probability. The coloured area marks the Trigoniulinae species (purple), Pseudospirobolellidae species (light blue), and non-trigoniuline Pachybolidae species (yellow).

The tree based on the combined dataset includes representatives of three Spirobolida families (Pachybolidae, Pseudospirobolellidae Brölemann, 1913 and Rhinocricidae Brölemann, 1913), together forming a well-supported ingroup clade (BV = 88; PP = 1.00), with well-supported subclades for non-trigoniuline Pachybolidae (BV = 80; PP = 1.00), Pseudospirobolellidae (BV = 99; PP = 1.00) and Trigoniulinae (BV = 100; PP = 1.00). This latter clade comprises 10 sequences of 7 species, including Leptogoniulus sorornus (Butler, 1876); Trigoniulus corallinus (Gervas, 1842); Apeuthes maculatus; ?A. spininavis, sp. nov.; A. longeligulatus, sp. nov.; A. fimbriatus, sp. nov., and A. pollex, sp. nov. However, the relationships among these seven species and the monophyly of the genus Apeuthes, even if ?A. spininavis, sp. nov. is excluded, are inconsistently supported.

With both the single and multiple thresholds, the ML values of the null model (=all sequences belong to a single species) were lower than the ML value of the GMYC model (Table 4). The single threshold yielded two clusters and three entities with confidence intervals (CI) ranging from 1 to 7. In this way, the following entities are recognised (1) A. pollex, sp. nov. SMR + A. pollex, sp. nov. WTS + A. pollex, sp. nov. SML, (2) ?A. spininavis, sp. nov, and (3) A. maculatus Amc + A. maculatus Am26 + A. fimbriatus, sp. nov. + A. longeligulatus, sp. nov. The multiple thresholds yielded two clusters and four entities with CI ranging from 1 to 4, so that the following species are recognised as entities (1) A. pollex, sp. nov. SMR + A. pollex, sp. nov. WTS + A. pollex, sp. nov. SML + ?A. spininavis, sp. nov, (2) A. maculatus Amc + A. maculatus Am26, (3) A. fimbriatus, sp. nov., and (4) A. longeligulatus, sp. nov. By combining these GMYC results with morphological data and considering the large interspecific sequence divergences of 11–16% (mean: 14%), we thus delimit five species, viz A. maculatus, A. fimbriatus, sp. nov., A. longeligulatus, sp. nov., A. pollex, sp. nov. and ?A. spininavis, sp. nov.

Table 4.  Numbers of clusters and entities detected within the genus Apeuthes by the General Mixed Yule Coalescent (GMYC) method applied to the cytochrome c oxidase I (COI) dataset.

Seven operational taxonomic units (OTUs) were found with a probability of 1.00 with recursive split P-value of 0.01 (Table 5). These seven OTUs are: (1) A. longeligulatus, sp. nov., (2) ?A. spininavis, sp. nov. (3) A. fimbriatus, sp. nov., (4) A. pollex, sp. nov. SML, (5) A. pollex, sp. nov. WTS, (6) A. pollex, sp. nov. SMR, and (7) A. maculatus Amc + A. maculatus Am26. Yet, as the three A. pollex, sp. nov. OTUs have identical gonopods and show COI sequence divergences of 4–7% (mean: 5.7%), we regard them as a single OTU and thus retain five species in total.

Table 5.  Number of species delimited by the Poisson Tree Process (PTP) method and numbers of putative species delimited by the Assemble Species by Automatic Partitioning (ASAP) method applied to the cytochrome c oxidase I (COI) dataset of the genus Apeuthes.

Species delimition results from PTP suggest five species (estimated number of species is between 1 and 8 species, mean: 5.34; Table 5) viz (1) A. fimbriatus, sp. nov. (2) ?A. spininavis, sp. nov., (3) A. pollex, sp. nov. SMR + A. pollex, sp. nov. SML + A. pollex, sp. nov. WTS, (4) A. maculatus Amc + A. maculatus Am26, and (5) A. longeligulatus, sp. nov.

Apeuthes Attems, 1938; invalidly proposed (as subgenus of Eucarlia Brölemann, 1913)

Eucarlia (Apeuthes) maculata Attems, 1938

Apeuthes eydouxii (Gervais, 1847) (formerly Iulus eydouxii Gervais, 1847 and Eucarlia (Apeuthes) charactopyga Attems, 1938), Apeuthes exustus (Attems, 1938) (formerly Eucarlia (Apeuthes) exusta Attems, 1938), Apeuthes maculatus (Attems, 1938) (formerly Eucarlia (Apeuthes) maculata Attems, 1938), Apeuthes fimbriatus, sp. nov., Apeuthes longeligulatus, sp. nov., Apeuthes pollex, sp. nov., ?Apeuthes spininavis, sp. nov.

A genus of the pachybolid subfamily Trigoniulinae defined by having posterior gonopod telopodite with several dentate, serrate or tuberculate lamellae in a boat-like cavity (Attems 1938) or a boat-like cavity covered with spines (diagnostic extension provisionally added here to better accommodate ?A. spininavis, sp. nov., see Discussion).

Adult males with 50–62 podous rings, no apodous rings. Length ~5–7 cm, diameter ~3.5–4.9 mm. Adult females with 48–56 podous rings, no apodous rings. Length ~5–8 cm, diameter ~3.9–5.4 mm.

Head. Head capsule smooth. Occipital furrow extending down between, but not beyond eyes; clypeal furrow reaching level of antennal sockets. Area below antennal sockets and eyes impressed, forming part of antennal furrow. Incisura lateralis open. 2 + 2 labral teeth, a row of labral setae, 2 + 2 supralabral setae. Diameter of eyes approximately half of interocular space; 7–10 vertical rows of ommatidia, 7 horizontal rows, 40–46 ommatidia per eye. Antennae short, not reaching beyond collum when stretched back, accommodated in a shallow furrow composed of a horizontal segment in the head capsule and a vertical segment in the mandibular cardo and stipes. Antennomere lengths in A. maculatus, 2 > 6 > 3 > 4 = 5 > 1 > 7, in ?A. spininavis, sp. nov., 2 > 6 > 1 > 3 > 4 = 5 > 7, other species 2 > 6 > 1 > 5 > 3 = 4 > 7; antennomere 1 glabrous, 2 and 3 with some ventral setae, 4, 5 and 6 densely setose; 4 apical sensilla.

Mouthparts. Mandibles: stipes broad at base, apically gradually narrowed, with strong anterolateral marginal ridge. Gnathochilarium: each stipes with three apical setae; each lamella lingualis with two setae, one behind the other. Basal part of mentum transversely wrinkled; basal part of stipes longitudinally wrinkled.

Collum. Smooth, with a marginal furrow along lateral part of anterior margin; lateral lobes narrowly rounded, extending as far ventrad as the ventral margin of body ring 2 (slightly shorter than the ventral margin of body ring 2 in A. pollex, sp. nov.).

Body. Body rings 2–5 ventrally concave, hence with distinct ventrolateral ‘corners’. Body rings very smooth, parallel-sided in dorsal view. Prozona smooth in A. maculatus, A. longeligulatus, sp. nov. and A. pollex, sp. nov., whereas in A. fimbriatus, sp. nov. and ?A. spininavis, sp. nov. pro- and mesozona distincly punctate. ‘Tergo-pleural’ suture visible on pro- and mesozona in A. maculatus and A. pollex, sp. nov.; mesozona ventrally with fine oblique striae (extending to dorsal parts and more distinct on ventral parts in A. fimbriatus, sp. nov.), dorsally punctate; metazona ventrally with fine longitudinal striae, otherwise smooth. ‘Pleural’ parts of rings with fine oblique striae. Sterna transversely striate. Ozopores from ring 6, situated in prozona, ~1 pore diameter in front of metazona. A punctate area around the rings between pro- and mesozona, forming a suture between pro- and metazona

Telson. Smooth; preanal ring with slightly concave dorsal profile, without process protruding beyond anal valves. Anal valves smooth, rounded (in A. fimbriatus, sp. nov., A. pollex, sp. nov. and ?A. spininavis, sp. nov. impressed submarginally; margins hence protruding, lip-like). Subanal scale broadly triangular.

Legs. Length of midbody legs 63–68% of body diameter in males, 47–52% of body diameter in females. Prefemur basally constricted, tarsus longer than other podomeres. First and second legs with 1–2 prefemoral, 1–2 femoral, 1 postfemoral, and 2 tibial setae, and 4 ventral and 1 dorsal apical setae on tarsi, numbers of setae reaching constancy from pair 3: each leg podomere with 1 seta; tarsi in males with 1 ventral apical and 1 dorsal apical seta; females with 1 coxa, 1 prefemur, 1 femoral, 1 postfemoral, 1 tibial seta, tarsi with 1–3 ventral and 1 dorsal apical seta, the apical ventral seta larger than the more basal one.

Male sexual characters. Tarsus with large ventral soft pad occupying entire ventral surface from third to midbody legs in A. longeligulatus, sp. nov., to last legs in A. fimbriatus, sp. nov. and before the last 7–9 body rings in A. pollex, sp. nov. and ?A. spininavis, sp. nov. Body ring 7 entirely fused ventrally, no trace of a suture. Tip of anterior gonopods visible when the animal is stretched out (not when it is rolled up). With gonopod sternum. Posterior gonopods in situ completely hidden within anterior ones. Posterior gonopod telopodite apically concave forming a boat-like cavity.

Female vulvae. Large, in situ projecting beyond lateral extensions of coxosternum of 2nd legs. Operculum small, rounded triangular, situated at laterobasal end of vulva. Shape of valves variable.

Malaysia, Thailand and Vietnam.

Fig. 2.  External morphology of Apeuthes species. (a, b) Apeuthes maculatus (NHMW-Inv. No. 2395). (a) Anterior end, ventral view, arrow indicates the 3rd coxa process. (b) Anterior end, lateral view, arrow indicates incisura lateralis and collum. (c) Apeuthes fimbriatus, sp. nov. body rings, dorsal view. (d–g) Apeuthes longeligulatus, sp. nov. (d) Tarsal pad on male leg, lateral view. (e) Posterior end, lateral view. (f) Posterior end, ventral view. (g) Body rings, arrow indicates a row of punctate area between prozona and metazona, lateral view. (h) Apeuthes fimbriatus, sp. nov., body rings, arrow indicates punctate area on pro- and mesozona, lateral view. (i) Apeuthes longeligulatus, sp. nov. gnathochilarium, ventral view. (j, k) Apeuthes pollex, sp. nov. (j) Antenna, ventral view. (k) Tip of antenna, ventral view. Av, anal valves; Co, collum; Gst, gnathochilarium stipe; IL, incisura lateralis; Me, mentum; Mst, mandibles stipe; Pre, preanal ring; Sub, subanal scale.

(Fig. 3, 9)

http://zoobank.org/urn:lsid:zoobank.org:act:D2C64473-D203-42A1-92BA-9402B9B5AD01

http://zoobank.org/urn:lsid:zoobank.org:pub:A897C3E7-9A6B-4037-B2FA-F85831635B30

Holotype: Male, VIETNAM, Da Nang Province, Bach Ma Peak, 16°07′49″N, 107°56′54″E. 29.iv.2007. S. Panha leg. (CUMZ-D00144-1).

Paratypes: 1 male (CUMZ-D00144), 2 females (CUMZ-D00144-2), same data as holotype.

Differing from all other species in the genus by having a triangular mesal sternal process of anterior gonopod, not reaching so far as the tip of coxae (Fig. 3a, d). Anterior gonopod telopodite far overreaching coxa, distally bifid, forming a butterfly-like structure (Fig. 3b, e). Posterior gonopods apically with rounded and spiny lamellae, one above the other (Fig. 3f–h).

Fig. 3.  Apeuthes fimbriatus, sp. nov., holotype, gonopods (specimen from Bach Ma Peak, CUMZ D00144-1). (a, d) Anterior gonopod, anterior view. (b, e) Anterior gonopod, posterior view. (c, f) Right, left posterior gonopod, respectively. (g) Scanning electron micrograph (SEM), left posterior gonopod, posterior–mesal view. (h) SEM, tip of posterior gonopod, mesal view. (i) SEM, conical process of posterior gonopod, dorsal view. (j) SEM, left female vulva, posterior mesal view. at, anterior gonopod telopodite; bo, boat-like cavity; con, conical process; cx, coxa; pt, posterior gonopod telopodite; st, sternum.

Adult males with 53 podous rings. Length ~6–7 cm, diameter ~4.3–4.4 mm. Adult females with 53 podous rings. Length ~6 cm, diameter ~5.1–5.4 mm.

Colour in ethanol light brown, internal tissue dark brown and shining through the body (Fig. 2c, as indicated by arrows).

Anterior gonopods (Fig. 3a, b, d, e). Mesal sternal process triangular, not reaching so far as the tip of coxae, apical margin bilobed. Coxa oval, apically truncated, with obliquely higher margin mesally, projecting beyond sternal process. Telopodite far overreaching coxa, distally bifid, forming a butterfly-like structure; inner process slender, curving laterad, protruding higher than outer process; the outer process broadly rounded; basal part of telopodite with obliquely high ridge.

Posterior gonopods (Fig. 3c, f–i) curving mesad, with efferent canal (Enghoff 2011) running along mesal margin; apically with several flat lamellae in a boat-like cavity, with rounded and spiny lamellae mesally, one above the other; with a conical process covered with spinules, originating on mesal margin at telopodite midway; efferent canal terminating at base of this process.

Female vulvae (Fig. 3j). Valves simple, of equal size.

The GenBank accession number of the COI barcode of the paratype is MZ567160 (voucher code CUMZ D00144).

Da Nang Province, Vietnam (Fig. 9).

The specific name is a Latin adjective, meaning ‘fringed’ and referring to the fringed lamella on the posterior gonopod.

(Fig. 4, 9)

http://zoobank.org/urn:lsid:zoobank.org:act:7DD08734-05FB-4A8E-87C6-66F0BD5FEB48

http://zoobank.org/urn:lsid:zoobank.org:pub:A897C3E7-9A6B-4037-B2FA-F85831635B30

Holotype: Male, THAILAND, Sa Kaeo Province, Klong Hard District, Tham Phet Po Thong, 13°24′49″N, 102°19′31″E. 24.x.2010. P. Pimvichai leg. (CUMZ-D00140-1).

Paratypes: 1 male CUMZ-D00140), same data as holotype. 1 male, 1 female, THAILAND, Trad Province, Koh Chang District, Koh Chang, Khlong Phraa (should be Khlong Phraw beach), 12°03′49″N, 102°17′19″E. 31.viii.1990. Arne Redsted Rasmussen leg. (NHMD-621698).

Differing from all other species in the genus by having a narrow mesal sternal process of anterior gonopod, protruding slightly higher than coxae (Fig. 4a, d). Anterior gonopod telopodite distally bifid (Fig. 4b, e). Posterior gonopods apically with several flattened lamellae in a boat-like cavity (Fig. 4c, f–i).

Fig. 4.  Apeuthes longeligulatus, sp. nov., holotype, gonopods (specimen from Tham Phet Po Thong, CUMZ D00140-1). (a, d) Anterior gonopod, anterior view. (b, e) Anterior gonopod, posterior view. (c, f) Left posterior gonopod. (g) Scanning electron micrograph (SEM), right posterior gonopod, posterior–mesal view. (h) SEM, tip of posterior gonopod, mesal view. (i) SEM, conical process of posterior gonopod, dorsal view. (j) SEM, left female vulva, posterior mesal view. at, anterior gonopod telopodite; bo, boat-like cavity; con, conical process; cx, coxa; pt, posterior gonopod telopodite; st, sternum.

Adult males with 56–62 podous rings. Length ~6–7 cm, diameter ~4.3–4.4 mm. Adult female with 56 podous rings. Length ~6 cm, diameter ~4.7 mm.

Colour in ethanol uniform brown; colour of living animal uniform reddish brown.

Anterior gonopods (Fig. 4a, b, d, e) with high, narrow mesal sternal process, protruding slightly higher than coxae; sternal process ending in a rounded lobe, with basal longitudinal triangular ridge on posterior side. Coxa oval, apically concave with two rounded lobes, the mesal one higher than the lateral one. Telopodite overreaching coxa, distally bifid, inner process slender, curving laterad; outer process broadly triangular; basal part of telopodite with a prominent transverse ridge.

Posterior gonopods (Fig. 4c, f–i) curving mesad, with efferent canal (Enghoff 2011) running along mesal margin; apically with several flattened lamellae in a boat-like cavity; with a conical process covered with spinules, originating on mesal margin at telopodite midway; efferent canal terminating at base of this process.

Female vulvae (Fig. 4j). Valves simple, of equal size.

The GenBank accession number of the COI barcode of the paratype is MZ567161 (voucher code CUMZ D00140).

Sa Kaeo and Trad provinces, Thailand (Fig. 9).

The specific name is a Latin adjective, meaning ‘with a long tongue’ and referring to the sternal process of the anterior gonopod.

(Fig. 5, 8, 9)

http://zoobank.org/urn:lsid:zoobank.org:act:AF851067-AEA7-4B6F-A65A-A573849A70F9

http://zoobank.org/urn:lsid:zoobank.org:pub:A897C3E7-9A6B-4037-B2FA-F85831635B30

Holotype: Male, THAILAND, Krabi Province, Muang District, Tham Sue Temple, 08°07′36″N, 98°55′27″E. 24.viii.2014. P. Pimvichai and T. Backeljau leg. (CUMZ-D00143-1).

Paratypes: 3 males (CUMZ-D00143), 2 females (CUMZ-D00143-3), same data as holotype. 1 male (CUMZ-D00141), THAILAND, Krabi, Khlong Thom District, Sra Morakot, 07°55′31″N, 99°16′05″E. 24.viii.2014. P. Pimvichai and T. Backeljau leg. 2 males CUMZ-D00142),1 female (CUMZ-D00142-2), THAILAND, Phang-Nga Province, Khuraburi District, Koh 8, Similan islands, 08°39′09″N, 97°38′27″E. 7.iv.2010. P. Pimvichai leg.

Differing from all other species in the genus by having coxa of anterior gonopod distinctly concave for accommodation of telopodite (Fig. 5b, e). Anterior gonopod telopodite protruding slightly over coxa, apically abruptly narrowed, ending in one slender process (Fig. 5b, e). Posterior gonopods apically with a rounded lobe, with serrated lamellae mesally and with a thumb-like process basally (Fig. 5c, f, g).

Fig. 5.  Apeuthes pollex, sp. nov., holotype, gonopods (specimen from Tham Sue Temple, CUMZ D00143-1). (a, d) Anterior gonopod, anterior view. (b, e) Anterior gonopod, posterior view. (c, f) Right, left posterior gonopod, respectively. (g) Scanning electron micrograph (SEM), left posterior gonopod, posterior–mesal view. (h) SEM, conical process of posterior gonopod, mesal view. (i) SEM, tip of posterior gonopod, dorsal view. (j) SEM, left female vulva, posterior mesal view. at, anterior gonopod telopodite; bo, boat-like cavity; con, conical process; cx, coxa; pt, posterior gonopod telopodite; st, sternum.

Adult males with 56–58 podous rings. Length ~6–7 cm, diameter ~4.8–4.9 mm. Adult females with 54–55 podous rings. Length ~8 cm, diameter ~5.4 mm.

Colour of living animal uniform reddish brown (Fig. 8).

Anterior gonopods (Fig. 5a, b, d, e) with broad, triangular mesal sternal process, not reaching so far as the tip of coxae. Coxa oval, projecting beyond sternal process, in posterior view concave for accommodation of telopodite. Telopodite protruding slightly over coxa, apically abruptly narrowed, forming a slender process, curving laterad, lateral margin thick and higher than mesal part and tip, basal part with a prominent ridge in the middle.

Posterior gonopods (Fig. 5c, f–i) curving mesad, apically with serrate lamellae in a boat-like cavity; with a conical process covered with setae near tip, originating from mesal margin, basally with a thumb-like process.

Female vulvae (Fig. 5j). Valves prominent, of equal size; free margins meeting in coarsely serrate suture; two valves fitting tightly together.

The GenBank accession number of the COI barcode of the paratype is MZ567163 (voucher code CUMZ D00142).

Krabi and Phang-Nga provinces, Thailand (Fig. 9).

The specific epithet is a noun in apposition, meaning ‘thumb’ and referring to the thumb-like basal process on the posterior gonopod.

(Fig. 6, 9)

http://zoobank.org/urn:lsid:zoobank.org:act:FC08A14B-F4CB-4865-8847-2D6EEC48660B

http://zoobank.org/urn:lsid:zoobank.org:pub:A897C3E7-9A6B-4037-B2FA-F85831635B30

Holotype: Male, MALAYSIA, Johor Province, Pulau Besar island, 02°26′3″N, 103°58′45″E. 2.iii.2008. P. Pimvichai, P. Prasankok and Ng Beewah leg. (CUMZ-D00146).

Paratypes: 1 male (CUMZ-D00146-1), 4 females (CUMZ-D00146-2), same data as holotype. 1 male (CUMZ-D00145), 1 female (CUMZ-D00145-1), MALAYSIA, Perak Province, Air Banun, 05°34′42″N, 101°25′58″E. 27.v.2011. P. Pimvichai, P. Prasankok and Ng Beewah leg.

Anterior gonopods with broad, triangular mesal sternal process (Fig. 6a, d). Similar in this respect to A. pollex, sp. nov. Differing from all other Apeuthes species by having posterior gonopods that are apically abruptly narrowed, forming a pointed lobe (Fig. 6c, f–h), and with a mesal margin forming a deep boat-like cavity covered with spines (Fig. 6h, i) and without a conical process at mesal margin of posterior gonopod telopodite.

Fig. 6.  Apeuthes spininavis, sp. nov., holotype, gonopods (specimen from Pulau Besar island, CUMZ D00146). (a, d) Anterior gonopod, anterior view. (b, e) Anterior gonopod, posterior view. (c, f) Left posterior gonopod. (g) Scanning electron micrograph (SEM), right posterior gonopod, posterior–mesal view. (h) SEM, tip of posterior gonopod, mesal view. (i) SEM, spine in boat-like cavity of posterior gonopod, dorsal view. (j) SEM, left female vulva, posterior mesal view. at, anterior gonopod telopodite; bo, boat-like cavity; cx, coxa; pt, posterior gonopod telopodite; st, sternum.

Fig. 7.  Apeuthes exustus and Apeuthes maculatus, holotype, gonopods. (a–c) Apeuthes exustus, NHMW-Inv. No. 2394. (a) Anterior gonopod, anterior view. (b) Anterior gonopod, posterior view. (c) Right posterior gonopod. (d–f) Apeuthes maculatus, NHMW-Inv. No. 8440. (d) Anterior gonopod, anterior view. (e) Anterior gonopod, posterior view. (f) Left posterior gonopod. at, anterior gonopod telopodite; bo, boat-like cavity; con, conical process; cx, coxa; pt, posterior gonopod telopodite; st, sternum.

Fig. 8.  Live Apeuthes pollex, sp. nov. from Tham Sue Temple (WTS), male (paratype, CUMZ D00143-2).

Adult males with 50–56 podous rings. Length ~5–6 cm, diameter ~3.5–3.9 mm. Adult female with 48–55 podous rings. Length ~5–6 cm, diameter ~3.9–4.5 mm.

Colour in ethanol uniform brown, colour of living animal uniform reddish brown.

Anterior gonopods (Fig. 6a, b, d, e) with broad, triangular mesal sternal process, not reaching so far as the tip of coxae, with basal longitudinal triangular ridge. Coxa oval, projecting beyond sternal process, in posterior view concave for accommodation of telopodite. Telopodite protruding slightly over coxa, apically ending in two processes; inner process slender, curving obliquely laterad; outer process broadly rounded; basal part of telopodite with oblique high ridge in the middle.

Posterior gonopods (Fig. 6c, f–i) curving mesad, apically forming a deep boat-like cavity covered with spines, and distally abruptly narrowed, forming a pointed lobe.

Female vulvae (Fig. 6j). Valves prominent, of equal size; free margins meeting in coarsely serrate suture, soft area in the middle; two valves fitting tightly together.

The GenBank accession number of the COI barcode of the paratype is MZ567165 (voucher code CUMZ D00145).

Johor and Perak provinces, Malaysia (Fig. 9).

The specific epithet is a noun in apposition, ‘spiny boat’, referring to the shape and texture of the posterior gonopod telopodite.

?Apeuthes spininavis, sp. nov. shares several characters with other species in the genus Apeuthes. However, it differs from all of other species of Apeuthes by the absence of a conical process covered with spinules midway on the mesal margin of the posterior gonopod telopodite. Hence, for the time being, we only tentatively assign this species to Apeuthes and refer it to as ?Apeuthes spininavis, sp. nov.

The genus Apeuthes was first proposed as a subgenus of Eucarlia Brölemann, 1913 by Attems (1938), who, unfortunately, did not designate a type species for it. Hence the (sub)genus was invalid until Hoffman and Keeton (1960) designated Eucarlia (Apeuthes) maculata Attems, 1938, as its type species. Subsequently, Hoffman (1980) raised Apeuthes to full genus status without any rationale or explanation.

Attems (1938, pp. 259–260) characterised Apeuthes as follows (translated from German): the three just described species (our addition: (Eucarlia (Apeuthes) charactopyga Attems, 1938, Eucarlia (Apeuthes) exusta Attems, 1938 and Eucarlia (Apeuthes) maculata Attems, 1938)) have a peculiarity on the posterior gonopods that is missing in the other species of Eucarlia: the part of the gonopod distal of the internal branch is longer than in the other species and has several dentate, serrate or tuberculate lamellae in the boat-like cavity.

Three new species described in the present study share the characters that Attems (1938) used to separate the subgenus Apeuthes from Eucarlia, viz the part of the posterior gonopod telopodite distal of the internal branch is long and has several dentate, serrate or tuberculate lamellae in the boat-like cavity. Therefore, we assign A. fimbriatus, sp. nov., A. longeligulatus, sp. nov. and A. pollex, sp. nov. without much hesitation to Apeuthes. Yet, while ?A. spininavis, sp. nov. shares the anterior gonopod telopodite with a distinct transverse ridge at its base, it lacks the long internal branch of the posterior gonopod telopodite and it has no dentate, serrate or tuberculate lamellae in the boat-like cavity on the posterior gonopod. Instead, it has a boat-like cavity that is covered with spines on the posterior gonopod. Therefore its assignment to Apeuthes is less obvious and is only provisionally proposed, in await of a more comprehensive revision of the genera Apeuthes and Eucarlia, and other related genera. In line with Art 11.9.3.4 of the International Commission on Zoological Nomenclature (https://www.iczn.org/the-code/the-code-online/), we thus cite this species as ?Apeuthes spininavis, sp. nov. and use a ‘?’ to indicate the tentative nature of the generic assignment, as has been done before us for other tentative generic assignments (e.g. Golovatch and Korsós 1992). We prefer this conservative nomenclatural approach over creating a new monotypic genus for ?A. spininavis because the classification of the Pachybolidae ‘is a real mess’ (Golovatch and Korsós 1992, p. 12) and the family is still in need of revision (Enghoff et al. 2015), so that ‘Prior to a thorough revision of this family, almost any generic allocation ought to be understood as temporary’ (Golovatch and Korsós 1992, p. 12). Although this latter statement may be a bit exaggerated, it does imply that creating new pachybolid genera is likely to further complicate current nomenclature and future revisions. This may also apply to a new (monotypic) genus for ?A. spininavis, because it would be introduced only to express the relative phenotypic distinctiveness of this species, rather than to reflect the result of a sound phylogenetic framework, involving well founded phenotypic synapomorphies and DNA sequence analyses. Indeed, given the limited taxon and DNA marker sampling in our study, and considering the poor support of the Apeuthes relationships in our phylogenetic trees (Fig. 1 and Supplementary Fig. S1, S2), we do not see how pachybolid taxonomy and its users would be well served by the premature introduction of a new monotypic genus built on such ambiguous grounds. Conversely, if we extend Attems’ (1938) diagnosis of Apeuthes by suggesting the ‘boat-like cavity that is covered with spines on the posterior gonopod’ of ?A. spininavis as a fourth defining character state of Apeuthes, next to ‘the dentate, serrate or tuberculate lamellae in the boat-like cavity’, then the phenotypic distinctiveness of ?A. spininavis can, at least provisionally, be accommodated by the current concept of Apeuthes (but see further below). This idea is illustrated by Table 6 in which the morphological differences among Apeuthes, Eucarlia and the four new species are summarised. Thus, with our approach, we aim at complying with ‘Taxon Naming Criterion 8’ of Vences et al. (2013, p. 228): ‘avoid oversplitting and deliberately creating monotypic taxa’, a recommendation that is also made by other authors (e.g. Bickham et al. 2007; Kaiser et al. 2013) and instances (e.g. Australian Society of Herpetologists 2016).

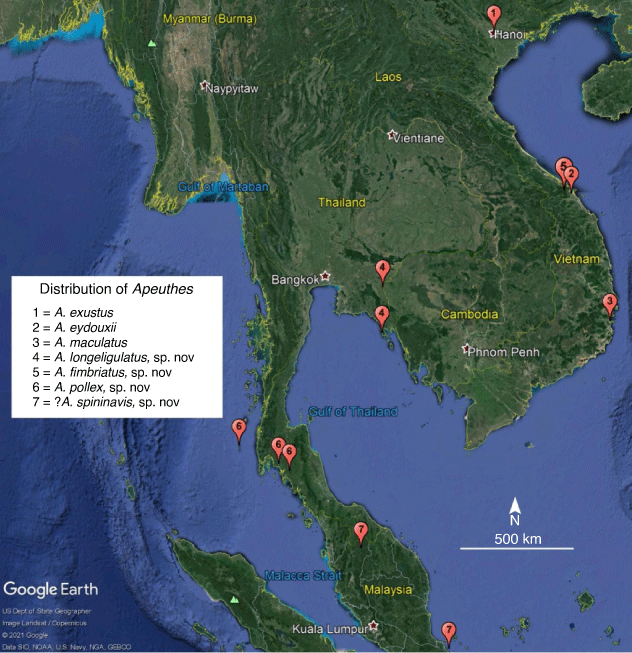

Fig. 9.  Distribution of the species of Apeuthes. The three described species’ localities obtained from the original description. Droplets vary in size only to improve readability.

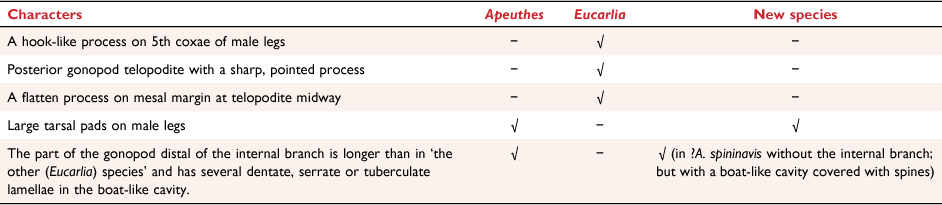

Table 6.  Morphological differences between Apeuthes, Eucarlia and the four new species described in this study, viz A. fimbriatus, sp. nov., Apeuthes longeligulatus, sp. nov., A. pollex, sp. nov., and ?A. spininavis, sp. nov.

The seven species here assigned to the genus Apeuthes show a considerable amount of interspecific morphological variation and differentiation. This is the case for: (1) the male 3rd leg pairs with a conical process projecting backwards, a condition that is only present in A. maculatus and A. pollex, sp. nov.; (2) the tarsal pads from the 3rd to the last legs, which are present only in males of A. maculatus, whereas there are no pads on the legs of the posterior rings in other species; (3) the lips of the anal valves being separated from the margin by a furrow in A. exustus, A. fimbriatus, sp. nov., A. pollex, sp. nov. and ?A. spininavis, sp. nov., whereas the lips of the anal valves connect directly to each other (no furrow between the lips and the margin) in the other Apeuthes species; (4) the distinctly punctate prozona, which is present in A. fimbriatus, A. longeligulatus, sp. nov. and ?A. spininavis, sp. nov., but not in A. maculatus and A. pollex, sp. nov. (and not examined in A. exustus and A. eydouxii); and (5) the conical process on the posterior gonopod telopodite, which is present in all species except ?A. spinnavis, sp. nov. It is unclear to what extent these patterns of morphological variation reflect phylogenetic relationships.

Next to the morphological heterogeneity in Apeuthes, there is also a substantial amount of COI sequence variation and differentiation, with intraspecific COI divergences of 3–7% (mean: 5%), and interspecific COI divergences of 11–16% (mean: 13.7%). These figures are in line with those for the genus Coxobolellus (Pimvichai, Enghoff, Panha & Backeljau, 2020) of the related family Pseudospirobolellidae, which has intraspecific COI divergences of 0–5% (mean: 2%) and interspecific COI divergences of 6–15% (mean: 11%) (Pimvichai et al. 2020). The corresponding values for the genera Atopochetus Attems, 1953 and Litostrophus Chamberlin, 1921 (family Pachybolidae) are also comparable, with intraspecific COI divergences of 0–8 and 0–1% (mean: 3 and 0%) respectively, and interspecific COI divergences of 9–17 and 9–11% (mean: 14 and 11%) respectively. Large COI sequence divergences are further observed in the genera Thyropygus Pocock, 1894 and Anurostreptus Attems, 1914 (Spirostreptida, Harpagophoridae) with intraspecific values of 0–12 and 0–6% (mean: 6 and 3%) respectively, and interspecific divergences of 5–18 and 9–11% (mean: 14 and 11%) respectively (Pimvichai et al. 2014). In the family Spirostreptidae Brandt, 1833, the intergeneric COI sequence divergences are 6.83–26.81% (mean: 18.43%) (Mwabvu et al. 2015). As such, the amounts of sequence differentiation among the four new Apeuthes species are approximately in line with species-level divergences in other spirostreptid and spirobolid genera.

The number of species delimitated by ASAP exceeds the total number of morphospecies (seven ASAP species v. five morphospecies). However, five species were retained because ASAP suggests A. pollex, sp. nov. from three different localities as three putative species. Yet, because they have identical gonopods and show sequence divergences of 4–7% (mean: 5.7%), we see no reason to recognise them as different species. This is in line with the PTP method, which also suggests five species, coinciding with the morphospecies. The single threshold GMYC method provides three entities (CI = 1–7), whereas the multiple threshold GMYC method provides four entities (CI = 1–4). GMYC thus suggests fewer species than we have distinguished, but the number of species that we separated is still well within the CI range of the single threshold GMYC method and close to the values provided by the multiple threshold GMYC method. By combining the GMYC results with the gonopodal characters, and in view of the large interspecific sequence divergences of 11–16% (mean: 14%), we thus delimit five species, so that in this group it appears that COI sequence divergences of >7%, accompanied by distinct gonopodal characters, seem to mark the transition from intra- to interspecific differentiation. Thus, combining different data types and species delimitation methods is needed to delineate species in this group.

Probably the most surprising result of these phylogenetic analyses is that, while the separate and combined mtDNA datasets consistently show a well-supported Trigoniulinae clade (based on three genera), they provide no support for the monophyly of the genus Apeuthes. This result corroborates the Trigoniulinae clade with two indicative, but not diagnostic, characters, viz (1) the presence of a mesal sternal process on the anterior gonopod and (2) a preanal ring without process protruding beyond the anal valves, i.e. two characters that are also present in most non-trigoniuline pachybolid genera. Conversely, the phylogenetic analyses cast some doubt on the monophyly of (the current concept of) the genus Apeuthes and thus question the defining synapomorphic nature of the posterior gonopod either with a boat-like cavity with several dentate, serrate or tuberculate lamellae or with a boat-like cavity covered with spines (Table 6). In conclusion, the assignment of the four new species, and particularly of ?A. spininavis, to the genus Apeuthes is provisional and must be validated by a comprehensive integrative taxonomic and phylogenetic study involving a much wider sampling of taxa and phylogenetic DNA markers.

The data that support this study are available in the article and accompanying online supplementary material or will be shared upon reasonable request to the corresponding author.

The authors declare that they have no conflicts of interest

This research was funded by the Thailand Science Research and Innovation (TSRI) together with Mahasarakham University as a TRF Research Career Development Grant (2019–2022; RSA6280051) (to P. Pimvichai). Additional funding came from the Royal Belgian Institute of Natural Sciences (RBINS).

Supplementary material is available online.
