Does toxicity test variability support bioavailability model predictions being within a factor of 2?

Keywords: bioavailability, biotic ligand model, ecotoxicology, metal toxicity, model predictions, model validation, reference toxicants, water quality.

In the last several decades there has been increased development, use, and interest in incorporating metal bioavailability models into regulatory water quality guidelines/criteria (Brix et al. 2020). Simple univariate regression models, such as the hardness-adjustment algorithm (USEPA 1985) have been used in water quality guidelines since the late 1980s. However, over the following decades more complex models, such as the biotic ligand model (BLM) (Di Toro et al. 2001) and multiple linear regression (MLR) models (Brix et al. 2017), which incorporate multiple water chemistry parameters have been developed to better predict metal toxicity to aquatic organisms.

Recently, bioavailability models have been developed using low effect levels (e.g. data based on effect concentrations that cause a 10% (EC10) and/or 20% (EC20) effect) based on chronic toxicity data. These inherently have higher uncertainty than models based on higher effect levels, such as EC50 values, as there is typically greater uncertainty at the EC10 and EC20 values in a concentration-response model.

The increase in complexity, type and use of these models has resulted in a need for validation methods to test a model’s predictive capacity. Garman et al. (2020) outlined several methods of model performance evaluation, including regression slope bias analysis and whether model predictions are within a factor of 2 (i.e. range of 4) of the observed toxicity estimate (e.g. EC50). Use of the factor-of-2 rule was first proposed by Di Toro et al. (2001) and Santore et al. (2001), and was based on a single dataset using a 96-h acute lethality test on larval fathead minnows (Pimephales promelas) exposed to copper (Erickson et al. 1996).

Several recent papers have called for the need for further assessment of the among-test variability for tests conducted under the same conditions in order to determine if the factor-of-2 rule is widely applicable (Garman et al. 2020; Peters et al. 2021). This rule has been examined by two other studies. Santore and Ryan (2015) assessed variation in Daphnia magna zinc acute lethality tests, while Meyer et al. (2018) examined a larger toxicity dataset where D. magna neonates were exposed separately to cadmium, copper, nickel or zinc. Additionally, Meyer et al. (2018) reanalysed P. promelas data from Erickson et al. (1996). Both studies found that the factor-of-2 rule was generally applicable across the two species.

No study has yet investigated the suitability of the factor-of-2 rule for microalga, despite several bioavailability models being recently developed (DeForest et al. 2018; Croteau et al. 2021; Peters et al. 2021) nor for low effect levels or chronic toxicity data for any organism. Peters et al. (2018) suggested that a factor-of-3 rule (i.e. a range of 9) may be more appropriate for low effect level and chronic data given the inherent increased uncertainty associated with these. Assessing the suitability of validation techniques like the factor-of-2 rule for these types of toxicity data is important as they are often preferred over acute EC50 data for water quality guideline development (Batley et al. 2018).

In this study, we report an analysis of the appropriateness of the factor-of-2 rule and the proposed factor-of-3 rule using an extensive collection of repeated toxicity datasets including freshwater and marine invertebrates and microalgae. Acute and chronic data across a range of endpoints at low and high effect levels were assessed. The results of these analyses serve as an important reference point for developing and evaluating bioavailability model performance.

Toxicity estimate data were taken from a previously unpublished internal quality control reference toxicant database comprised of standardised tests used to assess test repeatability and organism culture performance over time (CSIRO, unpubl. data). Test species consist of both freshwater and marine organisms. Additional data was sourced from published reference toxicant data in Stone et al. (2022) and Meyer et al. (2018).

Datasets were defined as having the same endpoint, test duration, test vessel, initial organism density (e.g. cell density for microalgae) and test water (laboratory prepared waters with the same chemical characteristics). A minimum of 5 datapoints (i.e. ECx values) were required per dataset and only tests with measured concentrations were included. In total 29 datasets representing 12 species (including microalgae, invertebrates, and fish), 547 toxicity tests, 3 contaminants (copper (n = 21), nickel (n = 6) and zinc (n = 2)), acute (n = 11 datasets) and chronic (n = 18) endpoints, and EC10 (n = 7 datasets) and EC50 (n = 22 datasets) data were collated (Supplementary Table S1).

All statistical analyses were performed using the statistical environment RStudio (version 1.1.423; RStudio Team 2020) with figures produced using the extension packages ggplot2 (Wickham 2016) and ggpubr (Kassambara 2020).

All data was tabulated into datasets to calculate means, standard deviations, and percentiles. Upper-lower prediction ratios (ULPRs) were used to assess toxicity dataset variability and were calculated as per Meyer et al. (2018) (Eqns 1, 2). Both 90- and 95%-ULPRs were calculated for each dataset using untransformed and log₁₀-transformed data. For the log-transformations all toxicity estimates within a dataset were transformed prior to calculations as per Meyer et al. (2018). Percentiles were calculated as shown in Eqn 3, using the mean toxicity estimate within a dataset, the z-score of normal distribution (Z) and the standard deviation (σ) of the dataset.

Untransformed and transformed data were tested for normality using the Shapiro–Wilk test. ULPRs were compared to a range of 4 and 9, which are the ranges of deviation from observed toxicity values that the factor-of-2 and factor-of-3 rules suggest is a satisfactory fit for bioavailability models.

Several of the lower percentile calculations (i.e. 2.5th and 5th) for the untransformed data were less than 0 and therefore ULPRs could not be calculated. Additionally, several untransformed datasets were not normally distributed (P < 0.05). Therefore, for consistency log-transformed results were discussed in the present study as all log-transformed results were normally distributed (except Ceriodaphnia dubia exposed to copper) and the transformation negates the issues of negative values at lower percentile calculations.

Applying a 95% prediction limit to assess toxicity variability may be unrealistic when considering bioavailability models developed with data pooled from numerous studies, laboratories and timepoints. This is often the case with most models in the literature predicting far less than 95% of data within a factor of 2 (Besser et al. 2021; Brix et al. 2021; Santore et al. 2021), with Peters et al. (2021) suggesting a model be deemed acceptable if 50% of data lies within a factor of 2 and 90% within a factor of 3 for lower effect levels. Based on this, the present study will discuss the results in terms of a 90%-ULPR and results for 95%-ULPRs are provided in Supplementary Table S2 to serve as a direct comparison to other studies.

Additionally, median, geomeans, coefficient of variation (CV) and maximum/minimum ratios (MMR) were calculated with all results provide in Supplementary Table S2. Significant differences between ULPRs was tested using the non-parametric unpaired Wilcoxon test following normality testing with the Shapiro–Wilk test. Standard deviation (s.d.) was used to specify variability (i.e. ±1 s.d.) and ULPRs are expressed as median (interquartile range) throughout.

Across all datasets the range of 90- and 95%-ULPRs were 1.6–12.7 (median: 3.2 (2.8–4.4)) and 1.7–20.6 (median: 3.9 (3.1–5.8)), respectively. All calculations and results for both untransformed and log-transformed data are provided in Supplementary Table S2.

In general, the ULPRs for the EC10 data in the present study do not support the factor-of-2 rule but do support a factor-of-3 rule. The ULPRs for the EC50 data support the factor-of-2 and agree with the findings of Meyer et al. (2018).

There were seven datasets based on EC10 values, which is much less than the 22 datasets based on EC50 values reflecting that EC50 values are more common acceptability criteria in reference toxicant testing (see examples in Stone et al. (2022) and Price et al. (2022)). The seven available EC10 datasets were comprised of 92 toxicity tests across four species (two invertebrates and two microalgae) and two contaminants (copper and nickel) with both acute and chronic data (Supplementary Table S1). The median 90%-ULPR for all EC10 datasets was 5.6 (3.5–7.1) (Fig. 1). Of the seven datasets, only two had 90%-ULPRs <4 (complying with the factor-of-2 rule); however, six of the seven datasets had 90%-ULPRs <9 complying with the factor-of-3 rule as suggested by Peters et al. (2018). The one dataset that fell outside the factor-of-3 rule had a 90%-ULPRs of 12.7 for Chlorella sp. copper EC10 data. Meyer et al. (2018) reported similar increases in variability for Daphnia magna cadmium EC50 data, which was explained by age-related differences in cadmium sensitivity to D. magna neonates. However, this is unlikely the case for Chlorella sp. with this greater variability likely to reflect Chlorella sp. being highly sensitive to copper with a median EC10 value of 0.5 µg Cu L⁻¹, which is close to the instrument detection limits (inductively coupled plasma – atomic emission spectroscopy (ICP-AES)).

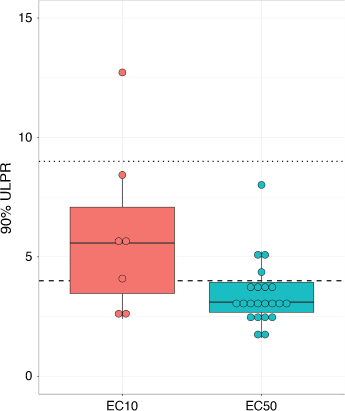

Fig. 1.  Boxplots showing the 90% ULPRs for all EC10 and EC50 datasets. Boxplots span the interquartile range, with median shown, whiskers are 1.5 × IQR. Dots show ULPRs for individual datasets. Dashed line indicates the factor-of-2 rule threshold of 4 and the dotted line indicates the factor-of-3 threshold of 9.

For the EC50 data, 22 datasets comprising 455 toxicity tests across 12 species (invertebrates, microalgae and fish) and three contaminants (copper, nickel and zinc) were available (Supplementary Table S1). In comparison to the EC10 ULPRs, the EC50 ULPRs were lower and less variable (Fig. 1), with the median 90%-ULPR for all EC50 datasets being 3.2 (2.8–4.1) (Table 1). Of the 22 datasets, 18 datasets had 90%-ULPRs <4 and all 90%-ULPRs were <9. The ULPRs for the EC50 data in this study support the factor-of-2 rule and agree with the findings of Meyer et al. (2018).

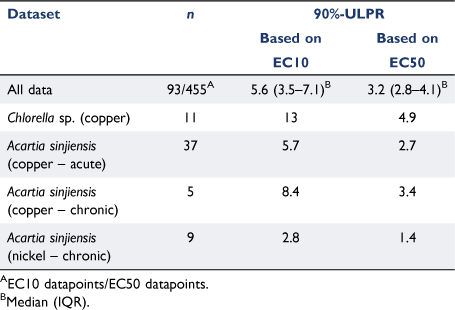

Table 1.  The 90% upper-lower prediction ratios for all EC10 and EC50 datasets and for the contaminant- and species-matched datasets. All individual dataset upper-lower prediction ratios are provided in Supplementary Table S1. n = total datapoints in dataset.

Several contaminant- and species-matched datasets were available, which allowed for the comparison of EC10 and EC50 variability from the same tests (i.e. EC10 and EC50 values derived from the same concentration-response curve), rather than across all datasets. One matched dataset was available for a freshwater microalga, Chlorella sp., exposed to copper and three matched datasets were available for the marine copepod Acartia sinjiensis, exposed to copper (both acute and chronic) and nickel.

When comparing the Chlorella sp. copper matched EC10 and EC50 ULPRs, the EC10 90%-ULPR was much larger, at 12.7, while the EC50 90%-ULPR was 4.9. Larger EC10 ULPRs compared to the matched EC50 ULPRs were also found in the A. sinjiensis data (Table 1). These matched comparisons provide further evidence to support comments of Peters et al. (2018) about larger EC10 variability, especially given these matched EC10 and EC50 values are estimates from the same concentration-response models.

Comparing chronic datasets to acute datasets at both the EC10 and EC50 level did not result in any differences between ULPRs (Fig. 2). When considering all datasets, the 90%-ULPR for EC50 values was not significantly different between chronic and acute datasets (P = 0.08, z = 1.77). The overall median 90%-ULPR for the acute and chronic EC50 values was 2.8 (2.4–3.1), and 3.3 (3.0–4.0), respectively. For the EC10 values, there were limited datasets available for acute toxicity (n = 2); however, ULPRs were similar for both the acute and chronic datasets, as shown in Fig. 2.

Fig. 2.  Boxplots comparing the acute and chronic 90% ULPRs for all EC10 and EC50 datasets. Boxplots span the interquartile range, with median shown, whiskers indicate the 1.5 × IQR. Dots show ULPRs for individual datasets. Dashed line indicates the factor-of-2 rule threshold of 4 and the dotted line indicates the factor-of-3 threshold of 9.

Only three datasets were available to compare contaminant- and species-matched acute and chronic ULPRs, with data available for the marine copepod A. sinjiensis and the marine urchin Heliocidaris tuberculata. A. sinjiensis acute and chronic copper EC50 ULPRs were similar, with acute and chronic EC50 90%-ULPRs of 2.9 and 3.3, respectively. Matched acute and chronic EC50 ULPRs for H. tuberculata had similarly small differences between the two datasets, with acute and chronic EC50 90%-ULPRs of 2.8 and 4.0, respectively. The acute and chronic copper EC10 ULPRs for A. sinjiensis had a larger difference compared to the EC50 ranges above, with acute and chronic EC10 90%-ULPRs of 5.7 and 8.4, respectively.

The comparisons with all datasets and the EC50 contaminant- and species-matched datasets suggest that acute and chronic test variability are similar. In addition, the median values for the acute and chronic 90%-ULPRs were both <4, broadly suggesting that the data, regardless of whether it is chronic or acute, supports the factor-of-2 rule. The EC10 contaminant- and species-matched datasets suggest differences may be present between acute and chronic EC10 data, as the chronic ULPR range is much larger than the acute range. However, this is likely related to the greater variability in EC10 data (discussed earlier), rather than specific differences between acute and chronic data. Furthermore, this variability is based on a single species and contaminant. More data would be useful to assess the differences in variability at the EC10 level for matched acute and chronic data.

Of the 10 EC50 microalgal datasets, 5 were freshwater species and 5 were marine species (Supplementary Table S1). The median EC50 90%-ULPRs for the freshwater and marine species were 4.0 (3.8–4.4) and 2.9 (2.7–3.1), respectively. These were not significantly different (P = 0.095, z = 1.77), but the marine species did generally appear to have lower ULPRs (Supplementary Fig. S1). As freshwater microalgal species are the current focus of algae bioavailability modelling, the discussion will focus on these results (DeForest et al. 2020; Croteau et al. 2021). All data analysis and results for the marine species are provided in Supplementary Table S2, and the results were similar to the freshwater species.

The 90%-ULPR for freshwater microalgal EC50 data ranged from 3.2 to 8.0, with a median value of 4.0 (3.8–4.4). Based on the median, the factor-of-2 rule may be suitable, with 3 of the 5 datasets with ULPRs <4, however a factor-of-3 rule appears more applicable with all ULPRs <9.

Comparing the freshwater microalgae and non-algal species ULPRs shows a small, yet significant difference (P = 0.027, z = 2.27), with non-algal species having a slightly lower median 90%-ULPR of 2.9 (2.4–3.3) compared to the 4.0 (3.8–4.4) for microalgae (Fig. 3). When comparing the microalgae ULPRs to other commonly used taxa for bioavailability modelling, such as daphnids and fish, the ULPRs for microalgae were similar. The only daphnid dataset in the present study was for C. dubia exposed to copper, which had a 90%-ULPR of 3.1. The D. magna data used in Meyer et al. (2018) had a median 90%-ULPR of 2.4 and P. promelas had a median 90%-ULPR of 3.5. In general, the microalgal test variability does not appear to be much larger than non-algal species.

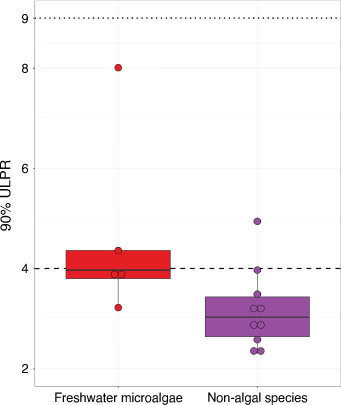

Fig. 3.  Boxplots comparing the 90% ULPRs for all freshwater microalgae and non-algae EC50 datasets. Boxplots span the interquartile range, with median shown, whiskers indicate the 1.5 × IQR. Dots show ULPRs for individual datasets. Dashed line indicates the factor-of-2 rule threshold of 4 and the dotted line indicates the factor-of-3 threshold of 9.

Reference toxicant data is routinely generated during contaminant toxicity studies, however the data is rarely published. Publication of such data would enable expansion of the present study to other organisms, contaminants and effect levels allowing for further assessment of validation techniques for bioavailability modelling. This would also allow for inter-laboratory comparisons which is important given most bioavailability models are developed using data from numerous sources. However, care is needed when making such comparisons as different laboratories do not necessarily use the same culture and/or testing media.

The data in the present study indicated that the factor-of-2 rule is broadly applicable for metal toxicity to a range of species for EC50 data, generally agreeing with the previous analysis by Meyer et al. (2018). The EC10 data highlighted that larger variability exists in low effect levels and supported the use of the factor-of-3 rule as recommended by Peters et al. (2018). Overall, either the factor-of-2 or factor-of-3 rule could be applied to microalgal data and the rule chosen for model performance evaluation may depend on the application of the bioavailability model. Given that most bioavailability models are developed using data from numerous sources, future assessments of inter-laboratory variability for matched tests (i.e. the same species and conditions) would be valuable. However, this may be difficult as differences in sensitivities can arise from small changes in water chemistry between laboratories and strains of the same species.

The data that support this study are available in the article and accompanying online supplementary material. Code (R) used to make calculations reported in the article can be made available upon request to the corresponding author.

There are no conflicts to declare.

Gwilym Price was supported by an Australian Government Research Training Program Scholarship.

Supplementary material is available online.
