When are metal complexes bioavailable?

In the aquatic environment, metals are found in numerous forms including the hydrated free ion, inorganic complexes (with ligands such as Cl^–, OH^–, CO₃^2–), organic complexes (with simple organic molecules of biogenic or anthropogenic origin, and with natural organic matter, NOM); colloidal and other solid-phase forms may also be present. Metal partitioning among the different forms is a dynamic process that depends on the type and concentration of ligands, temperature, pH and redox conditions of the medium.^[1–3] In natural aquatic systems, many metals are mainly found as complexes and in colloidal forms, often at concentrations that are much greater than that of the free metal ion.^[4] Nonetheless, the general consensus for cationic metals is that the concentration of the free metal ion is the best predictor for both metal bioaccumulation and toxicity in aquatic systems.^[2,5] The strong observed dependency of biological effects on the concentration (activity) of the free ion has been attributed to the rapid equilibration of the metal forms in solution with toxicologically sensitive sites on the biological surface,^[2,6,7] which is the basis of both the Free Ion Activity model (FIAM) and Biotic Ligand model (BLM). A general misconception is that the FIAM and BLM imply that the free ion is the only toxic species in solution. In fact, this is not necessarily the case; the models simply rely on the direct (linear) relationship between the free ion and the surface-bound metal species responsible for biological effects, a relationship that prevails when the species are at equilibrium. Note that whereas the equilibrium assumption is likely valid for metals equilibrating among microorganisms and inorganic ligands in the water column, it is less clear whether it will be valid in more complex media such as soils, sediments and biofilms or in the presence of heterogeneous ligands such as humic substances.^[3]

For uptake and biological effects to occur, the metal must first be transported from the bulk solution to the biological surface (Fig. 1). During transport, many of the metal complexes are dynamic, implying that they undergo numerous complexation–dissociation reactions in the time that it takes to reach the surface of the organism. Generally speaking, metal equilibration (adsorption–desorption) with the surface of the organism will occur next, followed by the facilitated transport of the metal into the organism (uptake). In the FIAM/BLM, the transport of metal across the biological membrane (internalisation) is assumed to be rate-limiting, with biological effects resulting directly from the binding of metals to the ‘biotic ligands’. In such a case, the metals in solution are at an apparent equilibrium (steady-state conditions) with the biological surface and it follows that uptake (proportional to the concentration of metal bound to surface-bound metal transporters) and even toxicity (proportional to metal uptake flux) can be related back to the trace metal speciation in solution (by the equilibrium stability constants, K).

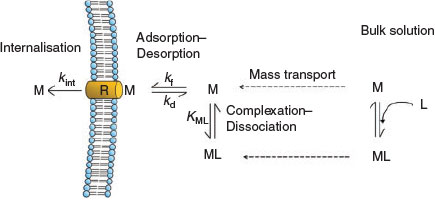

Fig. 1.  Main processes involved in trace-metal uptake. M represents a metal of interest whereas ML is a metal complex with the ligand L, and K_ML represents the stability constant of the metal complex. R represents a biotic ligand on the surface of the organism (often a metal transporter). The parameters k_f and k_d represent the formation and dissociation rate constants of the metal with the biotic ligand; k_int represents the internalisation rate constant of the metal across the cell membrane.

Metal uptake and toxicity are not always well predicted by the concentration of free metal ion.^[2,3,7,8] Indeed, there are several classes of exceptions whereby metal complexes are known to contribute to bioavailability: (i) intact metal complexes are internalised by the organism (either by simple diffusion across the lipid bilayer or by transport across the lipid bilayer via a ligand transport site); (ii) metal complexes react with sensitive sites (i.e. biotic ligands) on the organism surface (ternary complex formation); (iii) metal complexes dissociate and increase the local free-metal-ion concentrations in the boundary layer close to the organism surface. In the present paper, we summarise the studies where the classic models appear to fail and organise them into five categories based on the uptake pathways and kinetic processes involved. Our aim is to summarise the mechanisms involved in the interaction of metal complexes with organisms and to improve the predictive capability of the classic models when dealing with complexes.

It has been known for many years that uncharged, lipophilic metal complexes can passively diffuse through the lipid bilayer of biological membranes. The passive diffusion of metal complexes has been observed for complexes involving synthetic organic ligands, including 8-hydroxyquinoline (Ox), diethyldithiocarbamate (DDC) and ethylxanthate (XANT),^[9–11] and for inorganic metal complexes such as HgCl₂⁰.^[12] The passive diffusion of AgCl⁰ remains questionable. Indeed, although several authors have attributed increased bioaccumulation to the passive diffusion of AgCl⁰ in marine diatoms and salmonids, for the green alga Chlamydomonas reinhardtii, Fortin and Campbell were able to show that enhanced Ag biouptake resulted from increased mass transport and dissociation of the complex under conditions of diffusion limitation (see Dissociation of labile metal complexes section below).^[13–15]

In these cases, metal complexes are thought to be taken up in a similar manner to hydrophobic organic contaminants, which are simply partitioned between the water and the phospholipid bilayer of the cell membrane. In such a case, metal complexes could diffuse into the cytosol where the metal could dissociate from the complex and bind with intracellular ligands.^[10] This implies that the bioaccumulation of lipophilic metal complexes would not simply be dependent on complex permeability (or the octanol–water partition coefficient, K_ow, of the complex) but rather would be driven to some extent by the re-equilibration of the complex within the cell. For example, whereas (CH₃)₂Hg and Hg⁰ have higher hydrophobicity than HgCl₂ and CH₃HgCl, their bioaccumulation by a marine alga (Thalassiosira weissflogii) is lower, presumably because elemental mercury and dimethylmercury do not readily form complexes with intracellular ligands.^[12]

Generally speaking, the observed uptake rates of lipophilic metal complexes are usually at least an order of magnitude higher than their hydrophilic metal counterparts,^{[10,11,16,17]} which makes this mechanism potentially important for certain metals. Furthermore, uptake is sensitive to the pH of the medium, with a decreased bioaccumulation of the lipophilic metal complexes at low pH, potentially due to a reduction in the electrostatic repulsion between adjacent phospholipids, leading to their tighter packing and a decreased membrane permeability.^[11,18,19]

With the exception of what is known about such hydrophobic metal species as the methylated forms of Hg, Sn, As and Sb^[20–22] and the hydrophobic complexes described above, it is currently unclear to what extent lipophilic ligands are present in natural systems. Owing in large part to the analytical difficulties associated with measurements of (likely low concentrations of) hydrophobic complexes in aquatic systems, few data are available to estimate metal uptake fluxes for these species. One exception is the work of Turner and Mawji who used C-18 and liquid–liquid extractions to quantify and characterise the hydrophobic fraction of dissolved metals in natural waters.^[23] Their octanol–water partition coefficients indicated that the hydrophobicity of metal complexes was both pH- and metal-dependent,^[24,25] reaching a maximum in the range of pH 7–8, where the overall charge of the metal complexes was thought to be very low. Some of the metal complexes with dissolved organic matter (DOM) were also shown to be hydrophobic, and their prevalence was related to the nature, origin and concentration of the DOM^[26] (Box 1).

Hydrophilic metal complexes cannot passively diffuse through biological membranes, but some have been found to enter the cell using transport systems meant for ligands. This mechanism has been observed for ligands with established biological functions and their own specialised channels or transporters.^[27,28] For example, for some bacteria, citrate, which can be used as a carbon source,^[29,30] is taken up by citrate transporters (e.g. CitM and CitH). Furthermore, citrate has been shown to be transported in the form of a complex with Ca²⁺, Cd²⁺, Co²⁺, Mg²⁺, Mn²⁺, Ni²⁺, Pb²⁺, Sr²⁺ or Zn²⁺, transport rates being related to the specific size of the metal ion.^[30] Metals taken up by this pathway can enter cells at a faster rate than metals entering by the cation transporters. In observations made using the green alga Pseudokirchneriella subcapitata, Cd uptake was 2 times faster in the presence of citrate than when similar concentrations of free Cd were buffered by nitrilotriacetic acid (NTA).^[31] Furthermore, for a constant concentration of Cd²⁺ (0.25 µM), growth inhibition increased from 50 % of control values to 70 % of control values as the concentration of the Cd–citrate complexes increased from 0.077 to 1.47 µM.

Iron complexes with siderophores are another class of species that can be directly incorporated into cells by transporters that are specific to the siderophores. In the open ocean, where the concentration of free iron is extremely low (<10^–18 M), many bacteria and fungi have evolved specific pathways in order to acquire iron for growth. Numerous microbes (nearly all fungi) can excrete siderophores, which have an extremely high affinity for iron (log K ~10¹⁹ to 10²³)^[32] and will complex Fe^III extracellularly. In this case, the uptake of Fe^III–siderophore complexes is mediated by transport proteins that are found only in microorganisms.^[33]

For other inorganic ligands, such as thiosulfate and phosphate, similar situations have been observed. For example, silver–thiosulfate complexes are taken up by algal cells (Chlamydomonas reinhardtii) at higher fluxes than free Ag.^[34] In this case, evidence that uptake was occurring over the sulfate transport system was provided by the observation uptake was significantly inhibited by the addition of sulfate. Nonetheless, the toxicity induced by the silver–thiosulfate complexes was not as important as that due to silver ions,^[35] again demonstrating the importance of the intracellular fate of metal complexes once assimilated. Finally, although it is extremely difficult to distinguish transport of the complexes from that of a co-transport of inorganic phosphate and the metal ions, some bacteria (Escherichia coli^[36]; Arthrobacter sp.^[37]) are thought to internalise metals in the form of neutral metal phosphate complexes (MeHPO₄) by their phosphate transporters. In this case, divalent metal complexes (e.g. Cd and Zn) exerted additional toxicity on the bacteria, which also depended on the pH (greater toxicity was observed at higher pH values).^[37] Clearly, the role of ligands such as phosphate, which is independently required as a nutrient element by some organisms, requires further study.

In a final example of a ligand transporter being used by metal complexes, it has been observed in plants and using molecular modelling that some metalloids, especially arsenic (As) and antimony (Sb), can be transported through the aquaglyceroporins, which are channels that are specific for the transport of water, glycerol and other small, uncharged solutes (similar conformations prevail among As(OH)₃, Sb(OH)₃ and glycerol).^[38,39] Similarly, owing to its structural similarities to phosphate, As^V, in the form of AsO₄^3–, is known to be accumulated through phosphate transporters in E. coli, yeast and mammals.^[40,41] Owing to this dependency on transporters that are designed for nutrients, the toxicity induced by the metalloids is highly dependent on nutrient exposure concentrations and conditions (Box 2).

It is often assumed that the biotic ligand, <–R>, binds to the free metal ion, either directly or by ligand exchange, to yield <M–R>. However, several cases of bioavailability enhancements, resulting from the apparent formation of a ternary complex on the biological surface, <L–M–R>, have also been documented.^[42–45] In these cases, toxicity or bioaccumulation data were best explained by taking into account the interaction of a metal complex with the biotic ligand <L–M–R>, most often in addition to the contribution of the free metal ion <M–R>. An underlying assumption is that the site of toxic action occurs on the biological surface and not intracellularly.

Direct physical evidence for the presence of a ternary complex on the biological surface is difficult to obtain. Chemical extractions using strong ligands such as EDTA^[46] cannot always distinguish unambiguously between a surface-bound and internalised metal. This especially appears to be the case for the trivalent metals. Techniques such as solid-state nuclear magnetic resonance spectroscopy and synchrotron-based X-ray microscopy have been used to probe for the presence of ternary complexes on biological surfaces. For example, the formation of AlF_x ternary complexes on cells obtained from fish gills (Micropterus salmoides) was demonstrated by ¹⁹F nuclear magnetic resonance,^[42] whereas Hg L_III-edge X-ray absorption near-edge spectroscopy (XANES) showed that ternary complexes involving Hg–EDTA and the biological surface were unlikely. Experiments using radiolabelled ligands can also show when ligands are not taken up by the organism.^[45,47] In such cases, either an equilibrium or a kinetic explanation can be put forward to account for enhanced uptake. For example, for cases where metal adsorption–desorption kinetics are rate-limiting, the formation of the mixed-ligand complex at the cell surface (especially for inorganic ligands, such as hydroxide and chloride) can accelerate the water loss rate of the metal, thus increasing the rate of biouptake (mechanism 5 below).^[48] Otherwise, the biological effect can simply be related to the total concentration of metal bound to the biotic ligands on the surface of the organism (i.e. the sum of the equilibrium concentrations of <M–R> and <L–M–R>). In this case, the use of an equilibrium model (such as the BLM) that uses multiple equilibrium constants (K_MR, K_LMR, etc.) would be an appropriate means by which to predict biological effects.

The formation of ternary complexes has been postulated to occur for both divalent metals, including Pb^[43,49,50] and Zn,^[44,51] and trivalent metals such as Al,^[42,52] Sc,^[53] Eu^[47] and Tm.^[45] Indeed, Aristilde et al.^[44] suggested that the formation of ternary complexes may be universal, irrespective of the specificity of the metal or ligand. They found a linear relationship between an enhancement of Zn uptake and the concentration of Zn–cysteine complexes in the presence of cysteine and EDTA (cysteine still inhibits Zn uptake if only the cysteine is present, which rules out the possibility of mechanism 2). Zhao and Wilkinson^[45] found that an observed increase in Tm uptake (above what was observed in the absence of complexes) could be related to the concentrations of the dominant Tm species (including both 1 : 1 and 1 : 2 complexes with malate and citrate). As would be expected for a fixed ligand concentration, the contribution of the complexes is generally more significant for low concentrations (proportions) of free ion, where the metal complexes predominate. As is often the case for metal uptake of the free cation, the formation of the ternary surface complexes also appears to follow a saturable Michaelis–Menten-like function.^[45]

It is unclear to what extent the nature of the metal–ligand complex plays a role with respect to its ability to form ternary complexes at the biological surface. In order for ternary complexes to contribute to biouptake, the dissociation of L from <L–Tm–R> needs to occur at a faster rate than the dissociation of Tm–L from the same sites. In other words, in the ternary complex L–M–R, the M–L bond must be weaker than the M–R bond. It follows that weaker metal complexes or those with a greater affinity with the metal uptake site are likely to contribute more to bioaccumulation. Such determinations would be consistent with results showing that algae grown in Zn-limited environments and having developed an enhanced uptake capacity can use Zn–cysteine complexes more efficiently than Zn-replete algae, potentially owing to the increased affinity of the Zn transporter.^[44,54] Nonetheless, for metals that are very strongly bound to biotic ligands, metal dissociation kinetics are likely to be limiting.

In the presence of NOM, such as humic or fulvic acids, the role of ternary complexes must be evaluated with great care. Although Lamelas et al. found that Pb biouptake was clearly enhanced in the presence of NOM,^[43] i.e. Pb uptake was greater than what would have been expected given the free Pb²⁺ concentration, alternative explanations to the formation of a ternary complex can be proposed. As mentioned above, it is sometimes difficult to distinguish between surface-bound and internalised metals using chemical extraction techniques. In addition, purely physiological effects caused by increased nutrient availability or decreased light in the presence of NOM also need to be evaluated.^[55–58] Furthermore, NOM adsorption to biological surfaces can increase their overall negative surface charge,^[59] thereby enhancing their overall electrostatic attraction for cations. Nonetheless, even when taking these other explanations into account, Lamelas and Slaveykova estimated that most (57–95 %) of the Pb internalisation in the presence of 10 mg L^–1 of humic acid could be attributed to the formation of ternary complexes ([Pb²⁺], nanomolar to micromolar scale). However, for Cd under similar experimental conditions, ternary complexes did not appear to contribute to biouptake^[49] (Box 3).

The basic assumption of the equilibrium models (FIAM and BLM) is that metal species in the bulk solution are in (pseudo)-equilibrium with the surface of the organism. In other words, metal biouptake is rate-limiting and the concentrations of each of the metal species in solution are the same as those in the boundary layer at the biological interface. In contrast to this assumption, several examples in both defined media and natural waters have been documented for which the mass transport of the metal to the cell surface is the rate-limiting step.^[60–62] In these cases, biologically reactive metal species (e.g. free M^z+) are depleted in the diffusion layer next to the organism. To restore equilibrium, ‘labile’^A metal complexes are able to dissociate, thus providing an extra source of free ions to the organism. According to this scenario, both physical transport (size of the complex) and chemical reactions (kinetic lability of the metal complex) will then affect metal bioaccumulation,^[3] which will not necessarily be proportional to the concentration of the free ion in the bulk medium, but rather some combination of the free ion and labile metal complexes.

A diffusive limitation is usually identified by comparing the metal internalisation flux with the calculated maximum diffusive flux.^[14,61,63] Diffusive limitation can also be inferred from fluxes determined by the diffusive gradients in thin films (DGT) technique,^[64] from free-metal-ion gradients close to biological surfaces, as measured by microelectrode arrays,^[65,66] or from changes in biouptake under different flow conditions.^[64,67,68] In the environment, a mass transport limitation (and thus potential contribution of labile complexes) is often observed: (i) for very low concentrations of metals (picomolar to nanomolar levels)^[14,61,64]; (ii) in constrained media such as sediments, soils or biofilms, where metals have much lower diffusion coefficients^[69]; or (iii) for nutrients and metals with high biouptake fluxes (e.g. PO₄^3–, Ag).^[14,70] For example, for Chlamydomonas reinhardtii, metal uptake occurs in the order: Ag > Pb ≈ Cu > Cd ≈ Zn ≈ Mn, with an Ag uptake flux that is nearly one order of magnitude higher than that for Pb.^[71] Indeed, as mentioned earlier, AgCl complexes were shown to contribute to biouptake for C. reinhardtii^[14] and the authors concluded that the increased bioaccumulation was due to the lability of AgCl_n^(n–1)– complexes, rather than to passive diffusion of the uncharged metal species through the biological membrane. This interpretation was supported by subsequent reanalysis of the data by Pinheiro et al.^[72]

Under conditions of a diffusion limitation, both the ligand properties and the size of the organisms will influence metal bioavailability through their influence on mass transport. Thus, for a given stability constant, a metal that is bound to a small ligand will be more bioavailable than the same metal bound by a macromolecule. Interestingly, this implies that the bioavailability of Ag nanoparticles will be reduced in line with the reduction of their diffusive flux (which would scale with the reciprocal particle diameter).^[73] Because organisms in biofilms and macro-organisms generally have less efficient mass transport than unicellular microorganisms (planar diffusion instead of radial diffusion),^[74,75] they are also more likely to encounter diffusive limitation. Because labile complexes can contribute to metal uptake under a mass-transport limitation, equilibrium models (e.g. BLM) are not useful predictors of metal accumulation or toxicity under these conditions (Box 4).

Complex lability is dependent on the intrinsic characteristics of the metal ion, i.e. on the water loss rate constant of the hydrated free ion (k_–w, Eigen–Wilkins mechanism).^[76,77] Metals with lower k_–w values such as Al, Cr^III, Fe^III, Ni and Co are likely to react slowly with the biotic ligand/transport site and the dissociation rate of these metals from their transporters back into the boundary layer could be lower than their internalisation rates. In this case, metal uptake would be kinetically controlled.^[6,48] Unfortunately, for conventional experiments conducted with chelators, it is often difficult to distinguish metal uptake under kinetic control from a thermodynamically controlled uptake. Elegant experiments have been performed by Hudson and Morel,^[78] who used pulse-chase experiments^B to show that Fe uptake was kinetically controlled for two species of marine phytoplankton (the dissociation rate constant of the Fe from the biotic ligand was lower than the Fe internalisation rate constant), and in direct contradiction to the equilibrium assumption of the FIAM and BLM. In that case, the kinetically controlled metal uptake rate depended on the total concentration of inorganic metal, mainly Fe(OH)₂⁺, Fe(OH)₃ and Fe(OH)₄^–; these hydroxo-complexes have faster ligand exchange rates than Fe³⁺ (Eigen–Wilkins mechanism).^[78]

Note that the intrinsic properties of the biotic ligand are critical to whether metal uptake is thermodynamically or kinetically controlled.^[6] The kinetically controlled uptake of Fe was observed with Fe-stressed algae that had a large number of strong-affinity transporters, but this was not the case for Fe-replete algae.^[78] In a more recent example, Thomas et al.^[79] demonstrated increased bioavailability of Hg in the presence of Hg–EDTA complexes and suggested that this enhanced uptake was likely due to a ligand exchange reaction between the complex (Hg–EDTA) and the biotic ligand R on the surface of E. coli. Because no spectroscopic evidence could be obtained for the presence of a ternary complex <EDTA–Hg–R>, their results suggested that the presence of EDTA may have accelerated the exchange of Hg with the uptake site. There remain very few well-documented cases of kinetically controlled uptake of a trace metal (Box 5).

As seen above, our knowledge with respect to metal bioavailability has greatly evolved over the past 25 years, progressing largely (but not entirely) from equilibrium concepts that mainly considered the contribution of the free ion^[1] to dynamic systems where several factors, including the intrinsic properties of the metal and ligand,^[34,80] their respective concentrations, organism characteristics such as size,^[64,81] media properties and the kinetic behaviour of the metal–ligand system^[78,82] are considered. In many cases, equilibrium models are a reasonable simplification of the real-world system, such that simple relationships should be obtained that relate metal speciation to biological effects. Indeed, the BLM has often been an extremely useful construct for explaining the effect of trace-metal complexation or metal–metal interactions in well-controlled, (often) laboratory-based experiments. Nonetheless, as the five classes of exceptions demonstrate, for many systems, metal complexes will need to be taken into account and kinetic aspects considered when one attempts to relate trace-metal speciation to biological effects.

In all cases, speciation measurements will be the key to making well-founded predictions of biological effects. However, just as physicochemical conditions and organism characteristics affect metal bioavailability, these same factors will also determine which chemical species are detected by a chemical sensor (its size, accumulation rate, etc.). In other words, in order to improve our ability to predict the effects of metals in the environment, it will be necessary to improve our theoretical understanding of both speciation techniques and metal bioaccumulation. Furthermore, the FIAM and BLM consider the interaction between metal and organism largely from a chemical perspective, even though metal uptake can also be affected by the physiology of an organism. For example, because stronger binding between the metal and transporter can affect its dissociation rate, an organism in metal-replete media could theoretically shift from pseudo-equilibrium conditions where metal complexes are not bioavailable to a kinetically controlled uptake where the biouptake rates are determined by the rate of metal exchange between complex in solution and the biotic ligand. Similarly, whereas the role of NOM is often thought of in terms of its ability to complex metals, physiological changes induced by the interaction of the NOM with the organism cannot be ignored.^[55,83–85]

The overwhelming advantage of equilibrium models such as the BLM is their simplicity in taking into account the effects of complexation and cation competition on trace metal uptake and toxicity. However, for many of the examples where trace metal complexes appeared to be bioavailable, equilibrium conditions may not exist. In such cases, the construction of a dynamic model, taking into account mass transport and chemical kinetics, would be necessary to improve our predictive capacity of metal bioavailability. Whereas this may prove to be essential for some environmental media (such as soils, sediments and biofilms), it is clear that such models would require a much larger number of input parameters and may be difficult to implement within the perspective of environmental regulation. The identification of rate-limiting steps and further research into some of the likely exceptions (e.g. trivalent metals, hydrophobic complexes) will be an important first step for advancing our knowledge of trace metal bioavailability and producing effective tools to identify the associated risks (Fig. 2).

Fig. 2.  Schematic figure illustrating the five major exceptions to classical (equilibrium) models when predicting the bioavailability of metal complexes. M represents the metal of interest whereas ML represents the metal complex with ligand L. K_ML is the stability constant for the formation of ML. R represents a biotic ligand on the surface of the organism (often metal transporter). The parameters k_f and k_d represent the formation and dissociation rate constants of the metal with the biotic ligand; k_int represents the internalisation rate constant of the metal across the cell membrane. D_M and D_ML represent the diffusion coefficients of M and ML. Type 1 is the passive diffusion of lipophilic metal complexes. Type 2 represents the uptake of hydrophilic metal complexes through a ligand transporter system. Type 3 is reaction of a complex with a biotic ligand at the cell surface (ternary complex). Type 4 represents an example where labile metal complexes can contribute to metal uptake (mass-transport limitation). Type 5 represents the situation where metal exchange between the exposure medium and the biotic ligand is rate-limiting (k_int >> k_d). For the type 1 to type 4 exceptions, several representative examples from the literature have been summarised in Tables S1–S4 (Supplementary material).
