¹H NMR-based metabolomic observation of a two-phased toxic mode of action in Eisenia fetida after sub-lethal phenanthrene exposure

Additional keywords: concentration-dependence, contact tests, LC₅₀, metabonomics.

Earthworms have been used in ecotoxicological studies as indicators of soil toxicity^[1–3] and are considered to be excellent model organisms, because they are exposed to soil contaminants by both ingestion and via passive absorption.^[1,4,5] There are many studies that have examined the exposure of earthworms to lethal contaminant concentrations that result in mortality to 50% of the population; lethal dose (LD₅₀) or lethal concentration (LC₅₀).^[1,4,5] However, these studies may not provide sufficient information concerning the toxic mode of action (MOA) of a given contaminant. Currently studies that explore changes in cellular metabolism, such as fluctuations in synthesis and breakdown of simple metabolites like amino acids and sugars due to exposure to very low or sub-lethal concentrations of contaminants, are lacking.^[2,6,7] Sub-lethal contaminant exposure also results in adverse changes to the physiology of organisms.^[8,9] Monitoring fluctuations in metabolite levels in response to sub-lethal contaminant exposure can potentially lead to an elucidation of the contaminant’s MOA.^[10,11]

Nuclear magnetic resonance (NMR)-based metabolomics offers a reliable, reproducible and high-throughput platform that is currently being utilised to study earthworm responses to sub-lethal exposure of contaminants in both contact and soil exposure tests.^{[1–3,12–15]} Recent metabolomic studies with polycyclic aromatic hydrocarbons (PAHs) have suggested that the earthworm responses are concentration-dependent, but these studies did not assess whether or not the toxic MOA could be ascertained over a wide range of ultra-low sub-lethal concentrations.^[12,16,17] For example, Brown et al.^[12] suggested that Eisenia fetida earthworm metabolic responses may be correlated with contaminant concentration but their study only included three different exposure concentrations and did not clearly identify the MOA. Soil exposure studies have shown that there is a positive linear correlation between earthworm metabolomic responses and PAH concentration.^[16,17] These pioneering studies demonstrate the promise of NMR-based metabolomics as a novel soil testing tool; however, further studies are needed to test the ability of earthworm NMR-based metabolomic methods as a routine tool in the ecotoxicological assessment of PAHs in the environment. PAHs are prolific and persistent in soils,^[18–20] thus developing better tools to monitor their risk to soil organisms is needed.

In the present study, the metabolic response of the earthworm Eisenia fetida to ultra-low sub-lethal phenanthrene exposure in contact tests was examined using ¹H NMR analysis of earthworm tissue extracts in combination with multivariate statistical methods. We specifically test if ¹H-NMR metabolomics can be used over a wide range of sub-lethal concentrations (i.e. fractions of the LC₅₀), which is important before metabolomics can be used as a widespread tool for elucidating sub-lethal toxic responses in soil environments.^[21,22] Furthermore, by using six, sub-lethal concentrations, we hope to build upon previous studies^[12,17] and determine if NMR-based metabolomics can be used to ascertain the MOA over a wide range of sub-lethal phenanthrene concentrations. We report on the metabolomic responses of Eisenia fetida (the recommended earthworm species for use in toxicity tests by the Organization for Economic Cooperation and Development (OECD))^[3,12,23] after exposure to six sub-lethal concentrations of a model PAH,^[24,25] phenanthrene, ranging from 0.8 to 0.025 mg cm^–2, which are 1/2 to 1/64th of the LC₅₀ respectively. Metabolites that have the potential to be reliable indicators of phenanthrene exposure over a wide range of sub-lethal concentrations were also monitored to further build upon previous results^[12,17] with the main goal of further determining the potential of NMR-based metabolomics as an ecotoxicity tool for soil contaminants.

The 48-h LC₅₀ of phenanthrene, using a concentration range from 0.016 to 10.4 mg cm^–2, was determined using the contact filter paper test as described by the OECD Guidelines.^[23] The LC₅₀ for the OECD recommended reference substance, chloroacetamide, was also measured to assess the accuracy of the method. Standard 30-mL glass vials with Polytetrafluoroethylene (PTFE)-lined caps (Kimble Glass Inc., Fisher Scientific), which are recommended by the US Environmental Protection Agency,^[26] were lined with Whatman no. 1 filter papers. Dichloromethane (DCM) was used as the carrier solvent. For all compounds, 1 mL of the carrier solution was added into each vial and evaporated under a slow stream of filtered, compressed nitrogen gas. In all cases, 1 mL of DCM was added to control vials (ten replicates) and vented. All vials were then vented for 4 h.

For chloroacetamide, five concentrations between 0.05 and 31.25 μg cm^–2 were evaluated. A preliminary range-finding with five logarithmic concentrations of phenanthrene (between 0.001 and 10.0 mg cm^–2) was first conducted. This range was narrowed down to 0.016 to 10.4 mg cm^–2 (six concentrations), with ten worms per exposure concentration. Earthworms were depurated for 3 h to void the intestinal tracts. A single, mature earthworm, weighing between 300 and 600 mg was added to each vial and 1 mL of deionised water was added to moisten the filter paper. All vials were stored on their side in the dark at ambient room temperature. After 48 h, mortality was determined. LC₅₀ values were calculated using the Trimmed Spearman–Karber Program Version 1.5 with automatic trim selected.^[26,27] The LC₅₀ value for chloroacetamide was 3.9 μg cm^–2 (95% confidence interval of 2.6 to 5.8 μg cm^–2). This is in good agreement with the reported value of 2.7 μg cm^–2 for chloroacetamide.^[28]

Mature earthworms (Accessory publication, ‘Earthworm maintenance prior to contact tests’ section) were depurated in the dark for 96 h to empty their intestinal tracts before exposure tests.^[3] Earthworms were exposed to six concentrations of phenanthrene: 0.8, 0.4, 0.2, 0.1, 0.05 and 0.025 mg cm^–2 (corresponding to: 1/2, 1/4th, 1/8th, 1/16th, 1/32nd and 1/64th of the measured 48-h LC₅₀ respectively). Filter papers were placed in amber glass jars before the addition of phenanthrene solutions (1 mL in chloroform).^[12] For comparison to non-exposed earthworms (control set), only chloroform was added to filter papers (without phenanthrene).^[12] The chloroform in all jars (exposed and controls) was allowed to evaporate and then 1 mL of distilled water was added before addition of earthworms. Twelve earthworms per exposure concentration were used and 12 earthworms comprised the control set (without phenanthrene added to filter papers). The glass jars were kept in the dark for 48 h.^[23] Earthworms were then flash-frozen in liquid nitrogen, lyophilised and stored frozen until extraction.^[3,15]

Lyophilised earthworms were homogenised in a 1.5-mL centrifuge tube using a 5 mm-wide stainless steel spatula.^[15] The homogenised earthworm tissue was then extracted using 1.20 mL of a 0.2-M monobasic sodium phosphate buffer solution (NaH₂PO₄·2H₂O, 99.3%, Fisher Chemicals) containing 0.1% (w/v) sodium azide (99.5% purity, Sigma Aldrich) as a preservative.^[3] Buffer solution was made with D₂O (99.9% purity, Cambridge Isotope Laboratories) and adjusted to a pD of 7.4 using NaOD (30% w/w in 99.5% D₂O, Cambridge Isotope Laboratories Inc.). The buffer solution also contained 10 mg L^–1 of 2,2-dimethyl-2-silapentane-5-sulfonate sodium salt (DSS, 97%, Sigma Aldrich) as an internal standard.^[3,12] Samples were vortexed for 30 s and then sonicated for 15 min to aid with the extraction. Samples were then centrifuged at 14 000 rpm (~15 000g) for 20 min at room temperature (24°C) and the supernatant was transferred into a new 1.5-mL centrifuge tube. The centrifugation procedure was repeated twice more to remove any additional particulates. Samples were then transferred into 5-mm High Throughput^plus NMR tubes (Norell Inc., NJ, USA) for ¹H NMR analysis.

¹H NMR spectra of the earthworm extracts were acquired with a Bruker Avance 500 MHz spectrometer using a ¹H–¹⁹F–¹⁵N–¹³C 5-mm Quadruple Resonance Inverse (QXI) probe fitted with an actively shielded Z gradient. ¹H NMR experiments were performed using Presaturation Using Relaxation Gradients and Echoes (PURGE) water suppression, 128 scans, a recycle delay of 3 s, and 16 K time domain points.^[29] Spectra were apodised through multiplication with an exponential decay corresponding to 0.3-Hz line broadening in the transformed spectrum, and a zero filling factor of 2. All spectra were manually phased and calibrated to the DSS internal reference methyl singlet, set to a chemical shift (δ) of 0.00 ppm.

Multivariate statistical analyses were performed on processed ¹H NMR data using the AMIX 3.8.4 (Bruker BioSpin, Rheinstetten, Germany) statistics tool to identify differences in the metabolic profiles of E. fetida following phenanthrene exposure. The ¹H NMR spectra were analysed between δ of 0.5 and 10 ppm and divided into 0.02 ppm-wide buckets, for a total of 475 buckets.^[30] The area between δ = 4.70 and 4.85 ppm was excluded to eliminate the small residual H₂O/HOD signals. The integration mode was set to the sum of intensities and the spectra were scaled to total intensity.^[12,15] This created a matrix in which each row represents an earthworm sample and each column contains the integrated area of the original spectral intensities contained within each bucket region. Individual principal component analysis (PCA) and partial least-squares discriminant analysis (PLS-DA) scores plots were calculated to compare the metabolic response of the control and exposed worms for each exposure level. PCA is an unsupervised statistical method that identifies the maximum variation in data.^[31] However, PLS-DA is a supervised statistical method that identifies variation between groups (for example, between controls and phenanthrene exposed worms).^[31,32] The R²X and R²Y values, which denote the explained variance of X and Y respectively were obtained for PLS-DA.^[33,34] The PLS-DA models were also cross-validated (internal cross-validation) using leave-one-out cross-validation (LOOCV) and the cross-validated R²Y value (reported as Q²Y) was also obtained to determine the robustness of the model (Accessory publication, ‘Calculation of Q²Y of partial least-squares regression models’ section).^{[12,16,34,35]} Levene’s test was used to test for variance homogeneity among the PCA and PLS-DA scores, which were found to have equal variances at α = 0.05.^[36] A t-test (two-tailed, equal variances) was also performed on the first and second component PCA and PLS-DA scores to determine if there was a significant difference between the scores of the controls and the exposed worms at α = 0.05.^[37] Corresponding PCA loadings plots, which show the relative weight for each bucket, were also acquired for each of the PCA scores plots to identify the metabolites that were contributing to the separation between the scores of the control and exposed earthworms. Both PCA and PLS-DA showed similar trends in discrimination (Fig. 1 and Accessory publication, Fig. A1). PLS-DA cross validation was also used to test the robustness of the separation and the resulting Q²Y values for all exposure concentrations were greater than 0.5, suggesting that the models are robust (Accessory publication, Fig. A1).^[16] As all of the replicates were used to make the PLS-DA models, external validation was not performed with an independent test set to determine the predictive ability of the model.^[32] Thus, the resulting PLS-DA models provided no additional discrimination to that obtained with PCA; therefore further discussions will focus solely on the PCA models for brevity.

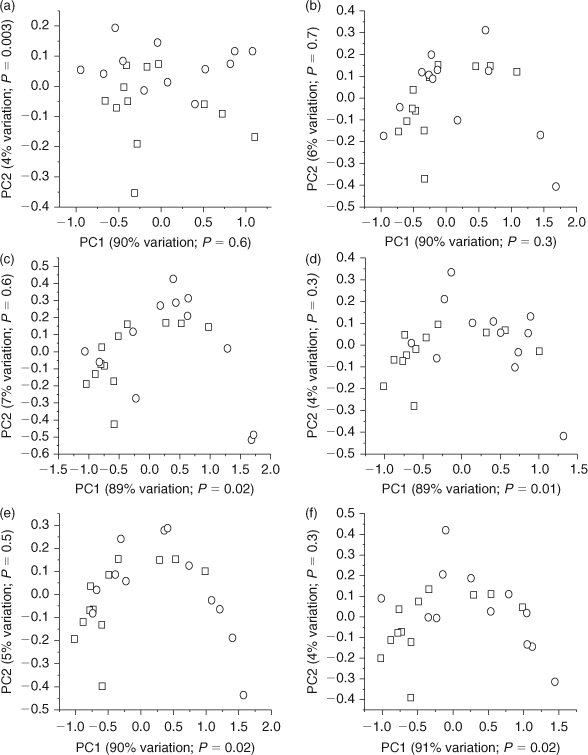

Fig. 1.  PCA scores plots of PC1 (first PCA component) v. PC2 (second PCA component) for ¹H NMR spectra of E. fetida aqueous buffer tissue extracts showing the separation of control worms (□) from exposed worms (○) at phenanthrene concentrations of (a) 0.025 mg cm^–2 (1/64th of LC₅₀); (b) 0.05 mg cm^–2 (1/32nd of LC₅₀); (c) 0.10 mg cm^–2 (1/16th of LC₅₀); (d) 0.20 mg cm^–2 (1/8th of LC₅₀); (e) 0.40 mg cm^–2 (1/4th of LC₅₀); and (f) 0.80 mg cm^–2 (1/2 of LC₅₀). The P-values were obtained from t-tests that compared the scores of the control and exposed worms for each component.

Difference class ¹H NMR spectra were constructed to identify metabolites that had significantly increased or decreased relative to the control.^[10,38] The buckets generated by AMIX 3.8.4 statistics tool, which represents the binned ¹H NMR spectra of E. fetida extracts were then imported into Microsoft Excel (version 12.0.6504, Microsoft Corporation, Redmond, WA). A Levene’s test performed on the buckets revealed that there was equal variance at α = 0.05.^[36] A t-test (two-tailed, equal variances) was then performed comparing the buckets of the controls with that of the exposure class to identify the buckets that were statistically different at α = 0.05. Average class ¹H NMR spectra were obtained by averaging the buckets of each exposure class. Difference class ¹H NMR spectra were then obtained by subtracting the buckets of the average controls from that of each average exposure class. The buckets representing metabolites peaks that were not statistically significant from the controls were then replaced with a zero resulting in a t-test filtered ¹H NMR difference spectrum.^[10,38] The buckets were then imported into ACD/1D NMR manager (Advanced Chemistry Development, version 12.0, Toronto, Canada) to acquire the difference spectra. The percentage changes in the intensity of metabolite peaks of exposed worms relative to the controls were obtained by first subtracting the buckets that pertain to the metabolites in the control earthworms from the exposed earthworms and then dividing again by the buckets in the control earthworms. The metabolite peaks were identified using a database of the ¹H NMR spectra of a series of standard metabolites that were previously identified in E. fetida.^[3,15]

A partial least-squares (PLS) scores plot was also calculated using the AMIX 3.8.4 statistics tool, having the exposure concentration as the Y-variable, to compare the control and exposed earthworms at all concentrations to deduce concentration-dependent relationships in the metabolic profile. A five-component model was found to be ideal using LOOCV. The scores from the PLS plot were then imported into Microsoft Excel and were averaged per class (concentration of phenanthrene exposure) and re-plotted with their associated standard errors.

PCA scores plots of ¹H NMR spectra of E. fetida tissue extracts identified some statistically significant (P < 0.05) changes in the metabolic profiles of the phenanthrene exposed earthworms relative to the unexposed (control) earthworms (Fig. 1). Brown et al.^[12] also showed that exposure of E. fetida to sub-lethal PAH concentrations via contact tests elicits changes in the metabolic profile. The t-test performed on the first and second component PCA scores showed that the higher exposure concentrations (0.80. 0.40, 0.20 and 0.10 mg cm^–2) resulted in a significant separation (P < 0.05) between the controls and the exposed worms along the x-axis (PC1; explains ~90% of the metabolic variation; Fig. 1c–f). However, the lower concentrations (0.025 and 0.05 mg cm^–2) did not show significant separation (P > 0.05) from the controls along PC1 (Fig. 1a,b). The 0.025 mg cm^–2 phenanthrene exposure had statistically significant separation (P = 0.003) from the controls along the y-axis (PC2; explains 4% of the metabolic variation); however, this accounts for very little of the variation in the metabolic profile (Fig. 1a). Therefore, higher phenanthrene exposure results in greater metabolic responses leading to greater differences in the overall metabolic profile. Brown et al.^[17] also showed that high phenanthrene exposures in soil resulted in improved separation from the controls along PC1 (explains 74% of the metabolic variation), with lower concentrations separating from the controls only along PC4, which only explained ~2% of the metabolic variation.

PCA (PC1 and PC2) loadings plots were used to identify metabolites contributing to the separation (Fig. 2).^[1,12,17,39] Leucine (δ 0.95 ppm), isoleucine (δ 1.25 ppm), alanine (δ 1.47 ppm), arginine (δ 1.91 ppm), lysine (δ 3.03 ppm), betaine (δ 3.25 ppm) and maltose (δ 5.41 ppm) were identified as the major metabolites contributing to the PCA separation (Fig. 2). The t-test filtered difference ¹H NMR spectra (Fig. 3) highlight these metabolites and the extent that the metabolic response varies with exposure to increasing phenanthrene concentration.^[10,38] The percentage change of the identified metabolites relative to the control (Fig. 4) suggests that metabolic changes are also related to exposure concentration over the range of concentrations studied. This confirms previous studies that suggest that NMR-based metabolomics is capable of detecting concentration-dependent responses in soil and contact exposure tests.^[12,16,17] Our study, which included a wider range of sub-lethal exposure concentrations, shows that significant (at α = 0.05) metabolic responses can be detected consistently at exposure concentrations as low as 0.1 mg cm^–2 (1/16th of the LC₅₀) for select metabolites. For example, significant (at α = 0.05) increases in alanine, lysine and arginine, along with a significant decrease in maltose relative to the control were observed at exposures ≥0.1 mg cm^–2 (Fig. 4a–c,f). The percentage increase in isoleucine levels relative to the control was significant (α = 0.05) at all exposure levels (Fig. 4e). The magnitude of the percentage changes in alanine, lysine, arginine, maltose and the energy molecule adenosine triphosphate (ATP), all increase with exposure, indicating concentration-dependent responses to phenanthrene exposure (Fig. 4).^[12,17] However, the levels of the amino acids and maltose began to plateau at exposures ≥0.1 mg cm^–2. Brown et al.^[17] also observed significant increases in amino acid levels and significant decreases in maltose relative to the controls at high phenanthrene exposures in soil. The consistency in the response of E. fetida to phenanthrene exposure in soil and in contact tests shows that contact tests are useful for fast contaminant-exposure studies that may be representative of exposure responses observed in soil.^[17]

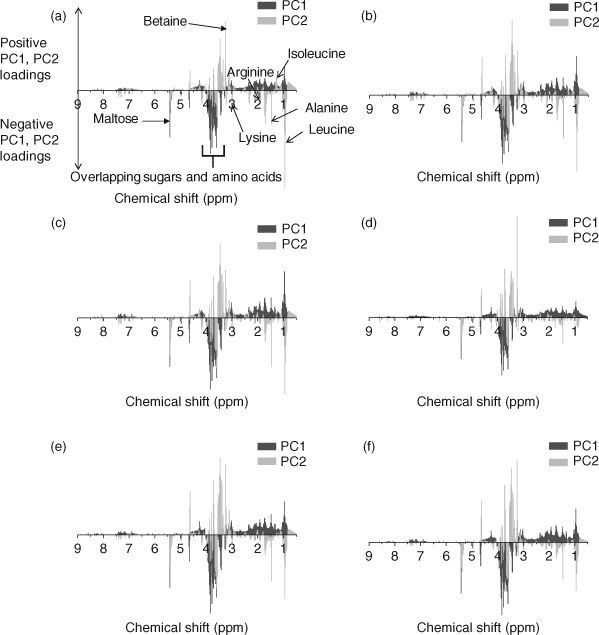

Fig. 2.  Loadings plot for PC1 and PC2 showing the metabolites that were major contributors to the separation observed in the PCA scores plot. The abscissa refers to the ¹H NMR chemical shifts (ppm). Concentrations are: (a) 0.025 mg cm^–2 (1/64th of LC₅₀); (b) 0.05 mg cm^–2 (1/32nd of LC₅₀); (c) 0.10 mg cm^–2 (1/16th of LC₅₀); (d) 0.20 mg cm^–2 (1/8th of LC₅₀); (e) 0.40 mg cm^–2 (1/4th of LC₅₀); and (f) 0.80 mg cm^–2 (1/2 of LC₅₀).

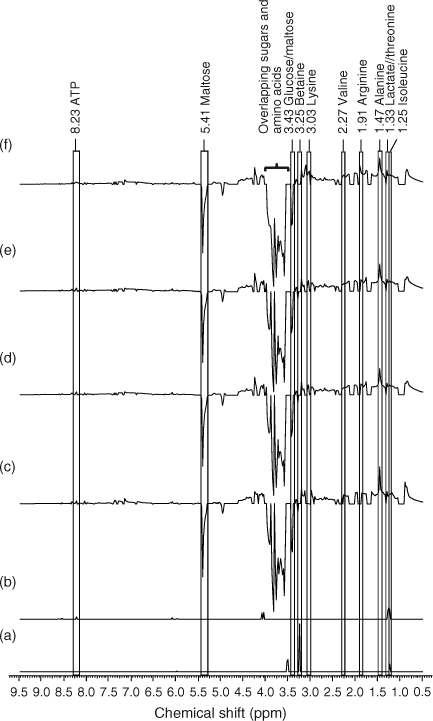

Fig. 3.  t-test filtered ¹H NMR difference spectra of E. fetida aqueous buffer tissue extracts obtained by subtracting the mean buckets of the control worms from the mean buckets for each phenanthrene exposure concentration and retaining the buckets that were statistically different from the controls at α = 0.05. (a) 0.025 mg cm^–2 (1/64th of LC₅₀); (b) 0.05 mg cm^–2 (1/32nd of LC₅₀); (c) 0.10 mg cm^–2 (1/16th of LC₅₀); (d) 0.20 mg cm^–2 (1/8th of LC₅₀); (e) 0.40 mg cm^–2 (1/4th of LC₅₀); and (f) 0.80 mg cm^–2 (1/2 of LC₅₀).

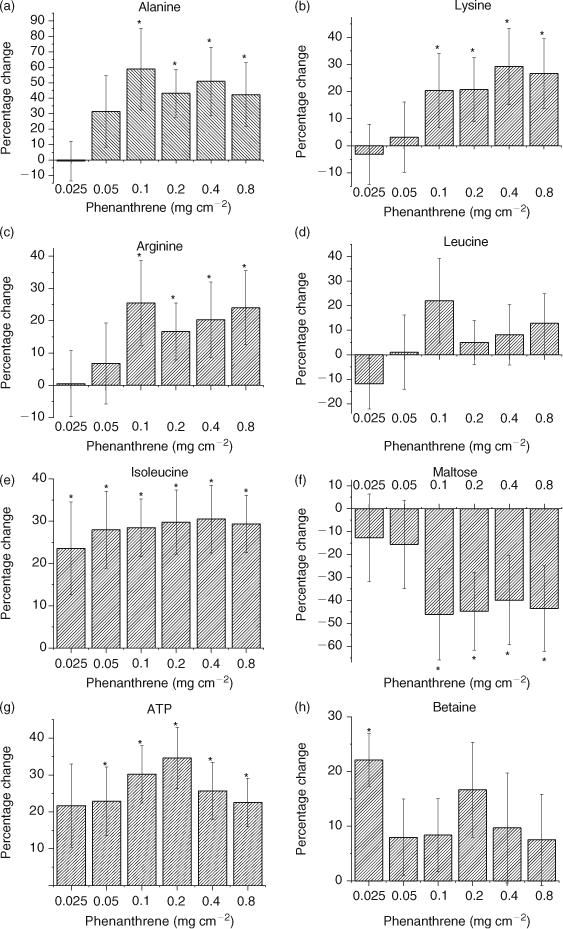

Fig. 4.  Percentage change in selected metabolites of phenanthrene exposed E. fetida compared with the control worms. Metabolites are: (a) alanine; (b) lysine; (c) arginine; (d) leucine; (e) isoleucine; (f) maltose; (g) ATP; and (h) betaine. The percentage changes in the intensity of metabolite peaks of exposed worms relative to the controls were obtained by first subtracting the buckets that pertain to the metabolites in the control earthworms from the exposed earthworms and then dividing again by the buckets in the control earthworms.^[10,38] The percentage changes that were significantly different from the control are labelled with an asterisk (*; at α = 0.05). The percentage changes are shown with their associated standard error.

The observed amino acid increases may be attributed to an onset of protein catabolism that could have been triggered to meet the increased energy requirement in an attempt to counteract phenanthrene toxicity or a complete halt in amino acid breakdown.^[40] Brown et al.^[12] showed that maltose concentrations increased (but not statistically significantly) in earthworms exposed to phenanthrene concentrations of 0.05 and 0.1 mg cm^–2 in contact tests. However, the variation in maltose concentration was high (i.e. large standard deviations). The large variation in maltose was likely due to inherent natural variation in the earthworms and potential errors from using DSS as an internal standard.^[12] In our study, the intensity of the maltose peak decreased significantly (at α = 0.05) for phenanthrene exposures ≥0.1 mg cm^–2 (Fig. 4f), which may be due to an increase in glycolysis to fulfil the energy needs of the cells.^[17,40] An increase in glycolysis also results in an increase in ATP production (Fig. 4g). However, a significant accumulation of ATP at exposures ≥0.05 mg cm^–2 also suggests that even though ATP is produced to meet the higher energy requirements, the mode that utilises ATP may be compromised due to phenanthrene exposure (Fig. 4g). The lack of efficiently utilising ATP contributes to the plateau observed in the response, because energy is no longer available.

Chemical toxicity may either depress or stimulate metabolic activity.^[40,41] Depression of metabolic activity has been correlated with a decrease in alanine, leucine and isoleucine levels in the marine mussel Mytilus edulis, which was exposed to lindane.^[40,41] In our study, E. fetida exposure to phenanthrene showed a general increase in amino acids. Betaine, an osmolyte that is produced when organisms are exposed to conditions of drought, high salinity or temperature stress, also decreases as metabolism slows down.^[10,40,41] Betaine stabilises cellular metabolic functions under varying conditions of stress by enhancing the water retention of cells and by replacing inorganic salts.^[37,42,43] Betaine significantly (at α = 0.05) increased at the lowest exposure of 0.025 mg cm^–2 (Figs 3a, 4h). However, the increase in betaine at exposures >0.025 mg cm^–2 was not significant (Fig. 4h). Therefore, the increases in amino acids and betaine levels suggests that there is stimulation in the metabolic activity of E. fetida on account of increasing phenanthrene exposure; however, this plateaus as the exposure increases above 0.1 mg cm^–2 or 1/16th of the LC₅₀.

PLS regression analysis was also used to further ascertain the relationships between metabolic responses and phenanthrene exposure (Fig. 5a).^[31,44–48] The PLS scores plot shows distinct regions for high (0.8, 0.4 and 0.2 mg cm^–2), medium (0.1 mg cm^–2), and low (0.05 and 0.025 mg cm^–2) exposure levels (Fig. 5a). The low phenanthrene exposure level clusters near the controls whereas the higher exposure levels are further away, also suggesting a concentration-dependent response. A trajectory of responses to exposure of a chemical can signify its MOA, as exposure to chemicals with varying toxicities leads to trajectories that differ in their geometries or the overall shape of the curve.^{[10,11,38,49,50]} The trajectory of the metabolic profile of E. fetida is shown in Fig. 5a. The metabolic response to phenanthrene exposure increases profoundly from 0.1 to 0.05 mg cm^–2 (large shift along T1 which explains 94% of the metabolic variation). However, increasing the exposure concentration beyond 0.1 mg cm^–2 alters the position only along T2 (explains only 4% of the metabolic variation). This suggests that at exposures ≥0.1 mg cm^–2, there is little change in the intensity of the metabolic response. The PLS analysis also suggests a two-phased MOA for phenanthrene in E. fetida centred on the exposure of 0.1 mg cm^–2. This agrees with the results from the difference spectra and the percentage change in metabolites, which also show that the metabolic response plateaus at exposures ≥0.1 mg cm^–2 (Figs 3, 4). The PLS T1/U1 scores plot, which is used to delineate any correlations between the metabolic response and exposure concentration,^[31,44,51] shows that there is a positive linear correlation (R² = 0.99) between exposure level and the metabolic profile that spans from the control to an exposure concentration of 0.1 mg cm^–2 (Fig. 5b). However, including exposure concentrations >0.1 mg cm^–2 results in an overall non-linear correlation (R² = 0.41) between exposure level and the metabolic profile. Therefore, the difference ¹H NMR spectra, percentage changes in metabolites and PLS analysis indicate that phenanthrene exposure of 0.1 mg cm^–2 is a critical concentration for E. fetida in contact tests. The MOA at the lower concentrations, which were 1/64th and 1/32nd fraction of the LC₅₀, may change to a more potent phase at exposures higher than the critical concentration of 0.1 mg cm^–2 and remains in that state as the exposure concentration increases towards the LC₅₀. Similar concentration-dependent behaviour was also observed in E. fetida and other earthworm species exposed to PAHs where the concentration of cytochrome (Cyt) P450 was being monitored.^[52–54] Exposure to xenobiotics results in an increased expression of Cyt P450 enzymes, allowing the monitoring of total Cyt P450 content to be a biomarker for exposure of xenobiotics to organisms.^[22,53,55] PAHs have generally been shown to induce the Cyt P4501a isoenzyme in many species.^[22,55–57] Zhang et al.^[53] investigated the concentration-dependent behaviour of E. fetida to pyrene (Py) and benzo[a]pyrene (BaP) by monitoring the total Cyt P450 content. Total Cyt P450 content did not display any consistent correlation with PAH exposure and it was concluded that this observation was made because at certain concentrations, PAHs act as inducers of specific Cyt P450 isoenzymes while being an inhibitor for others. This may explain the observation of a MOA with two distinct phases in E. fetida to phenanthrene exposure. At concentrations ≥0.1 mg cm^–2 phenanthrene may act as an inhibitor for specific Cyt P450 isoenzymes. This would compromise the earthworm’s ability to combat the toxic MOA of phenanthrene and the chances for mortality are increased. This trend culminates with almost 50% mortality at the LC₅₀. The inconsistency in leucine levels, which contributed to the separation observed in the PCA scores plots, but did not increase significantly (at α = 0.05) may also be partially attributed to the initiation in Cyt P450 expression (Figs 3, 4d). Leucine, which comprises close to 15% of Cyt P450s amino acid composition, is the major amino acid in its makeup.^[58] Therefore, initiation in Cyt P450 production in exposed worms may have resulted in the observed fluctuations of free leucine levels in E. fetida after phenanthrene exposure. However, as we did not measure Cyt P450 levels directly, future studies are needed to confirm the observed MOA within the context of Cyt P450 activity.

Fig. 5.  Multivariate statistical analysis showing (a) PLS scores plot of T1 (first PLS component) v. T2 (second PLS component) for ¹H NMR spectra of E. fetida aqueous buffer tissue extracts. The mean scores (with associated standard error) were obtained by averaging the scores of each earthworm class. The ellipses that separate the high, middle and low exposure classes were constructed as visual aids. The exposure response trajectory is highlighted by a dashed line. (b) PLS scores plot of T1 v. U1. U1 represents the scores (first component) that describe the phenanthrene exposure concentrations. T1 represents the scores (first component) that describe the metabolic response of E. fetida obtained from the ¹H NMR spectra. The mean T/U scores were obtained by taking the average of the scores for the worms belonging to each class. The mean T/U scores are shown with their associated standard error.

Our study further indicates that ¹H NMR-based metabolomics is able to detect earthworm responses to sub-lethal concentrations of phenanthrene and also suggests that earthworm responses are correlated with exposure concentration.^[12,17] Furthermore, in addition to being able to detect earthworm responses over a wide range of ultra-low sub-lethal phenanthrene concentrations, metabolomics also has the potential to delineate the MOA of the contaminant in earthworms. Two phases of the toxic MOA were observed for E. fetida in response to phenanthrene exposure. At exposures below 1/16th of the LC₅₀ phase I of the toxic MOA is in action, highlighted by a linear correlation between the metabolic response and the exposure concentration. At exposures ≥1/16th of the LC₅₀, the metabolic response to phenanthrene appeared to plateau, indicating the operation of a distinct phase II in the MOA. As in previous studies,^[12,17] amino acids such as alanine, arginine, isoleucine and lysine and the sugar maltose emerged as potential response indicators of phenanthrene exposure. The consistency between the response of E. fetida to phenanthrene exposure in both contact and soil exposure studies suggests that even though contact tests may not fully represent the soil environment, they provide a rapid and reliable screening method for potentially measuring soil exposure responses. Therefore, the results of our study shows that NMR-based earthworm metabolomics holds great potential for development as a routine tool in the ecotoxicological assessment of low and sub-lethal levels of contaminants in the environment.

Detailed information on the protocols followed for earthworm maintenance, the procedure followed by AMIX to calculate Q²Y, and PLS-DA scores plots of the ¹H NMR spectra of E. fetida control and phenanthrene exposed earthworms.
