Secondary organic aerosol formation from the oxidation of a series of sesquiterpenes: α-cedrene, β-caryophyllene, α-humulene and α-farnesene with O₃, OH and NO₃ radicals

Additional keywords: biogenic SOA, fine particulate matter, night-time chemistry, ozonolysis, PM_2.5, SOA.

Organic compounds of biogenic origin (BOCs) including isoprene (C₅H₈), monoterpenes (C₁₀H₁₆), sesquiterpenes (C₁₅H₂₄) and oxygenated hydrocarbons are considered an important class of organic species emitted into the troposphere from vegetation.^[1,2] Since Went reported that the oxidation of volatile organic compounds (VOCs) emitted by terrestrial vegetation could lead to the formation of organic aerosol,^[3] considerable efforts have been devoted to understanding secondary organic aerosol (SOA) formation from these reactions.^[4,5] SOA often constitutes a sizable fraction of fine particulate matter (PM_2.5) and can have significant effects on both the physical and chemical characteristics of ambient aerosol. PM_2.5 negatively affects the air quality on a local, regional and global scale through visibility degradation^[6] and climate change by its role in radiative forcing.^[7] Exposure to PM_2.5 has also been associated with increases in human mortality and morbidity levels, and decreased particulate matter (PM) levels have been associated with increased life expectancy.^[8] As our understanding of the toxicology associated with these particles develops, more accurate compositional data likely will be required.

Despite recent progress to explain the organic mass associated with gas and aerosol phases in the Earth’s atmosphere, degradation of known emitted VOCs cannot account for the total organic mass, leaving a substantial fraction unresolved.^[9–11] Over the past decade, numerous studies have shown evidence of a substantial amount of unmeasured highly reactive compounds in forest ecosystems.^[10–14] Hence, understanding the gas-phase chemistry of these unmeasured species is key to assessing their involvement in both air quality and climate issues.

Sesquiterpenes (SQTs) have become target analytes in biogenic emission analyses because their molecular mass and reactivity make them more efficient SOA precursors than other BOCs. Recent flux studies within the forest canopy in the Amazon and in an orange grove in Spain have shown that SQTs undergo oxidation reactions (e.g. ozonolysis) near the ground and are undetected above the canopy level.^[15,16] Based on these observations, it has been proposed that SQTs may serve as endogenous antioxidants in plants by reducing oxidative damage during the stress-induced accumulation of reactive oxygen species.^[17] For example, Jardine et al. established that SQTs act as an effective ozone sink within the plant canopy and that their emissions might significantly reduce harmful ozone uptake and its associated oxidative damage to plants within the canopy.^[15] Jardine et al.^[15] also found that the mean daytime ozone loss due to gas-phase reactions with SQTs represents a significant fraction (7–28 %) of calculated ozone fluxes within the central Amazon canopy during the dry season. Although uncertainties remain regarding the role of environmental factors in these emissions, SQTs emissions have been found to be sensitive to light, temperature and ecological factors.^[18] SQTs on a reacted mass basis have much higher aerosol formation potential than monoterpenes.^[19] In addition, the presence of one, two, three or four double bonds in SQTs and their fast reactions with oxidants, mainly with ozone (O₃),^[20–22] clearly suggest the importance of SQT chemistry in the atmosphere.

Although numerous SQTs of interest to atmospheric scientists have been detected in ambient atmosphere (e.g. α-cedrene, β-cedrene, longifolene, α-humulene, α-bergamotene and α-farnesene), their role in ambient SOA formation is still not fully understood because of the lack of a direct link to ambient organic aerosol (e.g. lack of chemical tracer identification in PM_2.5) and further investigation is needed. One exception is β-caryophyllene, which has been studied extensively in chamber experiments^[19,23–35] and used to estimate the contribution of SQTs to ambient PM_2.5.^[33,36–38] Although gas- and particle-phase products from a series of SQTs have been reported,^{[23,29,30,35–42]} only β-caryophyllinic acid, an oxidation product from β-caryophyllene, has been detected in ambient organic aerosol as a unique tracer.^[33] Detection of specific SQT reaction products in chamber and ambient field measurements is further evidence of the possible influence of SQTs in regions with high SQT emissions. Although SQT emissions are not fully understood and cover a wide range of values,^[2] the rapid oxidation of these hydrocarbons leads to contributions to the chemistry of hydrogen oxide radicals (HO_x), producing O₃, formaldehyde, acetone and other carbonyl compounds. In addition, dicarbonyls possibly formed through secondary reactions can lead to increased SOA production in an aqueous or non-aqueous aerosol phase.^[43–46] Finally, several theoretical studies have reported on the degradation of β-caryophyllene and other SQTs (see Jenkin et al.^[38] and references therein).

Given the uncertainties in emissions, sensitivity to environmental factors and the contribution from the atmospheric oxidation of a variety of SQTs to ambient organic aerosol, additional studies are needed to provide a more complete understanding of SOA formation from these compounds. The present study examined gas and aerosol products formed from the smog chamber oxidation of α-cedrene (αCed), β-caryophyllene, (βCar), α-humulene (αHum) and α-farnesene (αFarn) respectively containing one, two, three and four double bonds with the hydroxyl (OH) and NO₃ radicals as well as O₃ (Table 1). Aerosol yields and other aerosol properties were measured. Moreover, a detailed examination of organic compounds comprising the aerosol was undertaken with the goal of identifying possible unique tracer compounds of SQTs oxidation. Most literature studies of SOA formation have examined reactions occurring in the presence of ozone. However, SOA formation can also occur at night when the NO₃ radicals can react with unsaturated hydrocarbons, typically those emitted by trees and other vegetation. This study also examines the chemical characteristics and physical properties of organic aerosol formed under these conditions including under potentially important night-time conditions.

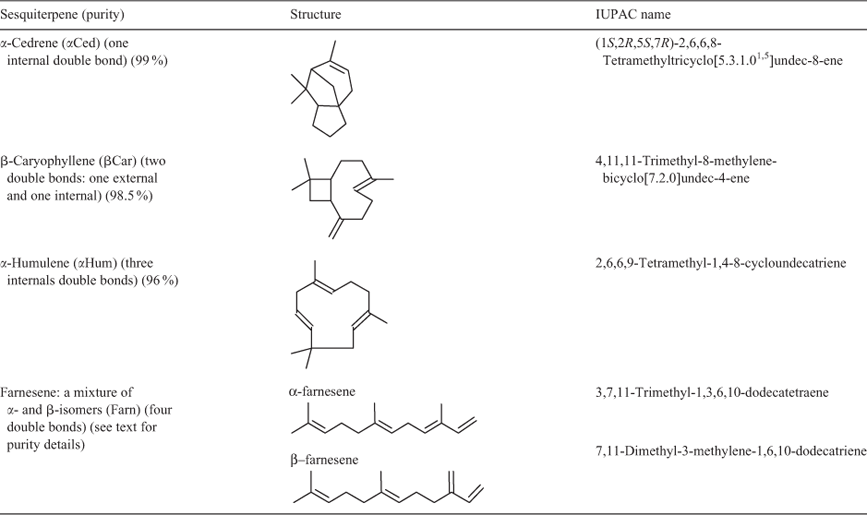

Table 1.  Structure, synonym and systems studied during this study to examine the formation of secondary organic aerosol from the oxidation of sesquiterpenes

All chemicals, including derivatisation reagents (O-(2,3,4,5,6-pentafluorobenzyl)hydroxylamine hydrochloride (PFBHA), BF₃–methanol and N,O-bis(trimethylsilyl)trifluoroacetamide (BSTFA) (1 % trimethylchlorosilane), were purchased from Aldrich Chemical Co. (Milwaukee, WI) at the highest purity available and were used without further purification.

The experiments were conducted in a 14.5-m³ stainless-steel, fixed-volume chamber with 40-μm polytetrafluoroethylene (PTFE) Teflon-coated walls. The chamber incorporates a combination of fluorescent bulbs that provide radiation distributed over the actinic portion of the spectrum similar to solar radiation, from 300 to 400 nm. Experiments were conducted in either the presence of NO_x, O₃ or NO₃ radicals. The chamber was illuminated only when NO_x was present in the chamber. The chamber was operated either in static mode (as a conventional batch reactor) or in dynamic mode (as a flow reactor) to produce a steady-state concentration of gas- and particle-phase reaction products over an extended period of time. The ozonolysis experiments, with the exception of ER533, were conducted in a 9-m³ chamber similar to the 14.5-m³ chamber where ozone, hydrocarbon and organic aerosol concentrations could be measured as a function of time. Ozone was added to the chamber using an electrical discharge generator and allowed to stabilise before the start of the reaction. SQT was added to the chamber rapidly by injecting the neat liquid into a heated inlet. A fan was used to mix the reactants in the chamber. However, mixing was performed cautiously and not extensively due to reported particle losses attributed to the use of a mixing fan during SOA formation.^[47]

Night-time experiments involved dark oxidations (reactions conducted in the dark to avoid the rapid photolysis of NO₃) in the smog chamber of a series of SQTs (Table 1) in the presence of N₂O₅. NO₃ radicals were produced within the chamber by the in situ thermal decomposition of nitric acid anhydride (N₂O₅, dinitrogen pentoxide). Because NO₃ radicals do not propagate a radical chain reaction, the level of hydrocarbon reactant removal is dictated largely by the ratio of the initial reactant concentrations. N₂O₅ was generated by a synthetic approach developed in our laboratory that involves reaction of ozone with nitrogen dioxide (see ‘NO₃ radical synthesis’ section). Hydrocarbon and oxidant reactants were then admitted into the chamber in a flow mode to allow for measurement of SOA formation parameters and chemical properties. Two dark experiments were also conducted in static mode.

Temperature and relative humidity within both chambers were determined with an Omega Engineering, Inc. (Stamford, CT) digital thermo-hygrometer (Model RH411). Light intensity (where applicable) was continuously monitored with an integrating radiometer (Eppley Laboratory, Inc., Newport, RI). The reactant generation system provided the chamber’s constant sources of zero air, gas-phase reactants, external radical sources, water vapour and seed aerosol. The seed aerosol, used only in the 14.5-m³ chamber, was generated by nebulising a 10 mg L^–1 aqueous solution of ammonium sulfate. Nitric oxide (NO) was obtained from a high-concentration cylinder. For the 14.5-m³ chamber, SQTs, which are liquids at room temperature, were vaporised by injecting the liquid into a heated bulb at 85 °C. Additional details of the chamber and its operation have been described by Kleindienst et al.^[48] Reactants were added to the chamber to the target initial concentrations. In dynamic mode, reactants were added to a manifold in a continuous fashion using mass flow controllers while the effluent used for analysis was withdrawn from the chamber. The average residence time for these experiments was ~4 h, and the reaction mixture reached a steady-state before sampling. For the static experiments, reactant flows were turned off after the initial concentrations were reached, leaving on only the dilution flow, necessary due to the chamber’s fixed volume.

Dinitrogen pentoxide (N₂O₅) can be produced from the dehydration of nitric acid or from the reaction of NO₃ with NO₂, with NO₃ being generated from the reaction of NO₂ with O₃. The chemical reactions involved in this synthesis are as follows:

where Reactions 2 and 3 are reversible reactions and form an equilibrium.

In this particular method, the means for generating NO₂ from the reaction of O₃ with NO shown by Reaction 4 represents the crucial step in the synthesis:

The advantage of using this method for generating NO₂ lies in the physical properties of NO and NO₂. NO is available in considerably higher purity than NO₂, as either a pure compound or a high-concentration gas mixture (e.g. 1 % in N₂). The fact that the boiling point of NO (–152 °C) is considerably lower than that of either NO₂ or N₂O₅ is an important consideration in trapping N₂O₅ in the presence of the remaining reactants and other nitrogen oxide impurities.

The key to the synthesis has been to use sufficiently high reactant concentrations, which allow Reaction 4 followed by Reactions 1–3 to be completed in a glass bulb at room temperature before the product stream reaches the collection stage of the manifold. Given the rate constants for Reactions 1–4, trial concentrations of 1500 ppm for ozone and 750 ppm for NO were found to be required. Under these conditions, all NO in the system was converted into NO₂ in 8 ms. The reaction of ozone with NO₂ (~500 times slower than the O₃ + NO reaction) occurred with a lifetime of 0.65 s^–1. Once NO₃ starts to form, the equilibrium with NO₂ occurs and NO₃ can be immediately siphoned from the system. As long as ozone and NO₂ are present, the equilibrium is forced towards the generation of N₂O₅, which is immediately subject to condensation in a cold trap. The reaction continues until virtually all of the NO₂ has reacted. Under these conditions, NO does not react with N₂O₅ because it continues to be removed from the system.

Under the designated reactant concentrations, 375 ppm N₂O₅ is formed with 0.66 ppm NO₂ remaining in the product stream. Assuming a reactant flow rate of 2 L min^–1, 3.32 mg of N₂O₅ should be formed for each minute of reaction. For these flow conditions and a manifold volume of 250 mL, which sets the residence time, the conditions favour the formation of almost pure N₂O₅. At the dry ice–acetone trapping temperature of –77 °C, the entire N₂O₅ product can be collected with a minimum of NO₂ being trapped. With the fully titrated, the high ozone concentration remaining in the system passes through the trap given the low O₃ boiling point (–112 °C) and high trap temperature. Trap-to-trap distillation of the N₂O₅ product is generally not required under these synthesising conditions. Operation of the manifold in a flow mode is thought to generate 300–500 mg of N₂O₅ during a typical 2-h synthesis period. This mass of N₂O₅ has generally been found to be sufficient for a multi-day flow-mode reactor experiment.

The measurement of N₂O₅ is based on gas-phase titration of NO₃ by NO. Measurements of this type are based on the thermal decomposition of N₂O₅ at elevated temperature and have been described in the literature.^[49–52] When the temperature is raised, the N₂O₅ equilibrium is shifted to favour the NO₂ + NO₃ decomposition products. By adding an excess amount of NO to the heated analyte stream, NO₃ can be removed from the system according to the following reaction:

The room temperature rate constant for Reaction 5 is equal to 2.6 × 10^–11 cm³ molecules^–1 s^–1. At a concentration of 0.1 ppm for NO, the lifetime for this reaction is 15.6 ms, much faster than any other process likely to occur under these conditions. Thus, measuring a decrease in added NO or an increase in NO₂ can serve as a metric for the amount of N₂O₅ present in the system. Fried et al. have already discussed the difficulty of reliably measuring the increase in NO₂ because of the possibility of additional NO₂ or NO_y sources,^[50] and thus NO is typically measured by this technique. In these experiments, a heated zone in the sampling manifold at 125 °C was used to decompose the N₂O₅. NO at a known concentration was admitted to the analyte stream immediately before entry into the heated zone. On a time scale based on the analyte flows, the reaction was complete before the mixture leaves the heated zone. The analyte stream was then allowed to equilibrate to room temperature before NO was measured with a conventional NO_x analyser. The concentration of N₂O₅ was determined from the difference between the initial and final NO concentrations.

NO and NO_x were monitored with a TECO (Franklin, MA) oxides of nitrogen analyser (Model 42C) with an upstream, in-line nylon filter used to prevent nitric acid from entering the analyser. Ozone was measured with a Bendix (Lewisburg, WV) ozone monitor (Model 8002). SQT concentrations in the inlet and within the chamber were measured in a semi-continuous fashion by gas chromatography with flame ionisation detection (GC-FID). NO₃ radicals were measured using the techniques reported above. SQTs and selected carbonyls were also measured using a Hewlett–Packard (HP) (Palo Alto, CA) GC-FID instrument (Model 5890) and a HP gas chromatography mass spectrometry (GC-MS) instrument (Model 6890 GC, Model 5972 MS). A fused column (60 m × 0.32-mm inner diameter) with a 1-μm DB-1 coating (J&W Scientific, Folsom, CA) was used for both GC systems. Liquid nitrogen was used to preconcentrate the analyte compounds in a sampling loop. The condensed organics were then injected onto the GC column using gas-sampling valves. The GC-FID and GC-MS operating parameters have been described previously by Blunden et al.^[53]

Gas-phase hydrocarbon reactants were measured by GC-FID incorporating a double-focussing cryogenic system. Samples were initially collected in a sampling loop held at –180 °C. The loop was then flash heated to inject the analytes onto the GC column initially held at –60 °C. This system provided a reasonably fast, accurate determination for a broad range of organic reactants in the system. A semicontinuous GC system with an HP5890 GC-FID operated in an isothermal mode was also used. The system uses a 5-mL gas-sampling loop and a duty cycle of 20 min to periodically measure the hydrocarbon reactant in the chamber.

Data analysis included the measurement of aerosol yield, OM/OC ratio, ΔH_vap^eff and the individual products associated with organic aerosol. Organic compounds were polar, highly oxygenated and, in several cases, nitrogenated. To identify individual products, filter samples were extracted, derivatised and analysed using GC-MS techniques.

Organic carbon (OC) concentrations were measured using a semi-continuous elemental carbon–organic carbon (EC-OC) instrument (Sunset Laboratories, Tigard, OR). The instrument operates with a quartz filter positioned within the oven housing used for the analysis. The pumping system chamber drew effluent through the filter at a rate of 8 L min^–1. A carbon-strip denuder was placed in-line before the quartz filter to remove gas-phase organic compounds in the effluent that might interfere with the OC measurement. With a sample collection time of 0.5 h and an analysis time of 0.25 h, the integrated sample resolution for the measurement of OC was 0.75 h. For experiments conducted early in this study, SOA from the chamber was collected on quartz filters (QFs) and then analysed for OC content using a similar offline EC-OC analyser.^[54]

Aerosol size distribution, volume and total number density were measured with a scanning mobility particle sizer (SMPS) (Model 3071A, TSI, Inc., Shoreview, MN) and a condensation particle counter (CPC) (Model 3010, TSI, Inc., Shoreview, MN). The operating conditions for the SMPS were as follows: sample flow 0.2 L min^–1, sheath flow 2 L min^–1 and size scan from 19 to 982 nm. The SMPS was also used to determine effective enthalpies of vaporisation of SQT aerosol by adding a heated inlet, which allows the aerosol to be subjected to a range of temperatures.^[55]

The composition of chamber-generated SOA was also monitored in real time using either a unit-mass resolution quadrupole aerosol mass spectrometer (Q-AMS, ER533 and ER563) or a high-resolution time-of-flight aerosol mass spectrometer (HR-AMS, ER581 and ER632). Details of Q-AMS sampling and data analysis have been discussed previously by Docherty et al.^[56] ToF-AMS and Q-AMS sampling were similar and ToF-AMS data were analysed using the standard ToF-AMS Squirrel data analysis package (v1.51H).^[57] To account for instrument-specific fragmentation patterns and contributions of gas-phase species that are dependent on the sampling environment, the unit-resolution mass spectrometric fragmentation table for each analysis was modified using spectra obtained during periods both before and following each experiment when high-efficiency particulate air (HEPA)-filtered chamber air was sampled into the AMS.

The aerosol formed in the chamber was also collected with 47-mm glass-fibre (GF) filters (Pall Gelman Laboratory, Ann Arbor, MI) for off-line analysis. Samples were collected at a flow rate of 15 L min^–1 for dynamic experiments and 10 L min^–1 for static experiments. These samples were then extracted by sonication with methanol, and the filter extracts were derivatised with BSTFA, PFBHA, PFBHA–BF₃ and PFBHA–BSTFA double derivatisation.^[58] All extracts were analysed by GC-MS on a ThermoQuest (Austin, TX) gas chromatograph coupled with an ion trap mass spectrometer. The injector, heated to 270 °C, was operated in splitless mode. Compounds were separated on a 60-m, 0.25-mm internal diameter, RTx-5MS column (Restek, Inc., Bellefonte, PA) that had a 0.25-µm film thickness. The oven temperature program started isothermally at 84 °C for 1 min followed by a temperature ramp of 8 °C min^–1 to 200 °C, followed by a 2-min hold, and then a second ramp of 10 °C min^–1 to 300 °C. The ion source, ion trap and interface temperatures were 200, 200 and 300 °C.

Table 2 shows the initial conditions for experiments conducted in this study. SQT initial concentrations ranged from 0.12 to 4.95 ppm C. In experiments involving photooxidation, NO concentrations ranged from 87 to 497 ppb, and for the dark ozonolysis reactions, O₃ concentrations ranged from 135 to 720 ppb. For the dark reactions conducted with NO₃ radicals, concentrations of 25 to 252 ppb were used. For experiments conducted in the 14.5-m³ chamber, ammonium sulfate at ~1 μg m^–3 was added to the reaction mixture to aid in secondary product condensation onto chamber aerosols. No seed aerosol was used in the 9-m³ chamber. Experiments involving farnesene oxidation were performed with a mixture of α- and β-farnesene isomers (ER575 and ER569) and α-farnesene at greater than 90 % purity in ER632. The purity of farnesene was evaluated in our laboratory using a 30-L bag filled with 1 µL of the SQT to be analysed and 25 L of zero hydrocarbon air. A sample from the bag was then analysed by GC-FID and GC-MS. Chamber operating temperatures ranged between 21 and 25 °C, with the irradiated NO_x experiments operating at the upper end of this range. All of the NO₃ reactions (along with a few select static runs) were conducted dry (relative humidity <3 %), due primarily to the sensitivity of N₂O₅ to the presence of water. Typical static experiments started with an initial relative humidity of 30 %, which decreased over time due to dilution, whereas dynamic experiments were maintained continuously at 30 % relative humidity.

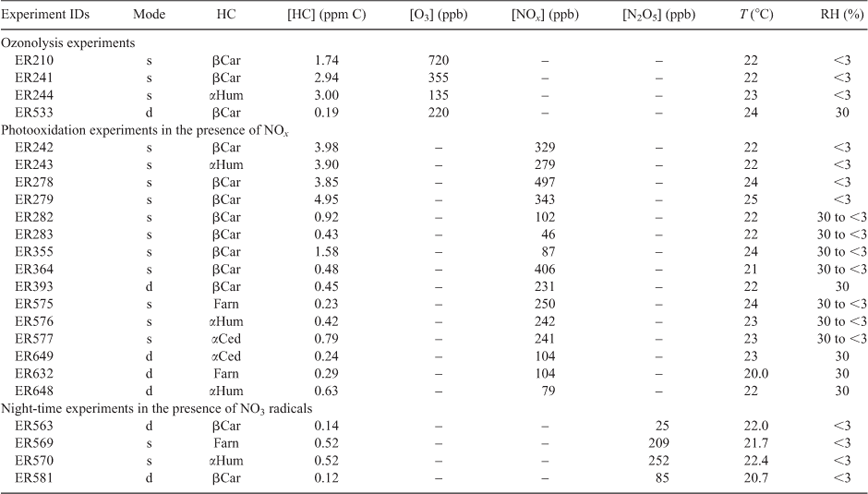

Table 2.  Initial conditions and systems studied to examine the formation of secondary organic aerosol from the oxidation of sesquiterpenes
s, static mode; d, dynamic mode; HC, hydrocarbon of interest (see Table 1 for a description of each); T, temperature; RH, relative humidity

All photooxidation experiments conducted in the 14.5-m³ chamber were static except for ER393, ER632, ER648 and ER649 (Table 2). β-Caryophyllene, O₃, NO, NO_x–NO and integrated SMPS volume concentrations measured during ER282 are shown as a function of irradiation time in Fig. 1 (top). Time profiles of NO, NO_x–NO and O₃ show characteristics of a typical VOC–NO_x static irradiation. This trend was observed for all photooxidation experiments conducted in this study. As can be seen from the integrated SMPS volume concentration time series in Fig. 1, particle formation from the photooxidation of β-caryophyllene occurred almost immediately, before ozone started to build up in the chamber and despite the presence of NO in the system. The concentration of particles continues to increase as the NO is removed from the system due to reaction and reaches a maximum when O₃ starts building up in the chamber. This early SOA formation is different from particle volume concentration profiles observed from the photooxidation of monoterpenes and 2-methyl-3-buten-2-ol (MBO),^[59,60] where negligible SOA formed at the beginning of the experiment before the depletion of NO. For example, Fig. 1 (bottom) shows similar time profiles for an additional experiment involving α-pinene photooxidation in the presence of NO_x. The experimental conditions for the α-pinene experiment were similar to those described in the text for static runs. The initial conditions for α-pinene are shown in Fig. 1 (bottom). An early particle formation trend was observed for all photooxidation experiments conducted in this study reflecting the rapid photooxidation of SQTs typically within the first 20 min of the reaction, which is slower than observed for ozonolysis reactions. This early formation of particles is likely due to the high rate constant of the oxidation of SQTs with O₃ as well as the presence of more than one double bond in the SQTs (Table 1). This is consistent with the proposal of Jardine et al.^[15] that SQTs may serve as O₃ sinks in highly vegetative ambient environments. Edney et al.^[61] suggested that SOA from irradiated α-pinene–NO_x–air mixtures better represented ambient PM_2.5 in Research Triangle Park, NC than that generated by ozonolysis of α-pinene. Due to the apparent dominance of ozonolysis reactions in the SQT–NO_x photochemical systems, it appears that simple ozonolysis dark reactions may be far more representative of ambient conditions for SQTs than for monoterpenes or other SOA precursors.

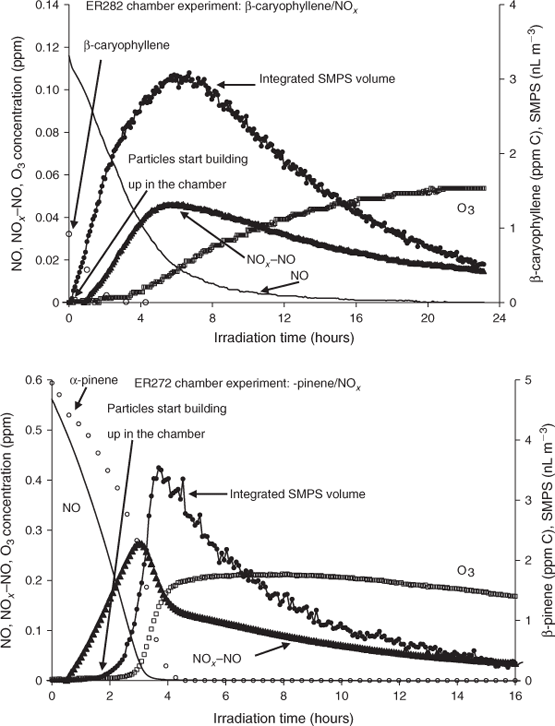

Fig. 1.  Time profiles of NO, NO_x–NO, O₃ (ppm), integrated scanning mobility particle sizer (SMPS) volume (nL m^–3) and hydrocarbon (ppm C) from the photooxidation of β-caryophyllene (ER282) and α-pinene (ER272).

Table 3 shows the reacted SQT concentrations for seven experiments conducted in dynamic mode: one O₃ experiment, four photooxidation experiments in the presence of NO_x and two experiments in the presence of NO₃ radicals. The reacted SQT concentration, determined from the difference between the initial and steady-state SQT concentrations, ranged from 0.12 to 0.63 ppm C (66 to 347 µg m^–3). The uncertainty in the reacted SQT results arising from the reproducibility of both the initial and steady-state hydrocarbon values by GC is estimated to range between 30 and 50 % due to the relatively low volatility of these compounds compared to monoterpenes. Note that substantial challenges exist for adding SQTs into the chamber in a controlled fashion at target concentrations. In static mode, for example, it is difficult to determine SQT time profiles due to their low volatility and high reactivity towards oxidants. Therefore, aerosol yields were measured only from dynamic experiments.

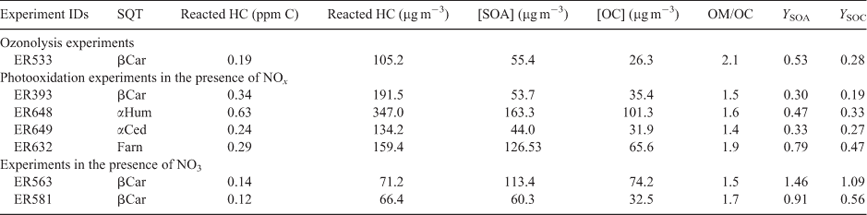

Table 3.  Reacted sesquiterpenes (SQTs) and aerosol parameters from reactions conducted in dynamic mode
HC, hydrocarbon, SOA, secondary organic aerosol, OC, organic carbon; OM/OC, organic matter/organic carbon ratio; Y_SOA, yield of SOA; Y_SOC, yield of secondary organic carbon

The major aerosol parameters measured, including SOA and secondary organic carbon (SOC), are given in Table 3 for experiments conducted in dynamic mode. Uncertainties in the SOC values are taken from the reproducibility of the semicontinuous measurement and are typically better than 10 % for a single run, although this does not include possible systematic error. For OM, the uncertainties are determined from the reproducibility of side-by-side filter measurements, which are typically better than 5 %. An estimate of the systematic errors due to minor changes in reactant concentrations, minor variations in chamber temperature and other similar factors bring the total uncertainty to between 15 and 25 % for these parameters.

The SOA yield (Y_SOA) and secondary organic carbon yield (Y_SOC) are generally defined using the following relationships:

where [SOC] is the background corrected organic carbon concentration (μg C m^–3), Δ[HC] is the reacted hydrocarbon mass concentration (μg m^–3) and Δ[HC_C] is the reacted carbon mass concentration of the hydrocarbon (μg C m^–3). Using the relationship above, β-caryophyllene Y_SOA values of 0.53, 0.30 and 1.19 (average of two data points) were calculated for the measured aerosol mass for reactions involving ozonolysis, photooxidation and NO₃ reaction. Uncertainties in the calculated yields arise from the experimental uncertainties in determining SOA mass and the uncertainties associated with determining reacted SQT concentrations as discussed above. Y_SOC values are also reported in Table 3 and for β-caryophyllene ranged from 0.28 for ozonolysis, 0.19 for photooxidation to 0.83 (average of two data points) for NO₃ reactions. These yields are in reasonable agreement with literature data (Chen et al.^[35] and references therein).

The effective enthalpy of vaporisation was determined for the bulk aerosol in select dynamic experiments. The values were calculated from the slope of a plot of ln V v. T^–1 (V represents the integrated aerosol volume at each temperature (T) of the heated tube) which when multiplied by the gas constant (R) gives a ΔH_vap^eff. The effective enthalpies of vaporisation for aerosol generated from β-caryophyllene were found to be ~43.9 kJ mol^–1 for photooxidation, 41.1 kJ mol^–1 for ozonolysis and 44.9 kJ mol^–1 for the β-caryophyllene–NO₃ system. A value of 27.7 kJ mol^–1 was found for the α-farnesene–NO_x system and 48.2 kJ mol^–1 for the α-humulene–NO_x system. These values are generally consistent with the ranges of values measured for SOA generated in the photooxidation of other terpenes.^[55,62] For example, Offenberg et al. reported an effective enthalpy of vaporisation of 38 kJ mol^–1 for α-pinene and 18 kJ mol^–1 for isoprene.^[55]

For the systems studied, sufficient aerosol masses were collected on GF filters to be solvent extracted, derivatised and analysed by GC-MS. Aerosol extracts were derivatised using various combinations of BSTFA, PFBHA, PFBHA–BF₃ or PFBHA–BSTFA derivatisations. These techniques provide a sensitive method for identifying and quantifying low concentrations of lightly to highly oxidised organic compounds. The BSTFA single derivatisation technique provides good quantitative analysis due to both its simplicity and efficiency.^[58] Although they are not quantitatively rigorous, the double derivatisations provide additional structural information which aids in the identification of SOA constituents, including carbonyls that are not detected by BSTFA derivatisation alone.

Many compounds identified in SQT SOA do not have an authentic standard, so their identification was based on interpretation of the mass spectra of the derivatised compound. For compounds that have standards, identification was based on comparisons between mass spectra of the derivatised samples and the authentic spectra in chemical ionisation (CI) or electron impact (EI) mode, as well as on retention times. For compounds with no standard, initial identification was made based on fragment and adduct peaks in CI mode that permit determination of the number and identity of functional groups and the molecular weight (MW) of the derivative. Additional analyses were made using double derivatisations to confirm the identity of potentially ambiguous functional groups. Analysis of CI mass spectra of the derivatives involved recognition of characteristic ions associated with a particular derivatisation scheme. A detailed description of this method can be found in Jaoui et al.^[58]

In the present study, GC-MS mass spectra for more than 150 compounds have been recorded. The approach used for their detection is as follows: peaks detected in blank and background samples were eliminated first; a peak was associated with a reaction product only if its corresponding mass spectrum was consistent with the fragmentation pattern of the derivatisation reagent used. Given the large number of peaks generated from these systems, an extensive evaluation was made by comparing products identified in this study with those from our previous work or other laboratories to determine the degree of consistency and to provide information on which chemical systems might be subject to the greatest uncertainties.^{[23,29,30,33,38–40,63]}

The majority of organic products structurally identified in this study from α-cedrene, α-humulene and β-caryophyllene (Table 4) have been reported in the literature^{[23,29,30,33,39,40]} and therefore only a few examples are presented here. The reader should consult the original papers for more information. For experiments involving farnesene, for which only very limited data are available for gas-phase compounds, a detailed chemical analysis is reported elsewhere (M. Jaoui, K. S. Docherty, M. Lewandowski, T. E. Kleindienst, J. H. Offenberg, unpubl. data) and only limited data are provided here. We have included in this paper representative examples of only products observed either for the first time or observed previously in ozonolysis (or photooxidation) experiments and detected in this study in photooxidation (or ozonolysis) experiments. Additional compounds (e.g. high-molecular-weight organics and organonitrates) might have been present in the SOA but could not be detected based on the analytical techniques used in this study. In this section, our main purpose is to compare and highlight the chemical characteristics of SOA generated from the different systems studied (e.g. photooxidation v. ozonolysis v. NO₃ oxidation).

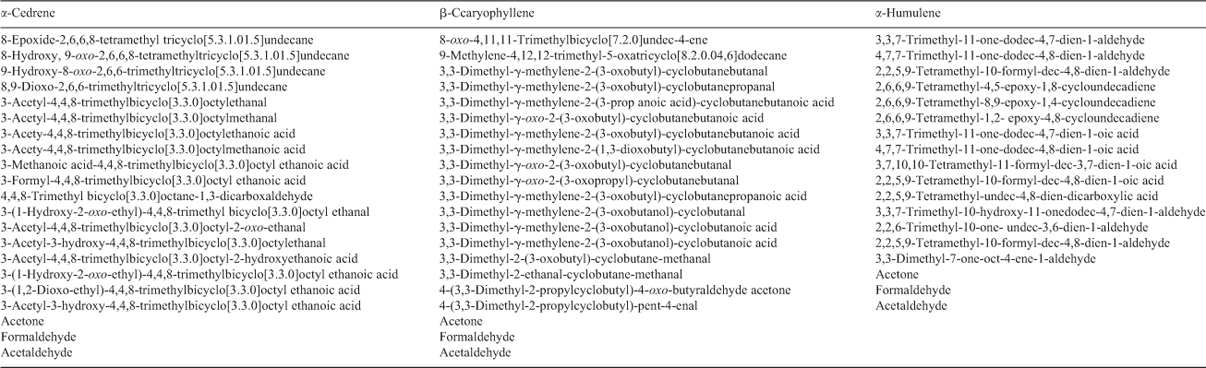

Table 4.  Products tentatively identified from the oxidation of α-cedrene, β-caryophyllene and α-humulene studied in this work
Most products were identified previously (see text for more information)

Typical total ion chromatograms from the BSTFA derivatisation of SOA extracts from α-humulene–NO₃, α-humulene–NO_x and α-humulene–O₃ systems are shown in Fig. 2. The chromatograms related to photooxidation (middle) and ozonolysis (bottom) experiments are similar. A detailed analysis of spectra associated with each peak in these chromatograms reveals that more than 80 % of peaks eluted in both chromatograms were identical, suggesting similar chemistry involved in both ozonolysis and photooxidation in the presence of NO_x. Identified peaks are in good agreement with our previous chemical analysis of SOA formed from the same systems showing the presence of similar products.^[39] Literature data exists only for α-humulene photooxidation and β-caryophyllene ozonolysis.

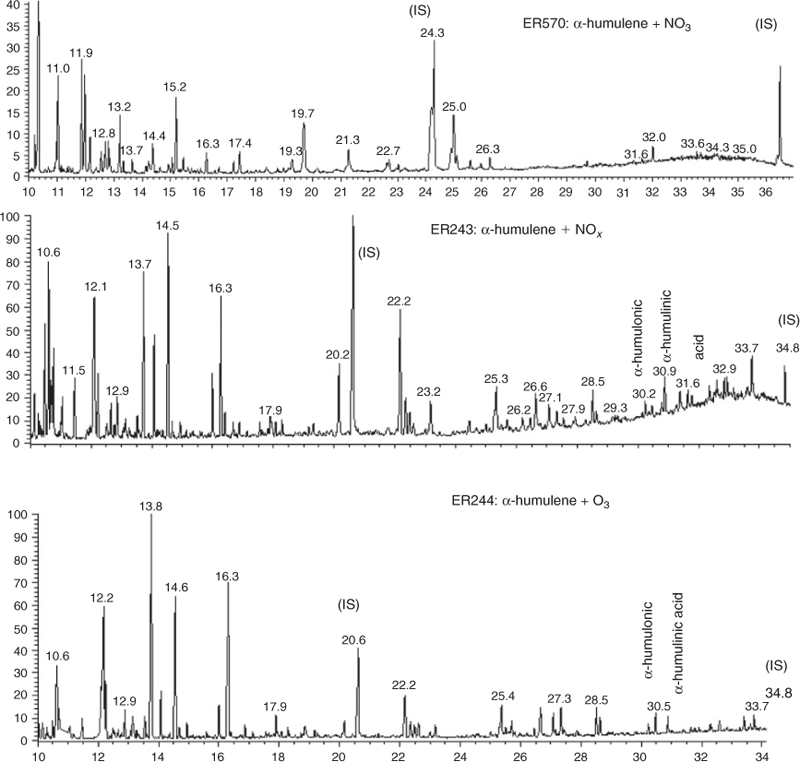

Fig. 2.  Gas chromatography–mass spectrometry chromatograms of silylated compounds in secondary organic aerosol from α-humulene–NO₃ (top), α-humulene–NO_x (middle) and α-humulene–O₃ (bottom) systems. (IS, internal standard.)

Analysis of mass spectra associated with peaks detected in Fig. 2 from the α-humulene–NO₃ system (top) compared with those for α-humulene–O₃ and α-humulene–NO_x systems shows that the majority of peaks detected in the NO₃ system were not present in the two other systems. Also, there are fewer peaks observed in chromatograms of aerosol generated from reaction with NO₃, and most peaks are eluted earlier in the chromatogram than those detected in the photooxidation and ozonolysis reactions. A similar analysis undertaken for the β-caryophyllene–NO₃ and α-farnesene–NO₃ systems shows similar trends to the α-humulene–NO₃ system. This suggests that the composition produced by night-time chemistry of SQTs is considerably different than that involved during the daytime. These results are similar to those obtained from monoterpene experiments conducted in our laboratory (results not shown here), in which organic compounds detected in the photooxidation system were absent in the NO₃ reaction and only a small number of peaks were observed in all the SQT systems.

In general, the mass spectrometric signals associated with the majority of chromatographic peaks detected from NO₃ chamber oxidations of β-caryophyllene, α-humulene and α-farnesene using BSTFA derivatisation had predominant peaks that showed odd values. Note that BSTFA and other derivatisations of organic nitrates are not well understood and the analysis of SOA from NO₃ reaction is still associated with high uncertainties, mainly for the detection of organic nitrates. For example, some reaction products may contain more than one nitrogen atom moiety (due either to the presence of more than one double bond in the parent SQT or due to chemistry), leading to a more challenging and complicated interpretation of mass spectra. In addition, the high GC inlet temperatures used create the potential for thermal decomposition of organic nitrates. For example, a HR-AMS mass spectrum of β-caryophyllene–NO₃ aerosol is shown in Fig. 3c. A Q-AMS spectrum of isoprene–NO₃ aerosol and an HR-AMS spectrum of α-pinene–NO₃ aerosol are provided in Fig. 3a and 3b for comparison. Each of these spectra were first normalised by the total spectrometric signal and the fragment intensity was subsequently adjusted to foster comparison. Overall, the spectrum of β-caryophyllene–NO₃ aerosol has characteristic differences to the other mass spectra, particularly in the presence and intensity of fragments in the medium (e.g. 51–200 amu) and high (201–500 amu) mass-to-charge ratio (m/z) range. As Fig. 3 shows, the intensity of fragments in the high mass range proceeds in the order isoprene > α-pinene > β-caryophyllene, whereas the intensity of fragments in the low mass range (e.g. 10–49 amu) follows the opposite trend. Fig. 3d summarises the relative contribution of mass spectrometric fragments (within 50 amu segments) to the total unadjusted mass spectrum and shows these differences more clearly. Overall, fragments in the low mass region dominate the isoprene–NO₃ aerosool spectrum, whereas contributions in the intermediate and high mass ranges are small or negligible. Low mass fragments appear to have similar high contributions to the α-pinene–NO₃ SOA mass spectrum. However, the contributions of fragments in the intermediate mass range are higher than those in the isoprene spectrum, whereas those in the high mass range are relatively similar. The relative contributions of fragments in the high mass range of β-caryophyllene–NO₃ SOA are highest among this set of spectra with distinct structures observed up to m/z 375. These results suggest that high MW compounds are present in β-caryophyllene–NO₃ SOA and further suggests that the detection of fewer smaller compounds by GC-MS could be due to their thermal decomposition in the heated inlet or the column.

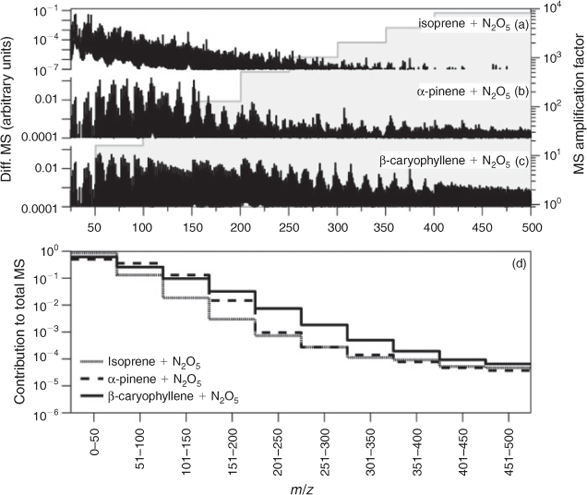

Fig. 3.  Aerosol mass spectrometry (AMS) mass spectra of secondary organic aerosol formed from reaction of (a) isoprene, (b) α-pinene, (c) β-caryophyllene with NO₃ and (d) relative contribution of mass spectrometric fragments (within 50-amu segments) to the total unadjusted mass spectrum. Major air-related ions (e.g. CO²⁺, O²⁺, Ar⁺) have been removed and spectra were normalised by dividing each fragment intensity by the corresponding total signal so that the relative intensity sums to unity. Spectra were also modified using the amplification factor (right) in order to more clearly show structure in the high mass range of each spectrum.

The GC-MS analysis of β-caryophyllene SOA generated from either photooxidation or ozonolysis shows the presence of several significant peaks and a large number of smaller peaks. Most of these peaks were identified from the ozonolysis of β-caryophyllene.^[23,30,38] Fig. 4 shows four CI mass spectra associated with peaks from PFBHA, BSTFA, PFBHA–BF₃ and PFBHA–BSTFA derivatisations of aerosol extracts from the photooxidation of β-caryophyllene. The BSTFA CI mass spectrum of this compound shows characteristic fragment ions at m/z 73, 255 ([M – 15]⁺), 181 ([M – 89]⁺) and 153 ([M – 117]⁺), and adducts at [M + 1]⁺, [M + 29]⁺ and [M + 41]⁺. These fragments and adducts are consistent with the presence of one OH group and a MW of the derivatised compound of 270 Daltons (all masses hereafter given as Daltons) and 198 for the underivatised compound. The presence of a peak at m/z 153 ([M – 117]⁺) is consistent with a compound bearing an organic acid group. The PFBHA CI spectrum of this compound (Fig. 4a) shows strong fragments at m/z 181 and 394 ([M + 1]⁺), consistent with the presence of one CO group and giving a MW of 393 for the derivatised compound and 198 for the underivatised compound. The reaction of BF₃–methanol with carboxylic acids forms methyl esters with characteristic ions at 59, [M – 59]⁺, [M – 31]⁺ and [M + 1]⁺, and weak adducts at [M + 15]⁺, [M + 29]⁺ and [M + 41]⁺. Double derivatisations result in adducts and fragments that include characteristic ions from each derivatisation. The mass spectrum associated with PFBHA and BSTFA (Fig. 4b) shows fragment ions at m/z 73, 181, 376 ([M – 89]⁺), 450 ([M – 15]⁺) and adducts at [M + 1]⁺, [M + 29]⁺ and [M + 41]⁺. The mass spectrum for PFBHA–BF₃ (Fig. 4c) shows fragment ions at m/z 300 ([M – 107]⁺), 376 ([M – 31]⁺) and 408 ([M – 1]⁺), and adducts at [M + 29]⁺ and [M + 41]⁺. These mass spectra are consistent with the presence of one OH and one CO group.

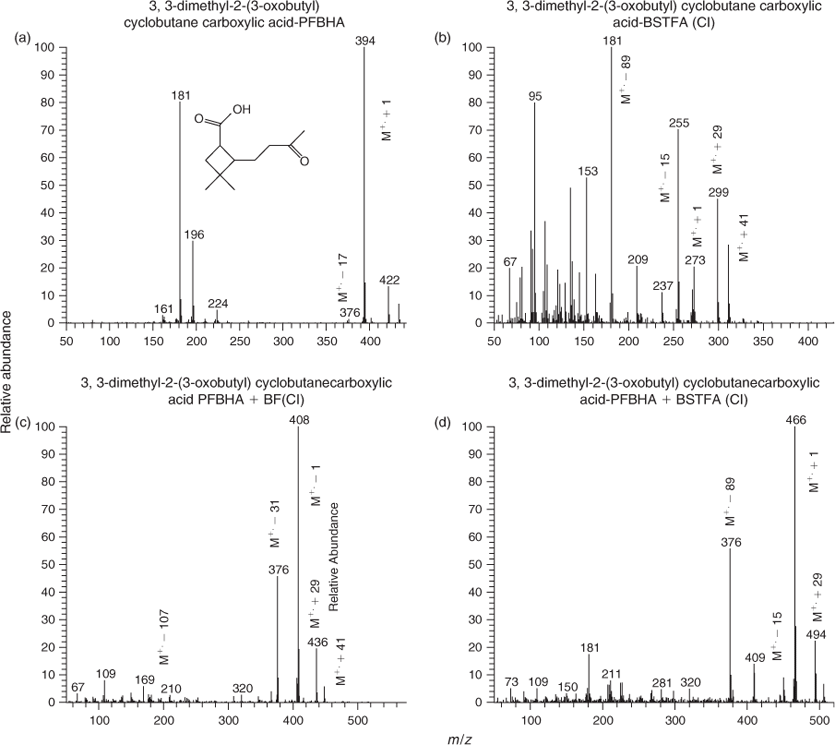

Fig. 4.  Chemical ionisation (CI) mass spectra associated with peaks from derivatisations of aerosol extracts for the photooxidation of β-caryophyllene: (a) PFBHA (O-(2,3,4,5,6-pentafluorobenzyl)hydroxylamine hydrochloride), ((b) BSTFA (N,O-bis(trimethylsilyl)trifluoroacetamide), (c) PFBHA–BF₃ and (d) PFBHA–BSTFA.

The compound associated with these peaks was tentatively identified as 3,3-dimethyl-2-(3-oxobutyl)cyclobutanecarboxylic acid (C₁₁H₁₈O₃). Other β-caryophyllene photooxidation compounds tentatively identified in the particle phase at very low levels include 3-(4-acetyl-7–7-dimethyl-3-oxabicyclo[4,2,0]oct-4-en-2yl)propanoic acid (C₁₄H₂₀O₄) and 2,3-dihydroxy-4-[2,(4-hydroxy-3-oxobutyl]-4-oxobutanoic acid (C₁₄H₂₂O₇). These compounds were reported first by Li et al.^[30] from the ozonolysis of β-caryophyllene. In this study, they were detected in SOA formed from photooxidation of β-caryophyllene, as well as from ozonolysis, but not from the NO₃ reaction. As mentioned earlier, particles were observed early in the reaction due mainly to ozone reaction. These compounds may be formed following similar mechanistic pathways reported by Li et al. involving reaction of ozone with first generation products.^[30]

Fig. 5 shows CI mass spectra associated with peaks for BSTFA derivatisation of aerosol extracts from the photooxidation of α-humulene and α-cedrene. Literature information about compound identification exists for α-humulene photooxidation^[39] and α-cedrene ozonolysis^[40] only. This study focuses also on the largely unreported α-humulene ozonolysis and α-cedrene photooxidation reactions in order to provide a more thorough dataset. The mass spectra shown are those for α-humuladionic acid (MW 254), a diacid similar to pinic acid bearing two carboxylic groups; α-nohumulonic acid (MW 254), a compound bearing one carboxylic and two ketone groups; α-cedrenic acid (MW 254), a diacid similar to pinic acid and finally α-cedronic acid (MW 252), a compound similar to pinonic acid. α-Nohumulonic acid is detected for the first time in this study in both ozonolysis and photooxidation experiments but not from NO₃ reaction.

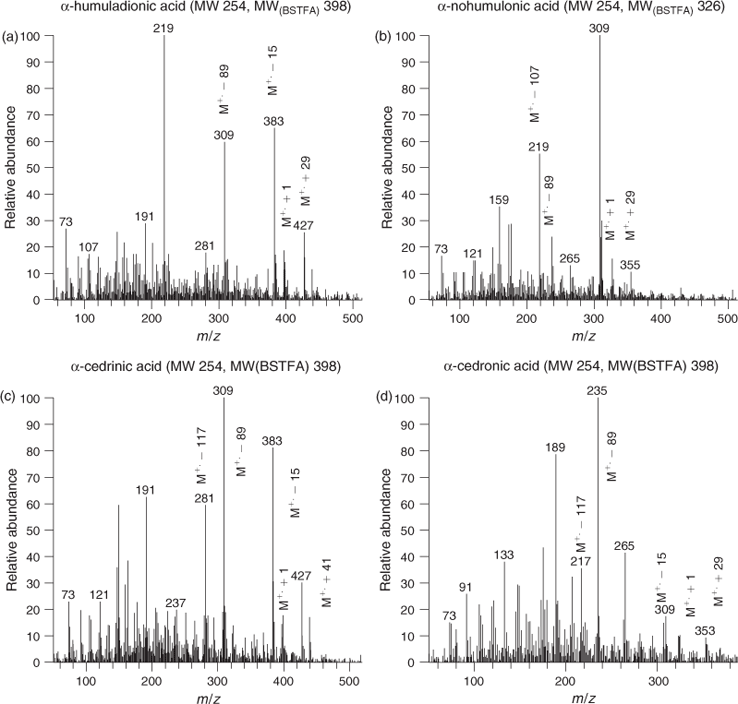

Fig. 5.  Chemical ionisation (CI) mass spectra associated with peaks from N,O-bis(trimethylsilyl)trifluoroacetamide (BSTFA) derivatisation of aerosol extracts for the photooxidation of α-humulene and α-cedrene. (MW, molecular weight.)

Fig. 6a and 6b respectively show total ion chromatograms (13–26 min) from BSTFA derivatisation of SOA extracts from α-farnesene–NO_x and α-farnesen–NO₃ systems. A variety of OH-bearing compounds were observed in both systems reflected by the presence of the trimethylsilyl group (m/z 73) in the BSTFA-derivatised compounds. Similar to α-humulene systems, a detailed analysis of spectra associated with each peak reveals that the majority of peaks eluted (using BSTFA derivatisation) in both chromatograms were not the same, suggesting that the chemistry involved in both systems is different. The number of peaks observed in NO₃–α-farnesene oxidation is higher than in the α-humulene–NO₃ system possibly due to the physical characteristics of α-farnesene compared with α-humulene (linear with four double bonds for farnesene compared with cyclic and three double bonds for humulene: Table 1). Spectra associated with NO₃–α-farnesene reactions are consistent with compounds bearing OH groups, however, they are difficult to interpret following BSTFA derivatisation rules, mainly to get structural information about the derivative MW of the compound. Most spectra are dominated by odd fragment ions making it more difficult to know if the compound associated with a peak contains nitrate moieties. Therefore, all spectra originated in this study involving NO₃ reactions are not presented. Clearly, additional research with a focus on understanding the BSTFA derivatisation of compounds bearing nitrates groups needs to be conducted.

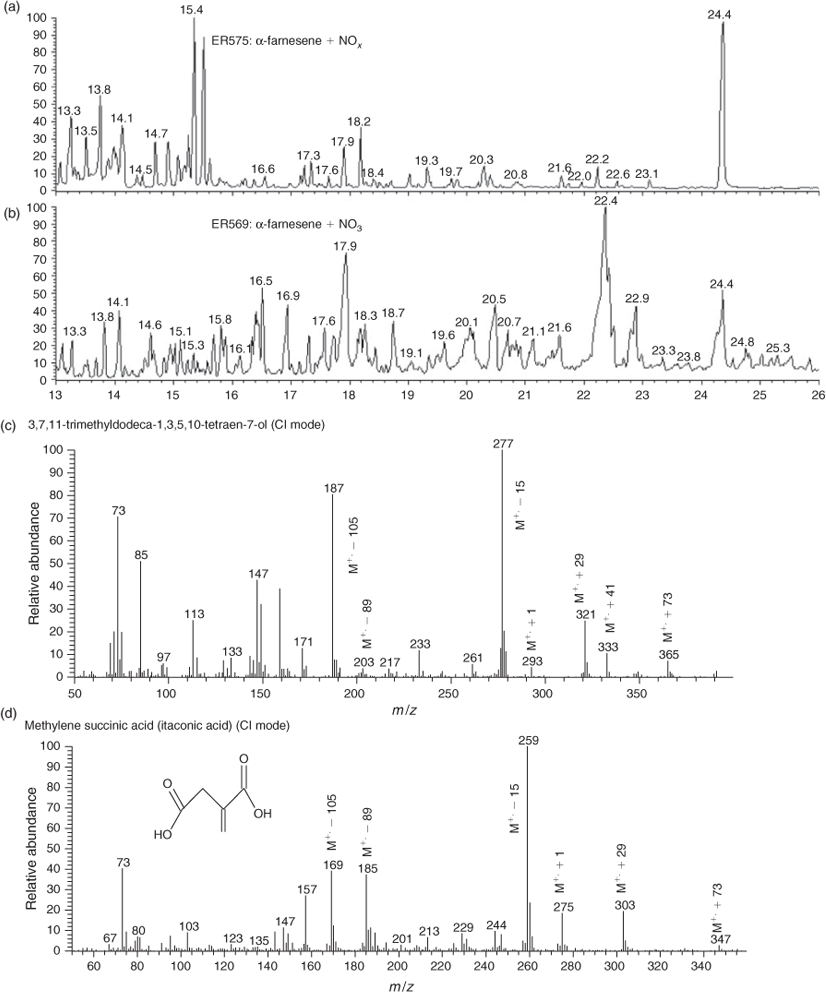

Fig. 6.  Gas chromatography–mass spectrometry chromatograms of silylated compounds in secondary organic aerosol from α-farnesene–NO_x (a) and α-farnesene–NO₃ (b) systems. Mass spectra of 3,7,11-trimethyldodeca-1,3,5,10-tetraen-7-ol (c) and methylene succinic acid (d).

However, analysis of spectra originated from SOA extracts from α-farnesene–NO_x is consistent with BSTFA derivatisation rules and their interpretation leads in general to tentative structural identification when authentic standards are missing. As an example Fig. 6c–d show two mass spectra associated with two compounds tentatively identified for the first time as 3,7,11-trimethyldodeca-1,3,5,10-tetraen-7-ol (or isomers) (Fig. 6c) still preserving the α-farnesene carbon backbone and all four double bonds and methylene succinic acid (itaconic acid: Fig. 6d), a diacid bearing one ethylene group. The M⁺, [M – 15]⁺ and [M – 89]⁺ fragment ions of the silylated 3,7,11-trimethyldodeca-1,3,5,10-tetraen-7-ol occurred at m/z 293, 277 and 203. Other key ions included those at m/z 187 ([M – 105]⁺), 321 ([M + 29]⁺), 333 ([M + 41]⁺), 365 ([M + 73]⁺) and 73 (Fig. 6c). For methylene succinic acid, a similar fragmentation pattern was observed. The CI BSTFA mass spectrum (Fig. 6d) shows the presence of strong fragmentation ions at m/z 259 ([M – 15]⁺), 185 ([M – 89]⁺) and 169 ([M – 105]⁺), and the [M + 1]⁺, [M + 29]⁺ and [M + 41]⁺ adducts, all of which are consistent with the presence of a BSTFA derivative of MW 274 formed from a compound of MW 130 containing two OH groups.

Several recent studies have suggested that secondary PM can be formed under a wide range of conditions through reactions of organic compounds with O₃, OH and NO₃ radicals. This study investigates the formation of SOA through reaction of a series of SQTs, including α-cedrene, β-caryophyllene, α-humulene and α-farnesene, with NO_x, O₃ and NO₃ radicals under a wide range of conditions. These hydrocarbons, emitted by terrestrial vegetation, are oxidised in the ambient atmosphere and lead to the formation of SOA, ground-level ozone and other pollutants. Experiments were conducted with each SQT individually in a 9-m³ or a 14.5-m³ smog chamber operated in either dynamic mode, to ensure adequate collection of the aerosol at reasonably low reactant concentrations, or static mode, in which temporal evolution of the reactants and products could be obtained.

The results of this study suggest that the nature of the oxidant (O₃ v. NO₃ v. OH radicals) is an important factor influencing the chemical characteristics of the particle phase. Although similar reaction products were observed during SQT photooxidation in the presence of NO_x and ozonolysis, the SOA formed from NO₃ oxidation shows different chemical characteristics. The SOA chemical characteristics tended to depend primarily on the daytime v. night-time chemistry (NO₃). The chemical characteristics of the SOA from SQTs were found to evolve over the course of the static reactions in the chamber as reflected by the time profile of the integrated SMPS volume and OC. This may be due to the oxidation of less volatile first generation products leading to polar second generation products that reside mainly in the particle phase.^[32] This study also suggests that SOA from ozonolysis experiments may adequately represent ambient aerosol in areas with SQT emissions.

Several aerosol parameters were determined and compared with literature data when available. The OM/OC ratio, for example, is an important parameter for converting SOA into SOC in air quality models and was found in this study to give an average value of 1.8 for ozonolysis and photoxidarion reactions and 1.6 for the dark reaction involving NO₃ radicals. The effective enthalpy of vaporisation for the aerosol generated in this study was measured for β-caryophyllene–NO_x, β-caryophyllene–O₃, β-caryophyllene–NO₃, α-humulene–NO_x and α-farnesene–NO_x systems and found to be 43.9, 41.1, 44.9, 48.2 and 27.7 kJ mol^–1. The average SOA yields were found to be 0.53, 0.55 and 1.19 in this work for ozonolysis, photooxidation and NO₃ reaction, in good agreement with literature data.

Reactions of β-caryophyllene, α-humulene and α-farnesene with NO₃ have been shown to form considerable amounts of SOA. MS analyses of filter-based and AMS data show that the condensable oxidised products have far fewer nitrogen moieties than SOA from other terpenes (e.g. isoprene–NO₃ system). Although SQTs are thought to be emitted mainly during daylight hours, given their high emission rate even with their short atmospheric lifetime mainly with ozone, substantial concentrations are likely to be present in the early evening when the NO₂ + O₃ reaction producing NO₃ is likely to be most pronounced.

GC-MS data analysis was employed in this study to determine the degree to which unique organic tracers indicative of these systems might be formed during reactions and are represented in the SOA. One of the most prevalent SQT tracers observed in ambient PM_2.5, β-caryophyllinic acid, was readily produced in this study during the photooxidation in the presence of NO_x and ozonolysis of β-caryophyllene. It was detected at very low levels, however, during the night-time oxidation involving NO₃ radicals. Although a series of polar compounds are observed in the SOA of SQTs, a preliminary survey suggests that only β-caryophyllinic acid can be found in ambient aerosol.

MS analyses of filter-based and AMS data from systems involving reaction with NO₃ show that the condensable oxidised products have far fewer nitrogen moieties than SOA from other terpenes (e.g. isoprene–NO₃ system). The analysis also shows that condensable products observed in the photooxidation and ozonolysis experiments are similar reflecting similar chemistry involved in their oxidation in both systems. O₃ seems to play an important role early in photooxidation reactions contrary to those observed for other terpenes. This is consistent with ambient data showing that SQTs act as effective ozone sinks within the plant canopy.
