Photolysis and TiO₂-catalysed degradation of diclofenac in surface and drinking water using circulating batch photoreactors

Additional keywords: advanced oxidation processes, pharmaceuticals, photocatalysis, titanium dioxide.

Pharmaceuticals and personal care products have been frequently detected in waterways in trace levels ranging from parts per trillion (ppt, ng L^–1) to parts per billion (ppb, µg L^–1).^[1,2] The presence of pharmaceuticals in the water cycle largely arises from their excretion either as metabolites or in their unmetabolised form. Pharmaceuticals and their active pharmaceutical ingredients (APIs) are generally designed to be both highly active and stable to efficiently execute a specific physiological action in humans and animals.^[3] Their incomplete removal by wastewater treatment plants (WWTPs) thus represents an important urban source of these pharmaceuticals and their APIs in the aquatic environment.^[4,5] In view of this, pharmaceutical abatement requires innovative technologies to combat their continued presence in the environment.^[6] Advanced oxidation processes (AOPs) have been proposed as a superior technology over that of conventional water treatment methodologies for the removal of recalcitrant pharmaceuticals and other endocrine-disrupting chemicals.^[7–9] All AOPs are based on the in situ generation of highly reactive and short-lived reactive oxygen species such as HO^•, H₂O₂, O₃ and O₂^•– for the mineralisation of organic compounds.^[10] Among various AOPs, TiO₂ photocatalysis has been extensively studied for the photodecomposition of a variety of pharmaceuticals used for different therapeutic effects.^[11–14] One of the most widely consumed class of drugs globally are non-steroidal anti-inflammatory drugs (NSAIDs), which are primarily used to reduce inflammation.^[15] DCF (2-[(2,6-dichlorophenyl)-amino]phenylacetic acid, diclofenac) a commonly used NSAID, is important environmentally because of its frequent detection in water bodies,^[16,17] groundwater aquifers^[18] and WWTP effluents^[19] and its toxic effects on aquatic and terrestrial organisms.^[20,21] In particular, DCF has displayed the highest acute toxicity in comparison to other NSAIDs.^[22] A concentration of 11 454 µg L^–1 was reported to cause 50 % of effect (EC₅₀) on the Microtox system over 30 min.^[23] Its removal efficiencies also greatly vary between 0 and 80 % depending on the operating conditions of WWTPs such as sunlight exposure or acidic conditions.^[23,24] A recent study by Salgado et al. highlighted inefficient removal of DCF by WWTPs.^[25] The prevalence of DCF in the environment has resulted in increased interest to combat its further accumulation in the environment.

The degradation of DCF has been investigated both under direct photolysis^[26–29] and by TiO₂ photocatalysis.^[13,30–34] Existing studies describing photolysis either in the laboratory or in the natural environment using sunlight have reported direct photolysis as the main depletion mechanism for DCF. Discrepancies have, however, arisen between studies on the effect of artificial UV light on DCF phototransformations. For example, Méndez-Arriaga et al. observed up to 75 % DCF degradation,^[13] whereas Calza et al. reported an insignificant photolysis of DCF.^[34] Typical parameters, which control the photocatalytic behaviour of DCF, include TiO₂ loading, initial concentrations, effect of oxidants and water matrices. Despite this, there is little known about the photocatalytic treatment of DCF in drinking water (tap water, TW) although monitoring studies have highlighted the presence of this API in this water source.^[35] Furthermore, it is important to investigate surface water, especially river water (RW), which is one of the main sources of TW. Application of different photoreactor configurations for simultaneous pilot and laboratory scale investigations has largely led to non-systematic comparisons.^[36] Also, there is no clear consensus on the superiority of direct photolysis over TiO₂ photocatalysis or vice versa for DCF degradation, given that performance is greatly affected by the oxidation conditions used. Further studies are therefore necessary to examine the effects of these photochemical methods on DCF degradation.

The main objective of this study was to perform direct photolysis and TiO₂-catalysed UV oxidation (UV/TiO₂) of DCF, using two circulating photoreactors of different volumes equipped with medium pressure (MP) UV lamps. Illuminations with natural sunlight were furthermore conducted in the smaller circulating reactor. Degradation kinetics, extent of mineralisation with two indicators, dissolved organic carbon (DOC) and chemical oxygen demand (COD), and the identification of intermediates were also the focus of this study.

Diclofenac sodium salt was purchased from Sigma–Aldrich (R&D grade) and was used without further purification. High-performance liquid chromatography (HPLC; Agilent Technologies Australia Pty Ltd, Melbourne) and Nuclear Magnetic Resonance (NMR; Varian Oxford 300 with the Varian Software VnmrJ Revision D, Agilent Technologies Australia) analyses showed no impurities. Titanium dioxide P25 Aeroxide (80 % anatase and 20 % rutile, Brunauer–Emmett–Teller (BET) surface area 50 m² g^–1) was supplied by Evonik industries whereas titanium(IV) oxide (99.8 % metal basis, anatase) was purchased from Aldrich and used for comparison. HPLC grade methanol and glacial acetic acid were obtained from RCI Labscan. Hydrogen peroxide (H₂O₂, 30 %) was obtained from Univar. Laboratory grade distilled water (DW) was used for all photodegradation studies, whereas Milli-Q water (Milli-Q system, Millipore) was used for the preparation of working standards and the mobile phase for HPLC analyses. RW was sampled from the Ross River (19°18′59″S, 146°45′7″E) in Townsville in October 2012 and was stored at 4 °C before irradiation and analysis. Unfiltered RW samples were used for the solar photodegradation studies in order to mimic environmentally relevant conditions. TW samples were freshly sampled from the laboratory at James Cook University. Table 1 displays the selected water quality properties of TW and RW.

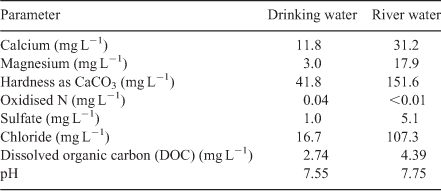

Table 1.  Water quality properties of river water and drinking water used in this study

Two types of circulating batch photoreactors, an advanced laboratory-scale immersion-well reactor and a novel demonstration-scale loop reactor were used in this study. The smaller immersion-well photoreactor (Heraeus UV-RS-1, Hanau, Germany, length of 38.4 cm with an optical path <2 cm) was made of Pyrex glass (cut-off wavelength ≤290 nm) and is shown in Fig. 1. The reactor was filled with 400 mL of DCF solution (C₀ = 30 mg L^–1) or suspensions of TiO₂/DCF and irradiated with a MP Hg vapour lamp (TQ 150 Heraeus, Germany, 150 W). The reactor was equipped with a powerful magnetic circulation system, which pumped the reaction mixture turbulently through the attached side-arm. This feature provided very effective circulation and mixing, even under heterogeneous conditions. In contrast, most common batch reactors experience poor mixing, especially in the narrow space between the sides of the outer reactor vessel and the inner immersion-well. Chilled water was used to prevent the lamp from overheating. The reaction set-up was placed behind a UV-shield and maintained inside a light-tight fume cabinet.

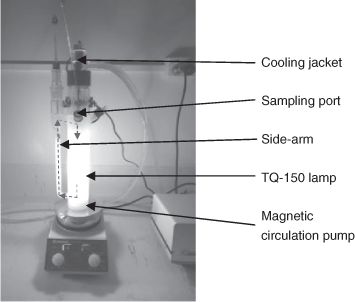

Fig. 1.  Circulating immersion-well photoreactor (Heraeus UV-RS-1). The circulation is indicated as broken arrows.

The larger loop reactor (Laboclean, Tandem UV, a.c.k. aqua concept GmbH, Karlsruhe, Germany) was fitted with both low pressure (LP, 40 W) and MP (500 W) mercury lamps in separate horizontal chambers (Fig. 2). The lamps were housed in Quartz mantles, whereas the outer chambers were made of Pyrex glass. In this study, only the top MP mercury lamp was used. A 6-L solution was filled into the external reservoir tank and continuously pumped through the system for 10 min. The liquid streamed tangentially through the UV chambers creating a screw-like flow. This pattern enabled high mass transfer and high turbulence, which avoided sedimentation of photocatalyst. A cooling jacket, which was cooled with chilled water, was placed at the end of the irradiation chambers on top of the reservoir. Measured temperatures of solution in the reservoir did not exceed 35 °C. The circulating reaction medium provided cooling for the lamps. The UV modules were placed behind a large UV-shield and the reactor loop behind a light tight curtain. Samples were withdrawn before commencing irradiation and at selected times throughout the irradiation period. The MP mercury lamp in both reactors emits polychromatic light in a variety of wavelengths including 254, 313 and 366 nm in the UV region and 405, 436, 546 and 578 nm in the visible region.^[37]

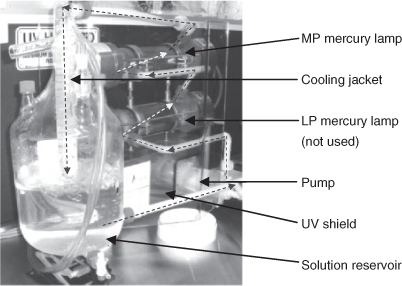

Fig. 2.  Laboclean tandem UV loop reactor (a.c.k. aqua concept GmbH). The circulation is indicated as broken arrows (MP, medium pressure; LP, low pressure).

An adsorption study was conducted to evaluate the extent of DCF adsorption on the TiO₂ surface in the dark. Adsorption experiments were conducted using 100 mL of DCF solution of different concentrations (10–60 mg L^–1) and 0.1 g L^–1 of TiO₂ P25. The suspensions were mixed using an orbital shaker (Stuart Model SSL1) under continuous agitation at 230 rpm and exclusion of light for 24 h. Adsorption experiments were also conducted at different pH values (3–11). The equilibrium concentrations were determined by HPLC after filtration through a 0.22-µm syringe filter. Details on the HPLC method applied are provided below.

In a typical irradiation experiment, a suspension of DCF (30 mg L^–1) and TiO₂ (0.1 g L^–1) was stirred at 1000 rpm in the dark for 30 min to establish an adsorption–desorption equilibrium. The temperature in the reaction solution did not exceed 29 °C and all reactions took place at pH ~6.2, with the exception of the pH studies. Samples were withdrawn at specified time intervals and filtered through a 0.22-µm syringe filter before the concentration of DCF was determined by HPLC. Direct photolysis experiments were similarly performed, but excluding the photocatalyst. To optimise the process, initial DCF concentrations (10–60 mg L^–1), amounts of TiO₂ (0.01–2.0 g L^–1) and pH (4.9–10.8) were varied. For the pH study, the pH of each DCF solution was adjusted with dilute NaOH or HCl and measured using an UB-10 model pH-meter (Denver Instrument) before addition of TiO₂. The pH of each suspension was determined again after TiO₂ addition. All analyses were carried out in duplicate to confirm reproducibility.

Solar DCF degradation studies were performed on sunny days outside the laboratory in October 2012 using the same immersion-well reactor, but without the immersed MP lamp. This strategy allowed for a direct comparison with studies conducted under laboratory conditions. All solar photochemical experiments were carried out at James Cook University (latitude 19°19′42″S and longitude 146°45′36″E) in Townsville, Australia. Reaction conditions optimised for the indoor experiments with artificial light were applied. The adsorption–desorption process was allowed to equilibrate in the dark for 15 min before the first sample was withdrawn in the laboratory. This process allowed determination of the amount of DCF adsorbed before solar exposure. Cooling water was circulated from a reservoir using a pump driven by a solar panel to avoid the necessity of electricity. Samples were withdrawn at regular intervals during the 6 h of solar exposure. The intensity of light was recorded using an auto digital Luxmeter (Model 1010A) and the data were converted into watts per square metre. Table 2 summarises the experimental details for each solar study conducted.

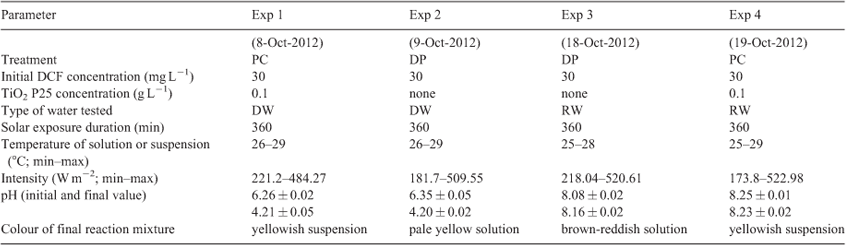

Table 2.  Operating parameters for the solar photochemical experiments
DCF, 2-[(2,6-dichlorophenyl)-amino]phenylacetic acid, diclofenac. Treatment abbreviations are: DP, direct photolysis; PC, photocatalysis; DW, distilled water; RW, river water

DCF concentrations (30 mg L^–1) and TiO₂ amount (0.1 g L^–1) were used for experiments in the larger Laboclean reactor. In addition to photolytic and photocatalytic studies with TW, DW spiked with DCF was also investigated to determine the effect of the water matrix. In addition, the effect of adding H₂O₂ was evaluated for the photocatalytic degradation of DCF in DW and TW.

The degradation kinetics of DCF was monitored using HPLC. A Varian 940-LC instrument equipped with a photodiode array (PDA) detector, Galaxie Chromatography data system software and an autosampler was employed. Millipore membrane type FH filters with a pore diameter of 0.45 μm (Millipore, Ireland) were used to filter the mobile phase, a mixture of 80 % (v/v) methanol and 20 % water (pH 3 adjusted with glacial acetic acid). A 20-µL aliquot of sample from the photoreactor was injected onto a C18 Phenomenex column (150 × 4.6 mm, 2.6 µm) with a flow rate of 0.5 mL min^–1. The absorbance was monitored on a UV-Vis spectrophotometer (Model Varian 50 Bio) with Cary WIN UV Scan software at 274 nm, corresponding to the maximum DCF absorbance. A total organic carbon (TOC) analyser (Model Shimadzu 5000 A) equipped with an ASI-5000A autosampler was used to quantify DOC in the filtered samples (0.45-µm GF/F filter). COD analysis was carried out using the open reflux titrimetric method, according to the Standard Methods for the Examination of Water and Wastewater.^[38] The concentration of chloride ion was measured using ion chromatography (ICS 2100 Dionex). An anion column (AS 19; 4 × 250 mm) and conductivity detector with suppression was used. Identification of photoproducts was achieved using an Agilent 1100 HPLC system comprising a degasser, auto injector, binary pump and PDA connected to a Bruker Esquire3000 ion trap mass spectrometer with an Apollo electrospray ionisation source (ESI) ion source operating in either positive or negative mode (ESI⁺/ESI^–). All liquid chromatography–mass spectrometry (LCMS) data were collected using Bruker Daltonics Esquire Control v5.3 and Hystar v3.1 (Bruker Daltonics, Melbourne) operating on Windows XP Professional. The DCF standard (0.5 mg mL^–1; 10 μL) and UV/TiO₂ irradiated sample (0.5 mg mL^–1; 100 μL) were injected onto a C18 Phenomenex column (150 × 4.6 mm, 2.6 μm) and eluted using the same conditions as described above and monitored at a wavelength of 220 nm. MS analysis was performed using the following conditions: nebuliser gas 138 kPa (20 psi), drying gas 6.0 L min^–1 and drying temperature 350 °C. The presence of the parent and product ions was determined by monitoring the base peak chromatogram (BPC). High resolution MS data were acquired on a Bruker BioApex 47 Fourier transform ion cyclotron resonance mass spectrometer with an ESI Analytica of Branford source (Bruker Daltonics, Billerica, CA, USA). Both the DCF standard and irradiated samples were analysed in either ESI⁺/ESI^– mode within a mass range of m/z 50–2000 by direct infusion of the diluted LCMS sample (1 : 100 methanol) at a flow rate of 1.7 µL min^–1.

The effect of different initial concentrations of DCF (10–60 mg L^–1) in the presence of 0.1 g L^–1 TiO₂ P25 was investigated. A maximum extent of 2.2 ± 0.8 to 10.8 ± 1.6 % was observed for DCF at the end of the adsorption period. This low adsorption is in accordance to dark adsorption studies of DCF on TiO₂ as reported by Rizzo et al.^[32]

A comparison of the absorption spectrum of DCF and the radiant flux distribution of the TQ-150 lamp is shown in Fig. 3. Light below 290 nm is filtered when Pyrex glass is used in the immersion-well photoreactor. In water, the maximum absorbance of DCF was found to be at 274 nm, with a shoulder absorbance up to ~320 nm, the latter allowing for direct sunlight photolysis. The extinction coefficient for DCF at 274 nm (ϵ_274nm) in water was calculated to be 13 340 M^–l cm^–l.^[39]

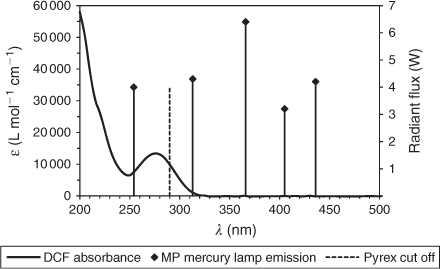

Fig. 3.  Molar absorptivity (ϵ) for 2-[(2,6-dichlorophenyl)-amino]phenylacetic acid (DCF, diclofenac) in water and main emission lines of a medium pressure (MP) mercury lamp (TQ-150 lamp) (manufacturer data).

Photolysis of DCF solutions at initial concentrations ranging between 10 and 60 mg L^–1 was investigated. The levels chosen for the photolysis study were higher than the typical background concentration of DCF present in the environment, however, this strategy allowed for the detection and identification of photodegradants without pre-concentration. As expected, UV photolysis resulted in a more rapid DCF degradation at lower concentrations (10 and 30 mg L^–1) compared to that at higher concentrations (50 and 60 mg L^–1) (Fig. 4). Degradation was accompanied by a significant decrease in pH because of the dehydrochlorination of DCF leading to the formation of hydrochloric acid and, after further degradation, other organic acids such as formic and oxalic acid.^[40] In contrast to the rapid disappearance of DCF, DOC was removed by less than 10 % over the chosen concentration range indicating the presence of stable degradation products, which are not further oxidised under direct photolysis. The photolysis of DCF has been previously studied by Martínez et al. who found a rapid degradation upon UV irradiation with a first-order rate constant of 0.40 ± 0.02 min^–1.^[41] A recent study also reported a high degradation rate for DCF on UV irradiation, emitted from a MP mercury lamp.^[39] Another study, however, reported an insignificant degradation efficiency upon direct photolysis.^[34] These somewhat contradictory results may be attributed to differences in the radiation intensity from the chosen light sources and variations in the water matrices.^[1] In particular, natural organic matter present in the water can compete for light absorption. Direct photolysis is thus not a suitable technology for the complete degradation of DCF. TiO₂ photocatalysis may offer a more appropriate alternative for water treatment instead.

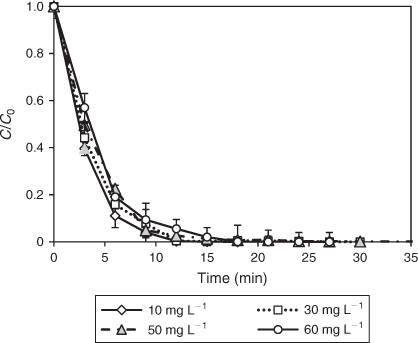

Fig. 4.  Effect of concentrations (C, final concentration; C₀, initial concentration) on photolysis of 2-[(2,6-dichlorophenyl)-amino]phenylacetic acid (DCF, diclofenac) under UV irradiation in distilled water (initial pH ~ 6.2; T_max 29 °C) (error bars indicate standard deviation).

TiO₂ concentrations ranging between 0.01 and 2 g L^–1 were examined for a 30-mg L^–1 DCF model solution. Photocatalytic degradation rates were determined after 30 min of pre-adsorption in the dark. In the absence of light, no noticeable degradation took place indicating the requirement of external light to initiate the degradation process. Concentrations of 0.01 and 0.1 g L^–1 of TiO₂ led to complete degradation of DCF within 30 min of irradiation, whereas higher loadings of 1 and 2 g L^–1 resulted in almost complete degradation only after 60 min of irradiation (Fig. 5). Coefficients of determination (R²) ranging from 0.96 to 0.99 confirmed that the experimental data fit pseudo-first-order kinetics (Table 3).

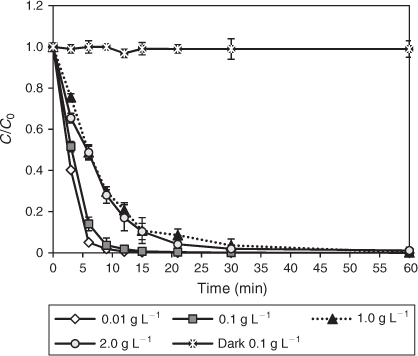

Fig. 5.  Effect of TiO₂ concentrations (C, final concentration; C₀, initial concentration; C/C₀, 0.01–2 g L^–1) on 2-[(2,6-dichlorophenyl)-amino]phenylacetic acid (DCF, diclofenac) degradation in distilled water (30 mg L^–1) (initial pH ~6.2; T_max 29 °C) (error bars indicate standard deviation).

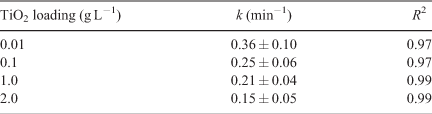

Table 3.  Pseudo-first-order rate constants (k) for 2-[(2,6-dichlorophenyl)-amino]phenylacetic acid (DCF, diclofenac) at various TiO₂ loadings
R², coefficient of determination

In the present study, the addition of 0.01 g L^–1 of TiO₂ P25 produced the lowest remaining DCF concentration followed by a concentration of 0.1 g L^–1 TiO₂, which resulted in the same degradation within 15 min of irradiation. Higher doses of TiO₂ clearly retarded the degradation rate because of the scattering of light and agglomeration of TiO₂. Above the optimal loading, degradation rates decreased with higher catalyst concentrations.^[42] Similar findings were reported for the antibiotic oxolinic acid, where an increase above 1 g L^–1 led to a decrease in the API removal.^[43]

Although the highest photocatalytic efficiency was achieved with 0.01 g L^–1, further experiments were carried out with the mid-level concentration of 0.1 g L^–1. This concentration is commonly applied with TiO₂ P25, although loadings can vary from 0.1 to 5.0 g L^–1.^[42] A loading above 1.0 g L^–1 was not considered for further studies because of the lower degradation rate caused by increased sedimentation, which could not be avoided despite stirring at 1000 rpm. The optimum dose of photocatalyst represents a critical parameter in the photocatalytic degradation process. Inconsistencies in optimum TiO₂ loadings reported have been linked to the geometry of the chosen photoreactor and the nature of the compound under investigation.^[44,45] Thus far, the optimal TiO₂ loading for DCF photocatalysis reported in related studies was 1,^[41] 0.624 ^[34] and 0.25 g L^–1.^[31] The much lower TiO₂ loading determined in this study can be attributed to the very effective circulation in the immersion-well setup chosen, which ensured optimal distribution of photocatalyst throughout the entire reaction mixture (Fig. 1).

Fig. 6 shows the time-course of DCF degradation at different concentrations. The reaction followed pseudo-first-order kinetics.^[46] Complete degradation was achieved for low range initial concentrations, 10 and 30 mg L^–1 (Fig. 6a), within 30 min, whereas for higher ranges, 50 to 70 mg L^–1 (Fig. 6b), comparable irradiation times resulted in the degradation of ~98–99 % of initial DCF.

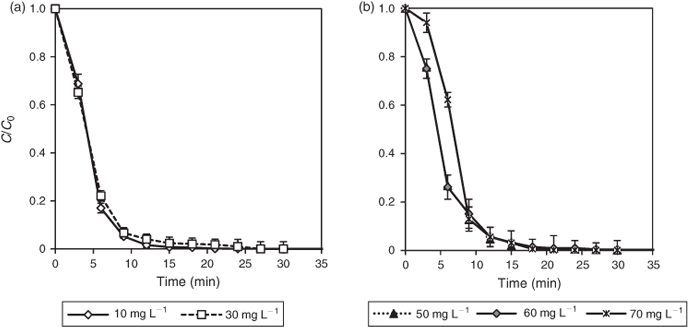

Fig. 6.  Effect of concentrations (C, final concentration; C₀, initial concentration) (a) low range and (b) high range on the photocatalytic degradation of 2-[(2,6-dichlorophenyl)-amino]phenylacetic acid (DCF, diclofenac) (TiO₂ P25 = 0.1 g L^–1; pH ~ 6.2, T_max 29 °C) (error bars indicate standard deviation).

At a low DCF concentration, interactions between DCF and the TiO₂ surface decrease, which causes a decrease in the degradation rate (Table 4). The initial degradation rate (r₀) increases until 60 mg L^–1 and the values decrease thereafter becoming independent of initial concentrations. Higher concentrations of DCF resulted in occupancies of more TiO₂ active sites, which retarded the generation of HO^• or other oxidants. DCF molecules also absorbed more photons directly and thus led to a decrease in the available photons to activate the TiO₂ surface.^[47] The results are similar to a study on atenolol, where the same trend was observed.^[48]

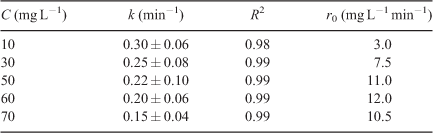

Table 4.  Pseudo-first-order rate constants (k) for the various concentrations (C) of 2-[(2,6-dichlorophenyl)-amino]phenylacetic acid (DCF, diclofenac)
R², coefficient of determination; r₀, initial rate constant

The complex electrostatic interaction between semiconductor, solvent, substrate and charged radicals formed during the treatment make the pH an important reaction parameter. pH studies were thus conducted to determine the extent of degradation based on the ionisation state of the photocatalysts and DCF. The adsorption of compounds is determined by the electric charge of both the catalysts and substrate. The surface of TiO₂ is amphoteric resulting in adsorption being affected by pH. The zero point charge (pH_zpc) of TiO₂ has been determined as 6.25 resulting in a positive surface charge below pH_pzc (pH < pH_zpc) and negative surface charge above pH_pzc (pH > pH_zpc).^[49] The pK_a value of DCF (carboxyl group) is known to be 4.15 (at 25 °C).^[50] At a pH < pK_a, DCF is present in its neutral or protonated form, whereas at a pH > pK_a it predominantly exists in deprotonated form, i.e. as a negatively charged carboxylate. The initial pH values of the solutions were adjusted to 3.0, 4.9, 5.6, 7.8 and 10.8 to represent three conditions: strongly acidic, neutral and strongly basic. The degradation rate at different initial pH values as a function of irradiation time is illustrated in Fig. 7. The DCF experiment performed at pH 3 did not result in any degradation (result not shown). This may be attributed to the insolubility of DCF in water at pH 3, as DCF is known to become practically insoluble below a pH of 4.^[50] DCF degradation studies conducted with other AOPs such as photo-Fenton and ozonation have also been conducted under slightly acidic conditions (pH 5.0–6.0).^[28,50,51] The adsorption decreased to 20.2 % at pH 5 and then to 6.5 % at pH 11, because of the electrostatic repulsion effects of the negatively charged DCF and the TiO₂ surface.

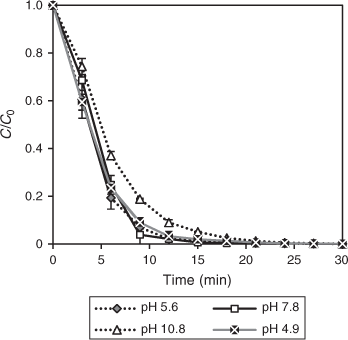

Fig. 7.  Effect of pH on the degradation of 2-[(2,6-dichlorophenyl)-amino]phenylacetic acid (DCF, diclofenac) (initial concentration (C₀) = 30 mg L^–1; TiO₂ P25 = 0.1 g L^–1; T_max 29 °C) (error bars indicate standard deviation). (C, final concentration.)

DCF degradation is not significantly affected by pH as the degradation reached 100 % after 30 min under all conditions. A pseudo-first order degradation rate was also observed for initial pH values and the k values obtained are shown in Table 5. Comparison of the initial degradation rate at the pHs investigated showed that an increase in pH from acidic to strongly alkaline caused a decrease in the degradation rate. An initial pH beyond 5.6 inhibited the degradation rate, whereas the highest initial rates of 0.27 and 0.26 min^–1 resulted at pH values of 5.6 and 7.8. At an inherent pH (~6.2), a slightly higher rate of 0.30 min^–1 was obtained, compared to that at other pH values. These results demonstrate that a pH adjustment is not necessary prior to the photocatalytic degradation of DCF. The photocatalytic degradation of oxytetracycline was also reported to be removed in solution without pH modification.^[52]

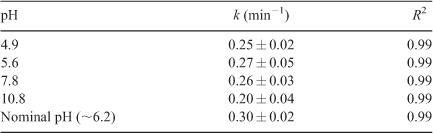

Table 5.  Pseudo-first-order rate constants (k) at different initial pHs and at nominal pH
R², coefficient of determination

The change in pH was monitored throughout the course of the irradiation reaction. The pH values after 2 h of irradiation changed to pH < 4 for the acidic and neutral conditions tested, whereas for the basic conditions a pH < 6 was recorded. These reductions in pH were observed as a result of the formation of hydrochloric acid and other mineral or carboxylic acids.

The effect of a quartz immersion-well as well as another commercially available titania, Ti^IV oxide (Aldrich) was compared to that of a Pyrex cooling jacket and TiO₂ P25 respectively. As expected, rapid DCF degradation occurred with the quartz immersion-well with both TiO₂ P25 and Ti^IV oxide photocatalysts (Fig. 8). Because the cut-off wavelength of quartz glass is as low as λ < 200 nm, the intensive 254-nm emission from the MP lamp is likely to provide more energy-rich photons available for direct photolysis (Fig. 3).^[37] A comparable degradation rate was observed for Ti^IV oxide (k = 0.29 ± 0.12, R² = 0.96) and the standard TiO₂ P25 (k = 0.27 ± 0.06, R² = 0.97). Initially, 3 min of photolysis with 0.1 g L^–1 Ti^IV oxide and TiO₂ P25 led to 50 and 35 % degradation. Complete degradation was achieved after 30 min of irradiation with both TiO₂ materials. The efficiency of both TiO₂ materials can be attributed to their catalytic activity. Pure anatase has a higher density of superficial hydroxyl groups compared to the pure rutile form.^[53] In contrast, TiO₂ P25, a combination of anatase and rutile, promotes charge pair separation and inhibits electron–hole recombinations.^[31]

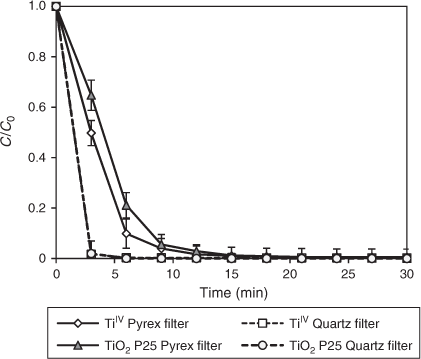

Fig. 8.  Comparison of photocatalytic degradation of 2-[(2,6-dichlorophenyl)-amino]phenylacetic acid (DCF, diclofenac) with TiO₂ P25 and Ti^IV oxide and filter (Quartz and Pyrex) (initial concentration (C₀) = 30 mg L^–1; TiO₂ = 0.1 g L^–1; T_max 29 °C) (error bars indicate standard deviation). (C, final concentration.)

The efficiency of TiO₂ photocatalysis for DCF removal was more apparent under solar irradiation. The results confirm our previous findings for DCF degradation under natural and artificial sunlight where TiO₂ photocatalysis also accelerated the degradation process of DCF.^[30] For experiments conducted with DW, greater DCF degradation resulted from the TiO₂-mediated process, compared to direct photolysis (Fig. 9). Degradation of more than 90 % was observed over the first 180 min in the presence of TiO₂, but slowed thereafter as a result of interference or inner filter effects of intermediates generated during the course of irradiation.^[51] At least 6 h of exposure was required to achieve maximum DCF removal under natural sunlight for both conditions. In contrast, only 30 min was needed for complete removal under laboratory conditions. These results clearly indicate differences between artificial UV irradiation and natural sunlight. The lamp provided a constant photon supply in the UV range, whereas for sunlight only 5 % of the total solar flux is in the required UV or near-UV region (300 to 400 nm) for TiO₂ photocatalysis.^[54] In addition, radiation in both direct and diffuse forms is discontinuous for sunlight and depends on weather and operation time (Table 2). In terms of COD removal, the photocatalytic process conducted with DW achieved 40 and 55 % for DCF initial concentrations of 10 and 60 mg L^–1 with artificial UV light. In contrast, measured COD for DW under natural sunlight showed 39 and 44 % removal for direct photolysis and photocatalysis. As with the laboratory experiments, the pH values during photolysis and photocatalysis with sunlight decreased constantly (Table 2). Similar observations were reported for the photolytic degradation of DCF in demineralised water as a result of hydrochloric acid release.^[50]

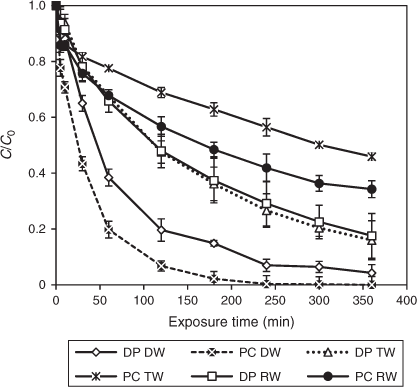

Fig. 9.  Direct photolysis (DP) and TiO₂ photocatalysis (PC) of 30 mg L^–1 2-[(2,6-dichlorophenyl)-amino]phenylacetic acid (DCF, diclofenac) in distilled water (DW), drinking water (TW) and river water (RW) under sunlight (TiO₂ P25 = 0.1 g L^–1; T_max = 29 °C, inherent pH) (error bars indicate standard deviation).

In order to assess the effect of the water matrix, solutions of DCF in TW and RW were exposed to sunlight. Interestingly, solar photolysis produced higher degradation rates compared to solar TiO₂ photocatalysis for these water matrices (Fig. 9). A comparison of degradation kinetics for TW and RW is shown in Fig. 10. RW containing DCF was only degraded up to 66 % upon photocatalysis (k = 0.0028 ± 0.0012 min^–1, R² = 0.96), whereas 82 % degradation was achieved under direct sunlight (k = 0.0048 ± 0.0014 min^–1, R² = 0.99). Likewise, a total of 84 and 53 % of removal was accomplished with TW under direct photolysis (k = 0.0051 ± 0.0009 min^–1, R² = 0.99) and photocatalysis (k = 0.015 ± 0.006 min^–1, R² = 0.97). A deficiency of HO^• radicals and other oxidising species caused by the presence of naturally occurring organic matter, anions and bicarbonates in RW and TW can be attributed to the retarded photocatalytic process.^[55] The hardness of the sampled RW and TW measured as CaCO₃ was 151.6 and 41.8 mg L^–1, respectively classified as hard and soft. Inorganic anions such as Cl^– and SO₄^2– were also observed (Table 1) as they are common in real waters. Radical scavenging as a result of the presence of such compounds has been linked to a decrease in various photocatalytic degradation studies, in particular when raw water samples were used.^[11,56] However, COD was removed up to 46.7 % upon photocatalysis compared to only 23.3 % under direct photolysis, indicating the presence of considerable amounts of carbonaceous materials, which had not been completely oxidised and mineralised to CO₂ and H₂O. The pH of the RW samples was not significantly affected throughout the course of the irradiation (Table 2), which suggests a buffering capacity of natural freshwater as already proposed by Agüera and co-workers.^[57] In contrast to previous findings, a higher magnitude of degradation was attained with our experimental set-up. The composition of the chosen freshwater samples, irradiance levels of sunlight and the type of photoreactor all contributed to these differences. Solar photodegradation is known to be dependent on factors such as light intensity, water matrix, season and latitude.^[58]

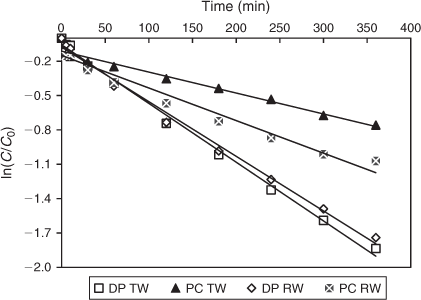

Fig. 10.  Degradation kinetics of direct photolytic (DP) and TiO₂ photocatalytic (PC) degradation of 2-[(2,6-dichlorophenyl)-amino]phenylacetic acid (DCF, diclofenac) in drinking water (TW) and river water (RW) under sunlight. (C, final concentration; C₀, initial concentration.)

The laboratory-scale Laboclean reactor was used for the photochemical and photocatalytic degradation of DCF in DW and TW (Fig. 2). The degradation reasonably fitted pseudo-first-order kinetics (R² > 0.98) (Table 6). DCF spiked in DW was degraded at a higher rate in the presence of 0.1 g L^–1 TiO₂, compared to direct photolysis (Fig. 11). DCF was removed within 60 min under TiO₂ photocatalysis, whereas direct photolysis took up to 120 min for 90 % removal. The addition of 250 mg L^–1 H₂O₂ significantly enhanced the degradation of DCF, which was completed within 30 min of irradiation.

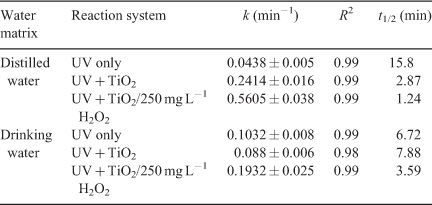

Table 6.  Comparison of kinetic parameters of 2-[(2,6-dichlorophenyl)-amino]phenylacetic acid (DCF, diclofenac) photolysis and photocatalysis in distilled water and drinking water in the loop reactor (Laboclean)
k, pseudo-first-order rate constant; R, correlation coefficient; t_1/2, half-life

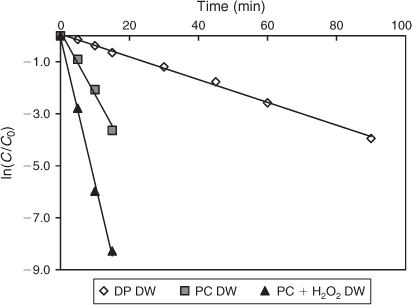

Fig. 11.  Degradation kinetics of direct photolysis (DP), TiO₂ photocatalysis (PC) and TiO₂/H₂O₂ photocatalysis (PC + H₂O₂) of 2-[(2,6-dichlorophenyl)-amino]phenylacetic acid (DCF, diclofenac) in distilled water (DW) in the loop reactor (Laboclean) (initial concentration (C₀) = 30 mg L^–1; TiO₂ P25 = 0.1 g L^–1; H₂O₂ = 250 mg L^–1).

In the experiments with TW, both direct photolysis and TiO₂ photocatalysis were also found to be efficient in completely degrading DCF (Fig. 12). A comparison of rate constants, however, showed that DCF degradation was slightly faster by direct photolysis (k = 0.10 ± 0.03 min^–1) than TiO₂ photocatalysis (k = 0.09 ± 0.02 min^–1). The other advanced oxidation method tested used a combination of UV, TiO₂ and H₂O₂, and increased the degradation rate significantly to 0.19 min^–1.

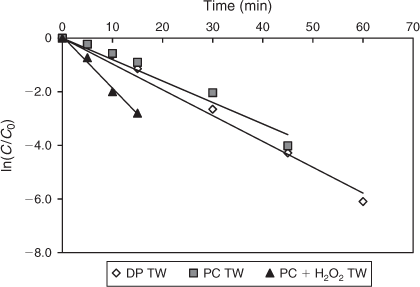

Fig. 12.  Degradation kinetics of direct photolysis (DP), TiO₂ photocatalysis (PC) and TiO₂/H₂O₂ photocatalysis (PC + H₂O₂) of 2-[(2,6-dichlorophenyl)-amino]phenylacetic acid (DCF, diclofenac) in drinking water (TW) in the loop reactor (Laboclean) (initial concentration (C₀) = 30 mg L^–1; TiO₂ P25 = 0.1 g L^–1; H₂O₂ = 250 mg L^–1).

Enhancement of degradation in the presence of H₂O₂ during the TiO₂ photocatalytic process in both water matrices was attributed to the generation of more HO^• radicals (Eqn 1). In addition, the reactor material (quartz mantle) does allow direct cleavage of H₂O₂ (UV–H₂O₂). H₂O₂ can also act as an electron acceptor inhibiting the recombination of electron–hole pairs.^[59]

In addition to focussing on the disappearance of the DCF parent molecule, the determination of the degree of mineralisation in terms of DOC is crucial to evaluate the effectiveness of the photochemical and TiO₂ photocatalytic treatments employed. TiO₂ photocatalysis led to a slightly higher DOC removal than direct photolysis both in TW and DW (Fig. 13). The DOC removal profiles of direct photolysis in these water matrices were rather similar and both proceeded at slow rates yielding a maximum removal of 27 %. Although direct photolysis was capable of degrading the parent DCF, this oxidation method was less efficient in oxidising the intermediates and degradation products formed. Within the experimental time frame of 3 h, TiO₂ photocatalysis contributed to a slightly higher DOC removal both in DW and TW by increasing the removal by 6–7 %. Stable carboxylic acid-derived photoproducts generated might prevent a higher DOC removal. In contrast, TiO₂ photocatalytic oxidation in the presence of H₂O₂ corresponded to the highest DOC removal in TW with 70 %. The removal profile showed that DOC removal took place constantly over the entire irradiation time of 3 h. Thus, in addition to H₂O₂ efficiently degrading DCF, it also considerably increased the DOC removal.

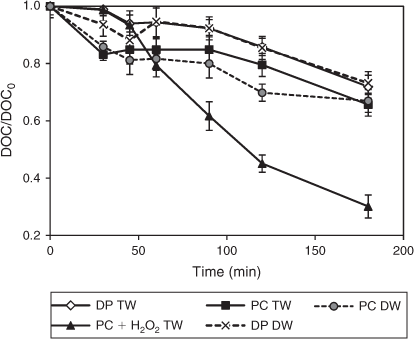

Fig. 13.  Removal of dissolved organic carbon (DOC) during direct photolysis (DP), TiO₂ photocatalysis (PC) and TiO₂/H₂O₂ photocatalysis (PC + H₂O₂) in distilled water (DW) and drinking water (TW) in the loop reactor (Laboclean) (initial concentration (C₀) = 30 mg L^–1; TiO₂ P25 = 0.1 g L^–1; H₂O₂ = 250 mg L^–1) (error bars indicate standard deviation).

A DCF sample taken after 2 h of irradiation was analysed for photoproducts by LCMS. LCMS analysis was performed by applying a simple isocratic mode, which resulted in better resolution of DCF and its photoproducts than the gradient modes commonly applied in other studies.^[34,41] Table 7 summarises the six major photoproducts identified. Subsequent Fourier-transform–ion cyclotron resonance–mass spectrometry (FT-ICR-MS) analysis (characteristic isotope distributions and the accurate mass determination) confirmed the structures of the photoproducts as shown in the proposed degradation pathway (Fig. 14 and Table 7).^[60] All photoproducts identified appeared at shorter retention times (t_R) than the parent DCF peak suggesting the formation of more hydrophilic photoproducts. Loss of HCl and subsequent photocyclisation of DCF resulted in carbazole C1 (t_R = 6.1 min), 2-(8-chloro-9H-carbazol-1-yl)acetic acid. The degradation proceeded with subsequent photosubstitution of the remaining Cl group in C1 with a hydroxy group to C2 (t_R = 4.4 min), another carbazole, 2-(8-hydroxy-9H-carbazol-1-yl)acetic acid. The presence of intermediates C1 and C2 were confirmed in both negative and positive ESI modes. These carbazole intermediates have also been identified as major products in a photolytic degradation of DCF in methanol^[40] and have been linked to an increase in phototoxicity.^[41] Decarboxylation of DCF led to the formation of C3, 2,6-dichloro-N-o-tolylbenzenamine (t_R = 6.8 min), which further underwent dechlorination and oxidation to generate intermediate C4, 2-(phenylamino) benzaldehyde (t_R = 4.4 min). Intermediate C3 also underwent loss of HCl to form C5, 1-chloromethyl-9H-carbazole (t_R = 6.1 min). Intermediate C5 could be alternatively formed as a result of decarboxylation from C1. The loss of the second Cl from C5 and photoreduction resulted in the generation of intermediate C6, 1-methyl-9H-carbazole (t_R = 4.9 min). Intermediates C3–C6 were identified in ESI negative mode. All intermediates found in this study were identical to those reported by Martínez et al. except for [2-(2,6-dichlorophenylamino)phenyl]methanol.^[41] This compound, proposed as an intermediate in the transformation from C3 to C4, was undetectable, possibly because of its rapid oxidation under the conditions investigated. These intermediates, including the release of HCl and CO₂, also explain the observed decrease in pH: formation of hydrochloric acid (Fig. 14, conversion of DCF into C1 and into C5 by way of C3) and other organic acids (Fig. 14, conversion of DCF into C1 and C2). Chloride evolution indeed increased with prolonged irradiation time as depicted in Fig. 15.

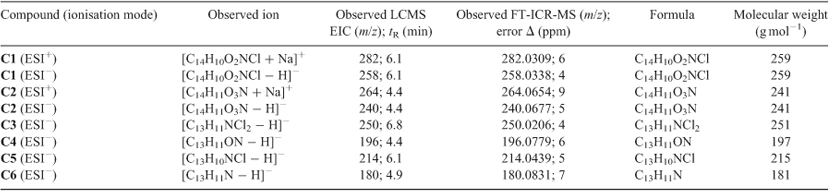

Table 7.  Intermediates of 2-[(2,6-dichlorophenyl)-amino]phenylacetic acid (DCF, diclofenac) resulting from UV–TiO₂ photocatalysis with a medium pressure mercury lamp identified by a combination of (±)-electrospray ionisation (ESI), liquid chromatography–mass spectrometry (LCMS) and Fourier transform–ion cyclotron resonance–mass spectrometry (FT-ICR-MS) techniques
EIC, extracted ion chromatogram; t_R, retention time

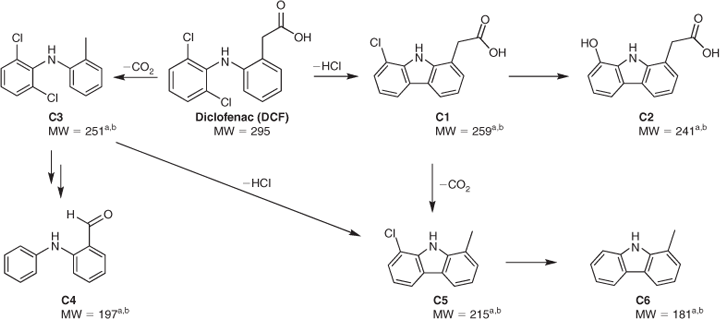

Fig. 14.  Degradation scheme for 2-[(2,6-dichlorophenyl)-amino]phenylacetic acid (DCF, diclofenac) (in neutral form) with confirmed structures by liquid chromatography–mass spectrometry (LCMS) and Fourier transform–ion cyclotron resonance–mass spectrometry (FT-ICR-MS) as indicated (a = LCMS; b = FT-ICR-MS).

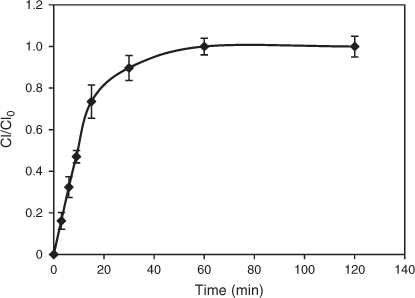

Fig. 15.  Evolution of chloride ions during the TiO₂ photocatalytic degradation of 2-[(2,6-dichlorophenyl)-amino]phenylacetic acid (DCF, diclofenac) (initial concentration (C₀) = 30 mg L^–1 and TiO₂ P25 = 0.1 g L^–1).

Photochemical and TiO₂ photocatalytic degradation of DCF, using two circulating batch reactors resulted in different rates of DCF degradation for both the photolysis and TiO₂ photocatalysis experiments, which is attributed to whether TW or surface water was used. This shows the importance of the water quality in influencing the degradation rate of DCF. In addition, the differences between studies performed using artificial light and sunlight in the immersion-well reactor highlights the effect of the different light source on the degradation of DCF. Optimisation studies for TiO₂ photocatalysis demonstrated that although TiO₂ concentrations, DCF concentrations and the nature of the glass (Pyrex or quartz) affect the degradation rate of DCF, pH had no major effect. Maximum degradation of DCF was obtained in the presence of 0.1 g L^–1 TiO₂ P25 and in suspension, without pH adjustment. The larger loop-reactor completely degraded DCF from solution whereas addition of H₂O₂ enhanced the degradation rate of DCF both in DW and TW. Higher DOC removal was also obtained in TW in the presence of H₂O₂ compared to TiO₂ photocatalytic oxidation. However, incomplete mineralisation, as evident from incomplete removal of DOC and COD, suggests that DCF and its photoproducts were not completely transformed to CO₂ and H₂O within the time frame of the irradiations. Six photoproducts of DCF photocatalysis were identified and a mechanism for their formation is proposed. This study has demonstrated that both direct photolysis and TiO₂-catalysed oxidation have great potential to degrade DCF in both TW and surface water. In conclusion, although AOP processes offer an attractive option for wastewater treatment, the complex nature of real effluents with co-existing pollutants and higher levels of organic matter call for combinations with other AOP methods such as ozonation or photo-Fenton to enhance the degradation.
