Foliar elemental microprobe data and leaf anatomical traits consistent with drought tolerance in Eucalyptus largiflorens (Myrtaceae)

Keywords: Eucalyptus largiflorens, black box tree, eucalypt, flooding, watercourses, salinity, Murray–Darling Basin, drought tolerance, foliar microprobe data, riverine ecosystems, river basin system.

The complexities of managing natural flows within river basin systems to balance their agricultural and native ecological productivities are exacerbated by the rising demand for food and adverse climatic trends (Poff et al. 2003; Lynch and St Clair 2004; IPCC 2014; Grafton et al. 2018). One such case is the Murray–Darling Basin (MDB), Australia’s most agriculturally important and largest river catchment of over 1 × 10⁶ km², also renowned for its significant natural habitats (Pittock and Finlayson 2011). Among many indicators of the health of MDB riverine ecosystems is the condition and persistence of ubiquitous native trees whose crucial ecological services have been documented in some instances as being specific to certain faunal assemblages (O’Malley and Sheldon 1990; NPWS 2002; Wassens et al. 2005; Roberts and Marston 2011; Capon et al. 2016). Black box (Eucalyptus largiflorens Muell. (Myrtaceae)), a floodplain tree largely exclusive to the MDB and belonging to the iconic Australian Eucalyptus genus, is one of three common riverine eucalypts in the region (Roberts and Marston 2011; Capon et al. 2016; see also Australia’s Virtual Herbarium at http://avh.chah.org.au). It is widespread across MDB floodplains, from riparian zones to the farthest reaches of natural flows, and around inland lakes. Although the success of management strategies to sustain riverine woodland ecosystems in the MDB have been mixed, knowledge about their physiology and nutrition is still limited (Bramley et al. 2003; Poff et al. 2003; Jensen et al. 2008; Johns et al. 2009; Doody et al. 2015; Fernando et al. 2018a). As the most notably vulnerable of the MDB riverine eucalypts, the status of black box is of ongoing concern given its poor condition in sections of the MDB (Cunningham et al. 2009; Smith and Smith 2014; Moxham et al. 2018). Two field studies into its plant–soil nutritional dynamics (Fernando et al. 2018a, 2021) provide the only insight into its mineral nutrition, along with emerging evidence of its ability to accumulate high Na concentrations.

Foliar nutrition is synonymous with whole-plant nutrition, a well-established utilitarian measure of the health of terrestrial vascular plants, particularly under cultivation, yet less so for ecological purposes (Grove and Malajczuk 1985; Marschner 2002). In the latter context, macronutrient cycling has drawn significant interest, as has plant adaptation to certain distinct soil types, for example, metallophytes in serpentine ecosystems (Lugo et al. 1990; Brooks 1998; Gallardo 2003). The spatial distribution patterns of leaf nutrients and other elements, including cellular sequestrations can indicate certain detoxification strategies, genetic differences, response to altered nutrient supply and environmental change. A range of microprobe techniques utilising X-rays, electron and proton beams are capable of generating plant analytical data in situ, both at the intra- and inter-cellular levels, as well as for whole organs such as leaves, depending on size; with electron-beam methodologies further capable of yielding detailed information on tissue anatomy (Fernando et al. 2013). There are numerous examples where such techniques applied individually or in combination have contributed valuably to understanding certain plant behaviours. Examples of these include, linking difference in Mn tolerance between two wheat phenotypes to their leaf-vacuolar storage capacity (Fernando et al. 2016a), plant salt tolerance through cell storage or specialised glands (Huang and Steveninck 1988; Van Steveninck et al. 1988; Oi et al. 2013), Mn toxicity observed primarily on the leaf upper surface of field canola due to the interaction of solar radiation with Mn-rich cells (Fernando et al. 2016a), and differences in the abilities of two maple species to tolerate soil acidification due to their different leaf anatomies and cellular nutrient storage strategies (Fernando et al. 2016b).

Whole-leaf elemental concentrations in inundated black box trees and in those nearby that had remained uninundated for a prolonged period have previously been found to be comparable (Fernando et al. 2018a, 2021), consistent with its characterisation as a drought tolerant species (McEvoy 1992). The present investigation seeks to examine whether there are differences in cellular elemental accumulation strategies associated with water availability to trees. Cryo scanning electron microscopy (SEM) and cryo SEM–energy dispersive spectroscopy (SEM-EDS) will be applied to gather leaf anatomical and cellular elemental distributional data, and elemental distributions across entire leaf surfaces will be extracted using XRF. Emerging evidence that black box tolerates high Na concentrations (Fernando et al. 2018a) through foliage accumulation will also be investigated by examining Na and Cl localisation in leaf cells.

The field site, Lake Konardin (34°41′35.05″S, 142°21′2.11″E), is one of numerous interconnecting floodplain lakes in the Hattah Kulkyne National Park, Australia (Fernando et al. 2018a). Natural water-flows into these lakes from the Chalka Creek tributary off the Murray River is supplemented by a managed process termed ‘environmental watering’ where in this case, river water is pumped into the feeder creek (Fernando et al. 2021). Three field samplings of black box leaves were conducted as follows, across two time-points linked to a managed watering cycle that was initiated in early July 2017 (a) on 9 December 2017, from an inundated black box tree that had been receiving floodwaters continuously for at least 3 months before sampling (Fig. 1a); (b) on 9 December 2017, from a black box tree on dry ground, well beyond the reach of floodwaters (Fig. 1b), and (c) on 13 July 2018, from tree (a) at least 5 months after surface waters had fully receded (Fig. 1c). Rainfall data from the Australian Government Bureau of Meteorology website (http://www.bom.gov.au/) show that although the site received ~45 mm above its long-term average annual rainfall of 330 mm, there was a total of only ~85 mm in the 7 months between the first and second sampling (Fernando et al. 2021). Maximum temperature ranges were ~9°C to 46°C, and minima were ~–1.5 to 30°C. In the field, harvested leaves were stored cool in just-moist packaging so as to retain their field freshness for laboratory processing within 24 h. The youngest fully expanded leaves at the growing tips of branchlets were selected for the ‘young’ category, and the oldest, highly sclerophyllous, largest leaves lower down along branchlets were selected for the ‘mature’ category (Fig. 1d). These two categories were visually very distinct. The orientation of mature leaves was vertical as is common among eucalypts (James and Bell 2000), and for the purposes of this study, the outward-most facing surface was designated as the upper surface whereas the other was designated the lower surface.

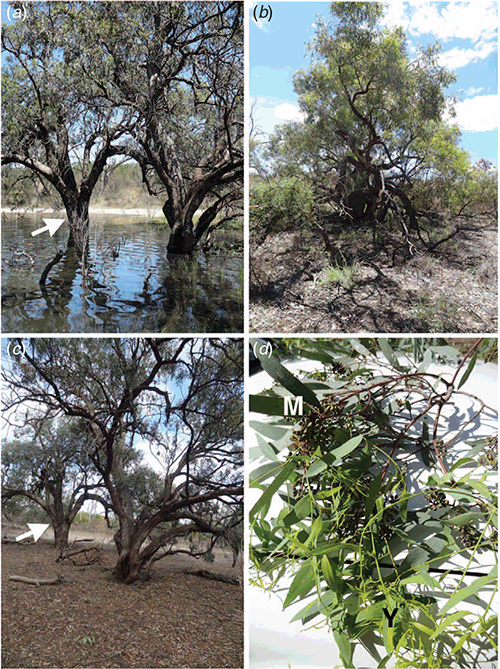

Fig. 1.  Black box sampling (a) flooded tree (arrowed), (b) tree outside flood zone, (c) tree (a) post-flooding, (d) selection of the mature (M) and young (Y) leaves sampled.

The method described by Fernando et al. (2018a) was employed here to chemically analyse six leaf samples that each consisted of 10–20 bulked and ground oven-dried material. Total dry weight concentrations (mg kg^–1) of the following elements were measured: N, P, K, Ca, Mg, Na, Mn, Al, Fe, and Si. Young and mature leaves were selected as described above for the three samplings. Subsamples of these leaves, while fresh, were prepared for microprobe analysis as described in the following two sections. Bulk leaf-elemental concentration data corresponding to trees selected here for microprobe analyses were obtained to provide context to the microprobe data central to this study. Replicate periodic sampling of these trees had already been undertaken as part of a recent detailed study into leaf and soil elemental changes with respect to flooding (Fernando et al. 2021).

Small fragments of excised leaf tissue were rapidly cryo-fixed by plunge freezing in liquid propane, and stored in liquid nitrogen for SEM-EDS as described by Fernando et al. (2018b). For X-ray fluorescence spectrometry (XRF), whole fresh leaves were snap-frozen by immersing in liquid nitrogen before being freeze-dried.

The methodology and instrumentation used for obtaining SEM images and SEM-EDS analytical X-ray map data are detailed in previous studies by Fernando et al. (2016a, 2018b). Cryo-fixed frozen leaf samples were planed cross-sectionally on a liquid nitrogen-cooled ultramicrotome (Reichert Jung FC4E, Leica Microsystems), rapidly transferred in a specimen transfer device (Gatan CT1500, Gatan, Pleasanton, CA, USA) to the liquid nitrogen-cooled specimen stage of a scanning electron microscope (SEM) (JEOL JSM 840A, JEOL, Tokyo, Japan) via its liquid nitrogen-cooled preparation chamber (Gatan CT1500). Here, the sample was monitored at 5 kV (to minimise electrical charging) while etched to –90°C, then re-cooled and Al-coated (10 nm) for initial examination on the cold (–180°C) SEM sample stage. For data gathering, the sample was freeze-dried in situ and positioned at a stage height of 39 mm, where qualitative and quantitative (Marshall 2017) energy dispersive spectroscopic (EDS) X-ray data as well as secondary electron images (SEI) were collected. An accelerating voltage of 15 kV and a probe current of 2 × 10⁻¹⁰ A was used. These EDS analyses were carried out using an Aztec analyser with an X-Max SDD detector (150 mm², Oxford Instruments, High Wycombe, Buckinghamshire, UK). Qualitative X-ray maps of N, P, K, Mg, Na, and Cl spatial distribution patterns across young and mature leaf cross-sectional surfaces were obtained. Quantitative data for these elements were extracted from the X-ray maps by delineating regions of interest within them as previously undertaken by Fernando et al. (2016b). The summed X-ray spectra from these regions were processed using the Oxford Instruments version of the XPP software (see https://nano.oxinst.com/campaigns/downloads/azteclive-in-depth-tru-q) according to the methodology of Pouchou and Pichoir (1991, 1992). These quantitative data are obtained as line-scan traces across a selected tissue area, where the x-axis represents location along tissue, and the y-axis represents:

The latter can be converted to moles per kilogram:

For XRF, whole leaves or lengthwise halves of cryo-fixed, freeze-dried samples were affixed to a piece of polypropylene sheeting (0.5 mm) with 3M tape (3M Australia, Sydney, NSW, Australia) so that both leaf surfaces were exposed for analysis. Samples were scanned on a Bruker M4 Tornado (Bruker Nano GmbH, Berlin, Germany) equipped with a single rhodium X-ray tube and energy dispersive detector. The maps were created using the Area function over the entire area (mosaic) of each leaf sample placed on a 3-D printed holder covered in cling-wrap so as to retain it 5 cm above the stage surface to minimise background noise from the stage. Scans were performed at a tube voltage of 50 kV and tube wattage of 600 µA under a 20-mbar vacuum with no filter. X-Ray spot size was 20 µm with a pixel size of 100 µm in both x and y directions and a measurement rate of 100 ms pixel^–1. Semiquantitative data (counts) were extracted from a laminal area of leaves scanned for X-ray maps. Spectra generated within a laminal area were used to calculate net counts by subtracting background counts. For each sample, net counts from the upper and lower leaf-surfaces were averaged to estimate net counts for young and mature leaves from each of the three sampling scenarios (Fig. 1).

Leaf chemical data (Table 1) indicate differences in S, Na, Fe, B, Co, Al, and Si concentrations associated with the flooding status and history of the tree(s) from which respective samples were taken. Note, as indicated in the methodological description, bulk data in Table 1 here provide additional context to the microprobe data, and are consistent with replicate leaf-elemental data obtained in a recent study of this site (Fernando et al. 2021). Foliar S concentrations in non-inundated trees (Fig. 1b, c) were higher than in the flooded tree (Fig. 1a), whereas foliar Na concentrations in the flooded tree were found to have almost doubled over the following 7 months when sampled well after waters had subsided, whereas foliage Na in the unflooded tree was comparable to the flooded tree at the time of flooding. The trends in foliage Na concentrations with respect to flooding were also observed for Fe, B, Co, and Al, where the flooding event appeared associated with elevation of these foliar levels at the second sampling. Foliar Si concentrations were much lower in the dry tree that had previously been flooded (Fig. 1c) compared to the tree that remained uninundated throughout the study (Fig. 1b).

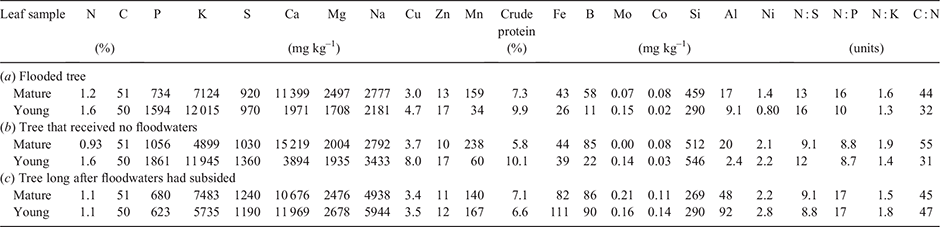

Table 1.  Analysis of mature and young black box leaves from (a) the flooded tree, (b) a tree that received no floodwaters, (c) tree long after floodwaters had subsided

Leaf cross sections (Fig. 2) showed that both mature and young leaves of black box are isobilaterally symmetrical, with the mesophyll sandwiched by two epidermal layers within two outermost cuticular layers, the latter present for all mature leaves (Migacz et al. 2018). The mesophyll consisted of two 2–3-layer palisade parenchyma cell layers flanking a relatively narrow central spongy parenchyma layer. The distribution patterns of macronutrients in the leaf cross-sectional surfaces (Fig. 2) suggest N distribution across all cell types, whereas P and K were most concentrated in the spongy parenchyma and some palisade parenchyma regions. Foliar Mg was localised in the dermal and mesophyll layers. Cellular Na primarily in the mesophyll with some dermal deposition in young leaves was matched by Cl deposition, although Cl was additionally strongly detected in the spongy mesophyll.

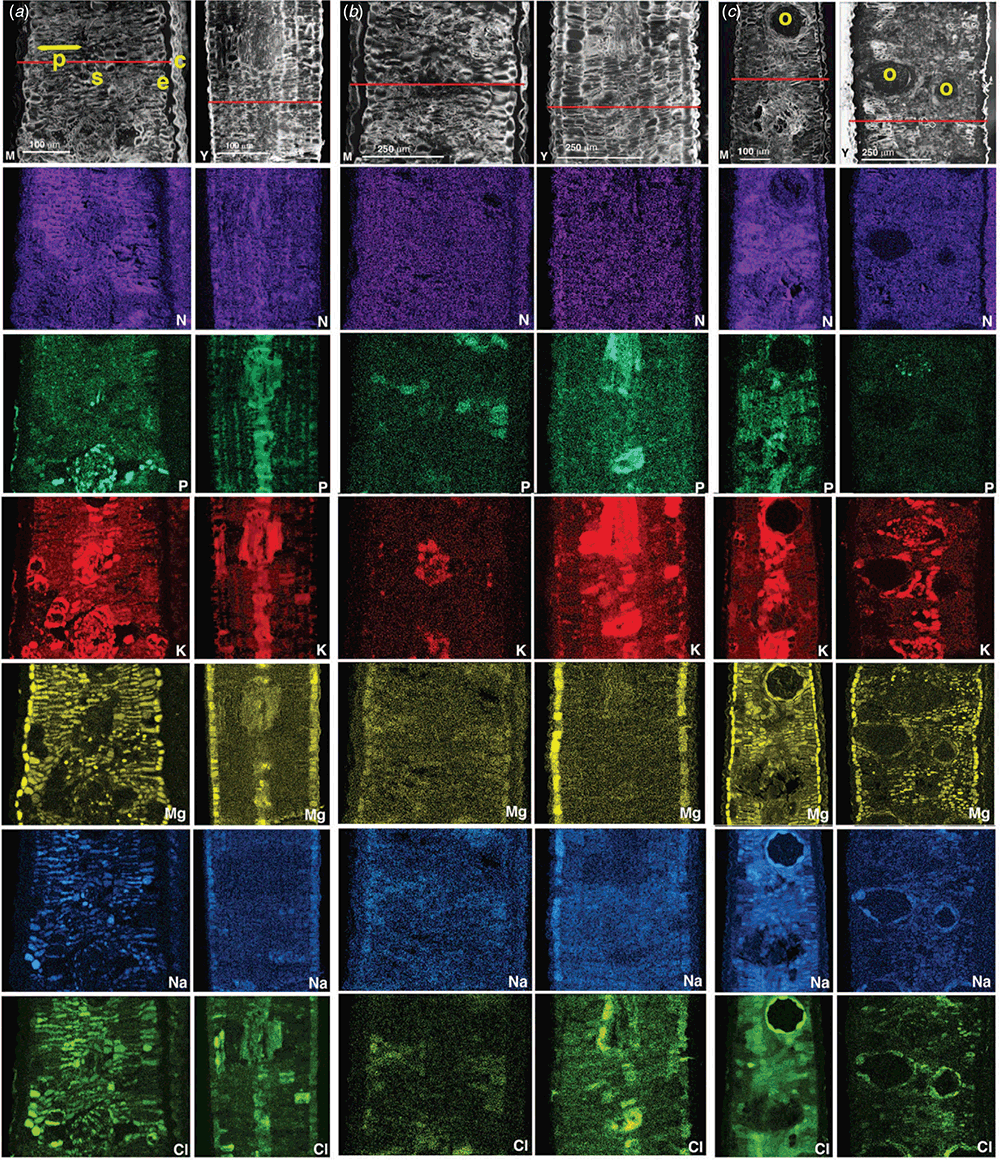

Fig. 2.  Cross-sectional SEM anatomical images and corresponding qualitative SEM-EDS X-ray maps showing cellular N, P, K, Mg, Na, and Cl distributions in mature (M) and young (Y) black box leaves from (a) the flooded tree, (b) the tree that did not get flooded, (c) tree (a) well after floodwaters had subsided. Cuticle (c), epidermis (e), spongy parenchyma (s) and palisade parenchyma (p), oil glands (o). Horizontal red lines show central line scan for corresponding quantitative X-ray data shown in Fig. 3.

Quantitative SEM-EDS data corresponding to Fig. 2 are represented in Fig. 3, where dry weight tissue concentrations (mmol kg^–1) of N, P, K, Mg, Na and Cl can be estimated for different leaf cell types in cross-section. The central linescans of the quantitative X-ray linescan profile data corresponding to each of the six leaf cross sectional surfaces are indicated by red lines in Fig. 2 and yellow lines in Fig. 3.

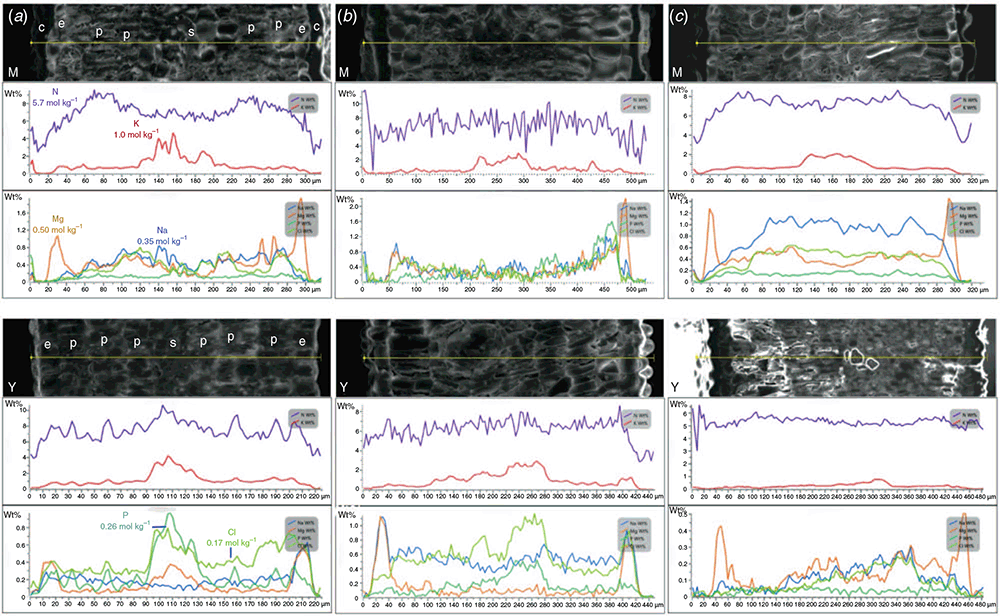

Fig. 3.  Quantitative X-ray line-scan profiles (N, K, Na, Mg, P, Cl) collected from entire regions the SEM image above each set of traces, where central scan-lines are marked here in yellow, and appear as red lines in Fig. 2. (a, b, and c) Correspond exactly to those in Fig. 2, for mature (M) and young (Y) black box leaf cross-sectional surfaces. Vertical axis percentage weight elemental concentrations above can be converted to moles per kilogram (dry tissue weight), as shown in (a). Different cell and tissue types labelled (a) are: cuticle (c), epidermis (e), spongy parenchyma (s) and palisade parenchyma (p).

Whole-leaf XRF elemental maps (Fig. 4) showed that for each element, distribution across two leaf surfaces of a leaf were not different. The Mn map showed a Mn gradient across leaf surfaces such that leaf marginal zones were more Mn-enriched compared to the central laminal area. The microprobe data (Fig. 2–4) all indicate that individual elemental distribution patterns in foliage did not vary qualitatively with the flooding status of the tree.

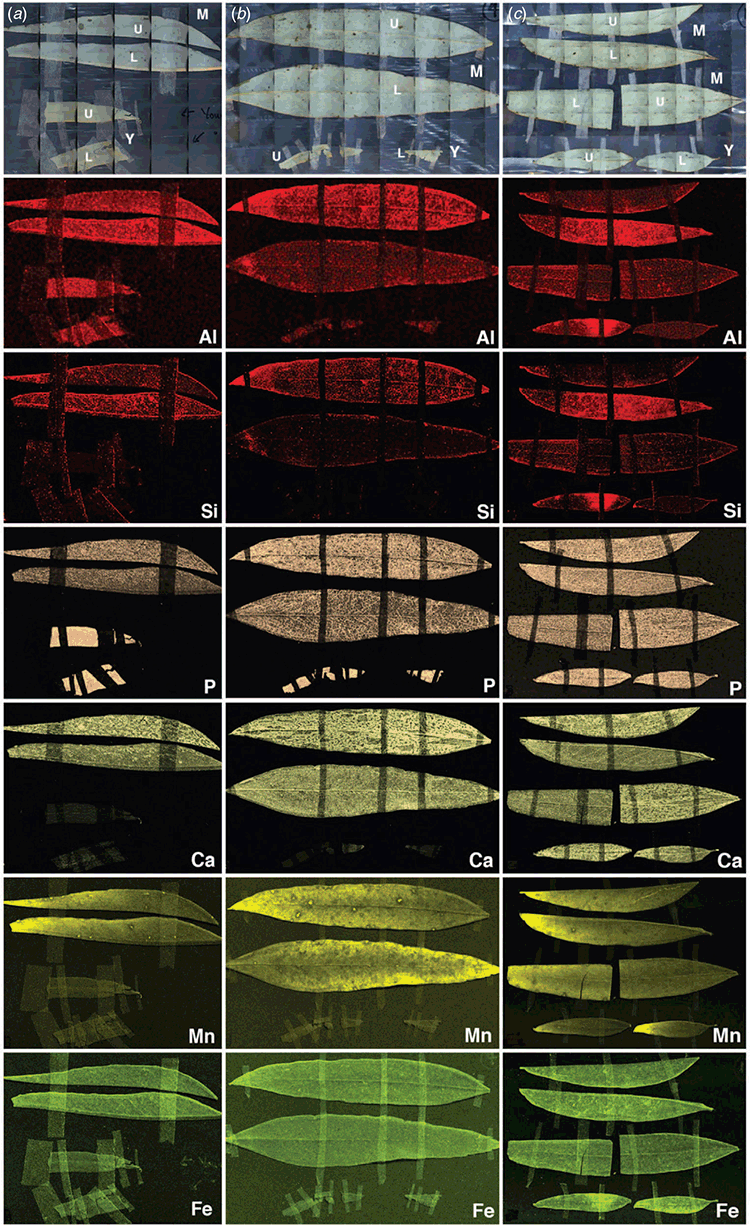

Fig. 4.  Sample photographs and corresponding XRF maps of Al, Si, P, Ca, Mn, and Fe distributions in mature (M) and young (Y) leaves from (a) the flooded tree, (b) a tree that received no floodwaters, (c) tree (a) long after floodwaters had subsided. Upper (U) and lower (L) leaf surfaces shown.

Net counts in the XRF semiquantitative datasets (Fig. 5) were generally higher for mature leaves compared to young leaves, due in part at least to the greater thickness of the former, with highest observed counts in sampling (b) (Fig. 1b). The thinness of the young leaves likely contributed to the similarity in their upper- and lower-surface XRF semiquantitative data and smaller count numbers. Mature and young leaf laminae from the flooded tree (Fig. 1a) generated the lowest count numbers for all elements examined except P (Fig. 5). Among the three young leaf samples, the post-flooded sample (Fig. 1c) generated highest counts for elements other than P (Fig. 5). Among the three mature-leaf laminae analysed, the non-flooded (Fig. 1b) and post-flooded (Fig. 1c) samples generated far greater count numbers than the flooded sample (Fig. 1a).

Fig. 5.  Semiquantitative XRF data for Al, Si, P, Ca, Mn, and Fe in young and mature leaves from (a) the flooded tree, (b) a tree that received no floodwaters, (c) tree (a) long after floodwaters had subsided.

In-situ microprobe data (Fig. 2, 3) provided the first insights into nutrient and metal distribution patterns in black box leaves and their anatomy. An isobilateral symmetry, a closely packed mesophyll lacking intercellular spaces, multiple palisade layers, and cuticular coverings were xerophytic features indicative of adaptation to dry conditions (Esau 1965; Migacz et al. 2018), as was the vertical positioning of leaves to mitigate water loss and optimise light harvesting while enabling sufficient access to CO₂ for photosynthesis (James and Bell 2000; James and Bell 2001). Except for a single previous study employing XRF to map foliar Pb in a Pb-dosing trial of a Eucalyptus hybrid (Rodrigues et al. 2018), there is no prior knowledge about elemental micro-distribution patterns in eucalypt leaves. Consistent with existing awareness that black box is drought tolerant (McEvoy 1992) was the overall similarity of individual elemental distribution patterns across the three sample trees (Fig. 2–4); particularly datasets for the wettest (Fig. 1a) and driest (Fig. 1b) growth conditions that showed no clear differences in nutrient sequestration or physical drought-responses such as leaf or cuticular thickening (James and Bell 1995; McLean et al. 2014). Highest XRF count rates (Fig. 5) for leaves from the driest tree (Fig. 1b) suggest that they were the thickest in this study.

Bulk leaf-chemical data (Table 1) support recent findings that short-term flooding likely benefits black box by enhancing the soil bioavailability of some trace nutrients, with soil type as an important driver of inundation-associated plant–soil dynamics (White 1997; Fernando et al. 2021). Differences observed here in Table 1 are consistent with the findings of a recent detailed study (Fernando et al. 2021) of leaf and soil elemental changes with respect to flooding, in which multiple samplings over a 12-month period across an entire flooding cycle demonstrated that inundation was nutritionally advantageous to black box trees. Post-flood lowering of black box leaf Si concentrations has previously been observed (Fernando et al. 2021), where concentrations peaked along with flooding and returned to original lower levels after subsidence. Observation of lowest foliage S concentration (Table 1) for the inundated tree (Fig. 1a) aligns with previous findings that foliar S depression is associated with peak inundation, possibly due to biomass dilution by flooding-induced vegetative growth (Fernando et al. 2021). Existing hypotheses that drought stress likely depresses leaf-N and -P concentrations by reduced uptake, while increasing N : P concentration ratios (He and Dijkstra 2014) were not supported for black box (Table 1), further consistent with drought tolerance.

Although there are no previous microprobe studies of eucalypt nutrition to draw upon, cellular N, P, K and Mg accumulation patterns observed here in the cryo SEM-EDS maps (Fig. 2) align with broad understanding around plant nutrition (Judd et al. 1996; Marschner 2002; Taiz and Zeiger 2002). The detected presence of N in all cell types and in cuticles (Fig. 2) is likely associated with its ubiquity in proteins, amino acids, enzymes and other major C-compounds (Marschner 2002). The importance of Mg in chlorophyll structure, photosynthesis, enzyme activation, protein synthesis and other functions may explain its detection in all cell types between the cuticular layers as seen in the qualitative X-ray maps (Fig. 2). The photosynthetic capacity of Eucalyptus leaves can be maximised as necessary by ground tissue anatomy, depending on climate; for example, with densely packed highly vacuolated palisade cells that are chloroplast-rich and spongy parenchyma cells also containing large numbers of chloroplasts (Evans and Vogelmann 2006; Eltahir et al. 2018). Greater P and K localization in the vasculature and spongy cells compared to surrounding palisade cells (Fig. 2) may be due to the high mobility of orthophosphate and K ions (Taiz and Zeiger 2002). Spongy cells usually have larger cytoplasmic-to-vacuolar volume ratios, unlike palisade cells where the converse applies (Esau 1965); with cytoplasmic K concentrations generally exceeding those of vacuoles in higher plants at least (Leigh and Jones 1984). The quantitative X-ray line-scan data (Fig. 3) extracted from the qualitative maps (Fig. 2) support the latter. Highest K levels are in the central spongy parenchyma, whereas Na is consistently observed in mesophyll cells. Some epidermal Na storage was found in young leaves of treatments (a) and (b), whose Cl storage was highest in the spongy parenchyma and palisade. Magnesium was mostly highly localised in the epidermal cell layers.

Elevated foliar Na concentrations of ~2000–6000 mg kg^–1 observed here (Table 1) add to emerging evidence that black box at the Hattah Lakes site is highly salt tolerant by foliage accumulation (Fernando et al. 2018a, 2021); warranting wider geographic investigation of this species. Previously published foliar-Na concentrations for mature riverine eucalypts are typically ~2500 mg kg^–1, with values ~1900 and 6500 mg kg^–1 reported respectively for E. camaldulensis and E. largiflorens (Judd et al. 1996; Hulme and Hill 2005; Fernando et al. 2021). ‘Normal’ plant requirement for the essential micronutrients Na and Cl are ~10 and 300 mg kg^–1 respectively in foliage, although Cl is widely known to accumulate to much higher concentrations (Taiz and Zeiger 2002). The main nutritional roles of Na are as a metabolite shuttle in C4 grasses and halophytes, and infrequent substitution for K, whereas Cl serves as a highly mobile inorganic anion involved in charge compensation and osmoregulation (Taiz and Zeiger 2002). Detection here of Cl and not Na in the central spongy area and vascular tissue may be due to this high mobility and essential role. Bulk leaf Na concentrations can be interpreted as a proxy for salt accumulation capacity (Acosta-Motos et al. 2017), but the detection of Cl in cells containing Na (Fig. 2) suggests co-localisation. Since it is well established that vacuolar sequestration is a common plant detoxification strategy (Fernando et al. 2013; Munns and Gilliham 2015), it is plausible that excess NaCl in black box foliage is stored in vacuolar compartments. Furthermore, salt stress studies of other Myrtaceae species have linked the expansion of leaf intercellular spaces to salt stress (Acosta-Motos et al. 2017), which was not evident in the SEM leaf anatomical images (Fig. 2).

Whole-leaf elemental XRF maps of mature and young leaf surfaces (Fig. 4) were consistent with their vertical positioning and isobilateral symmetry given that for each sample, leaf-surface distributions of individual elements did not vary markedly between upper and lower surfaces, with the exception of some inter-surface differences in young leaves. There is limited scope for interpreting XRF maps (Fig. 4) against bulk leaf data (Table 1) since XRF data comprise signals from varying sample depths, with signal strength determined by sample thickness, matrix and the element of interest (Rodrigues et al. 2018). According to these authors who trialled an Eucalyptus leaf, samples used in this present study may be regarded as sufficiently ‘thin’ to generate XRF maps (Fig. 4) representing the entire leaf thickness. Comparison of young leaf data within each of the two XRF datasets in this study (Fig. 4, 5) suggest an increase in foliar elements associated with flooding; with enhanced Al, Si, Ca, Mn, and Fe accumulation on at least one surface (Fig. 4). As in the cryo SEM-EDS maps (Fig. 2), the similarity of leaf-surface XRF distribution patterns for each individual element across the three different flooding states indicates drought resistance. The distinct gradient in Mn distribution across the leaf surface (Fig. 4) from lowest to highest approaching leaf marginal areas has previously been explained as being due to higher transpiration rates at the leaf margins (Millikan 1951; Blamey et al. 2015; Fernando et al. 2016a).

In demonstrating elemental distribution patterns in black box leaves with reference to anatomy, these findings highlight aspects of the ability of this species to tolerate dry conditions. The study also provides new insight into the capacity of black box at Hattah to accumulate high foliar salt concentrations, which warrants a species-wide examination of the trait across its wider geographic distribution. The use of analytical microprobe methodologies to interrogate leaf mineral nutrient distribution patterns was applied for the first time to a Eucalyptus species, where the role of some macronutrients at least as interpreted from data obtained here, align with existing knowledge of their plant functions, and more recent understanding of the nutritional benefits of flooding.
