On the non-monotonic behaviour of fire spread

Keywords: dynamic fire behaviour, fire acceleration, fire environment coupling, fire growth, fire modelling, forest fire behaviour, oscillatory fire behaviour.

Forest fire spread is a complex process that is not fully understood in spite of the variety of approaches used over several decades of research, from purely empirical to fully theoretical, aiming to achieve a full capacity to model and predict fire behaviour. Pastor et al. (2003) and Sullivan (2009) give a state of the art on the field of fire behaviour research and provide a large number of references that illustrate the complexity of the problem and the difficulty of reaching a general and complete solution. At present, we are able to predict fire behaviour only in a very limited set of conditions (Thomas et al. 2017), missing some of the cases that may be of greater practical importance, like the very intense or rapidly changing fires that create major concerns for fire managers and endanger people’s lives (Bowman et al. 2017).

A fundamental step in the process of fire modelling is to understand how fires modify their properties over the course of time, owing to dynamic interaction between the fire and its surroundings. In previous work (cf. Viegas 2004a, 2004b), we observed that, in the general case, fire behaviour is a dynamic process in the sense that even under permanent boundary conditions, fire behaviour properties depend explicitly on time. In Viegas (2002), it was shown that the transverse convection along the fire line modifies the rate of spread (ROS) of the fire, producing its rotation movement. In Viegas (2004c), it was shown that the fire-induced convection produces acceleration of the fire, causing what was designated an eruption, which is often observed in canyons or steep slopes. This problem is also addressed by Dold et al. (2006). In Raposo et al. (2018), the merging of two linear fires with a small angle between them, causing strong radiation and convection effects, and producing the highest values of ROS observed both in the laboratory and in the field, was analysed. This problem was also studied by Thomas et al. (2017).

In the present paper, we address the problem of natural oscillatory or intermittent behaviour of the fire and show that these oscillations are due to dynamic interaction between the fire, the fuel bed and the surrounding flow. This natural process is non-permanent as it involves fluctuations of various frequencies and amplitudes superimposed on an overall quasi-static process, which is in itself controlled by these fluctuations. We propose a conceptual model to describe the fluctuations of flame and ROS properties and present the results of a set of laboratory-scale experiments to support it.

Several authors have studied the spread of a point or line ignition fire on a slope, namely Mendes-Lopes et al. (2003), Dupuy et al. (2011), Silvani et al. (2018), but in spite of recognising the variability of the fire spread, they assume that it propagates in a steady state and provide essentially average values of fire spread properties.

Albini (1982) studied the variability of wind-aided fires, stating that the ROS of fires in natural fuels is very sensitive to wind speed, but in many cases the spread rate can also vary substantially with time even though the fuel and meteorological conditions remain essentially constant. Based on the spectral density of wind fluctuations at frequencies below 0.1 Hz, Albini predicted that the response of the fire would be oscillatory, with a spectral response that depended on the type of fuel and also on the average value of the wind velocity. According to this model, there is a dominant amplitude of oscillation of the ROS for a frequency between 0.01 and 0.02 Hz but apparently the average value of the ROS is not changed. Although Albini’s study grasped some of the features of dynamic fire behaviour, it did not consider the natural fluctuations that occur even in the absence of wind and the large amplitude variations of the ROS that are considered in the present paper. Finney et al. (2015, 2019) and Silvani et al. (2018) also addressed the problem of fluctuations in fire properties due to turbulence in fire-induced convection.

The present conceptual model considers a head fire created by a flaming fire front on a flat surface covered by a homogeneous fuel bed. We assume that there is a uniform and permanent ambient flow over the fuel bed surface characterised by a reference velocity U_o (cf. Viegas and Neto 1991; for a full list of symbols and abbreviations see Table A1 in Appendix 1). Alternatively, we may consider that the fire is spreading along a slope or a canyon with constant inclination α in relation to a horizontal datum.

We are aware that the fires are always 3D processes and the fluctuations of the fire and flow properties described in this paper along the Ox-axis occur along the Oy-axis as well, creating cells of convection as observed by Finney et al. (2015). In the present paper, we are concerned with the phenomena along the main direction of fire spread, which are relevant for practical applications in the case of fires that are driven by slope or wind.

In Fig. 1, we present the conceptual evolution of the fire spread properties, namely the flame length and angle with the horizontal surface (β) as a function of time. When the fire starts (Stage 1 in Fig. 1), the flame is almost vertical (β = 90°) and the natural convection flow is symmetrical on both sides of the fire. The presence of a constant wind (or constant slope or topography effect) will incline the flame, decreasing its angle, and increase the ROS (Stage 2). The fire growth due to the presence of the flame and the prevailing wind can be explained by the feedback effect described in Viegas (2004c) for the process of fire growth in a canyon.

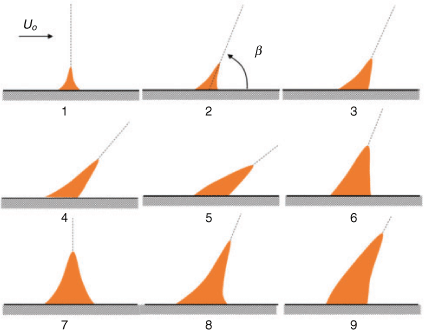

Fig. 1.  Conceptual temporal evolution of a 2D flame front on a plane surface with a constant wind flow characterised by the reference velocity U_o.

The larger value of ROS will increase the flame depth and therefore the amount of fuel that is burning simultaneously. Because of this, the flame will be thicker and start to become vertical, increasing the value of β given the larger amount of fuel burning and the increased buoyancy (Stage 5). In the process of fire acceleration, the local flow on both sides of the flame will increase as well. The increase of the ROS and flame length with local flow velocity and decrease of its inclination angle with either wind or slope is amply supported in the literature (cf. Dupuy 1995) and is documented below.

The increased modulus of the flow velocity on the leeward of the flame will contribute to its deceleration and after reaching a value of β ≈ 90° (Stage 7), the ROS will decrease, reaching a local minimum, and then a new cycle of acceleration starts (Stage 8) but with a larger and deeper flame front than at Stage 1. This cycle can be repeated if the boundary conditions persist.

In order to analyse the fire front evolution, following many authors, namely Byram (1959), Byram and Nelson (1951), Rothermel (1972, 1983), Albini (1981, 1982), Alexander and Cruz (2012), Tolhurst (2009), Sharples (2009), Butler et al. (2007), we use the concept of ROS of the head fire as it gives a very important indication of the development and intensity of the fire. Several fire-related properties such as the fireline intensity, flame length, energy release rate, residence time, heat impact on the soil, gas emissions and others can be derived from knowledge of the local ROS (cf. Freeborn et al. 2008; Canfield et al. 2014; Moinuddin et al. 2018). Accurate knowledge of the head fire evolution linked to other information on terrain, fuel cover and topography can also provide an overall assessment of the fire spread and of the perimeter or the burned area evolution over the course of time.

As a consequence of the process described above, according to the present model, the ROS of the fire front will have the temporal evolution shown in Fig. 2, with a sort of yoyo effect. There will be an initial increase of the ROS until Stage 7, then a decrease until Stage 8, followed by another cycle. At the start of this second cycle, normally the fire will have a higher ROS than at Stage 1, given the growth of the flame up to Stage 6. Over time, the cycle can be repeated one or more times as illustrated in Fig. 2 and as was observed in fire experiments that are presented below and in some real fires as well (cf. Anderson 1968; Wade and Ward 1973). Superimposed on the general cycle of ROS evolution is a process of higher frequency – short period of time – and low-amplitude fluctuations derived from the dynamic interactions between the fire and the surrounding turbulent flow. These fluctuations are not illustrated in Fig. 2 for the sake of clarity, but are clearly shown below in the laboratory-scale experiments.

Fig. 2.  Conceptual temporal evolution of the flame angle β and ROS of a head fire with constant wind or slope (arbitrary scales).

The conceptual evolution of the inclination angle β of the flame over the course of time is also plotted in Fig. 2 with the same time scale but with an arbitrary vertical scale. At the start of the fire, the value of β is close to 90° and then decreases to a value of the order of 30°, and increases while the ROS continues to increase, reaching a local maximum close to 90°, after which another cycle starts.

As plotted in Fig. 2 the growth of the ROS R is gradual and then followed by a sudden decrease, as confirmed by the experiments, giving the characteristic oscillatory or intermittent pattern to fire behaviour. This sudden decrease produced by the overall fire dynamics induced by the fire explains why an eruptive fire in a canyon does not reach infinite values of R as predicted in the mathematical model of Viegas (2004c, 2006) after a finite time, as the changes in the flame and flow properties at this stage decrease the value of R to a significant degree.

The present model deals mainly with kinematic properties of the fire and of the surrounding flow but it must be taken into account that the modifications induced by the flow in the geometry of the flame are associated with a change in the combustion processes as well as in the balance of forces and heat transfer processes of the flame system, resulting in a change of the ROS over the course of time. This time dependency of the fire properties induced by the fire itself prompts us to define this process as dynamic as opposed to other approaches that consider mainly average values of fire properties.

In order to analyse the flow in the vicinity of the fire front, we refer to the temporal evolution of the flow velocity component U′ = U_x – U_o parallel to the fuel bed at a point P positioned at a certain distance above it, as a function of the time t′ = t_P – t, elapsed since the passage of the flame at time t_P (cf. figure below). Assuming that the flow induced by the fire has opposite directions on both sides of the flame, we consider the time t_P when the relative velocity U′ changes sign as the time of arrival of the fire at P. As shown in our experiments, on the windward side of the flame, the flow velocity increases, owing to the indraft produced by the fire, reaching a maximum value U′_max. Then, the flow velocity decreases, being equal to zero at the trailing edge – the rear of the flame, becoming negative on the leeward side of the flame and reaching a minimum value U′_min, ahead of the leading edge or front of the flame. We use these values of U′_max and U′_min as reference flow velocities respectively for the windward and leeward flows, near the flame.

In the present study, validation of the conceptual curve shown in Fig. 3 was made with the experimental results performed in no-wind conditions (U_o = 0), in which case the value of U′ = U_x.

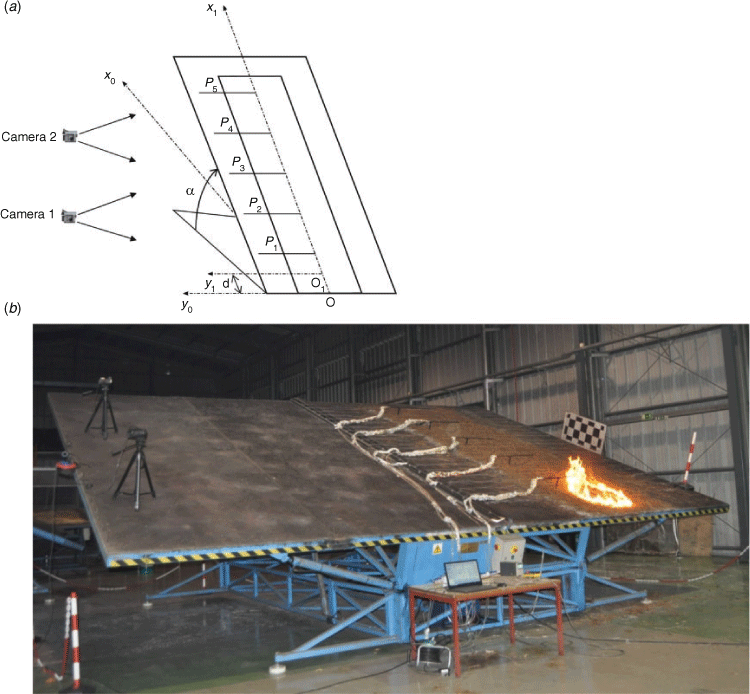

Fig. 3.  (a) Geometry of a point ignition fire on a slope. (b) View of the CT3 canyon table of the Forest Fire Laboratory of the University of Coimbra.

If the process of fire spread is transient, knowing the evolution of the rate of spread R(t), it is possible to estimate the distance x_f(t) of the flame to point P from:

Negative and positive values of x_f correspond respectively to the windward or leeward side of the fire.

In order to validate the conceptual model, we present a series of laboratory experiments of point ignition fires under controlled permanent conditions. Given the difficulty of physically producing a flow with uniform velocity over a large area, we chose to perform tests under the effect of constant slope in no-wind conditions. Using the analogy between slope and wind effect on fire spread, we extend the considerations above for the development of a fire under a constant wind to the case of a fire on a constant slope.

We consider two cases, first the spread of a point ignition on a slope, and then in a symmetrical canyon. As we shall see in the canyon fire, when we increase the slope of the water line of the canyon to 30° or 40°, the ROS increases and then decreases as described in the conceptual model. In order to validate the present conceptual model, we shall mainly use the slope tests, as this configuration is easier to analyse and provides a better description of the flame properties during the initial phase of fire acceleration.

All experiments described in this paper were performed with our ‘standard fuel bed’ composed of dead Pinus Pinaster needles with a fuel load of 600 g m⁻² (dry basis) that has consistently been used by our research group through the years in a wide series of experiments (cf. Viegas and Pita 2004; Xie et al. 2014; Raposo 2016; Raposo et al. 2018; Rodrigues et al. 2019). The pine needles were kept inside the laboratory at indoor ambient conditions; therefore, their moisture content m_f could change from one test to another. We measured m_f before each test in order to prepare the total mass of particles required for the test to compensate for the mass of water in the fuel. The height of the fuel bed was between 5 and 7 cm.

The ROS of a linear fire front under no-slope and no-wind conditions, which we designate the basic ROS R_o, is an intrinsic property of the fuel bed. For a given fuel bed, its value will depend mainly on the moisture content m_f of the fuel particles.

In order to minimise the effect of m_f on R in tests performed under different conditions, we use the non-dimensional ROS R′, defined as:

We performed tests with a point ignition fire on a slope on the CT3 combustion table of the Forest Fire Research Laboratory of the University of Coimbra. A schematic view of the experimental layout is shown in Fig. 4a and a photo of the test rig taken during test SP303 is shown in Fig. 4b. The dimensions of the table are 6 × 8 m² but only half was used in the present experiments. The fuel bed was a rectangle of 5.5 × 2 m² (in some tests, the dimensions were 5 × 2 m²) and ignition was at the centre line 50 cm above the lower border of the fuel. Five S-Pitot tubes placed 15 cm above the surface of the table measured the U_x component of the flow.

Fig. 4.  Schematic view of the flame geometry where L is the flame lengths, α is the slope angle, β is the flame angle and β₀ is the angle between the flame and the horizontal surface.

One infrared camera recorded an oblique top view of the spread of the fire and two video cameras recorded the flame properties during the tests.

The slope angle α of the table was set to 20°, 30° and 40° and four repetitions were made for each configuration. The test parameters are given in Table 1.

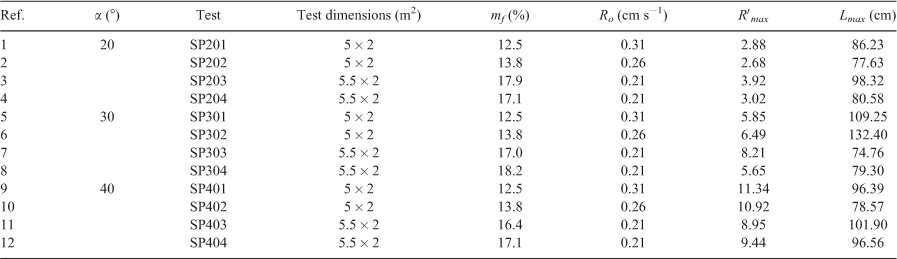

Table 1.  Parameters for slope tests

Fires in canyons can ‘blow up’ or exhibit eruptive behaviour, with the ROS increasing continuously over the course of time (cf. Viegas and Pita 2004; Viegas 2004c, 2006; Dold and Zinoviev 2009; Viegas and Simeoni 2011; Xie et al. 2020). A canyon is composed of two lateral faces that make an angle δ with a reference horizontal plane, and their intersection – the water line – makes an angle α with the horizontal datum (Fig. 5a).

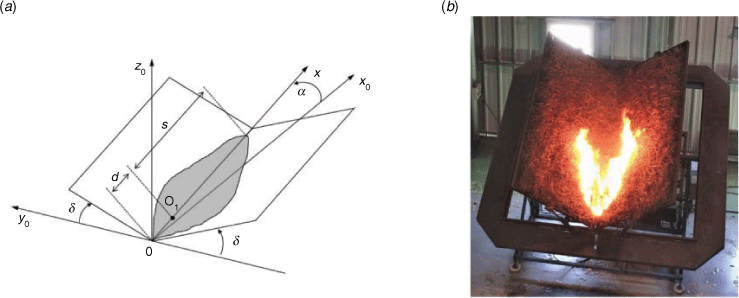

Fig. 5.  (a) Geometry of a symmetrical canyon. (b) View of the CT2 canyon table of the Forest Fire Laboratory of the University of Coimbra.

Experiments reported in Viegas and Pita (2004) performed on a 3 × 3 m² canyon-shaped table with pine needles as fuel bed showed the tendency of a non-monotonic variation of the ROS. The mathematical model proposed in Viegas (2004c) estimates that the ROS of the head fire along the water line of the canyon will reach very high values after a finite time.

In the present study, a set of experiments was performed in this test rig using δ = 40° (measured when α = 0°) for different values of the inclination angle α of the water line. We performed three repetitions for each configuration and these test parameters are given in Table 2.

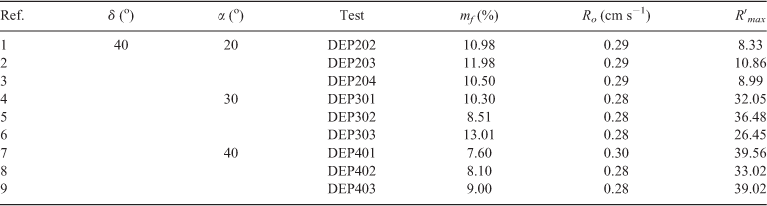

Table 2.  Parameters for canyon tests

More details on the experimental methodology can be found in Viegas and Pita (2004).

The tests were recorded using an infrared camera (FLIR SC660) in the range of 300–1500°C, with a rate of acquisition of 15 Hz. The threshold of 350°C was used to avoid obstruction of the view by the fire plume. The frames from the IR camera recordings were extracted and analysed to obtain the fire contour at pre-defined times. The time between frames was adapted for each test. The Cartesian coordinates of the frame were converted into true physical Cartesian coordinates in the plane of the combustion table in order to determine the evolution of the fire front to compute the instantaneous values of ROS at each point of the fire line and the isochrones of the fire following the methodology described in Raposo et al. (2018) and Rodrigues et al. (2019).

In the analysis of the positions of the fire advance along the Ox-axis of the table, the positions P_i (x_i, t_i), and P_i+1(x_i+1, t_i+1) at predefined times were determined. For the slope tests, these points coincided with the head of the fire. In some configurations of the canyon fires, there was a bifurcation of the fire with two heads, one on each slope, but analysis was always carried out on the intersection line of the two faces of the canyon, corresponding to the axis Ox (see Fig. 5). From these data, we can determine the ‘instantaneous’ ROS R_j (x_j, t_j):

We calculate this value for time t_j given by:

As we intend to correlate the fire properties (flame angle and length) with R_j, they are determined for the corresponding time t_j for each data point.

Two video cameras were placed laterally on the surface of the combustion table to record the propagation of the head fire during each test, as shown in Fig. 3. The two cameras were a Sony AVCHD MPEG2 SD and Sony HD DCR-SR87 that recorded 20 frames per second. Although each camera could view the entire length of the fire spread, in order to minimise parallax errors, we used Camera 1 to analyse the spread of the fire in the first half of the table and Camera 2 for the remaining part. Reference direction and scale marks were used to estimate the flame angle and length. It is estimated that the errors of the angle and length measurement are less than 1° and 2 cm respectively in the entire field of vision of each camera.

The flame length L is defined by the length of a line joining the tip of the continuous flame to the middle of the base of the flame, as indicated in Fig. 4. The flame angle β is the angle between the base of the fuel bed and the above-mentioned line, as shown in Fig. 4.

To estimate L and β at a given time t_j, we used three frames, captured at an interval of 1 s, at t_j – 1 s, t_j and t_j + 1 s. The properties of the flame are the average of these three values.

As the experiments used in this work are controlled by the terrain slope α, in the analysis of the flame angle, following Cruz and Alexander (2020), we considered the possibility of using another flame angle β_o, defined by (see Fig. 5):

The angle β_o between the flame and the horizontal surface would be more meaningful for describing the role of gravity or buoyancy in the development of the flame and of fire spread. We nevertheless found that this is applicable mainly at the initial stages of the fire development, as fire-induced convection soon becomes the dominant mechanism controlling the flame geometry and fire spread.

Five S-Pitot tubes were installed along the Ox axis 15 cm above the surface of the table at the following distances from the lower edge of the fuel bed: 1, 2, 3, 4 and 5 m. Each Pitot measured the flow temperature T_i and velocity U_i (i = 1 to 5) parallel to the fuel bed at every second. From the temperature record at each Pitot position, with a rate of acquisition of 1 Hz using K-type thermocouples (nickel chromium/nickel aluminium, metallic shielded, with a diameter of 0.5 mm, connected to an NI cDAQ-9174 with an NI 9213TC module that allows synchronous data-logging), it was possible to determine the time of arrival t_p of the flame at each Pitot position assessed by the temperature reaching 350°C. The Pitot tubes were connected by pipes to differential pressure transducers (Gems 5266–50L Very Low Range Differential Pressure Transmitter (0 to 50 Pa)). These transducers were connected to the NI cDAQ-9174 with an NI 9205 voltage module that performs the data-logging of the signal also with a frequency of 1 Hz. The transducers are bi-directional so that when the flow is upslope along the Ox axis, the signal is positive and when it is opposite, it is negative. With the data collected by this method, using the values of synchronous temperature measurements by the application of a calibration, it was possible to estimate the flow velocity induced by the fire phenomena.

More details on the use and calibration of S-Pitot tubes can be found in Kang et al. (2015). Pinto et al. (2020) found that the error due to misalignment between the flow velocity and the probe axis is negligible for an angle below 6°; if the misalignment is in the range between 6 and 30°, the error can be up to 9%.

In order to illustrate the processes described in the conceptual model, we picked sample slope tests of each configuration to analyse the evolution of R′ and β as a function of time. The results are shown in Figs 6–8, which include video images of each test at selected times. In spite of the accuracy and detail of the experiments, we recognise that there are some high-frequency oscillations of both parameters that are not easy to interpret or explain owing to the discrete nature of our data, meaning that we may not observe the extreme values of R′ or β as they may not occur exactly at the times of observation.

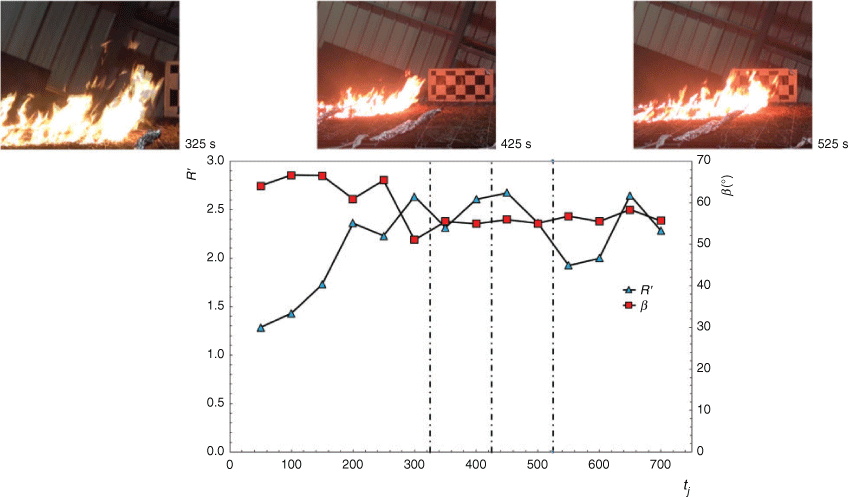

Fig. 6.  Evolution of R′ and β as a function of time for test SP 202; α = 20°. The photos above the figure show the flame at the time steps indicated near each frame. The vertical dotted lines in the graph correspond to each photo. The same applies to Figs 7 and 8.

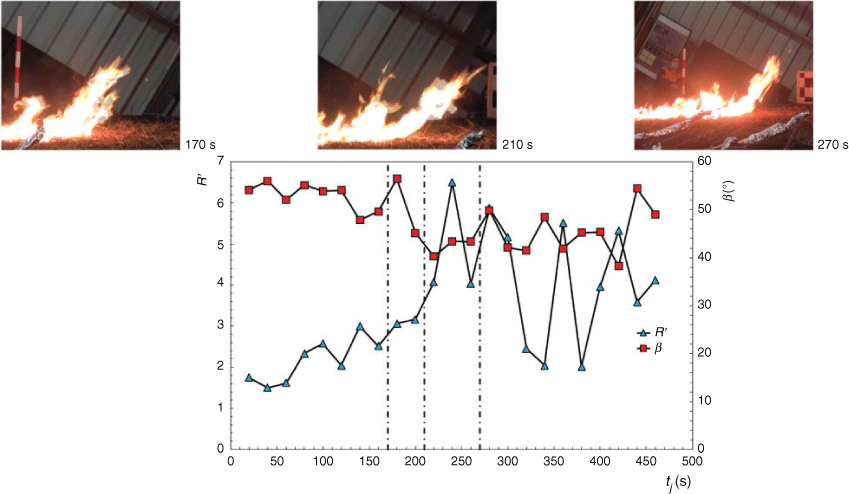

Fig. 7.  Evolution of R′ and β as a function of time for test SP 302; α = 30°.

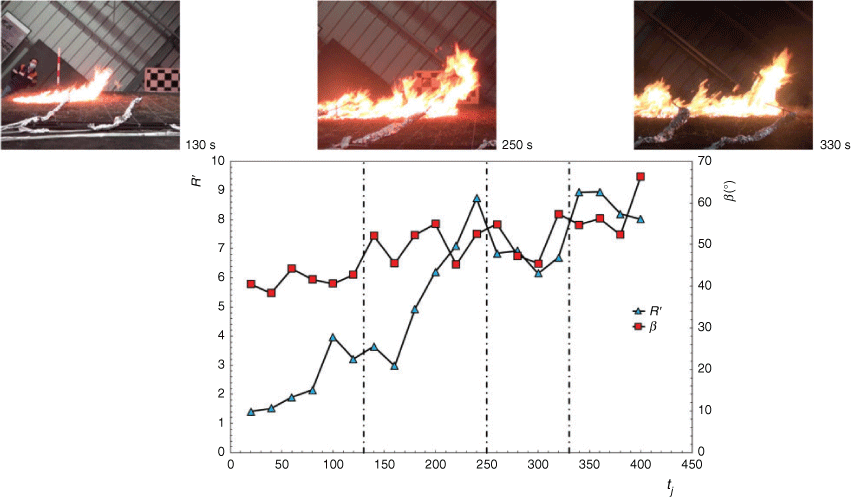

Fig. 8.  Evolution of R′ and β as a function of time for test SP 403; α = 40°.

In test SP202 (Fig. 6) for α = 20°, the ROS increases and the flame angle decreases corresponding to points 1, 2 and 3 in Fig. 2. There is a period of acceleration between 25 and 275 s with an oscillation of both R′ and β. In this period, R′ varies between 1.28 and 2.64 and β oscillates around 65°. Between 275 and 325 s, β decreases to 51°, while R′ drops from 2.68 to 2.32. From this time till the end of the test, β increases again while R′ undergoes a full cycle of growth and decrease. The three photos on the right side of Fig. 6 are of video images taken at 325, 425 and 525 s corresponding to a period of increasing values of β, while R′ increases up to 2.65 and then decreases to 1.93.

In test SP 302 (Fig. 7) for α = 30°, the ROS and the flame angle variation correspond essentially to the same phase as in the previous case. There is a period of overall increase of R′ till it reaches a value of 6.49 at 230 s. During this period, two oscillations of R′ and β are observed. Between 230 and 330 s, there is a period of R′ decrease from 6.49 to 2.04, also with two oscillations. Then, two peak values of R′ occur at 350 and at 410 s with oscillations in between. From this time till 450 s, R′ decreases to 4.12 with an overall increase of β with at least two oscillations. The three photos shown in Fig. 7 correspond to video images taken at 170, 210 and 270 s illustrating the decrease of β and the increase of R′ between 170 and 210 s and the opposite trend in the second period of time.

Test SP 403 (Fig. 8) for α = 40° is possibly more straightforward to interpret as the value of R′ increases from 1.2 at the beginning to 8.74 at 230 s. The ROS and the flame angle increase, corresponding to points 4, 5 and 6 in Fig. 2. In this period, there are several oscillations of both R′ and β. During the whole test, β increases with oscillations, some of them in phase with the oscillations of R′. Between 230 and 390 s, R′ and β have two oscillations. The photos from this test, taken at 130, 250 and 330 s, illustrate a period of general increase of β and R′ with two marked oscillations.

The results of the non-dimensional ROS R′ as a function time elapsed since the origin of the four tests performed for each configuration for slope angles α = 20°, 30° and 40° are shown in Fig. 9a–c respectively. In spite of the random nature of the fluctuations of R′, good repeatability is observed for tests performed in each configuration. For α = 20° (Fig. 9a), we see that on average R′ increases from an initial value close to 1.5 to ~2.5 and then decreases slightly. For α = 30° (Fig. 9b), we see that on average R′ increases to values close to 5 and then decreases with two or more cycles. For α = 40° (Fig. 9c), we see that on average R′ increases to values close to 8, and although there is indication of a decreasing phase of R′, the length of the fuel bed was not sufficient to observe it in full.

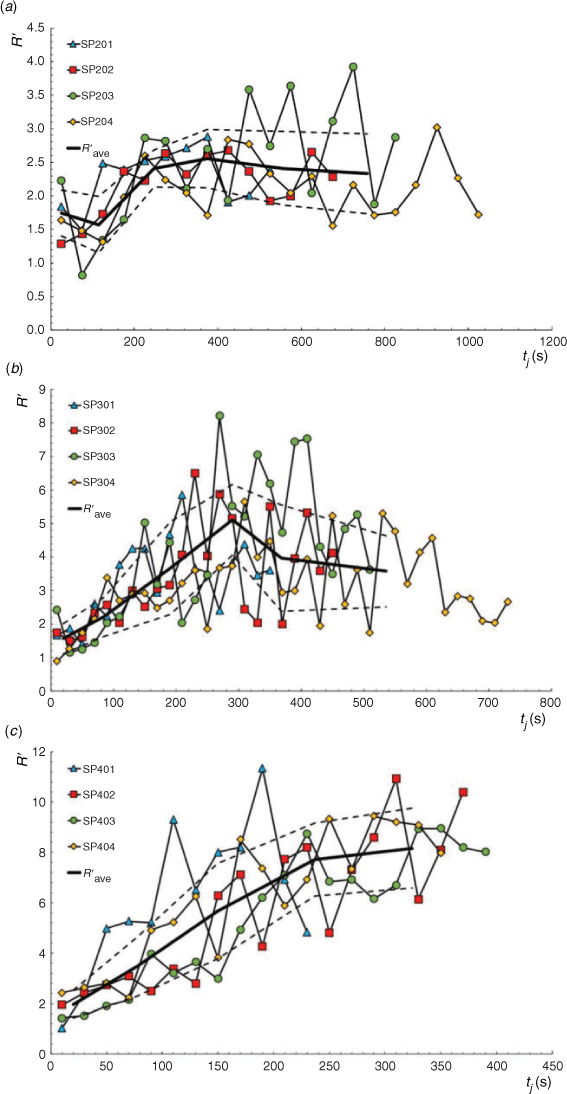

Fig. 9.  Plots of R′ as a function of non-dimensional time in all tests of each configuration: (a) α = 20°; (b) α = 30°; (c) α = 40°. Curves with R′_ave and the dashed-line curves R′_ave ± ΔR′ are shown in each case.

We do not have yet an interpretation for the relationship between the relatively high-frequency and low-amplitude fluctuations and the low-frequency and-high amplitude oscillations. It seems that high-amplitude oscillations occur mainly for values of R′ > 4, meaning that possibly, for this fuel, the amount of energy involved in the combustion process is sufficient to feed greater variations of the R′(t) curve.

The results of the flame angle β and flame length L as a function of time since the origin for all tests performed for each configuration for slope angles α = 20°, 30° and 40° are plotted in Fig. 10a–c respectively. Good repeatability of the experiments is shown in the four tests performed for each configuration for both parameters. Following the pattern of variation of R′, for α = 20° (Fig. 9a), the flame angle decreases from the initial value of 70° (which corresponds to β_o ≈ 90°), to ~50° at the end of the test. For α = 30° (Fig. 10b), the initial values of β are ~60° then decrease to ~40°, remain constant and then tend to increase, at least for some tests. For α = 40° (Fig. 10c), the flame angle β starts with values of the order of 50° (corresponding to β_o ≈ 90°) and increases to 60° and even to 70°.

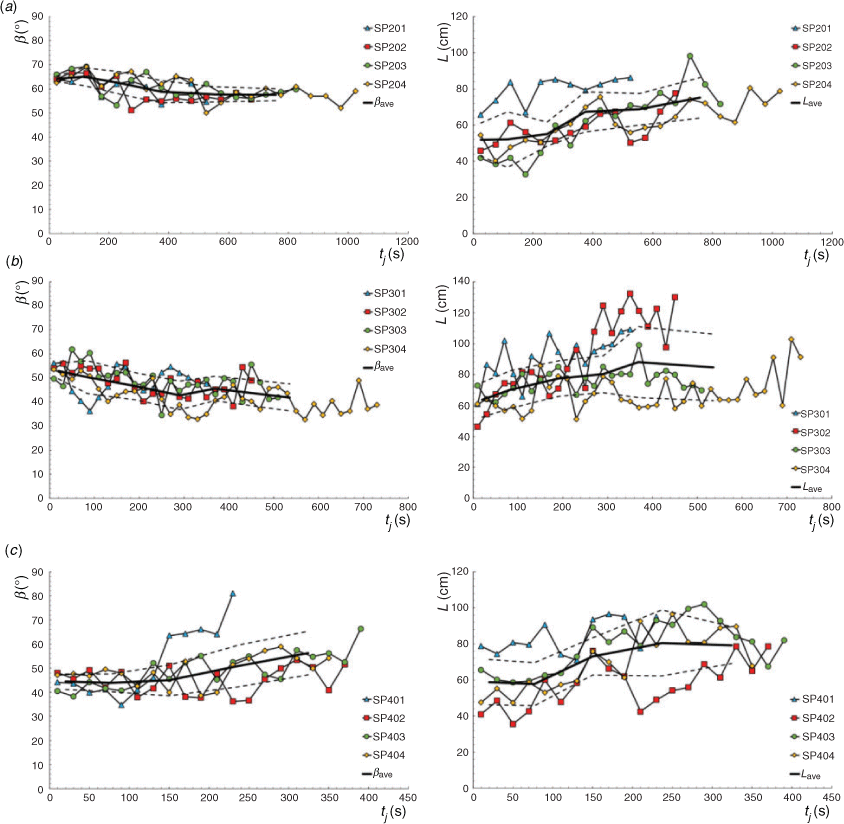

Fig. 10.  Plots of flame angle β and flame length L as a function of non-dimensional time t₁′ in all tests of each configuration: (a) α = 20°; (b) α = 30°; (c) α = 40°. Dashed-line curves correspond to the average values ± s.d.

Silvani et al. (2018) experimentally studied the spread of a linear fire front in an excelsior fuel on a 3 × 6 m² inclinable bench for two slope angles of 0° and 30° and for three values of fuel load. For the 30° slope, they refer to oscillations in the flame geometry describing the latter as spherical (‘fireball’) or elongated, which is consistent with the fluctuations that we observed for both L and β, but they do not provide detailed data on the evolution of fire properties with time.

Mendes-Lopes et al. (2003) experimentally studied the propagation of a linear fire on a 2 × 0.7 m² fuel bed of Pinus pinaster needles with a fuel load of 0.5 kg m⁻² for various slope and wind velocity conditions. Fuel moisture content was controlled during the experiments and two values of the moisture content, 10% and 18%, were used. Slope was varied between ±15° and wind velocity between ±3 m s⁻¹. Although for practical reasons not all combinations of slope and wind were tested, 192 tests were performed for different combinations of the three control parameters. The authors provide results of the time variation of the flame angle for two cases without slope. In the no-wind case, the values of β oscillate around 90° with small fluctuations, but for 1 m s⁻¹ wind, the flame angle varies between 40° and 90° with an average value of 70°. For 3 m s⁻¹ flow, in the first 120 s the height of the flame increases from 15 to 45 cm, with some oscillations; it then decreases to values close to 20 cm after 20 s, but the authors only provide average values of all parameters.

The flow velocity was measured by S-type Pitot tubes, as described in the Methods section, at five points 15 cm above the ground, in all tests. Using average values of the flow velocity every 5 s, the time t_P of passage of the flame past each Pitot tube position was estimated from the trace of U′(t) when the flow velocity changed from essentially positive to essentially negative values of U′. The results obtained for each configuration were very consistent and the results of one sample test for each configuration are shown in Fig. 11.

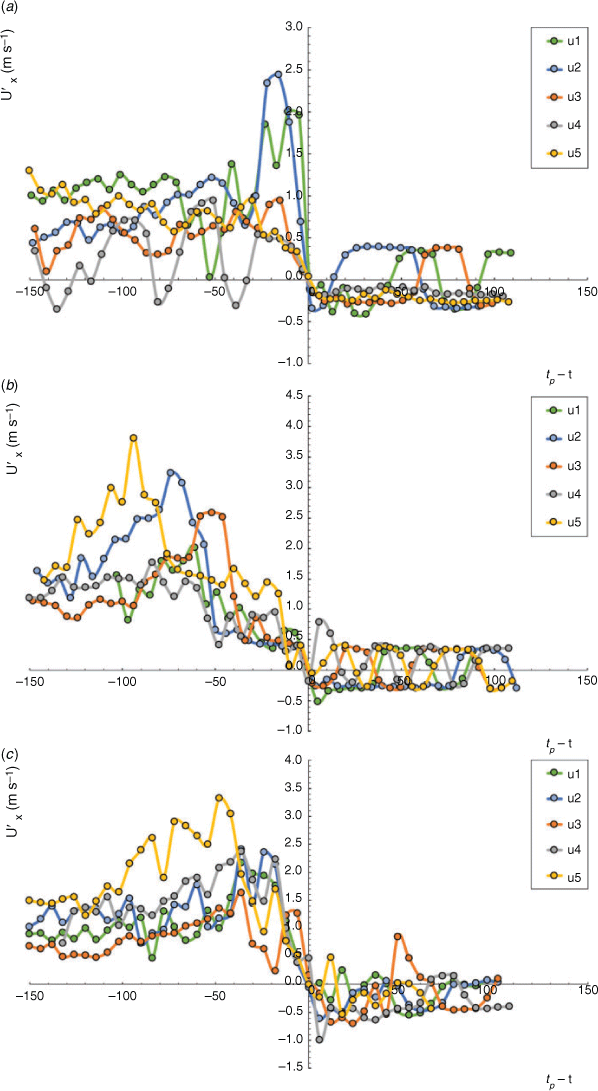

Fig. 11.  Plots of U′_x as a function of t_p – t for one sample test of each configuration: (a) SP201, α = 20°; (b) SP301, α = 30°; (c) SP401, α = 40°.

To simplify our analysis, we consider the flame to be static at the position of the Pitot (x = x_P). When the flow approaches the leeward side of the flame (negative values of x_P – x and of t_P – t), the value of U′ increases to a maximum as anticipated in the conceptual model, then decreases owing to the presence of the flame, which acts as a solid body, producing a stagnation point in the present test conditions. On the leeward side of the flame, the flow velocity U′ becomes negative with a well-defined minimum value. Very similar results can be found in Yang et al. (2018) and in Liu et al. (2015).

The values of U_max and U_min obtained in each test as a function of the local value of R′ are plotted respectively in Figs 12 and 13. As can be seen in Fig. 12, U_max tends to increase with R′, as would be expected, although the present data indicate that this growth is not monotonic. For the present fuel bed, a local maximum value of U_max for R′ ≈ 4 seems to exist.

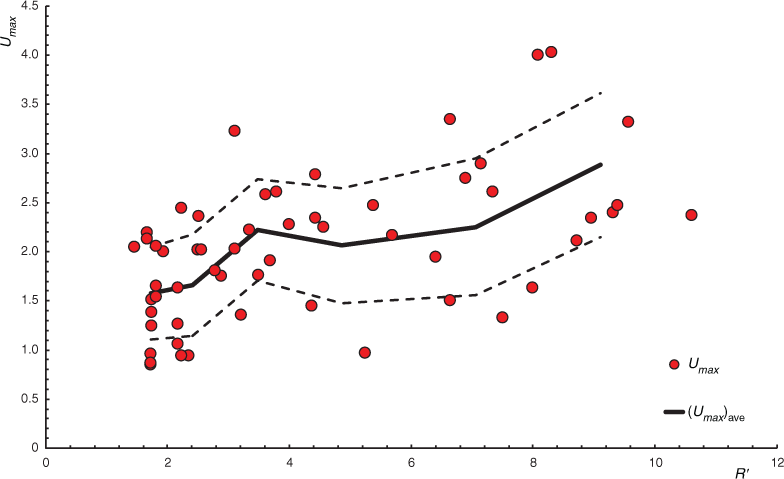

Fig. 12.  Distribution of U_max as a function of R′ for all tests. Lines with (U_max)_ave and ± ΔU_max are shown as well.

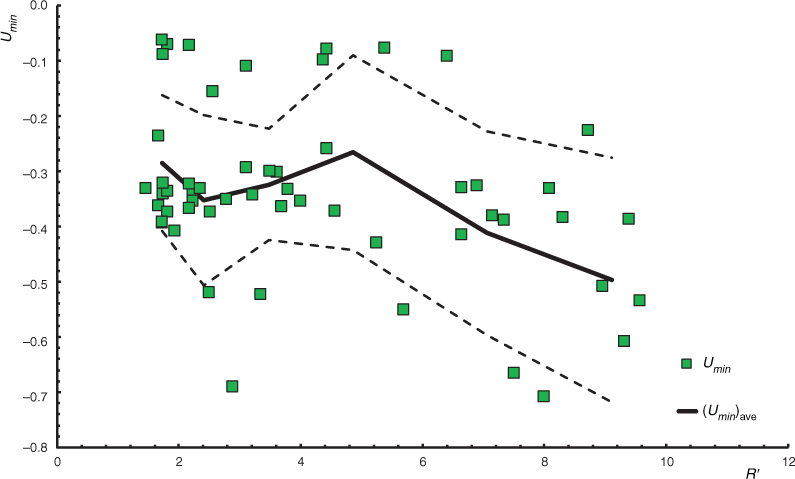

Fig. 13.  Distribution of U_min as a function of R′ for all tests. Lines with (U_min)_ave and ± ΔU_min are shown as well.

The distribution of U_min also shows a tendency to decrease with R′, as shown in Fig. 14, but possibly not in a monotonic form as well.

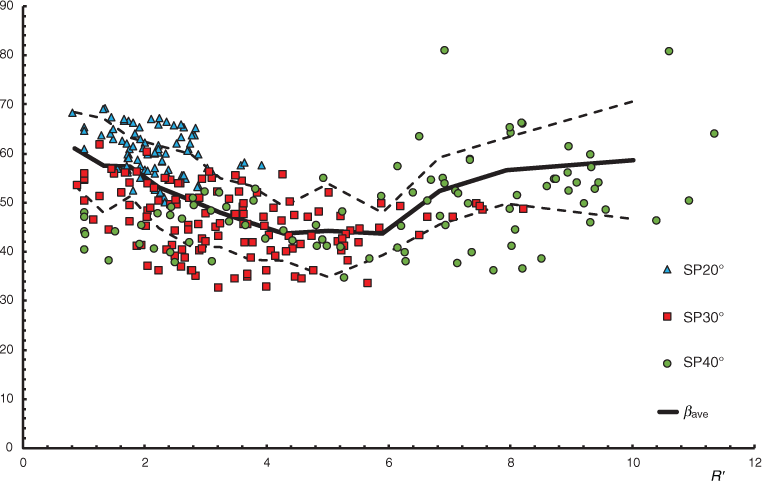

Fig. 14.  Distribution of β(R′) for all tests. A line of β_ave values is shown. The dashed lines correspond to ±s.d.

Silvani et al. (2018) employed an innovative particle image velocimetry (PIV) technique to analyse the flow field in a vertical plane. Their flow visualisation and measurement techniques confirm the existence of a positive fire-induced wind on the windward side of the flame and a negative flow towards the flame on its leeward side.

The distribution of values of flame angle β for all tests as a function of R′ is shown in Fig. 14. In the initial stages of fire spread, when R′ < 2, β_o could possibly describe the evolution of the flame angle better, as suggested before, but the fire-induced flow velocity increases rapidly with R′ and the fire becomes dominated by convective flow and less dependent on terrain slope, as shown in Fig. 14.

In spite of the data scatter, it is possible to see the trend of reduction of β from 90° for R′ = 0 to a minimum value between 30° and 40° for R′ ≈ 4. For R′ > 5, β increases to values close to 70°.

This trend is also visible in the line of β_ave(R′) shown in Fig. 14. The lines corresponding to β_ave ± Δβ, in which Δβ is the standard deviation computed at each interval of R′, are shown as well.

It must be noted that in this figure, we have values of β corresponding to periods of fire acceleration (increase of R′) or deceleration, which may contribute to the scatter of data.

The distribution of values of flame length L for all tests as a function of R′ is shown in Fig. 15. The data scatter is larger than for β but from the experimental points and the L_ave line, it is possible to see a trend of increasing L for 1.5 < R′ < 3. There is possibly a local maximum value of L for R′ ≈ 4, corresponding to the minimum of β. For R′ > 5, there seems to be a second stage of increase of L, but the present data are too scarce in this range of tests to confirm this assertion.

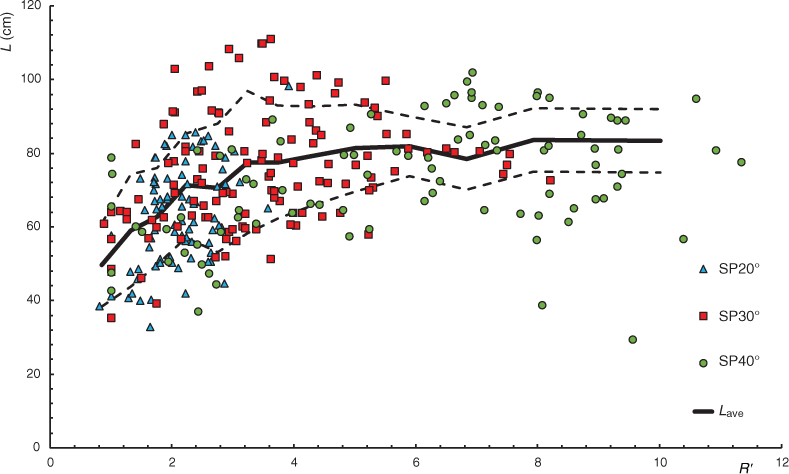

Fig. 15.  Distribution of L(R′) for all tests. A line of L_ave values is shown. The dashed lines correspond to ±s.d.

Our results show that for a given fuel bed, there is univocal relationship between the ROS and the flame angle and flame length, but this relationship is not bi-univocal as many fire spread models assume. For a given fire spread condition – terrain slope in the present case – some values of β or L may correspond to different values of R′. As shown in the present analysis, this is due to the oscillatory behaviour of fire spread, caused by the interaction between fire-induced convection and the combustion process.

We now present the results of the head fire ROS in the canyon along its Ox axis, which cover a higher range of values of R′ and therefore better illustrate the non-monotonic behaviour of fire spread that is predicted in our conceptual model. Owing to practical difficulties, flow and flame properties were not analysed in this test configuration.

In Fig. 16a–c, the non-dimensional ROS R′ values of the head fire along the centre line of the canyon every 5 s are plotted as a function of time, for the three tests performed with α = 20°, 30° and 40°, together with the curves of R′_ave and of R′_ave ± ΔR′. Given the relatively high temporal resolution of the fire spread analysis, the existence of fluctuations in the ROS values with time is clearly shown.

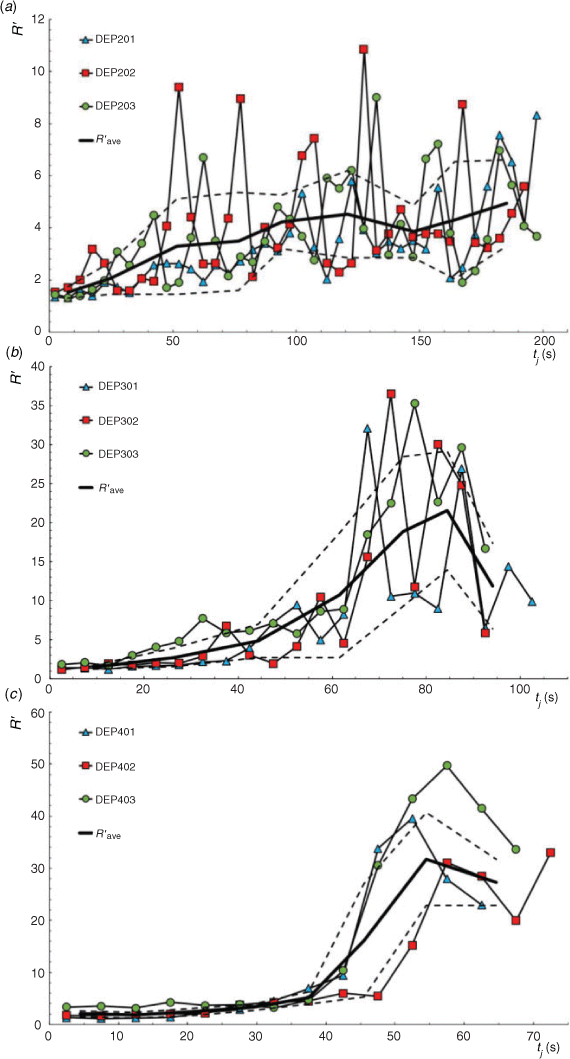

Fig. 16.  Non-dimensional ROS of the head of fire in the water line of a canyon (δ = 40°) for three values of the inclination angle α as a function of the non-dimensional time t′₁. The average value R′_ave and the R′_ave ± ΔR′ dashed line curves are shown in each case. (a) α = 20°, (b) α = 30° and (c) α = 40°.

The fluctuations of the ROS can be considered as an instability or a perturbation of the equilibrium conditions in the fire (cf. Finney et al. 2015). In some cases, the amplitude of this oscillation is sufficient to cause a relatively large increase of the ROS, leading to an ‘eruption’, but in other cases these oscillations are damped by the fire–environment system and the ROS value returns almost to its initial value, as predicted in the conceptual model. This is clearly shown in Fig. 16a for the test with α = 20° in which the average value of R′ increases steadily from ~1.5 at the start to 4 at the end of the test. Given the random nature of the turbulent flow fluctuations, each test is different from the other and the scatter of the ROS values is not necessarily associated with lack of accuracy or other systematic measurement errors but rather with the random nature of the fire fluctuations. Therefore, the averaging process provides only an indication of the overall tendency of the evolution of R′(t).

In the case of α = 30° (Fig. 16b), the fluctuations continue to exist, but when the value of R′ > 7, the amplitude of the fluctuations becomes very large and sudden fire acceleration occurs. As predicted by the Viegas (2004a) model, the value of R′ increases very rapidly, reaching ~35. After this maximum value, there are one or more oscillations with an overall tendency of ROS reduction. The same happens for α = 40° (Fig. 16c) with R′ increasing to ~40, although in this case the reduction phase is not completed owing to the limited size of the fuel bed.

In this work, a conceptual model of fire spread based on the interaction between fire-induced convection, the fuel and the surrounding flow that modifies flame geometry and therefore the fire spread characteristics is proposed to interpret and justify the non-monotonic growth of a fire. According to this model, there is a process of relatively high-frequency fluctuations, associated with the turbulent flame and flow properties, superimposed onto a lower-frequency evolution, related to the fuel bed and its combustion properties, namely the flame geometry, owing to its interaction with the surrounding ambient environment, that induces an oscillatory or intermittent behaviour in fire spread. This concept was validated in carefully controlled laboratory experiments of point ignition fires on a simple slope or in a canyon in the absence of external flow. It was observed that over the course of time, the ROS of the head fire undergoes a cycle of growth followed by a sudden decrease, particularly in the case of canyon fires, with higher-frequency and smaller-amplitude oscillations. Careful analysis of the flow through the flame highlights the modifications induced by the presence of the flame on the flow in the windward or leeward regions of the flame, with two characteristic velocities. For a given fuel bed, these velocities increase in modulus with the ROS but possibly not in a monotonic way. The flame angle in relation to the fuel bed has a characteristic non-monotonic variation with R′, decreasing from a relatively high value – corresponding to an initially vertical flame – to a minimum value of the order of 30°, for R′ ≈ 4 for this fuel, and then increases to values close to 70°. The flame length increases with R′ but also shows a local maximum near the minimum flame angle.

In future work, we intend to analyse the fluctuations of R′ and of other flow and fire-related parameters for a wider range of values of R′ for the standard fuel used in these experiments and for other fuels as well. A mathematical model to interpret the present conceptual model and its application to the analysis of real fires reported in the literature will be addressed as well.

The authors declare that they have no conflicts of interest.
