Iron fortification of food crops through nanofertilisation

Keywords: biofortification, conventional fertiliser, food crop, iron deficiency, micronutrients, nanofertiliser.

Iron is fundamental for human well-being, as a pivotal component of cytochromes and hemoglobin. Iron deficiency is a well-reported problem, particularly in developing countries (Bouis and Saltzman 2017), affecting about one-third of the global population, particularly children and pregnant women. Anaemia caused due to Fe deficiency accounts for around 8 million deaths per year (Stoltzfus et al. 2004). The fundamental reason behind Fe deficiency is attributed to the lack of diversified diets and intake of Fe supplements (White and Broadley 2009). Deficiency of dietary Fe affects about 14% of world population (Matres et al. 2021). People with severe anaemia are at high risk of cardiovascular disease and tissue hypoxia in pregnant women and young children. Iron deficiency in females during pregnancy can cause irreversible damage to fetal brain development (Gordon 1997). Overall, Fe intake by humans is lower than the daily recommended dietary allowance of 10–18 mg day⁻¹ (Trumbo et al. 2001). Typical human diets today contain fewer nutritionally rich foods than contained in the last century due to declining soil health, which is affecting human well-being, and causing malnutrition in many developing countries, particularly in southern Asia and sub-Saharan Africa (Barrett 2010). Plants are the primary source of sustenance for people, with food quality determining the health of many individuals. Research programs have developed hybrid high-yielding varieties of essential crops, such as wheat and rice (Prasad et al. 2013). However, there is usually a lower content of fundamental micronutrients in these staple foods. For example, Fe content in rice after milling is around 1.5–6.1 μg g⁻¹ against the target of 13 μg g⁻¹ set by HarvestPlus program (Hoa and Lan 2004; Bouis et al. 2011). A sustainable solution to this problem is the consumption of diverse food sources, but this is an expensive option for poor people in danger of hunger and malnutrition. Nanotechnology could be the most sustainable way to enhance food productivity by promoting crop production, crop protection, and improving crop agronomic traits and food security eradicating micronutrient deficiencies in humans (Elemike et al. 2019; Chugh et al. 2021). This review focuses on application of nanobiotechnology for enhanced micronutrient availability in food crops through the use of nanofertilisers for successful agronomic biofortification of important crops.

Iron plays a pivotal role in plant growth and metabolism for different physiological, developmental and biochemical processes (Kasote et al. 2019; Afzal et al. 2020; Fakharzadeh et al. 2020). Iron deficiency causes chlorosis and necrosis in plants, restricts crop productivity and yield, and lowers the nutritional quality of grain (Phattarakul et al. 2012; Chen et al. 2017). Soil Fe contents range from 20–40 g kg⁻¹ (Cornell and Schwertmann 2003) but plant available Fe is low in most alluvial soils (Mahender et al. 2019). Plant Fe contents range from 100–500 mg kg⁻¹ of dry weight and is present in two distinct oxidation states such as Fe²⁺ (ferrous) and Fe³⁺ (ferric). Iron deficiency is a common issue in various crops due to its poor transformation into insoluble Fe(III) oxides and oxyhydroxides, making it inaccessible to plants (Cantera et al. 2002; Pérez-Labrada et al. 2020). Furthermore, nutrient bioavailability in plants relies on their relocation into edible parts and nutrient retention during downstream postharvest processing. While additional handling of food can deplete nutrients, it can also deplete anti-nutrients and improve micronutrient bioavailability (Hotz and Gibson 2007). The global decline in soil quality represents a challenge for improving grain Fe contents (Bouis and Welch 2010; Cakmak et al. 2010). Iron-deficient soils in cereal-growing zones cause inherently low grain Fe concentrations and are considered as a fundamental deficient source for Fe intake by dietary means (Alloway 2009). Rice and wheat cultivars, two main staple crops worldwide, which are widely used for human consumption have low amount of Fe as most is lost in processing due to removal of outer bran layers (Ludwig and Slamet-Loedin 2019).

Biofortification of staple food crops with fundamental nutrients is a practical and sustainable approach. Biofortification refers to the increase in the amount and bioavailability of micronutrients in plant parts consumed by humans, using nutritional management techniques and plant biotechnology (Bouis et al. 2011), to improve human well-being and nourishment. Fortified crops enter the market for further post-harvest processing to benefit the population. Fortified foods lower the incidence of illnesses related to malnutrition, such as poor maternal well-being, low intelligence, and diminished work capacity (Bouis et al. 2011; Hossain and Mohiuddin 2012). Several global biofortification projects are underway to deliver micronutrient-rich staple food sources and combat micronutrient deficiency. HarvestPlus is a worldwide test program of the Consultative Group on International Agricultural Research (CGIAR) (Bouis and Saltzman 2017) promoting biofortification as a favoured technique for micronutrient enhancement in grains. This worldwide research partnership includes a broad range of specialists in numerous fields, including agronomy, plant genomics, plant breeding, food and nutrition, social behaviour, acceptance, and policy analysis.

There are two potential biofortification strategies: genetic and agronomic biofortification (Fig. 1). Genetic biofortification includes conventional plant breeding and transgenic methods to develop crop varieties accumulating high concentrations of essential micronutrients in grains (Cakmak 2008). The main goal of such plant breeding methods is to produce staple food crops with lower levels of anti-nutrients, higher levels of micronutrients, and increased nutrient accessibility (Bouis 2003).

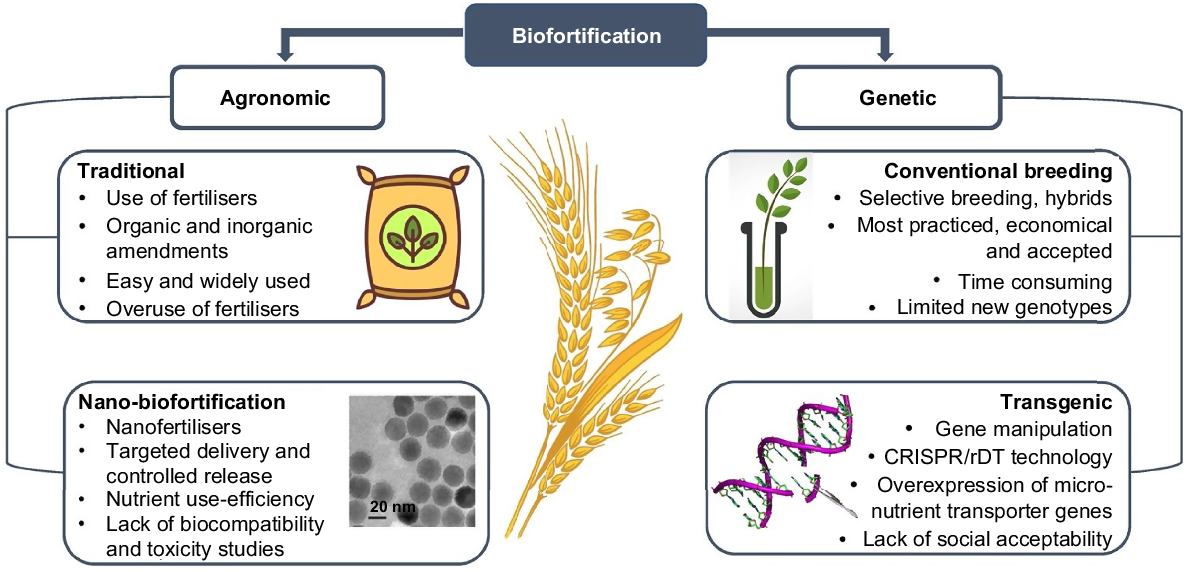

Fig. 1.  Biofortification strategies for micronutrient enhancement of food crops.

While plant breeding is the most practiced economical and sustainable technique for nutrient fortification (Murgia et al. 2012; Melash et al. 2016), creating new genotypes is time-consuming (Prasad et al. 2014). Also, the amount of accessible micronutrients in the soil is a limiting factor for micronutrient uptake by plants (Velu et al. 2014). Moreover, a transgenic strategy requires known genes with desired functions to influence the trait of interest. Genetically altered micronutrient-rich crops may not be widely accepted due to lack of awareness and many regulatory difficulties in various countries regardingtransgenic plants, making this innovation economically unviable (Dixit et al. 2018). Additionally, limited resource availability, in terms of Fe rich staple crops germplasms, pose a limitation on the success of conventional breeding techniques (Ludwig and Slamet-Loedin 2019). Despite various successes in using plant breeding and transgenics, it usually takes 8–10 years from lab to market release due to the involvement of careful selection of variety, as well as stringent and time consuming environmental and biosafety clearances (Matres et al. 2021).

Agronomic biofortification is a suitable alternative for enhancing micronutrient content in staple food crops to overcome the limitations of plant breeding methods for biofortification. The agronomic biofortification of crops is quick and sustainable. Compared to plant breeding methods, agronomic biofortification is a temporary solution for this issue (Cakmak et al. 2010). However, the agronomic biofortification strategy could be more valuable for overcoming malnutrition in developing countries (Velu et al. 2014).

Agronomic biofortification uses fertilisers application to the soil to enhance grain micronutrient concentrations. The type of fertiliser and the developmental stage of crop plants when it is applied varies (Cakmak 2008). Several forms of micronutrients, including inorganic and chelated forms, are used as fertilisers. Agronomic biofortification of staple crops such as wheat and rice, through soil, foliar, or combined fertiliser application is well-reported (Yilmaz et al. 1997; Khan et al. 2008; Zhang et al. 2010; Mathpal et al. 2015). Certain soil conditions, including good drainage, slightly acidic pH, and sufficient organic matter, increase fertiliser use efficiency and reduce ecological contamination. While fertiliser use efficiency has increased in recent times, it has created a net negative soil nutrient balance as nutrient removal is greater than the addition of fertilisers (Solanki et al. 2015). Therefore, it is essential to investigate advanced methodologies to ensure effective fertiliser delivery, appropriate doses, and controlled release in a plant accessible form without causing ecological concerns. Nanotechnology offers sustainable solutions for modern farming by providing the targeted and controlled delivery of nutrients in nanofertilisers. Nanofertilisers benefit over the use of conventional fertilisers as they are used in small quantities with slow and controlled release capabilities ensuring efficient uptake and minimising waste and overuse, thus improving soil and plant health with enhanced productivity and efficiency (Chugh et al. 2021).

Conventional fertilisers are used in large amounts to improve crop productivity, but nearly 50% of the applied fertiliser is leached into waterways beingunavailable for plants, thus increasing soil, water, and air pollution. In addition, most nutrients are insoluble (nutrient immobilisation) in the soil, making them inaccessible for plant use (Connor et al. 2011). Hence, chemical fertiliser application can result in short-term gains in productivity but prove deleterious to soil health in the long-term, disrupting plant nutrient homeostasis and nutritional status, which hinders plant growth and productivity (Solanki et al. 2015; Kumar et al. 2020). Therefore, there is a requirement for an alternative to chemical fertilisers for efficient plant nutrient use and sustainable crop production (Assainar et al. 2020).

Nanotechnology can be used to incorporate nanonutrients and carriers into fertilisers with improved and targeted formulations that minimise nutrient loss due to their high use efficiency (Chugh et al. 2021). Nanoparticles can be used as smart delivery systems for targeted controlled-release kinetics due to their large surface area, size, shape, high surface mass ratio, zeta potential, crystallinity, porosity, hydrophobicity/hydrophilicity, and surface functionalisation (DeRosa et al. 2010; Solanki et al. 2015). These properties facilitate nutrient retention, and allow slow and controlled-release of nutrients to improve nutrient use efficiency, and thereby crop productivity. Moreover, nanofertilisers can be synthesised biologically using biological materials as reducing, capping, and stabilising agents, which can be an added advantage in terms of biocompatibility and toxicity concerns associated with chemically synthesised nanofertilisers. Therefore, nanotechnology offers a platform for a novel and sustainable delivery system of nanonutrients to plants using nanoporous plant surfaces with increased efficiency and accessibility in nutrient availability and uptake. Metal nanoparticles and nanoforms of many plant nutrients as nanofertilisers are promising alternative methods to the existing, expensive, environmentally damaging conventional chemical fertilisation techniques, with long-term sustainability in terms of applicability and acceptability.

Generally, nanoparticles can be synthesised by three methods: physical, chemical and biological methods. Several reviews have discussed various methods of nanoparticle synthesis (Iravani et al. 2014; Khodashenas and Ghorbani 2014; Pantidos 2014; Ali et al. 2016). Fe nanoparticles have been synthesised using various mechanochemical methods such as, combustion, laser ablation arc discharge, pyrolysis, electrodeposition. Physical methods present with the difficulty to control the size of nanoparticles in the range (Cuenya 2010). Chemical methods include sol–gel synthesis, reverse micelle, template-assisted synthesis, coprecipitation, hydrothermal, etc. These methods are easy, efficient and tractable, and efficient in managing the size, composition, and shape of the nanoparticles primarily depending on the type of salt used, but are not environmentally friendly (Wu et al. 2008). On the other hand, biologically synthesised nanoparticles are reported to be comparable with their physical or chemically synthesised nanoparticles and ensure biocompatibility with high reproducibility (Wiley et al. 2004). The methods of biosynthesis of nanoparticles can be intracellular or extracellular. Intracellular synthesis wherein nanoparticles are generated within the cells (of plants, fungi, bacteria, etc.), whereas extracellular synthesis is when the synthesis happen outside the organism generally aided by several biomolecules and extra-cellular metabolites (such as proteins and peptides) (Hulkoti and Taranath 2014; Chugh et al. 2021). The biosynthesis machinery relies on the self-assembling capacity and reduction capability of biomolecules, including proteins, amino acids and peptides, which governs the nucleation and capping that help in stabilisation and growth of the nanoparticle (Goswami et al. 2011). In metallic nanoparticles, nucleation is aided by electron transfer from the host protein to metal ion. The nucleation and growth steps largely depend on the type and structural conformation of the protein involved (Thanh et al. 2014). Peptides react with nuclei of the metal preformed nanostructure, forming a reducing environment in the solution, producing reduced metal ions, and aiding crystal growth (Pantidos 2014). Biologically synthesised nanoparticles provide a suitable alternative to existing chemical or physical methods of nanoparticle synthesis, and are reported be less toxic, energy efficient to produce resulting in lower levels of hazardous by-products that can damage the environment. Biosynthesised nanoparticles can be biocompatible and produced with high reproducibility. Biological nanoparticle synthesis provides a sustainable alternative to existing expensive, environmentally hazardous conventional synthesis techniques (Chugh et al. 2021). After the synthesis of nanoparticles, thorough characterisation is vital for safe and effective application. Physicochemical characterisation is required to comprehend the material properties and functionalities because these factors govern the synthesised material’s functional attributes, such as solvency, dispensability, and stability of nanomaterials (Nair et al. 2008). Modern visualising techniques, for example, scanning electron microscopy (SEM), transmission electron microscopy (TEM), atomic force microscopy (AFM), etc. are the most commonly used techniques for determining the size and shape topology of nanoparticles (Rong et al. 2004, 2006). Besides these microscopic analyses, biophysical and mechanical attributes are essential to comprehend the behavioural pattern of synthesised nanoparticles. Various techniques such as, energy-dispersive X-ray (EDAX), X-ray powder diffraction (XRD), Fourier transform infrared (FTIR), X-beam photoelectron, Raman spectroscopy, and vitality dispersive X-ray (EDAX) spectroscopies helps in studying the chemical and physical characteristics, surface functionalities, thermal stability and elemental composition of nanoparticles. These studies are extremely valuable to understand the particulate nature of the synthesised nanoparticles (Arshad et al. 2011; Janaki et al. 2015). Furthermore, nontoxic behaviour and biocompatible applications of synthesised nanoparticles can be further enriched by coating them with organic or inorganic molecules, including surfactants, drugs, proteins, starches, enzymes, antibodies, nucleotides, non-ionic detergents, and polyelectrolytes to form biomoleculs, which govern the nanoparticle interaction with cell. However, the interaction and behaviour at the molecular level between nanoparticles and biological systems are to a great extent unknown (Gupta and Gupta 2005). A complete knowledge of the role of nanosised materials on plant physiology at the molecular level is still lacking (Khodakovskaya et al. 2011).

Nanofertilisers can be used to deliver nutrients to plants in several ways, e.g. in the nano-nutrient (particle) form, coated in a layer of thin protective polymer, or nanoemulsion, or encapsulated in nanotubes or nanoporous materials. Several studies have demonstrated the beneficial impacts followingthe application of Fe nanofertilisers (Amuamuha et al. 2012; Mir et al. 2015; Lemraski et al. 2017) through enhanced agronomic traits such as seed germination, yield, and Fe concentration in various plant parts, with effective relocalisation of Fe from the nanoparticles.

Fe nanoparticles have been used to increase the Fe content in plant parts of various crops (Table 1). The pre-treatment of various leguminous seeds with α-Fe₂O₃ nanoparticles increased root growth (Palchoudhury et al. 2018). Application of Fe nanoparticles improved nutritional quality, biomass, yield, N and P metabolism, and Fe fortification in peanuts (Rui et al. 2016). The use of Fe nanoparticles improved the enzyme function of heme protein which is responsible for cytochrome functioning (Zahra et al. 2015; Rui et al. 2016). The exposure of γ-Fe₂O₃ nanoparticles increased shoot Fe concentration in Cucurbita maxima but no such increase was observed in controls or plants treated with Fe(II)-EDTA (Hu et al. 2017). In the same study, root Fe concentration did not significantly increase, suggesting adequate transportation and localisation of Fe from roots to other plant parts (Hu et al. 2017). Foliar application of carbon-coated Fe nanoparticles in pumpkin plants helped translocate Fe from leaves to other plant parts but did not affect plant growth and function (Corredor et al. 2009). The application of Fe-chelated nanofertilisers improved growth parameters such as yield and nutrient concentrations (especially NPK) in basil (Peyvandi et al. 2011) and rice (Fakharzadeh et al. 2020). Pre-treatment of spinach seeds with iron pyrite (FeS₂) nanoparticles enhanced the growth (Srivastava et al. 2014). Leaf Fe and K accumulation increased in spinach supplied with 4 kg ha⁻¹ Fe-chelated nanofertiliser (Moghadam et al. 2012). Application of Fe-chelated nanofertiliser improved NPK absorption and rice grain quality (Fakharzadeh et al. 2020).

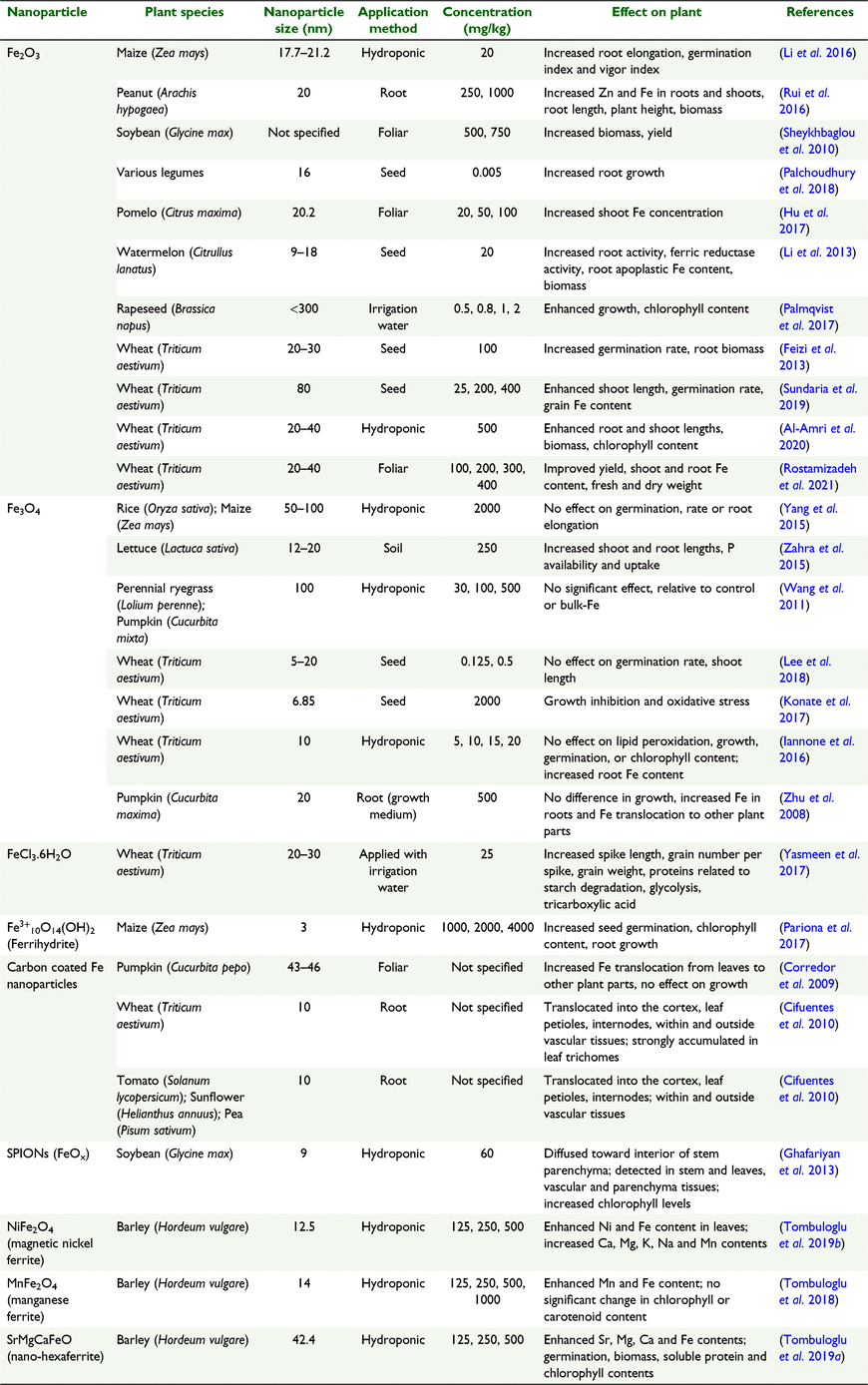

Table 1.  Use of Fe nanofertilisers in several food crops.

Several other nanofertilisers with multiple elements have increased elemental contents in plant tissues. For example, NiFe₂O₄ enhanced nickel and iron contents (Tombuloglu et al. 2019b), MnFe₂O₄ nanoparticles enhanced manganese and iron contents (Tombuloglu et al. 2018), and SrMgCaFeO (magnesium-substituted strontium nano-hexaferrite) enhanced strontium, magnesium, calcium, and iron contents (Tombuloglu et al. 2019c) in barley leaves. Wheat plants (Triticum aestivum L. cv. L15) were used for foliar application of FeHO₂ nanoparticles at 1–10 mM with humic substances as stabilisers and urea as an adjuvant. Nanoparticle application increased Fe accumulation by about 75% in leaves relative to the control, but did not increase plant growth due to the lag period in plant response to Fe supply (Zimbovskaya et al. 2020). Foliar application of nano-fed Fe fertilisers significantly affected biological yield, grain yield, harvest index, grain weight, spike number, and plant height in wheat (Harsini et al. 2014). However, plant and grain Fe contents were not reported. Seed priming with γ-Fe₂O₃ nanoparticles enhanced shoot length, germination rate, and grain Fe content in wheat (Sundaria et al. 2019). Application of Zn and Fe nanoparticles improved plant growth in cadmium-stressed wheat plants by reducing oxidative stress and cadmium concentration, and increasing Zn and Fe concentrations in wheat shoots, roots, and grains (Rizwan et al. 2019). A recent study investigating the effect of Fe₂O₃ (iron (III) oxide) nanoparticles on wheat in a hydroponic system reported enhanced root and shoot lengths, biomass, and chlorophyll content (Al-Amri et al. 2020). This increase in chlorophyll content could be attributed to the increased leaf Fe content due to Fe nanoparticles application. The maximum amount of applied nanoparticles was taken up by wheat’s roots and leaves, and Fe was translocated from roots to leaves. In another study, foliar application of iron oxide nanoparticles improved yield, shoot and root Fe contents, and fresh and dry weights in wheat relative to the bulk form of Fe (Rostamizadeh et al. 2021).

Different physiological and biophysiochemical variables regulate the uptake, translocation and distribution of nanoparticles in plants. Physiological factors include plant age (stage at which nanoparticle is applied), plant species, and biotransformation pathway of the nutrient. Other factors, such as mode of application (aerial/foliar, root and seed), and interactions with other environmental components (microbiota, soil water, soil surface and soil structure), also play a defining role. Biophysiochemical properties (size, shape, net charge, surface functionalisation and surface coating), which characterise the function of nanoparticles when introduced to plant cells and their mode of application, cumulatively affect the fate of nanoparticles (Raliya et al. 2015). Concentration and size of nanoparticle are the principle parameters that can influence their uptake and translocation. Nanoparticles of the same metal core having different sizes used in various concentrations might have different physiological behavior in the plant system (Prerna et al. 2021). This could be attributed to distinction in several contact sites on nanoparticles with different sizes and shapes, which are accessible for interaction between nanoparticle and cell membrane, thus affecting the free energy accessible for nanoparticles to interact with cell (Chithrani et al. 2006).

Nanofertilisers are delivered to plants through three main techniques: soil application, foliar application, and seed treatment (Fig. 2). The most common strategy for fertilisation is the soil application. Soil is a dynamic and heterogeneous mixture of many biotic and abiotic factors. Soil texture and pH can affect the fertilisers fate and life span in the soil. Foliar application involves directly spraying fertilisers onto aerial plant parts, primarily leaves, to limit nutrient loss. Most foliar-applied fertilisers are readily accessible for plant use, circumventing the difficulties faced with soil application. Comparative studies have shown that the foliar method of nanoparticle delivery has significant benefits for nano-nutrient uptake because of direct absorption compared with soil application (Alidoust and Isoda 2013; Wang et al. 2013), in crops such as rice (Wei et al. 2012), wheat (Aciksoz et al. 2011) soybean (Alidoust and Isoda 2013), and black-eyed peas (Delfani et al. 2014). Despite many advantages, the foliar application requires proper optimisation considering the role epidermal cells and stomatal pores play in nutrient take-up, owed to their diurnal physiological reactions (Alidoust and Isoda 2013; Salehi et al. 2018). It is also important that the nutrient formulation does not block stomatal pores, as this can impact normal stomatal function. Furthermore, nanoparticles on the leaf surface can interact with various functional groups at the interface such as carboxyls, hydroxyls, methylene, amines and aromatics which can be controlled by altering the surface chemistry of nanoparticles (Avellan et al. 2021).

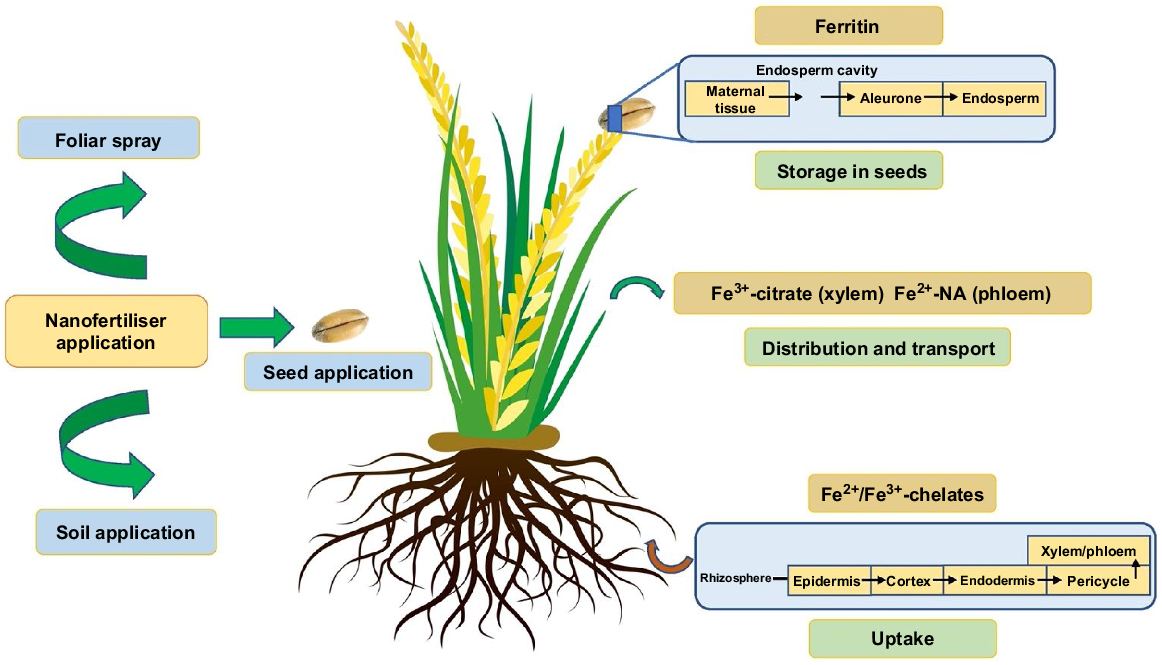

Fig. 2.  Application methods, uptake, translocation, and mobilisation of Fe nanoparticles in crop model.

Potential modes of entry for nanoparticles in aerial plant parts include passive uptake through openings such as stomata and hydathodes, with specific size exclusion (Kurepa et al. 2010). Other suitable routes for nanoparticle uptake involve wound and injury on the plant surface (Al-Salim et al. 2011). Lateral root junctions provide easy access for nanoparticle uptake from roots, especially near the rhizodermis root tip (Chichiriccò and Poma 2015). Microorganisms (symbiotic and/or parasitic) and organic matter with other exudates in the soil affect nanoparticle uptake dynamics. When nanoparticles are applied to the soil, the sudden and excessive exposure of these nanoparticles may affect the soil microbial communities and may agglomerate due to complex soil physicochemical properties, which could limit nanoparticle uptake by plants (Cao et al. 2016; Anderson et al. 2017; Raliya et al. 2018). Therefore, delivery of nanoparticles by foliar application is more beneficial for nano-nutrient uptake than the soil application (Raliya et al. 2015, 2016). Lab-scale studies revealed that foliar spray through aerosol formulation can deliver monodisperse nanoparticles that are not prone to agglomeration (Raliya et al. 2018).

Upon application, the further uptake, movement and accumulation of nanoparticles depend upon the plant species, and the size, chemical properties, concentration and stability of the nanoparticles (Lv et al. 2015). The cell wall behaves as a semi-permeable membrane, enabling selective movement (size-specific) through pores (Miralles et al. 2012). Upon entering external defensive layers, nanoparticles have two main modes of mobilisation: apoplastic and symplastic pathways. Apoplastic transport propels radial movement, transporting nanoparticles to the central cylinder of the root and vascular bundle to enter symplastically into the stele for further translocation upward to leaves (Zhao et al. 2017; Tombuloglu et al. 2019a). Apoplastic movement is indispensable for applications requiring systemic delivery of nanoparticles. The Casparian strip forestalls the radial movement of nanoparticles in the root endodermis, which can be overcome by changing from the apoplastic into a symplastic pathway. The symplastic pathway is a more regulated and coordinated pathway for nanoparticles movement in plants (Palocci et al. 2017; Zhang et al. 2018).

Further, nanoparticles tend to accumulate in cytoplasm, vacuoles or lysosomes after different processes like phagocytosis, pinocytosis or endocytosis, which facilitate the entry of nanoparticles into the cell (Cho et al. 2011; Lesniak et al. 2012). Several interfacial interactions between nanoparticle bound protein ligands or epitopes and cell membrane bound receptors determine the contact and entry site for nanoparticles at adhesion sites (Decuzzi and Ferrari 2007). Several iron transporters have been extensively studied in various plant models such as wheat, rice, maize and finger millet, etc. (Anuradha et al. 2017; Boonyaves et al. 2017; Chandra et al. 2021). When the nanoparticle enters the cytoplasm, further cell-to-cell movement occurs with the help of plasmodesmata (Lin et al. 2009; Geisler-Lee et al. 2012; Zhai et al. 2014). Several studies have demonstrated that metal nanoparticles can infiltrate seeds and translocate into seedlings, with no adverse effect on germination rate or viability, suggesting the effective use of functional nanoparticles for stimulating plant growth using seed priming (Racuciu 2012; Pokhrel and Dubey 2013; Sanzari et al. 2019).

Varying reports exist concerning the uptake and translocation of Fe nanoparticles in plants. In a hydroponic study with pumpkin seedlings, Fe₃O₄ nanoparticles were present in root, stem and leaves, whereas no uptake was reported in soil grown seedlings, reiterating the important role of growth medium in nanoparticle uptake (Zhu et al. 2008). Another study on pumpkin and ryegrass did not observe the translocation of Fe₃O₄ nanoparticles in shoots (Wang et al. 2011). In maize, Fe₂O₃ nanoparticles were reported moving into the endodermis through the exodermises via apoplastic pathway. Some nanoparticle accumulation was also observed in root cell vacuoles. But, no root to stem transfer was observed with majority of nanoparticles localised around the epidermis of the root systems (Li et al. 2016). In another study on maize, ferrihydrite and hematite nanoparticles were observed in vascular bundles (xylem, phloem and cell wall) using confocal laser scanning microscopy (Pariona et al. 2017). While most studies evidence the uptake and movement of Fe nanoparticles into vascular bundles, further translocation to shoots and subsequent aerial parts could be dependent on the type of nanoparticles used (Gillispie et al. 2019).

The complex and uncertain properties of nanoparticles make it challenging when determining their biocompatibility and fate in the soil-plant system. Generally, nanoform is considered more toxic than its bulk (non-nano) form, but this claim needs extensive examination supported by toxicological evidence (Das et al. 2016). Rational science-based methods are required in order to deal with the toxicological impacts of nanoparticles on biological and environmental systems (Nel et al. 2006). There are few studies on plant-nanoparticle interactions due to technological inefficiencies in the strategies involved. Comprehensive biocompatibility and risk assessment studies are required to determine the fate of nanoparticles in the soil-plant system to garner wider acceptance. In addition, little information is available on the effects of Fe nanoparticles on transcription factors. Advances in proteomics and transcriptomic techniques will increase our knowledge on plant responses to nanoparticle stress, providing insight into the molecular mechanisms involved, and revealing links between plant metabolism and gene expression.

Several studies have reported physiological injury to plants in response to nanoparticles. Confocal analysis revealed the injury to root tip cells due to Fe₂O₃ nanoparticles (Al-Amri et al. 2020), which can be attributed to the generation of reactive oxygen species disrupting the cell membrane. It is not clear if nanotoxicity is directly linked to the nanoparticles and their interactions with cells or the defence mechanisms activated in response to nanoparticle stress at the biomolecular level. Therefore, it is crucial first to understand the chemical and physical properties of nanofertilisers and then to investigate their effect on plants to assess any risks to humans and the environment (Pradhan and Mailapalli 2017).

It is vital to understand how plants take up nutrients associated with nanoparticles in relevant physiological processes. More comprehensive studies are needed, with relevant parameters measured, such as photosynthetic activity and specific nutrients in particular biomolecular pathways (Zimbovskaya et al. 2020). Moreover, the translocation of nanoparticles in plants requires further examination for their effect on end-users. Despite many studies examining the impact of nanoparticles on various plants, there is a lack of knowledge on nanoparticle size (varied 1–100 nm), which is a crucial factor affecting their movement in the plant body, determining plant growth and development (Al-Amri et al. 2020). Agronomic biofortification aims to improve nutritional qualities without hampering crop yield, which however, more comprehensive laboratory to field studies are required to confirm. There is a persistent need to assess the efficacy and robustness of nanoformulations in the field, particularly over the long term (Dapkekar et al. 2018). There are concerns about the transfer of nanoparticles to edible plant parts and further to animals and humans through the food chain that requires examination before the large-scale application of nanoparticles. A comprehensive life cycle assessment (LCA) is fundamental to assess the effect of nanofertilisers on the environment, and designing appropriate dosages of nanofertilisers (Hasler et al. 2015).

Fe deficiency in human beings is widely reported, primarily in developing and less developed nations. Lack of nutrient-rich diverse diets (lacking dietary Fe) is a major cause of malnourishment. The problem is pronounced in poor population with lack of adequate supply for food and resources. Agronomic biofortification through fertilisation is a decisive strategy for increasing seed nutrient contents and potential yield of staple food crops. Indeed, agronomic biofortification would be essential and it is significant, particularly to their cultivation in nutrient-poor soils. Genetic and agronomic biofortification could be the best way to obtain nutrient-rich crop varieties (Burchi et al. 2011; Das et al. 2013; Tam et al. 2020). Biofortification using fertilisation is a suitable methodology for fighting hidden hunger in the global population. Nano-enabled technologies could be beneficial for reducing the dependence on chemical fertilisers and biofortifying staple crops. Use of Fe nanoparticles and Fe nanocomposites as nanofertilisers can prove to be a sound and sustainable method to achieve the goal of increasing micronutrient content and crop yield. Increase in yield is also an important factor to be considered as this growth and yield parameter is of direct benefit to the farmer, and will in turn ensure for easy acceptance of nanofertilisers. Fe nanoparticles have the ability for nutrient biofortification, but it is important to address the gaps in knowledge pertaining to the transport and behaviour of nanoparticles in plants to facilitate the rational design of nanoparticles for nutrient delivery with controlled kinetics and minimal risk. Nanofertilisers can bring innovation in agriculture for nutrient-rich crops with economic advantage, if the products are environmentally and economically sustainable.
