A copy number variant near KITLG is associated with the roan pattern in alpacas

Keywords: alpaca, CNV, colour, fibre, genotyping by sequencing, GWAS, KITLG, pattern, roan, SNP.

Coat colours and patterns in livestock species have been artificially selected for thousands of years, giving rise to numerous colour phenotypes. Alpacas (Vicugna pacos) produce over 20 colours of base fibre and exhibit a range of patterns, such as classic grey, roan (aka modern grey in the USA and UK), blue-eyed white, tuxedo, piebald and appaloosa (Munyard 2013; Thangavel et al. 2015). The large variety of high-quality, naturally coloured fibre is gaining popularity within the ‘green’, environmentally conscious market and so many alpaca breeders are selecting for coloured fibres instead of the traditional white (Thangavel et al. 2015). For most domesticated species, selective breeding practices have significantly improved since the development and commercialisation of genetic screening (Toro 2010). Similarly, the Alpaca Coat Colour DNA test (Neogen Australasia) was developed to report the so-far known genotypes for the three loss-of-function MC1R alleles (no black pigment able to be produced) and three loss-of-function ASIP genes (only black pigment able to be produced; Feeley and Munyard 2009; Feeley et al. 2011; Munyard 2013), and the presence or absence of the classic grey pattern (Jones et al. 2019), the only colours with known genetic causes.

The roan coat pattern in alpacas presents as depigmented fibres interspersed within the base colour, generally being concentrated to the central body and with darker extremities (Fig. 1). In the fibre industry, roan fibre is considered a contaminant to coloured fibre and undesirable for commercial processing, whereas hobby spinners and knitters often prefer such variety (Mathews et al. 2019). Genetic testing is required for the early and accurate detection of roan animals as the pattern is highly variable in its expressivity, distribution, and age of onset. Roan commonly appears at birth or early in life (Munyard 2013) and develops over time, whereas late-onset depigmentation is classed as age-related greying. However, in practice, distinguishing between the two traits is difficult due to the phenotypic variability of roan (Goldleaf and Windella alpacas, Dr C. Oddie pers. comm.). Detecting the pattern on white or light fawn animals is very difficult, and these so-called cryptic roans are typically responsible for the hidden dissemination of the trait within herds.

Fig. 1.  Alpacas displaying variable expressivity of the roan coat pattern. (a–c) Extent and distribution of the pattern increases from alpaca to alpaca (as shown in a–c respectively). (c) White spotting, like on the nose of this alpaca may or may not be present.

A similar autosomal dominant (or incomplete dominant) roan phenotype has also been described in other species. Genetic studies in horses (Marklund et al. 1999; Grilz-Seger et al. 2020; Voß et al. 2020), cattle (Charlier et al. 1996; Seitz et al. 1999), pigs (Cho et al. 2011; Lim et al. 2011; Fontanesi and Russo 2013), and goats (Talenti et al. 2018) have shown a shared association between roan and the candidate genes KIT proto-oncogene, receptor tyrosine kinase (KIT) or KIT ligand (KITLG). The biological cause of roan is predicted to be the premature depletion of melanocyte stem-cells (melanoblasts) within hair follicles, leading to gradual and permanent depigmentation of individual fibres (Hachiya et al. 2009; Endou et al. 2014; Bian et al. 2019; Qiu et al. 2019). KIT and KITLG are essential signalling proteins involved in migration, differentiation, maturation, and survival of melanoblasts (Besmer et al. 1993; Wehrle-Haller 2003). Apart from melanogenesis, KIT and KITLG are also vital for gametogenesis (Besmer et al. 1993) and haematopoiesis (Zsebo et al. 1990). Thus, loss-of-function mutations in either gene are associated with patterns of depigmentation (Hemesath et al. 1998; Cieslak et al. 2011) as well as pleiotropic effects such as subfertility in homozygous roan cattle (Charlier et al. 1996) and homozygous lethality in some roan horses (Hintz and Van Vleck 1979).

Although mammalian pigmentation is highly conserved, genetic heterogeneity exists for many interspecies colour phenotypes (Cieslak et al. 2011; Brancalion et al. 2022). Over 688 pigmentation-associated genes are known (Baxter et al. 2019). We hypothesised that an autosomal incompletely dominant regulatory variant in or around a gene involved in pigmentation was responsible for the roan coat pattern in alpacas. The aim was to identify a candidate gene and associated variant(s) through use of a genome-wide association study (GWAS), and thereby improve our knowledge of the genetic basis of the roan coat pattern in alpacas.

Whole-genome sequence data (WGS) were generated from blood samples of 46 white, fawn, bay, black, white spotted, classic grey, blue eyed white and roan (modern grey) alpacas. Animals were a mix of closely and distantly related individuals, and were sampled from Australian, New Zealand and American herds. Sequences were generated using Illumina Novaseq 150 bp paired-end reads with approximately 30× depth-of-coverage per sample. Phenotype data, in the form of photographs, and pedigree information were available for 35 of the sampled animals.

All fastq files were processed through an in-house genotyping by sequencing (GBS) bioinformatics workflow, by using bash script on cloud computing infrastructure (Nimbus Pawsey), providing two instances with eight cores and 32 Gb of RAM. The GBS workflow was based on the best practices for variant-discovery analysis guide by the Broad institute (Van der Auwera and O’Connor 2020) and used open-source software. Raw FASTQ format reads were trimmed (polyG minimum length = 5) and quality filtered via Fastp v.0.23.2 (Chen et al. 2018) by using default parameters. Quality-controlled reads were mapped (with local alignment) to the draft VicPac4 reference genome (Brian Davis, Texas A&M, pers. comm.) via Bowtie2 v2.3.5.1, by using default parameters (Langmead and Salzberg 2012). Mapped reads were sorted and indexed via Samtools v1.10 (Danecek et al. 2021), followed by formatting (AddOrReplaceReadGroups) and quality control (MarkDuplicates) using Picard v2.27.1 (Broad Institute 2019). Individual BAM (binary alignment map) files were processed with GATK v4.2.6.1 HaplotypeCaller (Poplin et al. 2018) to produce GVCF (genomic-variant call format) files, which were subsequently merged using GATK GenomicsDBImport. Joint genotyping was performed with GATK GenotypeGVCFs by using the GenomicsDBImport workspace as input. Single-nucleotide polymorphisms (SNP) were extracted from the VCF file via GATK SelectVariants.

The unfiltered VCF file containing only SNP data was processed using PLINK v1.9 (Purcell et al. 2007). SNPs with a minor allele frequency of <0.05 and those missing a genotype for >5% of animals were removed. Animals missing genotypes for >5% of SNPs were also excluded. Dark roan alpacas (n = 13) were selected as cases and dark non-roans (n = 14) as controls. The white and light fawn animals (n = 19) were excluded from the GWAS due to the ambiguity of their observed phenotype. Quality-controlled genome-wide SNPs were included in a case-control association analysis using the Fisher’s exact test model in PLINK (Purcell et al. 2007). A genome-wide significance threshold of P = 5 × 10⁻⁸ was applied, and Manhattan plots were generated using SNPEVG v3.2 (Wang et al. 2012).

All genomic regions with genome-wide significant association (P ≤ 5 × 10⁻⁸) and with underlying support observed on the Manhattan plot, were manually assessed for potential candidate variants. Both SNP and indel genotypes, within the complete VCF file, were considered and viewed on Integrated Genomic Viewer (IGV) v2.12.3 (Robinson et al. 2011). Variant search was additionally extended to the core pigment genes KIT, MITF, ASIP, MC1R, and those significantly downregulated in prematurely greying human hair follicles (Bian et al. 2019), namely, SOX10, TYR, TYRP1, MLANA, PMEL, MATP and GPR143. Gene sequences were retrieved from the VicPac3.1 gene database on NCBI (https://www.ncbi.nlm.nih.gov/gene/) and aligned to the candidate VicPac4 (draft) regions via the BLASTn v2.9.0+ command line tool (Camacho et al. 2009) to identify genes in those regions. Where possible, pedigree data were checked for Mendelian inheritance of variant genotype and all animals were checked for potential misclassification of phenotype through examination of available photographs and personal communication with breeders.

To validate the candidate SNP (Super-Scaffold_15:39 742 851T > A), 10 additional dark roans plus four animals from the GWAS were genotyped through targeted polymerase chain reaction (PCR) and subsequent DNA sequencing. Genomic DNA was extracted from blood samples following the PureLink Genomic DNA Mini Kit (Invitrogen) protocol. Forward (5′-TCATGCTCCCCTGAACAACA-3′) and reverse (5′-TCTCGTTGATGATGGTGGGAG-3′) PCR primers were designed using Primer3Plus (https://www.primer3plus.com/), having a predicted product size of 541 bp. PCR was performed using a T100 Thermal Cycler (Kyratec) in a total volume of 10 μL, containing ~100 ng genomic DNA, 2.5 U MyTaq HS DNA polymerase (Bioline), 2 μL MyTaq reaction buffer (5×) (Bioline) and 3 pmol of each primer. The amplification conditions were as follows: 1 min at 95°C, 30 cycles of 15 s at 95°C, 15 s at 60°C, 30 s at 72°C, then 5 min at 72°C. For each sample, the above PCR was performed in triplicate and the pooled products were visualised on a 2% w/v SB buffer agarose gel, followed by purification by using a FavorPrep PCR Clean-Up Mini Kit (Favorgen). Two separate sequencing reactions (forward and reverse) were performed by the Australian Genome Research Facility, by using the respective PCR primers, and following the ABI Prism BigDye Terminator Cycle Sequencing protocol. Sequence data were visualised and manually analysed using FinchTV v1.4.0 (Team Giospiza 2004).

Analysis of copy number was limited to the scaffold that contained the candidate variant and was conducted using CNVpytor v1.2.1 (Suvakov et al. 2021), following the developers’ guide. Briefly, depth-of-coverage of mapped reads was corrected for GC bias and normalised to a diploid copy number for each sample, complemented by B-allele (referring to the non-reference or variant allele) frequency analysis of SNPs and small indels. Read-pair orientation of mapped reads was assessed in the candidate region using IGV (Robinson et al. 2011) to view BAM files. The proportion of roan and non-roan associated allele at the candidate SNP, and variants in visual linkage disequilibrium (LD) with it, were considered when manually determining the roan:non-roan copy-number ratio for each sample.

In total, 28 296 476 SNPs and 4 191 807 indels were detected. Following SNP extraction and quality control, 16 863 747 SNPs were retained, and all samples had a genotyping rate of >95%. The GWAS showed 12 regions with association greater than P ≤ 5 × 10⁻⁸ (Fig. 2a). However, only one region contained variant genotypes that were concordant with phenotypes (Supplementary material Fig. S1).

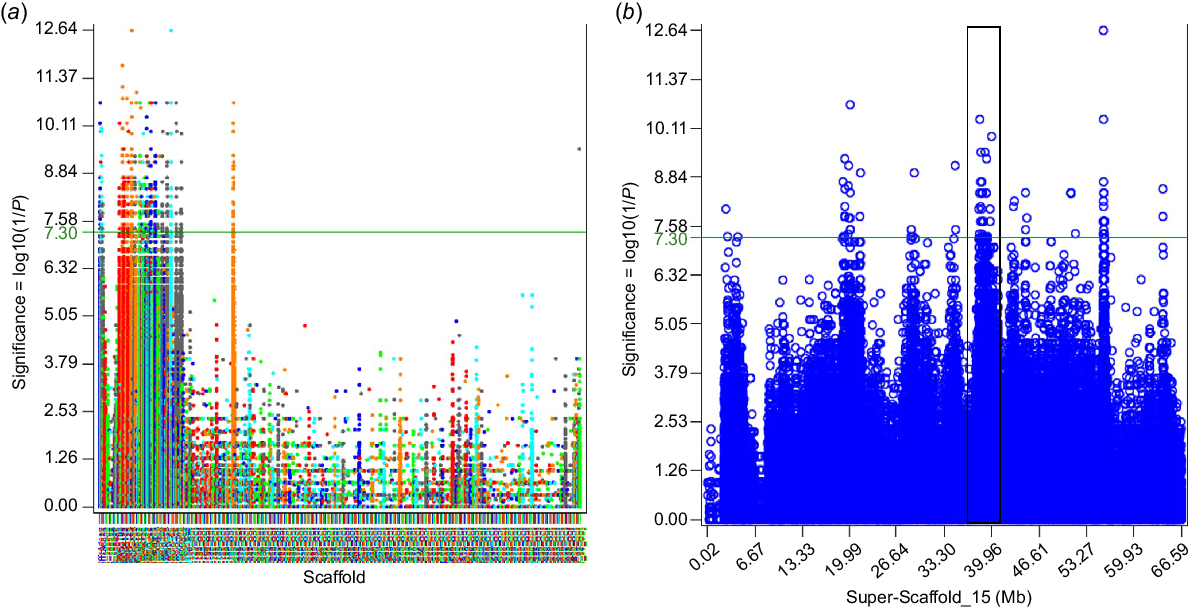

Fig. 2.  GWAS comparing roan (n = 13) and non-roan (n = 14) alpacas. (a) Manhattan plot. Of the 790 scaffolds, 39 peaks reached the genome-wide significance (P ≤ 5 × 10⁻⁸) threshold (green line). (b) Manhattan plot of Super-Scaffold_15 only; the candidate region is highlighted with a box.

A candidate SNP (Super-Scaffold_15:39 742 851T > A) was identified 272 kb upstream of KITLG (Fig. 2b). All 13 roan alpacas were genotyped as either homozygous or heterozygous for the reference allele (T), and all but 3 of 14 non-roans were homozygous for the variant allele (A). It is interesting to note that the alpaca used to generate the reference genome is light fawn in colour. Almost half of the white and light fawn animals (n = 19) were heterozygous for the roan-associated allele, and one was homozygous (Table 1). Mendelian inheritance of the SNP genotype was concordant for the 12 parent-offspring trios included in the GWAS (data not shown). Additionally, pedigree analyses of all animals supported the dominant mode of inheritance of roan (or cryptic roan in the white and light fawn animals; data not shown).

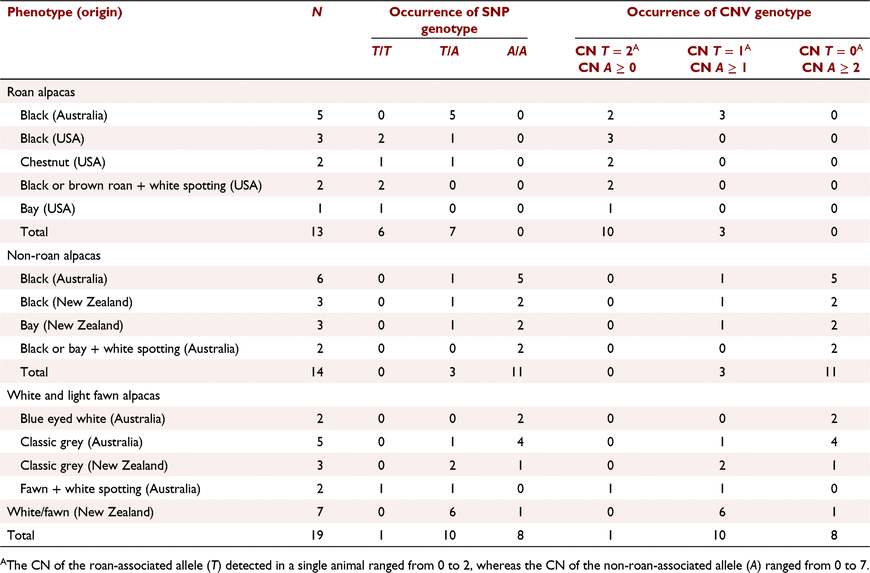

Table 1.  Genotypes at the candidate SNP Super-Scaffold_15:39 742 851T > A (derived from SNPs genotyped using GATK) and diploid copy number (CN) of each allele estimated relative to the CNVpytor normalised copy-number read depth of the candidate region Super-Scaffold_15:39 742 096–39 887 419.

On inspection of raw read depth at the candidate SNP, an allelic imbalance was observed for all except five heterozygotes (n = 20). Sanger sequencing of the four re-sequenced exemplar samples (T/T, A/A, T/A balanced, T/A unbalanced) was consistent with the WGS genotypes. Three of ten additional (i.e. Sanger sequence only) roan animals were genotyped A/A and the remaining seven had an unreliable T/A genotype, which supported a hypothesis of allelic imbalance at this locus.

In the Super-Scaffold_15:39 742 096–39 887 419 region, which contained the Super-Scaffold_15:39 742 851T > A candidate, an abrupt increase in depth-of-coverage was observed in all except 8 of the 46 of the BAM files, suggestive of a CNV. Subsequently, the presence of a CNV 127–272 kb upstream of KITLG was validated (Fig. 3a, b). The copy number ratio of the roan (T):non-roan (A) associated allele was estimated for all samples (Table 1). All eight US roan alpacas were closely related, and each had two copies of T and zero or one copies of A. Of the five Australian roan alpacas, only two were related (second generation) and all had one or two copies of T and one to four copies of A. All except three (one Australian and two New Zealand) non-roan animals (n = 14) had no copies of T and three to seven copies of A.

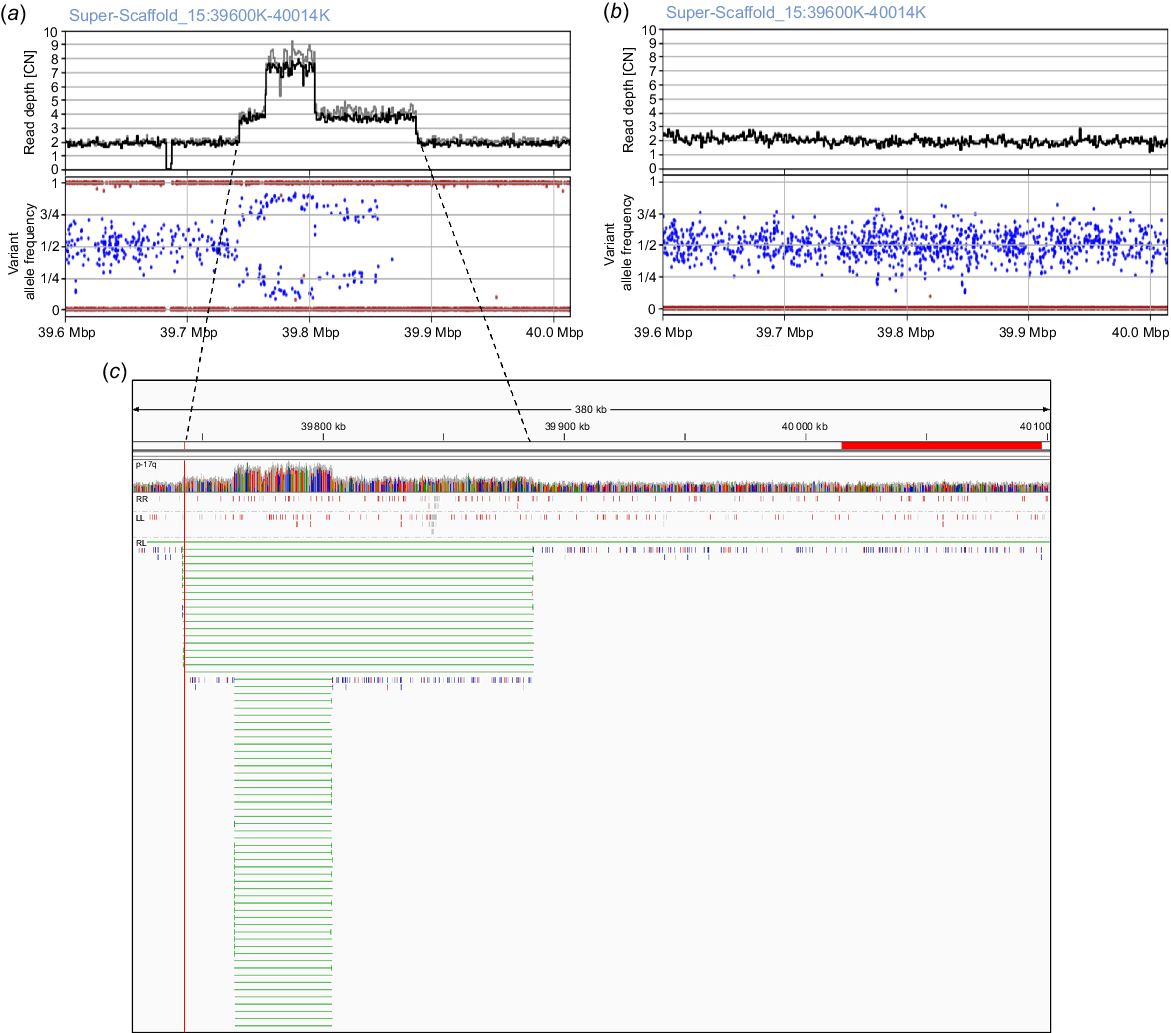

Fig. 3.  CNV and read-pair orientation analysis. (a, b) CNVpytor output of BAM-file analysis on two roan animals. The top panel shows normalised read depth to a diploid copy number (CN = 2) and the bottom panel is the corresponding B-allele (variant allele) frequency analysed using the VCF file. (a) CNVpytor output depicting a roan animal with a copy number gain and B-allele frequency deviating from 0.5 in the same region, representing allelic imbalance. (b) CNVpytor output depicting a roan animal with a normal diploid copy number. (c) IGV interface of Illumina paired-end reads (green) mapped in the right–left orientation at the extremities of two regions (Super-Scaffold_15:39 742 096–39 887 419 and Super-Scaffold_15:39 763 502–39 804 057) with a conspicuous increase in depth-of-coverage, indicating a tandem duplication. The position of the candidate SNP is marked with a vertical red line and KITLG is highlighted in red (top right).

Read-pair orientation analysis of individual BAM files demonstrated a trend of right–left oriented discordant paired-end reads mapped at the boundaries of the CNV, indicative of a tandem duplication (Fig. 3c). A smaller 40 kb CNV region (Super-Scaffold_15:39 763 502–39 804 057) was predicted to occur in tandem within the 145 kb (Super-Scaffold_15:39 742 096–39 887 419) tandem duplication.

All progeny T:A counts were concordant with those expected through Mendelian inheritance. We could unambiguously infer the CNV haplotypes within two nuclear families by using Mendelian inheritance principles (Fig. 4). These were the only families in which at least one individual had a normal diploid copy count (CN = 2) in the homozygous state. All US roan animals within a single family had at least one haplotype with just the T allele version. The other family of four consisted of two non-roan and two classic grey animals, and all except the dam (non-roan) had only haplotypes composed of the A allele copies. Possible misclassification of the dam’s phenotype was checked, and she did not roan at a later stage in life.

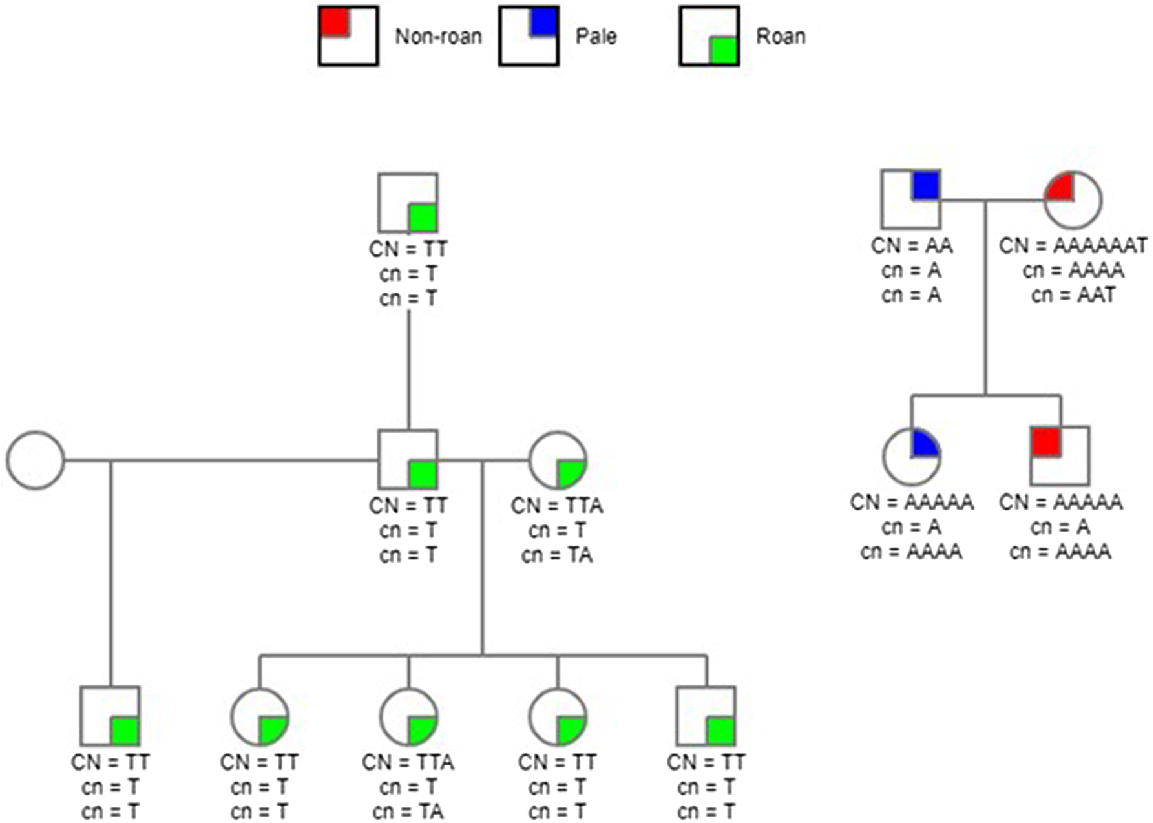

Fig. 4.  Pedigree information of a US (left) and Australian (right) alpaca family and the respective roan-associated (T) and non-roan-associated (A) allele copy-number composition of inherited haplotypes, generated using Progeny Genetics online tool (https://pedigree.progenygenetics.com/). ‘CN’ refers to the diploid copy number and ‘cn’ refers to the phased haploid copy number of T and/or A. All animals with a phenotype label were those originally used in the WGS.

These data suggest an association of the T allele version of a 145 kb tandem CNV upstream of KITLG with the roan phenotype in alpacas. It is also tempting to speculate that the roaning effect of T is suppressed when in cis with the non-roan associated version A. In support of this concept, one non-roan animal had a haplotype composed of one T and two A copies (cn = AAT; Fig. 4). Similarly, two roan animals, each with cn = TA and cn = T haplotypes, expressed roan to a lesser extent than did their roan relatives with only the cn = T haplotype (Fig. 4).

The 145 kb candidate CNV ends 127 kb upstream of KITLG. HapMap data have shown that 90% of CNVs have two or more allelic states (McCarroll et al. 2008; Handsaker et al. 2015) and that 66.7% of haplotypes consisting of copy-number gains are composed of alternative allelic copies (Palta et al. 2015), which reflects what we have discovered here. The association of the genes KITLG or its receptor KIT with the roan phenotype has been well established in other species (Charlier et al. 1996; Marklund et al. 1999; Cho et al. 2011; Lim et al. 2011; Fontanesi and Russo 2013; Talenti et al. 2018; Grilz-Seger et al. 2020; Voß et al. 2020). More compelling evidence that this CNV could be associated with the roan trait in alpacas is that KITLG expression in mice is regulated by a ~200 kb region 100 kb upstream of the gene (Bedell et al. 1995), and mutations in this region cause depigmentation, anaemia and embryonic death (Bedell et al. 1996). Similarly, a study comparing the parallel evolution of colour variation in human and stickleback fish has attributed variation in KITLG expression to cis-regulatory changes in a large region upstream of the gene (Miller et al. 2007). Therefore, a potential mechanism of action for roan in alpacas is disruption to a cis-regulatory element involved in KITLG regulation, such as an enhancer domain, caused by the T-allele version, which could be rescued when the functional A-allele version is in cis.

An allele dosage effect may also contribute to the expression of roan. The observed copy-number counts varied both among and between roan and non-roan animals. The variation in copy number was mostly attributed to the A-allele version (Table 1). This not only reflects the strong (artificial) selection for non-roan alpacas but also suggests that the dosage of A may be associated with the extent or onset of roan. A study in dogs identified a 6 kb CNV located 152 kb upstream of KITLG that was associated with pigment intensity, with a higher copy number correlating to higher intensity (Weich et al. 2020). Since the early depletion of hair follicle melanoblasts, thus causing gradual and permanent depigmentation, is the probable cause of roan (Hachiya et al. 2009; Endou et al. 2014; Bian et al. 2019; Qiu et al. 2019), it is plausible that a related mechanism may also contribute to pigment intensity. Although we did not account for variation in pigment intensity in this work, the observed A copy-version counts were higher among the Australian (unrelated) roans than the US roans (related). Unlike the Australian roans, the US roans were selectively bred for the roan pattern. This information, in addition to the fact that the US alpacas displayed the pattern earlier than did the Australian roans, suggests that a higher copy number of the A version may reduce, or delay, the expression of roan.

Interestingly, the alpaca that is the source of the reference genome also had a cn = T haplotype. Considering her light fawn base colour and darker extremities, it is plausible that she was a cryptic roan. Almost half of the sampled white or light fawn animals had one copy of T, and although unphased, this observation is consistent with the knowledge that cryptic roan animals often go undetected until mated with dark base-colour animals. All but three dark non-roan animals had varying copy numbers of A alone (Table 1), indicating homozygosity at the putative functionally important site. An autosomal incomplete dominant inheritance pattern can be inferred from these data, whereby a single haplotype consisting solely of the T allele copy version likely confers the expression of roan. There is no evidence of homozygous lethality as evidenced by six roan alpacas (USA) that are homozygous for the T allele version of the CNV (Table 1).

Breed specific allelic heterogeneity owing to potential founder effect is known in roan horses (Grilz-Seger et al. 2020; Voß et al. 2020) and pigs (Cho et al. 2011; Lim et al. 2011). Therefore, we cannot exclude the possibility of multiple causative variants for roan in alpacas or that the candidate SNP may be in LD with the true casual variant(s). This may explain why 3 of the 10 additional roan animals genotyped A/A at the candidate SNP. However, all 10 animals were sampled from the same farm and the three non-concordant animals developed the roan pattern at a much later age than did the rest (Windella and Goldleaf alpacas, Dr C. Oddie and Mr B. Fallon pers. comm.). It is possible that the late onset of pattern development was age-related, which highlights the importance of recording the onset and progression of the roan phenotype.

We hypothesise that a cis-regulatory mechanism alters the expression of KITLG and causes premature depigmentation of individual fibres, which may be further influenced by allelic dosage effects. This study has provided novel insights into the genetic basis of the roan coat pattern in alpacas and suggests that the KITLG CNV influences both pheomelanic and eumelanic base-colour phenotypes.
