Combined effects of contrast between poor and rich patches and overall nitrate concentration on Arabidopsis thaliana root system structure

Additional keywords: correlative inhibition law, heterogeneity, NO₃^–, root development and morphology, root length and ramification.

Plant species possess several strategies to increase nutrient capture in heterogeneous soils, including root emission into nutrient patches (Robinson 1994b; Hodge 2006). The study of lateral root (LR) emission in environments where NO₃^– is distributed heterogeneously teaches us that (i) it exists a local stimulatory control, recently proved to be due to the ion NO₃^– itself (Zhang et al. 1999; Remans et al. 2006), (ii) an increase in LR emission in the rich patches is often associated with an inhibition of LR proliferation in the poor patches (Gersani and Sachs 1992; Robinson 1994b) and (iii) high overall NO₃^– concentration in the environment inhibits LR response (e.g. Zhang et al. 1999). In the current experiment, we tested the fact that root system response to heterogeneity is dependent on overall NO₃^– concentration in the soil environment.

Lateral root proliferation has been observed in nutrient rich patches for a variety of soil nutrients, including NO₃^–, but also NH₄⁺, and PO₄^2– (Drew 1975; Robinson and Rorison 1983; Robinson 1994b). Localised NO₃^– treatments can stimulate both initiation and elongation of lateral roots (Hackett 1972; Drew and Goss 1973; Granato and Raper 1989). The study by Gersani and Sachs (1992) brought new insights concerning LR emission: the local development of LR is not dependent on the absolute nutrient concentration in the patch, but rather on the relative concentration of nutrient in the rich patch with regard to the poorer one. They proposed the ‘law of correlative inhibition’, namely, that roots in a given environment develop more intensively if the other roots of the same plant are in a poorer rather than in richer environment.

In his Tansley Review on the responses of plants to non-uniform supplies of nutrient, Robinson (1994b) tested this correlative inhibition law on a dataset of more than 100 results. He found that the correlative inhibition law was explaining less than half of the results, probably due to the fact that factors other than nutrient distribution controlled LR emission (Robinson 1994b).

Kotliar and Wiens (1990) have proposed an additional principle to the law of correlative inhibition for explaining root system response to patchy environments. It states that the difference between nutrient concentration in poor (or background soil) and rich patches, also called the degree of contrast (Kotliar and Weins 1990; Lamb et al. 2004) or degree of heterogeneity in our study, should be strong enough to lead to a benefit that overcomes the cost of emitting lateral roots in the patch (Kotliar and Weins 1990). However, an experiment dedicated to test this hypothesis showed that plants did not respond to the differences in contrast between nutrient in the rich patch and the surrounding background (Lamb et al. 2004). These authors concluded that ‘there is some threshold value necessary to trigger an increased response (possibly a combination of factors such as patch value and overall nutrient status) that was not reached’. This was supported by the fact that high NO₃^– amounts inhibit the LR response (e.g. Zhang et al. 1999), suggesting the existence of a systemic inhibitory control of LR development due to plant internal N status, itself positively correlated with NO₃^– availability in the environment. However, since high nitrate concentration can have a local stimulatory effect in heterogeneous environment (e.g. Zhang et al. 1999), it is surprising that the stimulation of growth throughout the root system, unrelated to any locally available nutrients, has received so few comments (Robinson 1994b). Because of the view that plants rarely encounter soil nutrient concentrations leading to toxicity, only low nutrient availability conditions have been studied. Considering a wide range of overall nutrient concentrations is necessary to develop a general theory for plant response to variations in resource availability in the environment. A synthetic conceptual model has been proposed by de Kroon et al. (2009): plants foraging for resources in heterogeneous environments must involve (1) plasticity at the level of individual modules in reaction to localised environmental signals and the potential for modification of these responses either, (2) signals received from connected modules that may be exposed to different conditions (law of correlative inhibition), or (3) signals reflecting the overall resource status of the plant, explaining the negative feedbacks in excess nutrient conditions. Straightforward predictions from this conceptual model are that a local response to resource abundance will be enhanced when many other integrated modules are growing under conditions of resource shortage, and that the whole plant experiences a nutrient shortage, and that this will result in elevated resource uptake at a local scale (de Kroon et al. 2009). Conversely, the local response will be reduced when foraging efforts are unlikely to improve an already favourable plant resource status (Lamb et al. 2004). We propose as an additional prediction that LR emission could even decrease when NO₃^– is in excess and becomes toxic, as a way to reduce root system surface area and the exposure of cells to the toxic ion.

In an in vitro experiment with a 3 × 3 factorial design, we study LR emission of Arabidopsis thaliana (L.) Heynh. along a gradient of NO₃^– distribution heterogeneity (null, weak or strong heterogeneity) crossed with an overall gradient of NO₃^– amounts in the environment (deficit, optimal or excess) to determine if LR density and root length were affected by (i) the level of heterogeneity of NO₃^– distribution, (ii) the overall N amount in the soil, and (iii) the interaction between heterogeneity and the overall N amount in the soil.

Our experimental design was set up to study the effect of the global N concentration in the environment and the heterogeneity of its distribution. We applied localised NO₃^– treatments to Arabidopsis thaliana (L.) Heynh. with the segmented agar plate set-up accordingly to Zhang and Forde (1998), except that we used square transparent boxes instead of circular Petri dishes, which permitted the use of equal gel volumes in the top, middle and lower patches and made the vertical positioning easier. Gels were made of a 9 g L^–1 gelrite, which represents a relatively high gel strength, similar to that which plants can experiment in soils, with a classical Murashige and Skoog medium (Murashige and Skoog 1962) with micronutrients and vitamin at standard concentrations. Macronutrient concentrations were kept standard for CaCl₂ = 2.99 mM, KH₂PO₄ = 1.25 mM and MgSO₄ = 1.50 mM. NO₃^– was brought at a basal level as NH₄NO₃ = 10 µM (instead of 20.61 mM in MS medium). The KNO₃ concentration was adapted according to the treatment, and the K concentration was kept constant by adding KCl, which has no effect on root system structure (Zhang et al. 1999). Gels with different KNO₃ concentrations were prepared, cut in bands (width: 10 cm, height: 2 cm, thickness: 1 cm, i.e. 20 mL per band) and placed in new boxes with a small plastic grid with a 1 mm mesh size between two bands to avoid direct contact and KNO₃ diffusion. The overall NO₃^– concentration (or amount, since volume was constant) in the whole culture medium (called N_ext hereafter) presented three levels (Fig. 1): (A) the deficit treatment with 0.5 mM of NO₃^– in 60 mL, i.e. 3.10⁻⁵ moles, (B) the optimal treatment with 5 mM in 60 mL, i.e. 3.10⁻⁴ moles and (C) the excess treatment with 50 mM in 60 mL, i.e. 3.10⁻³ moles. Heterogeneity corresponded to the difference in concentration/amount of NO₃^– between the poor bands (a and c) and the rich band (b). This factor presented also three levels (Fig. 1): (0) the null heterogeneity corresponded to a situation where the a, b and c bands had a identical NO₃^– amount equal to 2/6 of the overall NO₃^– amount, (1) the weak heterogeneity to a situation where the a and c bands had a NO₃^– amount equal to 1/6 and the b band equal to 4/6, and (2) the strong heterogeneity to a situation where the a and c bands had a NO₃^– amount equal to 0/6 and the b band equal to 6/6. There were nine different treatments, each replicated five times.

Fig. 1.  Experimental set-up. Culture medium consisted in square transparent boxes (10 × 10 × 1.5 cm), vertically oriented, divided in three 2 cm high agar bands (called ‘a’, ‘b’ and ‘c’, from the top down to the bottom), separated with a 1 mm thick plastic grid with a 2 mm mesh size allowing roots to cross, with a 3.7 cm space free for plant aboveground development. Experimental design consisted in a 3 × 3 factorial experiment with the overall NO₃^– concentration in the gel crossed with heterogeneity in NO₃^– distribution. The value at the upper left corner is corresponding to the overall NO₃^– concentration (mM), and the three values below to the concentration (mM) of each one of the three bands.

Seeds of A. thaliana cv. Columbia were sterilised for 10 min in Teepol HB7 (Sigma–Aldrich Chemie, Steinheim, Germany) and 10 min in 90% ethanol. They were sown in MS medium at 0.5 mM, the NO₃^– concentration used in the deficit homogeneous treatment A0. After 15 days, 45 similar seedlings with a seminal root 2.3–2.5 cm long were transferred in the experimental set-up by positioning the root between the gel and the box. The end of the root (0.3–0.5 cm) was placed behind the b band, whereas the major part (2 cm) was behind a band. The pretreatment was essential to obtain seedlings with a main root of 2.3–2.5 cm, to put the root in contact with the second band. If seeds were directly set in the experimental device it is probable that some would not have developed enough to reach the second band, leading to the absence of heterogeneity effects (Zhang and Forde 1998). After the transfer, the concentrations experienced by plants were different in the three heterogeneity treatments at a given N_ext concentration. This was the only way to keep the same overall N concentration independent of the heterogeneity. Plants were grown for 26 days in an in vitro culture chamber at 18°C, with a 12 h photoperiod (light intensity: 200 µmol photons s^–1).

Each root system was analysed with a digital scanner (Epson Expression 10000 XL, Epson America Inc., San Jose, CA, USA) coupled with the WinRHIZO software (WinRHIZO, V. 2007 pro, Regent Instruments, Quebec, Canada). As advised by sensitivity analyses of this material and software (Bouma et al. 2000; Himmelbauer et al. 2004), we used a double light system, at a resolution of 16 p mm^–1 (400 dpi), with the automatic transformation threshold option which optimises the distinction of pixels considered as root or background according to their relative contrast. Eleven equal diameter classes were defined: from 0–100 to 800–900 and >900 µm. After root system analysis, both above- and belowground organs were dried for 2 days at 45°C and weighed.

Numerous variables characterising root systems can be obtained with image analysis. We were specifically interested with the emission of lateral roots. The number of lateral roots in each band can be considered a good indication of the emission of lateral roots, but because the number of ramifications is correlated with root system size, we measured the root biomass for each band to obtain the ramification number per unit biomass, hereafter called ‘ramification density’. This variable was more relevant to our research question than the ramification number per unit length; indeed, we investigated a wide range of N concentrations which could have an impact on the tissue density. This change in tissue density was not taken into account in the ramification number per unit length, but in the ramification number per unit biomass. We were also interested in the length of lateral roots, which could respond differently than the emission of lateral roots to the different experimental factors. So we analysed the length per diameter classes.

Belowground, aboveground and total dry biomasses were significantly affected by the overall N concentration in the culture medium (N_ext) but not by heterogeneity or by the interaction between N_ext and heterogeneity (Table 1). Shoot : root ratio was affected by N_ext, and less significantly by heterogeneity (Table 1). Total, below and aboveground biomasses were slightly increased at the ‘optimal’ N_ext compared with the ‘deficit’ N_ext, but the difference was not significant (Fig. 2). However, root biomass decreased significantly in ‘excess’ N_ext compared with ‘optimal’ and ‘deficit’ N_ext. A significant increase in the shoot : root ratio was detected from the deficit to the excess N_ext treatment.

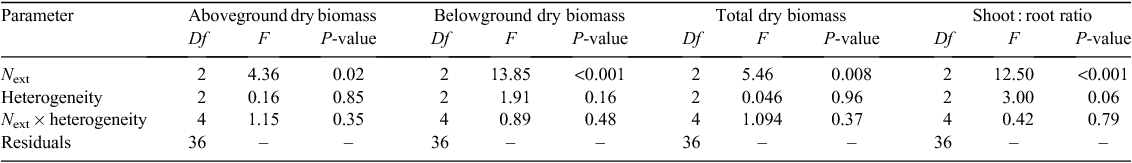

Table 1.  Impact of overall NO₃^– concentration in the environment (N_ext), contrast in NO₃^– concentration between poor and rich patches (heterogeneity) and their interaction on biomasses production (F-tests)
Df, degrees of freedom

Fig. 2.  Biomass production of Arabidopsis thaliana in the different treatments. A, B and C are correspond, respectively, to the three levels of overall N concentrations in the gel (deficit, optimal and excess), and 0, 1 and 2 to the three levels of heterogeneity (null, weak or strong). Means ± s.e, n = 5 per treatment. Significant differences among all the treatments are marked with different letters (Tukey HSD tests).

Root system parameters were analysed band per band (c.f. ‘Materials and methods’), because the local N concentration was not the same in each band (the rich band was always the middle band called ‘b’, whereas the top band ‘a’ and down band ‘c’ were equally poor). A three-way ANOVA with the factors ‘overall N concentration in the environment’ (N_ext), ‘heterogeneity’ and ‘band’ was realised to detect a potential effect of N_ext, heterogeneity or their interaction on root system structure, with band as a cofactor explaining variations due to the age of the roots. First, the ‘band’ factor had a significant effect on all parameters describing root system structure (length, ramification number, ramification density); moreover, the interaction between band and N_ext was also significant for these parameters. This result justified the addition of this factor to the analysis, to be able to detect the effect of other factors. The number of ramifications was significantly affected by the factor N_ext (P = 2.13 × 10⁻¹²) but not by heterogeneity (P = 0.69), or by the interaction between N_ext × heterogeneity (P = 0.41). The ramification number per unit biomass (ramification density) integrated the fact that root system size and/or tissue density could differ between treatments (see ‘Materials and methods’ for more details). Ramification density (Table 2) was significantly affected by N_ext (P = 9.38 × 10⁻⁵), and also by heterogeneity (P = 0.028) and the interaction heterogeneity × N_ext (P = 0.015). This was more significant for the second and superior ramification orders than for the first one (data not shown). We reported ramification density according to the different treatments of overall N concentration and heterogeneity levels in Fig. 3. In this figure, it can be noticed that the highest level of ramifications per unit biomass was reached in the treatment A1c (deficit of N, weak level of heterogeneity, bottom band) and the lowest in the C2a and C2c (excess of N, strong heterogeneity, bands a and c respectively). A general trend was an increase in ramification density with the position of the band (from a to c), probably due to the fact that young root in the c band was finer and more responsive to environmental heterogeneity than older roots from bands a and b; this is typical from a developmental effect (Robinson 1994b). The variation of ramification density between the three bands of one experimental unit was small in the null heterogeneity treatment (heterogeneity = 0), but strong in the weak and strong heterogeneity treatments (heterogeneity = 1 and 2) (Fig. 3). Concerning the direction of these variations, all treatments with a deficit in overall N concentration (N_ext = A) exhibited an increase in ramification density between the bands a and b and between the bands b and c. The treatments with an optimal overall N concentration (N_ext = B) exhibited the same pattern, except the null heterogeneity treatment (B0) where the NO₃^– amount in the band a was already high (see Fig. 1). The treatments with an excess in overall N concentration (N_ext = C) exhibited a pattern of variation dependant on the level of heterogeneity: a constant ramification density at null heterogeneity (C0), an increase from a to c at weak heterogeneity (C1) and a decrease from bands b to c at high heterogeneity (C2). The interaction between N_ext and heterogeneity was clear when comparing the three overall N concentrations (N_ext = A, B and C) at strong heterogeneity (heterogeneity = 2). It can, thus, be observed that heterogeneity can induce opposite effects on ramification density according to the overall amount of N in the environment.

Table 2.  Impact of overall NO₃^– concentration in the environment (N_ext), contrast in NO₃^– concentration between poor and rich patches (heterogeneity), and the cofactor position of the band (band) and their interactions on the number of ramifications per unit of root dry biomass (F-tests)
Significance differences: ***, P< 0.001; **, P < 0.01; *, P < 0.05; Df, degrees of freedom

Fig. 3.  Ramification density (number of ramification per gram of dry root biomass) in each band. A, B and C are corresponding respectively to the three levels of overall N concentrations in the gel (deficit, optimal and excess), and 0, 1 and 2 to the three levels of heterogeneity (null, weak or strong). Means ± s.e., n = 5 per treatment, significant differences among all the treatments are marked with different letters (Tukey HSD tests).

Root system structure was also analysed in term of length percentage per diameter class, with diameter classes with a range of 100 µm, from 0 to 900 µm. By analysing the result for each one of the nine classes in a three-way ANOVA with N_ext and heterogeneity as factors and band as cofactor, we observed that N_ext affected significantly all diameter classes (with a P < 0.0001), that heterogeneity affected significantly the classes 0–100 (P < 0.05), 100–200 (P < 0.10), 400–500 (P < 0.001) and 500–600 µm (P < 0.10), and that the interaction between N_ext and heterogeneity affected significantly the classes 0–100 (P < 0.0001), 100–200 (P < 0.05), 200–300 (P < 0.10), 300–400 (P < 0.05), 500–600 µm (P < 0.10) and 600–700 µm (P < 0.10). It can be noted that the interaction between N_ext and heterogeneity was significantly affecting root diameter classes more than the heterogeneity by itself. These lengths per diameter classes are reported in Fig. 4. The first graph with the absolute length shows that treatments B1 and B2 were those with the longest roots in all classes, whereas treatments with excess overall N amount (C) were those with the smallest length. On the second graph, these data were reported on the total root system length to analyse qualitative changes. All treatments with an excess N_ext (C0, C1 and C2) and the treatment B0 exhibited a development divergent from the other treatments: the length percentage of fine roots (from 0 to 300 µm) was smaller, whereas the length percentage of coarse roots (from 400 to 700 µm) was higher than in other treatments. The distribution of length among all diameter classes taken together was analysed in a MANOVA (Table 3). Significant effects were observed for N_ext and heterogeneity as well as for the N_ext × heterogeneity interaction, confirming that the effect of heterogeneity was dependant on the overall N amount in the environment. Here again, it can be noted that the effect of the N_ext × heterogeneity interaction was stronger than that of heterogeneity, as shown by the value of the Pillai-M. S. Bartlett trace test statistics (0.72 and 0.32, respectively) and the P-values (0.00005 and 0.01, respectively).

Fig. 4.  Root length distribution in diameter classes of Arabidopsis thaliana either in absolute value (mm) or in relative value (%) according to the different treatments. A, B and C are corresponding respectively to the three levels of overall N concentrations in the gel (deficit, optimal and excess), and 0, 1 and 2 to the three levels of heterogeneity (null, weak or strong). Means ± s.e., n = 5 per treatment.

Table 3.  Impact of overall NO₃^– concentration in the environment (N_ext), contrast in NO₃^– concentration between poor and rich patches (heterogeneity), and the cofactor position of the band (band) and their interactions on root length distribution in diameter classes from 0–100 µm to >900 µm (F-tests)
Significance differences: ***, P< 0.001; **, P < 0.01; *, P < 0.05; Df, degrees of freedom; Pillai, Pillai coefiicient; Approx. F, approximative Fisher coefficient; Num Df, numerator degrees of freedom; Den Df, denominator degrees of freedom; Pr (>F), P-value

This study was dedicated to investigate root system structure along a gradient of overall NO₃^– concentrations crossed with a gradient of NO₃^– heterogeneity distribution. The dicotyledon species A. thaliana has a root system developing from one main root, the radicle. A split root system with two equivalent root system parts grown in vertical agar bands was, thus, not appropriate. Consequently, agar bands were oriented horizontally (Zhang and Forde 1998) and plant roots were reaching the different horizontal bands at different ages and development stages. As a result, one major effect observed in our experiment was a ‘band’ effect (Tables 2, 3), strongly correlated with root age. As in several previous studies, we observed a lateral root response not strictly localised in the rich patch. This ‘time-dependant responses’ have been reviewed by Robinson (1994b); for example, when NO₃^– is applied to a discrete location in soil with wheat plants that had already begun ear development, roots did proliferate, but throughout the root system, not just around the point of NO₃^– application (Robinson 1994a). Younger plants did respond as expected (Robinson 1991). This effect of age made the results more complex (Figs 2, 3), but it can be considered as a covariable in ANOVA to estimate the significance of factors such as N_ext, heterogeneity and N_ext × heterogeneity which is discussed below.

Overall N concentration significantly affected root system structure in our experiment (Tables 1–3). It was difficult to observe a general trend in a 3× 3 factorial design; this was probably due to the age effect discussed above and to the pretreatment at 0.5 mM for the germination of all seeds, before their removal in the experimental units with different nitrogen concentrations. However, it can be perceived that the number of ramifications per root biomass unit was constant from deficient to optimal N_ext, but it decreased from optimal to excessive N_ext (Fig. 3). Root length increased from deficient to optimal N_ext and then decreased from optimal to excessive N_ext (Fig. 4). This is in accordance with the fact that in high nutrient concentration situations the general trend is a decrease in root length and number of ramification at excessive nutrient supply. The most common response to an increase in nitrate and ammonium concentration in the environment is a decrease in root : shoot ratio (Boxman et al. 1991; Wang and Below 1996; Bauer and Berntson 1999) and a decrease in fine : coarse root ratio (Haynes and Goh 1978; Boxman et al. 1991; Britto and Kronzucker 2006), as observed here.

The degree of heterogeneity in nutrient distribution, also called the degree of contrast or the difference in nutrient availability between the patch and the background soil (Kotliar and Weins 1990; Lamb et al. 2004), has received little research attention. Models examining nutrient uptake from heterogeneous soils predict an increase in the root proliferation and in the biomass of adapting plants when contrast increases (Jackson and Taylor 1996; Fransen et al. 1999). To our knowledge, experimental testing of this theory is limited to the studies by Wijesinghe and Hutchings (1999) and Lamb et al. (2004). In an experiment with the plant Abutilon theophrasti, neither root and shoot biomasses nor root proliferation was affected by patch/background contrast (Lamb et al. 2004). Authors interpreted this as a potential consequence of ‘some threshold value necessary to trigger an increased response (possibly a combination of factors such as patch value and overall nutrient status) that was not reached’. They concluded that ‘Validation of this model will require similar experiments using a much wider range of contrasts and total nutrient availability’ (Lamb et al. 2004). In the other experiment, the clonal herb Glechoma hederacea, a species that benefits strongly from heterogeneous soil (Birch and Hutchings 1994), increasingly concentrates root biomass in rich patches as the contrast increases, while total shoot biomass was similar between contrast treatments (Wijesinghe and Hutchings 1999). In the same way, in our experiment, we observed a significant effect of heterogeneity on ramification density and root length per diameter classes (Tables 2, 3). This effect of heterogeneity was associated with an increase in total biomass only in the optimal overall N concentration (Fig. 1). It is likely that in the study by Lamb et al. (2004), the contrast was not strong enough, or that the effect of overall N concentration was compensating the effect of contrast. In the study by Wijesinghe and Hutchings (1999), the contrast was strong enough to observe changes in root proliferation, but the overall N concentration was probably not appropriate to observe a change in plant biomass.

Finally, the most important result of our study was that root system response to heterogeneity depended on the overall NO₃^– concentration in the environment, as shown by the significant effect of the N_ext × heterogeneity interaction on ramification density and root length (Tables 2, 3; Figs 3, 4). The effect of the N_ext × heterogeneity interaction was even more significant than the effect of heterogeneity itself (Tables 2, 3). Heterogeneity had a positive effect on ramification density when the overall NO₃^– amount in the environment was limiting or optimal, but a negative effect when NO₃^– was in excess. This can be interpreted as a way to maximise the root surface area when a nutrient is limiting, and to minimise it when it becomes toxic.

The significant interaction between overall NO₃^– concentration in the environment and the degree of heterogeneity could explain why so few studies reviewed by Robinson (1994b) seem to follow the law of correlative inhibition. We suggest that if authors systematically mentioned the overall nutrient amount in the environment in addition to the contrast between poor and rich patches, it would be easier to overcome the apparent contradiction between experiments.
