Site-specific, genotypic and temporal variation in photosynthesis and its related biochemistry in wheat (Triticum aestivum)

Keywords: biological capacity of carbon assimilation, grain filling, J_max, source and sink interaction, spike gas exchange, sucrose metabolism, transcript abundance, Vc_max.

Significant yield improvement of critical C₃ cereal crops occurred between the 1950s and 1980s (Furbank et al. 2015) and has sustained global food demand for a number of decades. However, catering to the estimated global population of 9.8 billion by 2050 (Dillard 2019) necessitates a 60% yield improvement of critical food crops (White and Gardea-Torresdey 2018; Li et al. 2017). Reaching this target may not be possible without a further breakthrough, as the yield potential of most major cereal crops has plateaued (Furbank et al. 2015; Wang et al. 2017; Molero and Reynolds 2020).

Wheat (Triticum aestivum L.) is an important cereal crop for half the global population, and increasing the efficiency of photosynthesis is one possible solution to the upcoming food crisis (Jia et al. 2015; Kubis and Bar-Even 2019; van Bezouw et al. 2019; Molero and Reynolds 2020). However, inadequate understanding of the complex genetic processes of photosynthesis has held back improvement, because wheat is already photosynthetically efficient (Li et al. 2017). For instance, little is known about photosynthesis in wheat spikes (Jia et al. 2015; Zhang et al. 2020), which may contribute 10–40% of photosynthate to the filling grain (Serrago et al. 2013; Jia et al. 2015; Zhang et al. 2020), and photosynthesis in wheat spikes may also be as efficient as in leaves (Rangan et al. 2016; Molero and Reynolds 2020; Zhang et al. 2020).

Photosynthesis correlates strongly with plant sucrose metabolism (Vu et al. 2006; Vicente et al. 2015). When the sugar concentration of the photosynthetic tissue increases, genes in source tissues related to sucrose formation and amino acid synthesis are upregulated (Stitt et al. 2010; Paul and Pellny 2003) and sugars are translocated to sink tissues. This sink–source interaction is a determining factor in the grain yield of wheat (Rajala et al. 2009). The quantity of sugars produced from photosynthesis varies among different photosynthetic organs (Koch 2004; Molero and Reynolds 2020), which may lead to initiation of site-specific molecular level changes in sucrose metabolism. Therefore, knowledge of the expression patterns of key genes regulating sucrose metabolism in wheat pericarps during grain filling may illuminate the photosynthetic contribution by the spike to wheat grain yield and, consequently, deserves further exploration.

In the C₃ pathway under high irradiance, the amount of Rubisco is a determining factor for the rate of CO₂ assimilation throughout the life cycle of a photosynthetic organ (Suzuki et al. 2009). In higher plants, Rubisco consists of eight large subunits and eight small subunits. The small and the large subunits of Rubisco are coded from a multigene family, rbcS, in the nucleus, and a single gene, rbcL, in the chloroplast genome (Dean et al. 1989; Suzuki et al. 2009). The expression patterns of rbcL and rbcS mRNAs, and their activities, have been intensely studied in wheat leaves (Nie et al. 1995; Demirevska et al. 2009), whereas, less attention has been paid to the expression of rbcL and rbcS in wheat pericarps and spikes.

Exploration of the contribution of wheat spikes to grain filling requires assessment of the following features associated with photosynthesis: (1) gas exchange measurements of wheat spikes; (2) the expression patterns of the genes encoding the Rubisco precursors, rbcL and rbcS (Nie et al. 1995; Demirevska et al. 2009); and (3) the regulation of genes related to sucrose and amino acid synthesis (Paul and Pellny 2003; Stitt et al. 2010). All three types of observations are required because of the complex interactions between gas exchange, photosynthesis, sucrose metabolism and sink–source relationships (Vu et al. 2006; Vicente et al. 2015). Additionally, total nitrogen (N) in leaves is a simple yet useful measure of C assimilation and protein synthesis, because Rubisco accounts for 15–30% of their total N (Makino et al. 1992; Suzuki et al. 2009; Seneweera et al. 2011), and Rubisco degradation products are a source of N for developing tissues such as the grain (Suzuki et al. 2001; Makino et al. 1984).

The main hypotheses of this study are that: (1) C assimilation varies genotypically and temporally between the flag leaves and spikes of wheat; and (2) spike photosynthesis may overtake leaves at late grain filling. These hypotheses were tested using three winter wheat varieties Huandoy, Amurskaja 75 and Greece 25 that had previously been reported to express genes related to C₄ pathway in their grains/spikes (Rangan et al. 2016).

Three winter wheat (Triticum aestivum L.: Poales, Poaceae) varieties Amurskaja 75, Greece 25 and Huandoy were selected based on previously reported differences in the expression of genes related to C₄ pathway in the pericarps (Rangan et al. 2016). Seeds were sourced from the Australian Grain Gene Bank, Horsham, Australia. Five seeds were sown in each pot containing 4.2 kg of loam soil and 14 day after sowing the number of seedlings was reduced to two per pot. There were 12 replicate pots per treatment. Soil water was maintained at field capacity by daily watering.

The study was conducted in a greenhouse in Queensland, Australia (27°33′38.02″S, 151°55′55.20″E) from May to October (winter) and the maximum/minimum temperatures were 22/14°C. The midday light intensity of the greenhouse was 1000–1500 PAR and the RH of the air was 50–70%. The experimental design was completely randomised with 12 replicates. Pot positions were rerandomised weekly to minimise any location effects inside the greenhouse.

Three replicates from four growth stages [heading, 14 days post-anthesis (14 dpa), 30 dpa and maturity (CM)] were used for phenotyping. The traits measured and growth stages of data collection are shown in Supplementary Table S1. Leaf area was measured using the Li-COR leaf area meter (LI-COR, USA) and spike area was calculated using the following equation:

Each spike was considered as an elliptical cylinder (Supplementary Fig. S1). ‘A’ is the surface area (assumed photosynthetic area) of the wheat spike, a and b denote the diameters of the short and long axis of the ellipse, respectively (Fig. S1), L is the length of the spike/cylinder. Five values of a and b were measured and averaged.

The harvest index (HI) was calculated as: (weight of the total harvest)/(above ground biomass); and by analogy, the spike area index (SAI) was calculated as: (spike area)/(total photosynthetic area). After leaf and spike area measurements, samples were dried at 60°C for 72 h and weighed.

Gas exchange parameters of the flag leaves and wheat spikes were assessed on four occasions: (1) at heading; (2) 3 dpa; (3) 14 dpa; and (4) 30 dpa. Plants were introduced into a controlled growth chamber (PGC-105, Percival, USA) at least 1 h prior to the measurements where the temperature, canopy light intensity and relative humidity were maintained at 22°C, 1000 μmol m⁻² s⁻¹ and 70%, respectively.

The measurements on flag leaves and spikes were carried out between 09 00 hours and 14 30 hours using a portable photosynthesis system (LI-6400xt, LI-COR) (Evans and Santiago 2014). For spikes, the LI-6400xt was coupled with a transparent conifer chamber (6400-05, LI-COR). Spike level temperature and the air flow rate were maintained at 22°C and 500 μmol s⁻¹, respectively. Photosynthetically active radiation (PAR) of the controlled growth chamber was maintained as 1000 μmol m⁻² s⁻¹. Steady state gas exchange was reached in about 10–15 min. The initial reference CO₂ concentration inside the conifer chamber was 400 μmol mol⁻¹, and the relative humidity was maintained at 50–70%. Each spike was equilibrated for a few minutes until gas exchange reached steady state before measurements commenced.

Photosynthesis (A), stomatal conductance (g_s), intercellular CO₂ concentration (C_i) and the ratio between C_i and ambient CO₂ concentration (C_a) (C_i/C_a) and carbon dioxide response (A–C_i) curves were obtained for flag leaves and wheat spikes at each growth stage. After taking measurements under light, the light source of the growth cabinet was turned off and the plants were allowed to stabilise for 45 min before measuring gas exchange of wheat spikes in the dark (R_D). Spike photosynthesis (A_s) was obtained by subtracting R_D from A_R, where P_R is the rate of photosynthesis under PAR (Molero and Reynolds 2020). The biological capacity of carbon assimilation for both wheat spikes and flag leaves (Vc_max and J_max) in different growth stages were calculated using the fitted models based on the A–C_i curves.

Oven-dried pericarps and flag leaves of three genotypes at the four growth stages were removed from the plants and ground in a ball mill (Tissue Lyser II, QIAGEN, Australia) to ∼100 μm diameter. Carbon and nitrogen (C and N) contents of the plant samples were measured using a combustion analyser (Leco CN628, USA).

At least nine enzymes are involved in sucrose metabolism, including sucrose synthase (SUS), sucrose phosphate phosphatase (SPP) and sucrose phosphate synthase (SPS) (Jia et al. 2015). We focused on the mRNA abundance of these three enzymes since they may have major roles in sucrose biosynthesis. The transcript abundance of key genes associated with photosynthesis was also assessed.

Three replicates of wheat spikes and flag leaves from the main tiller at heading were harvested 14 and 30 dpa between 11 00 hours and 13 00 hours using chilled blades, placed in chilled storage tubes and immediately submerged in liquid N₂. Samples were subsequently stored at −80°C until total RNA extraction. Decontaminated and RNase free mortars and pestles were stored at −80°C, in a sealed polythene bag, at least 12 h prior to the extraction. TPS buffer was prepared using 10 mM EDTA, 1 M KCl, and 100 mM Tris–HCl. After adjusting the pH to 8, the buffer was autoclaved and cooled to room temperature. Mortars and pestles were chilled using liquid N₂ before ∼200 mg of the outermost layer of the wheat pericarp and flag leaves were dissected and placed into separate chilled mortars. Plant samples were ground to a fine powder in liquid N₂. Five hundred μL of Trizol reagent (Invitrogen, Thermo Fisher Scientific, USA) and 700 μL of TPS buffer were added to the ground plant samples and the grinding was continued. The homogenised solutions were collected in 2.5 mL RNase-free, autoclaved microcentrifuge tubes and incubated at room temperature for 10 min. A total of 120 μL of chloroform (per 200 mg of plant tissue) was added to the incubated samples and mixed gently. The samples were incubated for another 3 min before being centrifuged for 15 min at 26 319g at 4°C (Eppendorf centrifuge 5424R, Australia). After phase separation, the supernatant was collected in a new set of RNase-free microcentrifuge tubes and 600 μL of ice-cold isopropanol was added (biotechnology grade, Sigma-Aldrich, USA). The sample tubes were gently mixed and incubated for 10 min. To separate the precipitated RNA, tubes were centrifuged for 10 min at 26 319g at 4°C. After removing the supernatant, 600 μL of 75% ethyl alcohol (Biotechnology grade, Sigma-Aldrich, USA) was added to each tube. To purify RNA pellets, tubes were centrifuged for 5 min at 26 319g  at 4°C. After removing ethyl alcohol, samples were air dried, 30 μL of diethylpyrocarbonate (DEPC) treated water (Sigma-Aldrich) was added to each tube to dissolve the RNA and the samples were stored at −80°C until further use.

RNA was quantified using a Qubit fluorimeter (Invitrogen by Thermo Fisher Scientific) according to the manufacturer’s instructions. Concentrations of the RNA samples were adjusted to 1 μg μL⁻¹. RNA samples were treated with amplification grade DNase I (Invitrogen by Thermo Fisher Scientific) according to the manufacturer’s instructions. RNA samples were reverse-transcribed using a SensiFAST cDNA synthesis kit (Catalogue No – Bio-65054, Bioline, UK) as per the manufacturer’s instructions, and the samples (20 μL reaction volume) were introduced into the thermal cycler set at 25°C for 10 min for primer annealing, 42°C for 15 min for reverse transcription and 85°C for 5 min for inactivation.

The primer sequences of the genes associated with photosynthesis and sucrose metabolism (Table S5) were taken from Vicente et al. (2015) and Bachir et al. (2017). The specificity of the primers for T. aestivum was tested using the Primer-Blast option in the National Centre for Biotechnology Information (NCBI) website (https://www.ncbi.nlm.nih.gov). Primers were sourced from Integrated DNA Technologies, Inc. (Integrated DNA Technologies Pty. Ltd, Republic of Singapore).

Reactions were carried out in 96-well plates using a QuantStudio 3 real-time PCR system (Applied Biosystems, Thermo Fisher Scientific, USA). Each reaction mixture contained 4 μL of cDNA, 4 μL of DEPC treated water, 10 μL of PowerUp SYBR Green Master (Applied Biosystems from Thermo Fisher Scientific, USA), 1 μL of 10 mM forward primer and 1 μL of 10 mM reverse primer. Three biological replicates were used for each growing stage of the three wheat genotypes. The PCR program was set at 95°C for 10 min followed by 40 cycles of 95°C for 15 s and 60°C for 1 min.

Before statistical analysis, any data that were not normally distributed were transformed for normality. To determine the significance of different growth stages, organ types and genotypes, ANOVA was perfomed. Tukey’s tests and standard errors of differences were used to determine the differences between growth stages, organ types and genotypes at P < 0.05 significant level. Pearson product-moment correlations were used to test potential correlations between harvest related traits and parameters associated with biological capacity of C assimilation and with gene expression related to sucrose metabolism. Data analysis was conducted using SPSS statistical software ver. 23 (IBM, Armonk, NY, USA). GraphPad Prism scientific software ver. 8 (GraphPad Software, San Diego, CA) was used for graphical representation of the data. Primer efficiencies of the reactions of gene expression analysis were determined using the LinRegPCR software ver. 2012. Relative gene expression of three varieties of two organ types at different growth stages was calculated using the comparative threshold cycle (C_t) method.

There were statistically significant effects of genotype and growth stage on growth-related traits including total spike weight (P < 0.001), total aboveground biomass (TAB) (P < 0.001), plant height (P < 0.01), biomass without spikes (BWS) (P < 0.001) and total biomass (TB) (P < 0.001) (Fig. 1a–e). Highest spike weight was shown in the variety Huandoy and the highest aboveground biomass was reported in Amurskaja 75 (Figs 1a–e). Results indicated that the total biomass without spikes increased from heading to 14 dpa across all three genotypes and showed a clear decline after 14 dpa.

Fig. 1.  Variation in growth-related traits. (a) Total spike weight, (b) total above ground biomass (AGB), (c) total biomass (TB), (d) total biomass without spikes (BWS) and (e) plant height between three genotypes in four different growth stages. n = 3. Hu, Huandoy; Am, Amurskaja 75; Gr, Greece 25; CM, maturity; **P < 0.01; ***P < 0.001.

Genotype and growth stage had statistically significant interactions on the photosynthetic areas of total spikes (PAS) (P < 0.01), the spikes of the main tillers (PASM) (P < 0.01), and leaves (PAL) (P < 0.01), as well as total photosynthetic area (PAT) (P < 0.01), spike area index (SAI) (P < 0.001) and the ratio between total spike area and total leaf area (PAS/PAL) (P < 0.001) (Fig. 2a–f). From all three genotypes, Huandoy showed the highest total spike photosynthesis across all three growth stages considered in the study. Amurskaja 75 showed the highest photosynthetic area of the flag leaves of the three genotypes (Fig. 2a–f); highest photosynthetic area of leaves and total photosynthetic area including spikes (Fig. 2b). In addition, highest spike area index and PAS/PAL ratios were reported in Huandoy (Fig. 2f).

Fig. 2.  Variation of (a) photosynthetic area of spikes, (b) photosynthetic area of flag leaves, (c) photosynthetic area of total leaves, (d) total photosynthetic area, (e) spike area index and (f) spike area/total leaf area between considered wheat genotypes at three growth stages. n = 3. Hu, Huandoy; Am, Amurskaja 75; Gr, Greece 25; **P < 0.01; ***P < 0.001.

Genotype affected tiller number (P < 0.01), total harvest (TH) (P < 0.001) and harvest index (HI) (P < 0.001) but not spike number (Fig. 3). Total harvest and HI were higher in Huandoy than other genotypes, while Amurskaja 75 had the highest number of spikes and tillers at maturity.

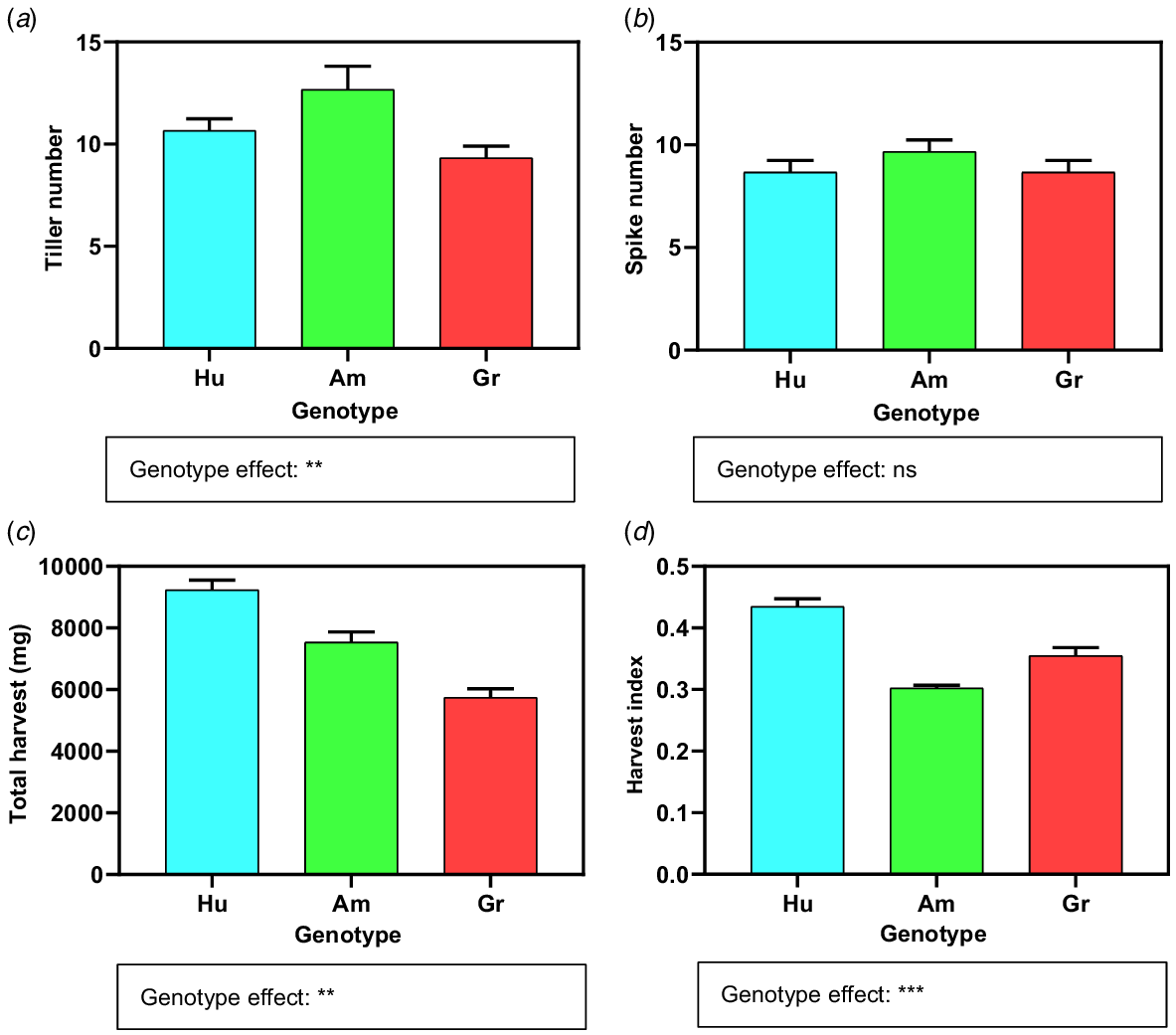

Fig. 3.  Variation in (a) tiller number, (b) spike number, (c) total harvest and (d) harvest index between three wheat genotypes at maturity (CM). n = 3. Hu, Huandoy; Am, Amurskaja 75; Gr, Greece 25; **P < 0.01; ***P < 0.001; n.s., not significant.

In Huandoy, the highest A was observed at 14 dpa for both spikes and flag leaves (Fig. 4) while in Greece 25, the highest A was exhibited at heading. In general, at the early reproductive stages (heading to 14 dpa), the A was significantly higher in flag leaves than in wheat spikes (Fig. 4). However, at 30 dpa, a reduction in A was observed between spikes and flag leaves of all genotypes. Interestingly, at 30 dpa, the A of wheat spikes was much higher than the flag leaf photosynthesis for both Huandoy and Greece 25. Further, in all the instances, the C_i/C_a was between 0.626 and 0.81 (Fig. 4). Overall, there were significant interactions among genotypes, growth stages and organ types for Vc_max, J_max, and trios phosphate utilisation (TPU) (Table S2, S3 and S4). However, the effect of genotype itself for Vc_max of flag leaves was not statistically significant (Table S2, S3 and S4). All the genotypes displayed their highest and the lowest Vc_max, J_max and TPU for both spikes and flag leaves at early to mid-grain reproductive stages (heading to 14 dpa) and 30 dpa, respectively (Figs 5 and 6). The Vc_max of wheat spikes displayed higher variation between growth stages than the Vc_max of flag leaves (Figs 5a–c and 6a–c).

Fig. 4.  Variation of photosynthesis (A), stomatal conductance (SC) and the ratio between intercellular to ambient CO₂ concentrations (C_i/C_a) between wheat pericarps and flag leaves of three wheat genotypes at different growth stages. Hu, Huandoy; Am, Amurskaja 75; Gr, Greece 25; ***P < 0.001.

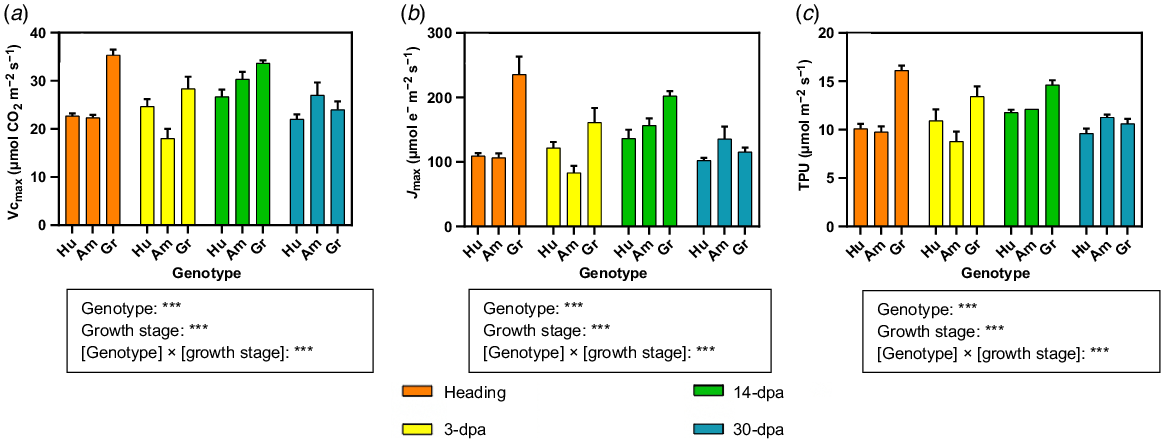

Fig. 5.  Changes in (a) Vc_max, (b) J_max and (c) TPU of three wheat genotypes at four growth stages in wheat spikes. n = 3. Hu, Huandoy; Am, Amurskaja 75; Gr, Greece 25; ***P < 0.001.

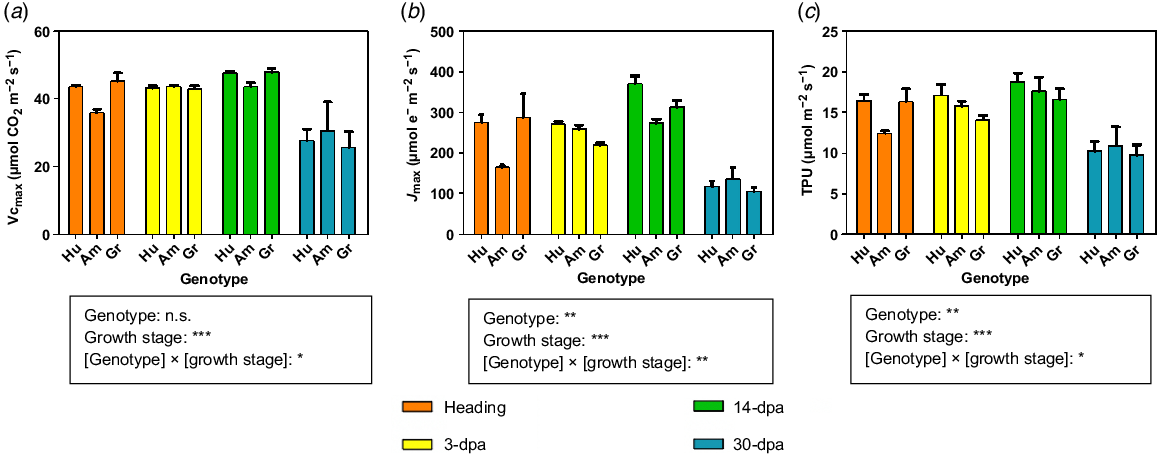

Fig. 6.  Changes in (a) Vc_max, (b) J_max and (c) TPU of three wheat genotypes at four growth stages in flag leaves of wheat. n = 3. Hu, Huandoy; Am, Amurskaja 75; Gr, Greece 25; *P < 0.05; **P < 0.01; ***P < 0.001; n.s., not significant.

The Vc_max, J_max, and TPU of flag leaves were significantly higher than in spikes at early reproductive stages (heading to 14 dpa) (Figs 5 and 6). Interestingly, during late-grain filling (30 dpa), the C assimilation capacity of spikes and flag leaves was not statistically different (P > 0.05, Table 1) (Fig. 7).

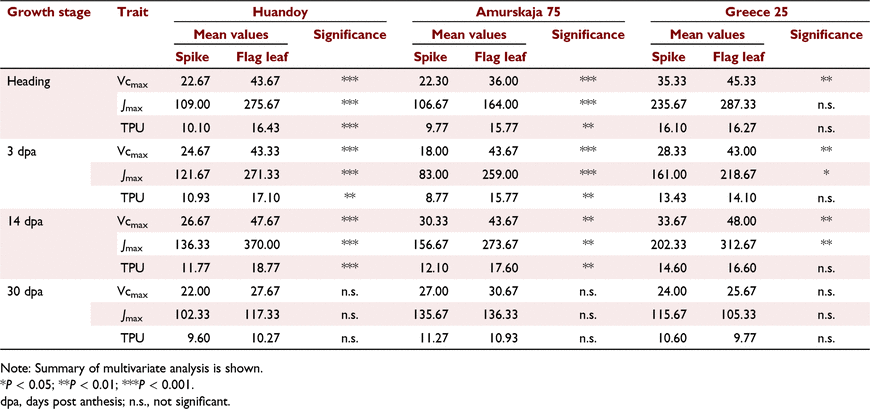

Table 1.  Comparison of Vc_max, J_max and TPU between wheat spikes and flag leaves of three genotypes at four growth stages.

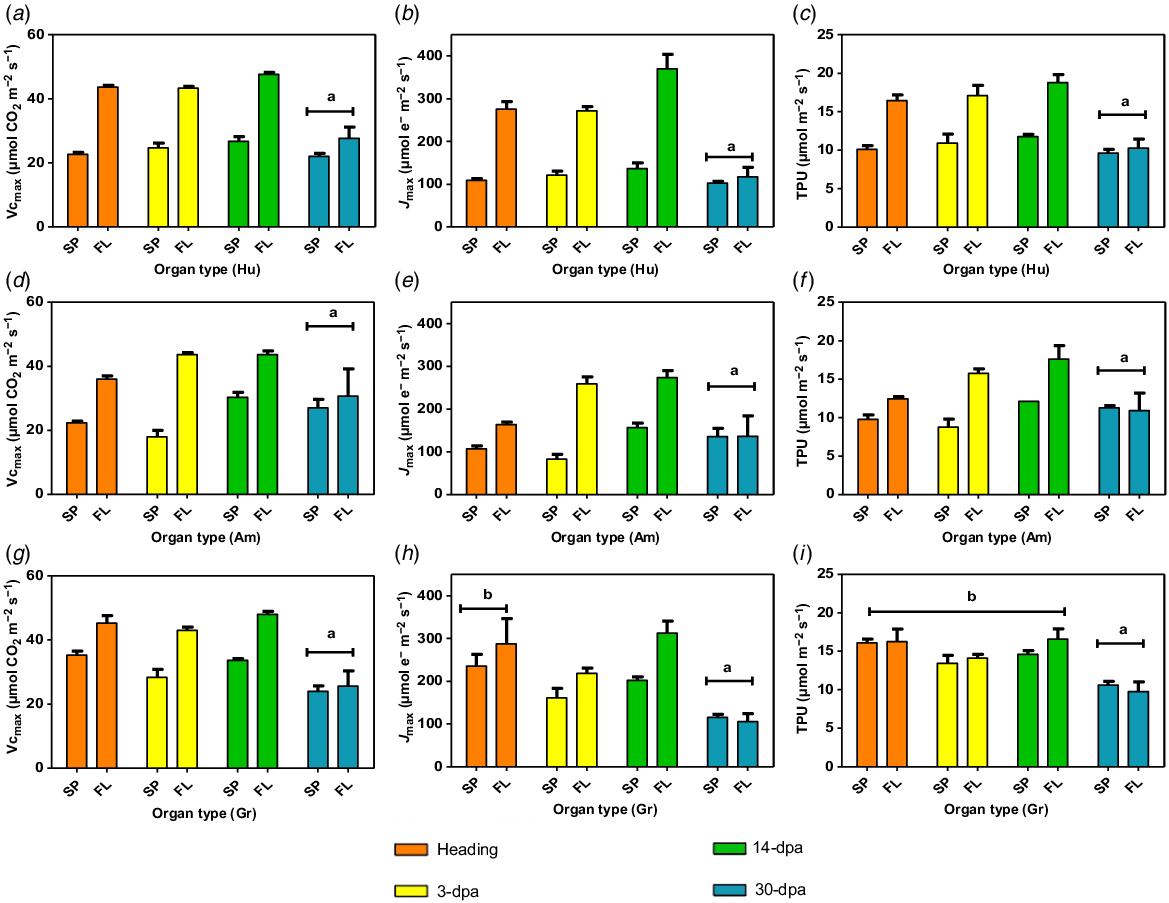

Fig. 7.  Comparison between wheat spikes and flag leaves of (a) Huandoy: Vc_max, (b) Huandoy: J_max (c) Huandoy TPU (d) Amurskaja 75: Vc_max (e) Amurskaja 75: J_max (f) Amurskaja 75: TPU (g) Greece 25: Vc_max (h) Greece 25: J_max and (i) Greece 25: TPU. n = 3. Brackets with lowercase ‘a and b’ represents statistically not significant. Hu, Huandoy; Am, Amurskaja 75; Gr, Greece 25; SP, wheat spikes; FL, wheat flag leaves.

From heading to 14 dpa, N concentration increased in the pericarps and was unchanged in flag leaves (Fig. 8). Overall, N concentrations of flag leaves were appreciably higher than in the pericarps. In pericarps and flag leaves, there was a significant interaction between genotype and growth stage on N concentrations (P < 0.001), with the lowest N concentrations occurring at maturity (Fig. 8). Greece 25 had the greatest N concentration in both pericarps and flag leaves at all four growth stages (Fig. 8).

Fig. 8.  Changes in (a) nitrogen percentages in wheat pericarps, and (b) nitrogen concentrations in wheat flag leaves of three wheat genotypes at four growth stages. n = 3. Hu, Huandoy; Am, Amurskaja 75; Gr, Greece 25; ***P < 0.001.

The 3 dpa stage was omitted from gene expression analysis since differences in Vc_max, J_max and TPU between heading and 3 dpa were typically minimal. With respect to the expression of rbcS, a significant three-way interactions occurred between genotype, organ type and growth stage (P < 0.001) (Table 2). However, there were no statistically significant interactions in rbcL expression between genotype and organ type (P > 0.05), and genotype, organ type and growth stage (Table 2).

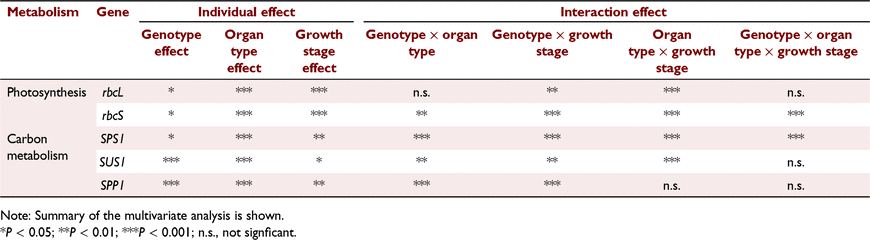

Table 2.  The effect of genotype, organ type, growth stage and their interactions for rbcL, rbcS, SPS1, SUS1, and SPP1 expression in wheat pericarps and flag leaves.

In all genotypes, the expression of rbcL and rbcS displayed a decrease in both pericarps and flag leaves towards 30 dpa. Of the two genes, the relative expression of rbcL was significantly higher than rbcS at all growth stages. Also, the relative expression of both rbcL and rbcS were significantly greater in flag leaves than in pericarps. The genotype Greece displayed the highest relative expression for rbcS in both pericarps and flag leaves (Table 3). In pericarps, the mean relative expression of rbcL at heading was 83-, 37- and 20-fold greater than the expression of rbcS in Huandoy, Amurskaja 75 and Greece 25, respectively (Table 3). Further, in pericarps at heading, Amurskaja 75 and Greece 25 had the highest and the lowest relative expressions for rbcL, respectively (Table 3).

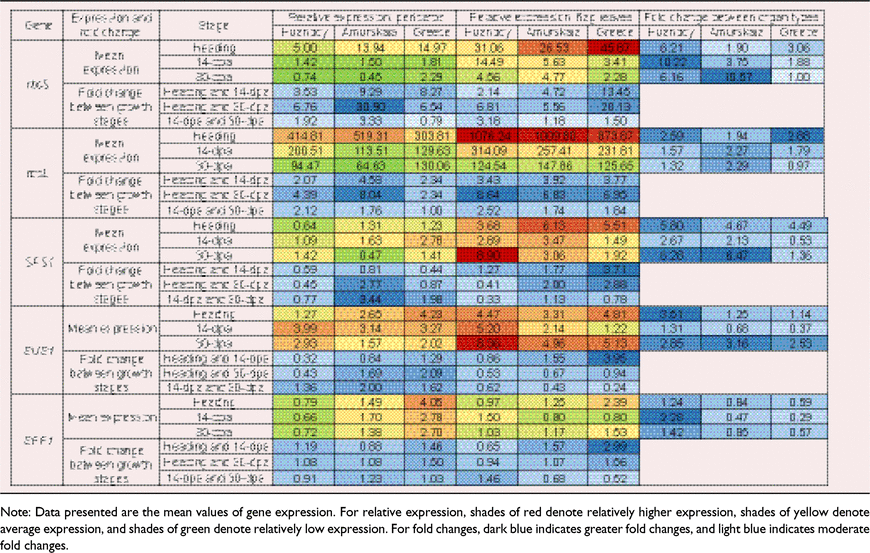

Table 3.  Heatmap of transcript abundance of rbcL, rbcS, SPS1, SUS1 and SPP1 genes related to photosynthesis and carbon metabolism in wheat pericarps and flag leaves at four growth stages.

A significant three-way interaction occurred between genotype, organ type and growth stage on the expression of SPS1 (P < 0.001) (Table 2). Likewise, genotype and organ type, and genotype and growth stage had significant interactions on expression of SUS1 and SPP1 (Table 2). However, organ type and growth stage did not interact with SPP1 expression (Table 2).

In pericarps, expression of SPS1 and SUS1 increased with growth stage for Huandoy, while for Amurskaja 75 and Greece 25 the trend was to decrease (Table 3). Generally, the expression of these genes was higher in the early and mid-reproductive stages (heading and 14 dpa) than during late-grain filling (30 dpa).

In flag leaves, there was considerable variation in the expression of SPS1, SUS1 and SPP1 among the three growth stages. Further, as for flag leaves, expression of SPS1 and SUS1 in Huandoy increased over time, while in Amurskaja 75 and Greece 25 the trend was for SPS1 expression to decrease.

When comparing the two organ types, both pericarps and flag leaves of Huandoy and Amurskaja 75 had similar expression patterns for SPS1, SUS1 and SPP1 (Table 3). Generally, the expression of SPS1 and SUS1 was much higher in flag leaves than in pericarps (Table 3). In contrast, the expression of SPP1 was much higher in pericarps than in flag leaves of Amurskaja 75 and Greece 25.

To obtain a holistic idea about the plant photosynthetic parameters, values of Vc_max, J_max and TPU of spikes at different growth stages were multiplied by the total spike area at each growth stage. Strong, positive correlations between spike dry weight and [Vc_max] × [spike area] (r = 0.800, P < 0.01), spike dry weight and [J_max] × [spike area] (r = 0.720, P < 0.01), and, spike dry weight and [TPU] × [spike area] (r = 0.813, P < 0.01) were observed.

At heading in spikes of all three genotypes, strong, positive correlations were observed between Vc_max and the expression of SUS1 (r = 0.816, P < 0.01), Vc_max and the expression of SPP1 (r = 0.946, P < 0.01), J_max and the expression of SUS1 (r = 0.851, P < 0.01), J_max and the expression of SPP1 (R = 0.959, P < 0.01), TPU and the expression of SUS1 (r = 0.799, P < 0.01), and, TPU and the expression of SPP1 (r = 0.932, P < 0.01). At 14-dpa, strong positive correlations were observed between Vc_max and the expression of SPS1 (r = 0.786, P < 0.05), Vc_max and the expression of SPP1 (r = 0.817, P < 0.01), J_max and the expression of SPS1 (r = 0.769, P < 0.05), J_max and the expression of SPP1 (r = 0.7909, P < 0.05), TPU and the expression of SPS1 (r = 0.807, P < 0.01), and, TPU and the expression of SPP1 (r = 0.795, P < 0.05). However, at later growth stages (30 dpa) in pericarps, this strong correlations between spike photosynthetic parameters and gene expression of sucrose metabolism could not be observed. Likewise, in flag leaves, positive correlations were not observed between photosynthetic parameters and gene expression of sucrose metabolism.

Grain development consists of two overlapping stages: (1) grain enlargement, and (2) grain filling. The first commences at fertilisation and is a period of mitotic activity during which the potential to accumulate biomass is established; a substrate effect influences this potential. Wheat endosperm starts accumulating dry matter during the grain enlargement phase; i.e. at 15–20 dpa and continues until the spike reaches maturity (35–40 dpa). Genetic, morphological and environmental factors play important roles in determining the rate and the duration of this second stage (Jenner et al. 1991). In this study, for all three genotypes, the fastest rate of biomass accumulation by spikes was between 14 dpa and 30 dpa. Moreover, during the same period, in most occasions, biomass without spikes decreased while total biomass increased. This means that most of the photosynthetic products from the grain enlargement phase to maturity accumulated in wheat spikes especially in the wheat grain.

In general, our results reveal that the biological capacity for C assimilation of wheat spikes (as assessed by Vc_max and J_max) was greatest at 14 dpa, supporting the possibility that the spikes may make a prominent contribution to starch biosynthesis and accumulation in the grain (Fig. S2). However, to obtain a complete idea, the remobilisation of photosynthetic products to spikes form other photosynthetic organs such as leaves also has to be considered. A strong correlation between Vc_max and the tissue N content was reported by Walker et al. (2014). Consistent with this proposition, in the present study, the highest N concentrations in wheat pericarps was at 14 dpa, the phase that displayed the highest Vc_max, and J_max. Rubisco is the key enzyme of C assimilation and plays a central role in C₃ photosynthesis (Suzuki et al. 2001), comprising a significant proportion of the N content of photosynthetic organs. Consequently, it is not unreasonable to assume that peaking of the N content in wheat pericarps during grain enlargement reflects peaking of Rubisco.

The remobilisation of N from the vegetative organs of the wheat plant to the grain takes place during mid to late grain filling, and depends on genotypic and environmental factors (Barbottin et al. 2005). In this study, the low N concentrations in flag leaves at late grain filling (30 dpa) are consistent with remobilisation. From the current study, considerable variation in organ-specific N concentrations among genotypes was recorded. However, the variation in N concentrations in wheat flag leaves was not as significant as in the wheat pericarps (Fig. S2) indicating organ specific variation in N metabolism.

Lastly, there is a considerable genotypic variation in growth and harvest-related factors including: total spike weight, AGB, TB, BWS, HI and TH, as expected from previous research (Darroch and Baker 1990). It has also been reported that the duration of grain filling determines the time to maturity and the yield (Darroch and Baker 1990).

Transcript abundance of rbcL and rbcS in this study revealed site-specific and temporal variation in Rubisco metabolism in the wheat genotypes. Pericarps of Greece 25 and Amurskaja 75 displayed the highest rbcS and rbcL expression, respectively, at heading. Likewise, in flag leaves at heading, Greece 25 displayed the highest abundance of rbcS. rbcL and rbcS encode the two subunits of Rubisco, the enzyme that limits light-saturated C assimilation under current atmospheric conditions and is important in both C and N metabolism of plants (Suzuki et al. 2009; Jia et al. 2015). In grasses, Rubisco contents increase during leaf growth, peak at full expansion, then decline during senescence (Suzuki et al. 2010). However, our results did not show a similar expression pattern, and expression patterns like ours have been documented in leaves of amaranth (Amaranthus viridis) (Nikolau and Klessig 1987), in peas (Sasaki et al. 1987) and beans (Bate et al. 1991) and rice (Oryza sativa L.) (Suzuki et al. 2001). Although the abundance of rbcS and rbcL is lower at 14 dpa than at the heading, the highest N concentrations in the pericarps occurred at 14 dpa. These observations suggest that Rubisco content and rbcS and rbcL abundance in wheat pericarps may not have a strong, positive correlation. This would be possible if wheat pericarps started to produce Rubisco at an increasing rate at heading and if Rubisco production continued between heading and 14 dpa, despite the decline in rbcS and rbcL expression. Alternatively, the degradation of Rubisco between heading and 14 dpa may be minimal, in contrast to that in the flag leaves. The N concentrations of flag leaves across growth stages revealed that the highest Rubisco content may occur during leaf expansion as found by Suzuki et al. (2010). Therefore, our results suggest that there is an organ-specific variation in Rubisco biosynthesis/ degradation, N and C metabolism in wheat.

For most of the varieties, the highest A value was at 14 dpa both in wheat pericarps and flag leaves. Of the three genotypes, Huandoy showed the highest net spike photosynthesis (rate of photosynthesis × photosynthetic surface area of wheat spike) at all growth stages. Providing clues for the importance of spike photosynthesis for the grain filling and the harvest, Huandy showed the highest grain yield at maturity and highest spike weights at all growth stages. Further, spike weights of all the genotypes at all the growth stages were aligned with the net spike photosynthesis of each genotype.

After grain enlargement, the photosynthetic capacity of the flag leaves drastically declined while that of the spikes did not, so by 30 dpa there was no significant difference in Vc_max, J_max and TPU between these organs. This collapse in C assimilation by flag leaves coincided with leaf senescence. In both wheat spikes and flag leaves, the strong positive correlation of Vc_max and J_max accords with the results of Wullschleger (1993) based on analysis of A–C_i curves for 109 plant species. The amount of Rubisco present in a photosynthetic organ decreases during senescence (Suzuki et al. 2001), and loss of Rubisco from flag leaves at late grain filling could explain the decreased rate of C assimilation at 30 dpa. This suggestion is supported by the observation in a following experiment that N concentration in flag leaves decreased in late grain filling compared to the heading and grain enlargement phases (Dehigaspitiya et al.2019). Since Rubisco constitutes 15–35% of the total N of a C₃ photosynthetic organ (Makino et al. 1992; Suzuki et al. 2009), lower N concentrations in flag leaves at late grain filling may indicate the presence of less Rubisco due to degradation. Furthermore, N concentrations of flag leaves were much higher than those of wheat pericarps around heading and 14 dpa, coincident with a greater expression of rbcL and rbcS mRNA. Moreover, the ratio of spike photosynthetic area and leaf photosynthetic area was lower at heading than during late grain filling. The preceding observations support the argument that flag leaves are the main driver of C assimilation during the heading and grain enlargement phase in wheat and that this role may be taken up by the spikes/pericarps during late grain filling.

Strong, positive correlations between spike dry weight and the product of biological capacity for C assimilation of wheat spikes and spike area were observed. Although the wheat leaves are the main driver of photosynthesis during heading and grain enlargement, C assimilation and sucrose metabolism of wheat spikes/pericarps is likely play an important role later during grain filling (Fig. S2). Therefore, the metabolic processes of wheat spikes/pericarps, such as N metabolism and protein biosynthesis, and their contribution to grain quality under different environmental conditions merit further investigation.

In this study, biological capacity for C assimilation varied markedly between genotypes in both wheat spikes and flag leaves. Likewise, the biological capacity for C assimilation varied between plant growth stages. In general, the highest and the lowest Vc_max, J_max and TPU of wheat spikes occurred during grain enlargement and 30 dpa. Genetic variation in biochemical limitations to C assimilation in plants is known (Geber and Dawson 1997; Wullschleger 1993), and is a governing factor for adaptive evolution in rates of C fixation (Geber and Dawson 1997). Other than genetic variation, plant development stage, organ type, plant nutrient supply and environmental conditions also influence the rate of C assimilation (Fan et al. 2011; Walker et al. 2014). Therefore, further research is required to elucidate the molecular mechanisms following the site specific, temporal and genotypic changes behind wheat grain filling for a higher yield.

Sucrose is the main product of photosynthesis and plays important roles in growth, signal transduction, acclimation, growth and development in plants (Jia et al. 2015). Sucrose metabolism in higher plants is well characterised (Jia et al. 2015); however, to date, the site-specific and temporal variation of sucrose metabolism in wheat has not been intensely investigated. In general, the translocation of sucrose from its source to sink regulates the source and sink integration of the plant which in turn determines the plant growth and the yield (Bihmidine et al. 2013).

In this study, marked variation in transcript abundance of SPS1, SUS1 and SPP1 was found among organ types, indicating that sucrose metabolism varied in a site-specific manner. Further, growth stage and genotype also had a significant influence on the expression of the above genes. The correlation analysis between C assimilation in wheat spikes and mRNA abundance in wheat pericarps at heading showed strong, positive correlations between Vc_max and SPP1, Vc_max and SUS1, J_max and SUS1, and J_max and SPP1. Similarly, C assimilation and transcript abundance of SPS1 and SPP1 in pericarps had strong, positive correlations at 14 dpa.

A number of studies have suggested a correlation between photosynthesis and sucrose biosynthesis (Stitt 1986; Battistelli et al. 1991; Seneweera et al. 1995). SPS catalyses the biosynthesis of sucrose-6-phosphate from fructose-6-phosphate and UDP-glucose (Fig. S2). SPS has been identified as the main rate-limiting enzyme of sucrose synthesis (Seneweera et al. 1995; Lunn and MacRae 2003), and SPP is responsible for the final step of sucrose biosynthesis in plants. SPP catalyses the irreversible reaction of producing sucrose by hydrolysing sucrose-6-phosphate (Jiang et al. 2015). In most plants, sucrose is the main transport carbohydrate, and it forms the interface between C assimilation and utilisation in source and sink tissues (Baxter et al. 2003). The amount of sucrose present in a photosynthetic organ depends on the rate of sucrose biosynthesis and the rate of sucrose export from the source (Ho and Thornley 1978; Baxter et al. 2003). The possibility of regulating the expression of genes associated with a number of metabolic pathways, including sucrose metabolism, has been reported (Koch et al. 1996; Baxter et al. 2003). According to our results, the highest photosynthetically active stage of wheat spikes was the heading and the grain enlargement phase. Interestingly, the highest expression of SPS1 and SPP1 was found at these growth stages (heading and 14 dpa) (Table 3). This suggests that sucrose metabolism in wheat pericarps may be regulated through a sugar sensing mechanism as reported by Koch et al. (1996) and Baxter et al. (2003). The higher expression of both SPS1 and SPP1 may reveal the increased sucrose synthesis in the wheat pericarp which then leads to higher C assimilation. Our results showed that biomass accumulation after heading mainly takes place in wheat spikes. Thus, the sucrose generated at wheat pericarps may be exported to the wheat endosperm. This suggestion is supported by the greatest biomass accumulation of wheat spikes commencing during the grain enlargement phase in all our wheat genotypes. Because of the strong interdependence of SPP and SPS, Echeverria et al. (1997) suggested that both SPP and SPS act together as a multienzyme complex in sucrose metabolism.

In a photosynthetic organ, sucrose is metabolised by either sucrose invertase to fructose and glucose or by SUS to UDP-glucose (Jiang et al. 2015). In general, higher SUS activity can be seen in source tissues. However, increased biomass production and/or sucrose content was reported in switchgrass (Panicum virgatum), tobacco (Nicotiana tabacum L.), cotton (Gossypium hirsutum L.) and poplar (Panicum virgatum) due to overexpression of SUS (Coleman et al. 2006; Coleman et al. 2009; Jiang et al. 2012; Poovaiah et al. 2015). Furthermore, phenotypic changes were exhibited in plants in which SUS was downregulated (Craig et al. 1999; Ruan et al. 2003). Consistent with this proposition, in the current study, the pericarps of the three wheat genotypes exhibited increased expression of SUS1 during the grain enlargement phase; the phase which displayed the highest C assimilation and increase in biomass. This may also occur because during the grain enlargement phase, wheat grains exhibit more sink activities such as starch and amino acid biosynthesis. To facilitate these sink activities, sucrose cleavage has to be increased, and this is supported by the higher SUS1 expression at grain enlargement phase in wheat pericarps. The products of sucrose cleavage in the wheat pericarp are then translocated to the wheat grain.

Data from this study as well as in other reported studies suggest that sucrose metabolism in wheat is influenced by the genotype, growth stage and organ type. Moreover, sucrose metabolism in wheat pericarps may have a major role in wheat grain filling and, thereby, influence total yield. More research in this area is important to elucidate the complete mechanism of sucrose metabolism in wheat pericarps and understand its potential to increase crop yield.

The biological capacity for carbon assimilation in spikes and flag leaves of wheat are generally similar during late grain filling, although flag leaves displayed significantly higher rates from early to mid-grain filling. For the three genotypes, the net spike photosynthesis aligned with the spike weight at each growth stage. Transcript abundance of rbcS and rbcL, N contents and C assimilation in wheat pericarps and flag leaves revealed that pericarps and flag leaves act differently during Rubisco biosynthesis. Finally, the expression of key genes associated with sucrose metabolism revealed genotypic, site-specific and temporal influences on sucrose metabolism in wheat and the influence of the metabolites of sucrose metabolism on gene expression. Interestingly, transcript abundance during sucrose metabolism and photosynthesis in wheat pericarps confirms that metabolic processes of spikes may have a significant role in grain filling and, hence on total yield. However, further research is required to elucidate the site-specific changes in the key metabolic processes such as protein biosynthesis, source and sink balance, photosynthesis, sucrose metabolism and N assimilation along with their interactions to get a holistic understanding of grain filling and, thereby, provide new avenues to improve the yield of future crops.

Supplementary material is available online.

The data that support this study are available in the article and accompanying online supplementary material.

The authors declare no conflicts of interest.

This study was funded by the University of Southern Queensland, Australia.
