Metabolic programming of Rhododendron chrysanthum leaves following exposure to UVB irradiation

Keywords: amino acids, arginine biosynthesis, chlorophyll fluorescence, fatty acids, flavonoids, metabolic profile, organic acids, photosynthesis, Rhododendron chrysanthum, TCA cycle, UVB irradiation.

Plants inevitably encounter unfavourable growth conditions due to their sessile nature. After environmental stresses exposure, plant metabolism is disturbed either because of downregulation of metabolic enzymes, shortage of substrate, increased demand for specific molecules, or a combination of these factors and many other reasons (Jan et al. 2018; Kaya et al. 2019; Rama and Vinutha 2019). Consequently, the plant rearranges the metabolic network to maintain essential metabolism and adopt a new steady-state to adapt to the current stress (Obata and Fernie 2012). The metabolic rearrangement is necessary to meet the demand for anti-stress agents, for example, compatible solutes, antioxidants and stress-responsive proteins (Jan et al. 2018; Kaya et al. 2019; Rama and Vinutha 2019).

It is now widely known that the increased influx of UVB (280–315 nm) irradiation is primarily due to stratospheric ozone depletion (Kusano et al. 2011). High UVB radiation levels cause macromolecules disruption, ROS production, inhibition of photosynthesis and growth reduction (Knox et al. 2019). Plants implement various strategies to combat the UVB stress conditions. From the standpoint of metabolomics, several reports documented that the metabolic rearrangement occurred in plants to minimise the adverse effects of UV-radiation-induced damage in plants (Casati et al. 2011; Dias et al. 2018, 2020). Among all the metabolites, three types of compounds are significant in terms of UVB stress tolerance: (1) ROS scavengers; (2) UVB-absorbing metabolites; and (3) compounds that protect against UVB stress. Plants synthesise various metabolites that help to scavenge the excess ROS generated due to the UVB stress conditions (Ahmad et al. 2010, 2019; Kohli et al. 2019). These metabolites include phenolic compounds, flavonoids, squalene, carotenoids, etc. (Parida et al. 2018; Yadav et al. 2019; Dias et al. 2020). Phenolics like gallic acid, coumaric acid, vanillic acid and hydroxybenzoic acid, induced by UVB exposure, may be associated with the resistance of Arabidopsis thaliana L. to UVB irradiation (Yadav et al. 2019). The flavonoids, including flavonols and anthocyanins, are the primary UVB-absorbing metabolites and ROS scavenger role (Kim et al. 2018; Parida et al. 2018). Quercetin, kaempferol and kaempferol glycosides are the flavonoids associated with UVB tolerance in plants (Berli et al. 2010; Kusano et al. 2011; Demkura and Ballaré 2012; Emiliani et al. 2013; Fasano et al. 2014). The metabolites that also confer UVB protection include lipophilic metabolites, benzoic acid and glucopyranoside (Dias et al. 2018; Yadav et al. 2019; Dias et al. 2020). The concentrations of long-chain alkanes (palmitic acid, oleic acid and oleamide) increased during UVB irradiation in Olea europaea L. plants (Dias et al. 2018, 2020). In addition, soluble sugars, mannitol and myo-inositol also combat the UVB stress by providing energy for metabolic re-establishment (Dias et al. 2020).

Despite these vital roles of metabolic regulation under UVB irradiation, our understanding of this mechanism is still fragmented. Rhododendrons (Rhododendron chrysanthum Pall.) is an ornamental plant with high medicinal value (Zhou et al. 2017). Rhododendrons have been used in Asian, North American and European traditional medicine mainly against inflammation, pain, skin ailments, common cold and gastrointestinal disorders (Popescu and Kopp 2013). As mentioned above, the literature investigation did not show any latest information about the effects of UVB irradiation on R. chrysanthum. Therefore, it is necessary to study the mechanism concerning UVB resistance of R. chrysanthum plants.

Exploring the mechanism concerning stress resistance requires an in-depth knowledge of plant biological processes that enable plants to survive in stressful environments, and this knowledge can be obtained from ‘omic’ studies (Abdelrahman et al. 2018). Metabolomics is the study of metabolism globally, thus representing the absolute physiological state (Rama and Vinutha 2019). Plant metabolomics has become a potent tool to study the metabolic and molecular mechanisms regulating stress responses of the plant (Hong et al. 2016; Xie et al. 2021). In addition, the chlorophyll (chl) fluorescence is a decisive parameter for assessing the properties of the photosynthetic apparatus, a major target of UVB (Machado et al. 2017; Lyu et al. 2019).

This study aimed to demonstrate the differential accumulation of metabolites in R. chrysanthum plants under UVB stress conditions and the involvement of those metabolites in different pathways concerning UVB tolerance in R. chrysanthum. To achieve this objective, we employed a gas chromotography time-of-flight mass spectrometry (GC-TOFMS) for the first time to identify metabolites from the leaf tissue of well-irradiated and UVB-stressed R. chrysanthum plants.

Rhododendron chrysanthum Pall. was collected at altitudes between 1300 m and 2650 m on the Changbai Mountain. After transport to the laboratory, the plants were maintained in an artificial climate room simulated alpine environment (Lyu et al. 2019). The plants were grown in an artificial climate room at 18°C (14-h light)/16°C (10-h dark) under white fluorescent light at 50 μmol (photon) m⁻² s⁻¹, with 60% of relative humidity.

UVB stress was imposed on 8-month-old seedlings by adding UVB radiation supply for 8 h per day. A set of well-irradiated plants served as a control. Metabolic profiling and chl fluorescence were measured after 2 days of the UVB stress imposition. Artificial radiation of UVB (295–315 nm) and PAR (400–700 nm) used in the present study are the same as that described previously (Lyu et al. 2019). Briefly, seedlings of R. chrysanthum were exposed to artificial radiation of UVB and PAR in replicates (n = 6). A 295-nm long-pass filter (Edmund, Filter Long 2IN SQ, NJ, USA) was placed over the culture bottle in UVB treatment. A 400-nm long-pass filter (Edmund) was placed over the culture bottle in control. Based on the transmittance function of the long pass filters, the irradiances of UVB treatment and PAR effectively received by the samples were: 2.3 W m⁻² UVB and 50 μmol (photons) m⁻² s⁻¹ PAR, measured with UV rays intensity metre (Sentry Optronics Corp., ST-513, China) and light metre (TES Electrical Electronic Corp., TES-1339 Light Meter Pro., China), respectively.

chl fluorescence was measured as described previously (Lyu et al. 2019). Induction curves were obtained by using the Maxi version of an IMAGING PAM M-series (Walz, Effeltrich, Germany). The dark period of the samples was set for 20 min before measurements. Quantum efficiencies were calculated as follows: (1) maximum quantum yield of PSII (F_v/F_m); and effective quantum yield of PSII (φ_PSII). The equation was as follows: , where the meaning of each parameter was given in the abbreviation section of this article.

Plant samples with six biological repetitions were frozen in liquid nitrogen. Each group had six biological repetitions (e.g. six independent individuals) for screening statistically significantly differentiated metabolites among groups. The untargeted metabolomics profiling was performed on the XploreMET platform (ver. 3.0, Metabo-Profile, Shanghai, China). The sample preparation procedures and the instrument settings are the same as those described previously (Qiu et al. 2014; Tang et al. 2020). Briefly, after derivatisation, each sample was analysed via GC-TOFMS system (Pegasus HT, Leco, USA) with gas chromatography (7890B, Agilent, USA) and a sample MPS2 with dual heads (Gerstel, Muehlheim, Germany). More details were provided in the Supplementary file, available at the journal website.

Metabolite annotation was carried out by comparing the retention indices and mass spectral data with those in the JiaLib metabolite database using the XploreMET software (ver. 3.0, Metabo-Profile). The peak area given here was relatively quantified data obtained by integrating the chromatographic peak for each metabolite.

The metabolic pathway enrichment and the critical metabolic networks determination were performed using a proprietary hypergeometric algorithm of the XploreMET software (ver. 3.0, Metabo-Profile). A P-value < 0.05 was regarded as significantly different, and the importance of the metabolic pathway was used to evaluate the impact value (Tang et al. 2020).

The new feature of XploreMet 3.0 provides the metabolite ratios with biological significance. The ratios of the two adjacent metabolites from the specific metabolic relation network (KEGG) were calculated. The relationship of metabolite connectivity can be used for indicating metabolite enzyme activity. The ratio >1 means the enhanced enzyme activity, while the ratio <1 denotes inhibited enzyme activity (Rostami-Hodjegan et al. 1996, 1999).

One-way ANOVA followed by the least significant difference (LSD) as a post hoc test was performed using SPSS 16.0 (NY, USA) to test the single effects of control and treatment. In the results, letters were used to identify the levels of significance. The figures were prepared with Sigmaplot 12.5 (Systa Software Inc, Chicago, IL, USA).

Both single-dimensional method (t-test) and multi-dimensional method (OPLS-DA) were used to screen differential metabolites among groups. The single-dimensional method screens differences based on the distribution of a single variable in different groups. OPLS-DA’s VIP focuses on screening features from the overall contribution of the variable to the model, and the selected variable is more vital in the interpretation ability of the y variable (Blasco et al. 2015). Therefore, using a multi-dimensional method, we can sort out the significant variables that are useless by themselves but valid together with others (Guyon and Elisseeff 2003). Consequently, we showed the results obtained from both single-dimensional and multi-dimensional analysis so that readers can have a more comprehensive understanding of the differences of various metabolites.

A Z-score heat map was performed for the data visualisation of overall relationships. Fold change was calculated by the ratio of the mean between pairwise comparisons. A calculated fold change of 1.5 or a P-value of 0.05 was chosen for statistical significance. Statistical algorithms were adapted from the widely used statistical analysis software packages in R studio (http://cran.r-project.org/).

Photosynthetic performance, such as F_v/F_m and φ_PSII, was compared to observe the effect of UVB irradiation on R. chrysanthum. chl fluorescence was measured using an IMAGING PAM. Results showed that both F_v/F_m and φ_PSII were significantly decreased after UVB irradiation, reducing by 7.95% and 8.36%, respectively (Fig. 1). No statistical difference was observed in the chl content, total chl or chl a/b, and in carotenoids content (data not shown).

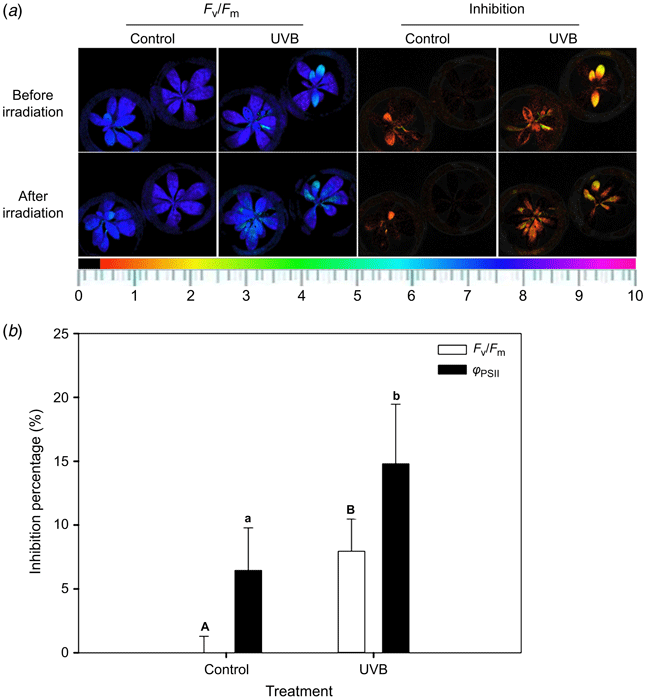

Fig. 1.  Change in chlorophyll fluorescence in control and UVB-treated R. chrysanthum leaves. (a) Images of photosynthetic performance (F_v/F_m and inhibition). (b) Inhibition percentage of maximum quantum yield (F_v/F_m) and that of effective quantum yield (φ_PSII). The difference between absolute values obtained before and after treatment divided by the absolute value obtained before treatment is the inhibition percentage. Data are the means of six biological repetitions (±s.d.). Means labelled with the same letter did not significantly differ at P < 0.05 according to LSD.

Our previous study has shown that the inhibitory effects of UVB were dose-dependent, and the range of photosynthetic capacity in R. chrysanthum is ranked as follows: 48 h of UVB dose < R. chrysanthum plant < 72 h of UVB dose (Lyu et al. 2019). Therefore, a 48 h fixed time was chosen to test the UVB radiation effect on R. chrysanthum in this study.

A non-targeted GC-TOFMS approach was employed for the first time to determine the differential metabolites from the leaves of control and UVB-treated R. chrysanthum plants.

The metabolomics approach in this study detected 404 peaks, of which 204 were identified as known metabolites (40 including metabolite ratios), and the remaining peaks were unknown metabolites. Metabolites were highly measurable and reproducible among the six analysed biological replications under the two different conditions. The identified metabolites belong to the 14 classes – amino acids, organic acids, carbohydrates, fatty acids, nucleotides, lipids, flavonoids, alcohols, vitamins, alkylamines, aldehydes, phenols, hormone and indoles.

Metabolic profiles of the individuals from the two conditions (UVB and control) were further differentiated using the OPLS-DA model (Fig. 2). The first OPLS component (PC1) explained 10.4% of the total variation, whereas the second component (PC2) explained 9.34% variation across the data set (Fig. 2a). Two distinct groups associated with the UVB and control samples distinguished metabolite accumulation under two conditions (Fig. 2a). Permutation testing was performed to validate the classification model (Fig. 2b). A significance threshold of 0.4 is generally accepted for Q2Ycum. The model has Q2Y = 0.125, indicating a valid model (Fig. 2b).

Fig. 2.  Visualisation of overall metabolite profile difference in control and UVB-treated R. chrysanthum leaves. (a) OPLS-DA discriminate score plot 1P + 1O; R2Y = 0.991, Q2Y = 0.32. (b) 1000 permutation test intercept of Q2 in the y-axis is 0.125. Each group had six biological repetitions.

The effect of UVB irradiation on metabolic arrangement becomes evident from the differential contribution of metabolites in R. chrysanthum plants under control and UVB irradiation (Fig. 3). Among the 14 classes of metabolites identified, carbohydrates, organic acids and lipids were predominant (15–45%) in the two samples examined (Fig. 3). Percent flavonoids, organic acids and amino acids showed higher values in UVB-irradiated leaves, increasing by 62%, 22% and 5%, respectively. On the contrary, percent lipids, fatty acids, carbohydrates and nucleotides showed lower values in UVB treatment, decreasing by 4%, 5%, 9% and 16%, respectively.

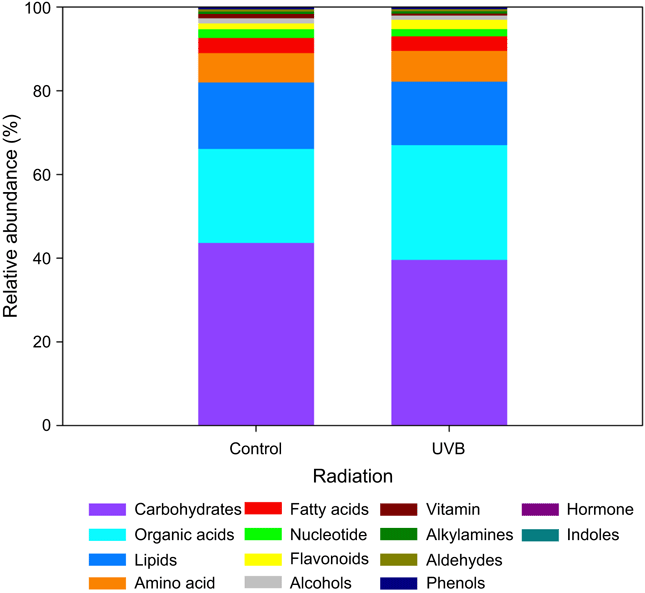

Fig. 3.  Relative contribution of 14 classes of metabolites in control and UVB-treated R. chrysanthum leaves.

To demonstrate the important metabolites responsive to the UVB irradiation, univariate and multivariate statistical analyses, namely student t-test and OPLS-DA, were performed (Tables 1 and 2). The two methods showed quite similar results, identifying the same metabolites. UVB irradiation caused about 1.18-fold increase in 11 top-ranked metabolites identified: five organic acids (d-2,3-dihydroxypropanoic acid, maleic acid, glyceric acid, fumaric acid and suberic acid), four amino acids (l-norleucine, 3-oxoalanine, l-serine and glycine), and two fatty acids (pelargonic acid and myristoleic acid) (Fig. 4). On the contrary, UVB irradiation led to a more than 0.43-fold decrease in six top-ranked metabolites identified. The decline of UVB-induced metabolites was in the order ketoleucine > galactonic acid > 1-linoleoyl-sn-monoglyceride > l-alanine > 1-(9Z-octadecenoyl)-sn-glycerol > quinic acid (Table 1). These results indicate that organic acids, amino acids, and fatty acids may be related to the UVB defence in R. chrysanthum.

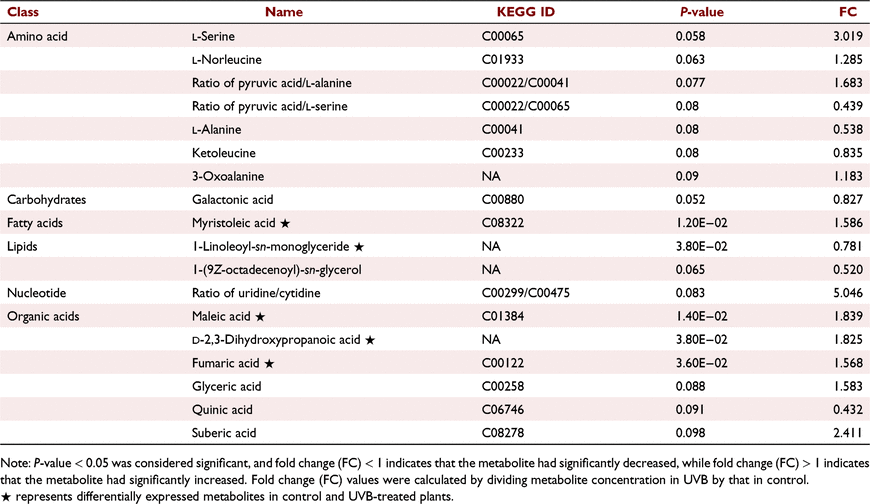

Table 1.  The differential metabolites of R. chrysanthum between control and UVB treatment, obtained from univariate statistical analysis.

Table 2.  The differential metabolites of R. chrysanthum between control and UVB treatment, obtained from multivariate statistics.

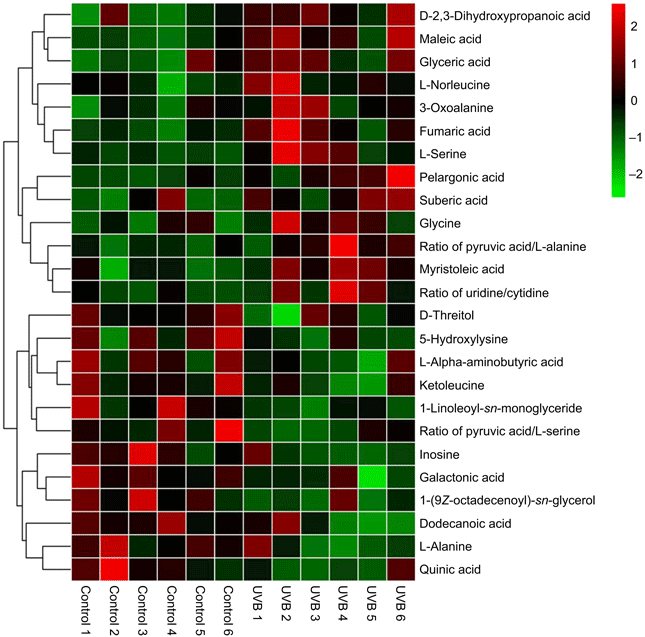

Fig. 4.  Z-score heatmap illustrating the levels of differential metabolites in control and UVB-treated R. chrysanthum leaves. Data are the values of six biological repetitions of each group.

Metabolic Pathway Enrichment Analysis (MPEA) was carried out to sort the metabolic pathways by mathematical algorithms according to the P-value involved. The metabolic pathways involved are shown in Fig. 5. The right side of the dotted line represents the metabolic pathway with P < 0.05. The redder the colour is, the more significant the P-value. Thus, arginine biosynthesis needs to be focused on by observing UVB-dependent regulatory process, followed by the citrate cycle and pyruvate metabolism (Fig. 5; Figs S1–S3).

Fig. 5.  Overview of pathway analyses involved in elevated levels of fumaric acid in R. chrysanthum in response to UVB irradiation. The right side of the dotted line represents the metabolic pathway with P < 0.05. The redder the colour is, the more significant the P-value.

The most considerable difference between control and UVB-irradiated plants was fumaric acid content, indicating that UVB may enhance the activity of argininosuccinase (EC 4.3.2.1) in arginine biosynthesis (Fig. S1). The ratio of pyruvic acid/l-alanine denotes the ratio of product to reactant in arginine biosynthesis and/or alanine, aspartate, and glutamate metabolism (Figs S4 and S5). UVB irradiation markedly increased the ratio of pyruvic acid/l-alanine, indicating that their corresponding enzyme activity (l-alanine:2-oxoglutarate aminotransferase, EC 2.6.1.2) may be enhanced by UVB irradiation (Fig. 6; Figs S4 and S5). UVB elevated the ratio of uridine/cytidine in pyrimidine metabolism (Fig. 6; Fig. S6). This indicates that UVB irradiation may enhance the activity of cytidine aminohydrolase (EC 3.5.4.5). In contrast, the ratio of pyruvic acid/l-serine was decreased after UVB exposure. This suggests that UVB irradiation may inhibit the activities of l-serine ammonia-lyase (EC 4.3.1.17) and/or threonine ammonia-lyase (EC 4.3.1.19) in glycine, serine and threonine metabolism and/or in cysteine and methionine metabolism (Fig. 6; Figs S7 and S8).

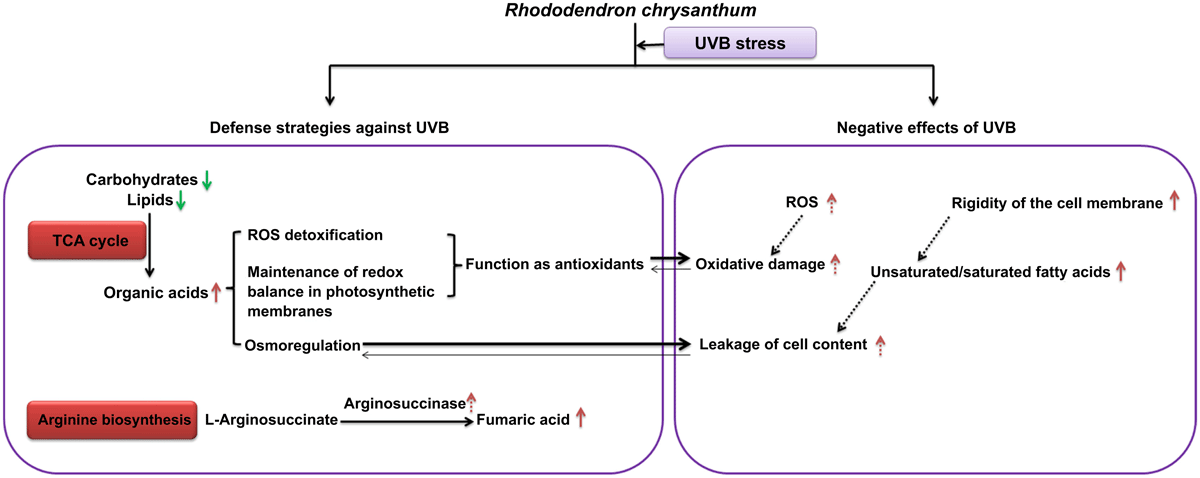

Fig. 6.  The metabolic changes of R. chrysanthum in response to UVB stress. The red arrow represents upregulation. The green indicates downregulation. Two-way arrows represent mutual resistance (the thicker the arrow line, the greater the force). The box filled with red background represents enhancement. The dotted line represents speculation.

Several studies demonstrated that UVB could affect corresponding molecules either directly or by ROS generated during UVB irradiation (Kreslavski et al. 2018). To cope with UVB irradiation, the plant must develop a specific tolerance mechanism. Plants respond to UVB irradiation via the development of protective structures and molecules. The former involves hairs, waxes and other cellular modifications to provide an optical barrier, while the latter includes the synthesis of antioxidative enzymes and increased contents of protective compounds (Hamid et al. 2018; Takshak and Agrawal 2019). A recent report has suggested that tailoring enzymes that catalyse the last step of metabolite synthesis generally make a more significant contribution to the variation of metabolite abundance than early pathway enzymes (Peng et al. 2017). Our results showed that UVB irradiation significantly increased the accumulation of flavonoids, organic acids, amino acids and fatty acids, probably because the activities of tailoring enzymes that catalyse the final step of their biosynthesis varied with treatment. With this in mind, our ongoing research is characterising the tailoring enzymes, thereby helping understand the plant’s defence mechanism against UVB radiation. This will be demonstrated in our future proteomic study.

In this work, UVB irradiation may affect the activities of five enzymes, including argininosuccinase, l-alanine:2-oxoglutarate aminotransferase, cytidine aminohydrolase, l-serine ammonia-lyase and threonine ammonia-lyase (Fig. 6). However, the direct enzyme activity should be measured directly using the biological assays (i.e. ELISA). The next challenge is to characterise the enzymes involved in these pathways, through which the observed changes in metabolic pathways can be linked to the underlying genetic alterations.

Of all the plant secondary metabolites reported, the metabolites of the phenylpropanoid pathway, the phenolics, have been the most widely reported to act as antioxidants (Kasote et al. 2015; Takshak and Agrawal 2019) since this pathway is universal in plants. Numerous phenylpropanoid pathway compounds have been reported to act as antioxidants, including flavonoids, phenolic acids, stilbenes and anthocyanins (Takshak and Agrawal 2019). Here, we showed that the abundance of the flavonoids was increased by 62% after UVB exposure. This may reflect that the abundance of the flavonoids appears to be related to UVB protection. Peng et al. (2017) concluded that the abundance of the flavone O-glucosides might be responsible for adaptation to UVB irradiance. Plants under UV-B had an increased total flavonoid content, as Hamid et al. (2020) found in Cenchrus ciliaris L., because UV-B radiation led to synthesis of key enzymes of the phenylpropanoid pathway.

In this study, UVB irradiation had also considerably increased the accumulation of organic acids, including d-2,3-dihydroxypropanoic acid, maleic acid and fumaric acid. Consistent with this, the increased accumulation of organic acids (i.e. d-2,3-dihydroxypropanoic acid, and maleic acid) under UVB irradiation was reported previously in high-altitude (2000–3400 m) maize (Zea mays L.) leaves (Casati et al. 2011). Organic acids play an important role in osmoregulation, ROS detoxification, and intracellular pH level adjustment (Farooq et al. 2009a, 2009b). Taken together, this could explain why both organic acids and flavonoids showed maximum increases in plants after UVB exposure.

An increase in unsaturated/saturated fatty acids is a prerequisite for membrane rigidity (Hugly et al. 1989; Kramer et al. 1991). UVB irradiation enhanced total unsaturated fatty acids enhanced by 112% in our experiments but reduced saturated fatty acids by 6.24%. Thus, the unsaturated/saturated fatty acids ratio increased to 11% in R. chrysanthum exposed to UVB (Table 3). This implies that the rigidity of the cell membrane altered by UVB irradiation could accelerate the leakage of cell content in R. chrysanthum. The organic acids could alleviate it since they play an essential role in maintaining osmotic pressure (Farooq et al. 2009a, 2009b). An increase in unsaturated/saturated fatty acids with UVB irradiation was probably due to the accumulation of unsaturated fatty acids, especially myristoleic acid. The content of myristoleic acid in mangrove (Rhizophora apiculata Blume) was increased under high UVB irradiances (doses equivalent to 30–40% ozone depletion) (Moorthy and Kathiresan 1998). Except for Moorthy and Kathiresan (1998), no previous study has reported the presence of myristoleic acid in any plant subjected to UVB radiation.

Table 3.  Changes in fatty acid content in R. chrysanthum subjected to UVB radiation.

In this work, UVB irradiation significantly decreased the photochemical efficiency of R. chrysanthum leaves expressed as F_v/F_m and φ_PSII. No statistical difference was observed in the chl content, either total chl or chl a/b, and in carotenoid content. Such results align with the finding of UVB inhibition of PSII independent of chl content in leaves exposed to UVB irradiation (Pfündel 2003; Berli et al. 2010). In addition, the increased organic acids enhance stress resilience in plants by detoxification of ROS (Farooq et al. 2009a, 2009b). Hence, the accumulation of flavonoids and organic acids may protect R. chrysanthum plants against UVB deleterious effects (particularly UVB inhibition of PSII in the present study), probably because organic acids contribute to redox balance in photosynthetic membranes by scavenging excessive ROS.

UVB irradiation increased the intermediates of the arginine biosynthesis and the TCA cycle (Fig. 5; Figs S1 and S2). This suggests that the TCA cycle and arginine biosynthesis in R. chrysanthum were enhanced as a protective mechanism against UVB irradiation. Kim et al. (2012, 2018) demonstrated that the metabolites related to the TCA cycle were enhanced in Melissa officinalis L. subjected to UVB. According to Kusano et al. (2011), the short-term response mainly included rearrangement of primary metabolism, especially increment in the intermediates of the TCA cycle. After that, energy and carbon flux were shifted to aromatic amino acid precursors of the phenylpropanoid pathway as part of long-term protection from UVB irradiation. Similarly, Parida et al. (2018) reported that UV affects mitochondrial respiratory pathways, such as the TCA cycle. A complete mechanical model for the changes in R. chrysanthum induced by UVB was depicted in Fig. 6.

The present study unravelled the protection mechanism of the plant against UVB irradiation. Accumulation of flavonoids, organic acids, amino acids, fatty acids and enhancement of TCA cycle and arginine biosynthesis may protect R. chrysanthum plants against UVB deleterious effects. One possible explanation could be that flavonoids and organic acids are considered to assist the plant in counter excess ROS, and osmotic imbalance caused due to environmental stresses (particularly UVB irradiation in the present study). In addition, increased levels of d-2,3-dihydroxypropanoic acid, maleic acid, fumaric acid and myristoleic acid and decreased levels of 1-linoleoyl-sn-monoglyceride in response to UVB irradiation have not been widely reported. They may serve as metabolite biomarkers for screening for greater UVB tolerance in the plant to develop climate-resilient plant varieties.

Supplementary material is available online.

The datasets used and/or analysed during the current study are available from the corresponding author on reasonable request.

The authors declare no conflicts of interest.

This work was supported by the Department of Finance of Jilin Province, China (grant numbers 2018-1).
