Stable organic radicals and their untapped potential in ionic liquids

Keywords: Blatter, electrochemistry, ionic liquids, nitroxide, polymer composite, radicals, redox active material, verdazyl.

Stable and persistent organic radicals are species that are kinetically and thermodynamically stable despite the molecules possessing an incomplete vacancy. The stabilisation of one or more unpaired electrons in an open shell, results in unique physicochemical (redox, optical and magnetic) properties.^[1] Over 100 years have passed since the first reported persistent radical, yet these species continue to be of relevance to contemporary scientific research with a variety of open shell species stabilised through steric protection or the delocalisation of the spin density as well as non-covalent approaches (Fig. 1).^[2–4] More than a fundamental curiosity, they are routinely used by biologists to determine the rate of diffusion of molecules through a membrane.^[5] Researchers are focused on the production of new radicals,^[6] exploring their fundamental structure and bonding,^[7] as well as the development of these species into functional materials suitable for use in magnetic, electronic, optoelectronic and biological applications.^[8,9] Critical to the advancement of these molecules is the stabilisation of the unpaired electron as well as the fine-tuning of the structure–property relationships towards the intended application.^[4]

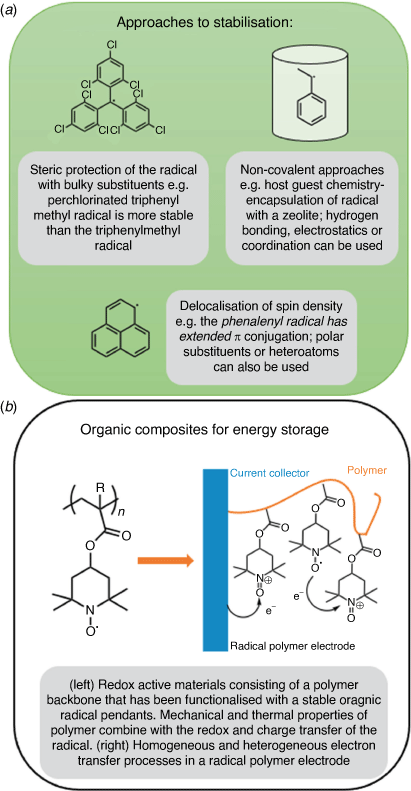

Fig. 1.  (a) Methods for the stabilisation of the open shell in organic radical species include: steric protection (perchlorinated triphenylmethyl radical) and electronic considerations (phenalenyl radical). The use of non-covalent approaches such as host–guest systems is a more recent development in the field. (b) Composite materials such the well known TEMPO-acrylate polymer (poly(2,2,6,6-tetramethylpiperidinyloxy acrylate) where R = H/CH₃) are often of focus for energy storage. The charge transfer processes for an electrode based on a TEMPO composite is also shown.

Life in the modern world requires access to energy at any time or place, which is made possible through portable power technologies. Lithium-ion batteries (LIBs) are the dominant type of such technologies, due to their high cell voltages (~3.6 V), rechargeability, good cyclability and long lifetimes.^[10] Safety and environmental concerns have driven the development of new electrode materials and battery systems. Organic radicals offer a myriad of design choices for energy storage based on their electrochemically active properties.^[9,11–14] These molecules can serve as active electrode materials as a consequence of their susceptibility to both oxidation and reduction processes (Fig. 2).^[15] Their fast kinetics, reversible redox potentials and high charge and discharge rates make these species well suited to mobile power storage. The preparation of LIB alternatives based on redox-active organic and polymer composite materials is an active area of research and, to date, a variety of materials featuring nitroxides, nitroxyl, phenoxyl and hydrazyls have been prepared.^[16] In examples consisting of a non-conducting polymer and radical pendant groups (Fig. 1b), the redox activity and charge transport properties are a result of the open shell moieties. The mechanical and thermal properties of the macromolecule are determined by the polymeric backbone. The TEMPO (2,2,6,6-tetramethylpiperidin-1-yl)oxyl) based system first reported 20 years ago^[17] has become one of the most promising electroactive materials based on stable organic radicals.

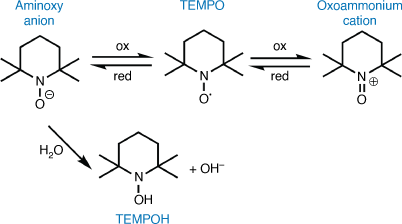

Fig. 2.  The reversible one-electron oxidation and reduction reactions of the commercially available nitroxide radical, TEMPO. Proton transfer to the aminoxy anion is prevalent in traditional solvent systems that contain a proton source (e.g. water). The reaction results in the formation of TEMPOH, terminating the redox process.

The simplest organic battery involves replacing the LIB cathode with a radical macromolecule (cf. LIB uses LiCoO₂) bound to glassy carbon (Fig. 1b).^[11] A poly(2,2,6,6-tetramethylpiperidinyloxy methacrylate) cathode was found to be stable, highly reversible, capable of multiple charge/discharge cycles and have a potential of ~3.6 V (vs Li/Li⁺).^[18] All-organic batteries represent an alternative type of cell in which electrochemically active polymers are employed for both the anode and cathode materials. These cells have potential for application in devices powered by thin-film batteries (Fig. 3). Organic cells have demonstrable performance in terms of their charging speed and cycling stability, although the voltage generated is relatively low (~1 V).^[19,20] However, the possibility of lower cost and higher flexibility justify a small sacrifice in performance. Increased sustainability can be offered via radical pendant polypeptide examples.^[21]

Organic redox flow batteries are an alternative cell type, suited to grid based power storage. The organic radical materials have a similar design to the traditional vanadium flow systems with the anode and cathode materials dissolved into the electrolyte solution.^[22,23] Redox-active monomers have been used directly, with organic radicals being inexpensive, exhibiting redox stability and the capacity to be tuned through functionalisation when compared to vanadium. The most promising candidates are bipolar, whereby a single radical species can be used as both the anolyte and the catholyte.^[24]

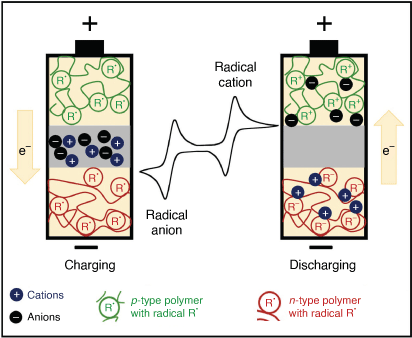

Fig. 3.  Schematic of an all organic battery. Two different stable organic radical polymers are used as anode and cathode active materials.

Regardless of the organic electrode material used, the reactivity of the radical with the electrolyte or other species represents a challenge to the development of these materials in batteries. The irreversibility of the redox reaction and poor stability of the radical or its electrogenerated product is also a significant problem, and is often caused by side-reactions of the radical species and dissolution in the solvent.^[16] It is well known that the reduced form of TEMPO (aminoxy anion) degrades via fast environmental proton transfer (Fig. 2)^[25] and nucleophilic attack^[26] with the decomposition leading to a loss in the reversibility. The inherent instability can be overcome by adding stabilising functional groups, such as trifluoromethyl (–CF₃), to the nitroxide structure.^[27,28] This tailored approach is not necessarily useful in preventing side-reactions (e.g. self degradation and degradation via reaction with the neutral nitroxide radical)^[29] or reducing problems associated with dissolution of the active polymer into standard electrolytes that results in loss of battery charge.^[20] In recent times, ionic liquid (IL) electrolytes have been studied as a more promising generalised approach to resolving these limitations (Fig. 4c). ^[30,31]

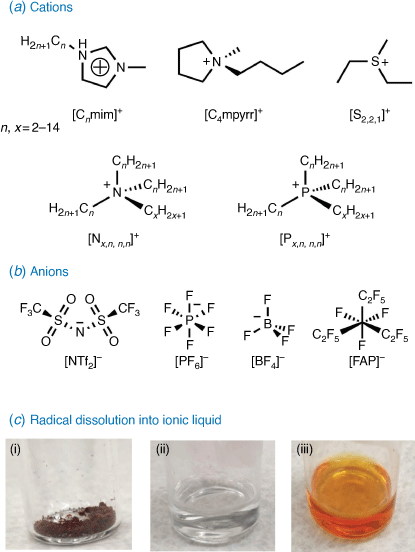

Fig. 4.  (a, b) Examples of common ionic species (cations and anions) used to form ionic liquids. (c) Dissolution of a stable organic radical species in an ionic liquid: (i) 1,5-dimethyl-3-(p-nitrophenyl)-6-oxo verdazyl (ii) neat [C₂mim][NTF₂] and (iii) the dissolved system.

ILs (Fig. 4) are a unique class of solvent well suited to applications in energy storage.^[32,33] They differ from molecular solvents as they consist entirely of ionic species (cations and anions) with a melting point of < 100°C.^[30] ILs are attractive solvents for electrochemistry as the charged ions allow an IL to act as both the solvent and electrolyte in an electrochemical system.^[34] ILs also possess favourable properties such as low volatility, high polarity, high thermodynamic and chemical stability, wide electrochemical windows and structural designability.^[34–36] In the context of organic radical-based batteries, ILs may offer a solution to the poor stability and electrochemical irreversibility of redox species observed in conventional organic solvents.^[30,31,37] ILs may reduce or prevent the undesired dissolution of radical macromolecules at times observed with conventional solvents, as the ionic nature means that they differ substanitally in polarity compared to organic molecules.^[37] Being electrochemically and thermodynamically stable over a wide range of redox potentials makes ILs a suitable medium for reversible reactions.^[38] ILs remain liquid over a wide-range of temperatures^[38] and are stable to decomposition over a large electrochemical window, which minimises side-reactions.^[39] These properties can be optimised by tailoring the combination of IL cation and anion to allow for better reversibility of the dissolved redox system.^[38]

The use of ILs to stabilise organic radicals^[40,41] in spin probes is a well-developed field,^[42] however their application in electrochemically active energy storage materials has received much less attention. Computational chemists have led recent interest into understanding the value of ILs for improving the stability and redox potential in radical composites for organic batteries. We aim to highlight the current state of play in this exciting field and the future directions of this work.

The importance of understanding stabilisation differences between the neutral and charged radical species is becoming prevalent for decreasing the decomposition and improving the cyclability of nitroxide-based batteries.^[43] Recent theoretical studies have highlighted that the propensity of the aminoxy anion to undergo side reactions can be decreased through replacement of the aqueous media with an appropriate IL. ^[44–48] Tailoring the IL, rather than substitution of the nitroxide, can decrease reactivity by increasing diffusion rates,^[44] increasing the redox potential of the nitroxide, 4.7–5.5 eV (cf. 2.2 eV in aqueous media),^[45] and improving reversibility in flow systems.^[25] The choice of IL is crucial because not all ILs are capable of preventing environmental proton transfer. Optimisation of the cation–anion pair can reduce proton transfer to the aminoxy anion. ILs with positive Gibbs free energy values are found to preferentially stabilise the anionic radical compared to hydroxy-TEMPO (TEMPOH).^[25] Specifically, interactions between TEMPO and imidazolium ILs are predicted to be dominated through electrostatics.^[46] The functionalisation of TEMPO influences both solubility and oxidation potential.^[48] However a general trend towards specific ILs that will improve performance across the family has not yet been reported.^[29] In addition to significant computational studies, Wylie and coworkers undertook an experimental investigation into the electrochemistry of three TEMPO analogues in ILs.^[29] Specific focus was on examining the degradation mechanisms known to impact on the aminoxy anion, with the 4-cyano-substituted TEMPO found to exhibit the greatest stability in the reduced form. It should be noted that the constitution of the IL requires optimisation depending on the exact TEMPO analogue.

Related nitroxide alternatives have also been studied, including aqueous-based catholytes such as a nitroxide radical functionalised with an imidazolium cation for aqueous redox flow batteries.^[49] Cathodes based on polymeric ILs with redox-active pendants have also shown promise.^[50] Half cells based on the polyvinylimidazolium backbone bearing TEMPO groups exhibited improved performance in terms of charge capacity and current density.^[51] Heterogenous systems in which the nitroxide radical is dissolved into ILs have been shown to influence localisation of the radical molecule compared to traditional solvents.^[52]

The nature of the radical species is an often overlooked but essential component in the development of radical composite materials. The majority of contemporary examples feature nitroxide-based radicals, which is in part due to the ease with which these species can be prepared from commercial materials.^[6] However, stable nitroxide radicals possess notable deficiencies. Specifically, TEMPO has a strong localisation of charge, which can limit charge transfer and reduce electronic conductivity in the radical polymer system.^[53] Alternative open shell species (Fig. 5) with a high degree of delocalisation could overcome the prevalence of mismatched intermolecular conformations and their use in a conducting polymer system may alleviate and improve this deficiency.^[53]

Fig. 5.  A representation of the singly occupied molecular orbital (SOMO) in verdazyl (a) and Blatter (b) radicals. The stability of the radicals arises from the unpaired electron being delocalised across these MOs. In verdazyls the heteroatoms support a delocalised spin density In the Blatter radical, the SOMO largely resides across the triazine ring. Where X = CH₂, CO or CS and R, R¹ and R² = aryl or alkyl group.

Verdazyl radicals (Fig. 5a) are one example in which the unpaired electron is delocalised in a π symmetry orbital that spans the four nitrogen atoms of the tetrazine ring. They are generally capable of undergoing reversible one electron oxidation and reduction processes. Their redox potentials tend to vary based on the verdazyl type with the 6-oxo analogues generating larger cell voltages (~1.5 V) than the methylene bridge Kuhn verdazyls (~1 V).^[7] The singly occupied molecular orbital (SOMO) is further influenced by functionalisation at N1,5. For example, an inductively withdrawing but resonance donating p-methoxy-phenyl group lowered the oxidation potential when compared to an unsubstituted phenyl analogue.^[7] Spectroelectrochemical methods have been used to investigate the impact of an extended π system at the N1,5 on the redox behaviour.^[54] A preliminary investigation of the cyclic voltammetric behaviour of 1,5-dimethyl-3-phenyl-6-oxoverdazyl in several ILs found that the IL structure influences the reduction process.^[34] Polymer systems with verdazyl pendants have a high degree of redox tunability and have been synthesised via oxidation of a polymethacrylate bearing tetrazine^[55] and post-polymerisation via copper-assisted azide–alkyne cycloaddition (CuAAC) reactions.^[56] In Blatter (benzo[e][1,2,4]triazinyl) radicals, the spin distribution of the SOMO largely resides across the triazine ring, with some smaller elements found in the neighbouring aryl group (Fig. 5b).^[57] Functionalisation of the phenyl group at N1 has been shown to impact the redox potential of the species, as well as functionalisation at C3 or C6 and C7. An electroactive polymer based on Blatter’s radicals has been made via CuAAC.^[58] Only basic electrochemical studies of Blatter radicals and polymers have so far been undertaken.^[59] This delocalised system has been shown to undergo reversible one electron oxidation (10π cation) and reduction (12π anion) processes with a narrow cell potential.^[60,61] Detailed structural relation studies have yet to be undertaken for this radical species.

The development of stable organic radicals for energy storage continues to remain a highly topical field. Increasing the energy density and preventing side reactions that result in decomposition are key challenges. Using ILs to overcome these deficiencies is an established concept, with substantial work on nitroxide-based radicals already reported. Renewed contemporary interest in this area has been driven by computational research. Overcoming irreversibility/quenching of the redox process is essential and, promisingly, ILs are predicted to significantly stabilise the reduction process compared to traditional solvents. However, stabilisation of each nitroxide analogue with an appropriate IL appears to require considerable refinement. Significant work is required for the advancement of this field and to mitigate common failings. The real possibility in this field arguably lies in the employment of materials based on under-utilised stable organic radicals that possess delocalised spin density. Although significant steps have been taken to understand the fundamentals of how ILs can be used to help mitigate some of the common failings, there is still much work needed to understand which combinations of IL cations and anions can best stabilise the radicals, their electrogenerated products, and maximise the physical properties for use in batteries.
