Cation effect on the electrochemical reduction of polyoxometalates in room temperature ionic liquids^†

Keywords: cation, cyclic voltammetry, electrochemistry, ionic liquids, ion-pairing, polyoxometalates, reduction, solvation.

Polyoxometalates (POMs) are ionic metal oxide clusters that consist of so-called hetero atoms such as sulfur, phosphorus and silica, addenda atoms, such as molybdenum and tungsten, and oxygen with a variety of structures. Keggin-type POMs, [XM₁₂O₄₀]ⁿ⁻ (X = S, P, Si, etc.; M = Mo, W) and Wells–Dawson type POMs, [X₂M₁₈O₆₂]ⁿ⁻, have been extensively investigated from fundamental and practical points of view.^[1–4] Fig. 1 shows the polyhedral representation of the structure of (a) Keggin-type, and (b) Wells–Dawson-type POMs. Many POMs can accommodate and release multiple electrons while retaining their structures (e.g. see electrochemical reaction scheme for a typical POM reduction in Fig. 1c). Studies on the electrochemical behaviour of POMs in aqueous solutions, organic solvents and mixed media have provided the following general observations: (1) the acidity of the electrolyte solution greatly affects the voltammetric behaviour of POMs; at each reduction step, a one-electron transfer occurs under neutral conditions where no proton is coupled, whereas a two-electron transfer step occurs under highly acidic conditions.^[5,6] (2) The redox potential for the first reduction process of Keggin-type POMs under neutral conditions is linearly related to the total ion charge and bond length of W–μ₄O where the oxygen is bound to the central (hetero) atom.^[7,8]

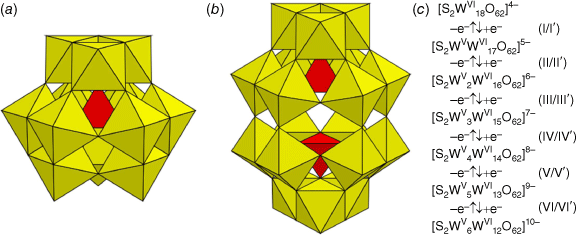

Fig. 1.  (a) Keggin, and (b) Wells–Dawson structures of POMs, and (c) redox transitions for the electrochemical reduction of [S₂W₁₈O₆₂]⁴⁻. Yellow: MO₆ unit (where M = Mo, W). Red: XO₄ unit (where X = Si, P, S).

Room temperature ionic liquids (RTILs) have been widely investigated as combined solvent/salt systems owing to their non-volatility and high conductivity,^[9–13] which are also very important properties for the synthesis and electrochemistry of POMs. The appropriate selection of solvent is one of the key factors required to prepare POMs in high yield and with high selectivity. For example, novel POM [WFe₉(μ₃-O)₃(μ₂-OH)₆O₄H₂O(SiW₉O₃₄)₃]¹⁷⁻ and POM-based metal–organic frameworks (n-Bu₄N)₂[Cu^II(BBTZ)₂(Mo₈O₂₆)] (BBTZ = 1,4-bis(1,2,4-triazol-1-ylmethyl)benzene) have been synthesised in 1-ethyl-3-methylimidazolium bromide ([C₂mim]Br) under isothermal conditions.^[14,15] Even IL-based POMs – which are categorised based on their glass transition temperature (T_g); where T_g < 100°C, they are called POM-ILs, and T_g > 100°C, they are called IL-POMs – have been prepared by simple synthesis methods using large-sized organic cations such as trihexyl(tetradecyl)- or tributyl(hexadecyl)-phosphonium cations, tetra-n-octyl-ammonium cations and imidazolium-based cations.^[16] They exhibit fascinating chemical properties: reversible conversion between the glass phase and the liquid phase, solvent-free catalysis for alcohol oxidation and epoxidation of olefins, anticorrosion and water treatment to remove Cd²⁺ and Pb²⁺.^[16]

Moreover, the electrochemical behaviour of POMs dissolved in RTILs, as well as POMs mechanically attached on the surface of electrodes with RTILs as conductors, has been also investigated to obtain redox potentials and diffusion coefficients. The RTIL solvents studied have been mostly imidazolium cation-based RTILs, in addition to a pyrrolidinium cation and also a distillable liquid [Me₂NH₂]⁺[Me₂N–CO₂]⁻.^[17–19] Because most POMs possess low surface charge density and high symmetry, with no solvent molecule directly bound to the POMs, they are excellent probes to investigate the chemical properties of solvents, similar to tetraphenylarsonium tetraphenylborate, which is used as a reference compound to estimate transfer activity coefficients.^[20] The voltammetric behaviour of Keggin and Wells–Dawson-type POMs has been investigated in various solvents, and the redox potentials for the first reduction process of POMs in various organic solvents are related to their acceptor number (A_N) and polarity (E_T^N).^[8,21–25] This relationship was recently applied to the estimation of A_N and E_T^N for a series of eight imidazolium-based RTILs.^[26]

Despite several papers reporting POM electrochemistry in RTILs,^{[17–19,26–28]} their fundamental electrochemical behaviour is still not fully investigated, especially in terms of understanding the solvation effects arising from RTILs with different chemical structures of cations and anions. RTILs have many different chemical structures, and are well known to have charged interfacial layers that are much more ordered and more dense compared with conventional salt/solvent systems.^[29–31] This could affect the electrochemistry of charged analytes such as POMs (and their reduction products) because they may have different properties when interacting with these denser charged layers. It is vital to understand the detailed electrochemical behaviour of POMs in RTILs because the combination of excellent and specific chemical properties of POMs and RTILs could lead to new research areas and innovations (e.g. for use in electrochromic devices,^[32] excellent catalysts^[33,34] and as anticorrosion reagents).^[35,36]

In this work, the electrochemical behaviour of a Wells–Dawson-type POM ((n-Bu₄N)₄[S₂W₁₈O₆₂]) is studied using cyclic voltammetry in 12 RTILs containing a range of different anions and cations. Measurements of formal potentials and peak-to-peak separations for the different reduction processes will uncover information on the thermodynamics and kinetics of the electron transfer processes. In particular, the nature of the cation is shown to have most effect on the potentials and peak-to-peak separations, revealing solvation effects and ion-pairing of the highly negatively charged reduction products with the positively charged cations. Furthermore, two additional POMs – (n-Bu₄N)₆[P₂W₁₈O₆₂] and (n-Bu₄N)₃[PW₁₂O₄₀] – were briefly studied using the optimal RTIL for [S₂W₁₈O₆₂]⁴⁻ (fastest kinetics, smallest reduction potentials, symmetrical peaks and absence of impurity signals), revealing more negative potentials, but faster kinetics and asymmetric peaks, especially for [PW₁₂O₄₀]³⁻.

The ionic liquids 1-ethyl-3-methylimidazolium bis(trifluoromethylsulfonyl)imide ([C₂mim][TFSI], >99.5%), 1-butyl-3-methylimidazolium bis(trifluoromethylsulfonyl)imide ([C₄mim][TFSI], >99.5%), N-butyl-N-methylpyrrolidinium bis(trifluoromethylsulfonyl)imide ([C₄mpyrr][TFSI], >99.5%), diethylmethylsulfonium bis(trifluoromethylsulfonyl)imide ([S_2,2,1][TFSI], >99%), butyltrimethylammonium bis(trifluoromethylsulfonyl)imide ([N_4,1,1,1][TFSI], >99%), octyltriethylammonium bis(trifluoromethylsulfonyl)imide ([N_8,2,2,2][TFSI], >98%), methyltrioctylammonium bis(trifluoromethylsulfonyl)imide ([N_1,8,8,8][TFSI], >99%), trihexyltetradecylphosphonium bis(trifluoromethylsulfonyl)imide ([P_14,6,6,6][TFSI], >98%), 1-butyl-3-methylimidazolium tetrafluoroborate ([C₄mim][BF₄], >99%), 1-butyl-3-methylimidazolium hexafluorophosphate ([C₄mim][PF₆], >99.5%), 1-ethyl-3-methylimidazolium bis(fluorosulfonyl)imide ([C₂mim][FSI], >98%) and 1-ethyl-3-methylimidazolium bis(pentafluoroethylsulfonyl)imide ([C₂mim][BETI], >98%) were purchased from IoLiTec (Heilbronn, Germany) and used as received. It is noted that attempts to purify the RTILs using standard synthetic work-ups were found to have no effect on the intrinsic impurity features present in the cyclic voltammetry for some of the dried RTILs (discussed later in this work), and that cyclic voltammetry is a very sensitive technique that can be used to monitor impurities. Fig. 2 shows the chemical structures and abbreviations of the cations and anions used in this study.

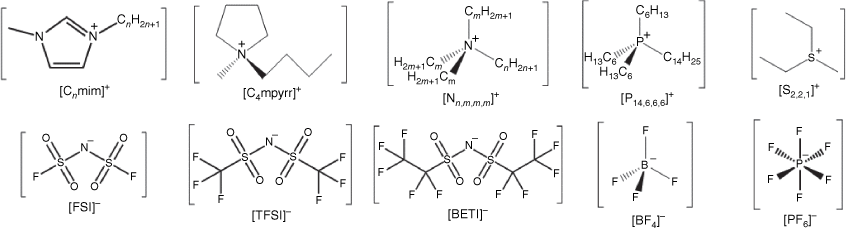

Fig. 2.  Chemical structures and abbreviations of the RTIL cations and anions used in this study.

A 0.5 M sulfuric acid solution was prepared by diluting sulfuric acid (H₂SO₄, 98% w/w, Merck, Kilsyth, Victoria) with ultrapure water (resistance 18.2 MΩ cm, Millipore Pty Ltd, North Ryde, NSW, Australia). Nitrogen gas was obtained from a gas line connected to a 99.99% purity N₂ cylinder from the building’s nitrogen supply. A 4 mM ferrocene solution was made by dissolving ferrocene (>98%, Fc, Fe(C₅H₅)₂, Sigma–Aldrich) in acetonitrile (>99.8%, Sigma–Aldrich). Acetone (>99%, Sigma–Aldrich) was used as received.

The POMs (n-Bu₄N)₄[S₂W₁₈O₆₂], (n-Bu₄N)₆[P₂W₁₈O₆₂] and (n-Bu₄N)₃[PW₁₂O₄₀] were synthesised by standard literature methods.^[23,37,38] All POMs were recrystallised from acetonitrile at least twice before their use in electrochemical measurements.

All electrochemical experiments were performed using a PGSTAT101 Autolab potentiostat (Metrohm Autolab, Gladesville, NSW, Australia) interfaced to a PC using Nova 1.11 software, at laboratory temperature (295 ± 1 K) inside an aluminium Faraday cage to reduce electrical interference. Platinum thin-film electrodes (Pt-TFEs, ED-SE1-Pt) were purchased from MicruX Technologies (Oviedo, Spain). All Pt-TFEs have a 1-mm diameter platinum working electrode (WE), a platinum reference electrode (RE) and a platinum counter electrode (CE) built in. Electrode adapters supplied by MicruX were used to connect the Pt-TFEs to the potentiostat. All Pt-TFEs were electrochemically activated before use by drop-casting 10 µL of 0.5 M H₂SO₄(aq) onto the three electrodes and running cyclic voltammetry (CV) between ~+0.7 and −0.7 V (~100 cycles, 1000 mV s⁻¹) under a slow flow of nitrogen (~100 standard cubic centimeters per minute, sccm). The Pt-TFEs were then rinsed twice with ultrapure water followed by acetone before being dried under a stream of nitrogen.

The POM solid (~1 mg) was placed directly onto the WE using the tip of a small spatula, using the ‘adhered solid’ method.^[39] Then, 5 μL of the RTIL was dropcast to ensure that the electrodes and the POM material were fully covered with the RTIL. The electrode was then placed inside a glass T-cell, and purged with nitrogen (for ~30 min at 500 sccm) to remove impurities that might interfere with electrochemical experiments, such as oxygen, carbon dioxide or water. CV was then carried out to determine the electrochemical reversibility of the POM (n-Bu₄N)₄[S₂W₁₈O₆₂] in different RTILs, and scan rate studies were performed to determine the mass transport mechanism. The two other POMs were also studied using CV in two chosen RTILs. Owing to the unstable Pt pseudo-RE present on the TFE devices, an internal standard of ferrocene (~1 µL from a 4 mM ferrocene solution in acetonitrile) was added directly to the POM/RTIL mixture on the TFE after experiments with the POM were completed, and the acetonitrile was allowed to evaporate under nitrogen (at 500 sccm) for ~20 min. The resulting solution of Fc and POM in the RTIL was scanned over the ferrocene/ferrocenium (Fc/Fc⁺) redox peak and the full reductive window of the POM to determine the reduction potentials of the POMs vs Fc/Fc⁺.

Blank scans (RTIL without the POM) were obtained by dropcasting the RTIL of choice (~5 µL) onto the Pt-TFE such that all the electrodes were fully covered. The electrode was then placed into a glass T-cell and purged under nitrogen (at 500 sccm for ~30 min) to remove atmospheric impurities and CV was recorded for the blank RTIL at a scan rate of 100 mV s⁻¹. As RTILs are known to contain intrinsic impurities that are often redox-active in the potential window,^[40] recording the blank CV was important to determine which redox peaks were arising directly from the POM, and which were from the RTILs. All experiments were performed under a high flow of dried nitrogen (relative humidity level of <1%), which is sufficient to remove voltammetric peaks arising from dissolved oxygen and water.^[40] Although there may still be some water present even in the ‘dried’ RTILs (e.g. ~tens to hundredsof parts per million), there is no evidence of water-induced oxidation or reduction signals in the cyclic voltammograms of the blank RTILs. This observation is important, especially for platinum electrodes, which are known to be more sensitive to water and oxide formation^[41] compared with more inert surfaces such as glassy carbon.

To study the effect of the RTIL cation and anion structures on POM electrochemistry (kinetics and thermodynamics), the POM (n-Bu₄N)₄[S₂W₁₈O₆₂] was first investigated in 12 different RTILs containing a range of different cations and anions (see Fig. 2). Because POMs are known to have limited solubility in RTILs,^[26,28] attempts to dissolve low millimolar concentrations were first made; however, full dissolution was visually observed only in 6 of the 12 RTILs (see supplementary information for details). Therefore, the ‘adhered solid’ method reported by Zhang and Bond^[39] was utilised for the present study in all RTILs for consistency and to enable comparison of the behaviour in all RTILs. This method shows apparent equivalent voltammetry (except for the current magnitude) for species that are dissolved in solution vs adhered to the electrode,^[39] which we also observed for the POMs in this work. Therefore, by attaching solid POM to the electrode, peak potentials and peak-to-peak separations could be more accurately analysed and compared, while also giving sufficient currents to overcome the limited solubility of the POM in some of the RTILs.

Cyclic voltammetry for the electrochemical reduction of the adhered POM (n-Bu₄N)₄[S₂W₁₈O₆₂] was carried out in all 12 RTILs under dry nitrogen over the entire available potential window before the breakdown of the RTIL solvent. In all RTILs, the first two reduction peaks were clearly defined and showed chemically reversible peak shapes. The CVs are presented in Fig. 3; the green curve shows the scans reversed after the first peak, and the red curve shows the scans reversed after the second peak. It can be seen that both electron transfer processes appear to be chemically reversible owing to the presence of an oxidative back-peak after the reduction, with peak shapes relatively symmetric for the forward vs reverse currents, as observed previously for the same POM in RTIL solvents.^[17,26] It is important to note that some of the ILs contained intrinsic impurities that showed redox activity in the reductive potential region, making observation of the additional POM reduction processes after the second reduction peak difficult. This was particularly problematic in the ammonium-based RTILs, where large impurity peaks were consistently observed, noting that the additional oxidation peak that can be seen at ~0.2 V vs Pt in the [N_1,8,8,8][TFSI] RTIL (Fig. 3l) is also present in the blank scan, and was assigned to an impurity. Although all RTILs were purchased from commercial suppliers at the highest purities possible, they often contain intrinsic impurities that are redox active.^[40] Usually, these impurity peaks are much smaller than the analyte signals,^[40] but because of the low solubility of the POM in RTILs, the POM redox peak currents themselves are very small, and appear similar in size to the impurity peaks. These impurities cannot be easily removed, meaning that they can interfere with measuring the redox process of interest. This was also discussed previously by Zhang et al. in their study of POM reduction in the RTIL [C₄mim][BF₄].^[17]

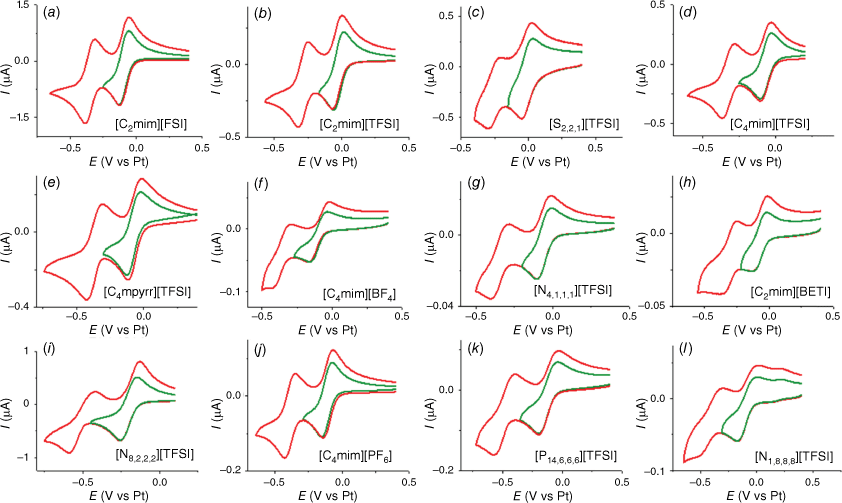

Fig. 3.  Cyclic voltammograms for the first two reduction processes of (n-Bu₄N)₆[S₂W₁₈O₆₂] in (a) [C₂mim][FSI]; (b) [C₂mim][TFSI]; (c) [S_2,2,1][TFSI]; (d) [C₄mim][TFSI]; (e) [C₄mpyrr][TFSI]; (f) [C₄mim][BF₄]; (g) [N_4,1,1,1][TFSI]; (h) [C₂mim][BETI]; (i) [N_8,2,2,2][TFSI]; (j) [C₄mim][PF₆]; (k) [P_14,6,6,6][TFSI]; and (l) [N_1,8,8,8][TFSI] on a Pt TFE (d = 1 mm) at a scan rate of 100 mV s⁻¹.

In six of the RTILs, additional redox processes up to a total of five or six peaks were observed (see Fig. 4, labelled in roman numerals) before the edge of the electrochemical window. In the RTILs [C₂mim][FSI], [C₂mim][TFSI], [C₄mim][TFSI], [C₄mpyrr][TFSI] and [C₄mim][PF₆], a total of six reduction peaks were observed, and five reduction peaks were observed in the RTIL [P_14,6,6,6][TFSI]. It is noted that in [C₂mim][TFSI], [C₄mim][TFSI] and [C₄mim][PF₆], a slightly larger peak current for peak IV was observed at ~−1.1 V vs Pt, which is most likely due to the overlap from small impurity signals that were present in the blank; this does not affect the measurement of the peak potentials and separations for the analysis. Fig. 4 also includes CV scans where the potential is reversed after each reduction peak, to show the reversibility of each process. Generally, the imidazolium and pyrrolidinium cation-based RTILs showed clear reversible reduction peaks. The two RTILs that showed the most ‘symmetrical’ processes for [S₂W₁₈O₆₂]⁴⁻, and were least affected by impurities, were [C₂mim][FSI] and [C₄mpyrr][TFSI]. [C₂mim][FSI] is notably the least viscous RTIL, with a viscosity of ~19 cP,^[42] whereas the RTIL [C₄mpyrr][TFSI] also has a relatively low viscosity (78 cP)^[43] compared with most of the other RTILs in this study.

Fig. 4.  Cyclic voltammograms for six reduction processes of (n-Bu₄N)₄[S₂W₁₈O₆₂] in (a) [C₂mim][FSI]; (b) [C₂mim][TFSI]; (c) [C₄mim][TFSI]; (d) [C₄mpyrr][TFSI]; (e) [C₄mim][PF₆]; and (f) [P_14,6,6,6][TFSI] on a Pt TFE (d = 1 mm) at a scan rate of 100 mV s⁻¹.

To determine the mass transport behaviour, scan rate studies were carried out between 10 and 1000 mV s⁻¹ and the peak current for the first reduction peak was measured at all scan rates in the 12 RTILs (see Supplementary Tables S1–S8, Supplementary Figs S1–S3 for data in all RTILs). Plots of peak I current vs the square root of the scan rate (see Supplementary Fig. S4), according to the Randles–Sevcik equation,^[44,45] were linear for all RTILs, suggesting that the POM undergoes diffusion-controlled mass transport, even though the solid was physically adhered to the surface of the working electrode. This is consistent with the observations made previously by Zhang and Bond,^[39] supporting the method as suitable for studying the reduction potentials and kinetics of electron transfer processes.

An understanding of the redox kinetics for an electron transfer process can be inferred from measuring the peak-to-peak separation (ΔE_p), which is calculated from the potential difference between the reduction and oxidation peak potentials, |E_p^red – E_p^ox|. In conventional solvent/electrolyte systems, an ideal fast reversible one-electron redox process has a ΔE_p close to 59 mV (Butler–Volmer equation),^[45] but this value is known to be highly dependent on various factors, including the nature of the electrode surface (e.g. Pt, Au, glassy carbon), oxide formation, temperature, uncompensated resistance (iR drop) and inner-sphere vs outer-sphere reaction mechanism. In RTILs, ΔE_p for an ‘ideal’ redox couple, Fc/Fc⁺, is usually larger than 59 mV, and has been reported to increase with scan rate and concentration.^[46] For example, on a Pt TFE, ΔE_p for Fc/Fc⁺ (3 mM concentration of Fc) in RTILs is between 78 and 98 mV in the 12 RTILs at 100 mV s⁻¹ (third column in Table 1), and does not appear to depend on solvent viscosity, despite an order of magnitude difference in the diffusion coefficient of Fc from the least to the most viscous RTIL.^[47]

Table 1.  Peak-to-peak separations (ΔE_p) for the ferrocene/ferrocenium (Fc/Fc⁺) redox couple, and the redox processes of the POM [S₂W₁₈O₆₂]⁴⁻ on a Pt-TFE in 12 RTILs.

Table 1 also shows the ΔE_p for all the visible POM reduction peaks shown in Figs 3, 4 on a Pt TFE. The peak-to-peak separation data for the POMs (peak I/I′, 76–198 mV) are found to be much more variable than for Fc/Fc⁺ as the RTIL structure is changed, suggesting some dependence on solvation, which is more than just a viscosity/diffusion coefficient effect. The smallest peak-to-peak separation (i.e. the fastest kinetics) for the first reduction process (labelled I/I′) is observed in the RTILs [C₂mim][FSI] and [S_2,2,1][TFSI]. Although these are two of the least viscous RTILs, there does not appear to be a systematic trend in the peak-to-peak separations with increasing viscosity, as shown in Table 1. However, comparing [C₂mim]⁺ RTILs, when increasing the chain length and the number of fluorinated groups on both sides of the bis(sulfonylimide) by varying the anion from [FSI]⁻ to [TFSI]⁻ to [BETI]⁻, ΔE_p increases for the first two redox couples. Another trend is observed for the ammonium-based RTILs with a common [TFSI]⁻ anion, where the addition of alkyl groups from [N_4,1,1,1]⁺ to [N_8,2,2,2]⁺ to [N_1,8,8,8]⁺ increases the bulkiness of the cation and viscosity of the RTIL, resulting in an increase in ΔE_p. It is also possible that the longer fatty chains (which also shield the cationic charge) improve preferential adhesion onto the WE surface, which could in turn increase ohmic drop and result in a larger ΔE_p.

Fig. 5 shows a plot of the ΔE_p values for successive redox couples in the six RTILs where multiple peaks were observed. Consistent with previous literature,^[25] a general trend of progressively increasing ΔE_p is observed in most RTILs as the reduction proceeds. The exception is the RTIL [P_14,6,6,6][TFSI], where a wide ΔE_p close to ~200 mV was observed for the first three redox processes, which then decreased to ~150 mV for the fourth and fifth reduction. Unusual behaviour for the same cation has been documented multiple times previously,^[47,52,53] and is thought to be related to its structure, which has a central positive charge surrounded by long and flexible carbon chains. This makes the solvation of negatively charged analyte species much more difficult owing to steric hindrance at the charged centre, resulting in slower kinetics compared with the more freely accessible charges on the imidazolium and pyrrolidinium cations. Comparing the different cation structures, the general trend observed in ΔE_p for the first reduction process is: imidazolium < pyrrolidinium < phosphonium, the same as was observed for 2,4,6-trinitrotoluene reduction.^[48] This suggests that cation solvation effects play an important role in the reduction of negatively charged species such as POMs. To compare with a conventional solvent/salt system, ΔE_p for the first two processes of (n-Bu₄N)₄[S₂W₁₈O₆₂] on a Pt electrode in acetonitrile (+0.5 M [n-Bu₄N][PF₆] supporting electrolyte) was reported to be 68 and 90 mV for I/I′ and II/II′, respectively,^[25] which is similar to some of the less viscous RTILs in the present study. The other peaks in acetonitrile were reported to be poorly defined on a Pt electrode, or overlapping with the solvent reduction process,^[25] demonstrating the clear advantage of using RTILs for observing the multiple reduction processes at more accessible potentials.

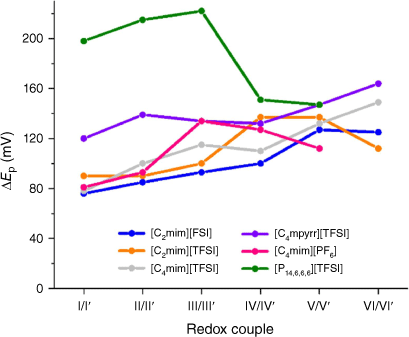

Fig. 5.  Plot of peak-to-peak separations (ΔE_p) for the six redox processes of [S₂W₁₈O₆₂]⁴⁻ in six different RTILs at a scan rate of 100 mV s⁻¹.

In order to assess the thermodynamics of the reduction processes, the mid-point potentials, E_mid = (E_p^red − E_p^ox)/2, were measured for all visible peaks in the 12 RTILs, as shown in Table 2. Mid-point potentials (rather than reduction peak potentials) for the POM transitions were used to assess the thermodynamics without the effect of the different heterogeneous electron transfer kinetics in the RTILs. Ferrocene was added in situ to the POM/RTIL solution, and the potentials were shifted so that the midpoint of the Fc/Fc⁺ redox couple was at 0 V. Ferrocene is commonly used as a reference potential scale in RTIL solvents.^[54,55]

Table 2.  Reduction mid-point potentials (E_mid) for the POM [S₂W₁₈O₆₂]⁴⁻ in different RTILs on a Pt electrode.

The E_mid values reported in Table 2 compare very well with other previously reported reduction potentials for similar POMs in RTILs,^[17,26] noting that these experiments were performed on different electrodes, so some variation is expected. Interestingly, the E_mid values in the 12 RTILs are ~200 mV less negative than previously reported in a conventional solvent system (acetonitrile + 0.5 M [n-Bu₄N][PF₆]), which were −0.233 and −0.606 V vs Fc/Fc⁺ for I/I′ and II/II′, respectively.^[25] The difference in reduction potential was assigned to the different polarity of the solvents by Rahman et al.,^[25] with the most negative E_mid values observed in the least polar solvent studied, dichloromethane, and the least negative E_mid observed in the most polar solvent, water. The E_mid values observed in RTILs both in our study and in a previous study by Zhang et al.^[17] are comparable with those in water. However, the much wider available potential windows of RTILs compared with water allow the observation of the multiple reduction processes, again supporting the use of RTILs as favourable solvents for observing POM reduction processes.

The mid-point potentials in the 12 RTILs range from +67 to −34 mV, but there appears to be no clear trend with increasing viscosity or with cation or anion structure. However, the trends become more visually clear when all six reduction processes are plotted together (see Fig. 6). Whereas the first reduction process (I/I′) at potentials close to zero has ~100 mV variation, by the fifth and sixth reduction processes, these differences are as high as ~500 mV (cf. [C₂mim]⁺ cation vs [P_14,6,6,6]⁺ cation for V/V′). In fact, the reduction potential for the VI/VI′ process in [P_14,6,6,6][TFSI] is so significantly more negative that it is out of the range of the available potential window, explaining why only five processes are observed in this RTIL. Fig. 6 therefore clearly shows that the differences in cation solvation are much more evident as the POM becomes more negatively charged. E_mid data for the [S_2,2,1]⁺ and [N_4,1,1,1]⁺ cations have also been included in Table 2 in parentheses, but these peaks had some overlap with impurity signals (see CV scans in the Supplementary Fig. S5). However, these data provide important information showing that the trend in voltage response with respect to cation structure follows [C₂mim]⁺ < [C₄mim]⁺ < [S_2,2,1]⁺ ≈ [N_4,1,1,1]⁺ < [C₄mpyrr]⁺ < [P_14,6,6,6]⁺, with imidazolium RTILs clearly the best choice for observation of higher-order reduction processes at lower potentials.

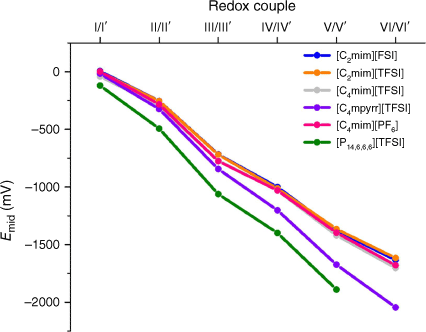

Fig. 6.  Plot of mid-point potentials (E_mid) for the six redox processes of [S₂W₁₈O₆₂]⁴⁻ in the six RTILs that showed multiple successive peaks.

Because of the low solubility of the POM in the RTILs, it was not possible to accurately calculate diffusion coefficients using the Shoup and Szabo^[57] method. However, diffusion coefficients have been previously estimated for POMs in RTILs, and are typically very small, e.g. ~0.6 × 10⁻⁸ cm² s⁻¹ in [C₄mim][PF₆],^[18] close to the self-diffusion coefficients of the ions of the RTIL.^[58] The ratio of the diffusion coefficient of the oxidised and reduced species can affect the mid-point potential according to the following equation:^[59]

where E₀ is the formal potential, R is the universal gas constant, T is the temperature, F is Faraday’s constant and D_B and D_A are the diffusion coefficients of the reduced and oxidised POM species, respectively. It is usually assumed that D_B and D_A are equal,^[59,60] but a ~30× difference was observed between the oxygen/superoxide (O₂/O₂˙⁻) redox couple in an ammonium cation-based RTIL.^[61] Such a large variation, however, is not expected for the POM and its reduction product, because of the more similar surface charge densities of [S₂W₁₈O₆₂]⁴⁻/[S₂W₁₈O₆₂]⁵⁻ compared with O₂/O₂˙⁻. However, we performed a simulation with DigiSim using a 10× difference in diffusion coefficient, and observed only a ~30 mV shift in E_mid. This gives us confidence that the much larger shifts in E_mid between the different RTILs (Fig. 6) mostly arise from different solvation effects from the RTIL cations, even if the ratio of D_A and D_B varies in some of the RTILs.

To gain further knowledge on the electron transfer of POMs in ionic liquids, two other phosphorus-based POMs were studied in the most optimal RTIL (fastest kinetics and lowest reduction potentials) found from the first POM, which was [C₂mim][FSI]. The POMs studied were the phosphorous Wells–Dawson-type (n-Bu₄N)₆[P₂W₁₈O₆₂], and the Keggin-type (n-Bu₄N)₃[PW₁₂O₄₀] POM. As seen in Fig. 7, CVs for [P₂W₁₈O₆₂]⁶⁻ reduction showed a total of six peaks, whereas [PW₁₂O₄₀]³⁻ gave only four reduction peaks. A plot of peak current vs the square root of scan rate for the first reduction peak of [P₂W₁₈O₆₂]⁶⁻ was linear (see Supplementary Fig. S6), suggesting diffusion-controlled behaviour for the first process. However, this plot was slightly curved for the Keggin-type [PW₁₂O₄₀]³⁻ POM (Supplementary Fig. S7), suggesting that more complicated mass transport mechanisms are occurring.

Fig. 7.  Cyclic voltammograms for the reductions of the POM (a) (n-Bu₄N)₆[P₂W₁₈O₆₂], and (b) (n-Bu₄N)₃[PW₁₂O₄₀] in [C₂mim][FSI] at 100 mV s⁻¹.

For this POM, there was also noticeable asymmetry seen in the reduction/oxidation peaks. Behaviour similar to this for oxygen reduction was previously reported on microdisk electrodes, where the voltammetry displayed both steady-state and transient wave shapes on the same scan, which was assigned to dramatically different diffusion coefficients (a factor of 30) for the two species (oxygen/superoxide) involved in the redox couple.^[61] However, attempts to simulate the POM voltammetry using the digital simulation program DigiSim on the macrodisk-sized electrodes (1-mm diameter) did not yield the same-shaped peaks, even with two orders of magnitude difference in diffusion coefficient (D), suggesting that the discrepancy in D is not the reason for this unusual shape. Attempts were also made to vary other parameters in the DigiSim program, such as concentration, transfer coefficient, scan rate and electron transfer rate constant, but none of these gave the desired asymmetric peak shape. However, changing the boundary conditions from ORB (open to the bulk solution) to BRB (blocked from interacting with the bulk solution) resulted in similar shaped voltammetry (see Supplementary Fig. S8 for more details). This could imply that this POM exhibits some degree of adsorption behaviour, which is not unexpected because the material is physically attached to the electrode, and this is consistent with the scan rate studies. Additionally, because of the much denser ion structuring at the RTIL/electrode interface, there may be some ‘adsorption’ into the interfacial charge layers, which could slow the movement of the electrogenerated product and produce the asymmetric peak shape. The Keggin-type POM was noticeably less soluble than the other two Wells–Dawson POMs in this RTIL, suggesting that it would preferentially remain adsorbed on the electrode surface (or near the interfacial layers), rather than dissolve into the solvent. This observation warrants further investigations in follow-up studies for this POM, but is out of the scope of the current work.

Table 3 shows the peak-to-peak separations (ΔE_p) and the mid-point potentials (E_mid) for the six reduction processes of [P₂W₁₈O₆₂]⁶⁻ and the four reduction processes of [PW₁₂O₄₀]³⁻. ΔE_p was slightly variable between the POMs, with the Keggin-type POM exhibiting faster kinetics for the electron transfer process. However, the E_mid potentials were significantly more negative for the phosphorus POMs, indicating that the successive reduction processes were more thermodynamically difficult. These values are plotted in Fig. 8 to visually show the differences. In Fig. 8a, ΔE_p increases or remains steady on successive electron additions for the phosphorus POMs. Overall, they all exhibit relatively fast kinetics in this IL in relation to other species in RTILs.

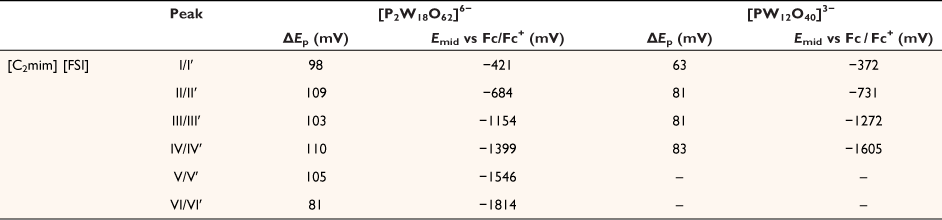

Table 3.  Peak-to-peak separations (ΔE_p) and midpoint potentials (E_mid) for the redox peaks of the POMs [P₂W₁₈O₆₂]⁶⁻ and [PW₁₂O₄₀]³⁻ in the RTIL [C₂mim][FSI] at 100 mV s⁻¹.

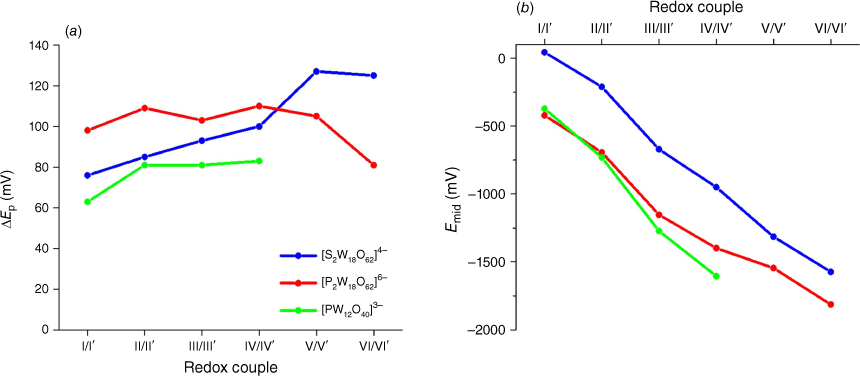

Fig. 8.  Plot of (a) peak-to-peak separations (ΔE_p), and (b) mid-point potentials (E_mid) for the redox peaks of the three different POMs in the RTIL [C₂mim][FSI] at a scan rate of 100 mV s⁻¹.

E_mid for [P₂W₁₈O₆₂]⁶⁻ vs [S₂W₁₈O₆₂]⁴⁻ is ~ 450 mV different for the first reduction process (I/I′), but this difference decreases to ~240 mV for peak VI/VI′ (Fig. 8b), suggesting better solvation of the more negatively charged phosphorus species (up to 10 negative charges) as the reduction proceeds. Interestingly, the reduction potentials for the Keggin-type [PW₁₂O₄₀]³⁻ are ~400 mV more negative compared with [S₂W₁₈O₆₂]⁴⁻, even though the charges on the species are similar (3– vs 4–). The progression of the reduction potentials follows a similar trend for the two POMs and explains why only four peaks were observed in [PW₁₂O₄₀]³⁻ because the edge of the potential window in the RTIL was already reached after the fourth reduction in [PW₁₂O₄₀]³⁻. It is noted that the potentials are similar to those reported by other researchers for the same POM compounds in RTILs.^[19,27,28]

The reduction of the [S₂W₁₈O₆₂]⁴⁻ POM was studied in 12 different ILs with a range of different anions and cations. All RTILs showed reversible reduction processes corresponding to successive one-electron additions, but some RTILs contained intrinsic impurities that made analysis after the second peak difficult. Where multiple reduction processes were visible, obvious trends in both the kinetics and thermodynamics were observed on varying the cation. Smaller peak-to-peak separations (faster kinetics) and lower energy barriers to reduction (smaller reduction potentials) were observed when the RTIL cation was an imidazolium, followed by ammonium ≈ sulfonium, pyrrolidinium, then phosphonium. This suggests strong solvation and ion-pairing effects of the RTIL cation with the negatively charged POM reduction products. The RTIL that showed the fastest kinetics and lowest reduction potentials, ([C₂mim][FSI]), was also used to study two phosphorus POMs, which both showed fast kinetics, but much more negative reduction potentials (by ~450 mV). Overall, this work shows that both the RTIL and the POM structures can result in differences in the kinetics and the thermodynamics of the electron transfer processes, and this should be considered when employing both of these promising materials for relevant electrochemical applications.

Description of the dissolution of POMs and their limited solubility in the different RTILs; data tables for peak-to-peak separations and reduction peak potentials for [S₂W₁₈O₆₂]⁴⁻ for all visible peaks in the 12 RTILs; cyclic voltammetry at different scan rates for five or six peaks in the RTILs, for the first two peaks and the first process, respectively, along with plots of peak current vs the square root of scan rate for the first reduction process for [S₂W₁₈O₆₂]⁴⁻ in all 12 RTILs; cyclic voltammetry at different scan rates for all visible peaks for [P₂W₁₈O₆₂]⁶⁻ and [PW₁₂O₄₀]³⁻ in the RTIL [C₂mim][FSI], along with plots of peak current vs the square root of scan rate for the first reduction peak; cyclic voltammetry in the sulfonium and an ammonium ionic liquid that overlapped with impurity peaks; digital simulation attempt to model the cyclic voltammetry for the four reduction processes of [PW₁₂O₄₀]³⁻ in [C₂mim][FSI]. This information is available on the Journal’s website. Supplementary material is available online.
