Influence of Crystal Disorder in MoS₂ Cathodes for Secondary Hybrid Mg-Li Batteries*

Keywords: MoS₂, molybdenum sulfide, electrochemistry, battery, capacitor, pseudo-capacitor, materials chemistry, lithium.

Lithium ion batteries are unmatched in portable energy storage applications for their high power and energy density.^[1–3] A range of Li-intercalation cathodes has been studied, among which MoS₂ excels in cost, capacity, and power.^[4–7] Indeed, the first commercial rechargeable Li ion battery (MOLICEL) used a Li metal anode (Eqn 1) and a MoS₂ cathode (Eqn 2). The battery did not achieve commercial success mainly due to uncontrollable Li dendrite formation during charging with a Li plating stripping mechanism. A MoS₂ electrode stores charges via intercalation/deintercalation of Li⁺ ions. MoS₂ was used mainly due to its low cost (e.g. sub-micrometre MoS₂ powder retails for dollars per kg) and high capacity retention.^[8] Like graphite, MoS₂ consists of Bernal-stacked monolayers of covalently bound Mo_n(S_1/3)_6n, the layers being held together by weak Van der Waals forces. This layer structure allows for the intercalation of guest ions, such as Li⁺.^[9–11] Historically, intercalation has been understood as a process whereby Li⁺ ions diffuse between the MoS₂ layers and are stabilised in octahedral interstices between sulfur atoms.^[12,13] The rate of diffusion along the gallery between the basal layers of MoS₂ is rapid as the activation energy of Li⁺ ion migration between these layers is low.^[12] The presence of intercalated Li⁺ ions do, however, cause expansion of the c-axis by ~5 %.^[12,14] This expansion induces strain in the 2H-MoS₂ layers, which leads to the formation of dislocations.^[15] As the lithium concentration nears saturation, the resultant strain can cause particles to repeatedly break into ever smaller polycrystalline fragments, potentially creating alternative pathways for Li⁺ ion diffusion into the MoS₂ particles.^[16] Recently, Cui and co-workers have shown that intercalation can also occur through the basal planes of exfoliated MoS₂.^[17] The authors propose that Li⁺ ions may additionally diffuse through ‘natural defects’ in the MoS₂ lattice, although this process occurs at a relatively lower rate than diffusion between basal planes. As a result, it might be expected that the kinetics of the cathodic reaction (Eqn 2) are enhanced in MoS₂ particles with a high defect concentration, i.e. substantial disorder.

Defect introduction in MoS₂ can be achieved both during and post-synthesis.^[18] Although sulfur vacancies, grain boundaries, and strain can be controlled by varying synthesis parameters in techniques such as chemical vapour deposition,^[18–20] in-situ approaches have limited scalability. Post-synthetic treatments are better suited to upscaling with lower cost bulk materials, as they allow MoS₂ to be sourced rather than synthesised. In MoS₂ crystals, sulfur vacancies can be induced with electron beam or argon plasma treatment,^[21,22] Mo–O moieties can be incorporated by oxygen plasma treatment and hydrothermal treatment,^[23,24] and lattice ripples induced by SF₆, CF₄, and CHF₃ plasmas.^[25] Ozone treatment and ion, proton, and α-particle bombardment also introduce defects, although the effects are less well understood.^[18] An alternative to these high energy processes is mechanical milling, which is a scalable method to manipulate crystal morphology by applying impact and shear stress.^[26] When applied to layered materials, ball-milling has been shown to cleave, exfoliate, and twist sheets,^[26] introduce vacancies^[27] and expose edge sites.^[28] The coordinatively unsaturated atoms along exposed edge sites have been shown to preferentially bind Li⁺.^[13,29] Thus, mechanical milling is expected to improve the capacity of MoS₂ cathodes in Li⁺ ion batteries by introducing defects, and increasing the number of edge sites. In addition, ball-milling is expected to decrease the particle size, increasing surface area and reducing diffusion path length, all of which are known to further improve the capacity of electrode materials in general.^[12]

Lithium anodes are prone to forming dendrites, which can short-circuit the cell, initiating an exothermic reaction between the electrode and electrolyte that can cause a battery to ignite.^[30–32] Efforts to inhibit dendrite formation have focussed on modifying the electrode,^[33,34] electrolyte,^[35–38] separator,^[39,40] and battery management system,^[31] although at high current, low temperature, or low overcharge, dendrites still present a significant problem.^[32] A possible solution might be changing the anode material while retaining Li⁺ as the charge carrier. Magnesium is a viable alternative anode (Eqn 3) as it is not prone to dendrite formation and has suitable electrochemical characteristics (Table 1). However, intercalation/deintercalation of Mg²⁺ into the MoS₂ cathode (Eqn 4) is slow.^[41,42] Although research into Mg batteries is active, they are not commercially available yet, in part due to a lack of suitable cathode materials;^[43–48] the known cathode materials typically possess low capacity and/or poor intercalation kinetics.^[48,49] An alternative approach is to use Mg/Li dual-ion hybrid batteries to exploit the benefits of both Mg and Li batteries by combining the dendrite-free Mg anode with the fast kinetics of a Li⁺ intercalation cathode.^[50–52] An attractive application of this concept is using earth abundant molybdenum sulfide phases as cathodes.^[42] In addition, the low redox potential of MoS₂/Li_x(MoS₂)_y also matches the anodic potential window of common magnesium electrolytes (e.g. +2.75 V versus Mg for electrolyte used in this work). Cathode materials such as Ni–Mn–Co oxide (NMC) and lithium iron phosphate (LFP) are not suitable in this case due to their higher redox potentials.^[2]

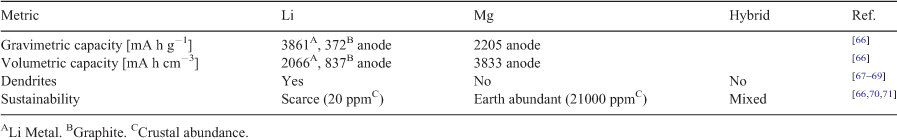

Table 1.  Comparison of Li-, Mg-, and hybrid-ion battery components using a variety of metrics

As the rate of reversible Li⁺ ion intercalation is the kinetic bottleneck of the cathodic reaction, the modification of bulk MoS₂ morphology by ball-milling and associated changes at the atomic level, as outlined above, can be expected to influence the electrochemical performance of batteries. This study, therefore, aims to investigate the effect of changes in the cathode disorder/crystallinity on the electrochemical performance of Mg/Li hybrid cells.

Two commercial bulk MoS₂ samples, herein designated 2 µm and 90 nm (from the average height in the c-axis direction – the direction perpendicular to the stacked S-Mo-S layers), were chosen for baseline measurements. Adjusting the treatment duration of mechanical milling led to samples with varying particle sizes and degrees of crystal defects. The 90 nm MoS₂ was ball-milled for 4, 24, and 60 h to produce BM4-, BM24-, BM60-MoS₂, respectively. Characterisations by transmission electron microscopy (TEM), powder X-ray diffraction (PXRD), and Raman spectroscopy are shown in Fig. 1 and Fig. 2 and summarised alongside N₂-sorption analysis (fitted with the Brunauer–Emmett–Teller analysis; BET) in Table 2. Scanning electron microscopy (SEM) images are shown in Fig. S2 (Supplementary Material). As the ball-milling duration was lengthened (4, 24, and 60 h), the MoS₂ flakes became increasingly more fissured and smaller in size (Fig. S2), the surface area rose from 8 to 90 m² g⁻¹ (Fig. S2), the XRD reflections broadened (Fig. 2), the layers in the crystallites became distorted with the introduction of defects (Fig. 1), and the defect-induced LA(M) Raman mode^[53,54] increased in relative intensity (Fig. 2). These results are all consistent with the crystals of the samples breaking into smaller, increasingly disordered crystallites (by the introduction of defects and strain) as a result of the ball milling.

Fig. 1.  Transmission electron microscopy images of post-milling sample, BM60-MoS₂.

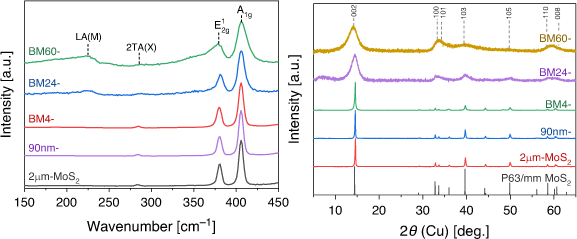

Fig. 2.  Raman spectra and X-ray diffractograms of MoS₂ samples before and after ball-milling for various durations. Raman assignments relate to MoS₂ with the exception of the 2TA(X) mode, which arises from the Si substrate.^[72]

Table 2.  Summary of physical analyses of the ball-milled samples

The MoS₂ samples, 2 µm-, 90 nm-, BM4-, BM24-, and BM60-MoS₂, were suspended in N-methylpyrrolidone with polyvinylidene difluoride and carbon black (8:1:1 active/binder/carbon mass ratio), coated onto stainless steel, and dried at 120°C. The coated electrodes were transferred to an argon-filled glove box and assembled as part of conventional coin cells using a 0.8 M Mg + 1.0 M LiCl in tetrahydrofuran (THF) electrolyte (prepared from a 1.05:1 molar ratio, EtMgCl/t-AmOH mixture in THF) and a Mg metal anode. The excess anode material and the choice of electrolyte concentration, in addition to the kinetically favoured anodic reaction, ensured that the cathode was the kinetic and capacity limiting component of the cell (see Supplementary Material for details).

The gravimetric capacity density, reversibility, and stability of the coin cells were assessed. At a charging rate of 250 mA g⁻¹, the capacity density of the samples increased from 170 to 266 mA h g⁻¹ as the ball-milling duration of the electrode precursors increased (Table 3 with b indicating the charge storage mechanism, see also Eqn 5).

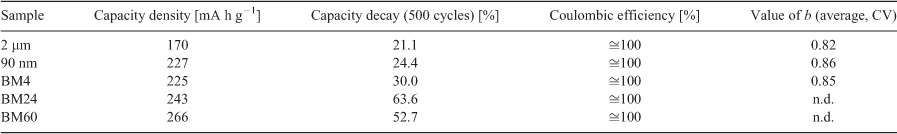

Table 3.  Summary of electrochemical performance of the MoS₂ samples

Analysis of the voltage plateau (the region in the voltage/capacity density plot where discharging voltage remains nearly constant across a given capacity range) was used to reveal the charge–storage mechanism of the system. For our samples, electrodes prepared with MoS₂ samples that were not ball-milled exhibit voltage plateaus for approximately a third of the entire discharge capacity. As the ball-milling duration of the electrode precursors increases, the plateau begins to increase in slope, and then disappears entirely for the BM24- and BM60-MoS₂ samples (Fig. 3). This behaviour is consistent with a change to the charge-storage mechanism from battery-like to pseudo-capacitor-like.^[55]

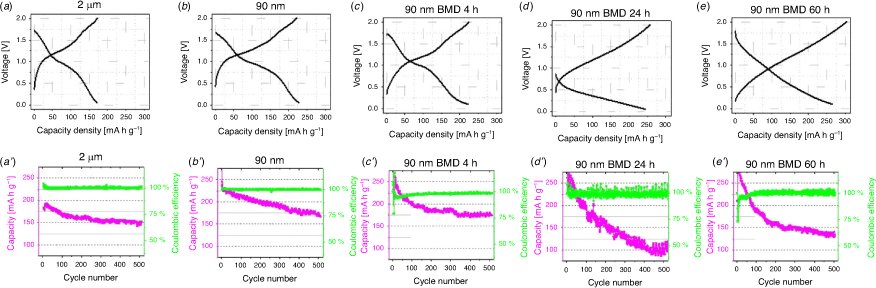

Fig. 3.  Voltage profiles, coulombic efficiency, and capacity retention graphs for MoS₂ samples before and after ball-milling for various durations at a current density of around 0.1 A g⁻¹. Sample information is on the top of the image. All the data are collected with coin cells with the same Mg anode and dual ion electrolyte. The only difference between these five cells is the cathode.

Given the voltage profile of the ball-milled samples indicates a change in the relative extent with which the various charge storage mechanisms operate in parallel, the samples were further analysed by cyclic voltammetry to quantify the ratio of battery- to pseudo-capacitor-like behaviour. The cyclic voltammograms in Fig. 4 show two redox peaks A and B, which correspond to the two plateaus in the cycling plots (Fig. 3). These current peaks progressively broaden as the ball-milling duration of the electrode precursors is increased. The current was analysed as a function of scan rate to further investigate the charge storage mechanism according to Eqn 5:^[56–58]

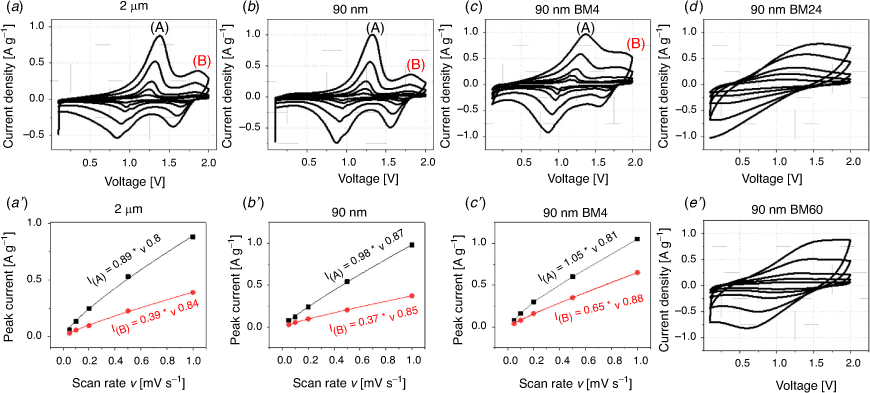

Fig. 4.  Cyclic voltammograms and peak currents analysis of MoS₂ samples before and after ball-milling for various durations. All tests are conducted with coin cells at room temperature, a Mg anode is used as the reference electrode and counter electrode. A MoS₂ electrode is used as the working electrode. Images (a), (b), (c), (d), and (e’) show the voltammograms collected with five samples (see labels on the top of images) as functions of scan rates. The scan rate increases gradually from 0.05, 0.1, 0.2, 0.5, and 1.0 mV s⁻¹ respectively. Both oxidation and reduction currents increase as scan rate rises. Images (a’), (b’), and (c’) show the fitting line of peak currents versus scan rates, derived from fitting the data in plots (a), (b), and (c) with Eqn 5.

where i = current, v = scan rate, and a and b = adjustable parameters (with the magnitude of b being indicative of the storage mechanism).

Values of b of either 0.5 or 1 reflect typical battery (Faradaic) or pseudo-capacitor (non-Faradaic) behaviour, respectively, with possible solutions to Eqn 5 existing on a continuum between these two values.^[59] The values for b, derived from fitting both current lines, are given in Fig. 4 and Table 3. Values for b for the BM24- and BM60-MoS₂ could not be obtained as the maxima could not be resolved. The average values of b derived from fitting peak A and peak B in the plots of Fig. 4 are 0.82, 0.86, and 0.85 for 2 µm, 90 nm, and 90 nm BM4 MoS₂ respectively. This progression generally shows the expected trend of b value with particle size. For 90 nm BM24- and 90 nm BM60-MoS₂, the impact of the milling treatment on the charge storage mechanism is more pronounced, the voltage plateaus are barely noticeable, indicating the dominance of capacitance as a contributor to the total charge storage process.

The stability of an electrode is assessed by examining the capacity retention over a given number of charge/discharge cycles. For electrodes prepared from the crystalline samples, 2 µm- and 90 nm-MoS₂, a capacity decay of ~20 % is observed after 500 cycles and this value increases to 50 % for electrodes prepared from ball-milled samples.

The Coulombic efficiency describes the reversibility of the cathodic reaction (Eqn 6), which, together with the capacity retention, reflects the lifespan of a battery.^[60] Values of the Coulombic efficiency less than unity indicate some combination of irreversible Li⁺ intercalation, changes to the cathode, or the presence of side reactions.^[60]

For all samples, after conditioning (~50 cycles), the coulombic efficiency per cycle is always very close to 100 %, however, small losses build up over time and cause the net capacity loss.

Mechanical milling had a significant effect on the morphology and electrochemical performance of the MoS₂ electrodes in this Mg/Li hybrid battery. The morphology of the samples becomes increasingly disordered (Table 2 and Fig. 2) and the charge storage mechanism shifts from battery-like to pseudo capacitor-like as the ball-milling duration for the electrode precursors is increased (Table 3).

The effect of ball-milling on crystalline samples is established; phenomena such as sheet exfoliation, particle size decrease, and defect generation are well precedented.^[61] In the current study, the creation of defects increases the variety of MoS₂ sites that can accept a Li⁺ ion.^[62] These sites may be any combination of edges, dislocations, and vacancies both on the surface and within the layers of MoS₂. Each unique site possesses a different thermodynamic potential for the cathodic reaction (Eqn 2), the ordering of which results in a slope in the voltage profile of the ball-milled samples (Fig. 3).^[62] These results are contrasted by the voltage profiles of the non-ball-milled samples, where most of the sites of the cathodic reaction (i.e. intercalation) are equivalent because of the crystalline nature of the sample. This results in the voltage plateaus observed for 90 nm- and 2 µm-MoS₂ (see, for example, Fig. S4a, Supplementary Material). In addition, because of the creation of new Li⁺ accepting sites upon milling, the capacity density was increased (see, for example, Fig. S4b, Supplementary Material). Similar behaviour has been previously observed in graphite^[62] and graphene.^[63]

Since cells incorporating electrodes fabricated from 2 μm-, 90 nm-, and BM4-MoS₂ show relatively good capacity retention upon cycling, they were assessed at different current densities to investigate the influence of the current density on the resulting capacity of the cathode material. The discharging capacity was recorded at increasing current densities up to a maximum current density of 5 A g⁻¹. A final scan at the original current density of 0.25 A g⁻¹ was then performed to check whether the capacity could recover. Fig. S4b (Supplementary Material) plots the discharge capacity of cells with 2 μm-, 90 nm-, and BM4-MoS₂ electrodes as a function of current density. All these three batteries exhibit similar features: the discharging capacity gradually decreases as the current density is increased and returns to the original value when the current density is lowered. At the lowest current density (0.25 A g⁻¹), the cell with the electrode prepared from 2 μm-MoS₂ exhibits the lowest specific capacity (140 mA h g⁻¹) of the three and that cell with the electrode prepared from BM4-MoS₂ shows the highest specific capacity (170 mA h g⁻¹). At the highest current density of 5 A g⁻¹, the ranking of the discharging capacity reverses: the cell with the electrode prepared from 2 μm-MoS₂ is least affected (with a capacity decay of 60 %) and that with an electrode prepared from BM4-MoS₂ is most affected (with a capacity decay of 80 %). We conclude that this is due to the undamaged crystal structure, which enables intercalation to be maintained more efficiently even at the higher charging rates. The ball-milled samples are more disordered as well as defect-rich and simply have a lower inherent intercalation capacity, being dominated by more capacitive characteristics.^[17,64]

Thus, we propose that to optimise Li⁺-ion MoS₂ electrodes, the crystallinity should be maximised and the particle size minimised. The crystallinity determines the capacity density of the intercalation region and the particle size determines the rate of Li⁺ intercalation. In order to test this hypothesis, we annealed the BM60-MoS₂ sample at 800°C in a reducing atmosphere for 24 h – the resultant sample was designated Ann’d-MoS₂. The physical characterisation data for the Ann’d-MoS₂ are shown in Fig. 5. In summary, the sample exhibited sharper XRD reflections (which corresponded to a crystallite size of 100 nm; up from 20 nm) and the LA(M) signal in the Raman spectrum decreased in relative intensity compared with the un-annealed sample (to an LA(M) to E_2g ratio of 0.33; down from 0.51). These changes are consistent with improved particle crystallinity.^[53,54,65]

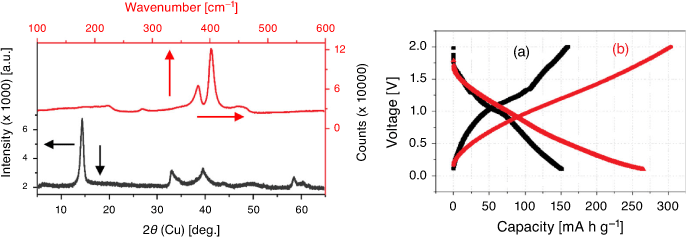

Fig. 5.  (Left) XRD and Raman spectroscopy data for the Ann’d-MoS₂ sample (i.e. BM60-MoS₂ annealed for 24 h) and (right) comparison of capacity of the non-annealed and Ann’d-MoS₂ sample, indicating the impact of the annealing on capacity and the charge storage mechanism: (a) refers to Ann’d MoS₂ sample, (b) refers to the non-annealed MoS₂. The current density is around 0.1 A g⁻¹.

By checking whether the cycling curve of the cell incorporating the Ann’d-MoS₂ sample possesses a plateau, one can determine whether the battery-like behaviour of the cell has increased (or correspondingly, whether the capacitor-like behaviour has decreased). As seen in Fig. 5 (right) the departure of the curve from linearity indicates an increased contribution from battery-like intercalation processes and decreased contribution from the capacitor-like adsorption processes. Relative to the non-annealed, ball-milled samples, which did not exhibit a plateau, this is a significant improvement. The data are consistent with our hypothesis, i.e. that defects introduced by ball-milling decrease the Faradaic contribution of a cell’s capacity and lead to increasingly pseudo-capacitive behaviour. When the defects are removed by high temperature annealing, the battery-like character of the cell is restored, further supporting our hypothesis above.

We have shown that the electrochemical performance of MoS₂ cathodes in Mg/Li batteries is primarily determined by two factors: the particle size and crystallinity. Commercial MoS₂ samples were ball-milled to manipulate these two factors. To separate the effects of sample crystallinity from particle size, the ball milled samples were annealed and the electrochemistry of the two sample treatments compared. The annealed samples exhibited a larger capacity density plateau, consistent with the homogenisation of the active sites, in turn, consistent with increased crystallinity. These samples also exhibited a greater capacity than the samples that had not undergone ball-milling, which was attributed to the increased surface area of the ball milled particles.

Supplementary information, including materials, methods, further morphological characterisation, and cycling data are available on the Journal’s website.

The data that support this study will be shared upon reasonable request to the corresponding author.

The authors declare no conflicts of interest.

This research was in part supported by ARC DP200103099.
