A Photometric Study of the Contact Binaries: XY Leo, EE Cet and AQ Psc

Keywords: binaries: close

The eclipsing binary system XY Leo (P ∼ 0.28 days) was discovered by Hoffmeister (1934). Many photometric studies made in the past show the light-curve asymmetries and variability (see e.g. Hilditch 1981; Kaluzny & Pojmanski 1983; Hrivnak 1985) attributed to the asymmetric distribution of cool spot regions on one or both components. The orbital period of the system changes with time, and O–C residuals, indicating the differences between the observed times of eclipses and the calculated ones using the light elements, were studied by Gehlich, Prolss & Wehmeyer (1972), Kaluzny & Pojmanski (1983), Hrivnak (1985), Pan & Cao (1998) and recently by Yakut et al. (2003). In the latter paper it was shown that the orbital period of the system oscillates with a period of 19.6 years, with a semi-amplitude of 0.023 days. This sine-like regular change was analysed under the third body hypothesis and it is superimposed on a parabolic variation, which may be attributed to either mass transfer from the less-massive component to the more-massive one, or an additional component bonded to the double binary system with a longer period. In the last spectroscopic study Barden (1987) succeeded in obtaining the spectra of the previously suspected third companion in the binary XY Leo. For this W-type eclipsing system, one can estimate the spectroscopic mass-ratio of the components based on the semi-amplitudes of the velocity curves (K_c = 124.1 and K_h = 204.7 km s⁻¹ for the more- and less-massive components, respectively) as q = m_c/m_h ∼ 1.64. Moreover, Barden (1987) revealed the binary nature of the third body and obtained the radial velocities of the third and fourth components successfully. Based on this study, he found that the companion of XY Leo is a BY Dra binary system, composed of late-K to mid-M dwarf stars with an orbital period of 0.805 days. Also, Barden (1987) showed that a significant portion of the chromospheric emission observed by many investigators from XY Leo was, instead, associated with the components of the BY Dra binary, which together with XY Leo forms a quadruple system.

Yakut et al. (2003) analyzed the B and V light curves obtained during 2000–2001 with the 48 cm Cassegrain telescope at Ege University Observatory. They applied Wilson–Devinney code by assuming that there was a third light in the system. They found the orbit inclination of 67°.6, temperature of the cooler component T_c ∼ 4524 K, shallow contact degree (f_over ∼ 6.7%) and the third light contribution of about 2% in the B- and 6% in the V-light curve. By combining the photometric solution with spectroscopic elements given by Barden (1987), they estimated the absolute parameters of the system, which are given in Table 1.

Table 1. Absolute parameters for XY Leo (Yakut et al. 2003)

Variability of the combined light of the visual binary ADS 2163 was discovered by the Hipparcos satellite ESA (1997). The Hipparcos photometric observations of the system show a light-curve variation with an amplitude of 0.23 mag and a 0.38-day period. Rucinski et al. (2002) correctly found that the source of variability is the southern, fainter companion, which is classified as a W Ursa Majoris (W UMa) type eclipsing binary EE Cet (P ∼ 0.38 days). In their radial velocity study EE Cet was observed without contamination by the northern companion, separated by 5.6". Proceeding from well defined radial velocity curves for both components in the EE Cet system, they determined mass ratio to be q = m_h/m_c = 0.315. The indices (h,c) refer to the hotter less-massive and cooler more-massive component, respectively. Rucinski et al. (2002) list F8 V to be the spectral type of the system and that it belongs to the W subclass of W UMa configuration.

The eclipsing binary system AQ Psc (P ∼ 0.476 days) was discovered by Sarma & Radhakrishnan (1982) as a W UMa variable with a period of 0.47564 days. From B − V = +0^m.5 and U − B = +0^m.0 at maximum light, they estimated the spectral type of the system to be F8 V. Lu & Rucinski (1999) observed the radial velocities of AQ Psc and determined its orbital elements. Proceeding from the well defined radial velocity curves for both components, they determined mass ratio of this A-type system to be q = m_c/m_h = 0.226. The indices (h,c) refer to the hotter (more-massive) primary and cooler (less-massive) secondary component, respectively. The first extensive photometric study of AQ Psc was made by Yamasaki (2005). Yamasaki analyzed the light-curves obtained between October 2003 and February 2004 by CCD photometry through BV filters. Using their own code based on the Roche model Yamasaki (1981) estimated the basic system parameters, which are given in Table 2. Pribulla & Rucinski (2006) conclude that most contact binary stars exist in multiple systems. AQ Psc has been indicated by the latter authors as a system in which we could expect the presence of the third component.

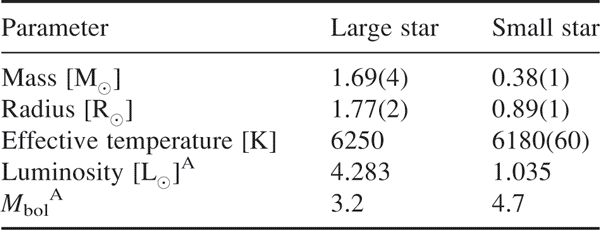

Table 2. Absolute parameters for AQ Psc (Yamasaki 2005)
^A Luminosities and M_bol are estimated from the radii and temperatures by L/L_⊙ = (R/R_⊙)²(T/5780)⁴, assuming M_bol^⊙ = 4.75.

New photoelectric BV light curves of three close eclipsing binaries XY Leo, EE Cet and AQ Psc were observed at the Rozhen National Astronomical Observatory, Bulgaria in the period October 2004–February 2005, by using the 0.6-m Cassegrain telescope, equipped with an UBV, single-channel, photon-counting, computer-controlled photometer. An integration time of 10 seconds was chosen. Observational data are available through CDS, Strasbourg, France.¹

These observations are employed in modelling of these three close binary systems (CBs), aimed at deriving their physical parameters and at studying the nature of their activity.

New photoelectric BV observations of XY Leo (BD + 18°2307) were made on the nights of 6 and 7 February 2005. The stars BD + 18°2306 (V = 9.68, B = 10.28) and BD + 18°2305 were chosen as a comparison and a check star, respectively. The same stars were used in most of the previous studies of the system either as a comparison or as a check star. The relevant catalogue data for XY Leo, comparison and check star, were extracted from SIMBAD database. A total of 467 observations were secured in B and V passbands. The differential observations, variable minus comparison, were corrected for atmospheric extinction using the passband extinction coefficients obtained for each night from the brightness variation of the comparison star. The standard deviations (1σ error) of the data points were estimated as σ_B = 0.012 and σ_V = 0.014.

The observations cover two primary and two secondary minima. Their timings were calculated using the method of Kwee & van Woerden (1956) and are listed in Table 3.

Table 3. Times of minima for XY Leo, EE Cet and AQ Psc derived from our observations.

From estimated and previously published times of minima of the light curves, we have the following updated ephemeris for calculating the orbital phases:

The light levels estimated by averaging data around the maxima and minima and their differences are listed in Table 4. The light curves are slightly asymmetric. There is also a noticeable difference between the levels of the two minima in B and V colours (see Figure 1 and Table 4) and slight variations in the Δ(B − V) colour curve with orbital phase.

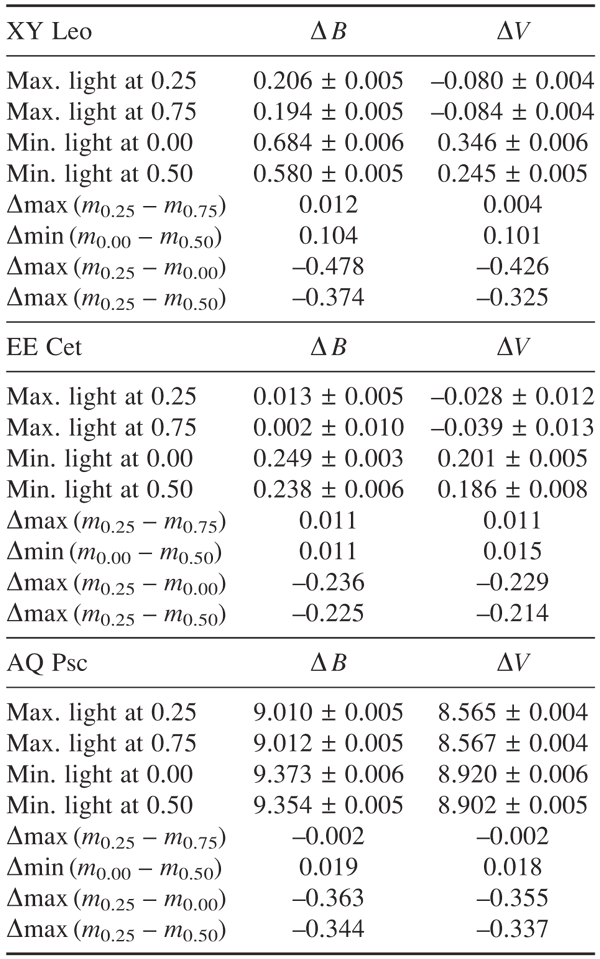

Table 4. The light levels and their differences in the B and V curves of XY Leo, EE Cet and AQ Psc.

Figure 1 Observed (dots) and final synthetic (solid line) light-curves of XY Leo with final O – C residuals obtained by simultaneous analysis of the B and V observations. Differential Δ(B − V) colour curve is given at the bottom.

The shape of the light curve indicates the overcontact configuration of the system. Relatively small amplitudes of the light curves are the result of a low orbit inclination producing partial eclipses.

New observations of EE Cet (BD + 08°433B) in BV were obtained during 7 and 8 October 2004. BD + 08°430 and BD + 07°431 were chosen as a comparison and a check star, respectively. The relevant catalogue data for the stars were extracted from SIMBAD database. A total of 449 observations in B and V passbands were secured. The standard deviations (1σ error) of the observations were estimated as σ_B,V = 0.008.

The differential B and V light curves and Δ(B - V) colour curve are shown in Figure 2. The observations cover three minima. Their timings were calculated using the method of Kwee & van Woerden (1956) and are listed in Table 3. By using these and previously published minima of the system we determined the following updated light elements:

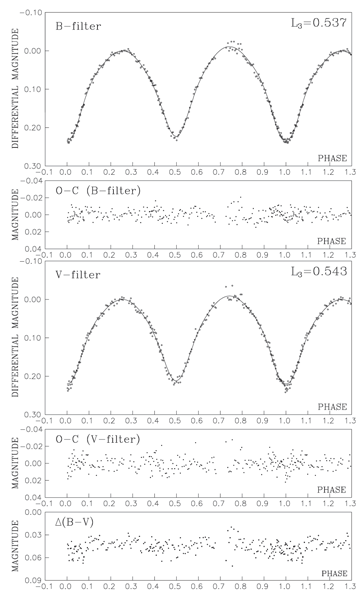

Figure 2 Observed (dots) and final synthetic (solid line) light-curves of EE Cet with final O – C residuals obtained with third light effect L₃ ∼ 0.54. Differential Δ(B − V) colour curve is given at the bottom.

This ephemeris is used to compute the phase of the observations.

The light levels estimated by averaging data around the maxima and minima (by taking a Δφ = ±0.02 interval) and their differences are listed in Table 4. The light curves are slightly asymmetric with the secondary maxima higher than the primary ones. There is also a noticeable difference between the levels of the two minima in B and V colours (see Figure 2 and Table 4) and slight variations in the Δ(B − V) colour curve around minima.

The shape of the light curve indicates the overcontact configuration of the system. However, the presence of the northern, brighter visual companion, about 5.6" from EE Cet, complicates photometric observations and introduces additional complications in their interpretation. Due to the close proximity of the visual companion it could not be excluded from the diaphragm during the observations and, therefore, our photometric measurements were contaminated by the third light. Relatively low amplitudes of the light curves are the result of a substantial contribution of the third light to the total light of the system. Namely, the third-light solution gives the orbit inclination of 78°.5 and high overcontact degree (f_over ∼ 33%), producing partial eclipses.

New photoelectric observations of AQ Psc (BD+06°203) in BV were made over six nights (24 October, 17 and 20 November, 7 December 2004, and 02 January and 11 February 2005).

BD + 06°197 (V = 8.42, B = 9.33) and BD + 06°200 were chosen as comparison and check star, respectively. The relevant catalogue data for the stars were extracted from the SIMBAD database. A total of 478 observations were secured in B and V passbands. The standard deviations (1σ error) of the data points were estimated as σ_B = 0.009 and σ_V = 0.01. The B and V light curves and B − V colour curve are shown in Figure 3.

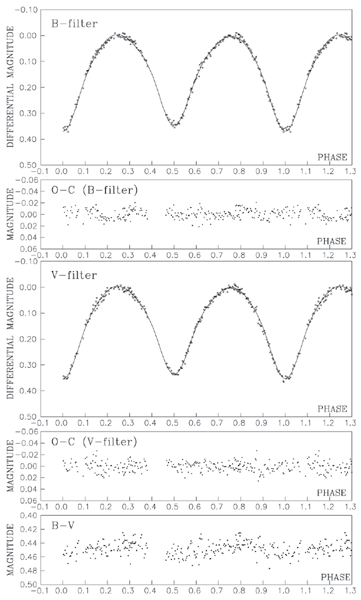

Figure 3 Observed (dots) and final synthetic (solid line) light-curves of AQ Psc with final O – C residuals obtained by simultaneous analysis of the B and V observations. B – V colour curve is given at the bottom.

The observations cover two minima. Their timings were calculated using the method of Kwee & van Woerden (1956) and are listed in Table 3.

By using these and previously published minima of the system we determined the following updated ephemeris employed in computing the phase of observations:

The light levels estimated by averaging data around the maxima and minima (by taking a Δφ = ±0.02 interval) and their differences are listed in Table 4. The light curves are slightly asymmetric with the primary maxima higher than the secondary ones. There is also a noticeable difference between the levels of the two minima in B and V colours (see Figure 3 and Table 4) and slight variations in the B – V colour curve with orbital phase.

The shape of the light curve indicates the overcontact configuration of the system. Relatively small amplitudes of the light curves are the result of a low orbit inclination, producing partial eclipses.

In order to model the B and V band light curves of these binary systems we used the code developed by Djurašević (1992a), modified for overcontact configuration by Djurašević et al. (1998). The code is based on the Roche model and the principles given in Wilson & Devinney (1971). The light-curve analyses were made by applying the inverse-problem method by Djurašević (1992b), based on the modified Marquardt (1963) algorithm. More details about the code and the method of light-curve analysis can be found in e.g. Djurašević et al. (2004a).

For the values of the stellar gravity-darkening exponents we used the theoretical prediction β_h,c = 0.08, given by Lucy (1967) for the stars with a convective envelope, in agreement with the spectral types of the components of the systems in this study. Consequently, for stellar albedos the values A_h,c = 0.5 were used.

In agreement with Claret (2000), we chose a new nonlinear approximation for the limb-darkening law that can be written as:

where a_1,2,3,4 are the limb-darkening passband specific coefficients, I(1) is the passband-specific intensity at the center of the stellar disc and μ = cosγ, where γ is the angle between the line of sight and the emergent flux.

The present light-curve analyses were carried out by the simultaneous solution of the light curves in B and V, using a simple black-body approximation.

The estimated errors of the parameters arise from the non-linear least-squares method that the inverse-problem method is based on. The real uncertainties of these parameters may be approximately 2–3 times larger than the estimated ones. This is due to the influence of the errors of the model input parameters, which are taken as fixed in the inverse-problem solution.

The optimum fit of each passband-observed light curve (LCO) to the synthetic ones (LCC) are shown in Figures 1–3 for XY Leo, EE Cet and AQ Psc, respectively. The final O – C residuals between the observed (LCO) and optimum synthetic (LCC) light curves are also given. Finally, the bottom panel in these figures shows the variation in the corresponding colour curve against orbital phase.

Since the results of previous light curve analyses were available to us, in the present light-curve analysis the mass ratio of the components was fixed at the value q = m_c/m_h = 1.64, estimated by Yakut et al. (2003) who used the semi-amplitudes of velocity curves derived by Barden (1987) from radial velocity studies. According to Yakut et al. (2003), the temperature of the less-massive hotter component (eclipsed at I_min) was set at T_h = 4850 K in agreement with the B – V colour of 0.82 and Popper (1980) calibration.

The light curves were analysed by assuming that there was a third-light in the system. According to Yakut et al. (2003) initial value of the third light L₃ was taken to be 0.019 [B] and 0.059 [V].

The light curves of XY Leo are slightly asymmetric. This tells us that the components of this contact binary exhibit activity. In order to describe all the features of the observed light curves we have tested several different hypotheses. Our very first assumption was a Roche model with no spots on the components. The deviations of the fit from the observed light curves, i.e. the O – C residuals (especially in the phase interval 0.0–0.3) point out the existence of certain activity on the system components which deforms the light curves making them slightly asymmetric.

Therefore, our next step was to treat stellar albedos as free parameters in the inverse-problem. This procedure provides a better fit to the observations and shows that the albedo of the secondary (hotter) component has to be much less than the expected value for stars with convective envelope. This suggests that we have a cool spot area on the secondary, located on the hemisphere facing the primary component. Finally, we fixed the albedos at their expected theoretical values, A_h,c = 0.5, appropriate for stars with convective envelopes, and introduced a cool spot area as a possible natural explanation for the behavior of the light curves. The cool spot region may be a consequence of the magnetic dynamo mechanism, i.e. solar-type activity.

In our code the active region is approximated by a circular spot, characterized by the temperature contrast of the spot with respect to the surrounding photosphere (A_s = T_s/T_h), the angular dimensions (radius) of the spot (θ_s), and by the longitude (λ_s) and latitude (φ_s) of the spot center. The longitude (λ_s) is measured clockwise (as viewed from the direction of the +z-axis) from the +x-axis (line connecting the star centers) in the range 0°–360°. The latitude (φ_s) is measured from 0° at the stellar equator (orbital plane) to +90° towards the ‘North’ (+z) pole and –90° towards the ‘South’ (–z) pole.

The solutions of our simultaneous light-curves analysis of XY Leo (with and without cool spot) are given in Table 5. The first three rows of the table present the total number n of B and V observations, the final sum of the squares of the residuals between observed (LCO) and synthetic (LCC) light curves

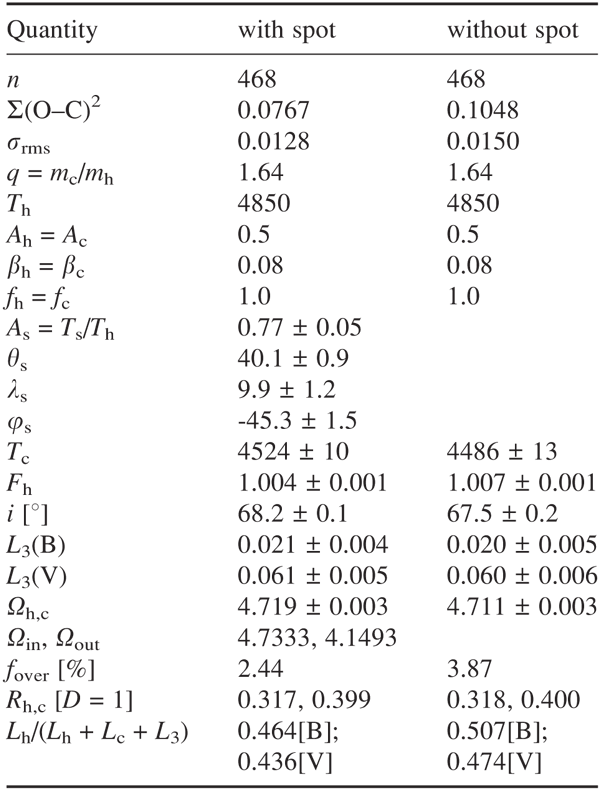

Table 5. Results of the simultaneous analyses of the XY Leo B and V light-curves obtained by solving the inverse problem for the Roche model with and without the cool spot area on the less-massive (hotter) component.
Note: n: total number of the B and V observations, Σ(O–C)²: final sum of squares of residuals between observed (LCO) and synthetic (LCC) light-curves, σ_rms: root-mean-square of the residuals, q = m_c/m_h: mass ratio of the components, T_h,c: temperature of the hotter primary and cooler secondary, β_h,c: A_h,c, f_h,c: gravity-darkening exponents, albedos and nonsynchronous rotation coefficients of the components respectively, A_s, θ_s, λ_s and φ_s: spot temperature coefficient, angular dimension, longitude and latitude (in arc degrees), F_h: filling factor for the critical Roche lobe of the hotter primary, i [°]: orbit inclination (in arc degrees), L₃: third light, Ω_h,c, Ω_in, Ω_out: dimensionless surface potentials of the components and of the inner and outer contact surfaces respectively, f_over[%]: degree of overcontact, R_h,c: polar radii of the components in units of the distance between the component centres and L_h/(L_h + L_c + L₃): luminosity (B;V) of the less-massive hotter star (including cool spot).

and the root-mean-square of the residuals

In the same table we give the spot characteristics (spot temperature factor A_s = T_s/T_h, angular radius θ_s, longitude λ_s and latitude φ_s). These parameters are determined by a simultaneous fitting of the light curves in B and V photometric bands.

The inclination of the orbit was estimated to be i ∼ 68°. A relatively low amplitude of the light curves thus may be explained by partial eclipses. The obtained solution shows the marginal degree of overcontact (f_over ∼ 2.4%) with a relatively large temperature difference between the components (ΔT = T_h – T_c ∼ 330 K).

From Table 5 and Figure 1 it is evident that the Roche model with cool spot area on the less-massive star gives a satisfactory fit to the analysed light curves. The spot temperature is about 23% lower than in the surrounding photosphere. The spot at longitude λ_s ∼ 10° produces a slight light-curve asymmetry (especially evident in the phase interval 0.0–0.3). The noticeable phase dependence of the colour curve Δ(B – V) (Figure 1) is mainly caused by the component eclipses, but its form is, at least partially, affected by the presence of the spot region.

In the light-curve analysis the mass ratio of the components was fixed at q = m_h/m_c = 0.315, estimated by Rucinski et al. (2002) from their radial velocity study. Bearing in mind the spectral type F8 V, the temperature of the more-massive component was set at T_c = 6095 K in agreement with the calibration of Popper (1980).

In the light-curve synthesis we have included the third light effect. This effect can significantly change the shape of the light curve, see e.g. Figure 2 in Djurašević et al. (2004b). The third light evidently changes the light-curve amplitude. This is reflected, above all, in the estimates of the orbit inclination and in the overcontact degree of the system. Therefore, full appreciation of this effect, i.e. an accurate estimate of the parameter L₃ related to the effect is necessary in order to obtain valid estimates of the physical parameters of the system. We have to point out that the third light contribution to the total light cannot be estimated by solving the inverse problem, i.e. by light-curve analysis only. So this has to be done in an independent way.

We estimated the third light parameter L₃ ∼ 0.582 in the V band from the magnitudes of the visual companions of ADS 2163 given by Lampens et al. (2001). We used Tycho-2 catalogue by Høg et al. (2000) as another source. Apparent magnitudes from this catalogue for ADS 2163, transformed to UBV system, are V = 9.620, B = 10.094 and B – V = 0.474 for EE Cet, and V = 9.458, B = 9.905 and B – V = 0.447 for the visual companion. From these data we obtain L₃ ∼ 0.537 in B band, and L₃ ∼ 0.543 in V band. Other sources give L₃ ∼ 0.517 from the Hipparcos ESA (1997) catalogue and L₃ ∼ 0.569 from the second edition of the CCDM catalogue by Dommanget & Nys (2002). With this significant discrepancy in the estimates of the third light contribution, we adopted L₃ ∼ 0.537 for B, and L₃ ∼ 0.543 for the V filter, estimated by using the Tycho-2 catalogue. The Hipparcos and CCDM catalogue L₃-estimates, if averaged, give approximately the same value.

The light curves of EE Cet have a peculiar shape. We have assumed that the secondary, less-massive component is eclipsed in the deeper (primary) minimum (W-type contact system). The obtained synthetic light curves, with no active regions, do not fit the observations well. The deviations of the fit from the observed light curves, indicate the existence of certain activity on the system components, which deforms the light curves making them slightly asymmetric. Therefore, our next step was to treat stellar albedos as free parameters in the inverse problem solution. This procedure provided better fits to the observations. The model with no spots show that the primary component’s albedo is lesser than the theoretical prediction (for stars with a convective envelope), which indicates a possible cool spot on the primary, at the hemisphere facing the secondary star. Finally, we fixed the albedos at their expected theoretical values, A_c,h = 0.5, appropriate for stars with a convective envelope, and solved the inverse problem by optimizing the system and cool-spot parameters.

Simultaneous optimization of the system and cool-spot parameters provides a very good fit to the observed light curves. Relatively low amplitudes of the light curves are the result of the substantial contribution of the third light to the total light of the system (L₃ ∼ 0.54).

The inclination of the orbit was estimated to be i ∼ 79°. The filling coefficients for the critical Roche lobe (F_c ∼ 1.03) indicate a configuration with high degree of overcontact (f_over ∼ 33%).

From Table 6 and Figure 2 is evident that the Roche model with cool spot area on the more-massive cooler star gives a satisfactory fit to the analysed light curves.

Table 6. Results of the simultaneous B and V light curve analyses of the W-type system EE Cet, obtained by solving the inverse problem for the Roche model with and without the cool spot area on the more-massive (cooler) component.
Note: n: total number of the B and V observations, Σ(O–C)²: final sum of squares of residuals between observed (LCO) and synthetic (LCC) light-curves, σ_rms: root-mean-square of the residuals, q = m_c/m_h: mass ratio of the components, T_h,c: temperature of the hotter primary and cooler secondary, β_h,c: A_h,c, f_h,c: gravity-darkening exponents, albedos and nonsynchronous rotation coefficients of the components respectively, A_s, θ_s, λ_s and φ_s: spot temperature coefficient, angular dimension, longitude and latitude (in arc degrees), F_h: filling factor for the critical Roche lobe of the hotter primary, i [°]: orbit inclination (in arc degrees), L₃: third light, Ω_h,c, Ω_in, Ω_out: dimensionless surface potentials of the components and of the inner and outer contact surfaces respectively, f_over[%]: degree of overcontact, R_h,c: polar radii of the components in units of the distance between the component centres and L_h/(L_h + L_c + L₃): luminosity (B;V) of the less-massive hotter star (including cool spot).

In the light-curve analysis the mass ratio of the components was fixed at the value q = m_c/m_h = 0.226, estimated by Lu & Rucinski (1999) from their radial velocity study. According to Sarma & Radhakrishnan (1982), the spectral type of the system is F8 V. Consequently, the temperature of the more-massive component was set at T_h = 6095 K in agreement with spectral type and Popper (1980) calibration.

In order to describe all the features seen in the observed light curves of AQ Psc we have tested several different hypotheses. The first assumption was Roche model with no spots on the components. We assumed that primary, more-massive component is eclipsed in the deeper (primary) minimum (A-type contact system). Solving the inverse problem, we obtained the overcontact configuration with similar temperatures of the components (ΔT = T_h – T_c ∼ 150 K). Having in mind a considerable difference in their masses (q = 0.226), it is reasonable to suppose that there is some energy exchange between the components, equalising the temperature in the common envelope. Therefore, our next step was to treat stellar albedos as free parameters in the inverse problem solution. This procedure provides better fit to the observations, but it shows that the albedo of the secondary (cooler) component has to be much larger than the expected value for the stars with convective envelope. This suggests that on the secondary, opposite to the Lagrangean point L₁ in the neck region, we have a bright area with an increased temperature. So, finally we fixed albedos at their expected theoretical values, A_h,c = 0.5, appropriate for stars with convective envelope, and introduced a bright spot area as a possible natural explanation for the behavior of the light curve. The bright spot region can be explained as a consequence of an intensive energy exchange between the components through the neck of the common envelope, i.e. of the mechanism equilibrating stellar temperatures.

The inclination of the orbit was estimated to be i ∼ 68.9°. A relatively small amplitude of the light curves thus may be explained by partial eclipses. The filling coefficient for the critical Roche lobe (F_h) indicates a configuration with relatively high degree of overcontact (f_over ∼ 23%).

From the solutions obtained we can see that the secondary is the cooler component of the system, and that the mean gravity of the secondary is somewhat smaller than that of the primary, which holds well for A-type W UMa systems.

From Table 7 and Figure 3 it is evident that the Roche model with bright spot area on the less-massive star, near the neck region between the components gives a satisfactory fit to the analysed light curves. In this region, which is probably a consequence of the energy exchange between the components, the temperature is increased by about 6% compared to the surrounding photosphere. The bright spot at longitude λ_bs ∼ 171° produces a slight light curve asymmetry. The noticeable phase dependence of the colour curve B – V (Figure 3) is mainly caused by the eclipses of components, but its form is also partly affected by the presence of the bright spot region.

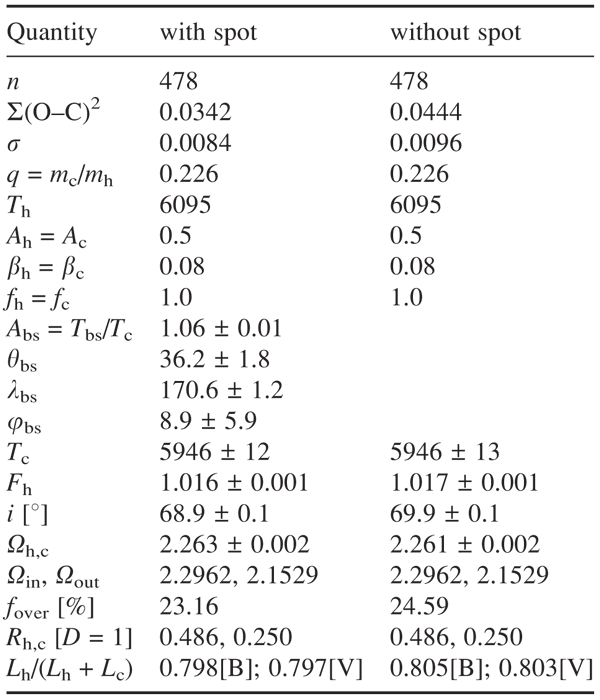

Table 7. Results of the simultaneous analyses of the AQ Psc B and V light-curves obtained by solving the inverse problem for the Roche model with and without the bright spot area in the neck region on the less-massive (cooler) component.
Note: n: total number of the B and V observations, Σ(O–C)²: final sum of squares of residuals between observed (LCO) and synthetic (LCC) light-curves, σ_rms: root-mean-square of the residuals, q = m_c/m_h: mass ratio of the components, T_h,c: temperature of the hotter primary and cooler secondary, β_h,c: A_h,c, f_h,c: gravity-darkening exponents, albedos and nonsynchronous rotation coefficients of the components respectively, A_s, θ_s, λ_s and φ_s: spot temperature coefficient, angular dimension, longitude and latitude (in arc degrees), F_h: filling factor for the critical Roche lobe of the hotter primary, i [°]: orbit inclination (in arc degrees), L₃: third light, Ω_h,c, Ω_in, Ω_out: dimensionless surface potentials of the components and of the inner and outer contact surfaces respectively, f_over[%]: degree of overcontact, R_h,c: polar radii of the components in units of the distance between the component centres and L_h/(L_h + L_c + L₃): luminosity (B;V) of the less-massive hotter star (including cool spot).

A summary of our results, given in Table 5, shows that the adopted Roche model with a cool active region on the less-massive component of XY Leo can successfully simulate the observed light curves. Synthetic light curves obtained in simultaneous analysis of BV band light curves fit the observations very well. Without this active region we have a fit of a poorer quality, especially in the phase interval 0.0–0.3.

The solution describes the XY Leo system as a W-type W UMa contact binary with a shallow degree of overcontact f_over ∼ 2.4% and the orbital inclination i ∼ 68° responsible for partial eclipses. There is also a relatively large temperature difference between the components (ΔT = T_h – T_c ∼ 330 K). The absolute parameters of the system show that the less-massive hotter component of XY Leo seems to be overluminous and of larger radius with respect to its mass. The bolometric absolute magnitude of the more-massive component is in agreement with that of low mass stars presented by Popper (1980) and Dorman et al. (1989), but the less-massive hotter component is brighter for about 1.6 mag. According to Hrivnak (1985) this is due to the energy transfer from the more-massive to the less-massive component. Recently, Wang (1994) proposed an explanation for W-type phenomenon based on thermal-relaxation-oscillation (TRO) theory (Lucy 1976; Flannery 1976; Robertson & Eggleton 1977; Yakut & Eggleton 2005). According to this, within W-type contact systems the hotter secondary component is in contraction phase to its appropriate ZAMS radius, and its overluminosity is the consequence of the conversion of the gravitational energy into heat during that contraction. This is why we have a weak overcontact configuration in W-type systems. In contrary to W-type, A-type W UMa system (where the secondary component is expanding slowly toward its equilibrium configuration) shows distinctive overcontact configuration with larger fill-out factors.

The cool spot area on the less-massive (hotter) star, at the longitude λ_s ∼ 10°, which produces a slight asymmetry of the light curves may be a consequence of a solar-type activity.

By combining our photometric solution with the spectroscopic elements given by Barden (1987) we obtained component masses M_h = 0.50 M_⊙, M_c = 0.82 M_⊙ and mean radii R_h = 0.68 R_⊙, R_c = 0.85 R_⊙

Our estimated parameters of this system are in a relatively good agreement with the results given in Yakut et al. (2003).

A summary of our results, given in Table 6, shows that the adopted Roche model can successfully simulate the observed light curves. Synthetic light curves obtained by simultaneous analysis of the BV band light curves fit the observations very well.

The solution describes the EE Cet system as a high-overcontact configuration (f_over ∼ 33%) with orbital inclination i ∼ 79°. We must note that the observed light curves were contaminated by the third light effect (we adopted L₃ ∼ 0.54), which can make a large impact on the system parameters, particularly the degree of overcontact and orbit inclination estimates.

We obtained the temperature difference (ΔT = T_h – T_c ∼ 220 K), with the secondary star being the hotter one. This is typical for the W-type systems. The slight asymmetry of the light curves can be explained by a cool spot located on the primary star, which probably shows a kind of the solar-type spot activity. However, we have to say that the nature of the asymmetry is not quite clear. Namely, the northern visual companion of ADS 2163, which contributes in total brightness of EE Cet system by 54% (L₃ ∼ 0.54) may be a photometric variable. This assumption follows from paper by Rucinski et al. (2002) in which the authors mentioned that this star is a close spectroscopic binary of about the same spectral type. In this case a comparable variability over 0.3–0.4 days has to be expected. Evidently, in this case the asymmetry of EE Cet light curves could be a consequence of the photometric variability of the neighboring visual companion which contaminates the EE Cet radiation, and thus the ‘spot effect’ is superfluous. To learn the nature of EE Cet light curves asymmetry we need further CCD photometric observations capable to separate EE Cet from its companion. We expect that these future CCD photometric observations would allow better insight in the characteristics of components and more reliable estimates of EE Cet parameters, and perhaps of the neighboring system as well. This would put even more tight constraints on properties and parameters of these two close binary systems.

By combining our photometric solution with the spectroscopic elements given by Rucinski et al. (2002), we obtained component masses M_h = 0.43 M_⊙, M_c = 1.37 M_⊙ and mean radii R_h = 0.82 R_⊙, R_c = 1.35 R_⊙

The solution, given in Table 7, describes the AQ Psc system as a A-type W UMa contact binary with overcontact degree f_over ∼ 23% and orbital inclination i ∼ 68.9°, producing partial eclipses.

Although the masses of the components differ considerably (q = m_c/m_h = 0.226), we obtained the relatively small temperature difference between the components (ΔT = T_h – T_c ∼ 150 K). This suggests a significant energy transfer from the hotter (more-massive) primary onto the cooler (less-massive) secondary through the connecting neck of the common envelope. It was shown that the Roche model, that includes bright spot area located near the neck region on the secondary, can successfully simulate the observed light curves. This bright spot (with longitude λ_bs ∼ 171°), produces a slight asymmetry of the light curves, and can be explained as a consequence of the thermal energy exchange between the components. Without this active region we have a fit of a poorer quality, especially in the phase interval 0.3–0.4.

By combining our photometric solution with the spectroscopic elements given by Lu & Rucinski (1999), we obtained component masses M_h = 1.65 M_⊙, M_c = 0.37 M_⊙ and mean radii R_h = 1.69 R_⊙, R_c = 0.88 R_⊙

The light-curve analyses of XY Leo, EE Cet and AQ Psc was made by applying the inverse-problem method of Djurašević (1992b), based on the modified Marquardt (1963) algorithm. The results for the systems XY Leo and AQ Psc are very much in line with previous results reported in the literature and obtained by different methods. In Table 8 we present some important physical parameters of the analysed systems, derived by combining our photometric solutions with spectroscopic elements given by Barden (1987), Rucinski et al. (2002) and Lu & Rucinski (1999).

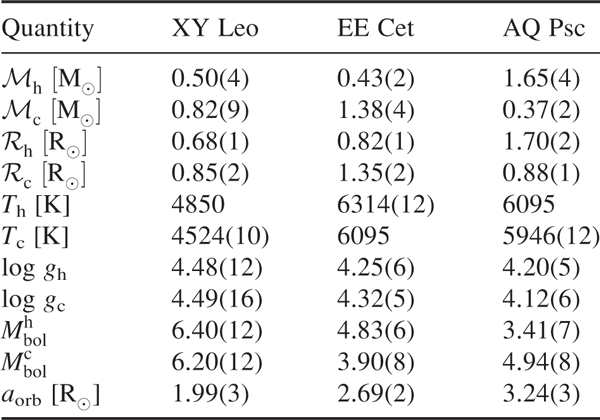

Table 8. Some physical parameters of the systems, derived by combining our photometric solutions with spectroscopic elements

All analysed light curves show small asymmetries. The asymmetry is mainly seen as a difference in the level of the two maxima (the O’Connel effect). This asymmetry is usually attributed to spots. By inclusion of spots in the Roche model one can successfully fit the observed light curves. Nevertheless, the question of the uniqueness of the solution remains open in many cases. Analysis of asymmetric light curves thus requires a special attention. A discussion on some of these problems was given by Yakut & Eggleton (2005).

In some cases, treating albedos as free parameters can help us in choosing an adequate working hypothesis about the nature and location of spots on either of the two components. By testing several different hypotheses we can finally opt for the one that seems most adequate for describing the system, in the light of all available information. Even then, however, other solutions cannot be excluded.

Our analysis indicates the existence of cool spot regions on W-type systems XY Leo and EE Cet, and a bright spot located close to the neck region of A-type system AQ Psc, presumably a consequence of the energy transfer from the more-massive primary to the less-massive secondary. According to the TRO theory, the less-massive star expands afterwards which leads to a net transfer of mass from a less-massive secondary back to the primary, the orbit widening, and the loss of contact at the end of the cycle. The secondary starts to contract to its ZAMS radius and its temperature slightly increases (Wang 1994). XY Leo, and perhaps EE Cet, may be in this second stage of TRO cycle. The question is whether this situation applies to all W-type and A-type systems.

Nuclear evolution, mass transfer and mass loss by stellar winds play important roles in the evolution of close binaries (DCBs, NCBs and LTCBs). The evolution of late-type close binary systems is discussed in details by Yakut & Eggleton (2005). The evolution of the A- and W-type W UMa systems, similar to those studied in this paper is discussed by Gazeas & Niarchos (2006), Stepien (2006) and Yakut & Eggleton (2005). Accurate fundamental stellar parameter from both spectroscopic and photometric observations are especially important for gaining more knowledge about CB systems and their evolution. Providing these parameters for XY Leo, EE Cet and AQ Psc was the main aim of our paper.
