The Emergent Flux and Effective Temperature of δ Canis Majoris

Keywords: stars: atmospheres—stars: fundamental parameters—stars: individual (δ CMa)—techniques: interferometric

In the determination of 32 stellar effective temperatures by Code et al. (1976), which is still the basis of the temperature scale for hot stars, the coolest and faintest star, and the star with the largest temperature uncertainty (±7%) was the southern F8 supergiant δ CMa (HR2693, HD54605). The effective temperatures were determined by combining the angular diameters measured with the Narrabri Stellar Intensity Interferometer (NSII) (Hanbury Brown, Davis & Allen 1974) with flux distributions constructed from various sources of calibrated photometry and spectrophotometry. The angular diameter of δ CMa determined with the NSII at a wavelength of 443 nm had an uncertainty of ±14% and this was the dominant uncertainty in the effective temperature determination. Because the angular diameter was the least accurately determined with the NSII it has been a prime target for the Sydney University Stellar Interferometer (SUSI) (Davis et al. 1999a) as a demonstration of the improvement achieved in angular diameter measurements. The angular diameter has been measured with SUSI at wavelengths of 442 nm (Davis et al. 1999b) and 700 nm (Davis et al. 2007) with greatly improved accuracy. In this paper we use the angular diameter with revised fluxes obtained from published photometry and spectrophotometry to determine the bolometric emergent flux and the effective temperature for δ CMa with significantly improved accuracy. The accuracy is now limited by the uncertainty in the determination of the bolometric flux received from the star after correction for interstellar extinction.The new directly determined temperature is also compared with the effective temperature determined by the infra-red flux method (IRFM).

The emergent flux at the surface of a star per unit wavelength interval (ℱ_λ) is given by

where θ _LD is the true limb-darkened angular diameter of the star and f_λ is the flux per unit wavelength interval received at the Earth from the star at wavelength λ, corrected for atmospheric and interstellar extinction. The effective temperature of the star (T _eff) is then given by

where σ is the Stefan–Boltzmann radiation constant and ℱ is the bolometric emergent flux at the stellar surface.

Thus, a knowledge of the limb-darkened angular diameter of the star, and the flux distribution received from it, leads to a direct determination of T _eff. f_λ can be obtained from flux-calibrated photometry and spectrophotometry, and θ _LD can be obtained by interferometric measurements. In the following sections we will consider the determination of these two quantities for δ CMa, and finally their combination to give ℱ and T _eff.

The values for the equivalent uniform-disk angular diameter, θ _UD, determined with the NSII and with SUSI have been discussed by Davis et al. (2007). The values for θ _UD determined with the NSII and at 695.6 nm with SUSI, taken from their table 3, are listed in Table 1. The SUSI values in Table 1 for 442 nm are the revised values discussed by Davis et al. (2007) obtained after re-processing the observational data with the omission of observations not bracketed by a calibrator. All the determinations involved a two-parameter fit to the measured values of the square of the fringe visibility (V² ), the fitting parameters being the equivalent uniform-disk angular diameter and the value of V ² at zero baseline, V ₀ ². The values of V ₀ ² for each of the fits are included in Table 1.

Table 1. The uniform-disk angular diameter of δ CMa determined with the NSII and with SUSI
λ is the effective wavelength and Δλ the spectral bandwidth of the measurement. V ² ₀ is the extrapolated value of visibility squared at zero baseline from the uniform-disk angular diameter fit to the observed values of V ². σ% is the percentage uncertainty in the uniform-disk angular diameter. The SUSI values for 442 nm are revised values from a re-processing of the original data (see text)

Davis et al. (2007) determined, for each value of the uniform-disk angular diameter, the true, limb-darkened angular diameter of δ CMa by applying the appropriate correction factor interpolated from the tabulation of Davis, Tango & Booth (2000). The effective temperature was initially taken to be 6000 ± 200 K, based on a number of values in the literature, with log g = 0.6 and [Fe/H] = 0.19 from Luck & Lambert (1985), for the interpolation. After the effective temperature had been determined to be 5818 K, following the procedure discussed in Section 4, the limb-darkening correction factors were checked using the revised temperature with the same values for log g and [Fe/H]. The only change was for 695.6 nm with an increase from 1.050 to 1.051. Although this has negligible effect, reducing the temperature by only 2 K, the revised value has been used in the final analysis. The correction factors and the resulting values for the limb-darkened angular diameter, based on the values for the uniform-disk angular diameter in Table 1, are listed in Table 2.

Table 2. The limb-darkened angular diameter of δ CMa
ρ_λ is the ratio of limb-darkened to uniform-disk angular diameter used to convert the uniform-disk angular diameters in Table 1 to the limb-darkened angular diameters in this table (details are given in the text)

As noted by Davis et al. (2007) the uncertainty in the NSII value for the limb-darkened angular diameter is large and covers all three values determined with SUSI. The new 695.6-nm value differs from the two 442-nm values but, although the two 442-nm values agree with one another, we believe that the new value is the most reliable. The reasons for this belief have been discussed in detail by Davis et al. (2007). In brief, the 442-nm observations were made during the commissioning phase of SUSI and significant improvements had been made in the observing, calibration and seeing correction techniques prior to the 695.6-nm observations. In particular, not all the 442-nm observations of δ CMa were bracketed by a calibrator and, as reported by Davis et al. (2007), a re-analysis omitting these data has led to the revised values for the uniform-disk angular diameters listed in Table 1 and, consequently, to the revised values for the limb-darkened angular diameters listed in Table 2. The revised values lie within ∼1.1σ and ∼0.4σ of the 695.6-nm result.

In Table 1 the extrapolated values of V ² at zero baseline, V ₀ ² , for the uniform-disk angular diameter fits to the observational data are listed. The values for the NSII 443-nm and SUSI 442-nm observations are all less than the expected value of unity for a single star. The NSII value is consistent with the value for a single star because of its large uncertainty. However, the two SUSI values at 442 nm are significantly less than unity leading to speculation (Davis et al. 1999b) that δ CMa might be a binary system with a significantly fainter companion. As noted by Davis et al. (1999b) the fact that the observational points are a reasonable fit to the curve for a single star at 442 nm suggests that, if the star is a binary system, the V ² values at each baseline are averaged over a range in position angles (Hanbury Brown et al. 1967). The V ₀ ² values are consistent with a companion 3.25 magnitudes fainter than δ CMa at 442 nm. SUSI data at both 442 nm and 695.6 nm have been examined for potential position angle variations that would confirm the presence of a companion with a negative result. The value of V ₀ ² of 1.003 ± 0.012 at 695.6 nm is consistent with δ CMa being a single star. The possibility of a faint hot companion significantly affecting the blue measurements while having a negligible effect on the red measurements has been considered. While such a scenario would result in a larger magnitude difference at 700 nm than at 442 nm the maximum effect would be a difference of 5 magnitudes resulting in a value for V ₀ ² of 0.98. This differs by ∼2 standard deviations from the observed value.

After careful examination of the data and reduction procedures we have concluded that the 695.6-nm result is correct and that there is no observable companion. The results from the 442-nm observations must now be regarded as suspect due to the difficulties of calibration and correction of the larger seeing effects at the shorter wavelength. The original agreement between the two 442-nm results, while encouraging at the time, is thought to be fortuitous. This is supported by the fact that the omission of data not bracketed by a calibrator has resulted in significant changes to the 442-nm uniform-disk angular diameters and brought them closer to the 695.6-nm result. The longer wavelength result also has a smaller correction for limb darkening and is therefore less model dependent. For the determination of the bolometric emergent flux and the effective temperature of δ CMa we adopt the angular diameter result for 695.6 nm.

The integrated flux for δ CMa has been determined following the procedure used by Code et al. (1976) but with a revised estimate for interstellar extinction, improved flux calibrations, and some more recent visual and infrared data. Following Code et al. (1976) it is appropriate to divide the flux measurements into three wavelength regions: ultraviolet, visible and infrared since they rely on different techniques for their calibration. The boundary between the visual and infrared regions has been moved from 810 nm to 860 nm due to the availability of new extended visual data and the three regions are discussed individually in Sections 3.2 to 3.4.

Since δ CMa is reddened by interstellar extinction, corrections must be applied in order to determine the emergent flux and effective temperature. This is discussed in the following section.

The observed value of (B − V) for δ CMa is +0.67 (Johnson et al. 1966) and the intrinsic value for an F8 Iab star is +0.56 (Schmidt-Kaler 1982) giving a colour excess of E(B − V) equal to 0.11. This is close to the value of 0.12 used by Code et al. (1976) which was based on an intrinsic value of +0.55 by Johnson (1966) but, as pointed out by Fernie (1982), reddenings determined in this way are unreliable because the reddening line so nearly parallels the (U − B)₀ versus (B − V)₀ intrinsic sequence for supergiants. In fact, δ CMa lies almost on the intrinsic sequence but closer to G0 than F8.

Feinstein (1967) has studied the young southern cluster Collinder 121 and, from ten early-type main-sequence stars, deduced that E(B − V) for the cluster does not exceed 0.03. He also associated δ CMa with the cluster. However, more recent studies (Kaltcheva 2000; Burningham et al. 2007) place Collinder 121 at a distance greater than 1000 pc with a foreground moving association of stars at a distance of ∼700 pc. With the Hipparcos parallax giving its distance as 550 ± 170 pc it is likely that δ CMa is a member of this latter group with E(B − V) of the order of 0.03. Using spectrum synthesis and model atmospheres Parsons & Bell (1975) have also derived a value of 0.03 for E(B − V) for δ CMa. Schmidt (1972) derived a value of 0.05 and McWilliam (1991) used A_V = 0.10, equivalent to E(B − V) ∼ 0.03, derived from ‘forcing consistency between all de-reddened colors’.

These alternative approaches to the evaluation of E(B − V) point to a value of E(B − V) of 0.03 and it is clear that the value adopted by Code et al. (1976) is incorrect. We adopt E(B − V) = 0.030 with an uncertainty of ∼ ± 0.015.

The interstellar extinction curve used by Code et al. (1976), and listed in their table 2, has been adopted to correct the UV fluxes. For the visual and near infrared fluxes (λλ 0.33−1.0 μm) the average interstellar extinction curve given by Schmidt-Kaler (1982) has been used. For wavelengths in the range λλ 1.0–13.0 μm the interstellar extinction law given by Rieke & Lebofsky (1985) has been adopted. Beyond 13.0 μm interstellar extinction is negligible for δ CMa.

The flux below 330 nm makes only a small contribution to the total flux (<1.3%). We have therefore adopted the flux reported by Code et al. (1976) obtained with the OAO-2 satellite. Application of the revised reddening correction and its uncertainty, as discussed in Section 3.1, gives the flux for the wavelength interval 0–330 nm equal to (0.063 ± 0.013) × 10⁻⁹ W m⁻².

Code et al. (1976) based the visual flux for the wavelength interval 330–810 nm on the relative spectrophotometric measurements of Davis & Webb (1974). Subsequently Kiehling (1987) published spectrophotometry for δ CMa for the wavelength range 325–865 nm. The observations were made at equidistant intervals of 1 nm with a resolution of 1 nm. The published spectral energy distributions are averaged over band-passes 5-nm wide and are tabulated every 5 nm. The Davis & Webb (1974) data were published for 25 selected 5-nm pass-bands in the wavelength range 330–808 nm. In this section we compare these two sets of data and the empirical MILES fluxes of Sánchez-Blázquez et al. (2006).

Code et al. (1976) used the spectrophotometric calibration of α Lyr (Vega) by Oke & Schild (1970) to convert the relative spectrophotometry of Davis & Webb (1974) into a relative absolute flux distribution. Here the more recent spectrophotometric calibration of Vega by Hayes (1985) has been used. Following Code et al. (1976) the resulting relative absolute flux distribution has been scaled by the flux ratio corresponding to the monochromatic magnitude of δ CMa relative to Vega at 550 nm (1.779) measured by Davis (private communication). It has then been converted to fluxes using the value for the flux from Vega at 550.0 nm of 3.56 × 10⁻¹¹ W m⁻² nm⁻¹ (Megessier 1995). The published Kiehling (1987) spectrophotometry is already in the form of a relative absolute flux distribution based on the Hayes calibration. It has been scaled and flux calibrated in exactly the same way as the Davis & Webb relative absolute flux distribution. The two sets of calibrated flux distributions are in excellent agreement with an RMS difference computed from the wavelengths in common of <1.1% with no systematic differences over the wavelength range in common (330–808 nm). The two flux distributions are shown in Figure 1.

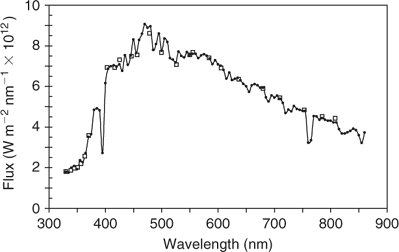

Figure 1 The dereddened visual flux distribution for δ CMa for the wavelength range 330–860 nm. Key: • – (joined by smoothed line) Kiehling (1987); □ – Davis & Webb (1974). Details are given in the text.

The flux distribution in the MILES library of empirical spectra (Sánchez-Blázquez et al. 2006) for δ CMa has also been considered. Unfortunately the listed MILES fluxes have been de-reddened on the assumption of E(B − V) = 0.209. The fluxes have been corrected to those for the value of E(B − V) = 0.03 and calibrated to give absolute fluxes in the same way as the Davis & Webb and Kiehling data. The wavelength cover of the MILES flux distribution is 355–740 nm, less than the Kiehling range of 325–865 nm. It is tabulated at 0.9-nm intervals with a resolution of 0.23 nm compared with the data by Kiehling, which were averaged over 5-nm intervals and tabulated every 5 nm. To compare the two distributions the fluxes were integrated for the common wavelength range of 355–740 nm. The integrated fluxes agree to within 1%. The difference is small compared with the uncertainty, which is dominated by the uncertainty in the reddening. The Kiehling flux distribution covers a greater wavelength range and extends to the ultraviolet data at the short wavelength end and, for these reasons, it has been used to determine the integrated visual flux.

The visual flux integration has been extended to 860 nm, since Kiehling has data points to 865 nm, rather than terminate it at 810 nm like Code et al. (1976). Application of the interstellar extinction (reddening) correction to the individual flux values and integration of the resulting dereddened flux distribution, gives the total flux for the wavelength interval 330–860 nm equal to (3.05 ± 0.13) × 10⁻⁹ W m⁻². The quoted uncertainty is solely due to the uncertainty assigned to E(B − V) but uncertainties in the relative absolute flux distribution of δ CMa, in the monochromatic magnitude used for scaling, and in the absolute flux calibration must also be considered.

The agreement between all three flux distributions considered, and the good agreement between the integrated fluxes for the wavelength range 355–740 nm for the MILES and Kiehling flux distributions, suggests that the uncertainty in the relative absolute flux distributions is at the 1% level. The uncertainty in the monochromatic magnitude difference used for scaling the δ CMa flux distribution is estimated to be ∼1% and Megessier (1995) claims ±0.7% for the flux calibration at 550 nm. The largest uncertainty by far is ±4.3% due to the uncertainty in E(B − V). The uncertainties are independent and have been combined accordingly to give a resultant uncertainty of ±4.6%. The estimated total flux for the wavelength interval 330–860 nm is (3.05 ± 0.14) × 10⁻⁹ W m⁻².

More extensive IR data exist than were available to Code et al. (1976), and these have been used to improve the value for the integrated flux in this region. Estimating the total IR flux involves considering data from a number of sources in different forms and with differing calibrations. For this reason the contributions for the wavelength intervals 0.86–1.0 μm, 1.0–2.5 μm and 2.5–22.5 μm have been considered separately and the results summed. The contribution for wavelengths longer than 22.5 μm is negligible (<0.01% of the total flux).

Danks & Dennefeld (1994) give relative spectrophotometry for δ CMa for the wavelength range 0.58–1.02 μm. We have calibrated their data by comparing it with the 7 pass bands of Davis & Webb (1974) in the overlap region and with the Kiehling (1987) spectrophotometry from 0.58 to 0.865 μm. The distributions are in agreement at 0.62 μm and the calibration results in a wavelength dependence of ∼6.1% per 100 nm in the overlap region 0.58–0.86 μm. This slope correction has been applied to the Danks & Dennefeld data for the wavelength range 0.58–1.0 μm. The revised distribution shows good agreement with the R and I broad-band fluxes discussed below and this can be seen in Figure 2. Corrections for reddening have been applied to the resulting flux distribution for the wavelength range 0.86–1.0 μm and the flux integrated. The uncertainty in the integrated flux due to the uncertainty in E(B − V) is less than for the 330–860-nm wavelength range but the uncertainty in the calibration of the fluxes is larger. The overall uncertainty is estimated to be ±3.6%. The resulting estimate for the total flux in the wavelength interval 0.86–1.0 μm is (4.34 ± 0.16) × 10⁻¹⁰ W m⁻².

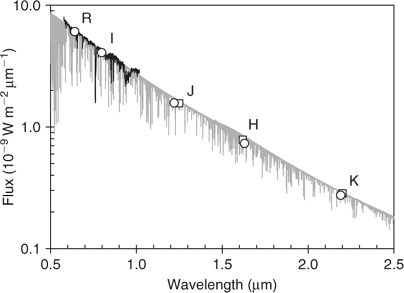

Figure 2 The flux distribution for δ CMa for the wavelength range 0.5–2.5 μm. Key: Black line – Danks & Dennefeld (1994) with slope correction; □ – RIJHK broad-band photometry using absolute flux calibration by Bessell, Castelli & Plez (1998); ○ – JHK broad-band photometry using absolute flux calibration of Megessier (1995); Gray line – fitted model atmosphere. Details are given in the text.

In the 1–2.5 μm interval the only data available are broad-band JHK photometric measurements. Although broad-band IR photometry is not ideally suitable for accurate flux determinations, since it is strongly affected by atmospheric extinction which changes the effective spectral pass bands in ways that are difficult to take into account (van der Bliek, Manfroid & Bouchet 1996), we have shown that flux-calibrated RIJHK photometry is consistent with the slope-corrected Danks and Dennefeld flux distribution.

In view of the sparsity of observational data in the 1–2.5 μm interval a model atmosphere flux distribution has been fitted to the dereddened data and used to derive integrated fluxes for this spectral range. The flux in the wavelength range 1.0–2.5 μm has been represented by fitting the flux distribution for a NextGen Model (Hauschildt et al. 1999) to the slope-corrected Danks & Dennefeld flux distribution plus flux-calibrated R, I, J, H and K broad-band photometry between 0.7 μm and 2.2 μm. The fitted model has a temperature of 5800 K (log g = 1.0, [Fe/H] = 0) which is essentially the same as the effective temperature of 5818 K determined in this work for the star. The photometric magnitudes have been selected and flux calibrated as follows. For R and I the magnitudes by Cousins (1980) have been adopted as they are more reliable than those by Johnson et al. (1966) for these bands (Bessell 2007, private communication). They have been calibrated using the absolute flux calibration of Bessell, Castelli & Plez (1998). For J, H and K the magnitudes were adopted from examination of the photometry of Johnson et al. (1966) (J and K), Glass (1974) (J, H and K), Engels et al. (1981) (J, H and K) and Carter (1990) (J, H and K). The JHK photometry was flux calibrated using the absolute flux calibrations of both Megessier (1995) and Bessell, Castelli & Plez (1998). The model flux distribution was fitted by eye to the observational data by means of a scaling factor and the fitted curve and data points are shown in Figure 2. The uncertainty in the integrated flux for the range 1–2.5 μm is based on the combination of the estimated uncertainty in the model fit (±2.5%), the uncertainty in the absolute flux calibration (taken as ±2% as given for JHK by Megessier (1995)), and the uncertainty in the dereddening correction (±1.3%). The integrated flux for the wavelength range 1.0–2.5 μm is (1.32±0.05) × 10⁻⁹ W m⁻².

For the spectrum longward of 2.5 μm the L and M photometric bands lie in the 2.5–5.0 μm range and there are IRAS Point Source fluxes at 12, 25, 60 and 100 μm (IRAS Team 1988) and IRAS Low-Resolution Spectra (LRS) covering ∼7.7–22.7 μm (IRAS Team 1988). All these data lie significantly above the fluxes for the model atmosphere fitted to the 0.7–2.2 μm interval. Since it is unclear whether the observed flux is from the star or surrounding material we have evaluated the flux longward of 2.5 μm in two ways.

Firstly, we have integrated the fitted model fluxes from 2.5 to 22.5 μm. The upper wavelength limit corresponds to the long wavelength end of the IRAS LRS spectra. The integrated flux for the 2.5–22.5 μm range is 0.164 × 10⁻⁹ W m⁻².

The second approach has been to use the broad-band L and M fluxes, the IRAS Point Source flux at 12 μm, with the IRAS LRS fluxes and to bridge the gaps in the data by drawing a smooth curve through them. The observational data have been assembled as follows. The magnitudes for the L and M photometric bands have been adopted from examination of the photometry of Johnson et al. (1966) (L), Glass (1974) (L), Engels et al. (1981) (L and M) and Carter (1990) (L). The magnitudes were flux calibrated using the calibration of Megessier (1995) for L and Johnson (1966) for M and corrected for reddening. The IRAS Point Source flux at 12 μm was reduced by 4.1% as proposed by Cohen et al. (1996) to bring it into line with their absolute calibration. The IRAS LRS fluxes have been corrected using the factors determined by Cohen, Walker & Witteborn (1992) and are claimed to be accurate to better than 2% (Price et al. 2004). The dereddened and flux calibrated data were plotted against wavelength and a smooth curve drawn through them. The curve was then tabulated at regular intervals across the wavelength range 2.5–22.5 μm. The L flux lies ∼8% above the model curve, the M flux ∼14% above and the IRAS LRS flux at 8 μm ∼28% above. Figure 3 shows the measured flux data, the curve for the model atmosphere flux distribution that was fitted to the wavelength interval 0.7–2.2 μm, and the smooth curve drawn through the data. The integrated flux in the interval 2.5–22.5 μm for the curve drawn through the data is 0.194 × 10⁻⁹ W m⁻².

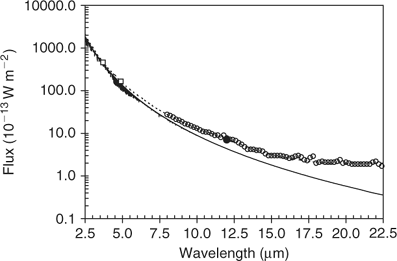

Figure 3 The dereddened flux distribution for δ CMa for the wavelength range 2.5–22.5 μm. Key: Solid line – NextGen 5800 K model; Dashed line – Smooth curve fitted to observational data; □ – broad-band L and M fluxes; ○ – IRAS LRS fluxes; • – IRAS Point Source flux. Details are given in the text.

The difference in the integrated flux between the two approaches is ∼0.03 × 10⁻⁹ W m⁻². We have adopted the mean value (0.18 × 10⁻⁹ W m⁻²) with an uncertainty of ±0.02 × 10⁻⁹ W m⁻². This corresponds to an uncertainty of ±0.4% in the total flux received from the star and translates to an uncertainty of ±0.1% in the effective temperature (∼±6 K).

The total IR flux for the wavelength range 0.86–22.5 μm is the sum of the integrated fluxes for the intervals 0.86–1.0 μm, 1.0–2.5 μm, 2.5–22.5 μm. As noted earlier the flux for wavelengths longer than 22.5 μm is negligible. The uncertainty in the total flux was estimated by simply summing the individual errors since they are likely to be dominated by calibration uncertainties and are thus systematic and not independent. The resultant value for the total IR flux is (1.93 ± 0.09) × 10⁻⁹ W m⁻².

Figure 4 shows the overall extinction-corrected flux distribution, from the visible to the IR, made up of the data used in integrating the visual and IR contributions.

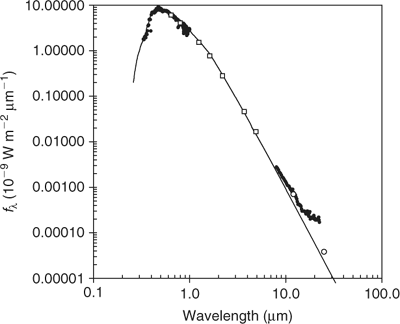

Figure 4 The interstellar extinction-corrected visual and IR flux for δ CMa. The data are represented in three wavelength ranges by dots: 0.33–0.86 μm (Kiehling 1987), 0.86–1.0 μm (Danks & Dennefeld 1994) and 8.0–22.5 μm IRAS LRS (IRAS Team 1988). • – fluxes from broad-band photometry; ○ – IRAS Point Source fluxes. The line represents the fluxes averaged over 5-nm bands for the NextGen 5800 K model atmosphere fitted to the observational data in the 0.7–2.2 μm interval. Details of the calibration and integration of the fluxes are given in the text.

The total flux received from δ CMa after correction for interstellar extinction is given by summing the contributions from the ultraviolet, visual and infrared regions of the spectrum. The contributions are listed with the total flux of (5.04±0.17) × 10⁻⁹ W m⁻² in Table 3. In assessing the uncertainty in the total flux, the uncertainties from the separate wavelength regions have been considered to be independent.

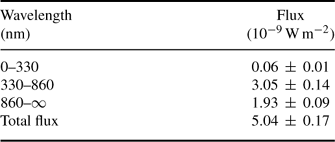

Table 3. The extinction corrected integrated fluxes for δ CMa in each spectral band plus the total integrated flux from the star

The total integrated flux is significantly less than the value of (6.01 ± 0.27) × 10⁻⁹ W m⁻² derived by Code et al. (1976). This is attributable to the revised value for E(B − V). The uncertainty has been reduced due to additional flux measurements in the visual and infrared and improvements in the absolute flux calibration.

The bolometric emergent flux and effective temperature for δ CMa are found by substituting the limb-darkened angular diameter and the extinction-corrected total flux received from the star in equation 2. The bolometric emergent flux ℱ is (6.50 ± 0.24) × 10⁷ W m⁻² and the effective temperature T _eff is 5818 ± 53 K. The dominant source of uncertainty in T _eff is from the integrated flux (0.8%), with a smaller contribution from the angular diameter (0.4%).

The angular diameter can be combined with the parallax of the star to determine the stellar radius, and the combination of radius and bolometric emergent flux gives the stellar luminosity. Unfortunately the Hipparcos parallax for δ CMa is of low accuracy with π = 1.82 ± 0.56 mas. Nevertheless a value for the radius has been calculated and is listed in Table 4 together with the bolometric emergent flux and effective temperature. The large fractional uncertainty of ∼ ±31% in the parallax dominates the fractional uncertainty in the radius. The luminosity depends on the square of the radius so the percentage error is doubled and the luminosity, with an uncertainty of ∼ ±62%, is of little value and has not been listed in Table 4.

Table 4. The physical parameters determined for δ CMa

Previous determinations of the angular diameter, bolometric flux and effective temperature for δ CMa are listed in Table 5 with the new values presented in this paper. The only other direct determination of effective temperature for this star is by Code et al. (1976) who obtained a value of T _eff = 6110 ± 430 K using the angular diameter determined with the NSII. The higher value for the effective temperature determined by Code et al. is almost entirely due to the value of E(B − V) they adopted. While Code et al. underestimated the uncertainty in the bolometric flux by not including an allowance for the uncertainty in the interstellar extinction corrections, the uncertainty in their temperature is primarily due to the uncertainty in the NSII angular diameter. The NSII angular diameter contributed ±6.9% to the uncertainty in the effective temperature compared with ±1.1% from the bolometric flux they derived.

Table 5. The limb-darkened angular diameter θ _LD, interstellar extinction corrected bolometric flux f, and effective temperature T _eff for δ CMa from various sources

The new temperature determination presented here lies within the uncertainty of the Code et al. value but has a substantially reduced uncertainty. The bolometric flux is now the dominant source of uncertainty, primarily due to the interstellar extinction uncertainty in the visible and dependence on broad-band photometry in the near IR.

The infra-red flux method (IRFM) (Blackwell & Shallis 1977) has been used to determine an angular diameter and effective temperature for δ CMa by Blackwell, Petford & Shallis (1980). Using a value of (6.0 ± 0.3) × 10⁻⁹ W m⁻² for the bolometric flux from the star (Blackwell & Shallis 1977), they derive an angular diameter of 3.56 mas and an effective temperature of 6143 K. No uncertainty is quoted for the angular diameter, and the effective temperature is suggested to be accurate to about 2%. Their angular diameter only differs from the measured value presented here by ∼2.1% which would only affect the temperature by ∼1.1%. The difference in temperature of ∼5.5% is mainly due to the larger bolometric flux which is essentially the same as that derived by Code et al. (1976). As discussed in Section 3.1 it is believed that the corrections applied by Code et al. (1976) were too large although it is not known what corrections were applied by Blackwell, Petford & Shallis (1980).

McWilliam (1991) has also determined an effective temperature for δ CMa using the IRFM. Using a similar value for the interstellar extinction as in this paper, he derived a value for the bolometric flux of 5.14 × 10⁻⁹W m⁻² and an effective temperature of 5855 K. Although no uncertainties were quoted, the value for the effective temperature is a weighted mean of four values, ranging from 5776 K to 5953 K, each determined from a different IR pass-band. Both the bolometric flux and effective temperature lie within the uncertainties of the new values presented here.

We have determined new and improved values for the bolometric emergent flux ((6.50 ± 0.24) × 10⁷ W m⁻²) and effective temperature (5818 ± 53 K) for the F8 supergiant δ CMa using a new interferometric angular diameter measured with SUSI. The uncertainty in the effective temperature has been reduced from ±7.0% to ±0.9%. It has been shown that precise temperatures can be obtained by combining angular diameters measured interferometrically with bolometric flux distributions assembled from a wide range of sources, with the dominant uncertainty now coming from the bolometric flux determination.
