Hα Emission from the Magellanic Bridge

Keywords: Turbulence — ISM: structure — galaxies: ISM — galaxies: interactions — stars: activity

The Magellanic Bridge comprises a streamer of Hi which has been gravitationally drawn from the Large and Small Magellanic Clouds (LMC, SMC) approximately 200 Myr ago, during a close (3 kpc) grazing pass between the two Clouds (e.g. Gardiner, Sawa & Fujimoto 1994). A sub-region of recent Hi measurements of the Magellanic System are shown in Figure 1 (Putman 2000). The dense regions on the east (left) and west (right) sides of the figure are the ISM of the Small and Large Magellanic Clouds and the Magellanic Bridge can be seen as an eastward extension of the SMC, stretching towards the LMC.

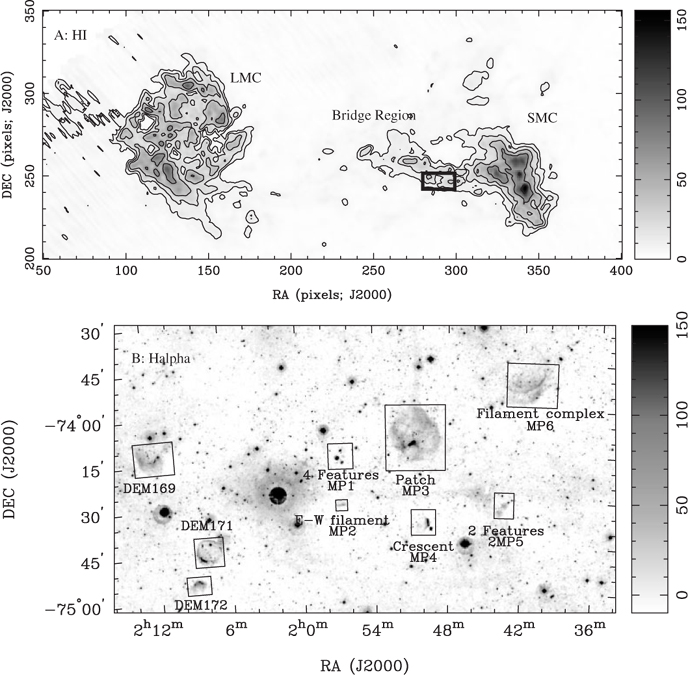

Figure 1 (Panel A) Integrated Hi intensity of the Magellanic System (data from Putman 2000). Contours are 5, 10, 20, 40, 80% of peak intensity where the units are in Kelvin. The overlaid box indicates the extent of the selected Hα field used in this study, shown in Panel B. (Panel B) A sub-region of the complete UKST Hα dataset is magnified and located against the Hi brightness distribution. NE is in the direction of the top left. Nine boxes have been positioned over identified Hα emission. The three easternmost boxes, labelled as DEMxxx, are known features from Davies, Elliott & Meaburn (1976) (see also Meaburn 1986). The other features are newly discovered in this study. The intensity units are arbitrary, with a linear transfer function. See Figures 2–8 for more accurate flux estimates. The bright object at 2^h 03^m is a foreground star.

The ISM of the Magellanic System and the Bridge in particular, have come to be regarded as templates for early-epoch systems, due to their relatively un-enriched ISM and slow star formation rate. These properties, along with their relatively close proximity (LMC: 50 kpc, SMC: 65 kpc, e.g. Abrahamyan 2004) and large subtended spatial length, make them ideal for high-resolution studies of the turbulent characteristics of a poorly enriched ISM.

A turbulent fluid flow behaves according to both a hierarchical scale–power distribution, and scale-dependent energy injection mechanisms (e.g. Kolmogorov 1941). The canonical size–power relation for an unperturbed fluid conforms to a logarithmic law: P(k) ∝ k^γ where k is the wave number. For an incompressible and turbulent fluid flow, γ is theoretically predicted to be ∼–3.6 (e.g. Kolmogorov 1941). In general, broad-scale observations of the Galactic and Magellanic gaseous ISM yield values of γ between ∼–2.2 to –3 (Green 1993; Elmegreen, Kim & Staveley-Smith 2001; Muller et al. 2004).

MacLow (2004) has shown that the dominant energy injection mechanism into theISMis via supernovae (SNe), although this is surely true only for systems which harbour a substantial, massive stellar population. The Magellanic Bridge is known to host a young stellar population (e.g. Demers & Irwin 1991, and references therein; Bica & Schmitt 1995), some of which are early types. The Bridge is also known to be an active, but inefficient producer of stars (Christodoulou & Tohline 1997; Mizuno 2006). As such, the ISM in the Bridge may constitute a textbook turbulent structure: one that is not significantly perturbed by SNe or stellar winds and which conforms well to the expected hierarchical spatial-power cascade (e.g. Kolmogorov 1941; Deshpande 2000).

The predictable turbulent structure of the Bridge ISM is certainly true for scales 10³–10² pc according to current measurements of the pervasive neutral ISM within the Magellanic Bridge (i.e. Hi; Muller et al. 2003a). However these observations are limited to the spatial resolutions accessible by the ATCA and it is currently impossible to sample the ISM down to scales <∼100 pc using those data. Due to the prohibitively large observation integration times, it is difficult to obtain higher resolution data at usable sensitivities, with the view to measuring the smallscale arrangement of the ISM. To estimate the energy balance at smaller (i.e. stellar) scales we therefore turn to higher resolution measurements of observable signatures of energetic processes.

We examine here the Hα emission from the Magellanic Bridge as a signpost of significant and localised energetic processes, in an attempt to estimate the energy balance at these relatively small spatial scales. Previous studies of the Hα emission from the Bridge is typically wide-field, but of poor resolution (Johnson, Meaburn & Osman 1982), or single-pointing, very targeted and of narrow field of view (Marcelin, Boulesteix & Georgelin 1985; Putman et al. 2003). To date, only one extended object has been subject to any dedicated morphological study at all: a well-formed ring of Hα emission that may be generated by a SN, or from a central 08-type star (see Figure 2; e.g. Meaburn 1986).

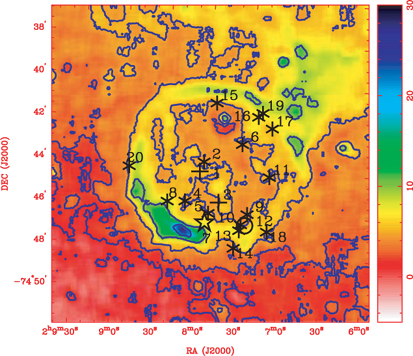

Figure 2 The Hα feature DEM171 observed from the relevant UKST Hα MC survey field that covers that part of the Bridge. This Hα shell is also coincident with an easily identifiable expanding Hi shell (Muller et al. 2003a). The overlaid symbols indicate different catalogue sources: an asterisk indicate stellar cluster objects listed in Demers & Irwin (1991), a plus sign shows objects that are listed in Bica & Schmitt (1995) and the circle indicates those which are listed in Battinelli & Demers (1992). The star locates FAUST 392. Each of the objects are indexed in Table 2. Contours are 2^x% of peak intensity (x = 2–6). Intensity units shown on the colour wedge are in Rayleighs.

We have newly identified a small number of extended Hα features within the Magellanic Bridge. Many of these are comfortably attributable to radiative ionisation from bright UV sources and there is at least one example of a shock-ionised Hα feature.

We made use of the existing archived data to obtain our Hα maps of the Magellanic bridge region. They were taken by the Anglo-Australian Observatory UK Schmidt Telescope, at Siding Spring, Australia, as part of the Southern Galactic Plane and Magellanic Clouds (MC) Hα survey (Parker et al. 2005). Forty fields on overlapping 4-degree centres in and around the Magellanic Clouds were observed using a 305-mm clear aperture Hα interference filter of exceptional quality (Parker & Bland-Hawthorn 1998) and high resolution, high sensitivity Tech–Pan film as detector (Parker & Malin 1998). Each field was exposed for 3 hours yielding a nominal ∼5 Rayleigh sensitivity (Parker et al. 2005). The original Magellanic Cloud survey fields were scanned by the SuperCOSMOS measuring machine (Hambly et al. 2001) and the 10-μm pixel data have a resolution limit at 0.67′′ (though of course typical seeing is 2′′ and the smallest point source images are ∼20–25 μm). Each Hα MC survey field subtends ∼5.5 degrees on the sky.

The target region for the data used here is shown as a rectangle overlaid on the wing feature in Figure 1, although the actual scope of the Schmidt field is much larger. The digitised SuperCOSMOS data have been flat fielded, calibrated and continuum subtracted according to Parker et al. (2005). The lack of extended emission in the field, used to calibrate the emission for example via direct reference to SHASSA images (Gaustad et al. 2001), makes accurate calibration very difficult and generates uncertainties in flux of at least ∼20–30%. All Hα data shown here (excluding Figure 1A) have been filtered with a small (3 × 3 pixel) median filter to remove crowding and to highlight extended structure. Due to the variation of filter artifacts and the very low level of the Hα emission, the Hα data shown in Figure 1A have not been smoothed or filtered and the large-scale variation has been removed only by a low-order fit. As such, the intensity units of Figure 1A are unreliable and are given only as an approximately relative measure. The difficulties in obtaining accurate calibration and the large resulting potential errors have encouraged us to initiate future more detailed analysis of some of the more enigmatic and intriguing objects discussed in this initial report.

Awide-field Hα image of the part of the Bridge containing the brightest Hi emission is shown in Figure 1A. Although the processing techniques will have removed any kpcscale gradient across the field, extended Hα emission is detected in about nine smaller regions.

We show a magnification of each region in Figures 2–8. In general, the extended Hα is very weak, indicating that the ISM harbours a low mass of neutral hydrogen or that weakly ionising processes are in operation. Table 1 summarises the defining characteristics of each of the features and provides some speculation on the mechanisms responsible for ionising the ISM in the Bridge.

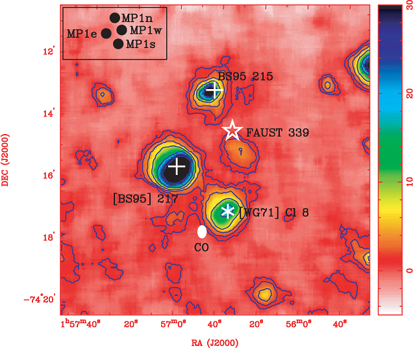

Figure 3 UKST Hα data, showing the positions of four, perhaps associated Hα emission features; MP1N,S,E,W. This region is spatially correlated with ¹²CO(1–0) line emission (Muller, Staveley-Smith & Zealey 2003b), which is shown with the white ellipse (representative of the 35′′ beam of the Mopra mm telescope). The relative positions of potential heating sources; FAUST339 (star), BS 215, 217 (plus symbol) and WG 8 (asterisk symbol) are also shown. The legend in the top left indicates the adopted naming convention. Contours are 2^x% of peak intensity (x = 0–6). Intensity nits shown on the colour wedge are in Rayleighs.

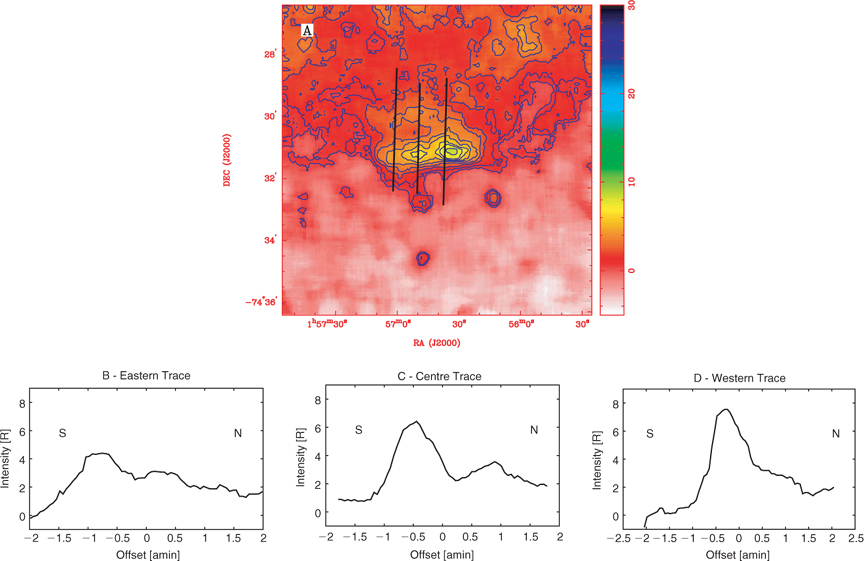

Figure 4 (Panel A) UKST Hα data, showing an E–W filament (MP2). This is the only detected Hα feature in the Bridge that does not have a readily detectable ionisation mechanism. Contours are 0.5, 1:10+1, 12:20+2 R. Intensity units shown on the colour wedge are in Rayleighs. (Panels B–D) Three profiles, shown as the tracers in the top panel. These profiles show a steeply rising increase in emission from the south, which is suggestive of a shock front.

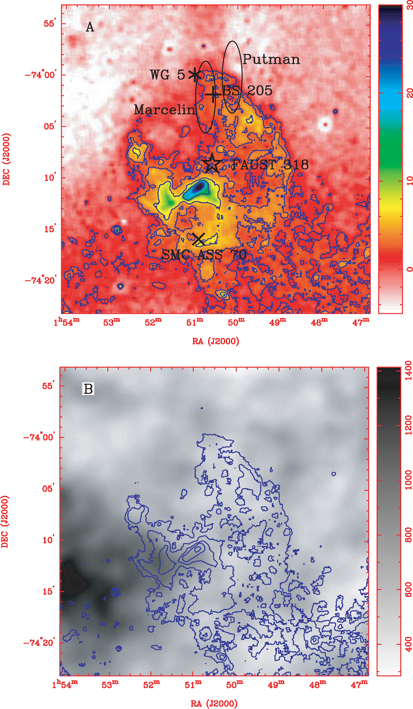

Figure 5 (Panel A) UKST Hα data, showing the diffuse patch (MP3). Ellipses show positions of Hα observations byMarcelin, Boulesteix & Georgelin (1985) and Putman et al. (2003). The star locates FAUST 318, the plus sign shows the position of the OB cluster BS 205 (Bica & Schmitt 1995). The cross shows the position of the stellar cluster WG 5 (Westerlund & Glaspey 1971) and the asterisk shows the position of the SMC stellar association 70 (Hodge 1985). Contours are 2^x% of peak intensity (x = 2–6). Intensity units shown on the colour wedge are in Rayleighs. (Panel B) Greyscale: Integrated Hi line emission of region associated with the Hα Diffuse Patch. The Hα region is shown as contours. Brightness units shown on the colour wedge are in Kelvin

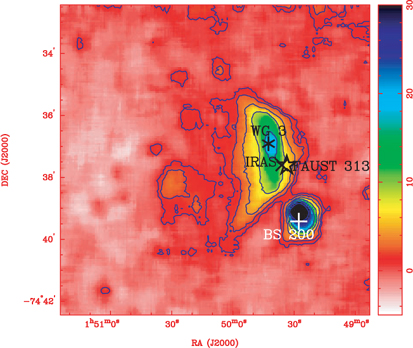

Figure 6 UKST Hα data, showing a crescent (MP4). This crescent-like feature in the Bridge is well associated with potential heating sources. FAUST 313 is shown with the Star symbol and the clusterWG 2 (Westerlund & Glaspey 1971) is shown with the black asterisk. The OB association BS95 200 is located with the white plus sign. Contours are 2^x% of peak intensity (x = 0–6). Intensity units shown on the colour wedge are in Rayleighs.

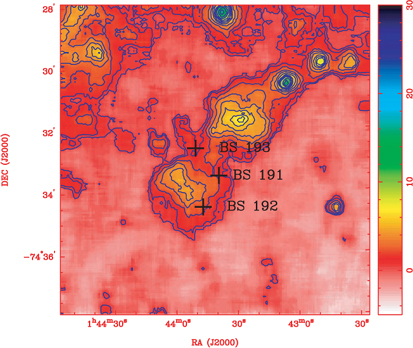

Figure 7 UKST Hα data, showing two diffuse circular features (MP5). OB association catalogue objects are identified with a black plus sign. There is a general, but not very close correlation of the OB associations with the peaks of the Hα emission. Contours are 2^x% of peak intensity (x = 0–6). Intensity units shown on the colour wedge are in Rayleighs.

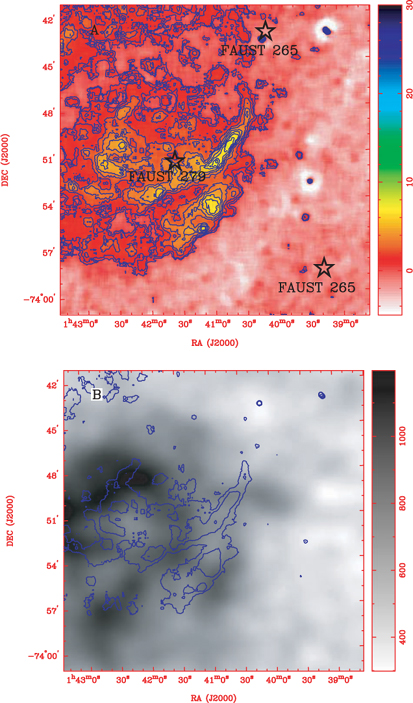

Figure 8 (Panel A) UKST Hα data, showing a filamentary complex (MP6). The positions of three FAUST objects are shown with stars. Contours are 2^x% of peak intensity (x = 2–6). Intensity units shown on the colour wedge are in Rayleighs. (Panel B) Greyscale: Integrated Hi line emission of region associated with the filaments. Hα emission is overlaid as contours with intervals of 0.5, 1:10+1, 12:20+2 R. The Greyscale brightness shown on the colour wedge are in Kelvin.

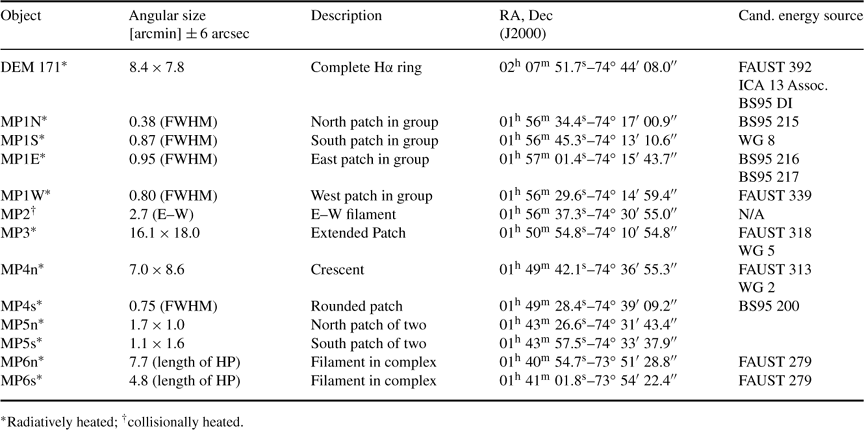

Table 1. Hα objects and candidate heating mechanisms. Table 3 contains a list of FAUST objects that are associated with observed Hα nebulosity in the Magellanic Bridge

Table 2. Candidate ionisation sources within DEM171

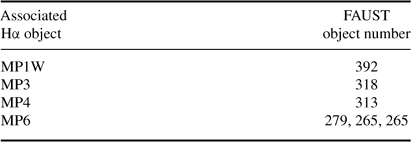

Table 3. FAUST objects that are associated with observed Hα nebulosity

In all cases, we have attempted to correlate the projected positions of any putative sources of ionizing flux. FAUST objects (Bowyer et al. 1995), OB stars and associations (Demers & Irwin 1991; Battinelli & Demers 1992; Bica & Schmitt 1995) that are found within 10′–20′ (170–350 pc) of each Hα region are plotted on top of Hα emission.

Only two of the detected Hα features appear to exhibit a regular ring morphology (see Figures 2 and 6). Other features are more amorphous, showing clumpy, filamentary or otherwise unstructured distributions of the Hα emission region. We will discuss each of the features below in some detail.

The feature shown in Figure 2 is most easily interpreted as an expanding and internally heated stellar wind or SN shell.

DEM171 is known from Meaburn (1986) and others (Parker 1998; Graham et al. 2001), who made some speculation regarding the ionisation source. There are a number of candidate heating sources which are internal to this shell (Bica & Schmitt 1995) and candidates include FAUST 392 (shown with the black star) which may be an 08-type or WR star. A comparison of the Hα from DEM171 with an easily identifiable expanding Hi shell has already been made by Muller et al. (2003a).

In the absence of evidence to the contrary, we will assume that the unlikely spatial coincidence of the four regions shown in Figure 3 suggests that they are associated. They may have formed from a common gas cloud, or that they represent sites of secondary starformation (perhaps) catalysed through the evolution of a stellar wind or SN shell. The four objects are listed in Table 1 as MP1N, S, E, W. See Muller, Staveley-Smith & Zealey (2003b) for a comparison and description of the Hi and dust emission associated with these objects. With the exception of MP1W, each of the Hα regions have plausible internal heating mechanisms which are elaborated below.

MP1N is clearly associated with the BS95 cluster 215 (Bica & Schmitt 1995). This is very compact cluster and is clearly a strong source of high energy radiation. There appears to be little dust and other Hi associated with this object, implying that it is a more evolved, although still rather young group. It has a less diffuse morphology in Hα than does MP1S, implying that some of the nursery gas has been dispersed.

MP1S also has a clear association with a stellar group WG71 8 (Westerlund & Glaspey 1971). The Hα morphology is a little more extended than the northern feature (MP1N), although it also appears to be a more compact and less well populated group. This object is most closely related to the site of the first detection of ¹²CO(1–0) in emission within the Bridge (Muller, Staveley-Smith & Zealey 2003b). The extent of the CO at this position has been explored by Muller et al. (2003b) and has been shownto be very compact (R < 16 pc, Muller et al. 2003b). Weak CO has also been found at other locations in the Magellanic Bridge (Mizuno 2006). The CO detected at MP1S appears to reside in a local overabundance of Hi which would shield the CO from any otherwise destructive radiation which is emitted by WG71 8. This process is evidenced by the excited Hα emission shown here.

MP1E is spatially coincident with OB associations BS95 217 and 216, although a reference to Bica & Schmitt (1995) shows that BS95 216 is a sub-cluster within the larger BS95 217. This object is also listed in the IRAS catalogue (IRAS 01562-7430). The strong radiation at infrared wavelengths implies a significant warm dust component.

This object is not coincident with any ionising sources that are visible in the optical, but is most closely geometrically related to the UV source FAUST 339. The somewhat axi-symmetric morphology of MP1W is not particularly consistent with heating via an external source and as such, this region may harbour an as-yet invisible site of starformation.

Figure 4 (Panel A) shows a relatively unusual emission object: a region of rather bright Hα emission, without having any detectable candidate heating source. This feature has a shock-front morphology, in that the intensity contours are tightly clustered on one side and much more separate on the opposite side. Such a structure is suggestive of compression of the ISM by a shock, formed perhaps by sheer/collisional interaction between Bridge–Bridge ISM, or between the Bridge and external material. Overlaid on Figure 4A are three vertical lines, which indicate the traces shown in Figure 4B–D. The steeply rising profile from the south is clear in these plots. High sensitivity spectral information are necessary to test for molecular and ionic shock tracers to confirm the shock-front scenario.

This approximately circular Hα patch is shown in Figure 5A. It subtends ∼20′ at the fullest extent and it is the largest Hα region yet identified in the Bridge. Despite the large size, it is difficult to convincingly associate the Hα morphology with the brightness distribution of Hi. Figure 5B shows the Hα overlaid as contours on Hi and apart from a weak geometric correlation of an Hi filament which appears to follow the centre of the Hα region, there are no strong morphological reasons to suggest that the Hi line emission and the Hα are closely related.

This feature has been noted in very early work by Johnson, Meaburn & Osman (1982) who identified it as the brightest region of Hα in the Bridge. These authors measured a brightness for this region of 2.5 × 10^–9 JM^–2 s^–1 sr^–1 (∼10 R). After smoothing to the resolutions of Johnson, Meaburn & Osman (1982), we measure a peak brightness of ∼5 R, although we note that this feature falls exactly upon a low-level film artefact which would significantly affect the baseline-subtraction process.

Even later followup observations, by Marcelin, Boulesteix & Georgelin (1985) and then Putman et al. (2003) failed to point at the position of peak Hα brightness for this feature, although they were using UV as a trace for energetic processes (Courtés et al. 1984). The positions and areas of observations by Marcelin, Boulesteix & Georgelin (1985); Putman et al. (2003) are shown as ellipses on Figure 5. These authors report an emission measure of 4 and 3.2 R (respectively) and the 400% error here in our approximate measured values highlights the difficulties in extracting low-level and wide-field emission from the UKST dataset in the absence of strong extended reference observations.

Central to this feature is the object FAUST 318. At this early stage, based on the morphology of the Hα feature and without a means to fully probe the ionisation flux of the Hα region, we suggest that FAUST 318 is the source responsible for generating the observed Hα emission.

This feature is one of two identifiable Hα ring-like features in the Bridge. The object FAUST 313 is located nearby the brightest Hα emission from the crescent and is therefore the mostly likely heating source which gives rise to the observed emission. There are no identifiable, centrally located candidate heating sources. An additional, compact Hα emission region (MP4a) is detected to the south west of the crescent. This smaller region is exactly coincident with an OB association BS95 200 (Bica & Schmitt 1995). Of interest is the coincidence also with IRAS 01489-7452 and the blue cluster WG 3. These may represent different detections of the same object, given the pointing errors of the FAUST and IRAS instruments.

The two circular regions of Hα emission (MP5n, MP5s) are shown in Figure 7. The adjacent regions are relatively faint, being only a few Rayleighs in total emission. These objects are within a few tens of pc (projected line of sight) to optically identified OB associations (Bica & Schmitt 1995), although the exact alignment of the associations does not correspond to the centre of the emission. The geometry of the Hα and OB associations imply that the OB associations may not be responsible for the observed ionisation recombination, but may represent members of a common starforming region. A candidate scenario for these emission regions is that they are being ionised by embedded and obscured star formation, however, these sites are not apparent in 60 μm dust-emission maps which would help to support the internal radiative heating scenario.

These Hα filaments shown in Figure 8 only loosely correlate with the large-scale contours of the Hi brightness. The more diffuse Hα is associated with large integrated Hi brightness, however, the brightest edges of the Hα filaments are uncorrelated with the Hi. Again, the proximity of these features to a UV source suggest radiative heating of the ISM. FAUST 279 is the only object which is located centrally to the Hα emission.

The observed Hα emission is a direct signpost of the quantity of energy that is capable of interfering with the turbulent structure of the ISM. We can test the assumption that energetic processes arising from the formation and death of stars will shape the Bridge ISM, by estimating power from the observed Hα nebulosities. We observe that the brightest parts of the Hα regions (i.e. with power >10 R) subtend a few arcmin (∼10 pc). Using 1 R = 2.71 × 10^–7 erg s^–1 cm^–2 sr^–1, we can sum the total power from each of the Hα features at this scale to yield:

This order-of-magnitude estimate is substantially lower than the typical energy output of any early-type massive star. Under the assumption that the observed Hα emission is directly related to energetic stellar processes that are capable of perturbing the turbulent ISM at these pc scales, we can conclude that in the case of the Magellanic Bridge, the stellar population does not contribute significantly to the turbulent energy balance of the ISM. The lack of emission which is not easily attributable to compact candidate heating sources also suggests that the turbulent ISM of the Bridge is not significantly perturbed by other high-power (for example collisional) processes.

The Hα observations presented here reveal a number of weak Hα features located in the tidal Magellanic Bridge. The low emission measures of all the features suggest that the ISM within the Bridge is not being substantially mixed by the deposition of energy via turbulent motions, stellar winds and SNe. The lack of substantially energetic processes in turn imply that the ISM in the Bridge is largely a purely turbulent feature, from the largest scales of a few kpc, down to the scales probed by this report; of a few pc. We conclude that the Magellanic Bridge is therefore the largest and closest tidal feature that harbours a pure turbulent structure that is available for study.

With the exception of one feature, all of the observed emission regions appear to be close in projection to bright sources of UV radiation. We have been restricted in the accuracy of this analysis by an insecure calibration scheme. Obtaining well calibrated Hα spectral line data will be important in providing both power and kinematic information and we will then be in a more tenable position to speculate reliably on the mechanisms giving rise to the observed Hα features. In addition, measurements of ionic species, such as [Sii] which are indicators of shock-heating, will provide a means to clearly discriminate between viable ionisation schemes. We will develop this project further and address these questions.
