Use of artificial bark covers to investigate the distribution and abundance of arboreal lizards in a floodplain environment

Keywords: arboreal lizards, artificial refuges, environmental water, floodplain environment, Murray–Darling Basin, occupancy patterns, species distribution, survey methods.

Reptiles are a species-rich group of vertebrates that play important roles as predators and prey in a broad range of ecosystems, yet they remain one of the most poorly studied vertebrate groups worldwide (Roll et al. 2017). The lack of research and conservation attention is concerning considering reptile populations are declining on a global scale due to habitat loss, land use change, invasive predators, and a warming climate (Gibbons et al. 2000; Böhm et al. 2013; Tingley et al. 2019). A key premise in maintaining biodiversity is understanding species diversity and distribution patterns across different ecosystems. Selecting appropriate survey methods to enable robust detection estimates in different environments is paramount to achieving these goals (Ribeiro-Júnior et al. 2008; Michael et al. 2012).

Conventional methods for surveying reptiles include active searches or visual encounter surveys (Garden et al. 2007; Dodd 2016) which involve collecting individuals from shelter sites such as beneath logs, rocks, or exfoliating bark. This search strategy can provide a representative sample of the species present in a defined area (Ribeiro-Júnior et al. 2008), but is biased towards observer ability and topographical constraints, and may cause localised destruction of critical microhabitat (Button et al. 2020). Exfoliating bark of mature trees is a key microhabitat commonly utilised by a range of tree-dwelling fauna, but this resource is often a limiting factor in human-modified landscapes (Michel and Winter 2009; Michael et al. 2015). Many arboreal species are dependent on exfoliating bark for shelter, thermoregulation, and nesting sites (Parmar 2020, Riedel et al. 2020; Taylor et al. 2020; Putra et al. 2021; Schwarz et al. 2021). For instance, nocturnal arboreal geckos will use bark to thermoregulate by changing their posture to maximise contact with the substrate while remaining beneath the safety of cover (Kearney 2001; Nordberg and Schwarzkopf 2019a). Consequently, many arboreal species are impacted by human activities that result in habitat loss or microhabitat disturbance. To mitigate human impacts on a bark-dwelling species in the USA, researchers developed an artificial roost called BrandenBark™ designed to mimic the exfoliating bark of Indian bat (Myotis sodalist) roost trees (Adams et al. 2015). The construction of this type of artificial shelter not only provided suitable conditions to facilitate population recovery for an endangered species, but also provided a passive method useful in fauna surveys.

Similar passive survey methods have been used for over four decades in reptile surveys, including the use of artificial cover objects or artificial refuges to provide supplementary sheltering sites that can be periodically inspected without disturbing the natural habitat (Michael et al. 2004; Hoare et al. 2009; Michael et al. 2012). Artificial bark covers (ABCs) are a relatively recent survey method used to survey invertebrates (Hodge et al. 2007) and reptiles in Australia and New Zealand (Bell 2009; Nordberg and Schwarzkopf 2015; Michael et al. 2018; Shelton and Goldingay 2021). Comparative studies have found that ABCs are particularly effective for increasing capture rates of gecko species (Nordberg and Schwarzkopf 2015; Shelton and Goldingay 2021) and for detecting arboreal snakes in vegetation communities where habitat resources are limited (Shelton and Goldingay 2021). ABCs may also have broader application in long-term occupancy studies where presence and absence are the inferred objectives rather than evaluating habitat requirements (Ali et al. 2018; Shelton and Goldingay 2021). However, the use of ABCs to survey arboreal reptiles is a method still in its infancy and has yet to be tested on a wide range of taxa across structurally different ecosystems. The application of this survey method in landscapes subject to periodic inundation has not previously been documented but is of particular interest to floodplain land managers in Australia. Surveying fauna in remote or dynamic ecosystems such as flood prone environments can be challenging, largely because conventional methods to survey reptiles can be labour intensive (e.g. pitfall traps) or not feasible (e.g. during inundation events): or they require some level of habitat disturbance (e.g. active searches: Ali et al. 2018).

One ecosystem where terrestrial reptiles have received relatively little attention is the floodplain environments of the Murray–Darling Basin (MDB). The MDB is the largest river catchment in Australia and supports extensive stands of floodplain forest vegetation communities. Freshwater ecosystems within the MDB are under threat from changing patterns of water availability, declining tree condition, land clearing and land use change (Kingsford 2000; West et al. 2008; Pittock and Finlayson 2011). More than 260 reptile species from 12 families occur in the MDB, where they occupy a variety of environments, including floodplains and wetlands (Swan 2020). Although the detection rates and suitability of different survey methodologies have been tested on other floodplain herpetofauna, including frogs (Wassens et al. 2017) and turtles (Howard et al. 2017; Ocock et al. 2018; Van Dyke et al. 2019; Price et al. 2020), survey methods to assess the distribution and abundance of terrestrial floodplain reptile communities have received far less attention. It is not known how abundance and distribution of lizard species in the MDB floodplain respond to inundation frequency as inundation can drive increases in floodplain productivity and food availability but can also inundate large areas of suitable habitat, limiting movement and stranding individuals.

To address this ecological knowledge gap, we used ABCs to investigate the distribution and abundance of arboreal lizards from an ecologically significant part of the MDB floodplain ecosystem. We addressed the following three questions: (1) does the abundance and composition of lizard species increase and change respectively with more frequent inundation or among different broad vegetation communities; (2) are there temporal changes in species detection patterns over time; and (3) what is the optimal number of visits required to attain 95% confidence in detecting arboreal lizard species, given their presence at a site in this system?

This study was conducted in the Murrumbidgee catchment (81 527 km²) within the Murray–Darling Basin in southern New South Wales (NSW) between Darlington Point and Balranald (a map of these areas can be found in the supplementary material: Supplementary Material Fig. S1). Significant stands of river red gum (Eucalyptus camaldulensis) forest occur along the Murrumbidgee River, although various sections have been subject to intensive logging activity in the past. Contemporary land use is predominantly associated with dryland and irrigated cropping, grazing and small-scale hobby farming. We located our study sites within three regions reflecting broad wetland vegetation communities. The regions included: (1) mid-Murrumbidgee, characterised as lagoons fringed with river red gum, (2) Gayini Nimmie-Caira (GNC), characterised as creeks and palaeochannels dominated by lignum (Duma florulenta) and lignum–black box (Eucalyptus largiflorens) communities, and (3) Redbank, characterised by river red gum–spike rush (Eleocharis spp.) vegetation communities. All sites were located within Yanga National Park, Murrumbidgee Valley National Park or on private property and were situated between 500 m and 22 km from the main river channel and within the core floodplain system.

In August 2019, 112 ABCs were installed on river red gum (E. camaldulensis) (n = 108) or black box (E. largiflorens) trees (n = 8) at 13 wetlands across the study area. At each wetland, two or three plots were established, where a plot represented a grid of four trees spaced approximately 100 m apart (1 ha). Inundation regimes derived from spatial layers (Hall et al. 2019) were used to select two trees that experienced frequent inundation (>17/20 occasions from 1990 to 2010, termed ‘wet’ treatment) and two trees that experienced infrequent inundation (<3/20 occasions from 1990 to 2010, termed ‘dry’ treatment). We chose to stratify tree selection based on inundation frequency as we were initially interested in the influence of managed watering actions on lizard movement and occupancy patterns. However, this study was conducted during a below average water allocation year and subsequently few (n = 5) trees were inundated, preventing us from performing the before–after control–impact experimental component of this study.

As this study focused on species detection and not microhabitat preferences, trees with a diameter at breast height (DBH) ranging from 60 to 120 cm were selected, as this size cohort hosts more species and individuals of arboreal lizards than smaller trees (Michael et al. 2018). The ABCs consisted of closed cell foam (Neolon™ Foiled Foam) and were attached to each selected tree using rope and shock cords (Fig. 1). To standardise the cover area, the closed cell foam was cut into 60 × 200 cm strips and placed 1.5 m above the ground, oriented to the north. Each tree was marked with a semipermanent tag and given a unique code identifying the site, plot, treatment, and tree number. The first survey was conducted in September 2019, one month after the ABCs were installed. Temperature outside and underneath the ABCs was recorded using Thermochron iButtons programmed to record hourly over a six-month period. Thermochron iButtons were placed on trees at four sites within the mid-Murrumbidgee area (MAN, DAR, GOO, SUN). iButtons were not deployed at Nimmie-Caira or Redbank. One tree from each treatment was chosen within each site, the exception for this being at DAR where iButtons were installed on one ‘wet’ tree. Two iButtons housed in fobs were nailed to each tree oriented to the north, one above the cover to record ambient temperature, and the second beneath the ABC to record temperature within the shelter. The ABCs remained in situ throughout the entire study.

Fig. 1.  Example of artificial bark covers (ABC) attached to a river red gum (left and right) and black box tree (middle) in areas that experience frequent or infrequent inundation.

Reptile surveys were conducted on five occasions in the mid-Murrumbidgee area (September 2019, November 2019, January 2020, March 2020, and June 2020) and on four occasions in the GNC and Redbank areas due to access restrictions (September 2019, November 2019, January 2020, and March 2020). During each survey period, the ABCs were carefully removed from the tree and any sheltering lizards were captured by hand (when feasible) and sexed before being released back under the reinstated cover. We did not individually mark lizards in this study.

We modelled the number of animals of each species captured under ABCs during each survey in relation to tree treatment (wet versus dry) and survey period (month) using generalised linear mixed models (GLMMs). To examine treatment effects, the number of individuals was modelled as a Poisson distribution with treatment included as a two-level categorical variable with site included as a random effect (Zuur et al. 2009). To explore survey period (months) effects, the number of individuals was modelled as a Poisson distribution with month as a covariate and site ID as a random effect, which we compared to an intercept-only model using a Likelihood Ratio Test (Bates 2005). To evaluate occupancy and detection probabilities for arboreal lizards found beneath the ABCs, single season occupancy models were produced for each species in R using the package ‘unmarked’ (Fiske and Chandler 2011). Single season occupancy models assume independence between sites and detections, no changes in occupancy within sites and no false positive records (MacKenzie et al. 2002). Although not all species were distributed evenly across the three wetland areas, data from all areas were used to calculate detection probabilities at the site-level for E. striolata (Redbank area), C. marmoratus and G. versicolor (mid-Murrumbidgee area). Cryptoblepharus pannosus was excluded from the analysis due to infrequent records across all areas.

A null occupancy model was calculated for each species, allowing an estimate of detectability and occupancy across all sites. This model was then back transformed in both the detection and occupancy parts of the model, allowing us to estimate the number of repeat site visits required to attain high confidence in detecting the species, given its presence (Kery 2002). The only exception to the null model was the inclusion of the detection of a large arachnid (Holconia murrayensis) during surveys for the three common lizard species, as field observations indicated that these animals rarely co-occurred, suggesting some form of predator–prey interaction. Thus, the presence/absence of H. murrayensis was included as a survey level covariate of lizard occupancy.

To evaluate ABC temperature profiles, we modelled the temperature from iButtons in relation to whether the iButton was located underneath or above the ABC (i.e. ambient temperature) using cyclic Generalised Additive Mixed Models with time of day as a cyclic smoothed term, iButton location (underneath/outside) as a fixed effect, and tree ID as a random effect (to acount for repeated measures of temperature at trees over time). A by function was used to allow a separate smoothed term for each level of iButton location. All analyses were performed using R Studio.

From five surveys involving 552 ABC inspections, four arboreal lizard species, two frog species, one unidentified bat species and several spider species were detected (Table 1). Numerous other invertebrates were also observed but these taxa were not recorded in this study. Christinus marmoratus was the most recorded species and accounted for 44% of total lizard detections, followed by Cryptoblepharus pannosus (27% of observations), Egernia striolata (20%) and Gehyra versicolor (9%). Two frog species (Litoria peronii and Litoria raniformis) were recorded under the ABCs but were detected too infrequently to include in the analysis.

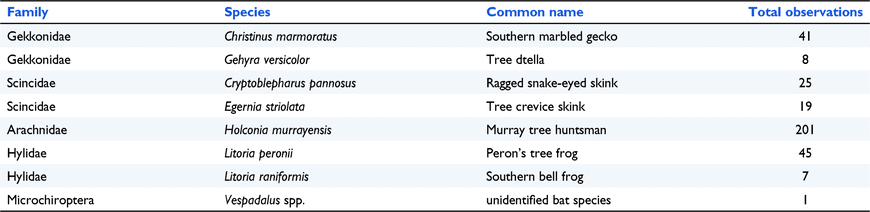

Table 1.  List of faunal species and total number of detections beneath artificial bark covers in the Murrumbidgee study area between September 2019 and April 2020.

The composition and abundance of reptiles beneath the ABCs was not evenly distributed across the study area (Fig. 2). For example, E. striolata was found only in river red gum within the Redbank system in the Lower Murrumbidgee, where it was detected at nine of ten sites and the two gecko species were found only in river red gum in the mid-Murrumbidgee area, where C. marmoratus was detected on five of six sites and G. versicolor was detected on three of six sites. Cryptoblepharus pannosus was the only species found across all three wetland areas, although it was infrequently detected beneath ABCs on most sites. There was no difference in the mean number of lizard observations between treatments (inundated ‘wet’ trees versus infrequently inundated ‘dry’ trees) for any species (Table 2).

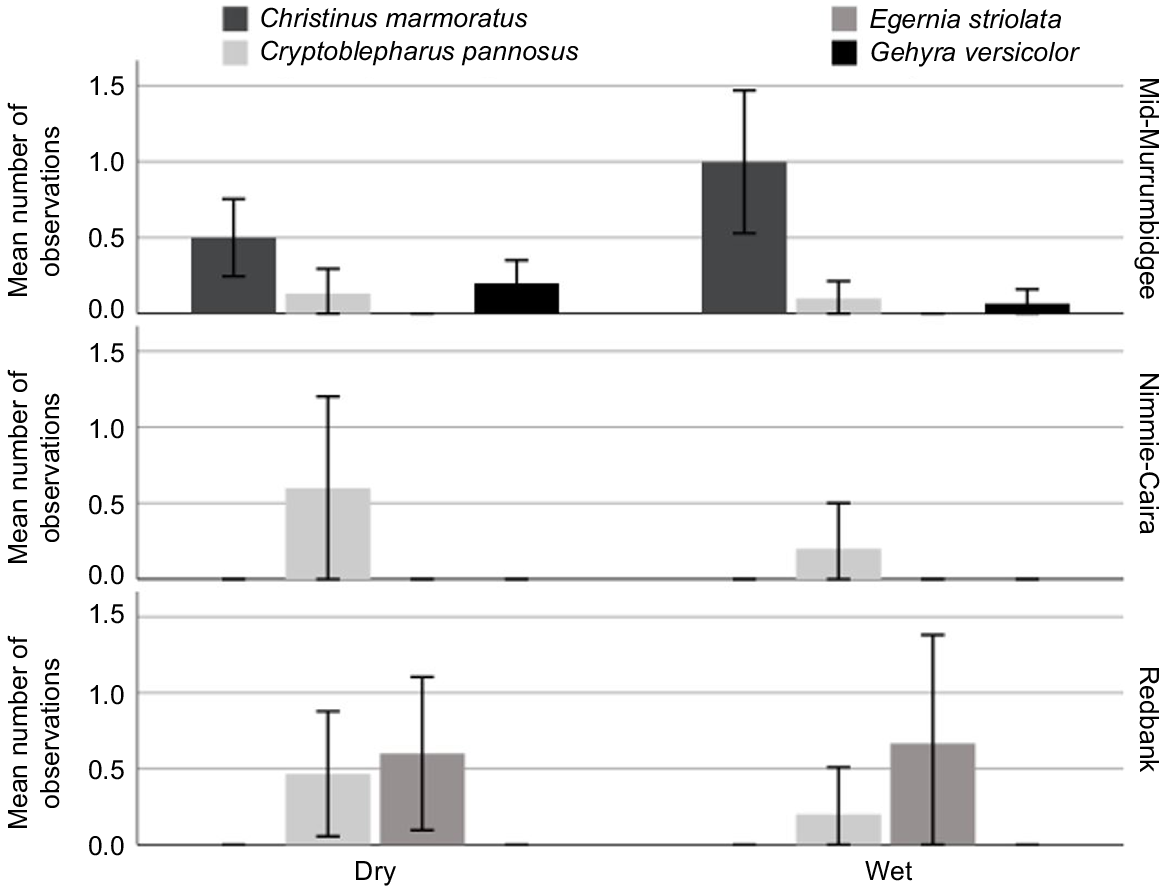

Fig. 2.  Mean number of observations per site between treatments (wet versus dry) for four arboreal lizard species detected beneath ABCs across three wetland areas.

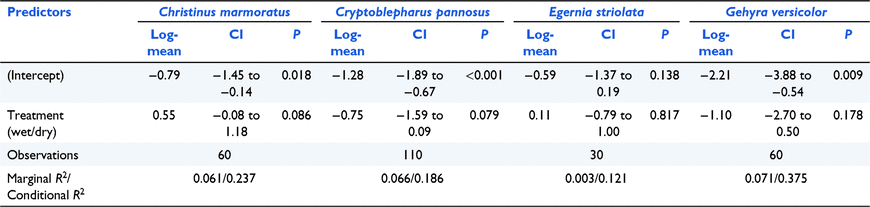

Table 2.  Results from generalised linear mixed models comparing mean observations of four lizard species in relation to inundation treatment (wet/dry).

The mean number of observations for three of four species varied significantly among survey periods (Fig. 3). The mean number of C. marmoratus observations (P = 0.015) were highest during the first survey in September 2019 and the last survey in June 2020. In contrast, the mean number of E. striolata observations (P = 0.024) were highest during the warmer months of November, February, and March (Fig. 3). Cryptoblepharus pannosus was not detected during the winter months (P = 0.02) and G. versicolor abundance did not differ significantly across months (P = 0.458).

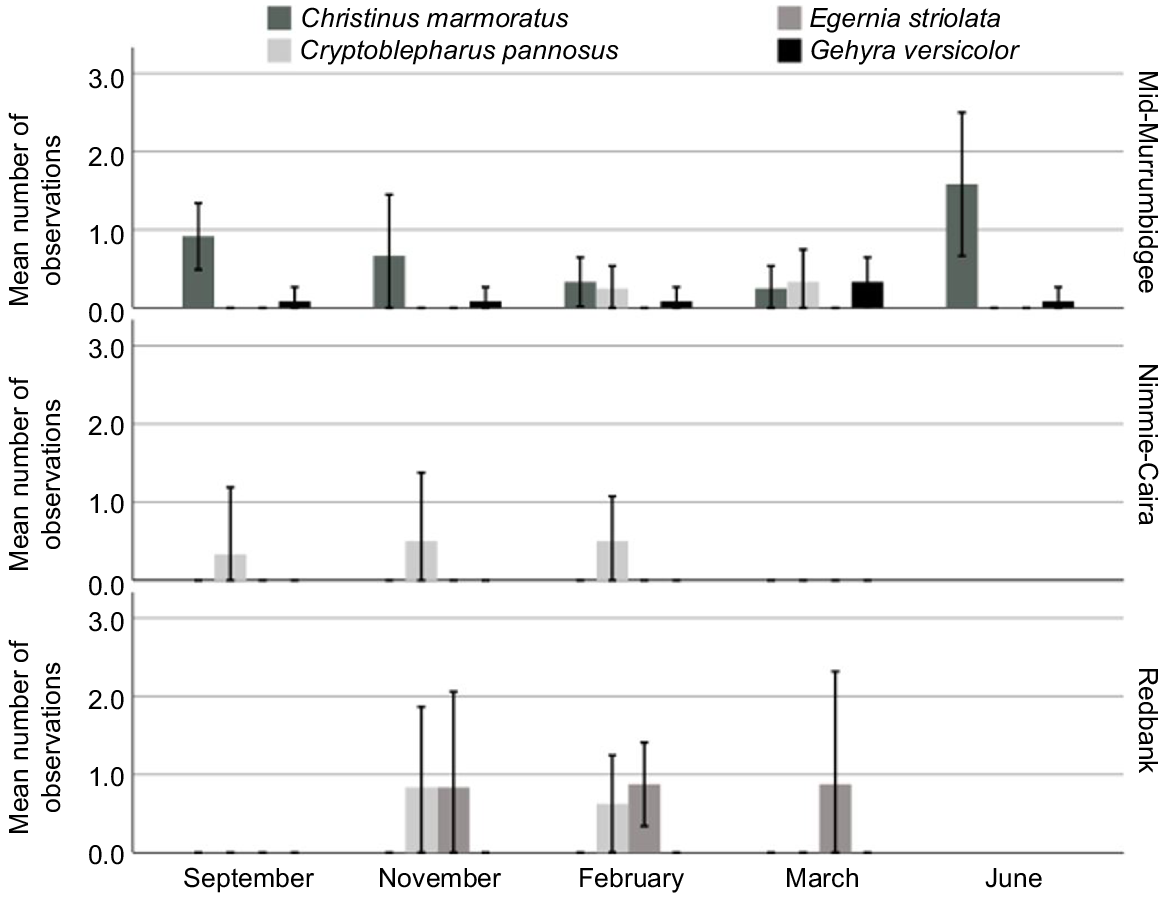

Fig. 3.  Mean number of observations per month for four arboreal lizard species detected beneath ABCs across three wetland areas.

Across all seasons, the temperature beneath the covers fluctuated less and remained warmer between 2200 and 1000 hours compared with the ambient temperature above the covers (Fig. 4). During the winter months, temperatures beneath the covers rarely exceeded 30°C, whereas, during the summer and autumn months, both the ambient temperature and temperatures under the ABCs consistently rose above 35°C, although mean values remained below the known preferred body temperature of all lizard species (e.g. G. versicolor 34.0°C, E. striolata 32.7°C, C. marmoratus 27.6°C) (Bennett and John-Alder 1986; Angilletta and Werner 1998).

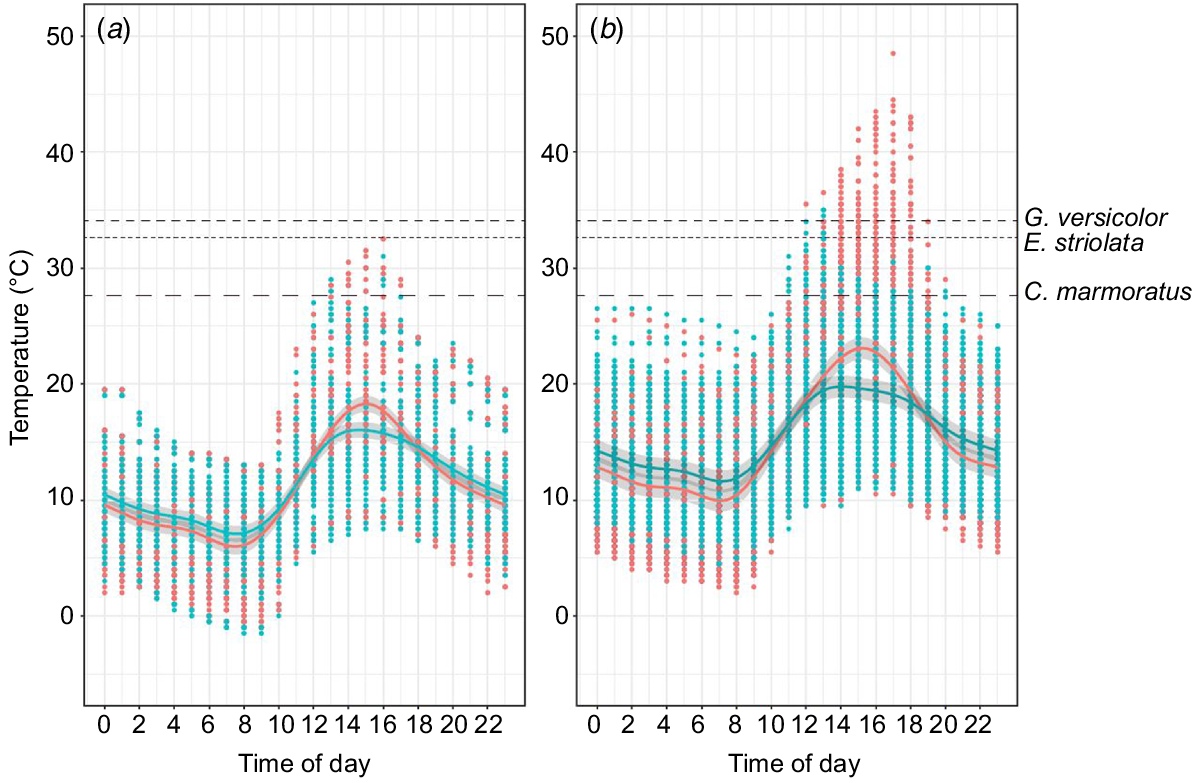

Fig. 4.  Mean temperature underneath ABCs (blue line) and outside of the ABCs (ambient temperature – red line) during (a) winter and (b) summer/autumn. The dashed line represents the preferred body temperature of Egernia striolata (32.7°C: Bennett and John-Alder 1986), Christinus marmoratus (27.6°C) and Gehyra versicolor (34.0°C: Angilletta and Werner 1998).

Gehyra versicolor was the most detectable lizard species, requiring an estimated two surveys to reach 95% confidence of detecting the species, given its presence at a site (Fig. 5a). Christinus marmoratus and E. striolata both had similar detection probabilities, requiring four and five visits respectively to reach a 95% confidence of detection, given their presence at a site (Fig. 5b, c). The arachnid H. murrayensis had a 95% confidence of detection after five surveys (Fig. 5d). Overall, the probability of detecting all arboreal lizard species was lower when H. murrayensis was present during a survey. Specifically, we found a significant negative interaction between H. murrayensis presence and the probability of detecting C. marmoratus (P < 0.01) (Fig. 6). Two C. marmoratus were observed on the same tree on four occasions.

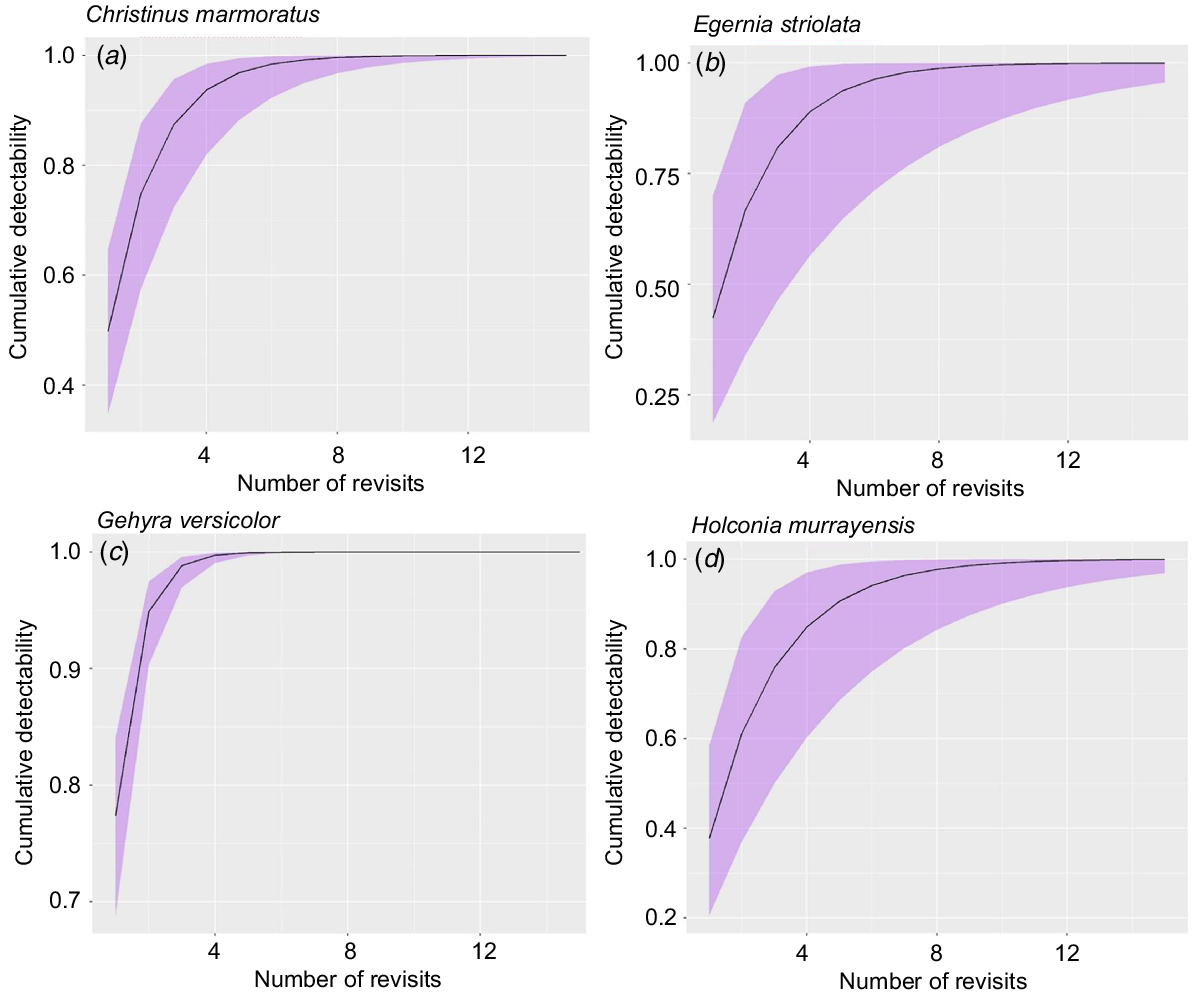

Fig. 5.  The cumulative probability of detecting (a) Christinus marmoratus, (b) Egernia striolata, (c) Gehyra versicolor, and (d) Holconia murrayensis against the number of site visits required to obtain a 95% confidence of detection (light shading = 95% confidence intervals) when number of ABCs = 112.

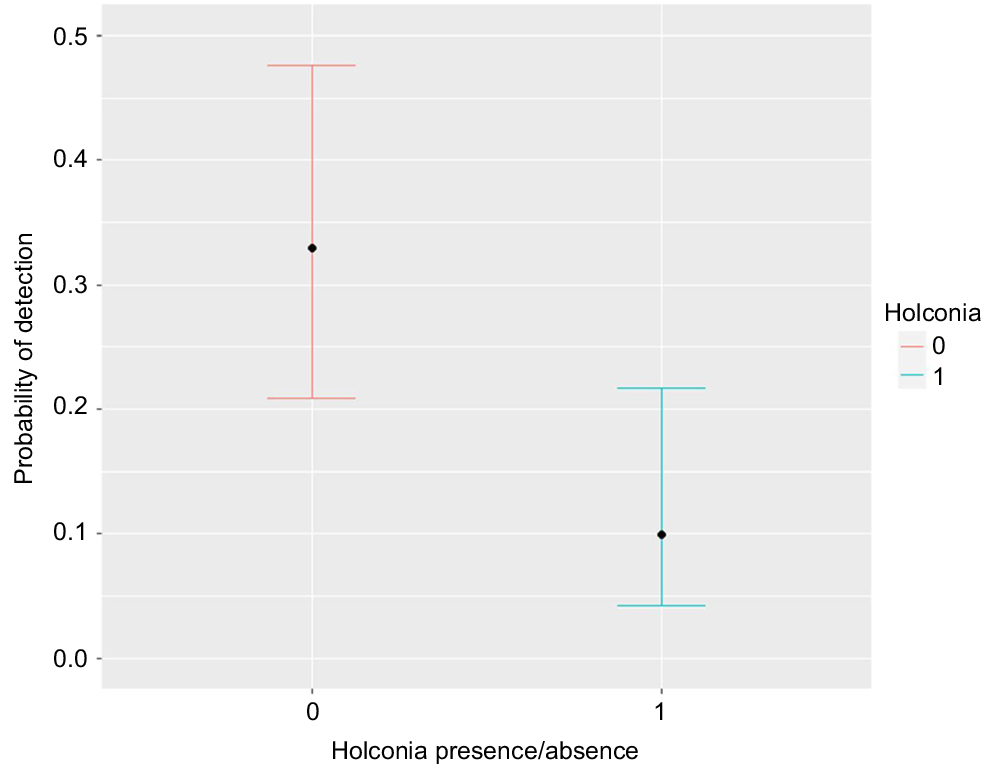

Fig. 6.  The probability of detecting Christinus marmoratus in absence (0) and in presence (1) of the tree huntsman spider Holconia murrayensis.

Monitoring wildlife is fundamental for making sound conservation management decisions (Nichols and Williams 2006). An important component of wildlife monitoring and compiling species inventories is using effective survey methods to obtain robust estimates of species diversity or occurrence patterns (Kéry and Schmidt 2008; Shelton and Goldingay 2021). In the present study, we used artificial bark covers (ABCs) to obtain distribution and abundance data on arboreal lizards and evaluate occupancy patterns in a temperate floodplain ecosystem. Our passive survey method identified four arboreal lizard species, two frog species and one microbat. Of the lizard species detected, all four species were expected to occur within the study area, although unanticipated regional and temporal patterns in species distributions and occupancy patterns were evident.

Based on range boundaries and habitat preferences, we predicted that all four species would be detected across the study area, as location records for all species exist from along the Murrumbidgee River to the east and west of our study area (Atlas of Living Australia 2021). However, we detected only E. striolata in the western region (Redbank), and G. versicolor and C. marmoratus in the eastern region (mid-Murrumbidgee). Cryptoblepharus pannosus was widely distributed across all three areas but was detected in low numbers. The absence of E. striolata, G. versicolor and C. marmoratus in GNC could be a function of distance to the main river channel, as several black box dominated wetlands in this area were more than 20 km from the main river corridor and surrounded by potentially unsuitable chenopod shrubland and grassland habitat. These species are also naturally uncommon in black box vegetation communities in southern NSW (Michael et al. 2011).

The absence of E. striolata in the mid-Murrumbidgee is more intriguing, as suitable E. camaldulensis habitat exists, including preferred microhabitats such as cut stumps and logs (Greer 2021). Its absence could be due to the disturbance history within the region, a result of extensive forestry operations that lasted until 2010 (West et al. 2008). Tree-dwelling populations of E. striolata in New South Wales exhibit kin-based sociality (Duckett et al. 2012), making it possible that past disturbances have resulted in the destabilisation of social groups causing localised extinctions from heavily disturbed sections of the Murrumbidgee River floodplain. The observed niche overlap in mid-Murrumbidgee between G. versicolor and C. marmoratus is also worth exploring further. These two species co-occurred on two sites and were detected on the same plot on two occasions but were encountered on the same tree on one occasion. Intraspecific competition for resources between these similar species is unknown but may explain their local distribution patterns (Nordberg and Schwarzkopf 2019b; Petford and Alexander 2020). Gehyra versicolor is an arid-adapted species found further north of the study area, whereas C. marmoratus is a temperate species found predominantly south of the study area. Both species reach their geographical range limits at the Murrumbidgee River. Exploring their microhabitat preferences considering potential competitive interactions requires further research. The role of wetland inundation frequency was not a significant determining factor for lizard occupancy and species composition in this study. Geckos were found in equal measure on both dry and inundated trees. However, this experiment was conducted in a below average water allocation year and only five of our ‘wet’ treatment trees were truly inundated. A limitation to the experimental design of this study was its dependence on a larger water allocation for the 2019–2020 water year.

We found differing temporal trends in species observations over the eight-month temperature sampling period. Christinus marmoratus was observed more frequently in the cooler months of September and June (austral spring and winter). During warm weather, this species may move from trees to seek more thermally stable terrestrial environments or may seek shelter beneath deeper bark layers. In a study from central Victoria, Kearney and Predavec (2000) found that C. marmoratus moved from trees to rock crevices during the warmer months. The reduction in C. marmoratus observations during the summer months in this study also suggests that this species may shift shelter sites, or retreat beneath the deeply fissured bark layers. As we did not remove bark in this study, or individually mark animals, we were unable to determine where this species moved to during the warmer months. During the winter months, the mean temperature beneath the ABCs remained higher than the ambient temperature between 2000 and 1000 hours. As C. marmoratus is nocturnally active, retreat sites that provide relatively stable temperature gradients will enable individuals to retain an optimal body temperature range (Kearney and Predavec 2000), and potentially extend their activity patterns. By contrast, observations of E. striolata increased during the warmer months, consistent with a diurnally active heliothermic species (Bennett and John-Alder 1986).

Of the arboreal lizard species detected in this study, some required more survey effort than others, when n = 112 ABCs. Gehyra versicolor required only two visits to achieve 95% confidence of detection, whereas C. marmoratus and E. striolata had similar detection probabilities requiring four and five visits respectively to achieve 95% confidence of detection. For both inventory studies and monitoring programs, it is important to understand how much survey effort is required to determine if a species is present to optimise survey effort (Garden et al. 2007; Sewell et al. 2012). For studies using artificial cover objects or artificial refuges, understanding species’ detection probabilities can inform how many objects or covers need to be installed to maximise detection rates. Our results suggest that detecting arboreal species in this system using a limited number of covers (e.g. four per site) is a sufficient amount, although multiple visits are still required to achieve high confidence in establishing species presence. This is because some arboreal species may be present beneath deeply fissured bark and not detected beneath the ABCs during a survey event. Installing more covers at a site is a better approach to help improve detection of cryptic arboreal lizards in future studies rather than physically removing bark habitat to increase detection rates.

Some colonisation effects may have also contributed to the variation in gecko detections over time. Michael et al. (2018) found that C. marmoratus detections increased over a four-year period, providing further evidence of long-term residency within a population. In contrast, E. striolata was observed more often during the warmer months of November, February, and March. This species is a diurnally active, heliothermic skink with a preferred body temperature of 32.7°C (Bennett and John-Alder 1986). Thus, we expected E. striolata would be detected after the ABCs had been in place for some time. The species also forms small social groups, so it was not unexpected to find an adult pairing. Overall, mostly single adults were detected beneath the covers, again suggesting the ABCs were being colonised by dispersing individuals.

Another outcome of this study was the co-occurrence interactions within and between species. Two C. marmoratus individuals were seen on the same tree on four occasions, with a sex ratio of two females to four males. Two of these individuals were subadults and could not be sexed. These results are congruent with those of another study that found a conspecific aggregation is more likely with an adult–adult interaction versus an adult–subadult interaction (Pereira et al. 2019). Additionally, there were no observations of a female co-occurrence, which aligns with the literature that aggression and territorialism between females prevents them from aggregating (Kearney et al. 2001). There was a negative relationship between the presence of the arachnid H. murrayensis and all lizard species (but especially C. marmoratus). Many species avoid conspecifics due to competitive exclusion or because of differences in their niche requirements (Letten et al. 2017). Similarly, prey will attempt to avoid potential predators and use chemical scent cues to minimise the risk of encountering predators (Webster et al. 2018). Christinus marmoratus is known for its avoidance behaviour in areas where predators are present (Webster et al. 2018). For example, Webster et al. (2018) found C. marmoratus ate significantly less food when exposed to the scent of mammalian predators. Furthermore, although C. marmoratus is prey for the redback spider (Latrodectus hasselti) (O’Shea and Kelly 2017) and geckos are considered easier prey than other reptile groups (Nordberg et al. 2018; Valdez 2020) there is little published information on the relationship between C. marmoratus and other arachnid species such as large tree huntsman spiders (Holconia sp.). Taylor et al. (2016) found that the presence of huntsman spiders did not influence the likelihood of C. marmoratus detection and concluded that huntsman spiders were most likely a low-risk predator. However, that study was conducted only in the winter. Our results from the warmer months suggest that H. murrayensis may prey upon C. marmoratus as geckos avoided using ABCs when one or more huntsman spiders were present. During the colder months, C. marmoratus was found under ABCs with H. murrayensis more often than during the summer (Moore et al., unpublished data), suggesting that both species may co-occur beneath ABCs when their metabolic rates are slower, similar to the results of Taylor et al. (2016).

This study adds to the paucity of literature on reptile use of artificial bark covers in Australia. Specifically, this study shows that artificial bark covers are an effective method for compiling an inventory of arboreal lizards in a floodplain system and could be used across other dynamic ecosystems to better understand arboreal lizard distribution patterns. ABCs may also be a useful tool in long-term monitoring programs as they are less destructive than traditional active search methods which often require some level of microhabitat disturbance. However, our results also suggest that more research is essential to determine the optimal number of ABCs required to improve detection rates and fully understand lizard occupancy patterns. Further research using ABCs could explore population demographics, movement patterns and predator–prey interactions to inform the use of artificial cover in ecological research.
