A re-examination of the growth of the gummy shark (Mustelus antarcticus) from Queensland, Australia

Keywords: BayesGrowth, elasmobranch, growth, gummy shark, length-at-age, life history, Mustelus antarcticus.

The gummy shark (Triakidae: Mustelus antarcticus) is endemic to Australia and has been the target of a commercial fishery since the 1920s (Moulton et al. 1992). The species occurs to a depth of 400 m (Kyne et al. 2021) in southern and north-eastern Australia between Geraldton, Western Australia (28°S), and Hinchinbrook Island in Queensland (∼18°20′S; Kyne et al. 2021). Prior to the study by White et al. (2021), the mustelid found in Queensland was classified as the eastern spotted gummy shark (M. walkeri). However, White et al. (2021) found no genetic or morphological difference between M. walkeri and M. antarcticus, which extended the distribution of M. antarcticus beyond the previous northern boundary located at Port Stephens, New South Wales (32°S) (Walker 2016). An extensive tagging program conducted in southern Australia provided evidence that the southern population extended northward to New South Wales, but not into Queensland waters (White and Last 2008).

In contrast to southern Australian states, where cumulative annual harvest exceeds 2 kilotonnes (Gg) (https://fish.gov.au/report/301-Gummy-Shark-2020#), landings of M. antarcticus in Queensland are negligible. In the period 2005–2021, logbook data indicate that commercial net and line fishers landed a total of 443 kg in Queensland (data available at: https://qfish.fisheries.qld.gov.au/). Further, charter vessels, hosting recreational fishers, landed a total of 353 kg in the period 1996–2021. An average of 400 kg year⁻¹ was caught in the years 2013, 2014 and 2018 by line fishers operating in the Coral Sea Fishery (data available at https://www.afma.gov.au/resources/catch-data), which occurs outside of Queensland territorial waters.

Mustelus antarcticus is also caught as bycatch by vessels operating in Australia’s largest penaeid-trawl fishery, the Queensland eastern coast otter trawl fishery (QECOTF, Rigby et al. 2016). Fishers are required to return all individuals to the sea as soon as practicable. Like all of the chondrichthyans (sharks, rays and chimeras) interacting with the QECOTF, catch and survival of discarded M. antarcticus are unquantified. The lack of these data impedes the robust quantitative assessment of the species’ population status in Queensland. As such, qualitative assessments of a species’ exposure and resilience to trawling are used to assess the ecological risk posed to chondrichthyans by the QECOTF (e.g. Pears et al. 2012). A previous quantitative ecological risk assessment demonstrated that the penaeid-trawl fishery posed a low risk to the long-term sustainability of M. antarcticus (Campbell et al. 2017). However, the authors stated that improvements to life-history information for this, and other, species are required to ensure the accurate assessment of risk.

Moulton et al. (1992) described the growth of M. antarcticus from a broad geographical range in southern Australia. These authors fit variants of the von Bertalanffy growth function (VBGF) to length-at-age and tag-recapture data and found that growth varied spatially and temporally, and by sex. The VBGF growth completion parameter derived in Moulton et al. (1992) varied between 0.047 and 0.304 year⁻¹. More recently, Rigby et al. (2016) reported the VBGF growth parameters for M. antarcticus, formerly M. walkeri, on the basis of length-at-age samples collected from the QECOTF in central Queensland, and found that the species was slow growing (k = 0.033 year⁻¹) and late to mature (females: 10–14 years). However, the VBGF asymptotic length at which growth is zero (i.e. L_∞) was found to be 2245 mm (total length, TL) despite a reported maximum size of 1852 mm TL. The low sample size (n = 44) prompted the authors to state that the estimates should be considered preliminary. The aim of the current study was to update the growth estimates of M. antarcticus in Queensland, reported by Rigby et al. (2016), in a Bayesian framework, using prior information to reduce bias in parameter estimates.

The length-at-age data of M. antarcticus obtained by Rigby et al. (2016) were re-examined. Three growth functions were used to estimate mean length-at-age, namely, von Bertalanffy growth function (VBGF), logistic growth function and Gompertz growth function (Table 1; Smart et al. 2016). The biologically relevant length-at-birth (L₀) was estimated (Cailliet et al. 2006). Growth was estimated in a Bayesian framework using Markov-chain Monte Carlo (MCMC) to overcome the low number of length-at-age observations. Bayesian models were fit using the ‘BayesGrowth’ package (ver. 0.3.0, J. J. Smart, see https://github.com/jonathansmart/BayesGrowth, accessed 11 May 2022) by using R statistical software (ver. 4.0.2, R Foundation for Statistical Computing, Vienna, Austria, see https://www.R-project.org/, accessed 11 May 2022), in accord with methods described by Smart and Grammer (2021) and Emmons et al. (2021). Four MCMC chains with 10 000 simulations, with a burn-in period of 5000 simulations, were used to determine parameter posterior distributions. Model convergence was assessed using the Gelman–Rubin test and diagnostic plots were generated using the ‘Bayesplot’ package (ver. 1.7.2, J. T. M. Gabry, see https://mc-stan.org/bayesplot, accessed 18 February 2021) in R.

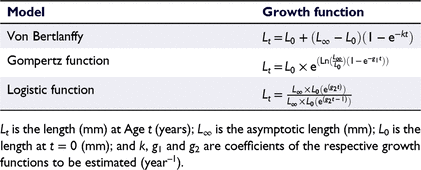

Table 1.  Equations of the three candidate growth functions used to assess the growth of Mustelus antarcticus.

Models were fit to length-at-age data for both sexes combined, females only and males only. Each model was fit with normal residual error structures (σ). Prior distributions for the L₀ and L_∞ estimates were informed by Walker (2016). Walker (2016) also reported that the maximum size of M. antarcticus differed as a function of sex with females and males attaining 1852 mm (total length, TL) and 1482 mm TL respectively. Rigby et al. (2016) reported five near-term pups with umbilical scars had a mean length of 257.8 mm (s.d. = 5.8). Given this information, normally distributed priors (μ, σ) were set at L_∞ ∼ N(1852, 25) and L₀ ∼ N(258, 5.8) for both sexes combined and for females only. Additionally, a prior of L_∞ ∼ N(1482, 25) was used for males. A non-informative prior was used for σ and a common non-informative prior was used for the growth coefficients of the three candidate models (k, g₁ and g₂, Table 1). An upper bound was nominated for the uniform distributions of σ and k of 100 and 0.3 year⁻¹ respectively. The common non-informative prior for the growth coefficients allowed for comparison of the three candidate growth functions, each with identical priors, as outlined by Smart and Grammer (2021).

Differences in growth parameters between sexes were assessed by comparing the 10 000 posterior estimates of L_∞, k and L₀. A frequency histogram of the values in a vector (v_diff), representing the result of subtracting the vector of posterior estimates of each parameter for males from the vector of posterior estimates for females, was generated. A significant difference was detected if the 95% confidence interval of the distribution of v_diff did not include zero.

The original research was undertaken in accord with James Cook University Animal Ethics Approval A1566, Great Barrier Reef Marine Park Authority Permit G10/33603.1 and Department of Fisheries, Agriculture and Forestry Permits 55105 and 147714.

The VBGF was found to best fit the length-at-age data for both sexes combined (Supplementary Table S1, LOOICw = 1). There was no support for either the logistic (LOOICw = 0) or the Gompertz (LOOICw = 0) growth functions. With the sexes combined, the estimated VBGF parameters were L_∞ = 1852 mm TL, L₀ = 261 mm TL and k = 0.044 year⁻¹ (Fig. 1, Table S1). The VBGF was also found to best fit the female length-at-age data (LOOICw = 1, Table S1), with the estimated parameters of L_∞ = 1853 mm TL, L₀ = 260 mm TL and k = 0.044 year⁻¹ (Fig. 2, Table S1). The VBGF also best fit the male length-at-age data (Fig. 2, Table S1) and the relevant parameters derived from this model were L_∞ = 1483 mm TL, L₀ = 258 mm TL and k = 0.060 year⁻¹ (Fig. 2, Table S1). Both L_∞ and k differed significantly as a function of sex (Supplementary Fig. S1).

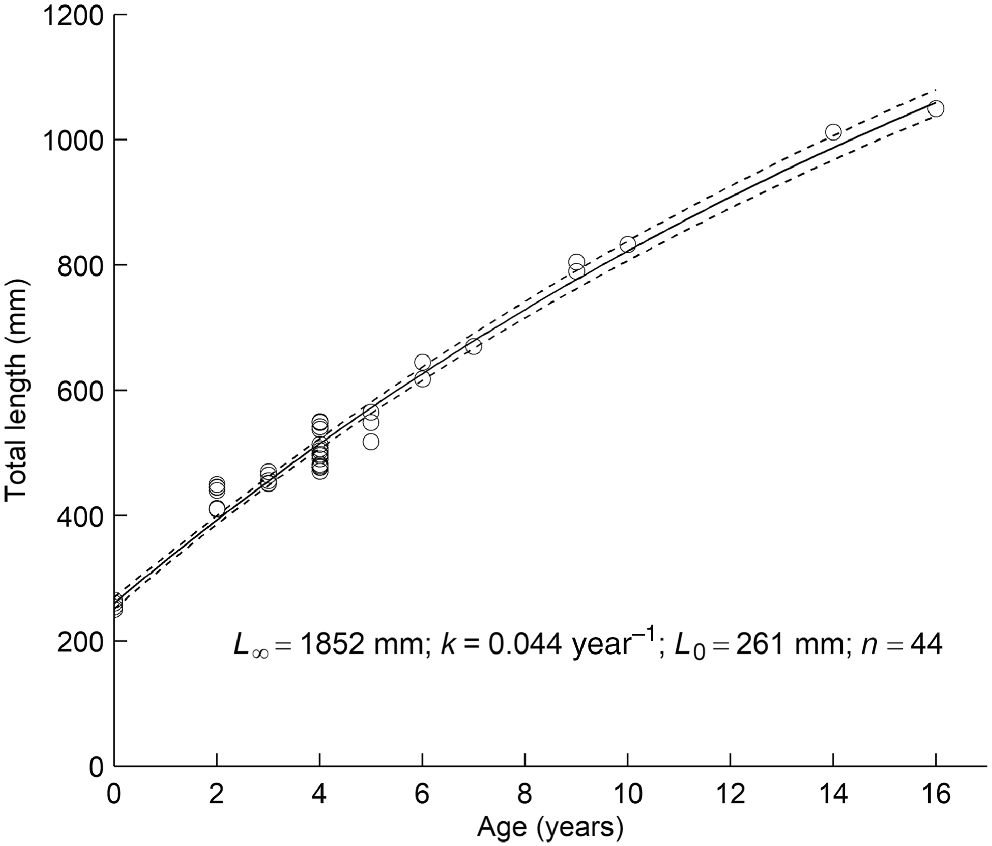

Fig. 1.  Mean length-at-age of Mustelus antarcticus, derived using the von Bertalanffy growth function. Priors were set at L_∞ ∼ N(1852, 25) and L₀ ∼ N(258, 5.8). Dashed lines represent 95% credible intervals. A non-informative prior was used for the growth coefficient (k, Table 1), with a maximum value of 0.3 year⁻¹. Length-at-age data generated from samples collected by Rigby et al. (2016) in waters adjacent to the Swains Reefs in central Queensland, Australia.

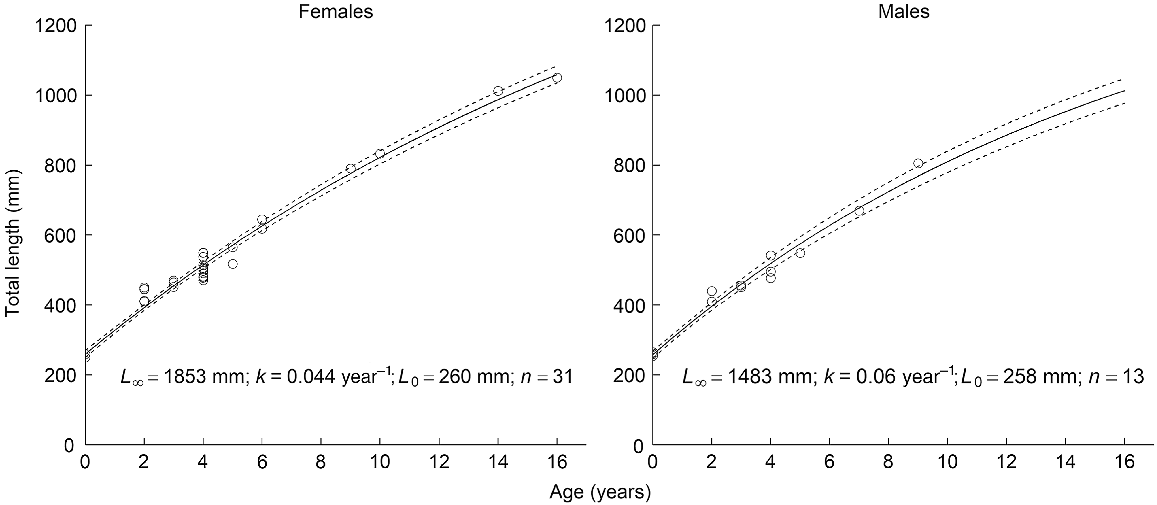

Fig. 2.  Growth of (a) female and (b) male Mustelus antarcticus, derived using the von Bertalanffy growth function. Priors were set at L_∞ ∼ N(1852, 25) and L_∞ ∼ N(1482, 25), for females and males respectively. A prior of L₀ ∼ N(258, 5.8) was set for both sexes. A common non-informative prior was used for the growth coefficients of the respective growth functions (k, Table 1), with a maximum value of 0.3 year⁻¹. Length-at-age data were generated from samples collected by Rigby et al. (2016) in waters adjacent to the Swains Reefs in central Queensland, Australia.

The results from the current study improve the growth parameter estimates originally reported by Rigby et al. (2016). Specifically, the L_∞ estimates derived herein approximate the maximum reported size of the respective sexes. The under-sampling of larger, older animals by Rigby et al. (2016) resulted in a biased estimate of L_∞ in their study. This was due to the larger animals escaping the penaeid trawls via turtle-excluder devices (TEDs: Brewer et al. 2006; Campbell et al. 2020) or decreased gear selectivity with an increasing shark length (Clarke et al. 2005). Consequently, the VBGF growth coefficient derived by Rigby et al. (2016) is also likely to be biased, given k and L_∞ covary negatively (Pardo et al. 2013). The use of informative priors improves growth parameter estimates, compared with estimates derived using frequentist methods, when the under-sampling of older animals occurs (Smart and Grammer 2021).

The higher L_∞ and lower growth coefficients (k, Table 1) for female M. antarcticus, compared to males, derived herein are comparable to previous research (Lenanton et al. 1990; Moulton et al. 1992). Females growing slower, and to larger sizes, is a common life-history strategy among elasmobranchs (Cortés 2000). Similar life-history strategies have also been reported for the confamilial M. canis (Conrath et al. 2002), M. lenticulatus (Francis and Francis 1992), M. californicus (Yudin and Cailliet 1990) and M. henlei (Yudin and Cailliet 1990). The M. antarcticus individuals caught in Queensland grow slower and to a smaller maximum size, than do those caught in southern Australia (Moulton et al. 1992), resulting in individuals of the same age being comparatively smaller in Queensland samples. These differences may be attributable to the depths at which the respective M. antarcticus populations occur, given fish length and depth have been shown to covary negatively in mustelids (Smale and Compagno 1997) and other chondrichthyan species (Rigby and Simpfendorfer 2015; Braccini et al. 2020). The Queensland population is generally restricted to relatively deep water (Rigby et al. 2016) compared with conspecifics in southern Australian, which mainly occur in shallow coastal waters (Moulton et al. 1992).

Rigby et al. (2016) used a multi-model approach in the original study and, in accord with the results herein, found that the length-at-age dataset was best described by the VBGF. The use of growth functions other than the VBGF was suggested by Cailliet et al. (1990), who found that the growth of the star-spotted smooth-hound (Mustelus manazo) appeared linear. Similarly, the length-at-age data collected by Rigby et al. (2016) appeared linear and the applicability of the respective growth functions found to best fit the length-at-age data herein should be re-assessed in future studies, should subsequent length-at-age data be collected to better reflect the Queensland population of M. antarcticus. There is a clear need to undertake further sampling from the other fisheries accessing the Queensland population of M. antarcticus, such as net and line fisheries, given the likely selectivity issues associated with the inclusion of TEDs in penaeid trawls. This will further improve model fitting and increase the accuracy of the resultant growth parameter estimates.

Unlike the southern Australian states, the lack of a large-scale commercial fishery for M. antarcticus, and the resultant lack of reliable catch data, precludes the use of formal stock assessments for the Queensland portion of the M. antarcticus stock. However, the post-trawl mortality associated with capture by penaeid trawls is a source of fishing mortality that is unquantified and this requires attention to ensure that current levels of trawl effort are sustainable in the long term. Subsequent studies should validate shark catch by commercial trawl, net and line fishers to ensure catches of M. antarcticus are not misreported as other species or species groups (e.g. shark, unspecified).

The availability of the ‘BayesGrowth’ R package allows researchers with limited experience of Bayesian methods to assess growth from limited length-at-age datasets. Obtaining sufficient samples to quantify unbiased parameter estimates is often difficult due to infrequency of catch (Smart et al. 2013) or the selectivity of the sampling gear for individuals at the upper and lower portions of the length-frequency distribution (Campbell et al. 2021). Further, the cost of obtaining fish can limit sample sizes, particularly in remote areas or where samples are purchased from commercial fishers. Estimating growth parameters using prior information goes some way to overcoming biases resulting from a low sample size.

In conclusion, life-history information is necessary to determine sustainable levels of fishing mortality. The current study provides improved estimates of the growth parameters for M. antarcticus, which enables more accurate assessment of population status in Queensland. There is currently no targeted fishery for M. antarcticus in Queensland and fishing mortality is likely to be low, although post-trawl mortality is unknown. Additional sampling will further improve future growth parameter estimates.

Supplementary material is available online.

Data sharing is not applicable as no new data were generated or analysed during this study.

The authors declare that they have no conflicts of interest.

C. L. Rigby was supported by an Australian Post-graduate Award during the original research work. The Oceania Chondrichthyan Society and Passions of Paradise provided funding to C. L. Rigby by a Student Research Award. The current study was funded by the Queensland Department of Agriculture and Fisheries.

Matthew Campbell was responsible for the conceptualisation, methodology, formal analysis, writing – original draft preparation, writing – reviewing and editing, visualisation; and Cassandra Rigby was responsible for the funding acquisition, investigation, writing – original draft preparation, writing – reviewing and editing, resources.
