Characterisation of internal oxygen concentration of strawberry (Fragaria × ananassa) and blueberry (Vaccinium corymbosum)

Zeyu Xiao https://orcid.org/0000-0002-1044-3126 A B C * , Stephen D. Tyerman https://orcid.org/0000-0003-2455-1643 A B D , Timothy Stait-Gardner https://orcid.org/0000-0002-7898-8202 C , William S. Price https://orcid.org/0000-0002-8549-4665 C , Vinay Pagay https://orcid.org/0000-0003-1916-2758 A D , Leigh M. Schmidtke https://orcid.org/0000-0001-9765-5510 A B and Suzy Y. Rogiers https://orcid.org/0000-0001-6637-3561 A B C E
+ Author Affiliations
- Author Affiliations

A Australian Research Council Training Centre for Innovative Wine Production, Glen Osmond, SA 5064, Australia.

B Gulbali Institute, Charles Sturt University, Wagga Wagga, NSW 2678, Australia.

C Nanoscale Organisation and Dynamics Group, Western Sydney University, Penrith, NSW 2751, Australia.

D Department of Wine Science and Waite Research Institute, The University of Adelaide, Glen Osmond, SA 5064, Australia.

E New South Wales Department of Primary Industries, Wollongbar, NSW 2477, Australia.

* Correspondence to: zxiao@csu.edu.au

Handling Editor: Sergey Shabala

Functional Plant Biology 50(3) 256-265 https://doi.org/10.1071/FP21259
Submitted: 26 August 2021  Accepted: 20 November 2022   Published: 16 December 2022

© 2023 The Author(s) (or their employer(s)). Published by CSIRO Publishing. This is an open access article distributed under the Creative Commons Attribution-NonCommercial-NoDerivatives 4.0 International License (CC BY-NC-ND)

Abstract

Gas exchange mechanisms play crucial roles in maintaining fruit post-harvest quality in perishable fruit such as strawberry (Fragaria × ananassa Duch.) and blueberry (Vaccinium corymbosum L.). The internal oxygen concentration ([O2]) of strawberry and blueberry were measured using Clark-type oxygen sensing electrodes. The volume of intercellular voids in strawberry was obtained by micro-computed tomography (micro-CT). In both berries, internal [O2] was consistent and relatively high across measured tissues. The overall [O2] was well above the Michaelis constant (Km) for cytochrome c oxidase in both fruit and different from previously examined grape (Vitis vinifera L.) berry mesocarp with near zero minimum [O2]. In strawberry and blueberry, cell vitality was also maintained at full maturity in the mesocarp. Higher storage temperature (i.e. 20 vs 4°C) reduced internal [O2] of strawberry. Pedicel detachment in blueberry was associated with greater fruit dehydration and lower internal [O2] after short-term storage of 12 h. The results suggest that the intercellular voids of the fruit’s mesocarp provide an efficient gas exchange route for maintaining high fruit internal [O2] post-harvest.

Keywords: 3D microstructure, Fragaria × ananassa, intercellular voids, micro-CT, modified storage conditions, oxygen measurement, post-harvest, Vaccinium corymbosum.

Introduction

Strawberry (Fragaria × ananassa Duch.) and blueberry (Vaccinium corymbosum L.) fruit are harvested when fully ripe, and both are susceptible to perishing rapidly post-harvest. Both benefit from modified storage conditions post-harvest that improves storability (Kader and Ben-Yehoshua 2000). This commonly involves managing the concentration of atmospheric oxygen ([O2]) and carbon dioxide ([CO2]), as well as the storage temperature (Schotsmans et al. 2007; Aday et al. 2011; Chiabrando and Giacalone 2011; Rodriguez and Zoffoli 2016). Elevated [CO2] can greatly reduce fungal attack (Brown 1922); however, fruit internal [O2] must be maintained to prevent anaerobic fermentation and off-flavour generation (Ke et al. 1991; Beaudry et al. 1992; Larsen and Watkins 1995; Pott et al. 2020).

Fruit relies on the intercellular air spaces to provide the main route for diffusive transport of gases. Due to low solubility in water, O2 transport occurs mainly through air spaces in the fruit parenchyma (i.e. intercellular voids) and less in the intracellular liquid (Ho et al. 2009). A study investigating the association between grape (Vitis vinifera L.) berry ripening and berry internal [O2] found that the grape berry can develop a hypoxic (i.e. near zero [O2]) mesocarp, as a consequence of the increased internal respiratory demand and restricted O2 transport (Xiao et al. 2018a). Hypoxia in grape berries was associated with the decrease in mesocarp cell vitality in the berry during late ripening (Xiao et al. 2018a). Using micro computed tomography (micro-CT), a network of intercellular voids was also found connecting the pedicel and the locules (Xiao et al. 2018a). Furthermore, the porosity of the berry as a whole was found to decrease during late ripening, and this was associated with a decrease in internal [O2] of the grape berry (Xiao et al. 2018b). The reduction in volume of intercellular voids could lead to a decrease in fruit internal [O2], which can affect fruit health.

Strawberry ‘fruit’ referred to in this study, in the botanical sense is the enlarged receptacle (Hollender et al. 2012). The fruit is harvested so that the pedicel remains attached to the fruit. In contrast, when harvesting the blueberry, fruit detachment can occur either at the pedicel–berry junction leaving a stem scar on the fruit or at the pedicel–peduncle junction so that the pedicel is retained (Vashisth and Malladi 2013). Significant post-harvest weight loss (i.e. 39–67%) occurs through the stem scar and sealing the scar experimentally with gas impermeable resin (i.e. nail polish) can reduce water loss and retain firmness (Moggia et al. 2017). Harvesting the blueberry with the pedicel attached as a strategy to minimise post-harvest weight loss should be further evaluated, and the question of how the removal of the pedicel affects fruit internal [O2] has not been addressed. A better understanding of the dynamics and factors regulating internal [O2] of the strawberry and blueberry fruit can assist horticultural improvement and post-harvest management.

In this study, the hypothesis that internal [O2] of the strawberries and blueberries at maturity remains relatively high, due to the presence of intercellular voids and/or locular cavities is tested. The internal [O2] changes during strawberry ripening were examined as well as how this responds to short-term storage in different temperatures. Internal [O2] and weight loss of blueberries at harvest and after short-term storage, with or without pedicel attached were also assessed. The intercellular voids (i.e. diffusion pathways of O2 supply) within the cortex of strawberries were visualised and characterised by micro-CT.


Materials and methods

Plant materials

Fruit of cv. Albion strawberries (Fragaria × ananassa Duch.) were sampled from a commercial farm in Hahndorf, South Australia, in October 2018. Four randomised locations were allocated as replicates within the farm. The strawberries, sampled on the same day, were visually categorised into white, pink and red colour ripeness categories, transported immediately in an ice cooled box to the laboratory, stored at 4°C in the dark, and tested within 48 h of sampling at the Waite Campus, The University of Adelaide. Fruit internal [O2] were determined once the fruit temperature had re-equilibrated to ambient temperature (e.g. 20–22°C). Fresh weight and tissue vitality were determined. Total soluble solids (TSS) was measured using a digital refractometer (Atago, Tokyo, Japan). In December, a second batch of red strawberries were sampled from the same farm, transported immediately in an ice cooled box to the laboratory. These red strawberries were stored, single layer, in unsealed plastic containers at either 20°C [84%, relative humidity (RH)] or 4°C (83%, RH) for 40 h. Fruit weight and internal [O2] were determined after storage once the fruit temperature had re-equilibrated to ambient temperature. Strawberries were also collected in December 2018 from another commercial farm in Thirlmere, New South Wales, for imaging by micro-CT at the Biomedical Magnetic Resonance Facility at the Western Sydney University node of the National Imaging Facility.

Fruit of cv. Nui blueberries (Vaccinium corymbosum L.) were sampled from a farm in Mount Compass, South Australia in December 2018, during commercial harvest. Matured berries were sampled from four individual plants, with each plant as a replicate. Equal numbers of berries were severed from either the peduncle–pedicel junction (pedicel attached) or from the pedicel–fruit junction (pedicel detached). Samples were transported immediately on ice to the laboratory at the Waite Campus. Blueberries, pedicel attached or detached, were stored, single layer, at 21.8°C with an RH of 63% for 12 h. Berries were weighed before and after storage and weight loss (%) was determined. Blueberry internal [O2] and tissue vitality were determined.

Internal [O2] profiles

Fruit (strawberry and blueberry) internal [O2] was measured using a Clark-type O2 microelectrode with a tip diameter of 25 μm (OX-25; Unisense A/S, Aarhus, Denmark) with a micromanipulator motorised by SensorTrace Pro (Unisense A/S) as previously described by Xiao et al. (2018a, 2018b). The microelectrode was calibrated in a zero O2 solution (0.1 M NaOH, 0.1 M C6H7NaO6) and O2 saturated (i.e. aerated) Milli-Q water (273 μmol L−1 at 22°C, value obtained from Unisense gas table, Ramsing and Gundersen (2021) ‘Seawater and gasses – tabulated physical parameters of interest to people working with microsensors in marine systems’). Both strawberries and blueberries were whole and re-equilibrated to ambient temperature before measurement, under laboratory lighting condition. The skin of the fruit was pierced open gently with a stainless-steel syringe needle (19 G) to a depth of approximately 0.2 mm to aid the insertion of the microelectrode into the fruit and to prevent breakage of the microelectrode. For strawberries, [O2] profiles were obtained in three positions on the fruit: (1) the proximal end longitudinally towards the distal end; (2) the distal end longitudinally towards the proximal end; and (3) the widest point perpendicular towards the central axis (insets of Fig. 1). For blueberries, [O2] profiles of the fruit were obtained in two positions: (1) the proximal end longitudinally towards the distal end; and (2) the equator inwards to the central axis (inset of Fig. 2). Measurements were taken from 0.2 mm underneath the skin inwards at various increments to different depths depending on the size of the fruit as well as the measuring position on the fruit. Between each depth, a 20-s waiting time was allowed to ensure stable signals. Further detail of measurement depth for each experiment is specified in the results accordingly. To ensure that insertion of the microelectrode through the fruit tissue did not contaminate the internal [O2] by the surrounding air, in a separate set of fruit, a gentle stream of nitrogen gas (N2) was applied to the insertion point during each [O2] measurement. The readings were compared with those taken at a nearby insertion position where no N2 was applied. Means and s.e. (n = 3 or 4) of each incremented step were calculated and O2 profiles were compiled using GraphPad Prism 9 (GraphPad Software, San Diego, CA, USA). After the [O2] measurement, fruit internal temperature was assessed using an infra-red thermometer (Fluke 568; Fluke Corporation, Everett, WA, USA) with a type-K thermocouple bead probe (Fluke 80PK-1).

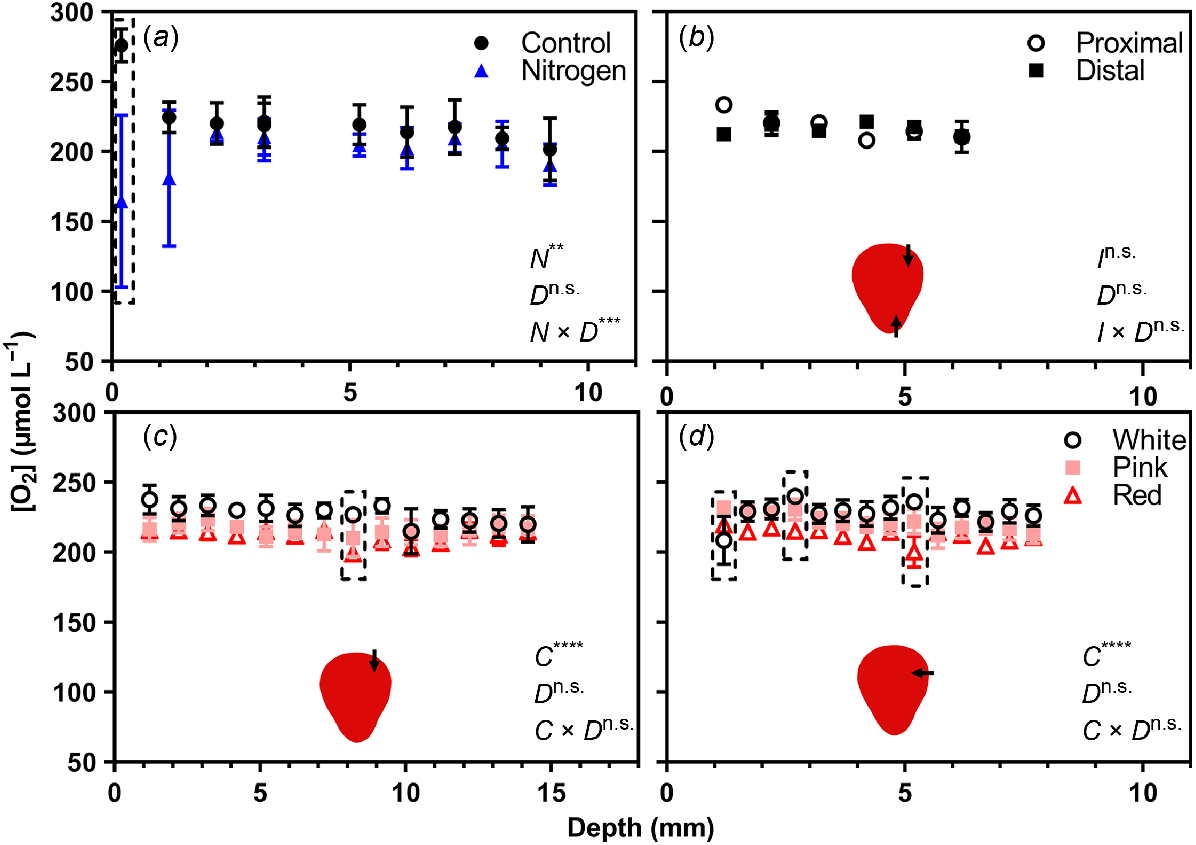

Fig. 1.  (a) Comparison of strawberry [O2] with and without N2 gas applied at the microelectrode insertion point. The O2 microelectrode was inserted at the widest point of the strawberry and moved inwards perpendicular towards the central axis. The ANOVA results are given for N2 gas treatment (N), depth (D) and treatment × depth (N × D) interaction. Levels of significance are **P < 0.01, ***P < 0.001, ****P < 0.0001 and n.s., not significant. Sidak’s test indicated that N2 gas lowered the [O2] to 0.2 mm (dashed rectangle box) (P < 0.0001). (b) Strawberry [O2] profiles from the proximal end longitudinally towards the distal end (○) and from the distal end longitudinally towards the proximal end (▪). The ANOVA results are given for insertion position (I), depth (D) and position × depth (I × D) interaction. Strawberry [O2] profiles of three colour ripeness groups, white (○), pink () and red (), (c) at the proximal end longitudinally towards the distal end and (d) at the widest point perpendicular towards the central axis. The ANOVA results are given for colour ripeness (C), depth (D) and colour × depth (C × D) interaction. In (c), Sidak’s test indicated that [O2] of the white strawberries was higher than that of the red strawberries at 8.2 mm (P = 0.03) (dash-lined rectangle box). In (d), [O2] of the white strawberries was lower than that of the pink strawberries at 1.2 mm (P = 0.04), [O2] of the white strawberries were higher than those of the red strawberries at 2.7 mm (P = 0.03) and 5.2 mm (P = 0.0008) (dash-lined rectangle boxes). Fruit temperature at the time of measurement was 20.7 ± 0.15°C, in (c) and (d) (n = 12). Error bars are s.e. (n = 3 or 4). Insets: arrows indicate the approximate insertion positions of the microelectrode.
Click to zoom

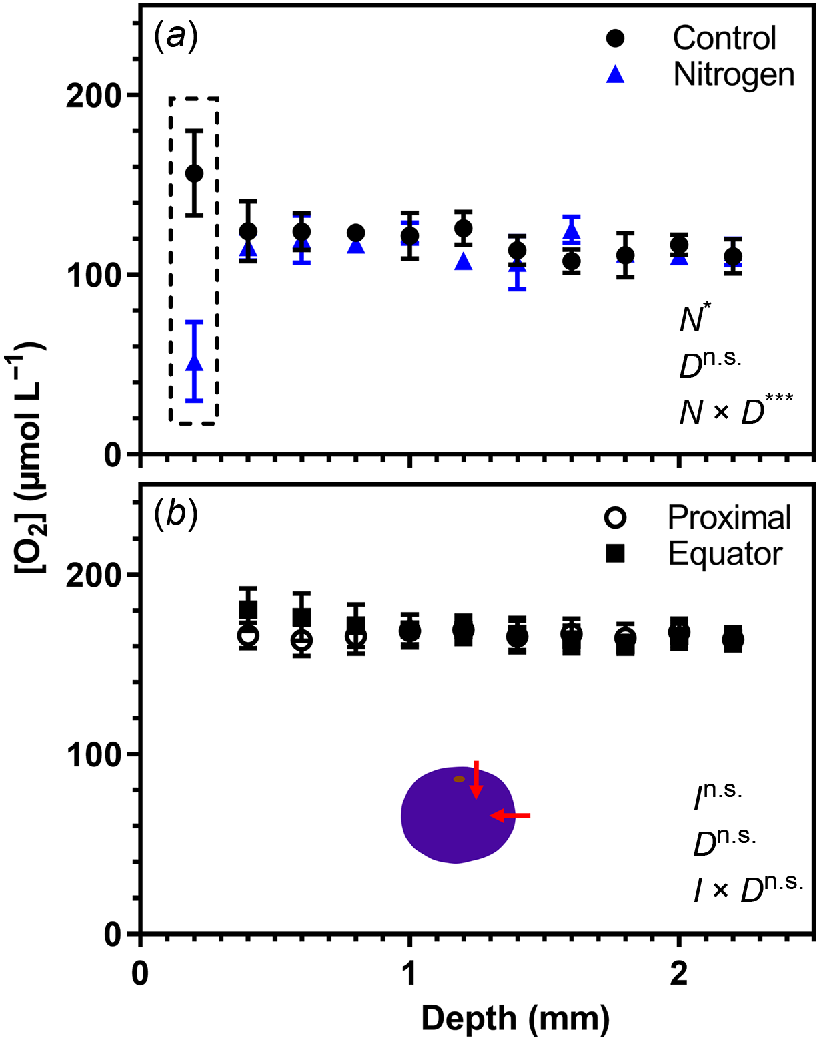

Fig. 2.  (a) Comparison of blueberry [O2] profiles with and without N2 gas applied at the microelectrode insertion point. The O2 microelectrode was inserted at the equator and moved inwards perpendicular towards the central axis. The ANOVA results are given for N2 gas treatment (N), depth (D) and treatment × depth (N × D) interaction. Levels of significance are *P < 0.05, ***P < 0.001 and n.s., not significant. Sidak’s test showed N2 gas lowered the [O2] at 0.2 mm (dash-lined rectangle box) (P < 0.0001). (b) Blueberry [O2] profiles at two positions from the proximal end longitudinally towards the distal end (○) and from the equator perpendicular towards the central axis (▪). The ANOVA results are given for insertion position (I), depth (D) and position × depth (I × D) interaction. Error bars are s.e. (n = 3 or 4). Inset in (b): arrows indicate the approximate insertion locations of the microelectrode.
Click to zoom

Micro-CT

The porosity of selected mesocarp 3D volumes (both proximal and distal regions) in strawberry was measured. Imaging was carried out using a Quantum GX micro-CT (PerkinElmer, Waltham, Massachusetts, USA) (n = 4). A total of 803 2D projections were acquired for each strawberry with 0.448° angular steps, at 90 kV/88 μA and scanning time of 14 min. The 2D tomographic images were reconstructed with a voxel resolution of 9 μm (equivalent to 7.3 × 10−7 mm3 voxel size) from the Quantum GX datasets using the built-in software. Using 3D Slicer (ver. 4.11.20200930) (Fedorov et al. 2012), the selected volumes of a mesocarp region (i.e. sub-volumes) were specified to exclude the adjacent larger cavities such as the central cavity of the strawberry. The size of the sub-volumes was between approximately 18 and 90 mm3. Differences in X-ray attenuation allowed the application of thresholds to differentiate between void (dark/black area) and organic matter (light/white area). In 3D Slicer, segmentation of intercellular voids was guided by Maximum Entropy automatic thresholding followed by removing extrusions smaller than one voxel, then removing all voids that were less than 500 voxels. The 3D sub-volumes were then assigned a transparent green and the segmented intercellular voids were coloured light yellow. Porosity was defined as the proportion of total intercellular void volume relative to the total volume of the sub-volume, both estimated in 3D Slicer.

Vital staining

A fluorescent diacetate (FDA) staining technique, described in Tilbrook and Tyerman (2008), was used to visually assess cell vitality of the strawberries (red) and blueberries. Esterases within the cytoplasm of vital cells cleave the acetate groups of FDA, turning the molecule fluorescent green. Fluorescent images of stained tissues were examined with a Nikon SMZ 800 (Nikon Co., Tokyo, Japan) dissecting microscope under ultraviolet light with a green fluorescent protein filter in place. Images were obtained using a Nikon DS-5Mc (Tochigi Nikon Precision Co., Ltd, Otawara, Japan) digital camera and NIS-Elements F2.30 software.

Statistics

All statistical analyses were carried out using GraphPad Prism 9. Two-way ANOVA tests, followed by multiple comparison tests where appropriate, were applied to examine the effects of measurement depth and nitrogen gas, insertion position or strawberry colour ripeness on [O2] measurements. Where [O2] profiles changed approximately single exponentially as a function of the depth (X, mm) from an initial internal [O2] (μmol L−1) value beneath the skin barrier, [O2]0, to a constant value [O2]const, the profiles were described by:

E1

where K is the rate constant (mm−1). [O2]0 was constrained to be less than 273 μmol L−1 (O2 water saturation at 22°C). Comparison of the fit of one overall curve to the combined data sets and the fit of individual curves to each data set was carried out using the Akaike information criterion (AICc). t-Tests were applied to compare weight loss of blueberry after storage and to assess for differences in proximal and distal tissue porosity of strawberry. One-way ANOVA tests were applied to compare TSS and fresh weight between strawberry colour ripeness categories.


Results

A two-way ANOVA test followed by Sidak’s test demonstrated that N2 gas applied, at the location of insertion, lowered [O2] at 0.2 mm under the skin (P < 0.0001) (Fig. 1a). This indicated that during the time of measurement, N2 and/or O2 contamination from the surrounding air did not affect the internal [O2] profiles of the tissue from 1.2 mm inwards. The [O2] measurements at both the proximal and distal positions within a same fruit were also similar (Fig. 1b). The three colour ripeness groups of strawberries were similar in weight, 14.1–17.7 g, and in TSS, 6.9–7.7% (Table 1). Strawberries of all colour groups showed consistent [O2] inwards from near the skin, at each position of the fruit (Fig. 1c, d). In reference to insertion from the proximal end longitudinally towards the distal end, the two-way ANOVA test showed that colour ripeness accounted for 17.85% of total variation (P < 0.0001), measurement depth accounted for 5.45% of total variation (P = 0.73) and interaction accounted for 4.60% of total variation (P = 0.99). The average [O2] for the white, pink and red strawberries across the same depths were 227 μmol L−1, 216 μmol L−1 and 211 μmol L−1, respectively (Fig. 1c). When assessed from the widest point perpendicular towards the central axis, the two-way ANOVA test showed that colour ripeness accounted for 20.61% of total variation (P < 0.0001), measurement depth accounted for 6.05% of total variation (P = 0.51) and interaction accounted for 11.26% of total variation (P = 0.64). The average [O2] for the white, pink and red strawberries across the same depths were 228 μmol L−1, 222 μmol L−1 and 212 μmol L−1, respectively (Fig. 1d).


Table 1.  Total soluble solids (TSS) and fresh weight of strawberries categorised in three colour ripeness groups.
T1

In blueberries, Sidak’s test showed that N2 gas applied at the site of insertion lowered [O2] at 0.2 mm under the skin (P < 0.0001, Fig. 2a), indicating that N2 and/or O2 contamination from the surrounding air did not affect the internal [O2] profiles of the tissue from 0.4 mm inwards. The [O2] measurements at both positions within a same fruit were also similar (Fig. 2b). It was not feasible to carry out [O2] measurement on blueberries before softening due to the potential of damaging the oxygen sensor tip. The fitted exponential functions showed that the internal [O2] in both strawberries and blueberries were relatively consistent across the measured depths and were well above the overall [O2] in grape berries (Fig. 3, Table 2). Strawberries and blueberries were not internally hypoxic {i.e. minimum [O2] above the Km for cytochrome c oxidase (0.14 μM) (Millar et al. 1994)}, contrary to wine grapes, within which [O2] can drop to 0 μmol L−1 during late ripening (Fig. 3, Table 2). Excised strawberry mesocarp tissues stained with FDA were fluorescent under UV, signifying a high level of cell vitality (Fig. 4).

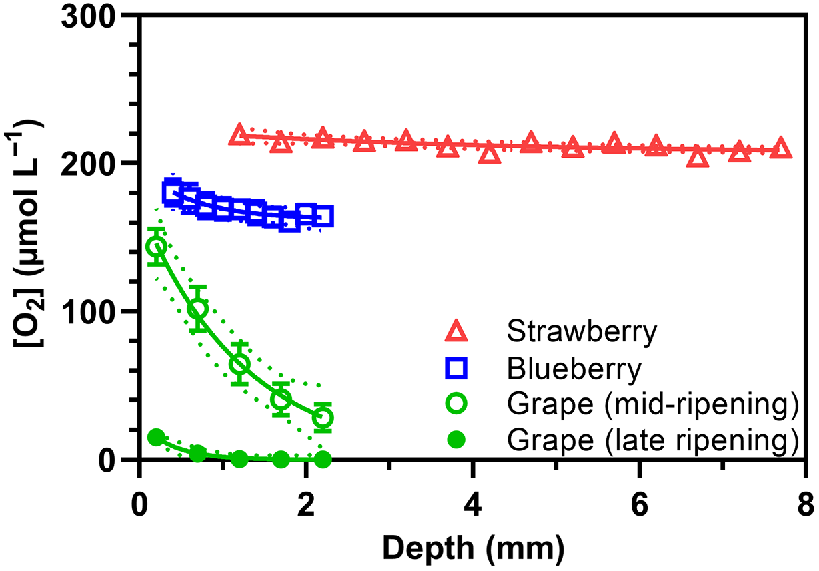

Fig. 3.  Internal [O2] profiles of strawberry (), blueberry () or grape at mid- () or late ripening (). Grape [O2] profiles are from Xiao et al. (2018a). The [O2] profiles were modelled (with 95% confidence interval) using Eqn 1 (Table 2) and the AICc gives a probability of >99.99% that individual curves fit each dataset. Error bars are s.e. (n = 3 or 4).
Click to zoom

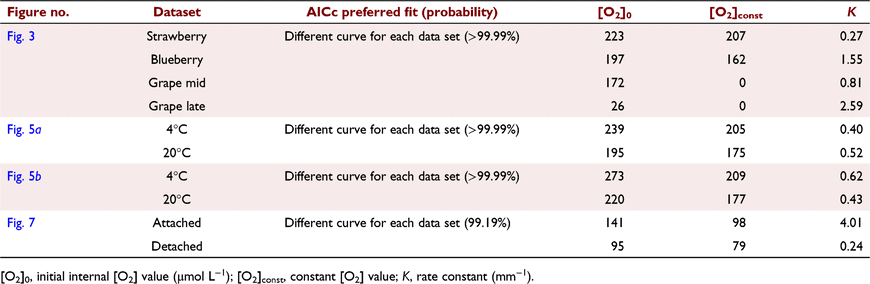

Table 2.  Summary of best fit values of Eqn 1 fitted to [O2] profiles in respective figures.
Click to zoom


Fig. 4.  Images of (a, c) excised strawberry (colour ripeness category: red) tissues and (b, d) their fluorescence with fluorescent diacetate (FDA) staining. Insets show the approximate excision positions by dashed lines. Scale bars are 5 mm. (ach, achenes; v, vascular bundles).
Click to zoom

After 40 h storage, strawberries consistently maintained a non-hypoxic internal status, and a slight drop in [O2] occurred from near the skin towards the inside of the fruit (no weight loss was observed in strawberries stored at either 4°C or 20°C) (Fig. 5). Noticeably, cold storage (4°C) resulted in higher [O2] across the measured region under the skin, at both positions on the fruit, relative to those strawberries stored at 20°C (Fig. 5, Table 2, see Supplementary Fig. S1). For cold-stored fruit, from the proximal end longitudinally towards the distal end, the [O2]const was 205 μmol L−1 (Fig. 5a, Table 2). Across the same depths, at the same position, the [O2]const was around 175 μmol L−1 for fruit stored at 20°C (Fig. 5a, Table 2). From the widest point perpendicular towards the central axis, the [O2]const in the cold-stored fruit was around 209 μmol L−1, whereas the [O2]const for the 20°C stored strawberries decreased to around 177 μmol L−1 (Fig. 5b, Table 2).

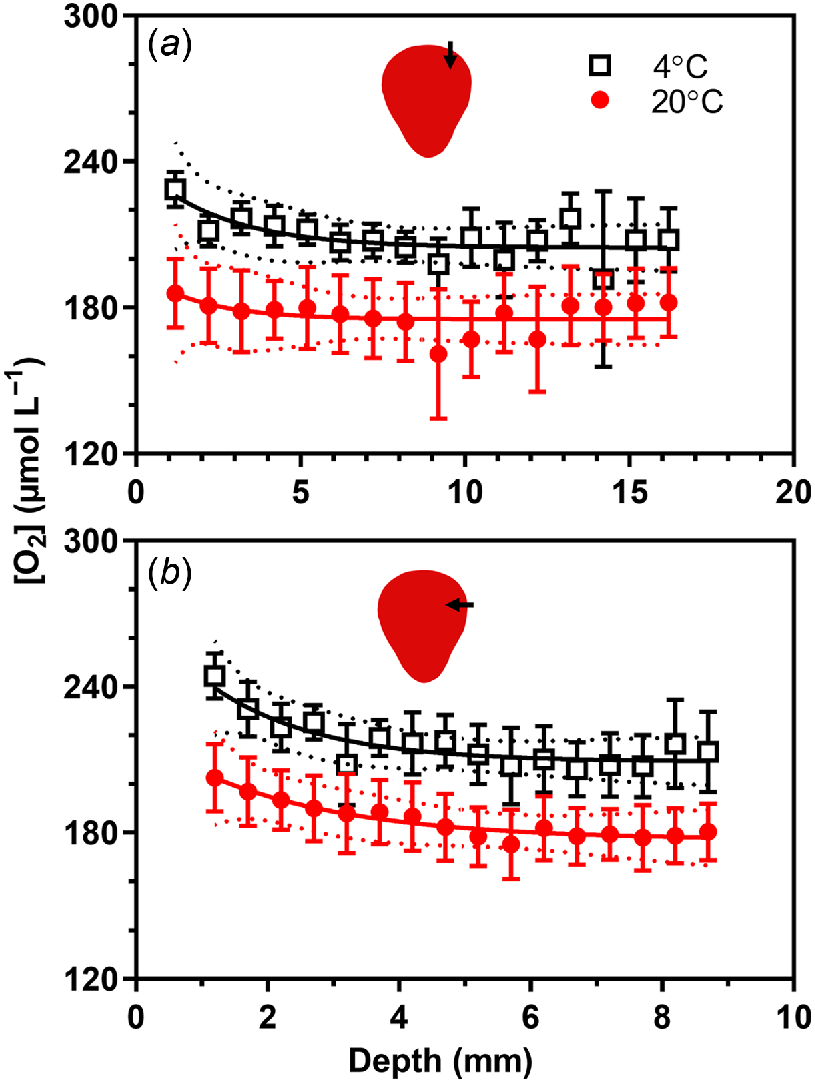

Fig. 5.  Strawberry [O2] profiles after 40 h storage at 20°C () (RH = 84%) and 4°C (□) (RH = 83%), (a) from the proximal end longitudinally towards the distal end and (b) from the widest point perpendicular towards the central axis. The [O2] profiles were modelled (with 95% confidence interval) using Eqn 1 (Table 2) and the AICc gives a probability of >99.99% that individual curves fit each dataset. Fruit temperature at the time of measurement was 22.2 ± 0.21°C (n = 8). Error bars are s.e. (n = 4). Insets: arrows indicate the approximate insertion locations of the microelectrode.
Click to zoom

After 12 h storage at 21.8°C, the weight loss of blueberries with intact pedicels was less (2.5%) than those that had no pedicels (2.9%) (Fig. 6). A high level of cell vitality was found in blueberries, as indicated by the highly fluorescent FDA-stained tissues (Fig. 6). Pedicel-attached fruit had higher internal [O2] compared to fruit with no pedicels, as indicated by different exponential functions fitted to the internal [O2] profiles (Fig. 7, Table 2, Supplementary Fig. S2).

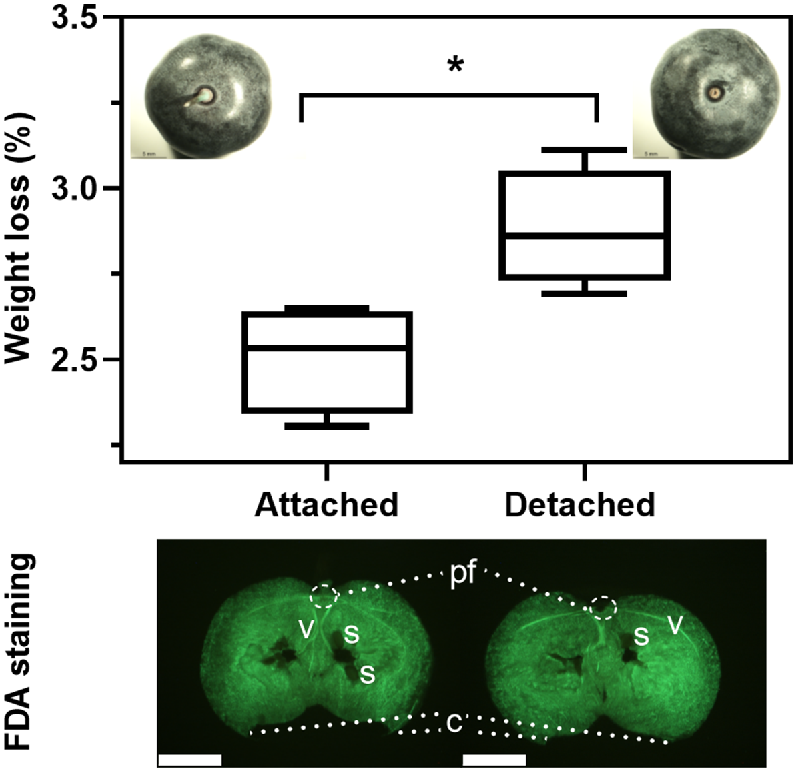

Fig. 6.  Weight loss of blueberries stored at 21.8°C (RH = 63%) overnight (12 h) with pedicel attached or detached and examples of fluorescent diacetate (FDA) staining on blueberry longitudinal cross-sections (insets: two pedicel detachment types). Statistical difference is indicated by * (t-test, P = 0.0186, n = 4). Scale bars are 5 mm. (v, vascular bundles; s, seed, c, calyx; pf, pedicel–fruit junction).
Click to zoom

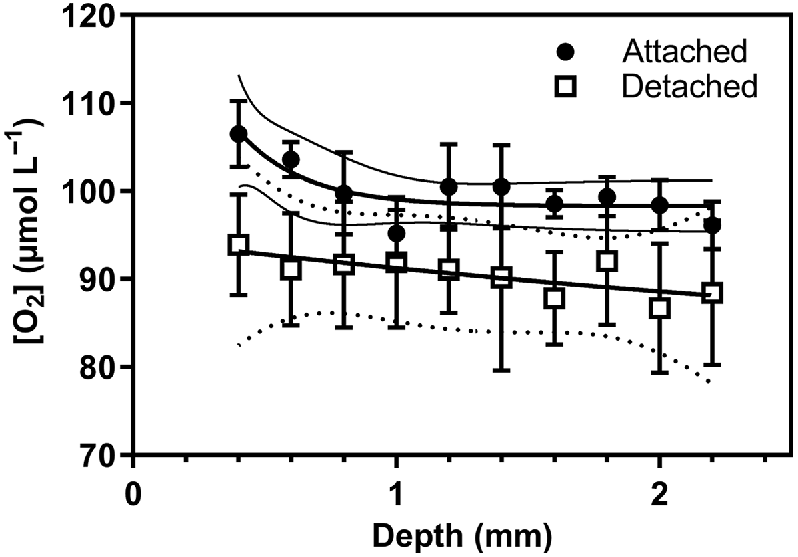

Fig. 7.  Blueberry [O2] profiles after 12 h storage at 21.8°C (RH = 62.9%) with pedicel attached (•) or detached (□) from the proximal end longitudinally towards the distal end. The [O2] profiles were modelled (with 95% confidence interval) using Eqn 1 (Table 2) and the AICc gives a probability of 99.77% that individual curves fit each dataset. Fruit temperature at the time of measurement was 22.4 ± 0.10°C (n = 8). Error bars are s.e. (n = 4).
Click to zoom

The 2D tomographic images of cross-sections of the strawberry show the location of the central cavity (Fig. 8a) as well as small intercellular voids (i.e. dark/black areas) (Fig. 8a, c). Intercellular voids were visualised and quantified within the mesocarp tissue (i.e. sub-volumes) of the strawberry (Fig. 8b, d). Porosity of the mesocarp of red strawberries declined from 8.61% at the proximal end to 0.41% at the distal region (Fig. 8b, d).


Fig. 8.  Tomographic images of the mesocarp of (a, distal and c, proximal) strawberries. Shown are 2D cross-sections obtained at 9 μm voxel resolution. Dark/black areas are intercellular voids and light/white areas are organic matter. The 3D modelling of the intercellular voids in the selected sub-volumes of (b, distal and d, proximal) strawberries [approximate positions of the sub-volumes are demonstrated by dash-lined rectangular boxes (not to scale) in a and c]. Intercellular voids are labelled light yellow within the sub-volumes, marked transparent green. Sub-volumes excluded the larger cavities, such as the central cavity in (a). Scale bars are 1 mm. Porosity is shown as mean ± s.e., n = 4. The t-test showed porosity between the distal and proximal sub-volumes were different (P < 0.05).
Click to zoom


Discussion

The minimum [O2] of freshly harvested strawberry and blueberry remained above 200 μmol L−1 and 160 μmol L−1, respectively. This contrasts with the grape berry, which became hypoxic (0–15 μmol L−1) during late ripening (Xiao et al. 2018a). Grapes, strawberry and blueberry are non-climacteric fruit with no dramatic changes in respiration during late ripening (Kuhn et al. 2013; Oh et al. 2018; Chen et al. 2020). However, O2 gradients occur within most fruit tissues and the steepness of the decreasing gradient depends on internal respiratory demand (Verboven et al. 2008) and the tissue’s proximity to a locule cavity and/or the tissue porosity (Xiao et al. 2018a). The high internal [O2] of the strawberry was coupled with high mesocarp porosity, likely supporting any respiratory requirement of these cells so that they were found to remain vital here. In seeded Chardonnay grapes, both low berry skin gas permeability and the high respiratory demand of the seeds contributed to the reduced berry internal [O2] (Xiao et al. 2018a). In contrast, strawberries and blueberries have small seeds relative to the size of the fruit, and in the case of the strawberry they are located on the exterior of the fleshy receptacle.

Similar average [O2] in strawberries between colour ripeness groups suggest any change in respiratory demand within the strawberry may be negligible as the strawberry matures. However, in contrast to the seeded grape berries, the respiratory increase during ripening resulted in hypoxia, which correlated with mesocarp cell death (Xiao et al. 2018a). O2 diffusivity of fruit internal tissues depends on the amount and connectivity of the intercellular voids (Xiao et al. 2021). A considerable volume of intercellular voids was apparent in strawberry receptacle tissues (Fig. 8b, d), potentially facilitating O2 diffusion within the deeper internal tissue. This contrasts with grape (cv. Shiraz) berries, which were found to show a significant decrease in the amount of intercellular voids in the hypoxic mesocarp during late ripening (Xiao et al. 2018b). Both strawberry and blueberry were reported to have a central cavity and/or locular cavities (Pomper and Breen 1995; Johnson et al. 2011), which may supply O2 to other internal tissues. This was also exemplified in the tomographic images obtained in this study (Fig. 8a, Fig. S3). It was also possible that smaller voids below the segmenting threshold (i.e. less than 500 voxels) may contribute to O2 availability within the sub-volumes. Both strawberry and blueberry were found to maintain high levels of cell vitality into maturation, and this is likely due to high oxygen diffusivity and availability in the cortex. The high level of cell vitality in the strawberries shown here may facilitate the interdependent development of the receptacle (i.e. the strawberry) and achenes during the late ripening stages (Fait et al. 2008). While organic acids are distributed uniformly through the strawberry, sugar content is usually higher in the apex (distal end) (Enomoto et al. 2018; Ikegaya et al. 2019). Strawberry fruit maintained high internal [O2] at both distal and proximal ends during development, which suggests oxygen availability is not linked and/or indirectly linked to sugar accumulation and distribution within the cortex. However, lower porosity was found in the distal region and further investigation is warranted to determine if this is related to sugar distribution.

A gentle stream of N2 was applied to the insertion point of the oxygen sensor to test whether the insertion point could introduce air into the pierced fruit and therefore affect [O2] during measurement. The data indicated that the drop in [O2] caused by N2 was limited to the measurement point closest to the skin, and at deeper depths there was no impact of the N2 during the measurement (i.e. within 5 min). The significant drop of [O2] in the region close to the skin of both fruit when N2 was applied suggests the insertion point could be leaky to the N2 stream. However, it is unlikely that leakage of air due to the insertion of the sensor could have resulted in the relatively high overall internal [O2] in the strawberry and blueberry observed here, since the N2 gas stream only affected the cell layers from the fruit surface to a depth of 0.2 mm (Figs 1a, 2a).

It is possible that the skin also has high gas permeability. The effectiveness of the formulated air (e.g. increased [CO2]) used to slow the decay of the strawberry, stored in a modified atmosphere (El-Kazzaz et al. 1983), could be facilitated by both a porous cortex and a low gas permeation resistant epidermis. To further support this, all tissues (internal or external) can be subjected to respiratory shifts caused by any change in atmospheric composition (Li and Kader 1989; Beaudry et al. 1992; Wszelaki and Mitcham 2000). Further study is warranted to determine the efficiency of gas permeability of the epidermis in strawberry and blueberry more accurately. While [O2] was maintained at similar levels between the depths measured in the present study after short-term storage for both fruit, respiration and homeostasis of the cortex may be disrupted when stored within formulated air due to steepening of the internal [O2] gradient in prolonged storage. For example, anthocyanin synthesis continues post-harvest in strawberry and in the internal tissue this process was hindered compared to external tissue when subjected to storage in a CO2 enriched environment for up to 10 days at 5°C (Holcroft and Kader 1999).

When strawberries were stored at 4°C for 40 h, and then allowed to re-equilibrate to ambient temperature, they showed a higher overall internal [O2] at both the proximal end and the widest point compared to strawberries stored at a constant 20°C. Since the cells remained vital, higher temperature during post-harvest storage likely stimulated respiration (Barrios et al. 2014). No weight loss was observed in either storage temperatures and this was likely due to the low vapour pressure deficit (Nunes et al. 1998), resulting from the high RH inside the storage containers.

The stem scar contributes to moisture loss during postharvest storage of blueberry (Moggia et al. 2017). Indeed, a greater weight loss was observed in blueberries harvested without a pedicel compared to those where the pedicel was attached. A decrease of internal [O2], as measured at the microelectrode position near the stem scar (i.e. proximal position), was also observed in blueberries with the pedicel detached. The removal of the pedicel, potentially leads to occlusion (e.g. tissue collapse and/or lignification) at the scar site (Moggia et al. 2017), may have reduced gas exchange, since lenticels on the pedicel can act as gas exchange sites between the atmosphere and the fruit (Xiao et al. 2018a). Greater water loss could also lead to cells collapsing thereby reducing the volume of intercellular voids and further restricting O2 availability (Xiao et al. 2018b). Green (i.e. chlorophyll containing) pedicels may also contribute to the higher internal [O2] observed in the pedicel-attached blueberries due to photosynthetic activities (Hetherington et al. 1998). These results suggest harvesting blueberries with the pedicel attached could prolong post-harvest quality by retaining fresh weight and intercellular structure.


Conclusion

Fruit internal O2 status is an important cue for postharvest fruit quality and is associated with fruit internal structure. In the present work, strawberries and blueberries at maturity showed high internal [O2] most probably due to the extensive intracellular voids and/or proximity to internal cavities. These features could be responsible for the effectiveness of modified storage conditions post-harvest. Lowered storage temperature may decrease respiration of the vital strawberry cortex and the fruit showed higher internal [O2] when re-equilibrated to ambient temperature. Water loss and O2 depletion were both reduced by harvesting blueberries with the pedicel attached, an alternative harvesting method with no additional cost. The data presented also demonstrated that the oxygen sensing technique can accurately assess fruit internal [O2] and could be applied as a rapid-sensing tool that monitors fruit health during storage.


Supplementary material

Supplementary material is available online.


Data availability

The data that support this study are available in the article and accompanying online supplementary material.


Conflicts of interest

The authors declare no conflicts of interest.


Declaration of funding

This work was supported by the Gulbali Institute, Charles Sturt University and Australian Research Council Training Centre for Innovative Wine Production, funded by the Australian Government (IC170100008) with additional support from Wine Australia and industry partners.



Acknowledgements

The authors thank Ms Wendy Sullivan, Dr Scott Willis and Ms. Helen Pan for expert technical assistance and acknowledge the facilities and assistance of the University of Adelaide and the National Imaging Facility at the Biomedical Magnetic Resonance Facility, Western Sydney University. The authors thank The Beerenberg Family Farm (SA), Berrylicious Strawberries (NSW) and The Blueberry Patch (SA) for sampling at their farms.
